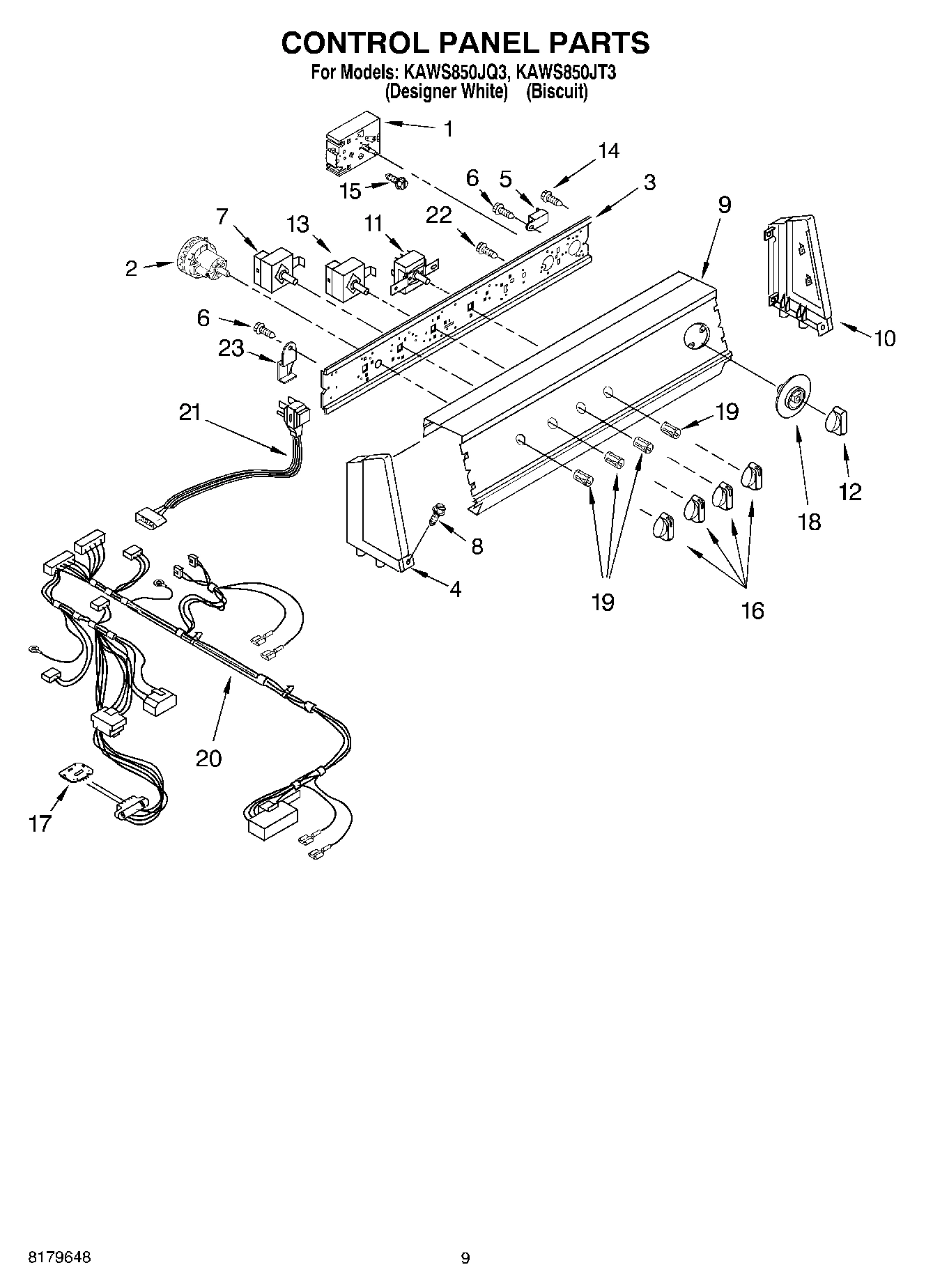

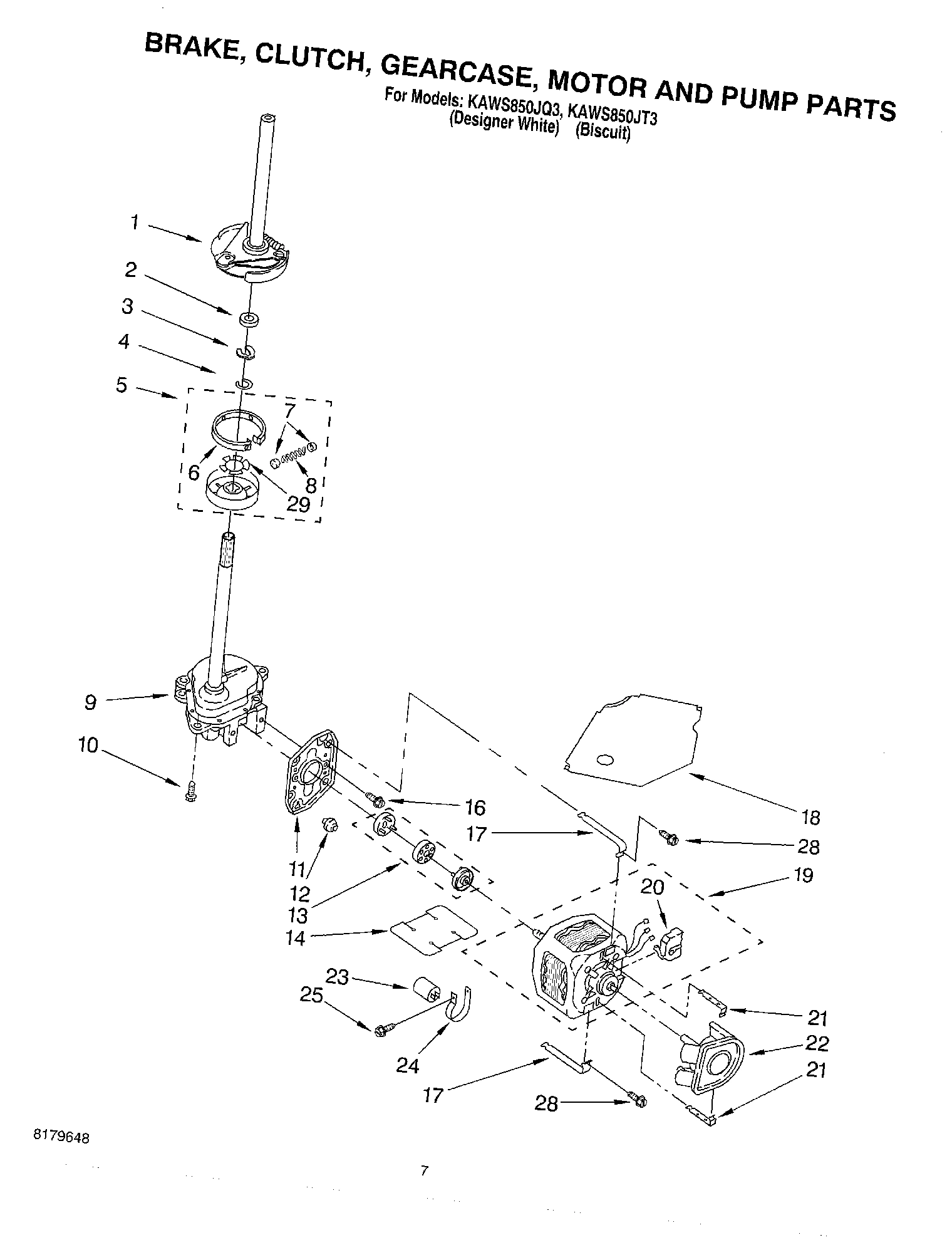

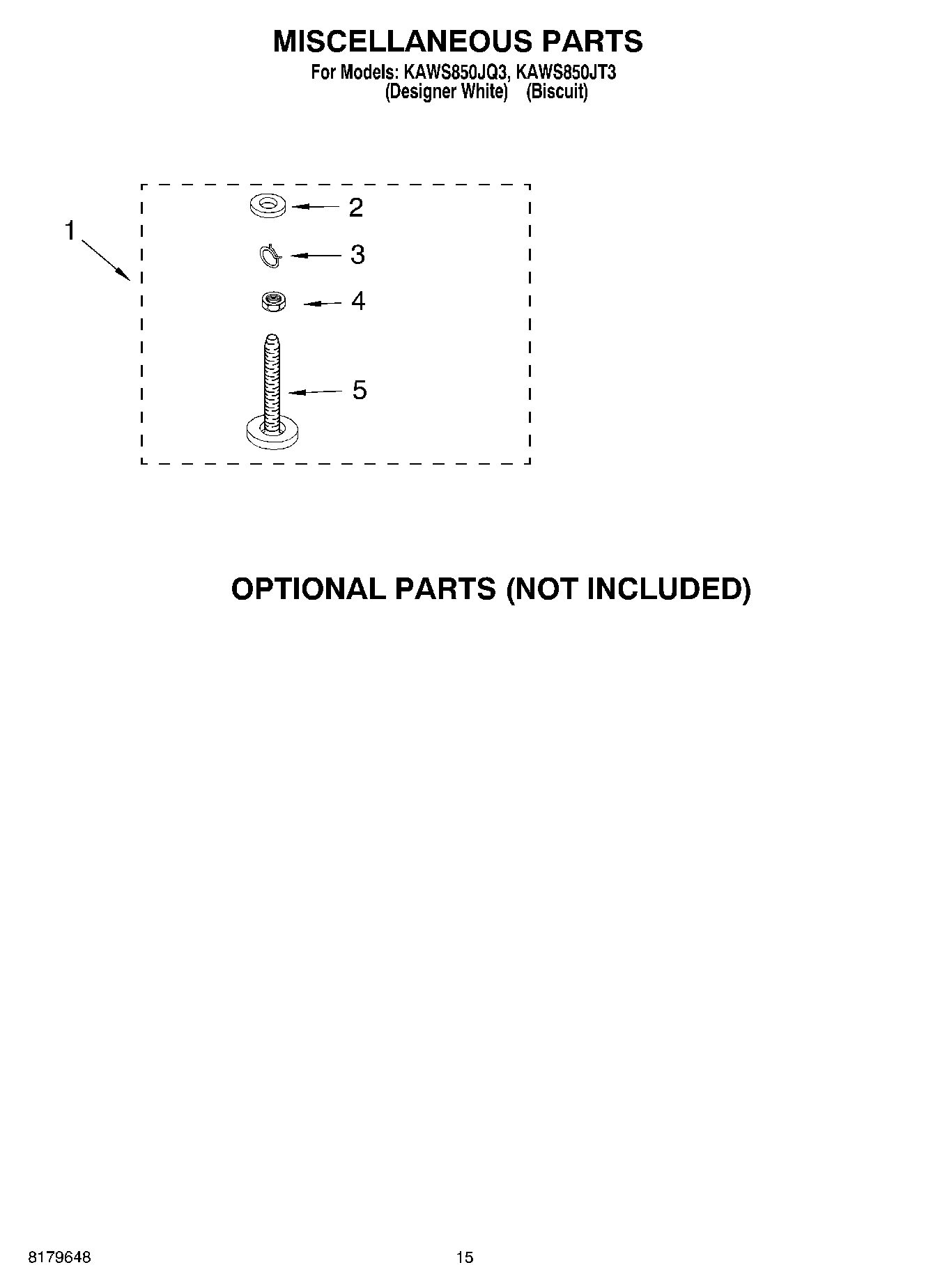

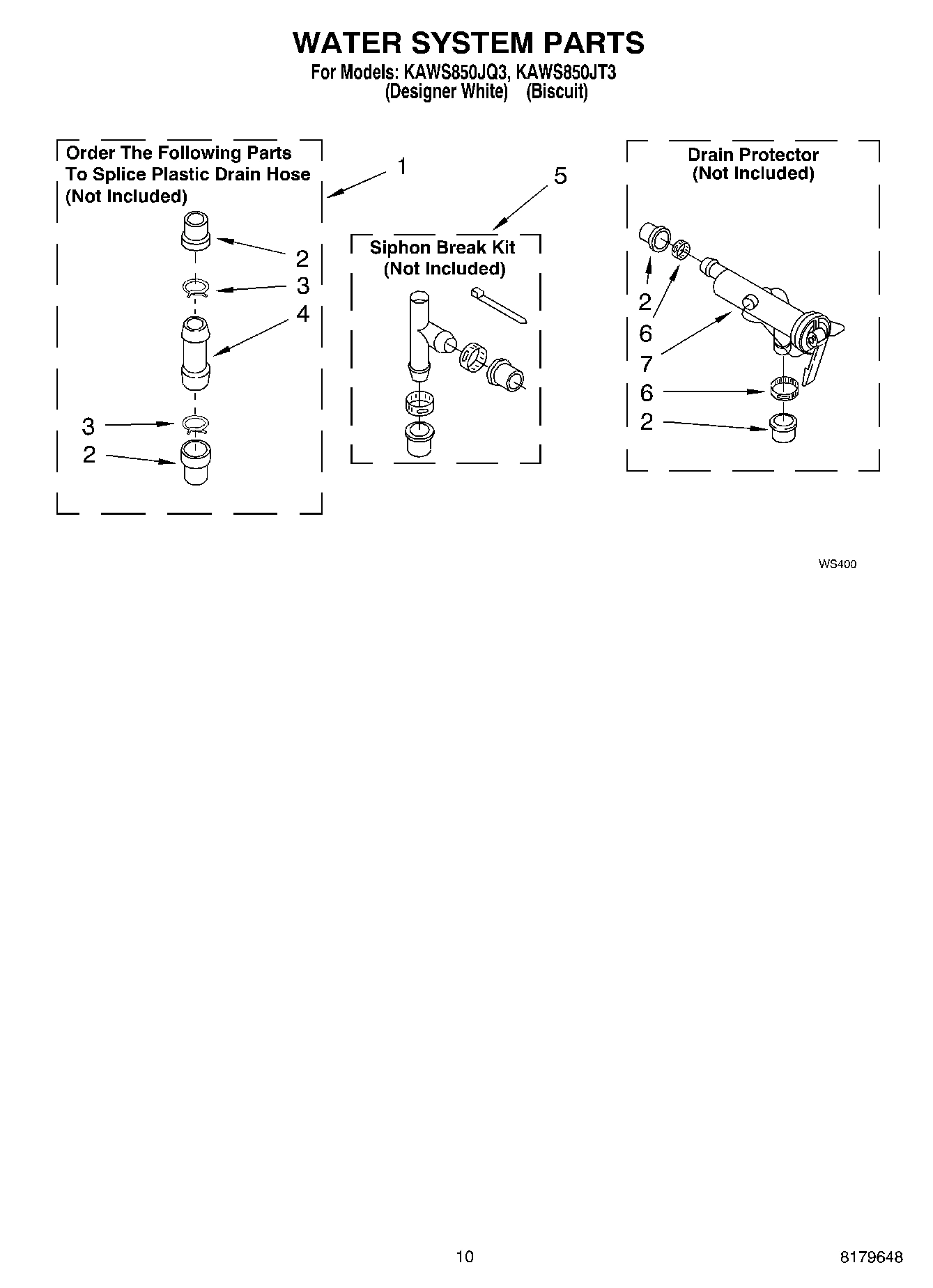

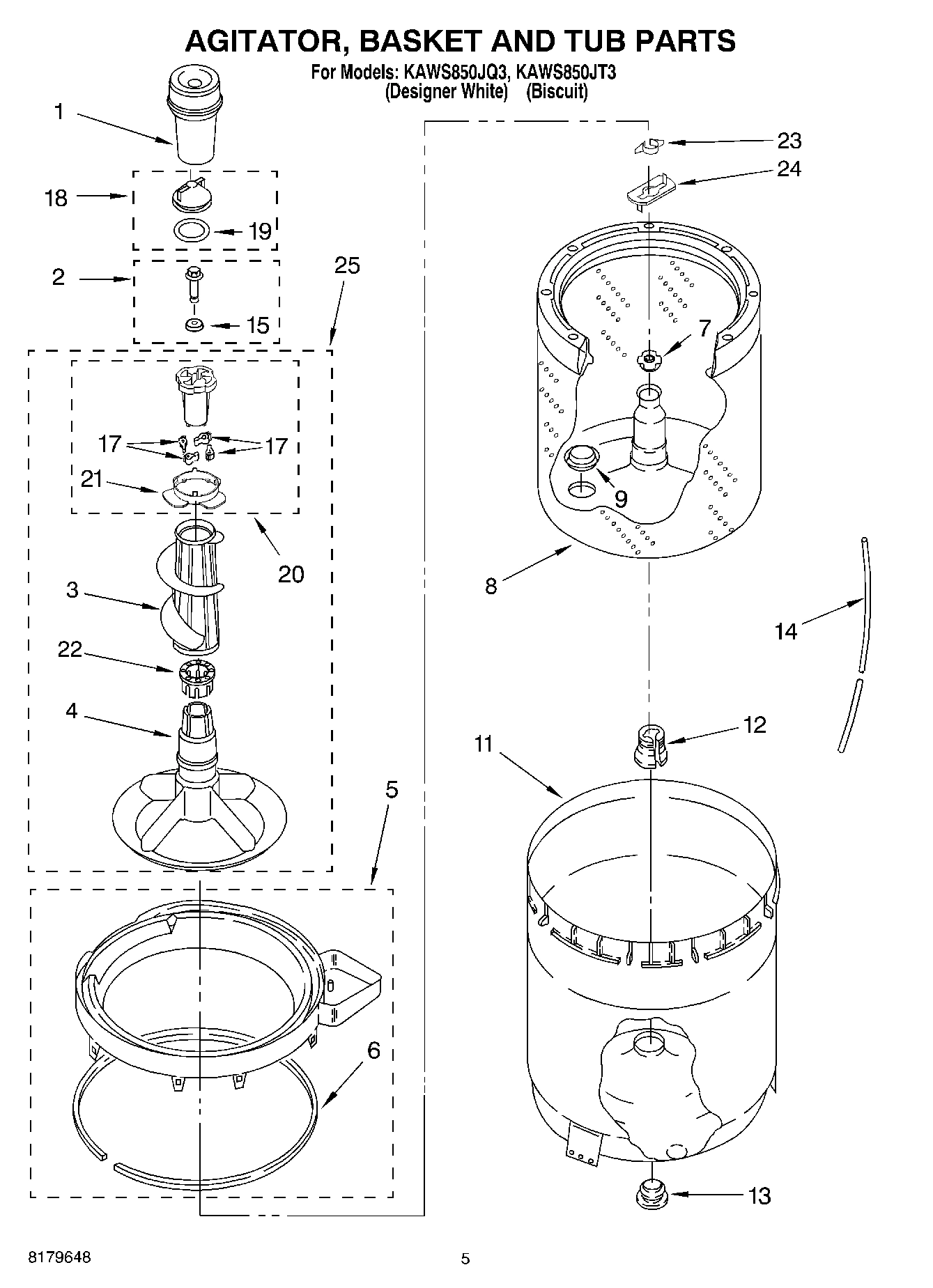

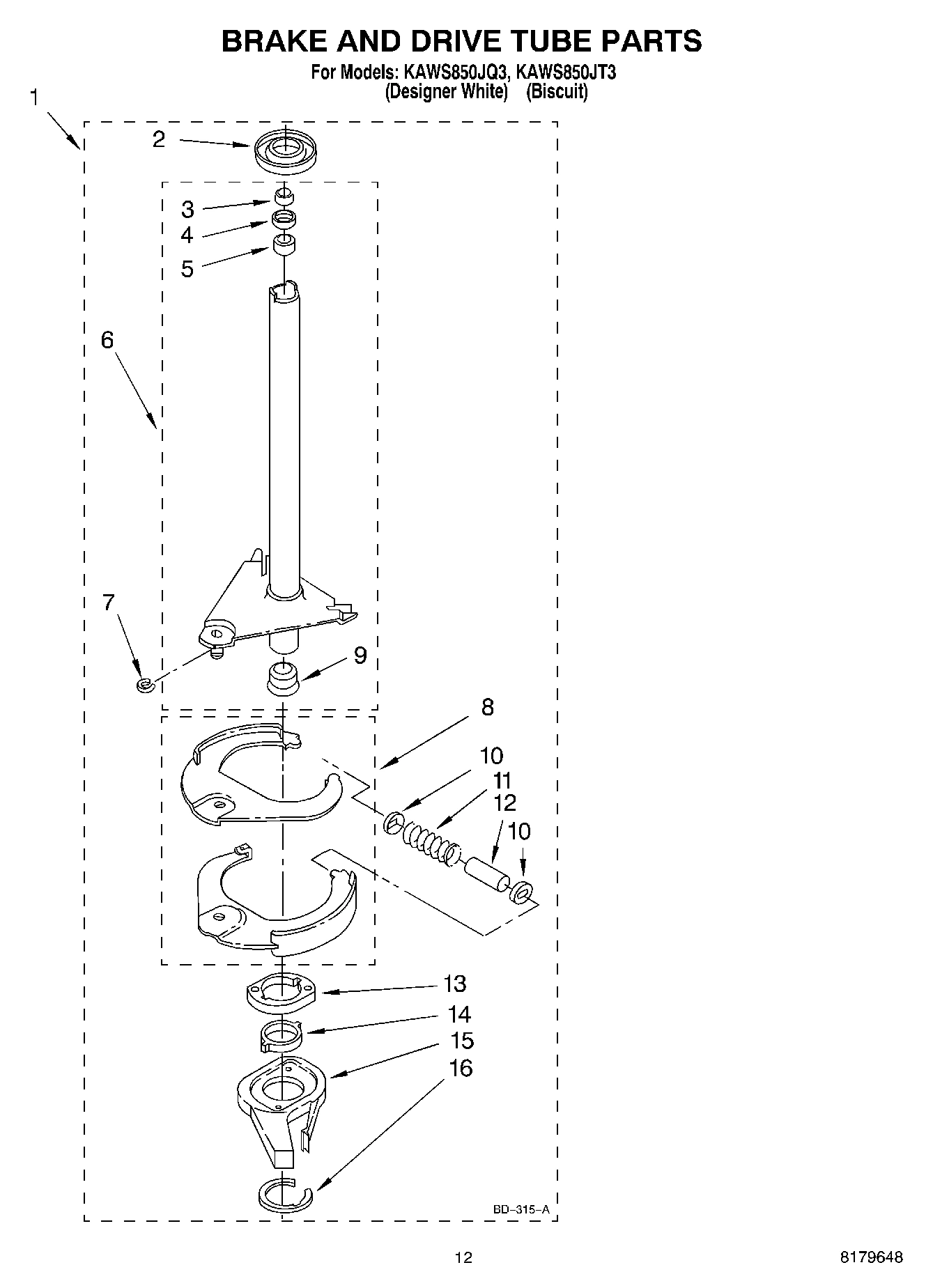

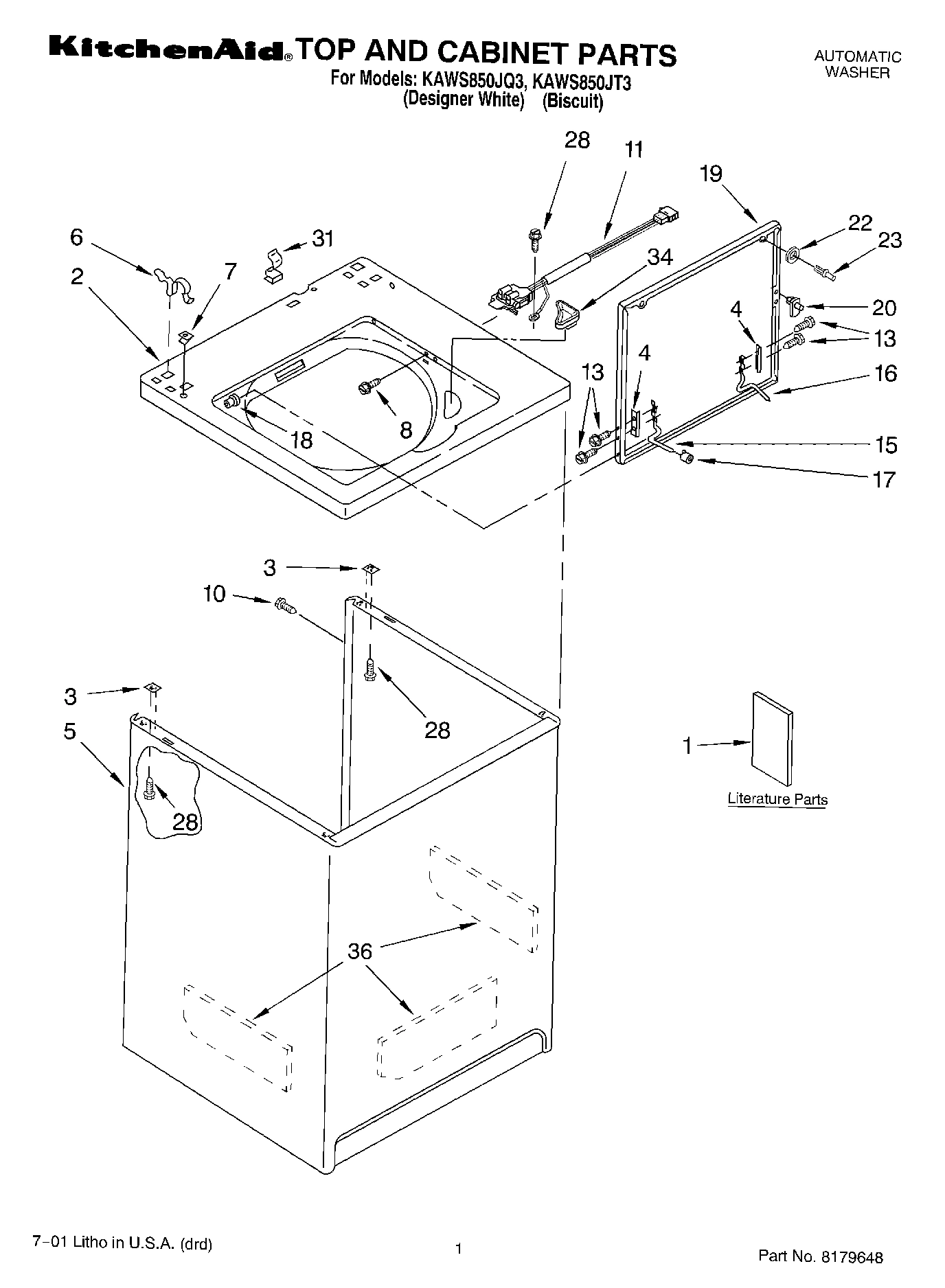

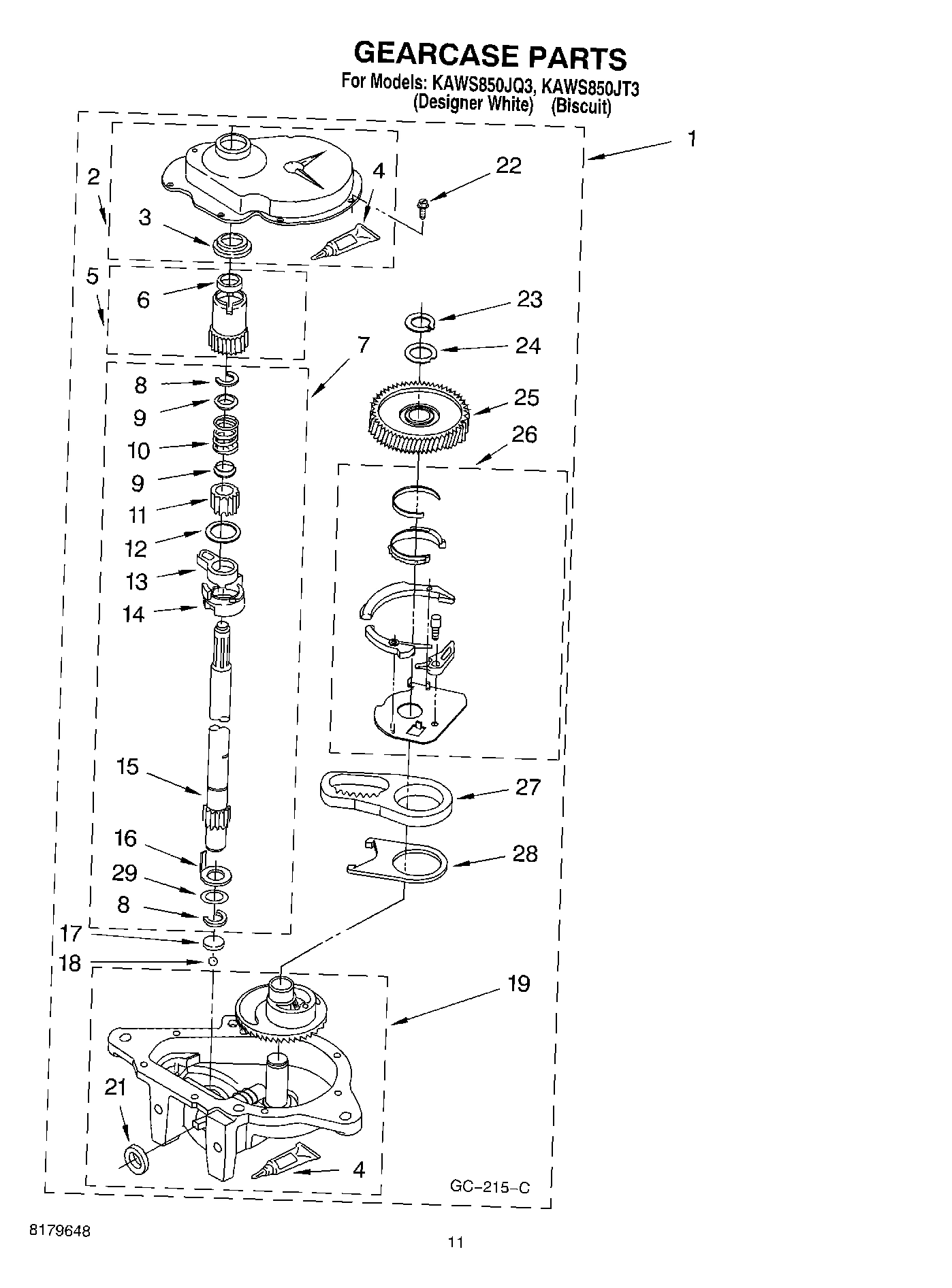

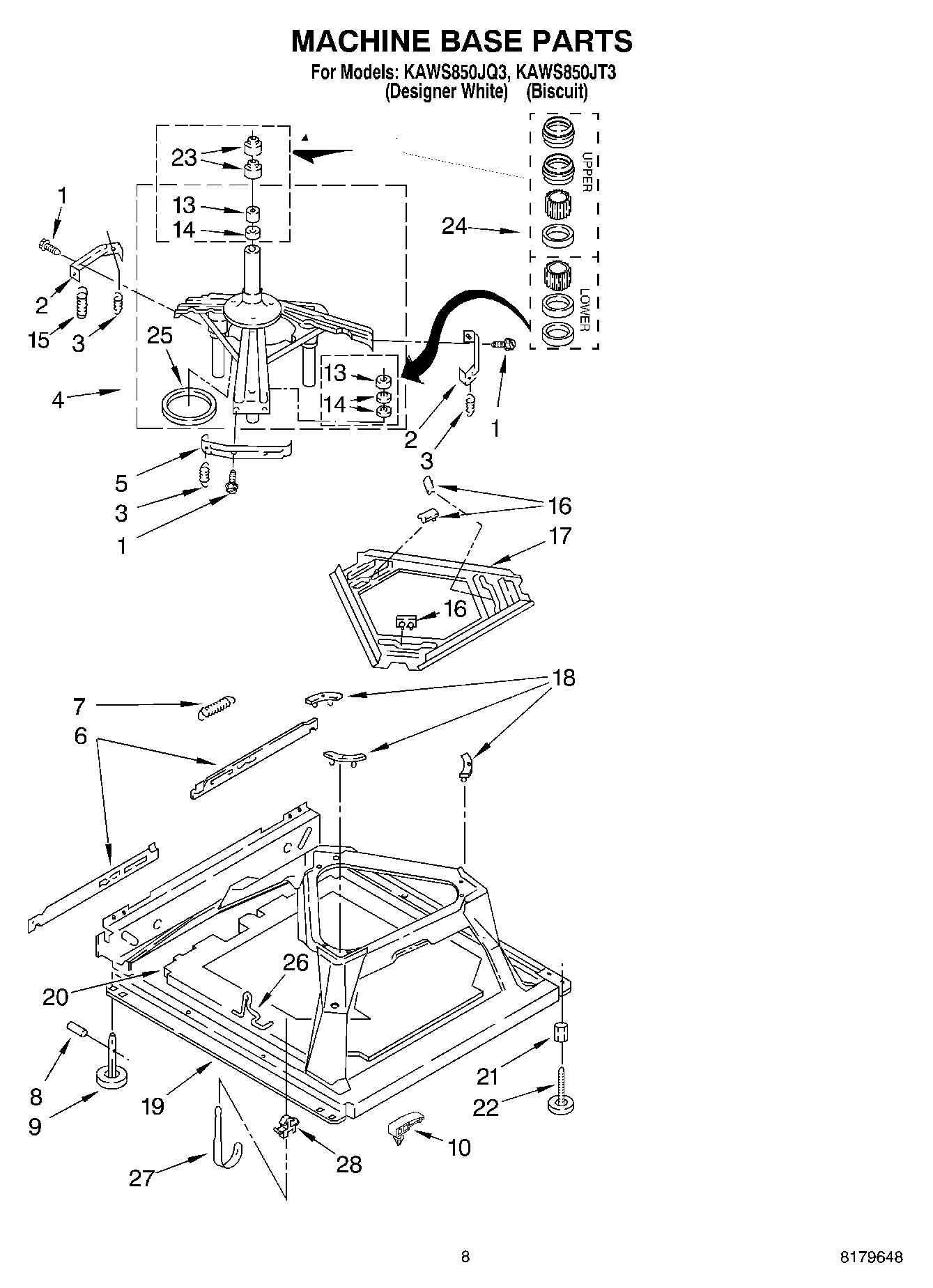

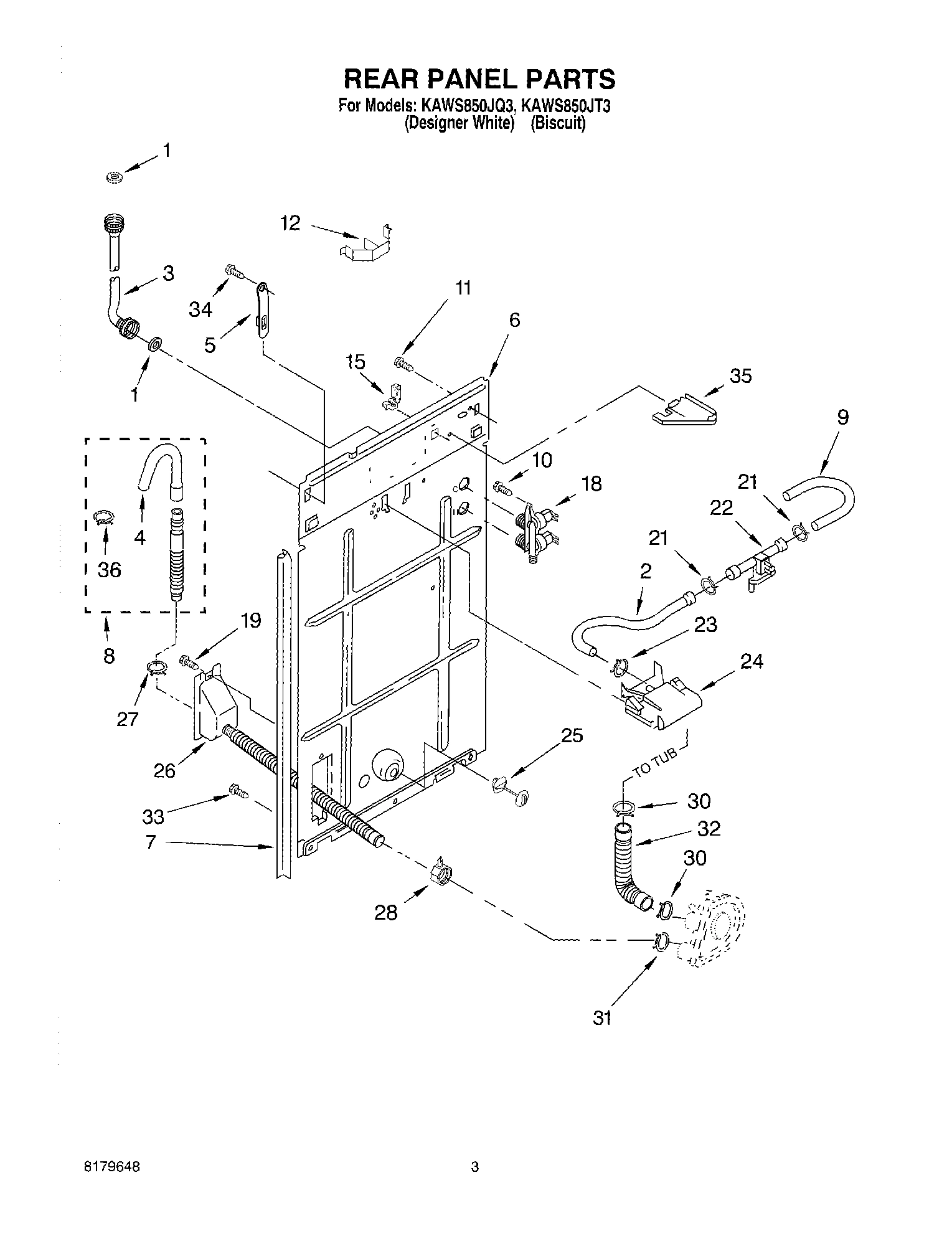

Model Whirlpool KAWS850JT3 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.99

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

1

WP3954915 Whirlpool Timer Backorder WPL WP3954915 $232.68

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Literature Parts (Use & Care Guide) (English) WPL LIT3950453 Contact Us For Availability

1

Literature Parts (Use & Care Guide) (French) WPL LIT3951069 Contact Us For Availability

1

Installation Instructions WPL LIT3951188 Contact Us For Availability

1

Literature Parts (Use & Care Guide) (Energy G WPL LIT3954862 Contact Us For Availability

1

Literature Parts (Use & Care Guide) (Wiring D WPL LIT3955180 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

285321 Whirlpool Sleeve Backorder WPL 285321 $54.14

2

WP3349365 Whirlpool Hose In Stock WPL WP3349365 $14.99

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

Top (White) WPL 8271383 Contact Us For Availability

2

Top (Biscuit) WPL 8271385 Contact Us For Availability

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

3

Clothes Mover WPL 3950581 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

4

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $54.71

5

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

5

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

5

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

5

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

5

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

5

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

5

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $58.36

5

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $88.11

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

5

Cabinet (Biscuit) WPL 3954357 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $6.49

7

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

7

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

8

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $22.99

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP3357319 Whirlpool Hose In Stock WPL WP3357319 $17.73

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

Cap End (R.H.) (Biscuit) WPL 8274351 Contact Us For Availability

Clip, Sound Board WPL 3976276 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $14.02

3949247V Whirlpool Washer Lid Switch Assembly In Stock WPL 3949247V $49.99

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $191.99

WP62611 Whirlpool Plate In Stock WPL WP62611 $76.63

Switch, Rotary WPL 3952578 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

Knob, Timer (White) WPL 8529309 Contact Us For Availability

Knob, Timer (Biscuit) WPL 8529310 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

W10168264 Whirlpool Cycle Switch Backorder WPL W10168264 $90.24

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

14

W11095997 Whirlpool Seal In Stock WPL W11095997 $13.63

14

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $4.82

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.99

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $22.76

WP91770 Whirlpool Hinge In Stock WPL WP91770 $17.43

Knob, Control (Includes No.19) (White) WPL 3949700 Contact Us For Availability

Knob, Control (Includes No.19) (Biscuit) WPL 3949704 Contact Us For Availability

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Control, ETC WPL 3407125 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.99

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

Dial, Timer (White) WPL 8274410 Contact Us For Availability

Dial, Timer (Biscuit) WPL 8274411 Contact Us For Availability

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.98

WPW10193854 Whirlpool Lid Assembly Backorder WPL WPW10193854 $236.76

Motor, Main Drive WPL 3350418 Contact Us For Availability

Lid (Biscuit) WPL 3362333 Contact Us For Availability

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3946512 Contact Us For Availability

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $8.99

Harness, Wire (For Detail See Parts Page) WPL 3955018 Contact Us For Availability

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

Sound, Absorber WPL 8283230 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $95.99

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.82

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

3400073 Whirlpool Screw Backorder WPL 3400073 $5.85

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $50.94

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

Sensor-ETC-Inline WPL 3352282 Contact Us For Availability

Bumper, Lid WPL 3360787 Contact Us For Availability

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

WP356907 Whirlpool Rivet Backorder WPL WP356907 $4.82

WP8572720 Whirlpool Capacitor In Stock WPL WP8572720 $77.77

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.99

Retainer, Harness WPL 8283343 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

24

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

25

Agitator (Complete Asy.) WPL 3950579 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $6.57

26

Drain Hose Assembly WPL 8317941 Contact Us For Availability

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

27

Hanger, Drain Hose WPL 3350281 Contact Us For Availability

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

Clamp, Hose WPL 3976395 Contact Us For Availability

Clip-Snap In (Drain Hose) WPL 3350282 Contact Us For Availability

29

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

34

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.99

36

Sound-Damper (Cabinet) WPL 3349654 Contact Us For Availability
