Model Whirlpool IP42002 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

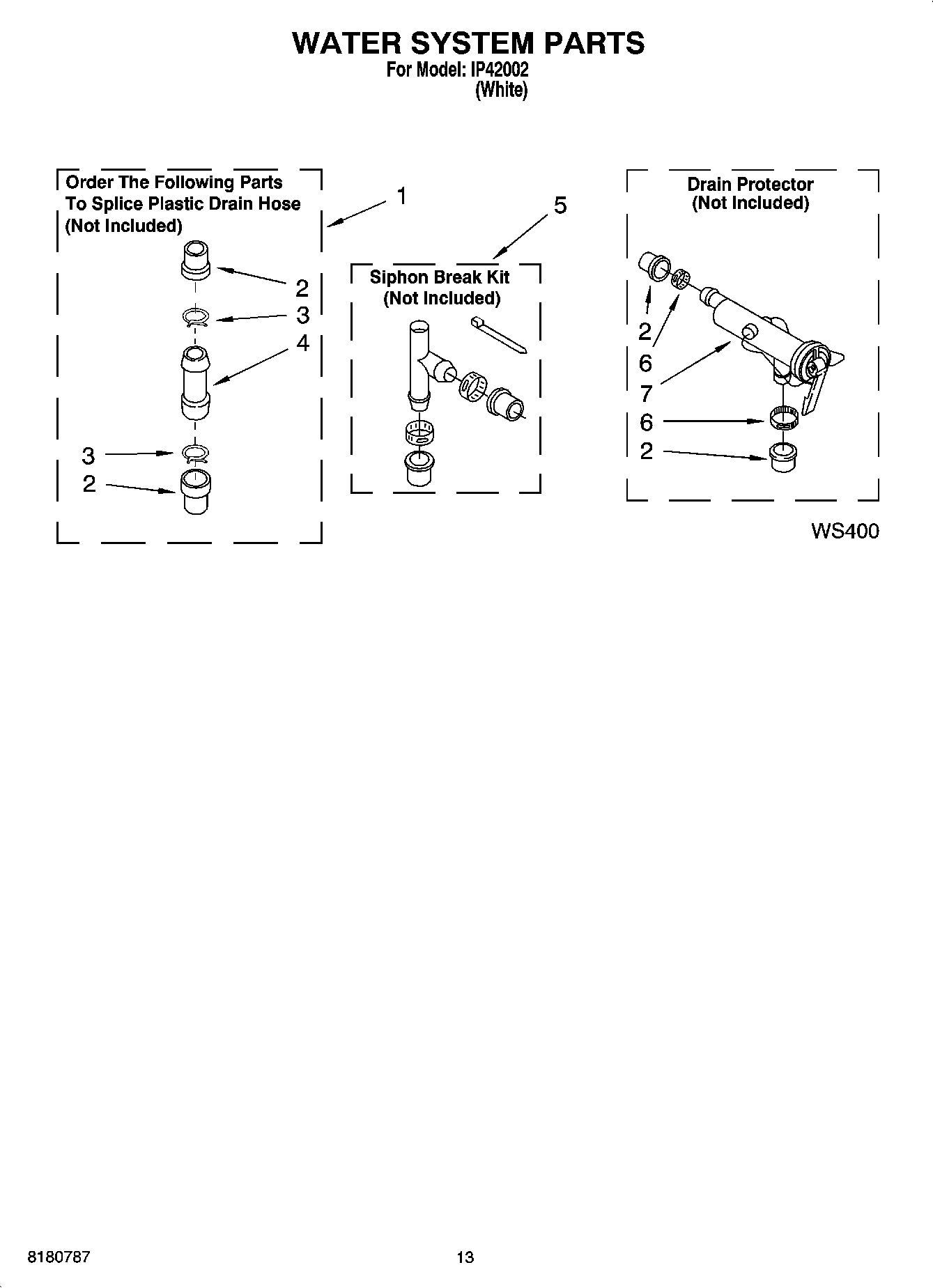

Drain Protector WPL 367031 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

OIL WPL ARI152819A Contact Us For Availability

LUBRICANT WPL ARI152820A Contact Us For Availability

SEALER WPL ARI152821A Contact Us For Availability

ACCESSORY PARTS WPL ARI152822A Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $59.26

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.99

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Use & Care Guide WPL 3955877 Contact Us For Availability

1

Feature Sheet WPL 3955923 Contact Us For Availability

1

Installation Instructions WPL 3956025 Contact Us For Availability

1

Wiring Diagram WPL 8546687 Contact Us For Availability

1

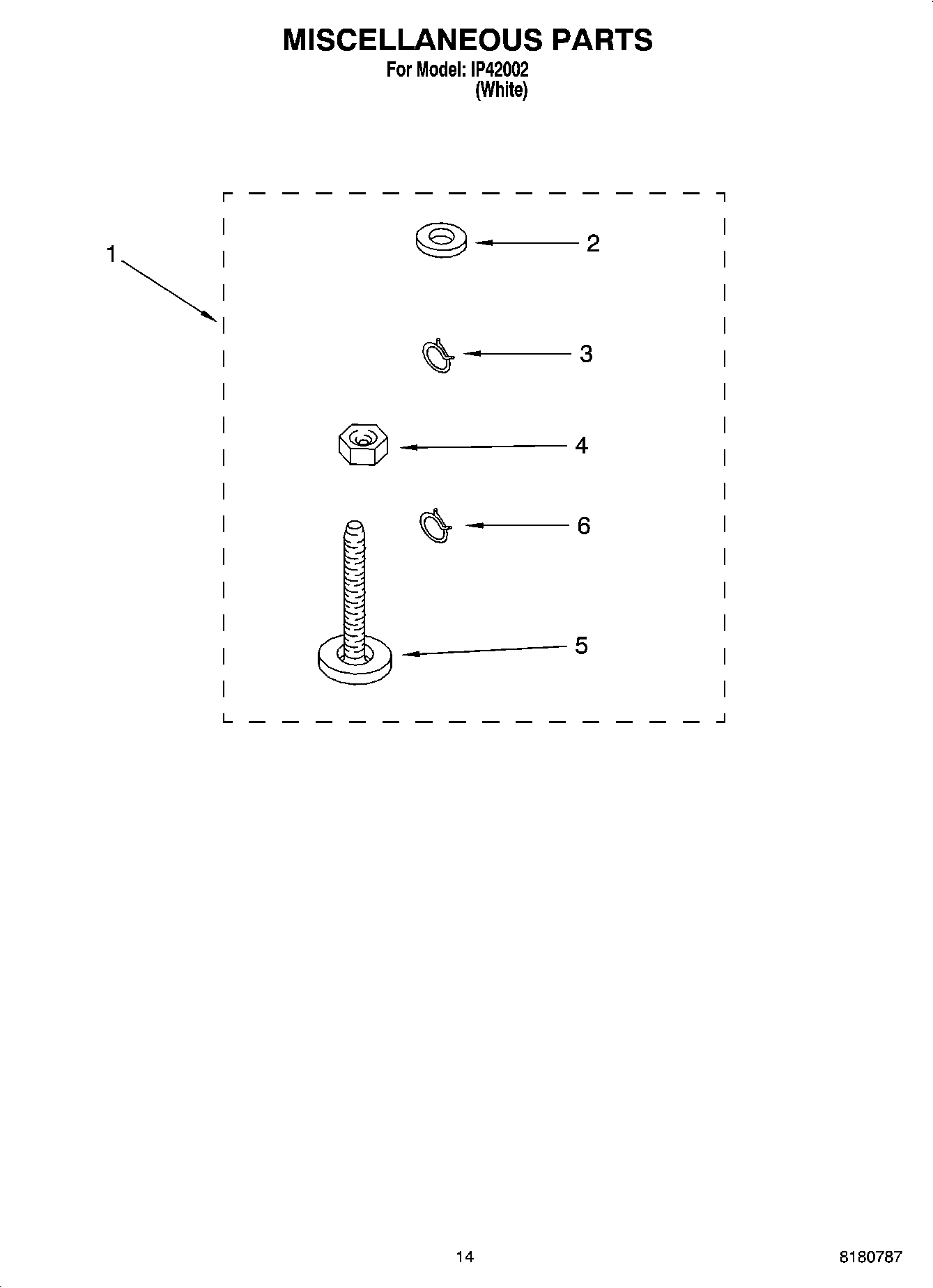

Miscellaneous Parts Bag WPL 3976263 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

285321 Whirlpool Sleeve Backorder WPL 285321 $54.14

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

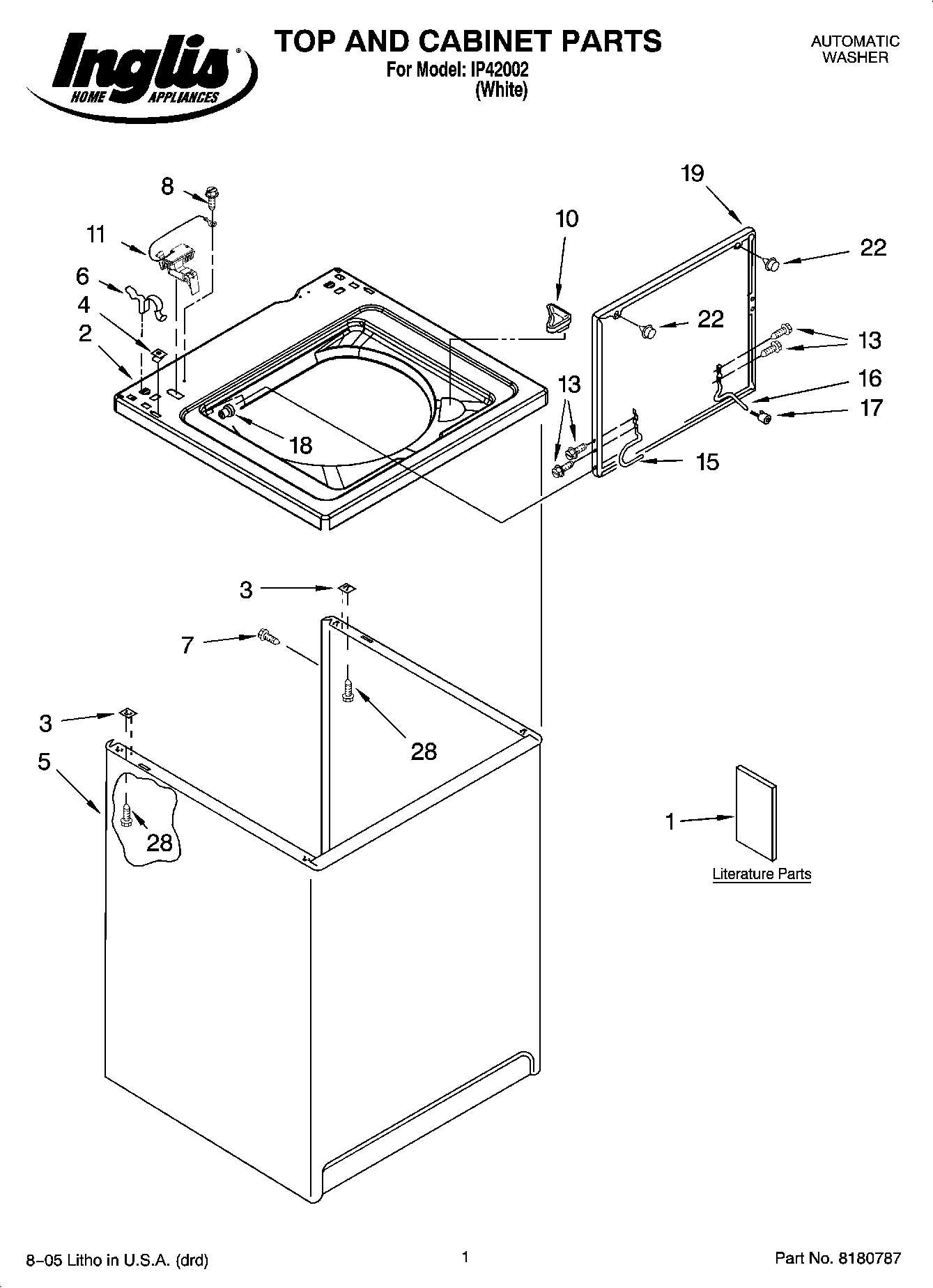

TOP WPL 8318064 Contact Us For Availability

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $160.05

3

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

4

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $89.99

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $129.85

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

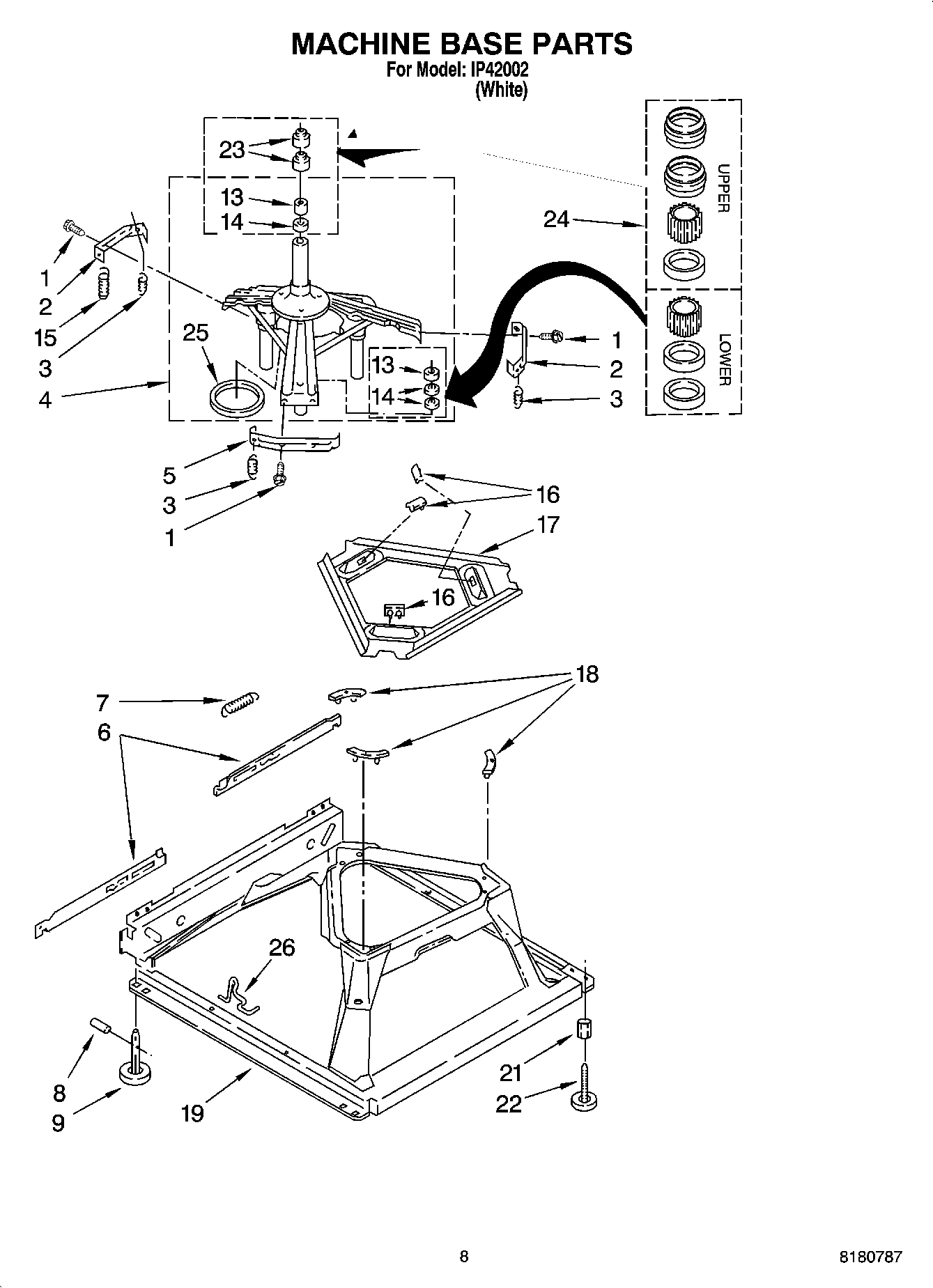

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $12.99

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $6.91

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $11.96

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

9

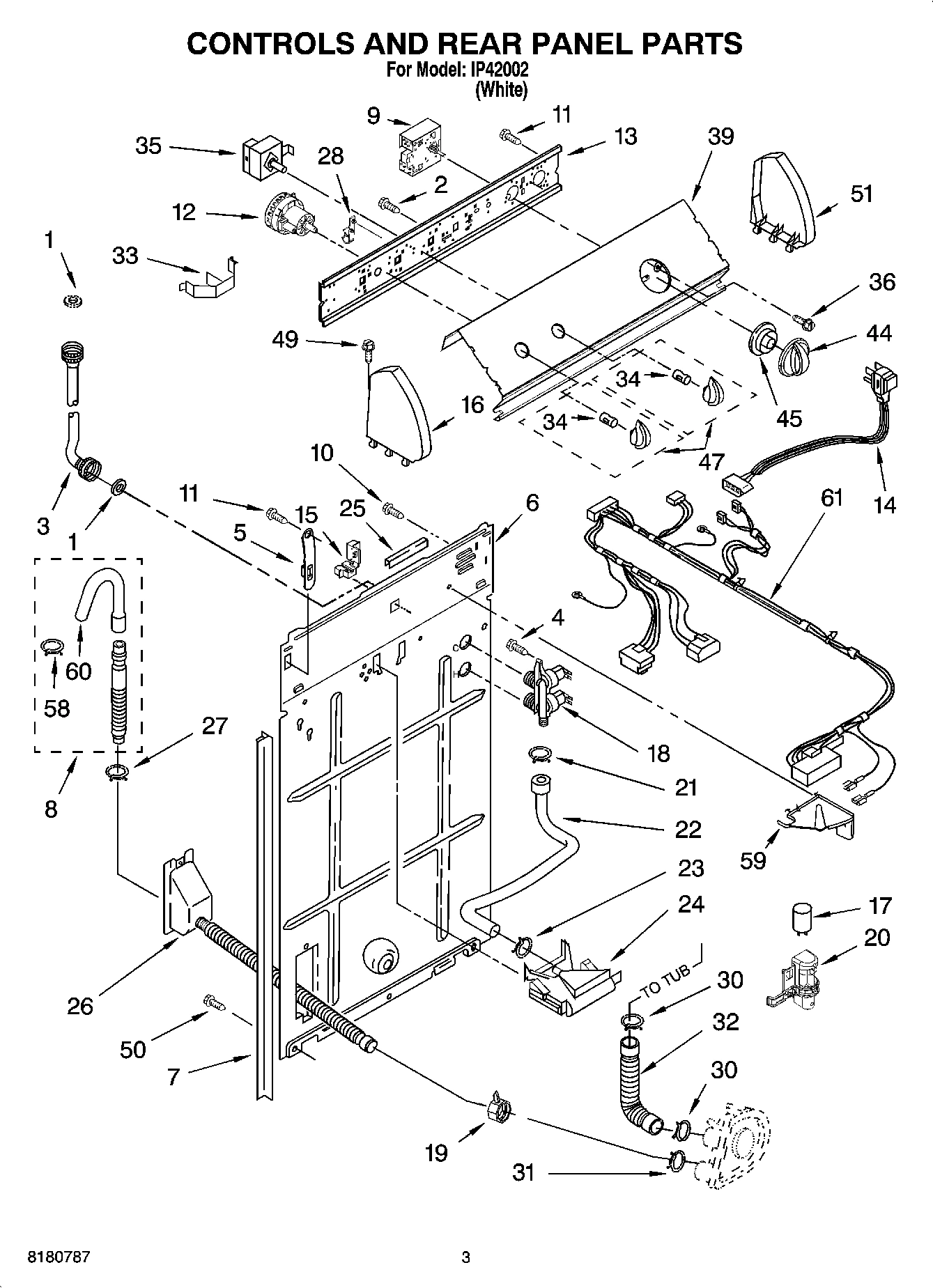

WP8546685 Whirlpool Timer In Stock WPL WP8546685 $269.99

353424 Whirlpool Connector Backorder WPL 353424 $14.02

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $2.61

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.99

Spring, Agitate WPL 62676 Contact Us For Availability

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.82

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $40.99

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

13

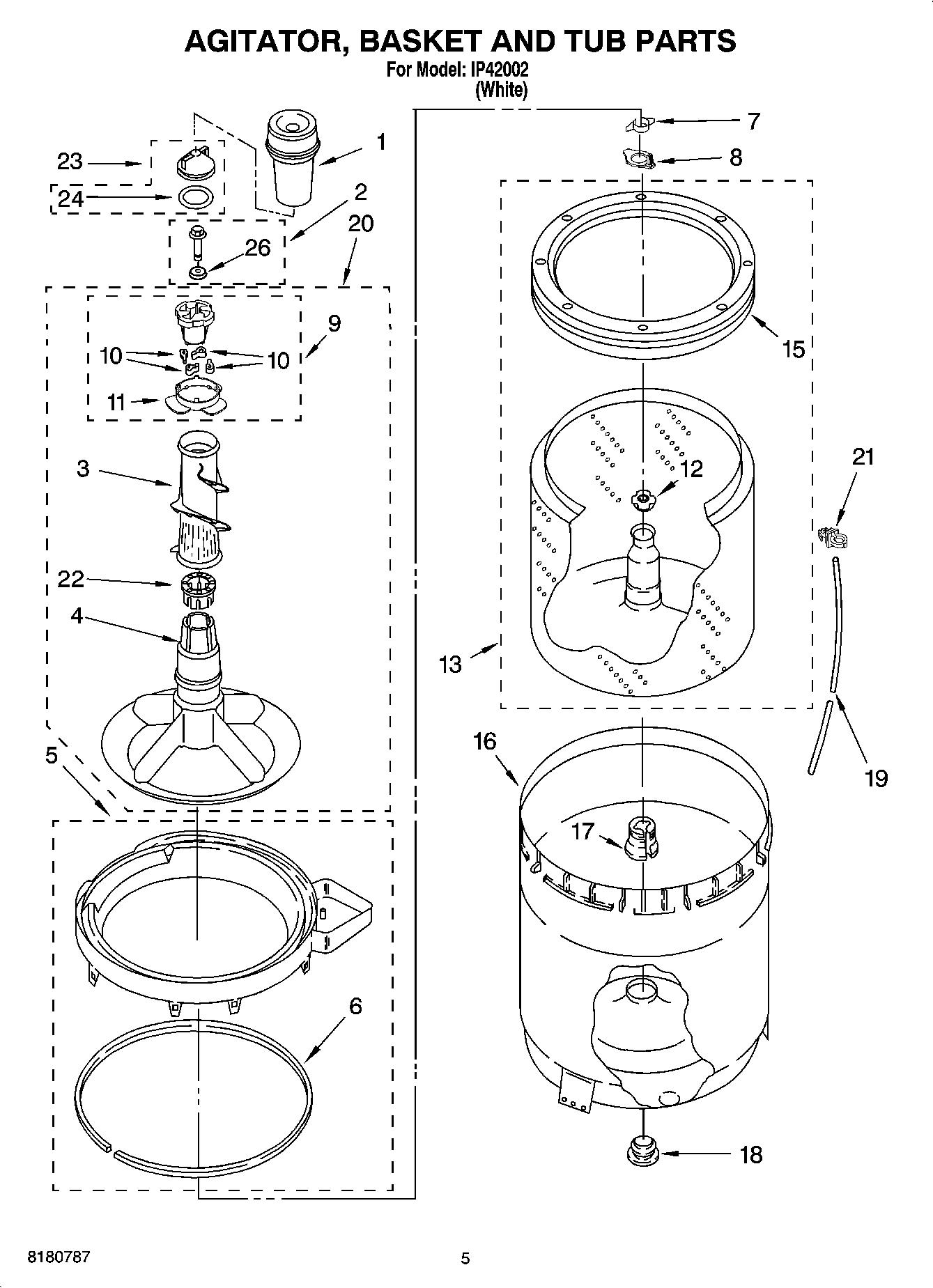

W10389328 Whirlpool Basket Backorder WPL W10389328 $246.99

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

15

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $21.64

15

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $119.89

15

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

16

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $191.99

16

WP54583 Whirlpool Hinge Backorder WPL WP54583 $18.77

16

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.84

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

WPW10193857 Whirlpool Lid Assembly Backorder WPL WPW10193857 $217.71

Clamp, Hose WPL 3976395 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

Agitator, Asy (Complete) WPL 3946501 Contact Us For Availability

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

20

Clip, Capacitor WPL 8318046 Contact Us For Availability

2219077 Whirlpool Refrigerator Clip Backorder WPL 2219077 $42.00

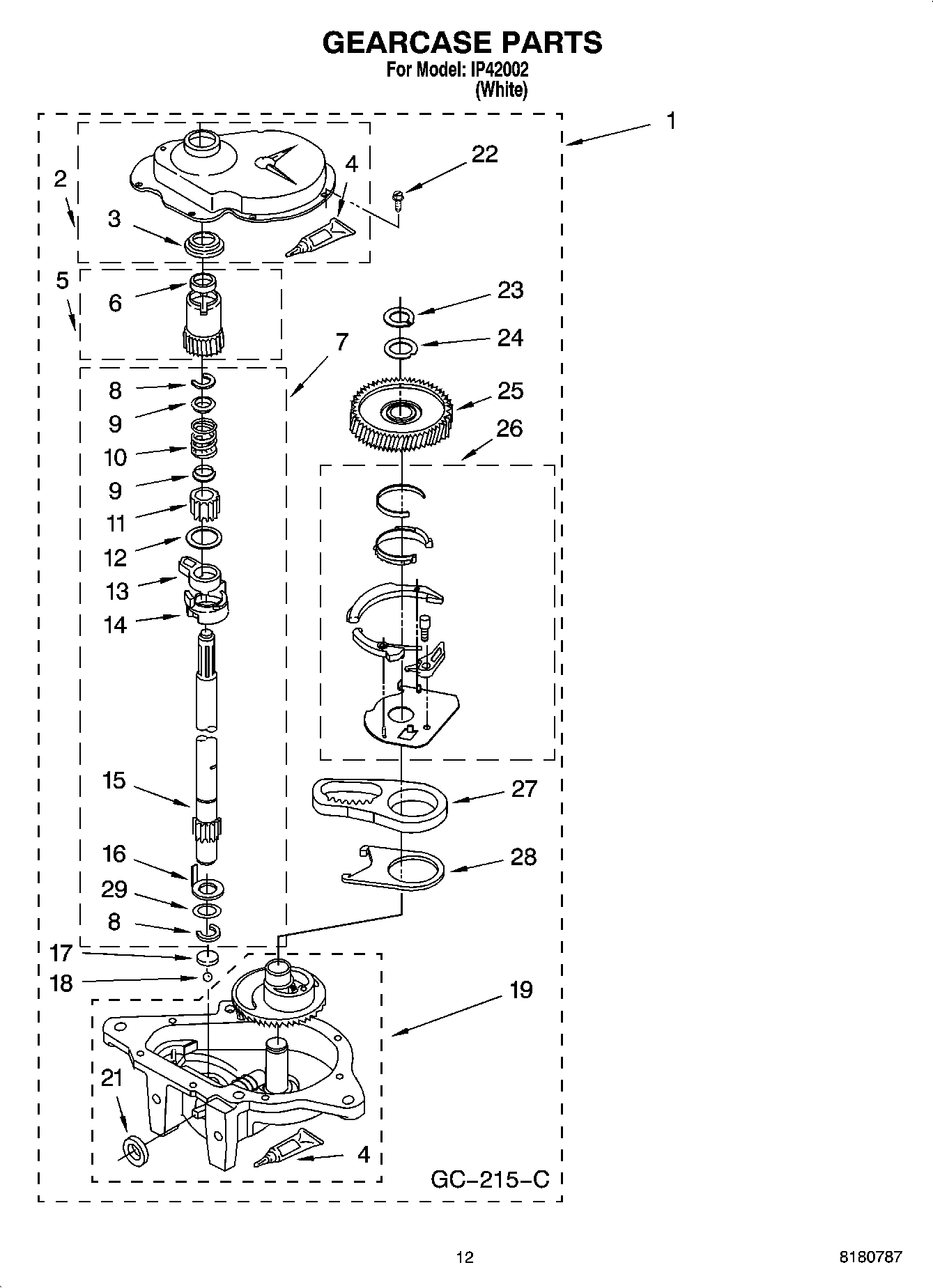

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

Connector (T.P.A.) (3-Circuit) (Pressure Swit WPL 3360056 Contact Us For Availability

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.99

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.59

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

24

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $4.98

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

27

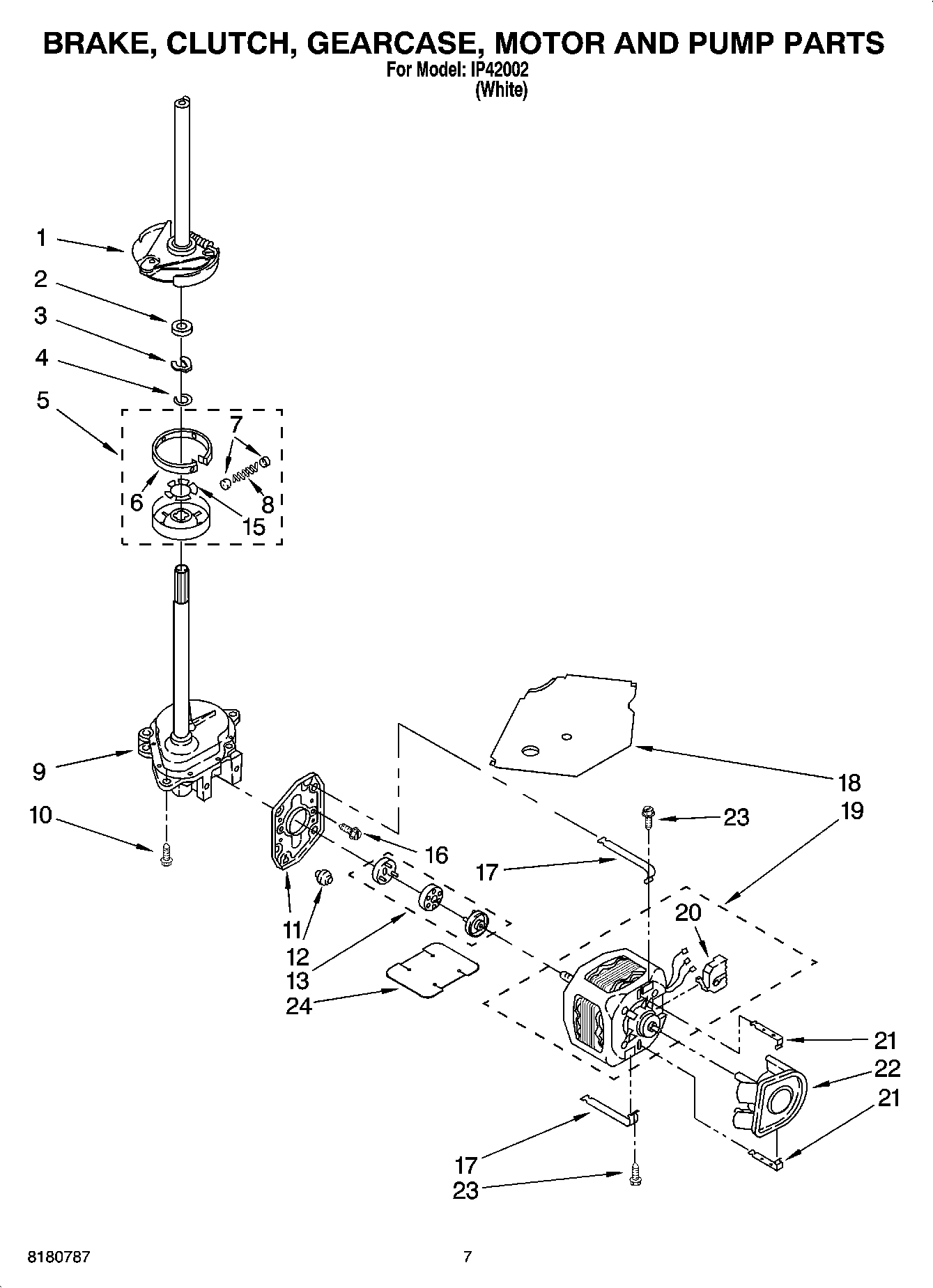

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

34

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $9.86

45

WP8544947 Whirlpool Dial Backorder WPL WP8544947 $50.35

47

Knob, Control WPL 8543270 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

51

Cap, End (R.H.) WPL 8271359 Contact Us For Availability

59

Shield, Suds WPL 8539874 Contact Us For Availability

60

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50

61

Wiring Harness (For Detail See Pages WPL 3957014 Contact Us For Availability
