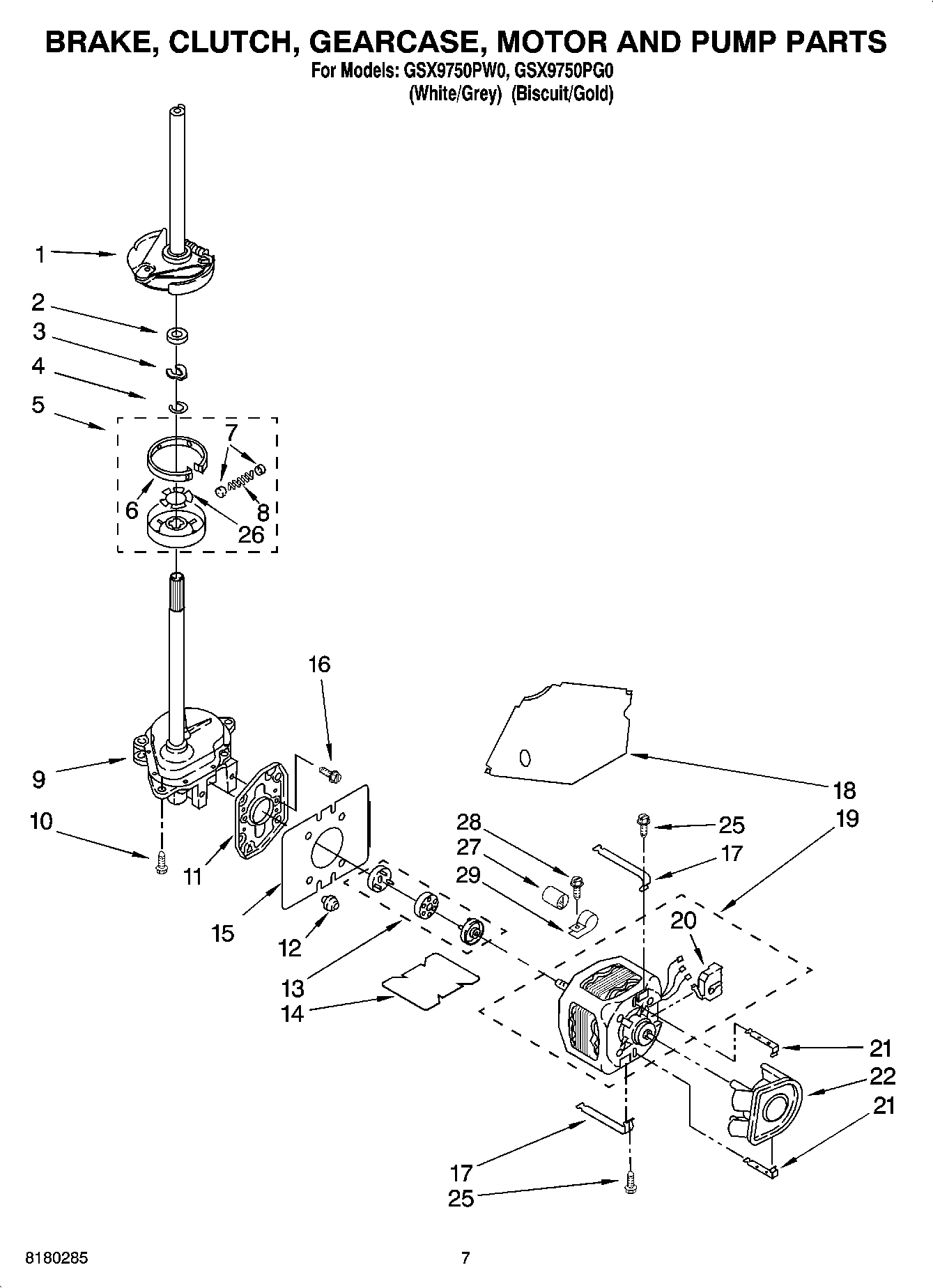

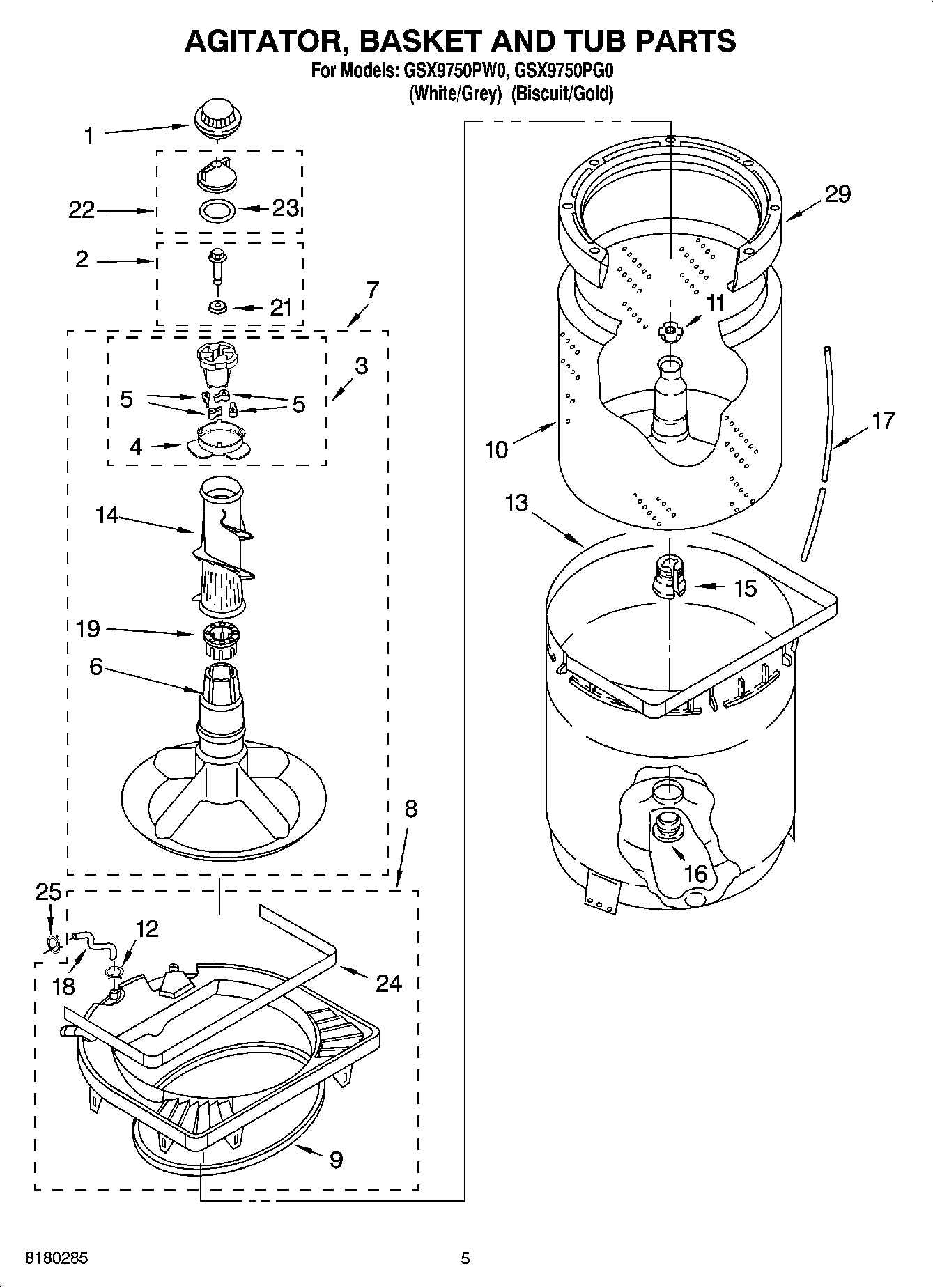

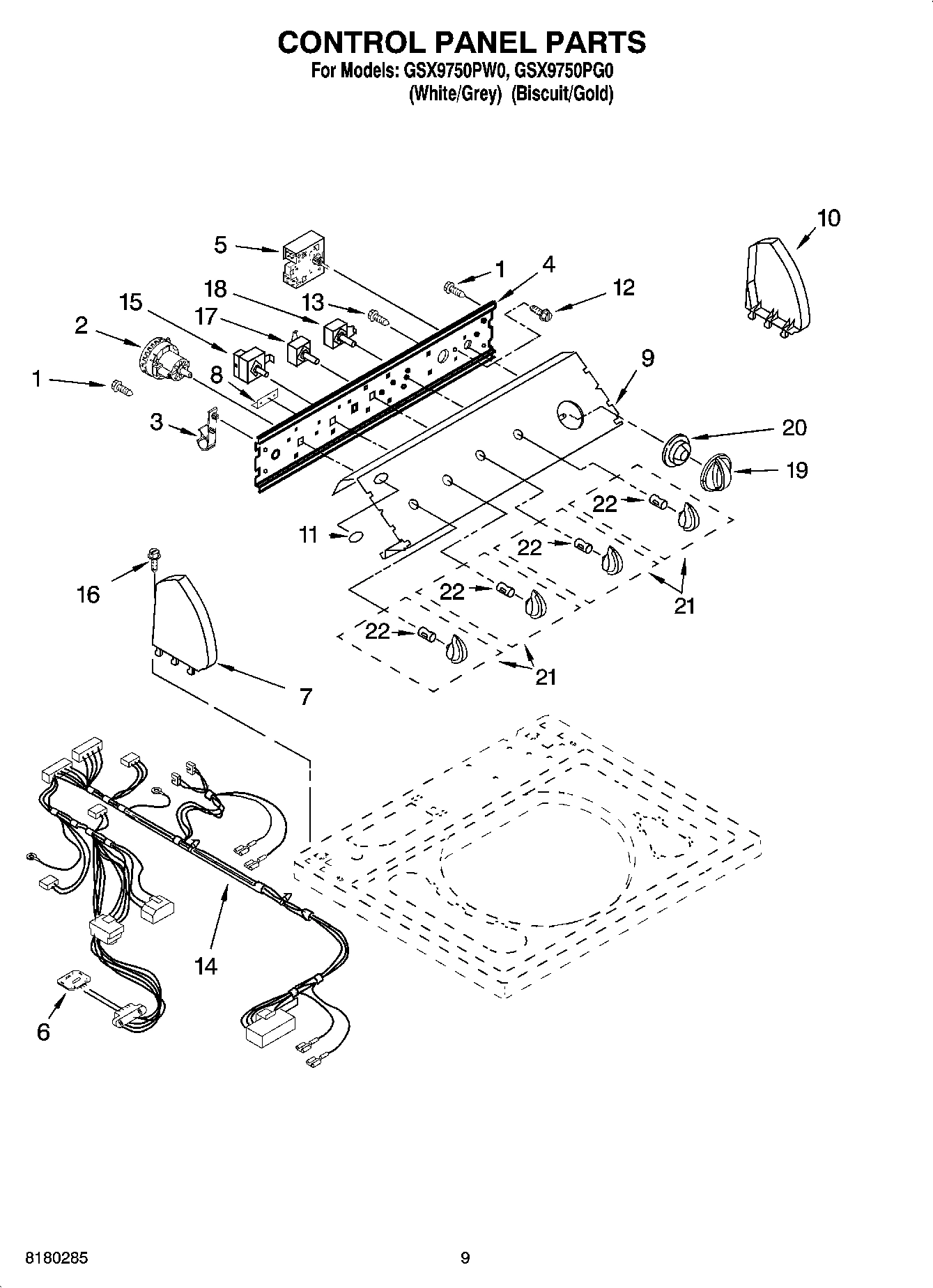

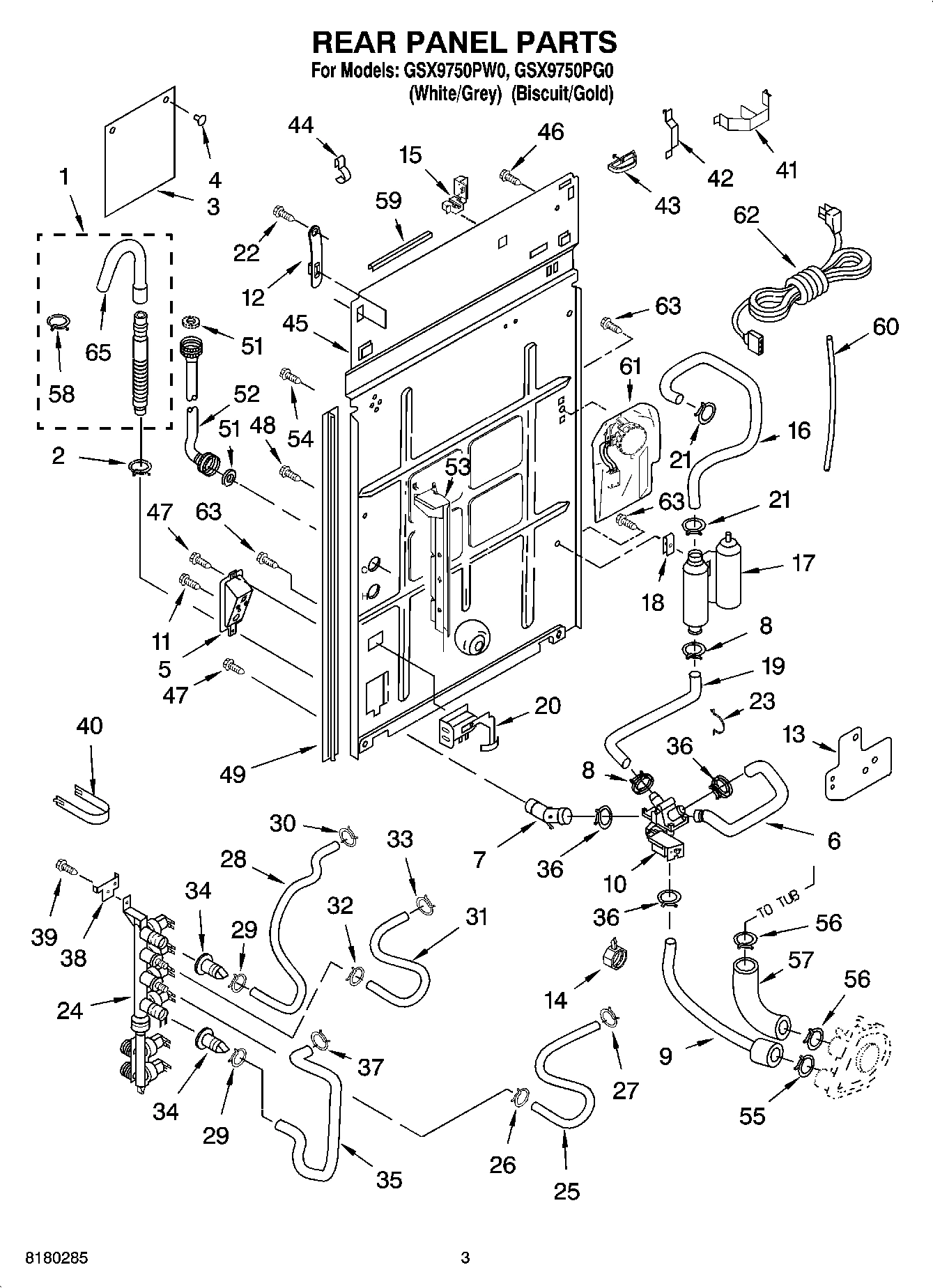

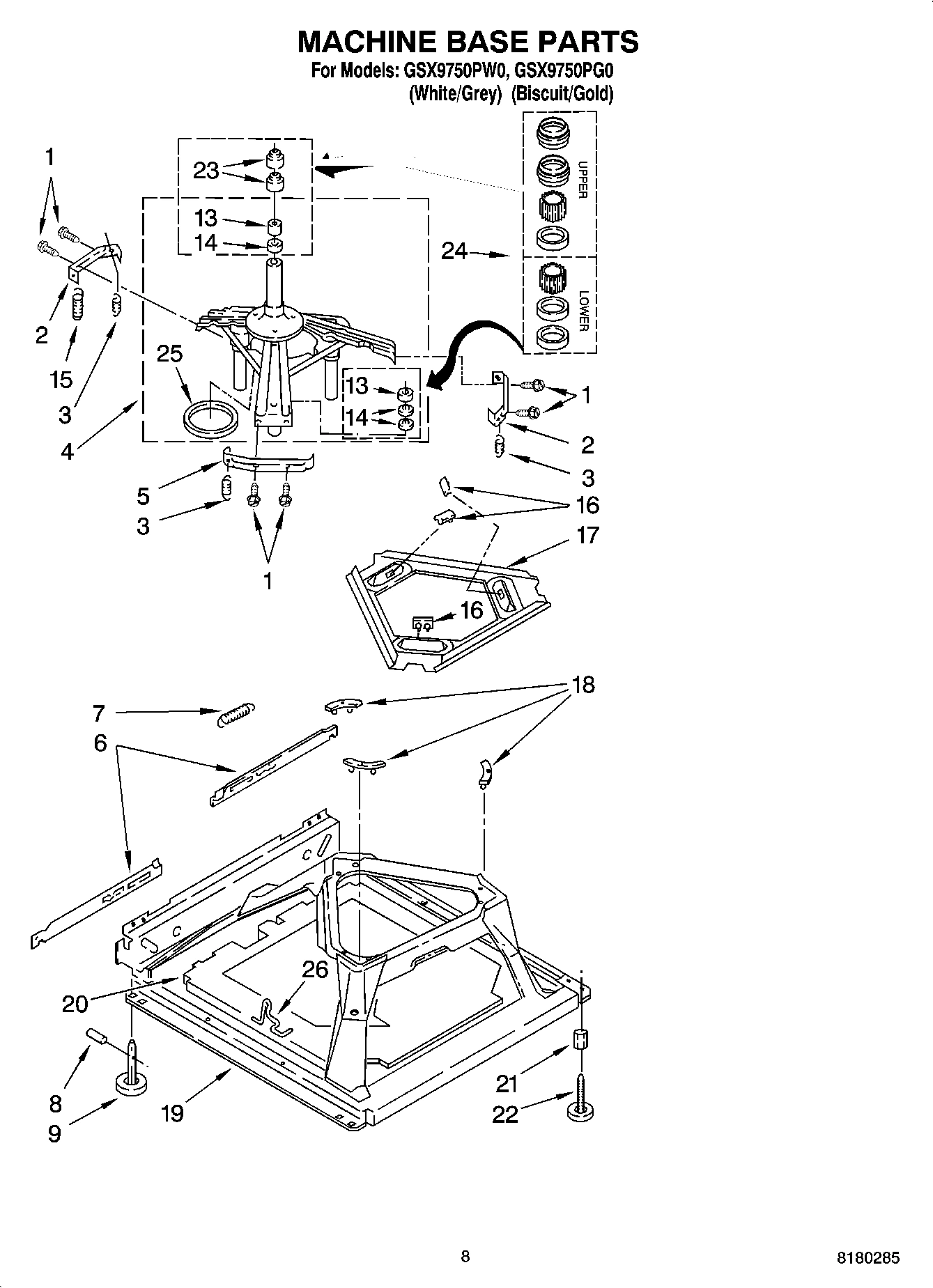

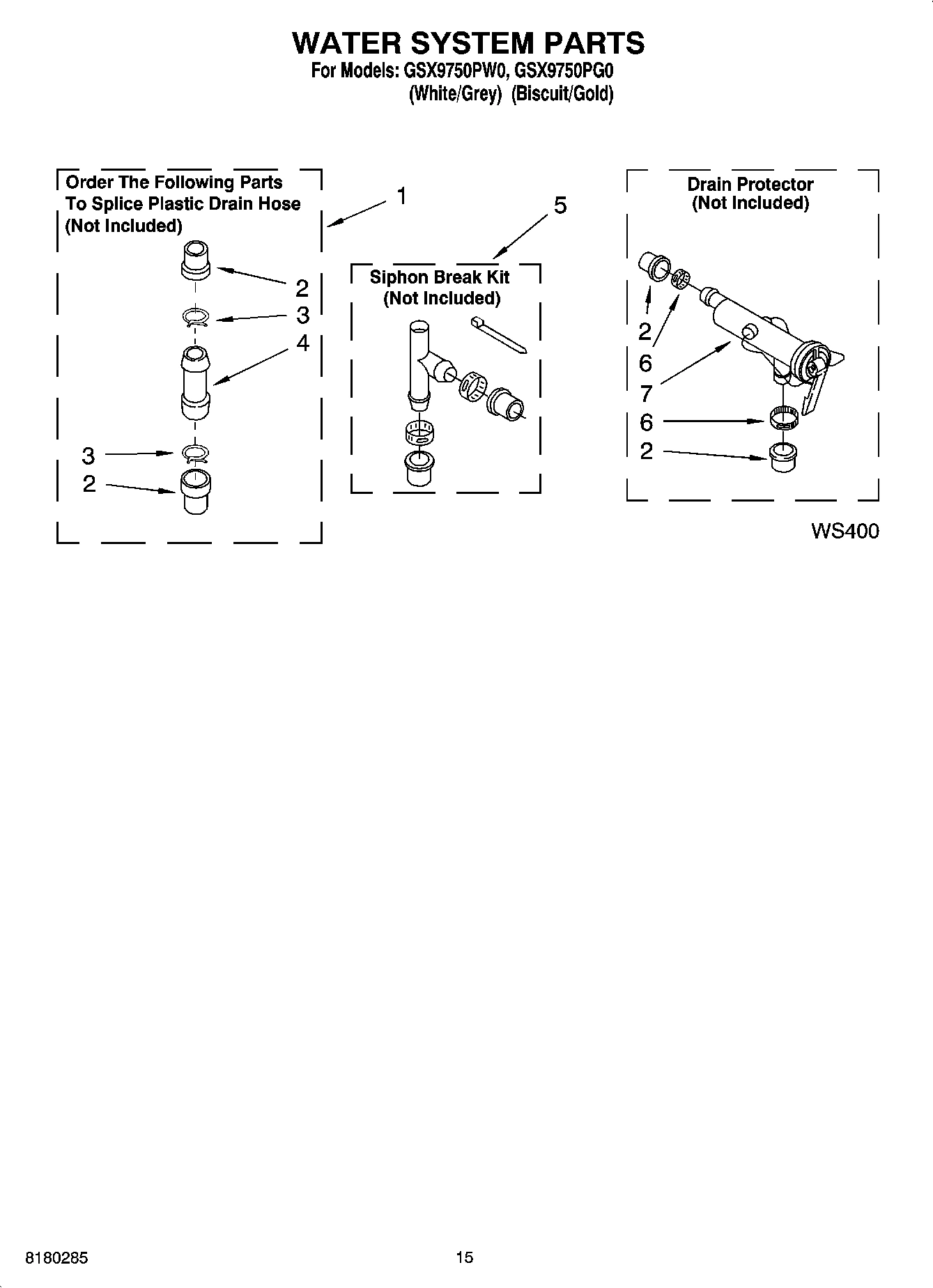

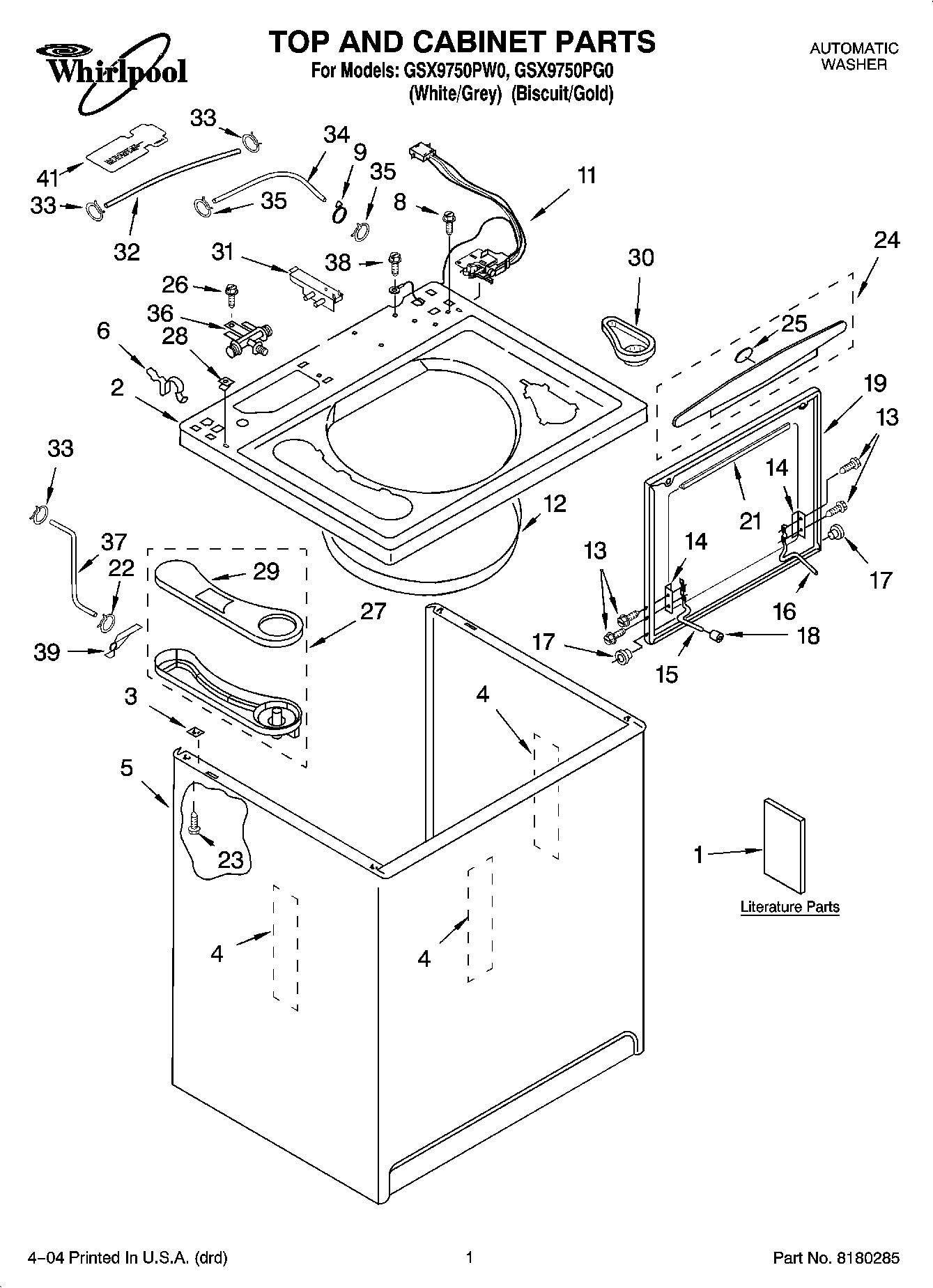

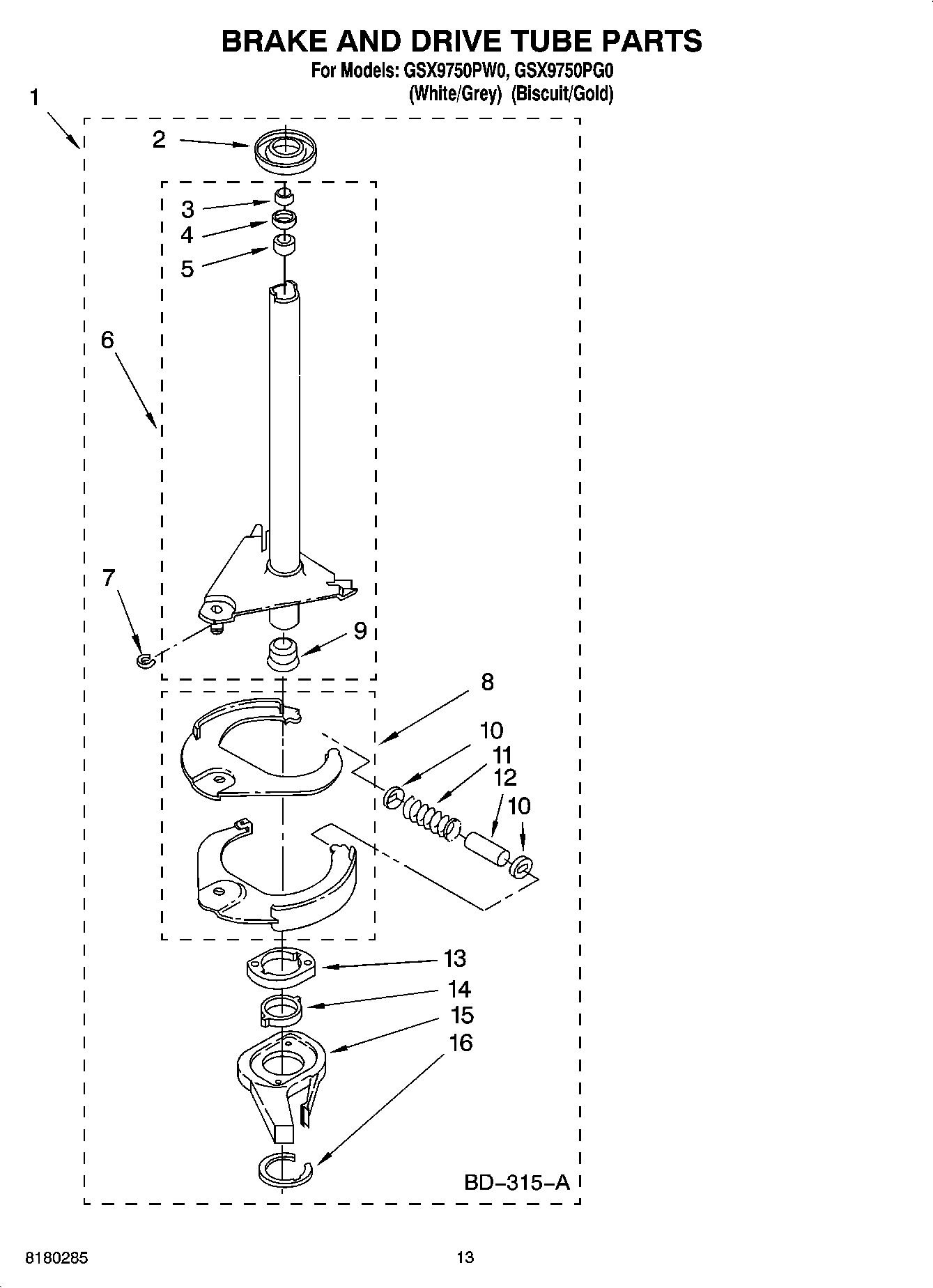

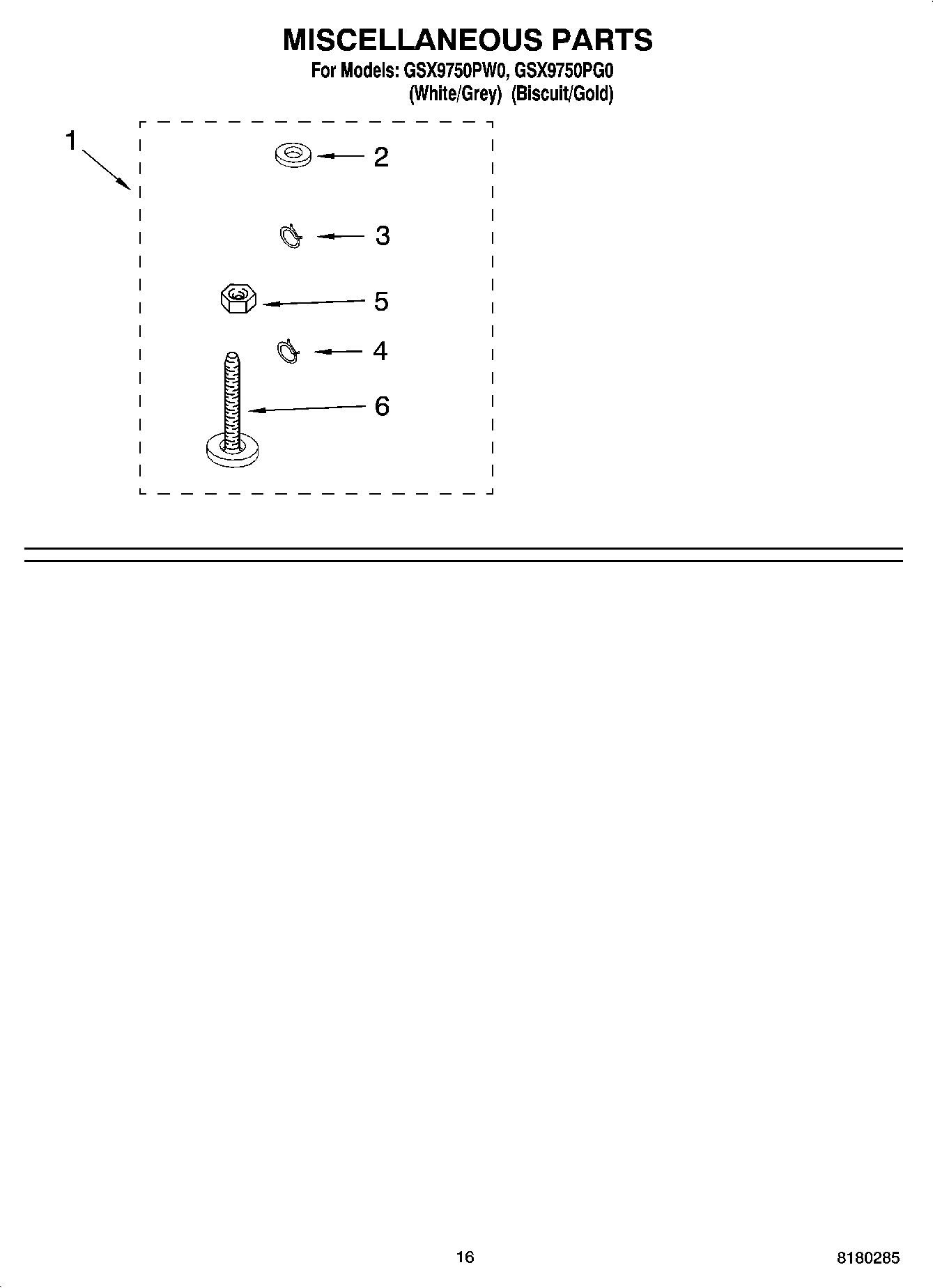

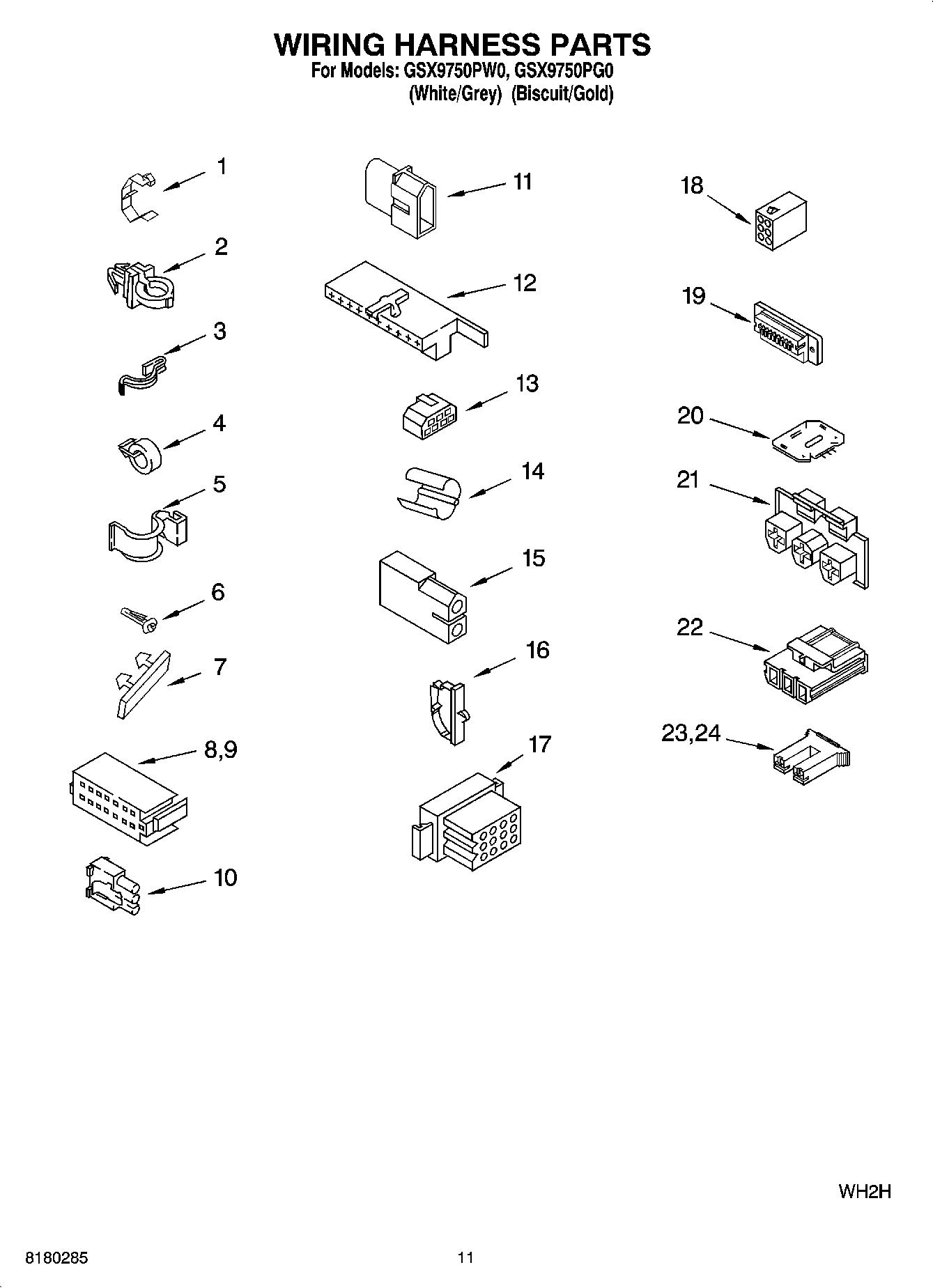

Model Whirlpool GSX9750PW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $9.65

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI151512A Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT3955876 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT3956025 Contact Us For Availability

1

Literature Parts (Energy Guide) WPL LIT3956914 Contact Us For Availability

1

Literature Parts (Manual, (Washer) Do-It-Your WPL LIT4313896 Contact Us For Availability

1

Literature Parts (Wiring Diagram) WPL LIT8558794 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

285321 Whirlpool Sleeve Backorder WPL 285321 $54.14

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

Top (White) WPL 8274365 Contact Us For Availability

2

Top (Biscuit) WPL 8274367 Contact Us For Availability

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

4

Cabinet - Sound Damper WPL 3976348 Contact Us For Availability

4

Clip, Drape WPL 8282566 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

Timer, Control (60 Hz.) (Motor Not A Service WPL 8545379 Contact Us For Availability

5

Cabinet (Biscuit) WPL 3954357 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

6

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

6

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

6

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $58.36

6

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $95.99

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $187.55

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

7

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $216.99

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $103.99

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

8

Screw, Lid Switch WPL 3400611 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

8559320 Whirlpool Clip Backorder WPL 8559320 $31.46

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.98

9

Seal, Tub Ring WPL 8054355 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

Valve, 2-Way WPL 3358559 Contact Us For Availability

Spring, Agitate WPL 62676 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $14.02

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP8054980 Whirlpool Lid Switch Assembly In Stock WPL WP8054980 $117.95

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP8271956 Whirlpool Shield Backorder WPL WP8271956 $97.81

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

Tub WPL 8055061 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $160.05

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

Clamp, Hose WPL 3976395 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

Hinge, Lid (Left) WPL 8055257 Contact Us For Availability

Switch, Water Temperature WPL 3956646 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Hose, Airdome WPL 8055233 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

Hinge, Lid (Right) WPL 8055256 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI151513A Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

W10851055 Whirlpool Cycle Switch Backorder WPL W10851055 $107.37

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

Airdome Assembly WPL 8317889 Contact Us For Availability

WP3954573 Whirlpool Cycle Switch Backorder WPL WP3954573 $145.94

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Hose, Bleach Outlet WPL 8526793 Contact Us For Availability

Clip, Airdome WPL 98084 Contact Us For Availability

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $9.86

WP8529935 Whirlpool Drive Motor Backorder WPL WP8529935 $238.33

Knob, Timer (Silver) WPL 8544945 Contact Us For Availability

Hose, 2-Way Valve to Airdome WPL 8054709 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

Lid (White) WPL 3957095 Contact Us For Availability

Lid (Biscuit) WPL 3957096 Contact Us For Availability

20

WP8544947 Whirlpool Dial Backorder WPL WP8544947 $50.35

20

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

20

Switch, Kickout WPL 8283252 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

3363365 Whirlpool Clamp Backorder WPL 3363365 $7.15

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

Seal, Lid WPL 8054939 Contact Us For Availability

Knob, Control (Silver) WPL 8544937 Contact Us For Availability

Knob, Control (Biscuit) WPL 8544938 Contact Us For Availability

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $9.86

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

Connector (T.P.A.) (3-Circuit) (Pressure Swit WPL 3360056 Contact Us For Availability

23

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

23

Clip, Hose (2) (Recirculating) WPL 8054659 Contact Us For Availability

23

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

Valve, Inlet WPL 8542063 Contact Us For Availability

Washer Kit, Thrust WPL 285735 Contact Us For Availability

Handle, Lid (Biscuit) WPL 3956011 Contact Us For Availability

Handle, Lid (Silver) WPL 3956012 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

Hose, Detergent WPL 8271982 Contact Us For Availability

25

Insert, Handle WPL 3956010 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

26

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

27

WP8055237 Whirlpool Dispenser Backorder WPL WP8055237 $54.82

28

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

28

Hose, Bleach WPL 8271984 Contact Us For Availability

29

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

29

Cover, Dispenser WPL 8272009 Contact Us For Availability

30

Dispenser, Detergent WPL 8055238 Contact Us For Availability

31

Hose, Fabric Softener WPL 8271983 Contact Us For Availability

31

Connector, 2-Port WPL 8055243 Contact Us For Availability

32

Hose, Fabric Softener WPL 8055266 Contact Us For Availability

34

Check Valve, Duck Bill WPL 8055306 Contact Us For Availability

34

Hose, Detergent WPL 8055267 Contact Us For Availability

35

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

35

Hose, Fresh Fill WPL 8318496 Contact Us For Availability

36

Connector, Venturi WPL 8272010 Contact Us For Availability

37

WP8283537 Whirlpool Hose Assembly Backorder WPL WP8283537 $17.78

38

3400073 Whirlpool Screw Backorder WPL 3400073 $5.85

38

Bracket, Valve WPL 8271909 Contact Us For Availability

39

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

39

Restraint WPL 8271943 Contact Us For Availability

40

Restraint, Hose WPL 8272128 Contact Us For Availability

41

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

41

Cover, Access WPL 8541605 Contact Us For Availability

42

Clip, Harness WPL 8054658 Contact Us For Availability

43

Clip, Push-In WPL 3352944 Contact Us For Availability

44

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

45

Panel, Rear WPL 8282493 Contact Us For Availability

46

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

48

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

49

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

51

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

52

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $16.85

53

Shield, Upper Valve WPL 8543414 Contact Us For Availability

56

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

57

WPL 8055063 WPL 8055063 Contact Us For Availability

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

59

WPL 303294 WPL 303294 Contact Us For Availability

60

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

61

WPL 8545900 WPL 8545900 Contact Us For Availability

62

WPL 661661 WPL 661661 Contact Us For Availability

63

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

65

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50
