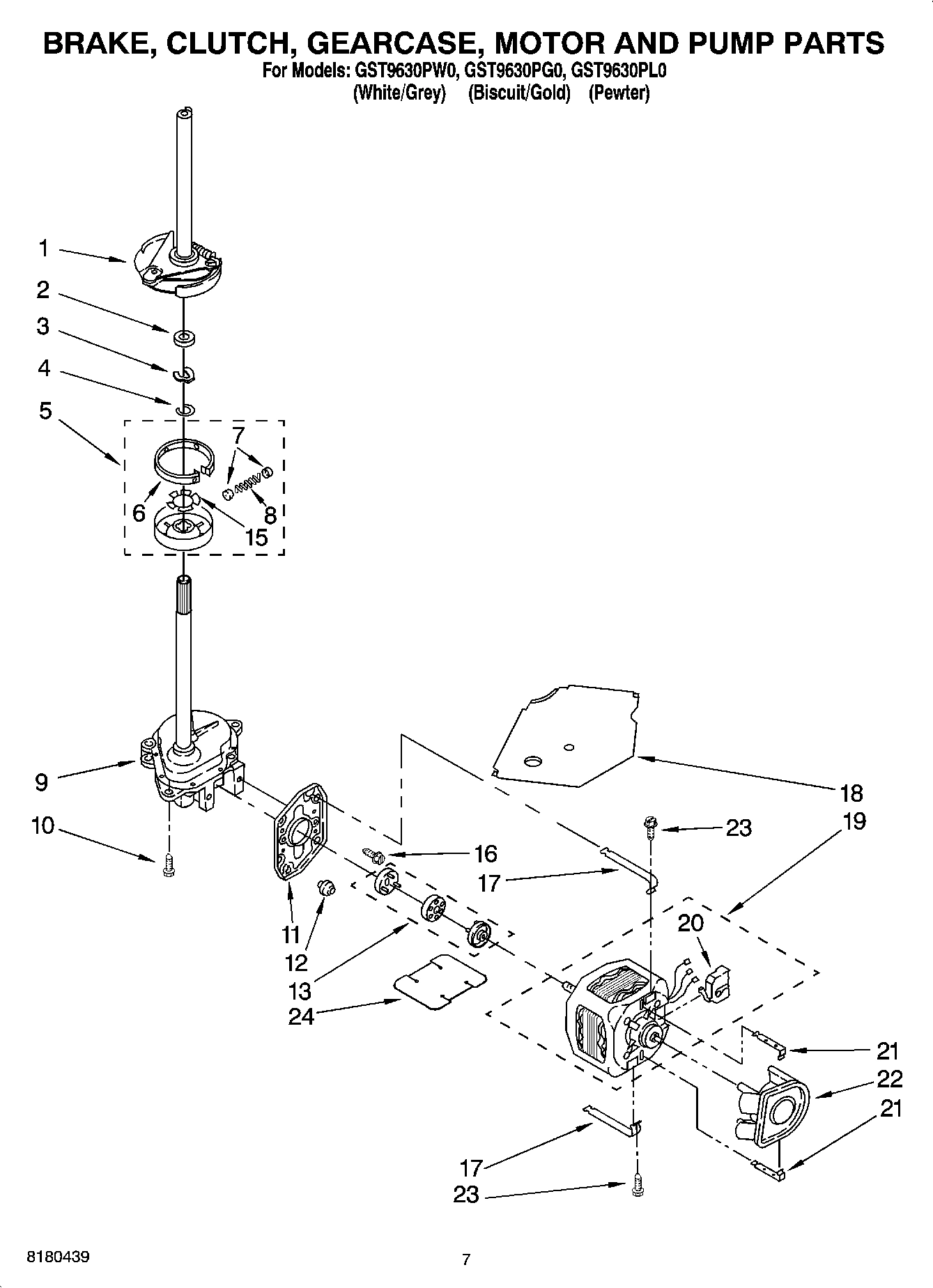

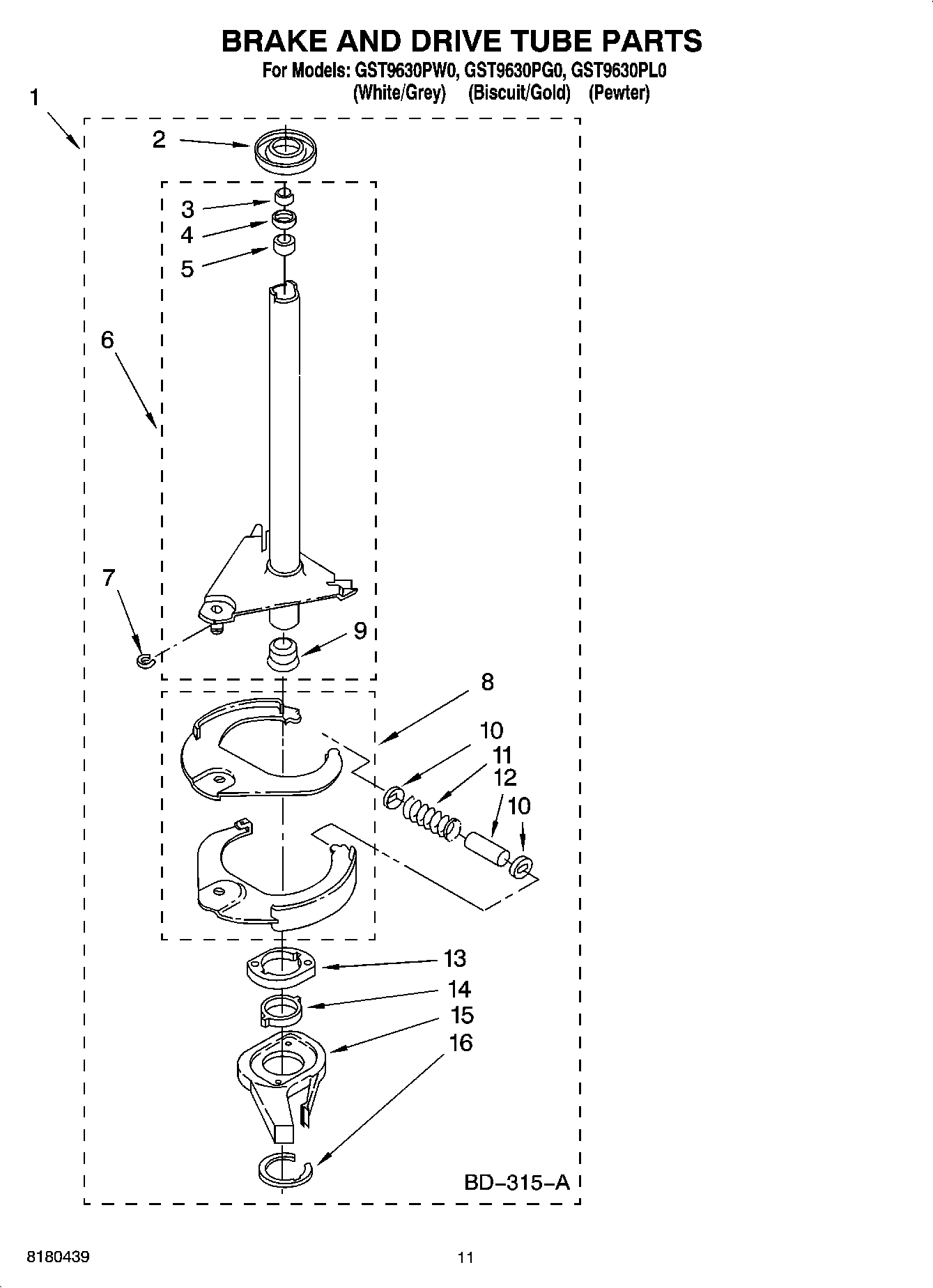

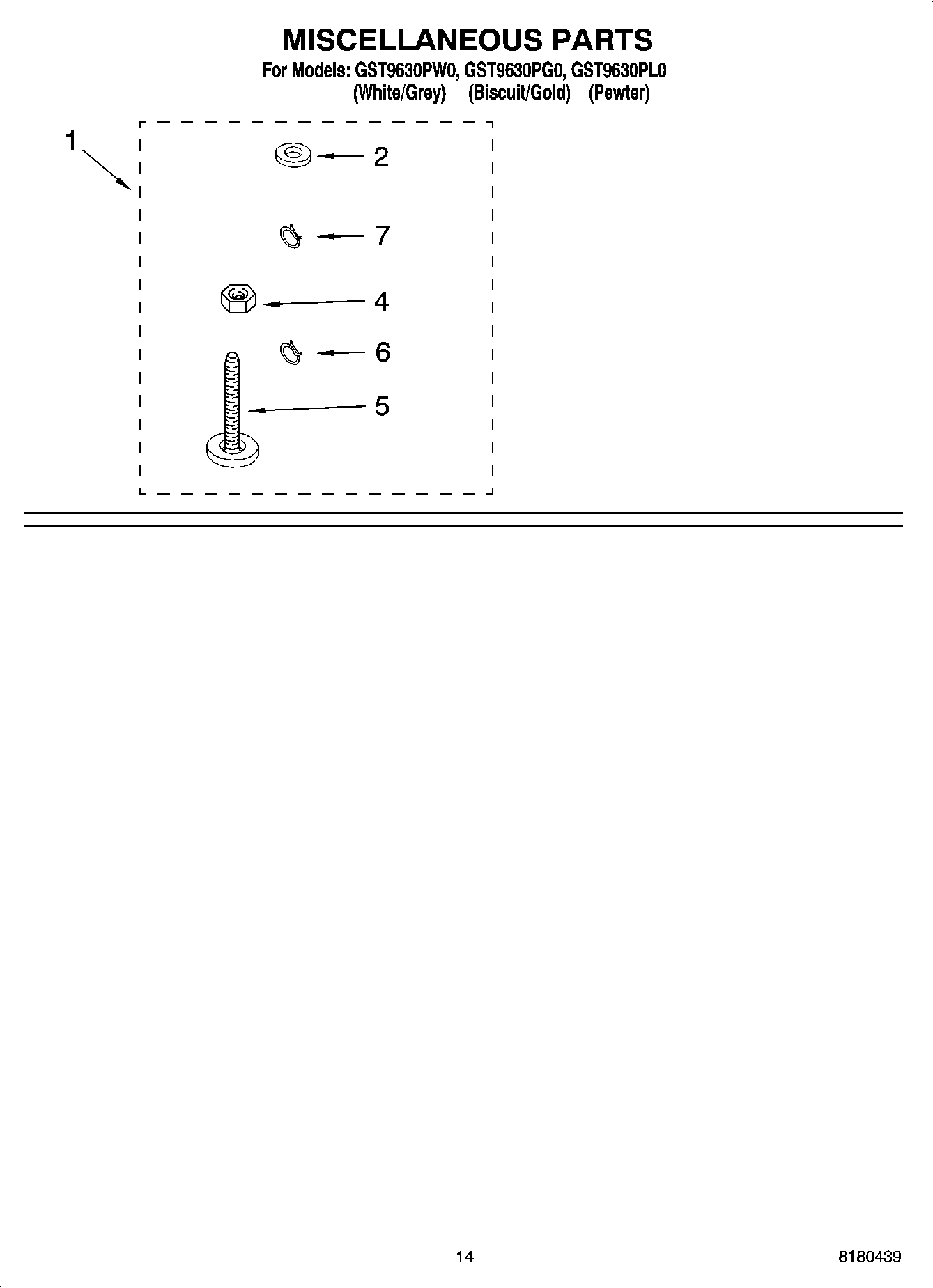

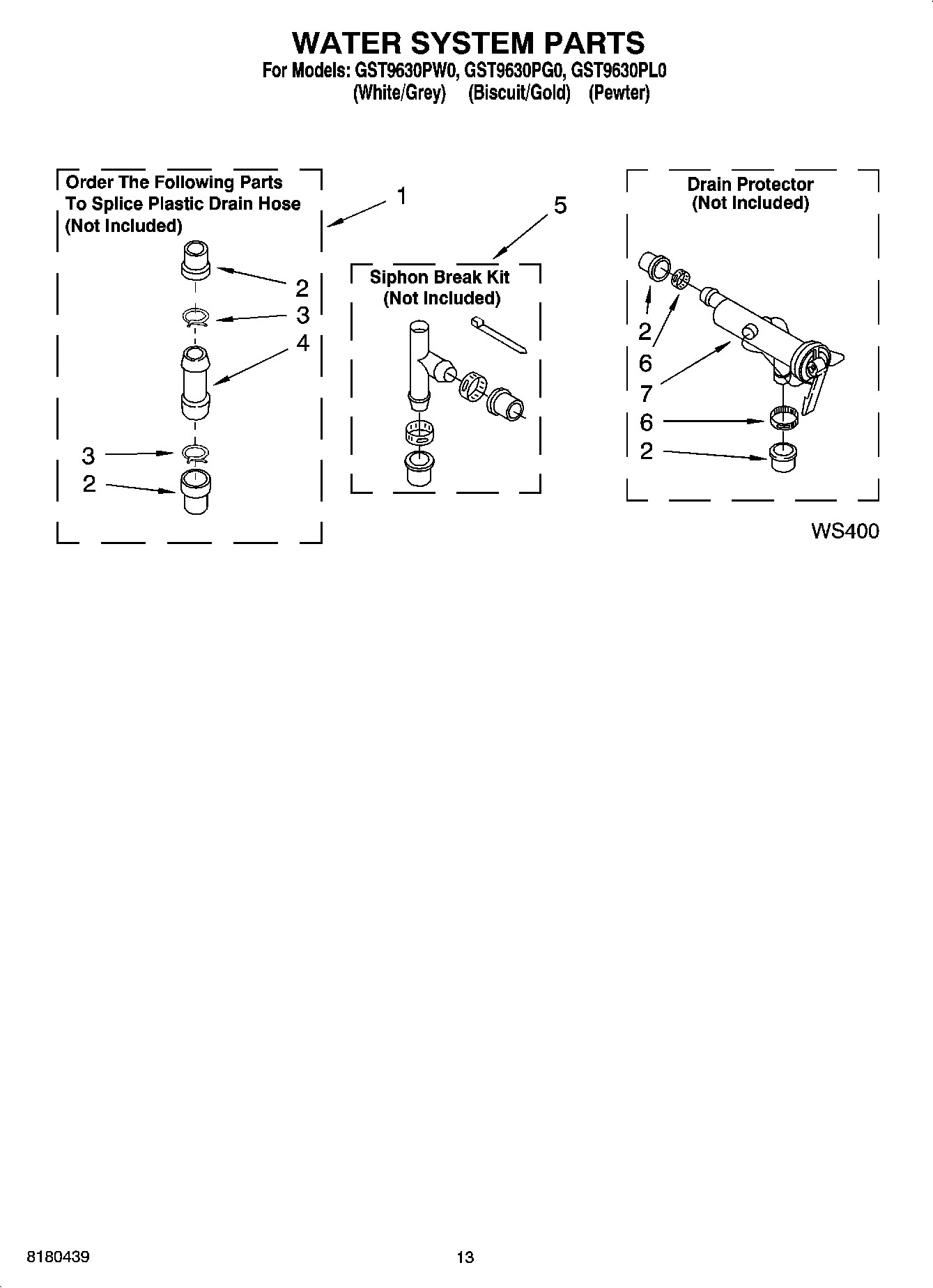

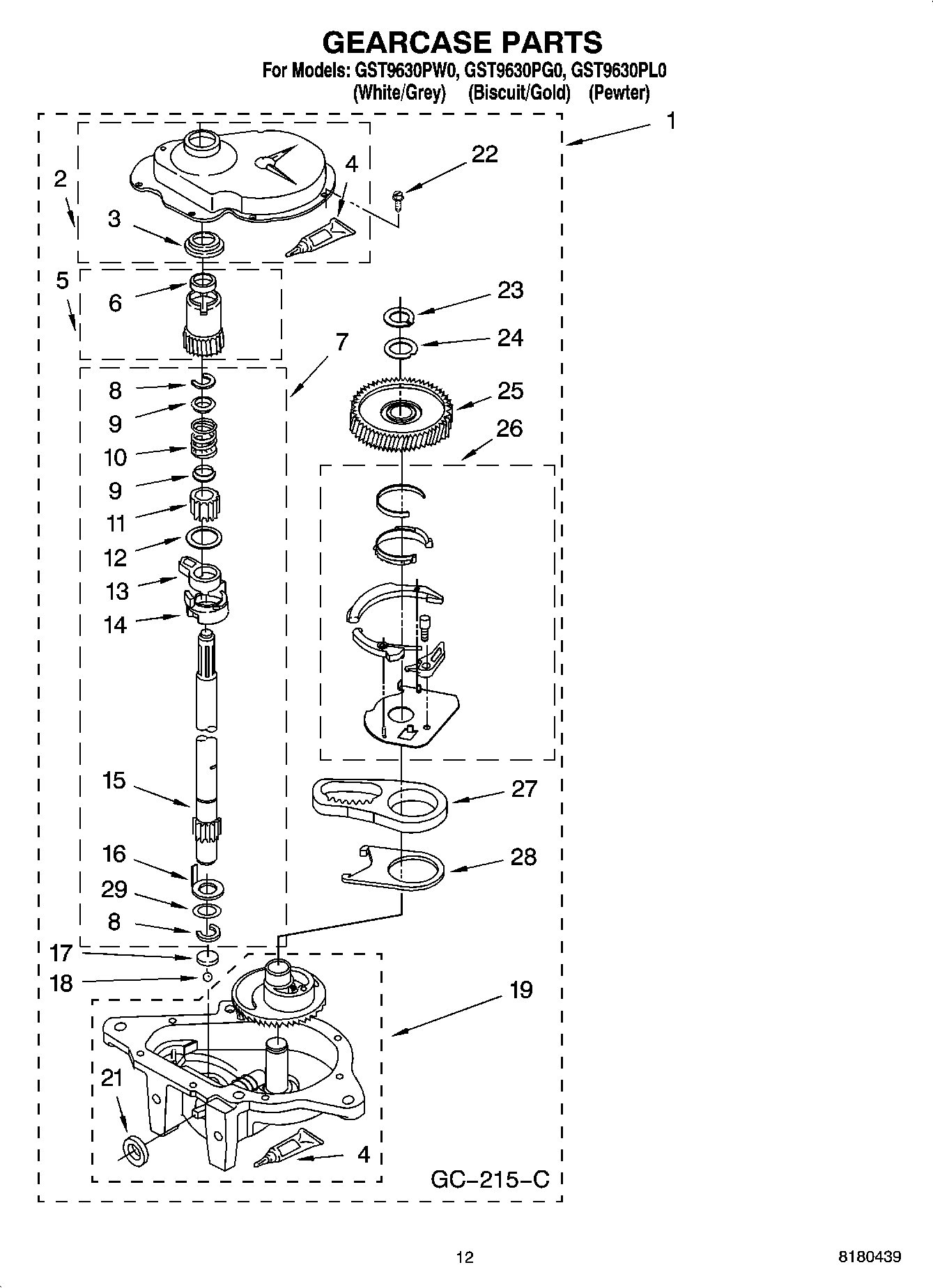

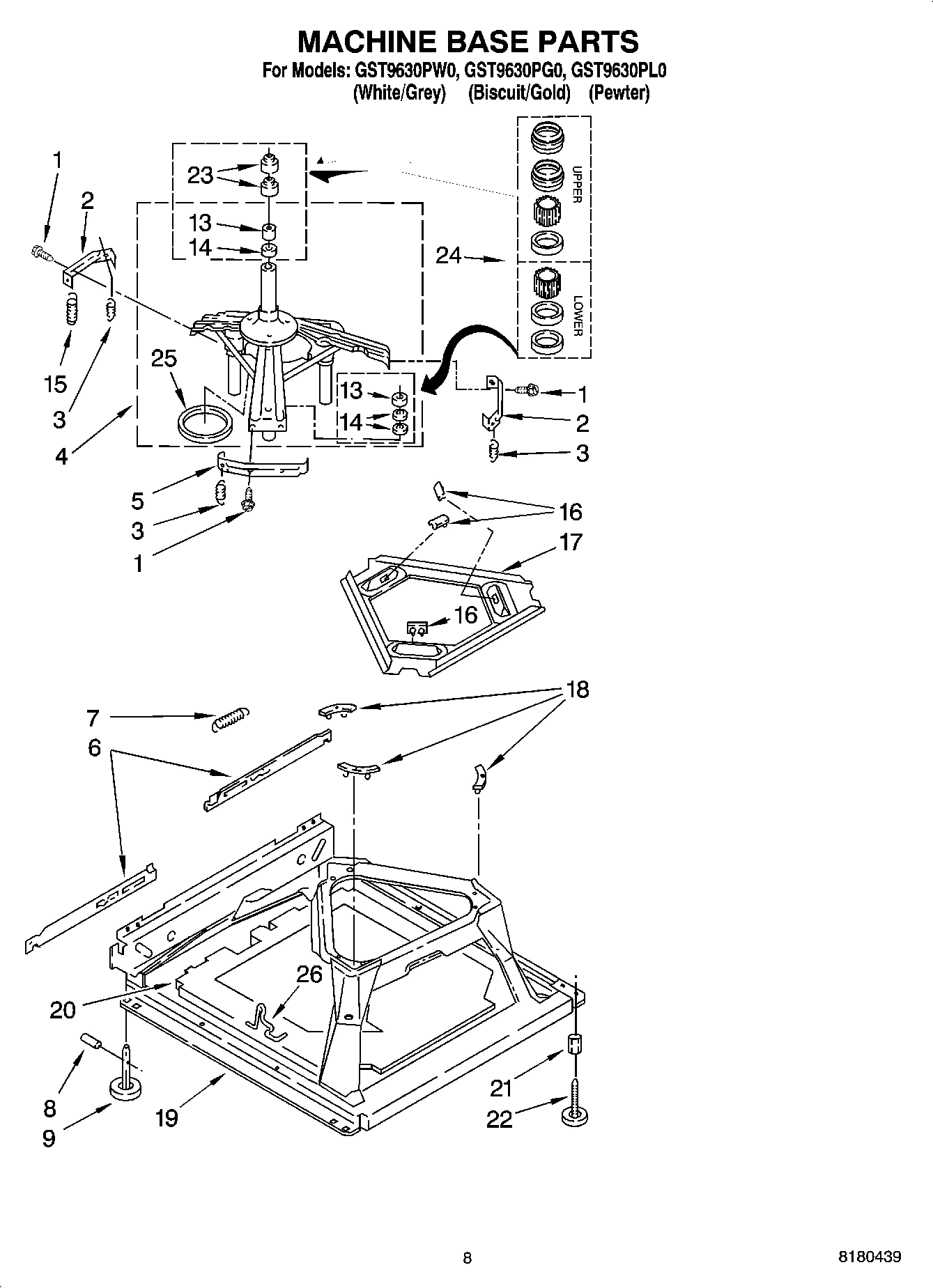

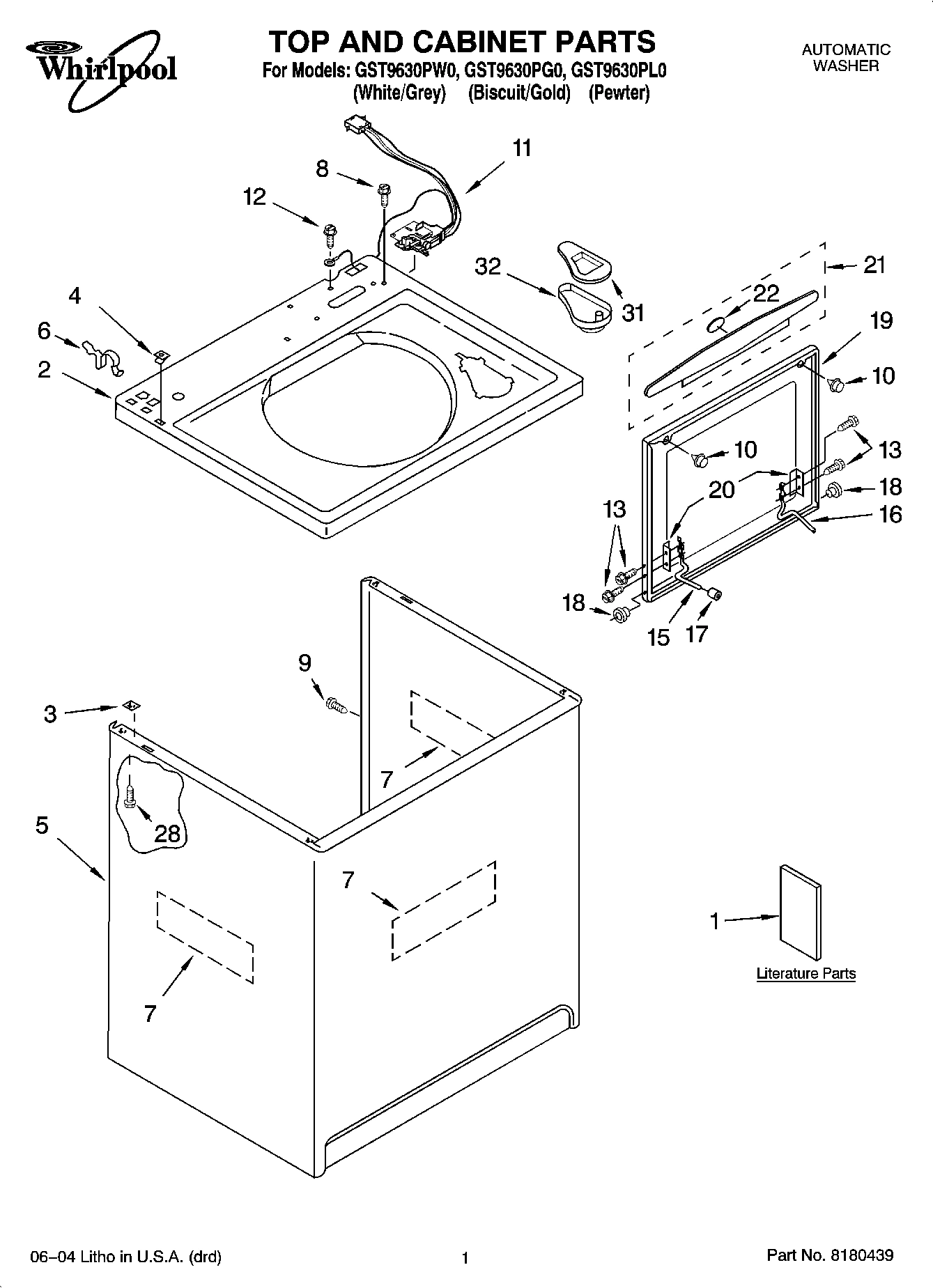

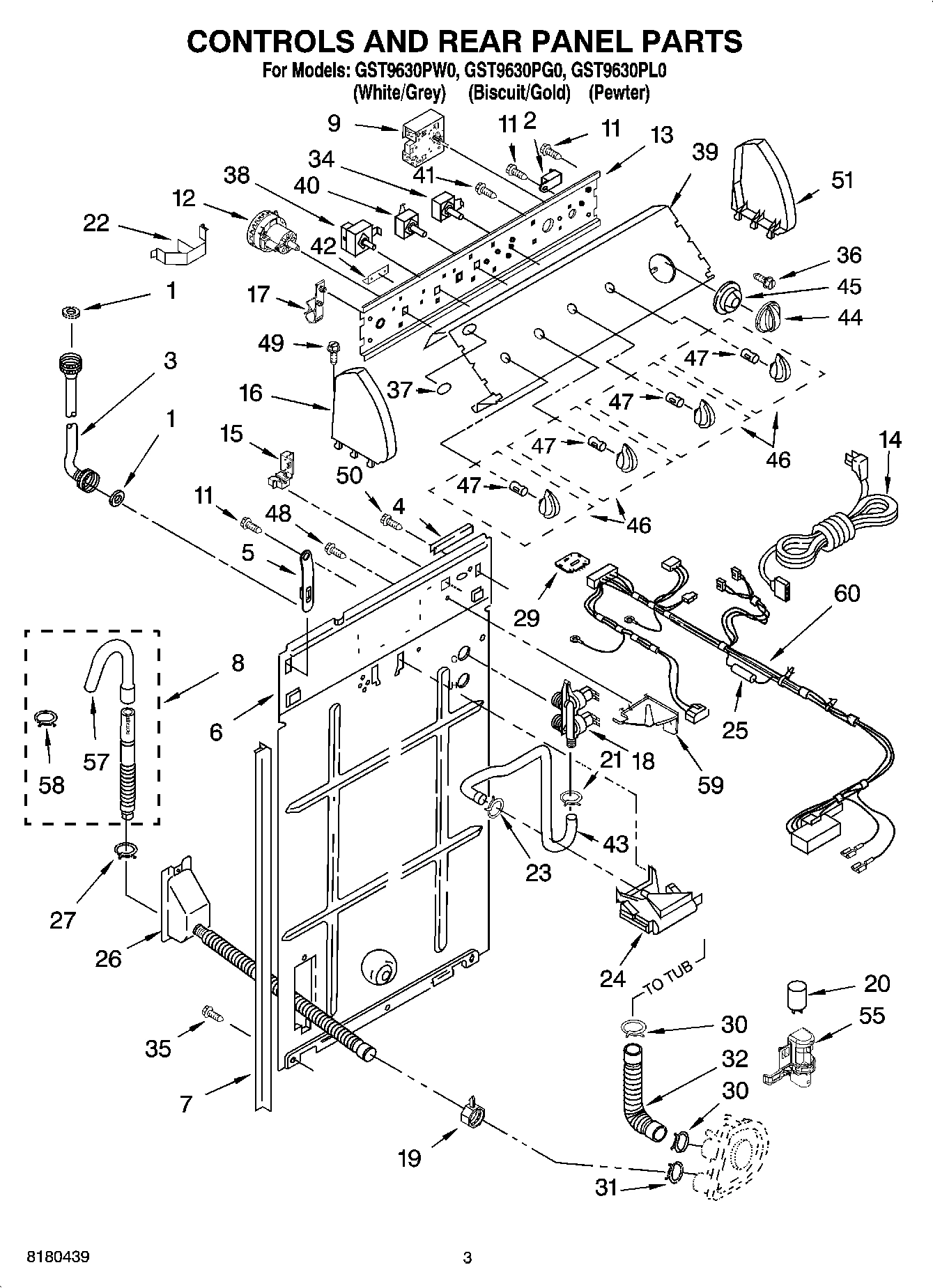

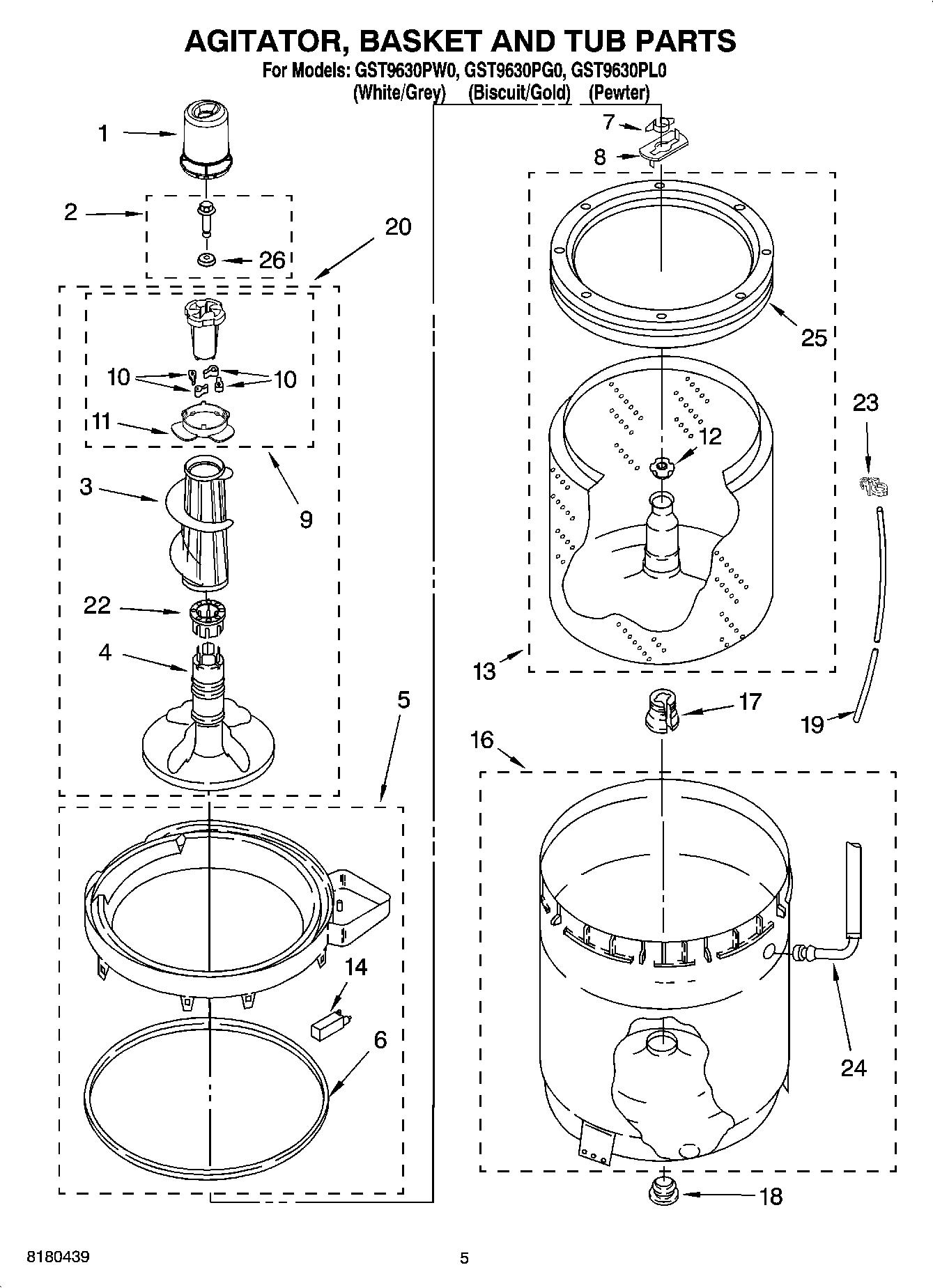

Model Whirlpool GST9630PG0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

1

Manual, Washer WPL 4313896 Contact Us For Availability

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Dispenser, Fabric Softener WPL 8559760 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $88.11

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP3360824 Whirlpool Agitator Auger In Stock WPL WP3360824 $138.26

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

4

WP389386 Whirlpool Agitator Assembly Backorder WPL WP389386 $132.99

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $54.71

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Tub Ring & Gasket WPL 3954507 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $12.99

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $187.55

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

7

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

7

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

7

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

7

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

7

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

7

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $6.49

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

7

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

7

WP4396174 Whirlpool Touch-Up Paint Backorder WPL WP4396174 $15.74

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

Cabinet - Sound Damper (3) WPL 3976348 Contact Us For Availability

7

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $103.99

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $6.91

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $22.99

9

285748 Whirlpool Agitator Cam Kit In Stock WPL 285748 $19.80

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP3955765 Whirlpool Timer Assembly In Stock WPL WP3955765 $244.99

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.98

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $2.61

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

353424 Whirlpool Connector Backorder WPL 353424 $14.02

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.82

WP62611 Whirlpool Plate In Stock WPL WP62611 $76.63

WP8054980 Whirlpool Lid Switch Assembly In Stock WPL WP8054980 $117.95

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

W10389328 Whirlpool Basket Backorder WPL W10389328 $246.99

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

14

W11095997 Whirlpool Seal In Stock WPL W11095997 $13.63

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

14

Wax Motor WPL 8318246 Contact Us For Availability

285901 Whirlpool Spring Kit Assembly In Stock WPL 285901 $47.90

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

Hinge, Lid (L.H.) WPL 8055257 Contact Us For Availability

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $22.76

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Tub (Includes Item 24) WPL 8283125 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI151272A Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.99

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

WP8529935 Whirlpool Drive Motor Backorder WPL WP8529935 $238.33

Clamp, Hose WPL 3976395 Contact Us For Availability

Base Assembly (Includes Illus, 6, 7, 8, 9, 16 WPL 3946512 Contact Us For Availability

285727 Whirlpool Agitator Assembly In Stock WPL 285727 $231.99

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

Sound Absorber WPL 8544816 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.99

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

Connector (T.P.A.) (3-Circuit) (Pressure Swit WPL 3360056 Contact Us For Availability

23

2219077 Whirlpool Refrigerator Clip Backorder WPL 2219077 $42.00

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.99

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

24

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

24

Hose, Bleach WPL 3948705 Contact Us For Availability

25

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $119.89

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $6.57

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

32

Dispenser, Bleach WPL 8519517 Contact Us For Availability

34

Switch, Rotary WPL 3956080 Contact Us For Availability

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $4.82

37

Medallion WPL 8533990 Contact Us For Availability

38

Switch, Water Temperature WPL 3956646 Contact Us For Availability

39

Panel, Console (Includes Item 37) (Silver) WPL 3956606 Contact Us For Availability

39

Panel, Console (Includes Item 37) (Gold) WPL 3956607 Contact Us For Availability

40

W10168264 Whirlpool Cycle Switch Backorder WPL W10168264 $90.24

41

3400073 Whirlpool Screw Backorder WPL 3400073 $5.85

42

Shield, WPL 8316039 Contact Us For Availability

43

WP8317926 Whirlpool Inlet Hose In Stock WPL WP8317926 $13.45

44

WPL 8544945 WPL 8544945 Contact Us For Availability

44

WPL 8544946 WPL 8544946 Contact Us For Availability

45

WP8544947 Whirlpool Dial Backorder WPL WP8544947 $50.35

45

WPL 8544948 WPL 8544948 Contact Us For Availability

46

WPL 8544937 WPL 8544937 Contact Us For Availability

46

WPL 8544938 WPL 8544938 Contact Us For Availability

47

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $9.86

48

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

50

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

51

WPL 3956023 WPL 3956023 Contact Us For Availability

51

WPL 8271359 WPL 8271359 Contact Us For Availability

51

WPL 8271362 WPL 8271362 Contact Us For Availability

55

WPL 8318046 WPL 8318046 Contact Us For Availability

57

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

59

WPL 8539874 WPL 8539874 Contact Us For Availability

60

WPL 3956278 WPL 3956278 Contact Us For Availability
