Model Whirlpool GSQ9632LG0 Automatic Washer – Common Parts &amp; Diagrams

1

W10846509 Whirlpool Screw In Stock WPL W10846509 $4.82

1

WP63594 Whirlpool Dispenser In Stock WPL WP63594 $23.37

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

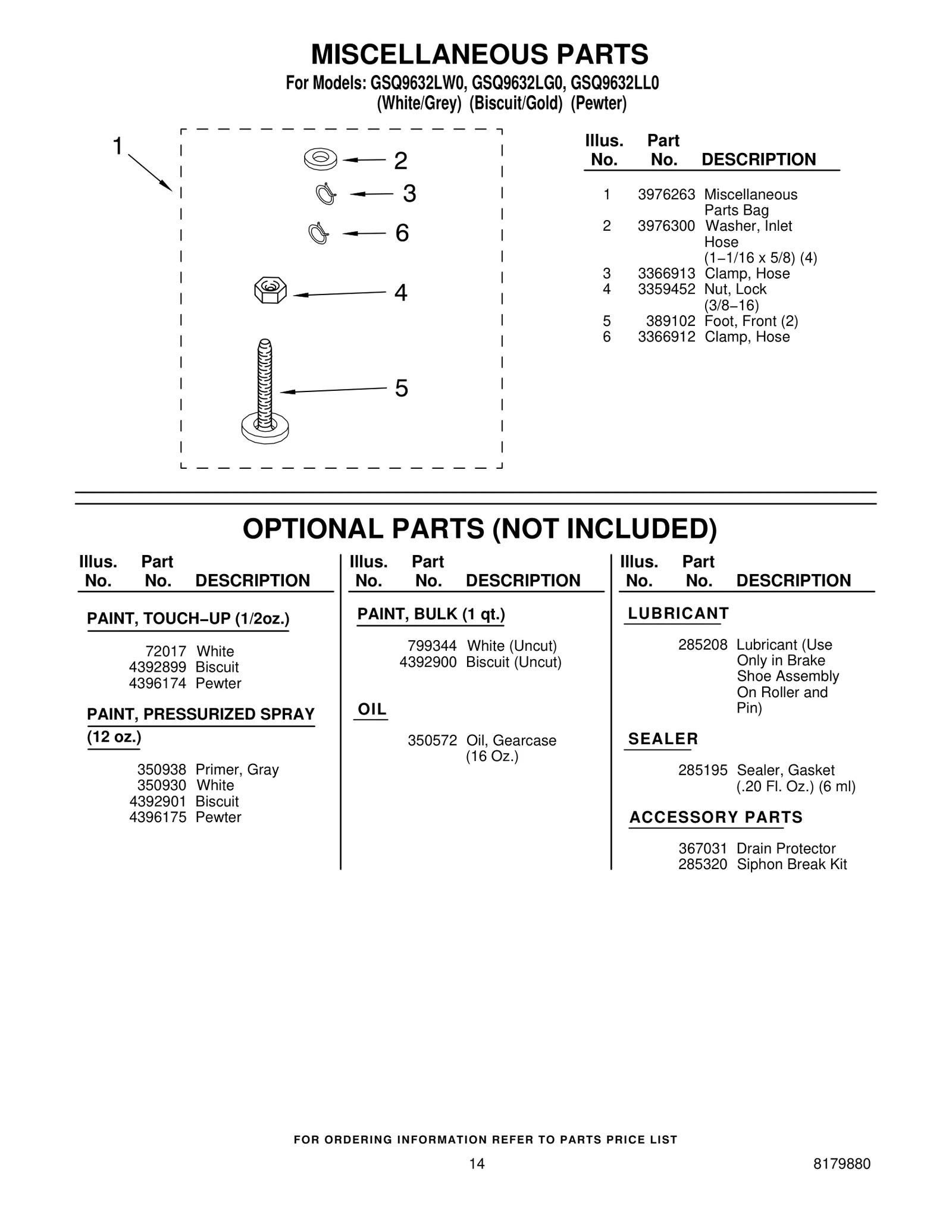

Miscellaneous Parts Bag WPL 3976263 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $133.74

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

2

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $94.27

2

Clip, Harness WPL 388498 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $15.68

3

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $5.30

4

8559320 Whirlpool Clip Backorder WPL 8559320 $31.46

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

4

WP389386 Whirlpool Agitator Assembly Backorder WPL WP389386 $141.88

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $5.19

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $59.84

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

6

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

6

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $13.08

6

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

6

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

6

WP4396174 Whirlpool Touch-Up Paint Backorder WPL WP4396174 $15.74

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $200.68

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

White (Uncut) WPL 799344 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

6

Lubricant (Use Only in Brake Shoe Assembly On WPL 285208 Contact Us For Availability

6

Pewter PAINT, BULK (1 qt.) WPL 4396175 Contact Us For Availability

6

Biscuit (Uncut) OIL WPL 4392900 Contact Us For Availability

6

Drain Protector WPL 367031 Contact Us For Availability

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $4.82

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

Cabinet−Sound Damper WPL 3976348 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $91.39

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Timer, Block Disconnect WPL 352090 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

9

WP3955765 Whirlpool Timer Assembly In Stock WPL WP3955765 $261.82

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $5.30

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

Seal, Lid WPL 8054939 Contact Us For Availability

Spring, Agitate WPL 62676 Contact Us For Availability

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.82

WP8054980 Whirlpool Lid Switch Assembly In Stock WPL WP8054980 $137.92

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

Plug, Terminal WPL 353424 Contact Us For Availability

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $20.50

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

For Models: GSQ9632LW0, GSQ9632LG0, GSQ9632LL WPL N/S Contact Us For Availability

Block, Disconnect (Use Term. 94613 Or 94614.) WPL 3348075 Contact Us For Availability

14

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $69.08

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

14

Block, Disconnect WPL 3347243 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $35.11

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $176.44

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $4.85

Hinge, Lid (L.H.) WPL 8055257 Contact Us For Availability

Protector WPL 63523 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $17.52

63849 Whirlpool Outer Tub Primary Assembly In Stock WPL 63849 $191.59

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Connector WPL 717252 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Plug, Terminal WPL 387566 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $9.92

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

Clip, Harness WPL 3352944 Contact Us For Availability

Clamp, Hose WPL 3976395 No Longer Available

WP8529935 Whirlpool Drive Motor In Stock WPL WP8529935 $255.01

Base Assembly (Includes Illus, 6, 7, 8, 9,16, WPL 3946512 Contact Us For Availability

Block, Disconnect WPL 3390423 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

20

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

20

Receptacle WPL 3347730 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $40.48

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

21

Plug, Terminal (Use Term. 94613 Or 94614.) WPL 388818 Contact Us For Availability

22

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $39.50

22

Timer, Block Disconnect (Black) (Amp) WPL 3369366 Contact Us For Availability

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $5.30

23

Connector, Etc WPL 3349494 Contact Us For Availability

23

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

WP358912 Whirlpool Gasket Backorder WPL WP358912 $4.82

Connector, Relay WPL 60687 Contact Us For Availability

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

E.T.C. Control WPL 3407125 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $42.58

WP2172937 Whirlpool Connector Backorder WPL WP2172937 $12.98

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $6.88

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $3.50

Assembly−Drain Hose WPL 8317941 Contact Us For Availability

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $304.47

27

Connector (T.P.A) (Use Term.3948619 OR 394862 WPL 3360056 Contact Us For Availability

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

28

Block, Connector WPL 3354925 Contact Us For Availability

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

29

Block, Connector WPL 3354926 Contact Us For Availability

30

Connector (T.P.A.) (Use Term.3948619 OR 39486 WPL 3948615 Contact Us For Availability

31

Cover, Dispenser WPL 3955788 Contact Us For Availability

32

Dispenser, Bleach WPL 8519517 Contact Us For Availability

34

Switch, Rotary WPL 3956080 Contact Us For Availability

40

W10168264 Whirlpool Cycle Switch Backorder WPL W10168264 $96.56

43

WP8317926 Whirlpool Inlet Hose In Stock WPL WP8317926 $12.73

44

WP8538949 Whirlpool Knob In Stock WPL WP8538949 $54.89

44

(For GSQ9632LG0) WPL 8538952 Contact Us For Availability

45

WP8538955 Whirlpool Dial Backorder WPL WP8538955 $39.15

46

WP8538957 Whirlpool Knob Backorder WPL WP8538957 $42.60

48

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

50

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

57

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $62.59
