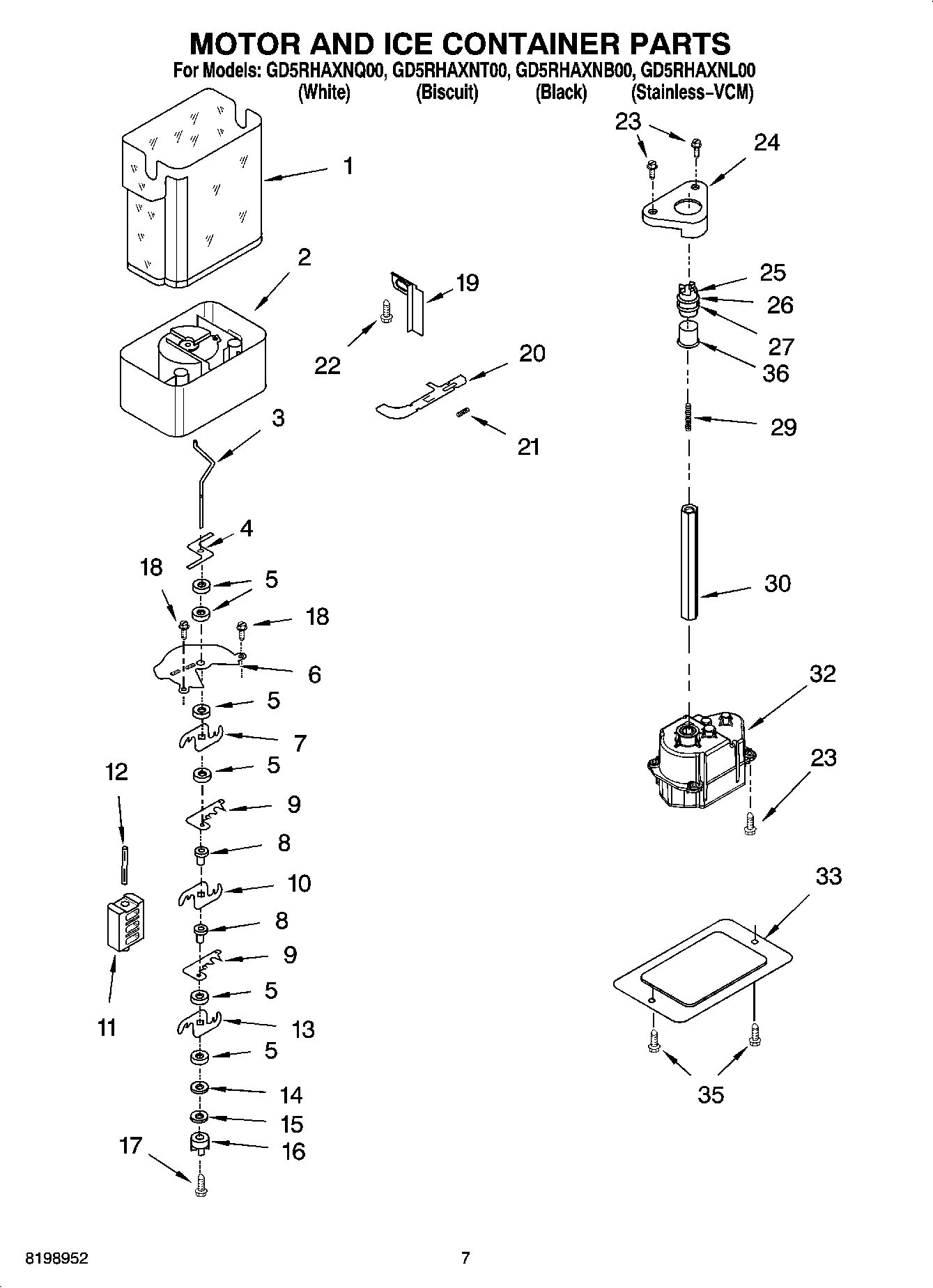

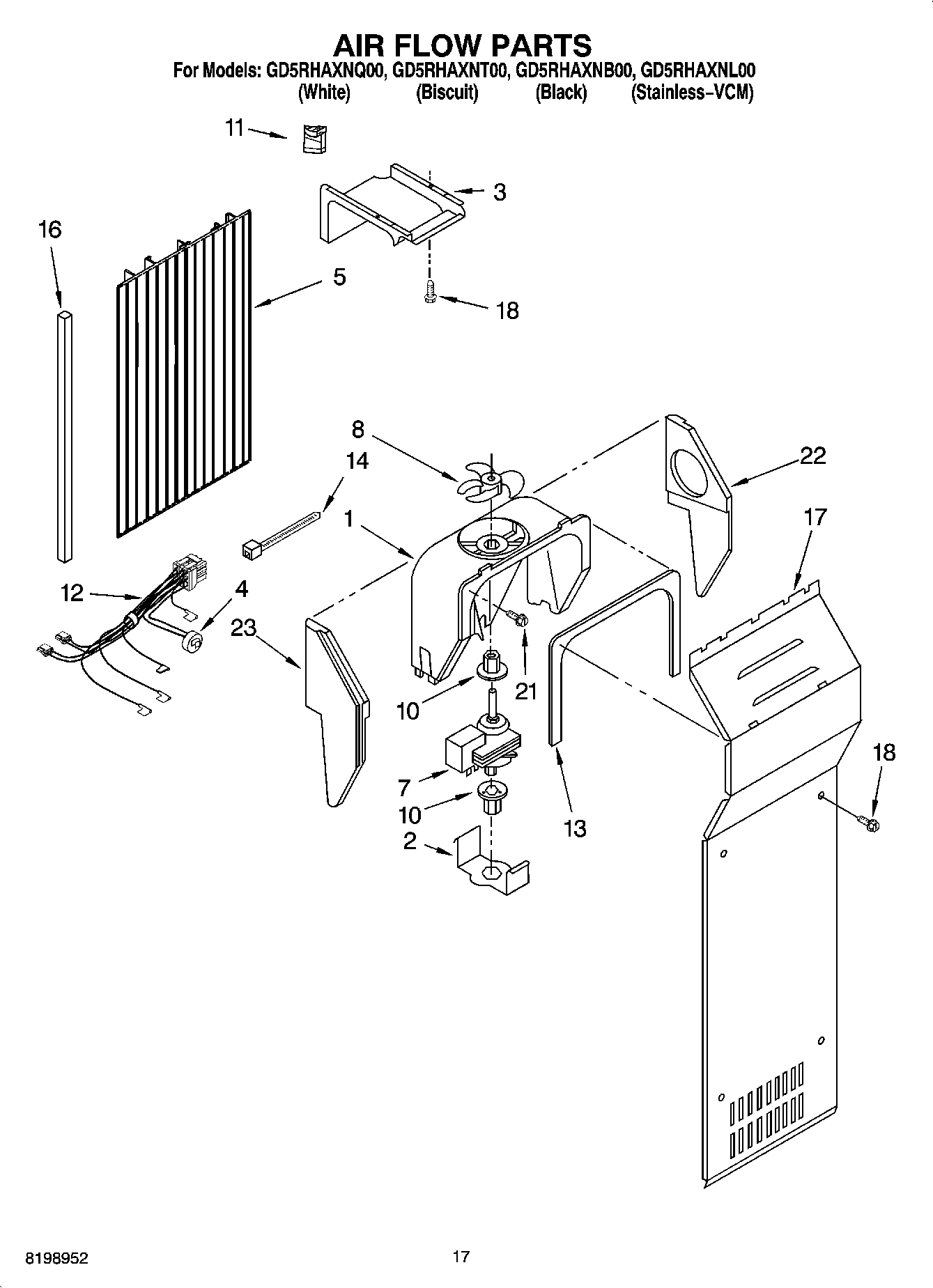

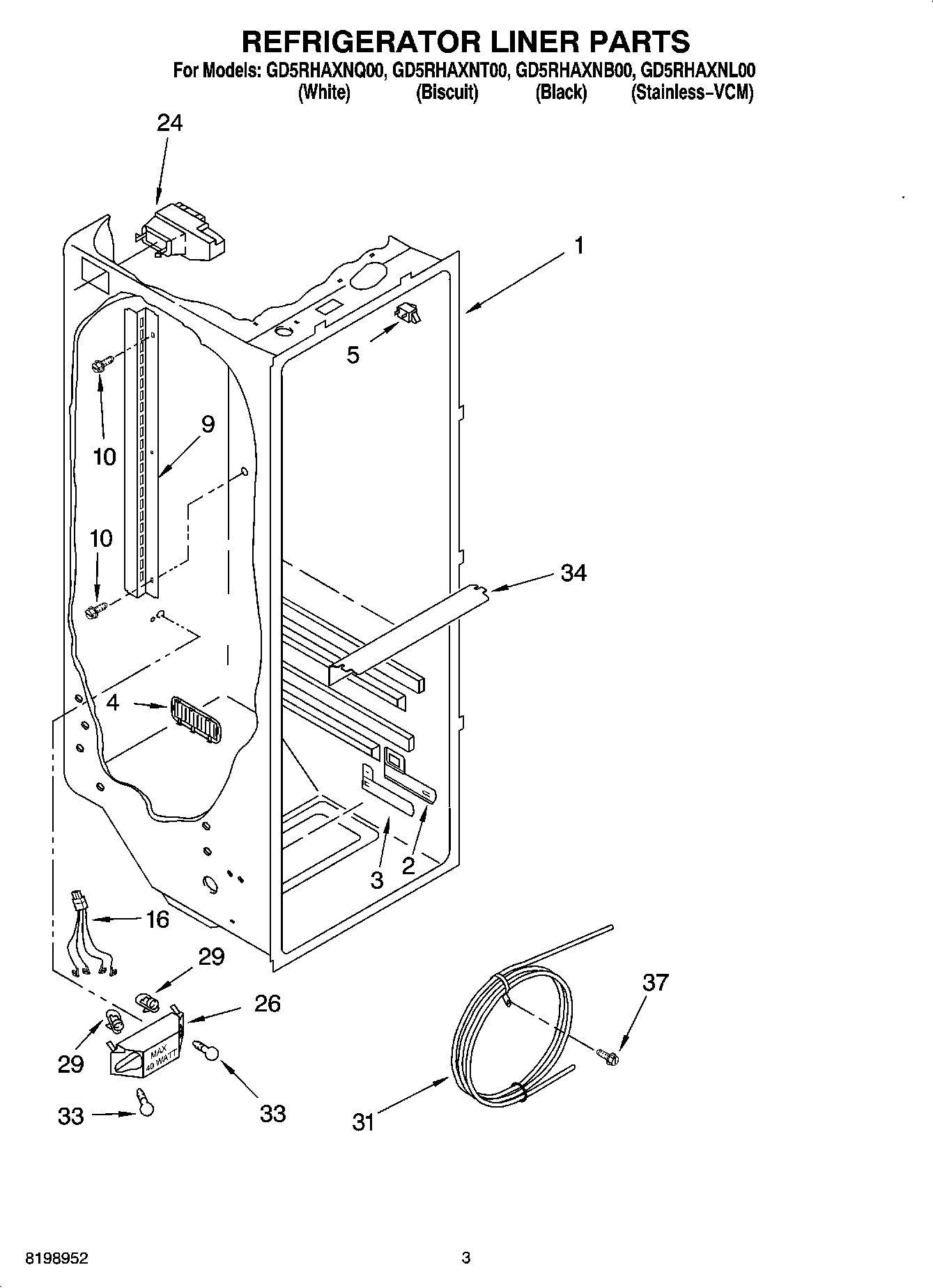

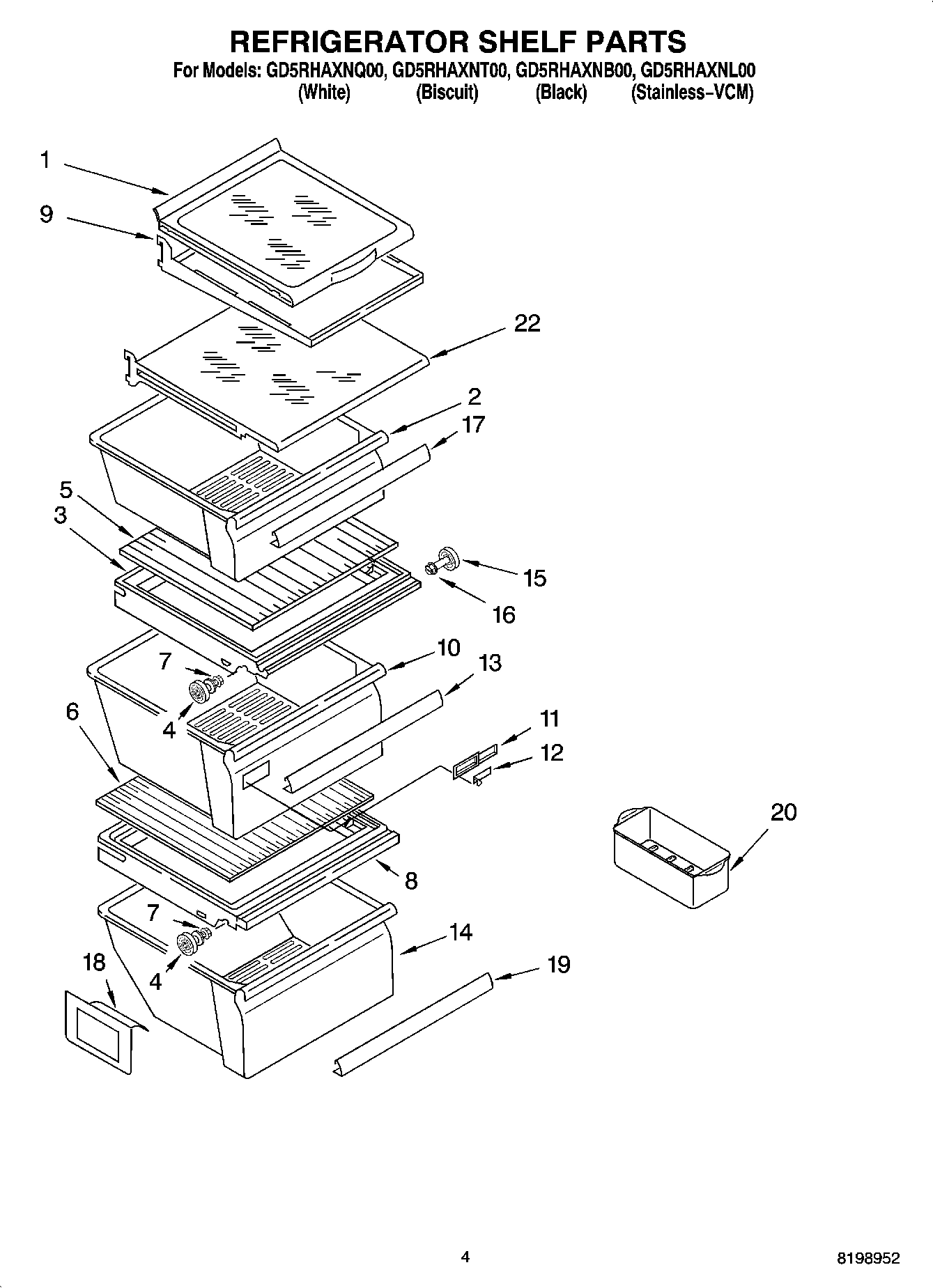

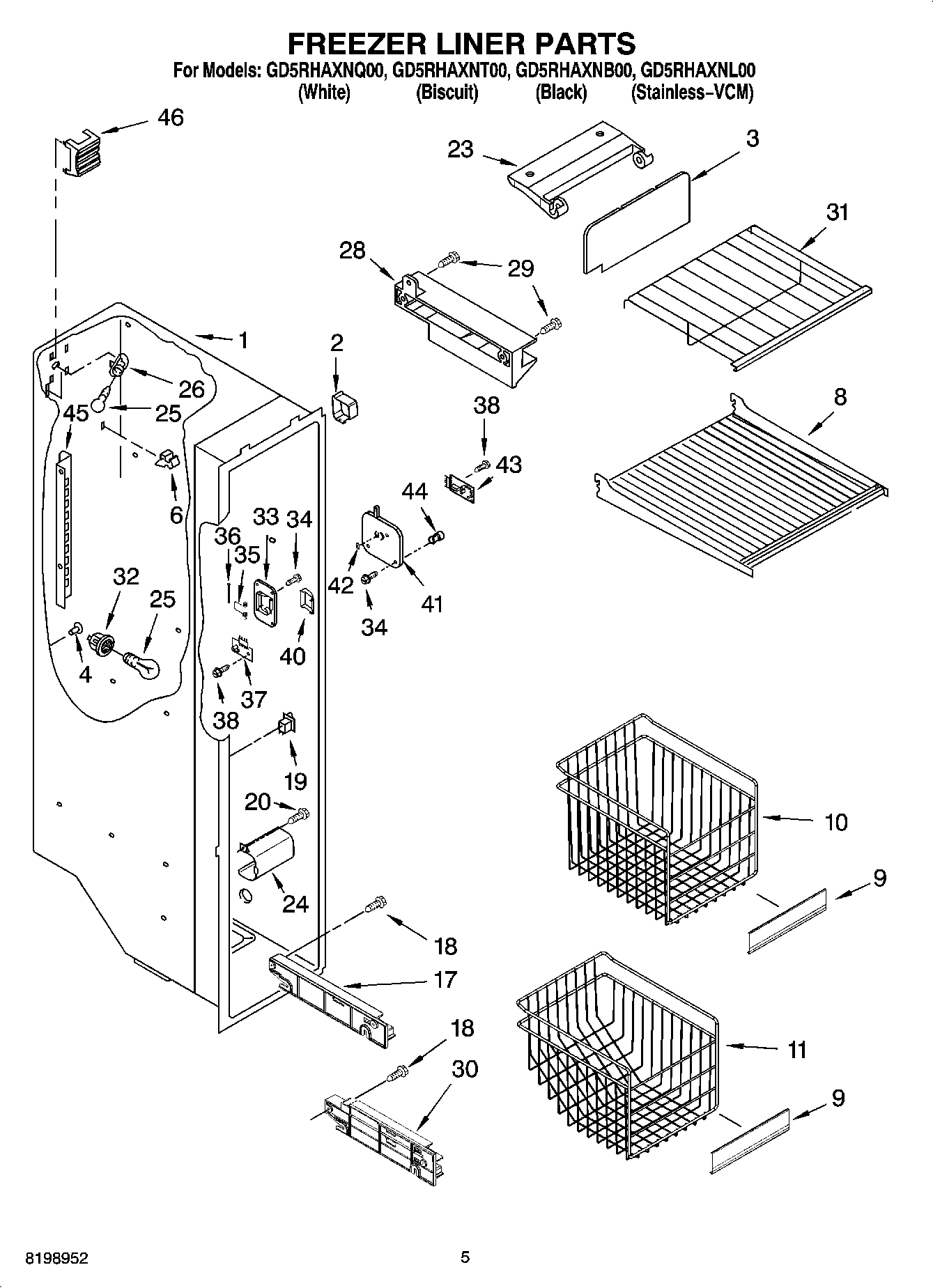

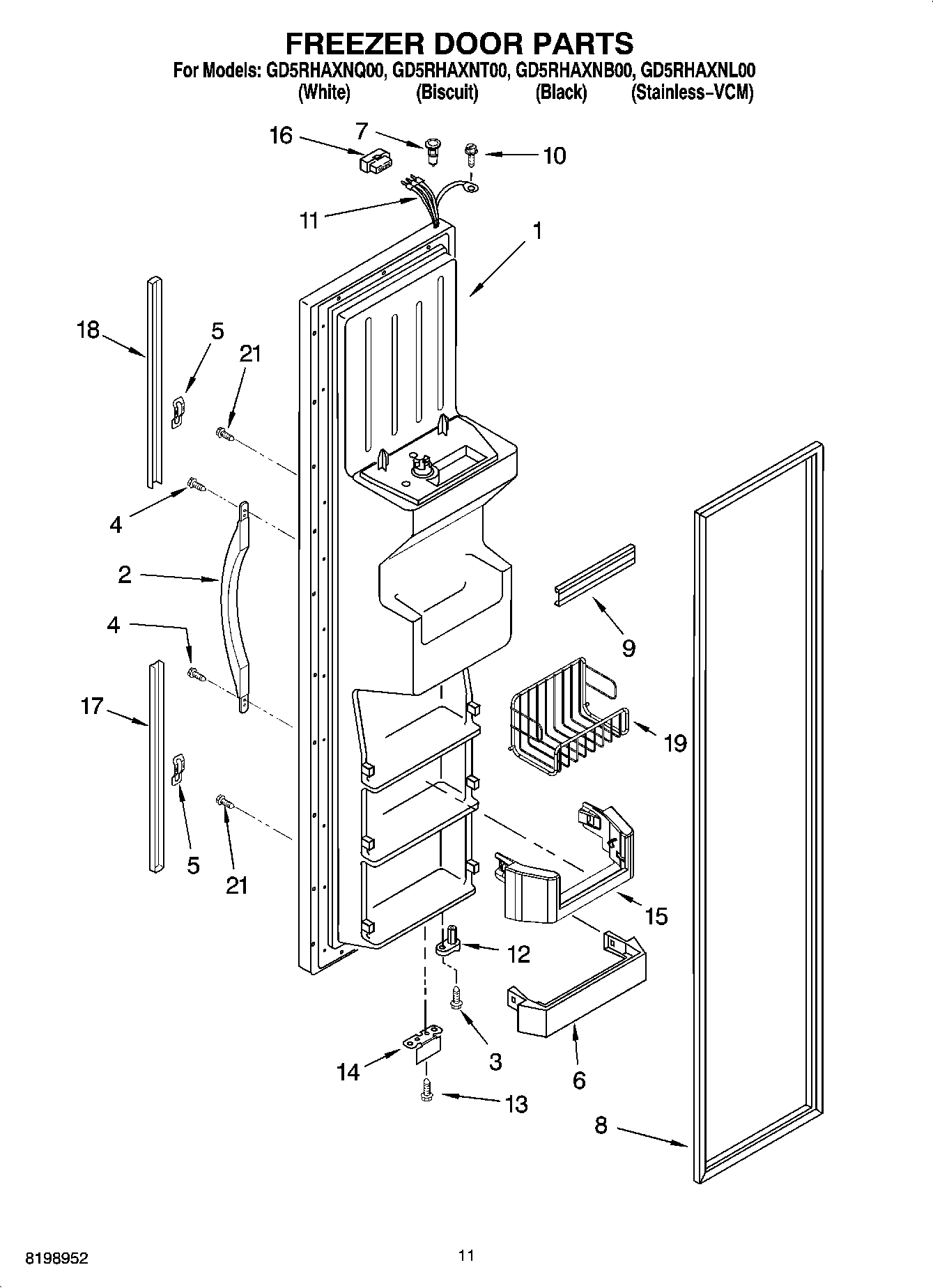

Model Whirlpool GD5RHAXNT00 REFRIGERATOR – Common Parts &amp; Diagrams

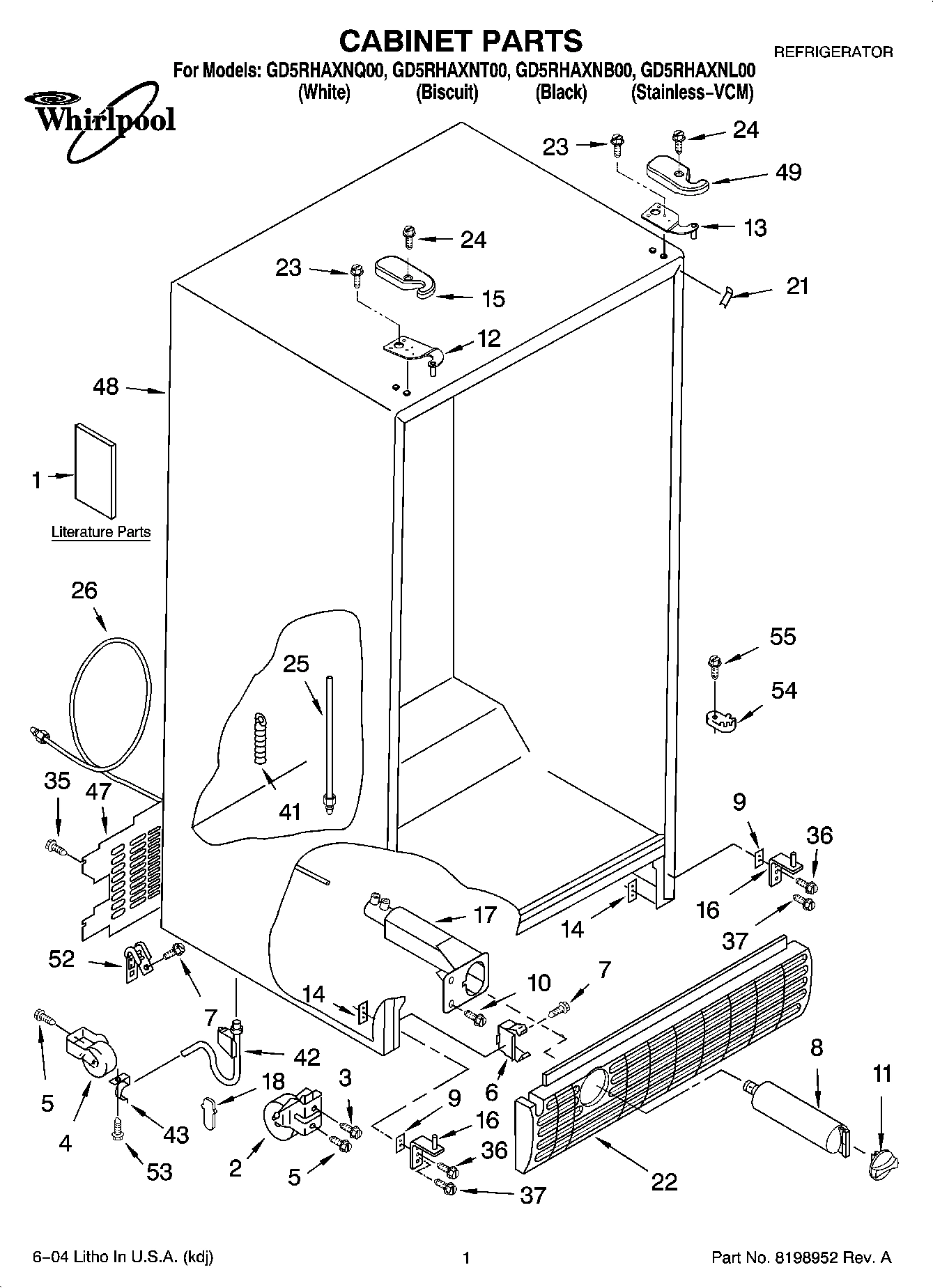

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP2258243 Whirlpool Refrigerator Ice Containe Backorder WPL WP2258243 $237.28

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL ARI63656A3 WPL ARI63656A3 Contact Us For Availability

WPL ARI63657A6 WPL ARI63657A6 Contact Us For Availability

WPL ARI63658A7 WPL ARI63658A7 Contact Us For Availability

WPL ARI63659A2 WPL ARI63659A2 Contact Us For Availability

WPL ARI63660A6 WPL ARI63660A6 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $183.99

1

NLA:SCREW Backorder WPL WPW10141645 $4.82

1

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $210.57

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $139.99

2

Handle, Center (Black) WPL 2186649B Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Nameplate WPL 2220214 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

2

Crusher Bin WPL 2255574 Contact Us For Availability

3

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $201.86

3

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $88.98

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP2198574 Whirlpool Refrigerator Ice Auger Backorder WPL WP2198574 $110.79

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.67

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Air Duct, Upper WPL 2212377 Contact Us For Availability

4

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Blade, Stirring WPL 2257021 Contact Us For Availability

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

5

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Air Duct Freezer WPL 2198580 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

Cover, Crusher WPL 2255460 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $62.77

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $57.37

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

7

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

7

TUBE, SUCTION WPL 2205765 Contact Us For Availability

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $24.99

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $44.34

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $54.67

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Frame, Shelf WPL 2195975 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $94.45

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $96.99

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $100.89

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

2198619 Whirlpool Refrigerator Wire Harness Backorder WPL 2198619 $90.20

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.99

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $36.34

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $66.51

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $66.84

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $130.70

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Scoop Air WPL 2198595 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $83.53

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

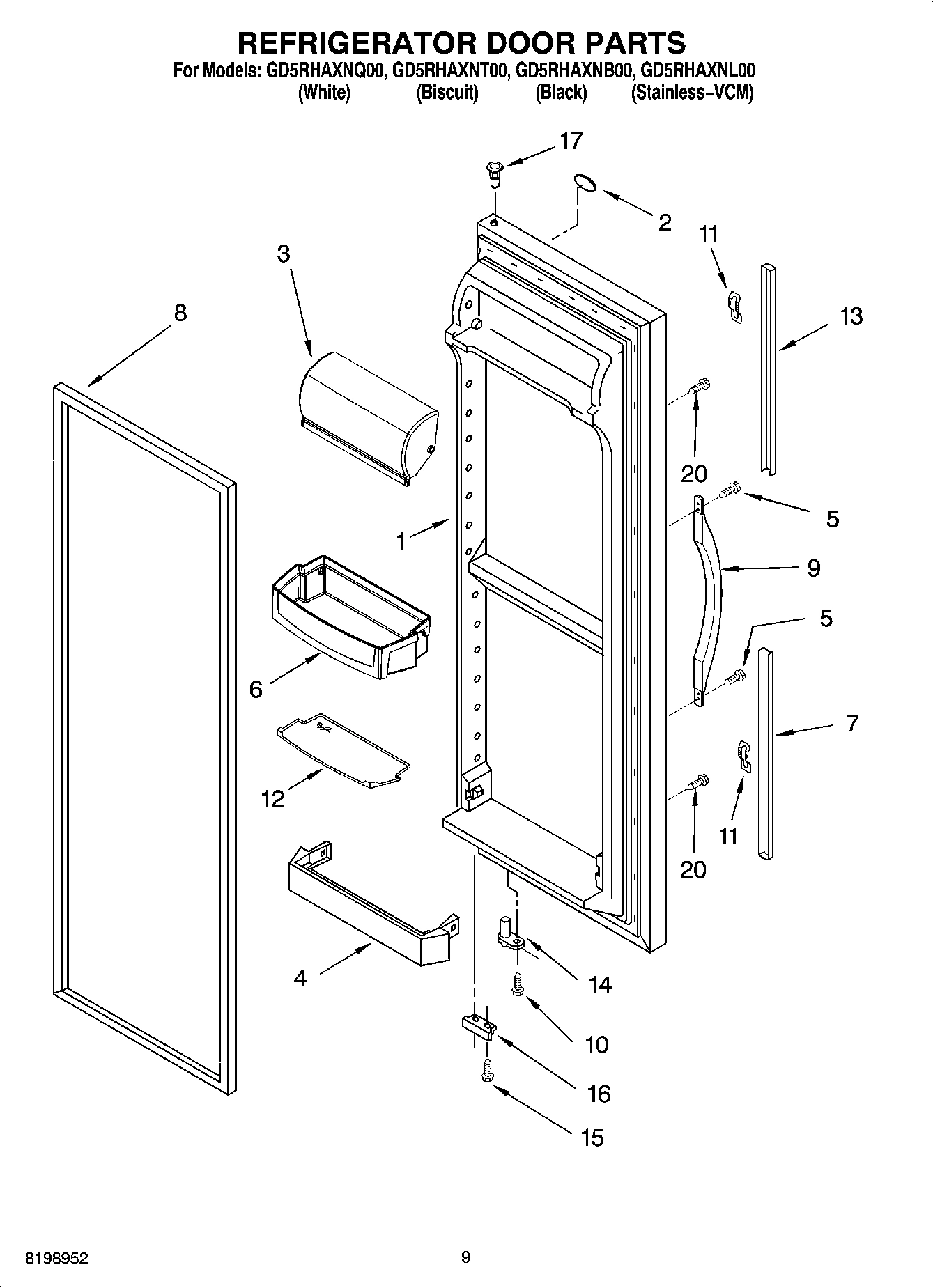

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $57.30

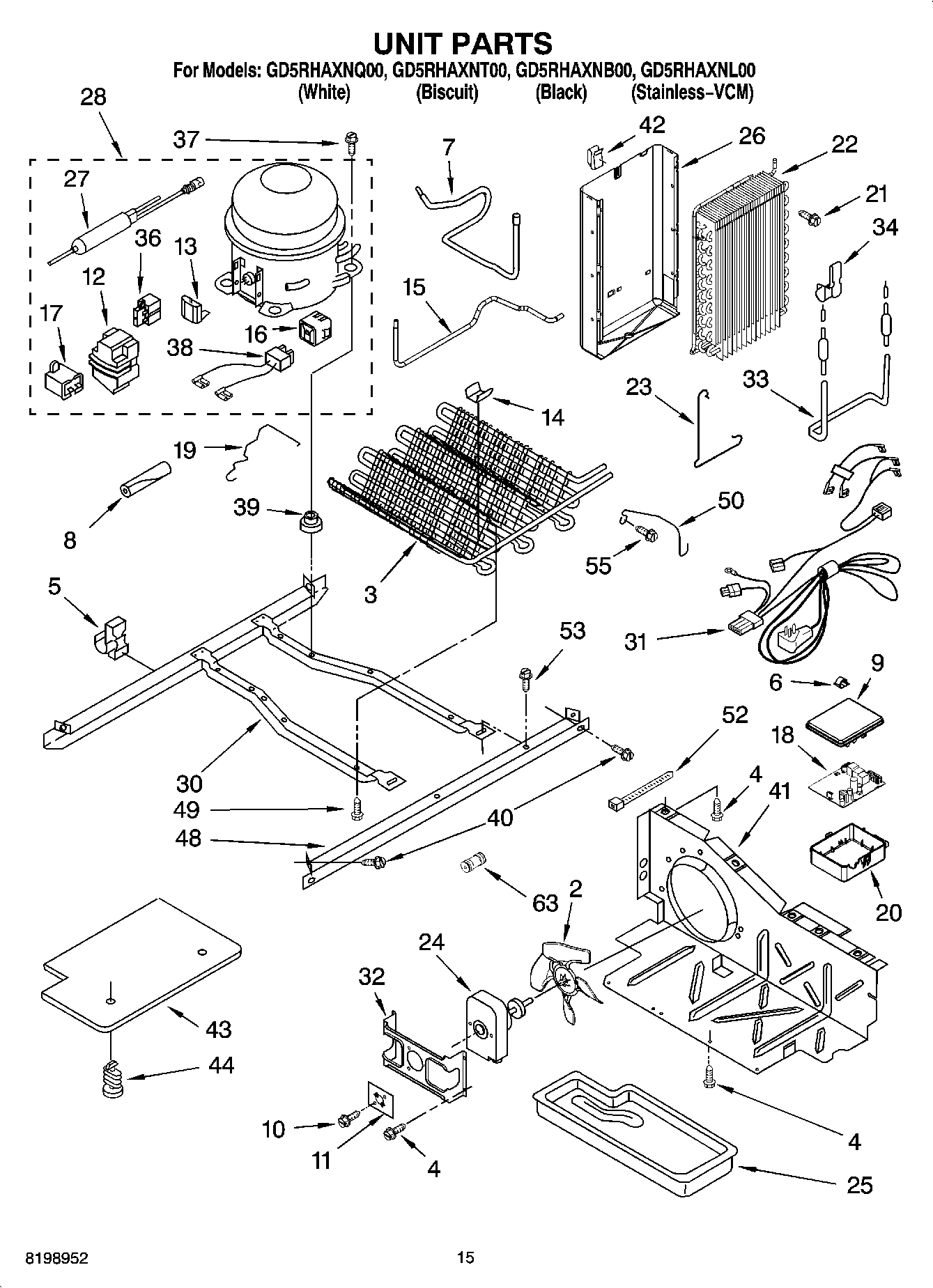

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $88.59

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.82

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $57.82

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $165.76

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.71

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $57.18

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.99

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.79

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $78.31

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $65.65

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $65.92

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $65.99

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

Slide, Basket (Right Side) WPL 2301289 Contact Us For Availability

Slide, Basket (Left Side) WPL 2301290 Contact Us For Availability

Cover, Evaporator WPL 2206314 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

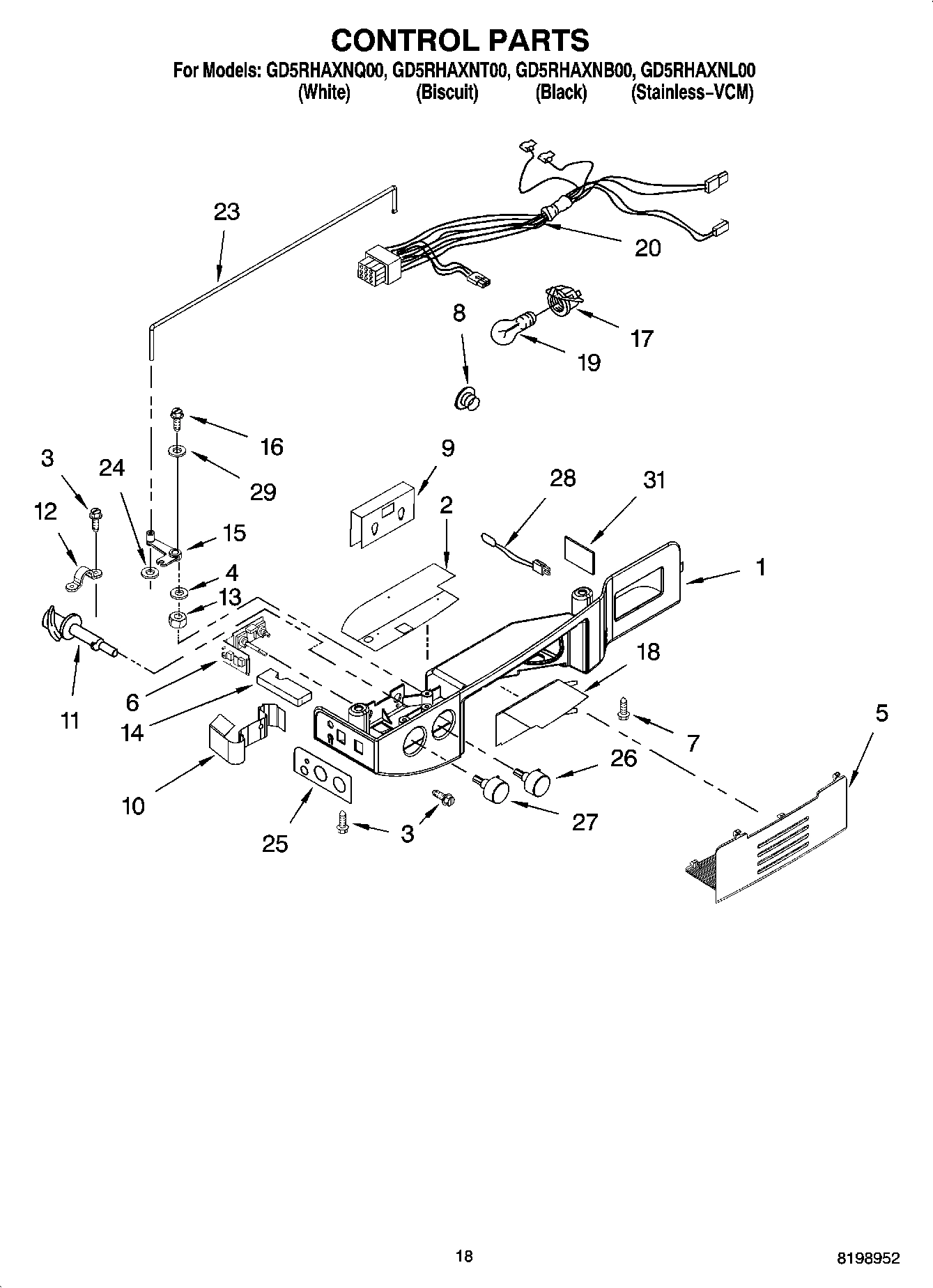

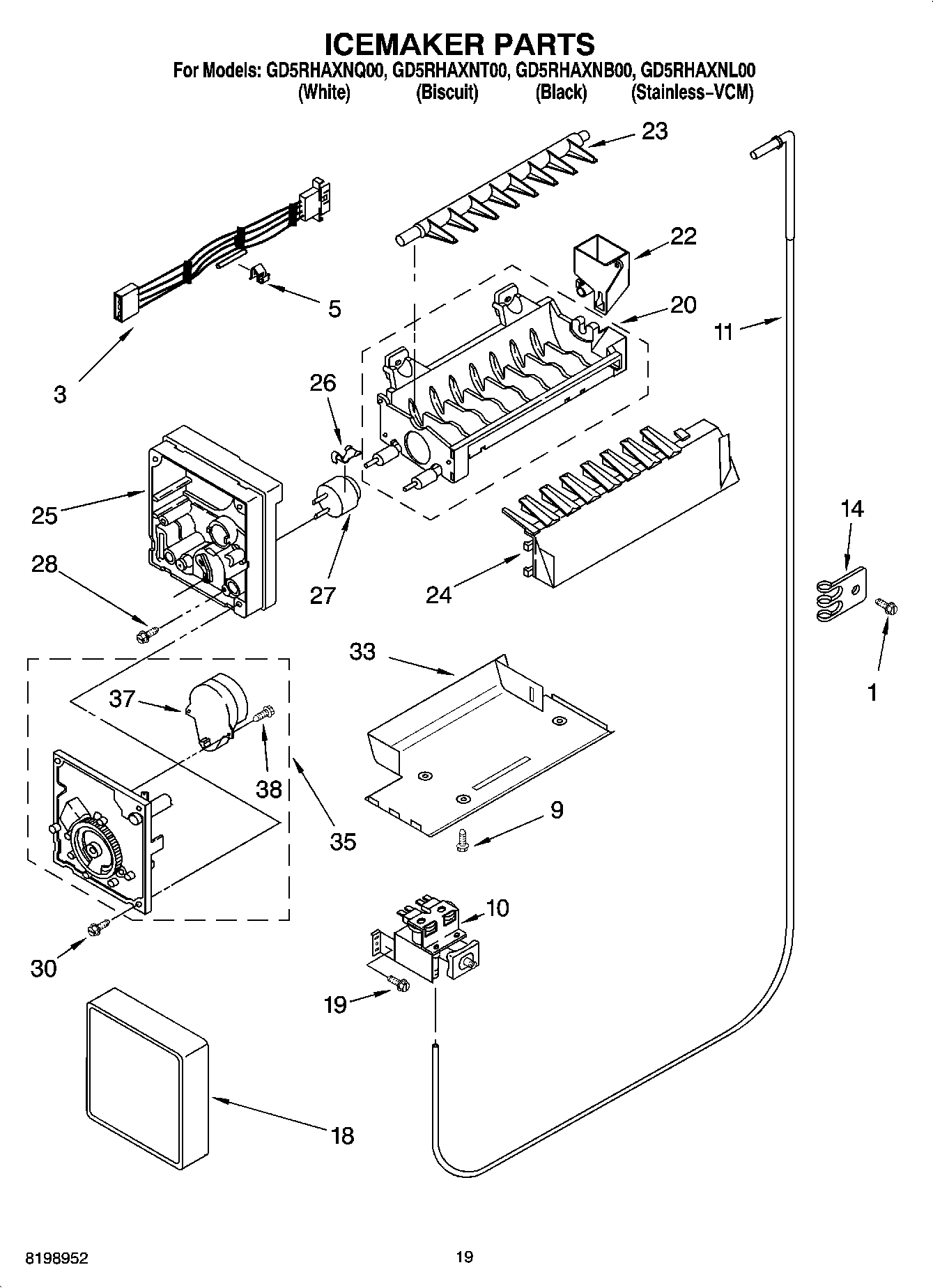

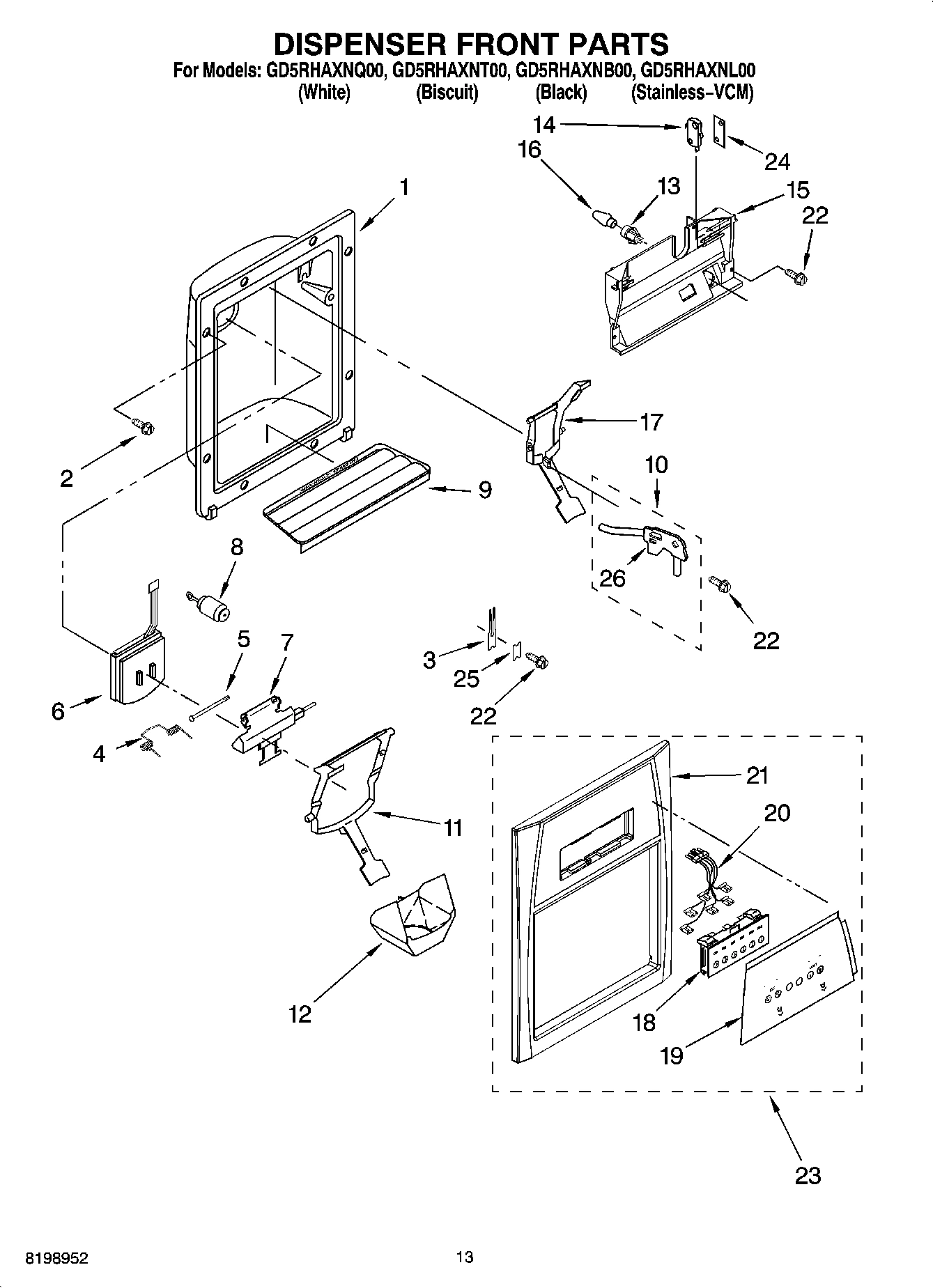

Switch Assembly (Not Available, Order 23) WPL ARI63650A2 Contact Us For Availability

19

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $55.94

19

WP2315403 Whirlpool Refrigerator Bin Button In Stock WPL WP2315403 $16.99

19

Overlay, Front Cover (Not Available, Order 23 WPL ARI63651A3 Contact Us For Availability

2187406 Whirlpool Refrigerator Wire Harness Backorder WPL 2187406 $79.95

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $176.99

Box, Control WPL 2255623 Contact Us For Availability

Latch, Bin WPL 2212371 Contact Us For Availability

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

21

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

21

Front Cover, Housing (Not Available, Order 23 WPL ARI63652A1 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $6.84

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $20.18

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $287.76

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Grille (Biscuit) WPL 2198468T Contact Us For Availability

Shelf, Snack Bin WPL 2206347 Contact Us For Availability

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2261201B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2261201T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2261201W Contact Us For Availability

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $56.99

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

Fastner, Push-On WPL 489285 Contact Us For Availability

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

25

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $14.99

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $9.19

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

27

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $14.75

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

27

Knob, FC WPL 2255992 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

28

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $23.99

28

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $15.99

30

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $69.83

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

32

WP2212363 Whirlpool Refrigerator Motor In Stock WPL WP2212363 $178.99

33

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $70.78

33

Cover WPL 2198626 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $115.71

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

36

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $20.81

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $71.99

37

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

40

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

44

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

49

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $162.99
