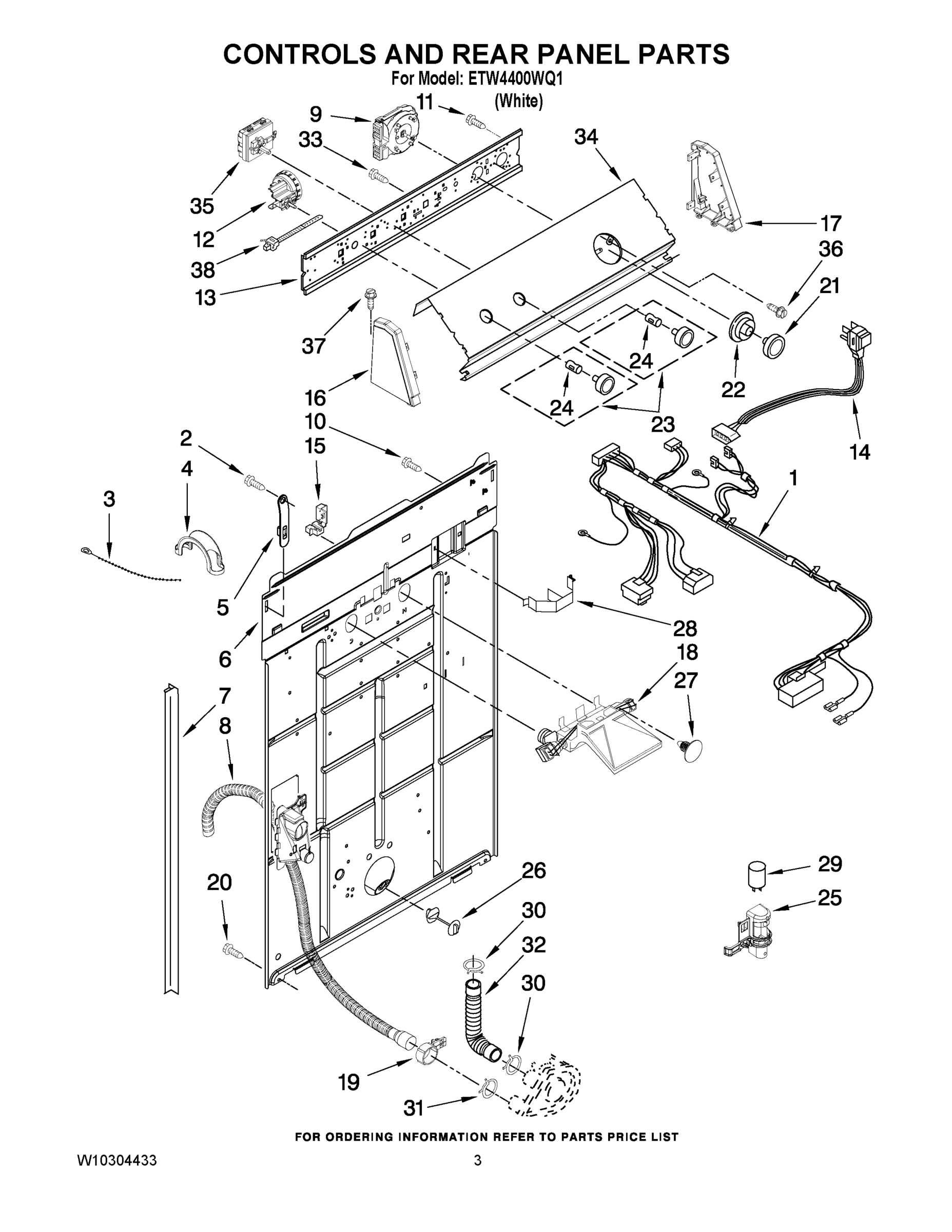

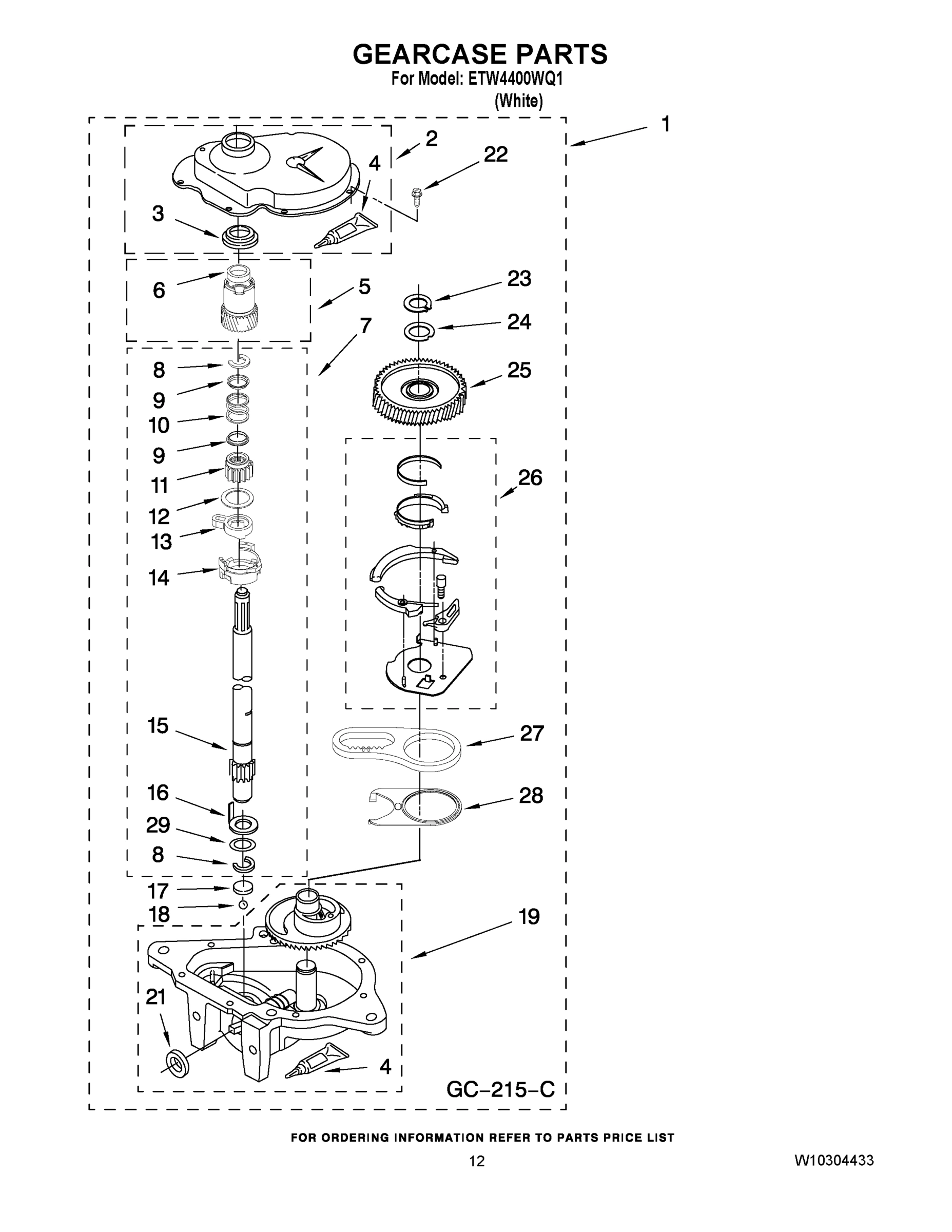

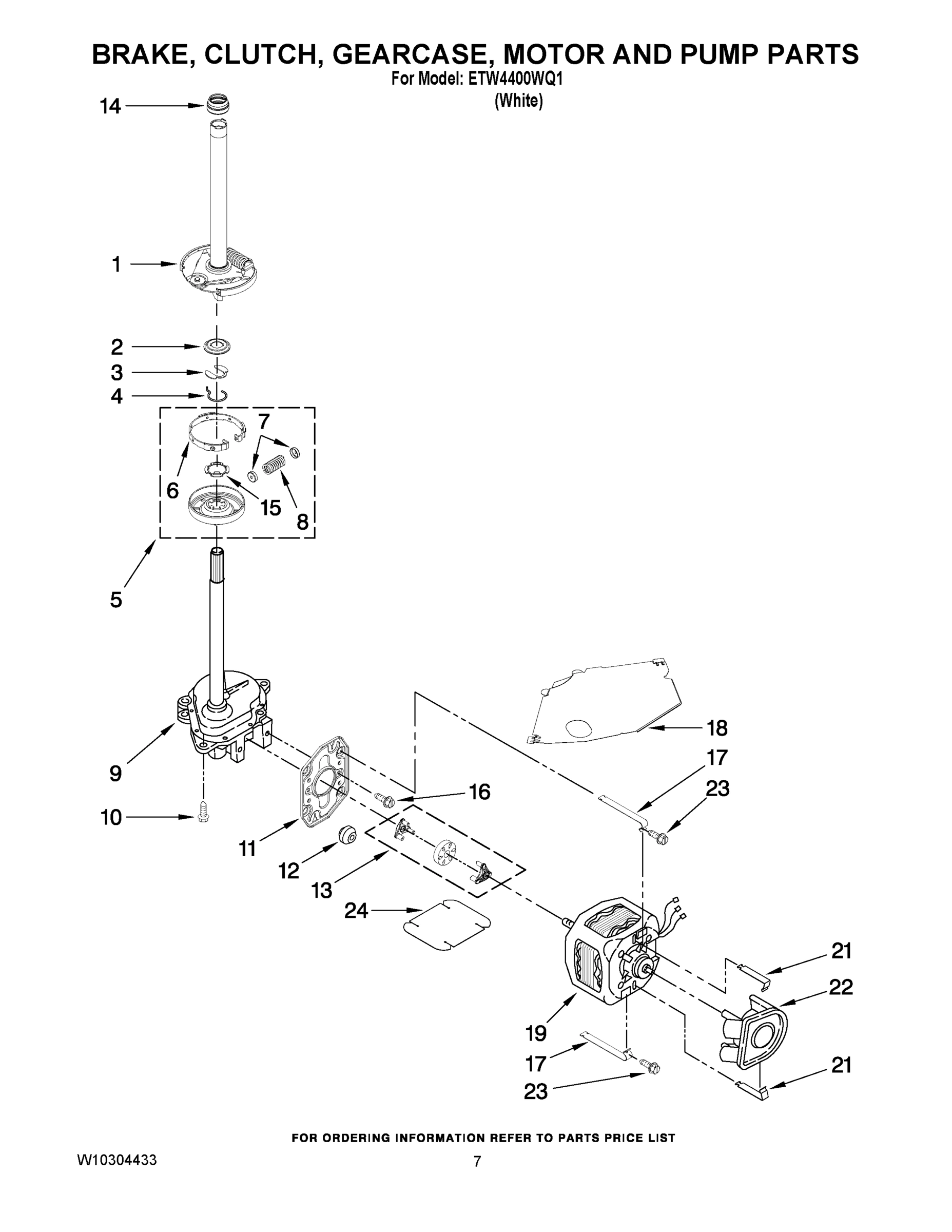

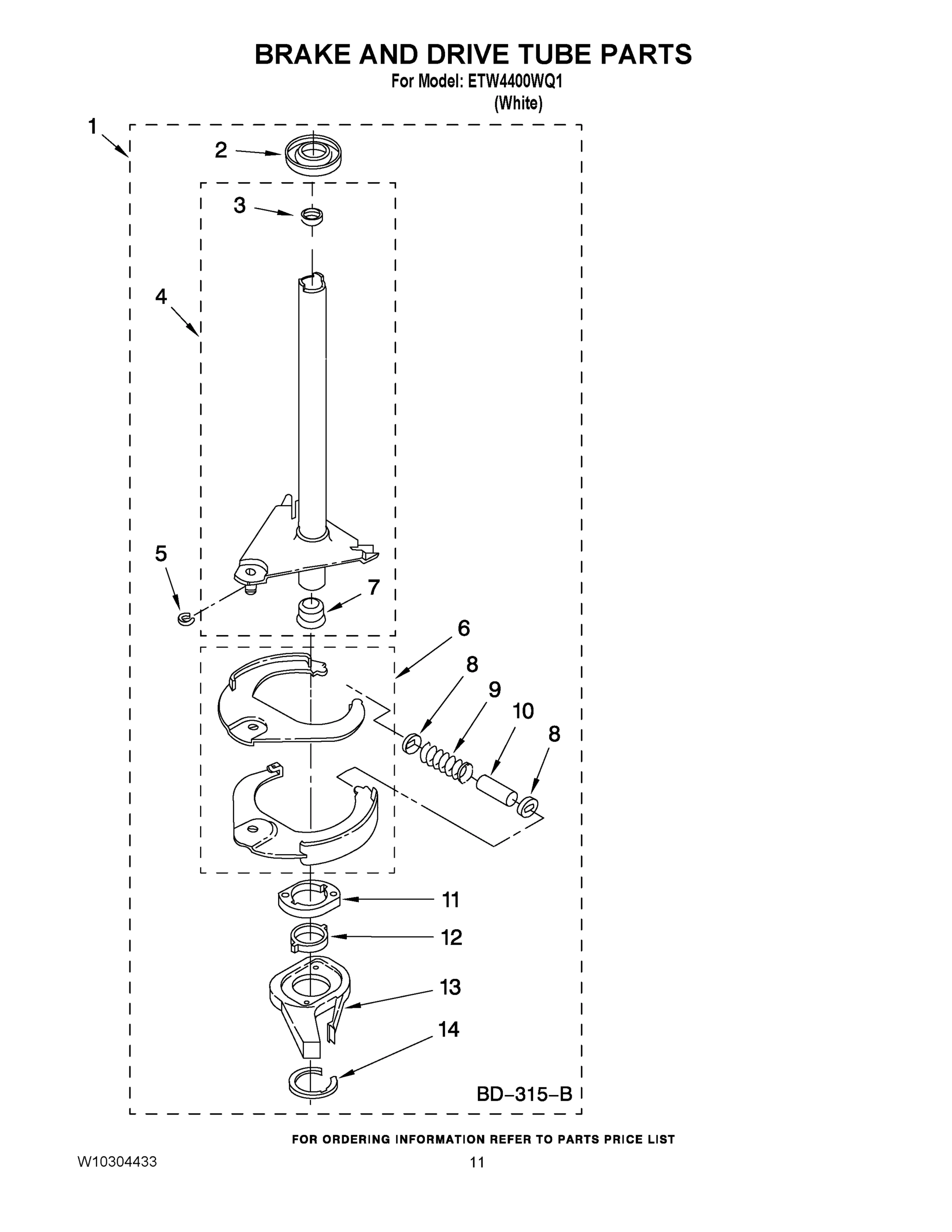

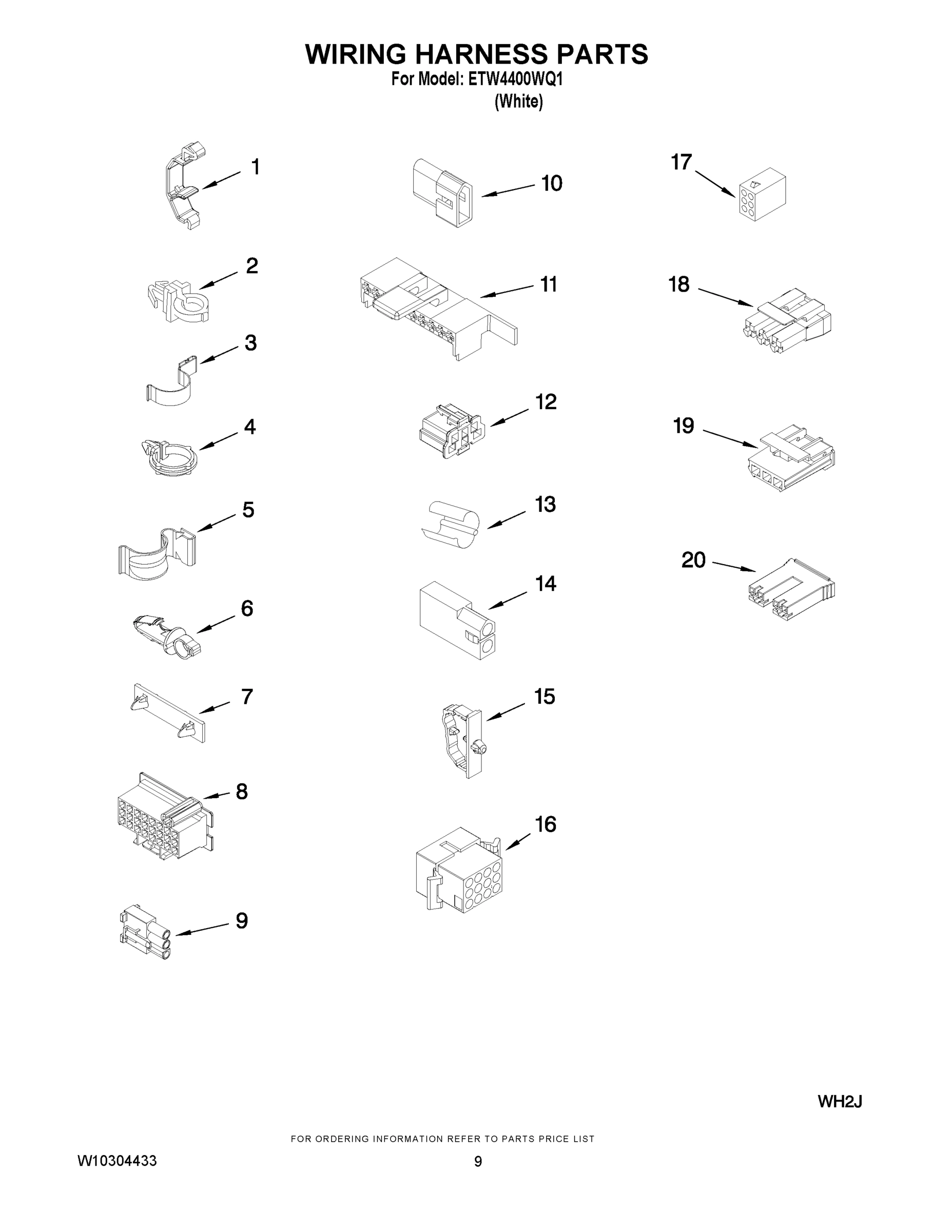

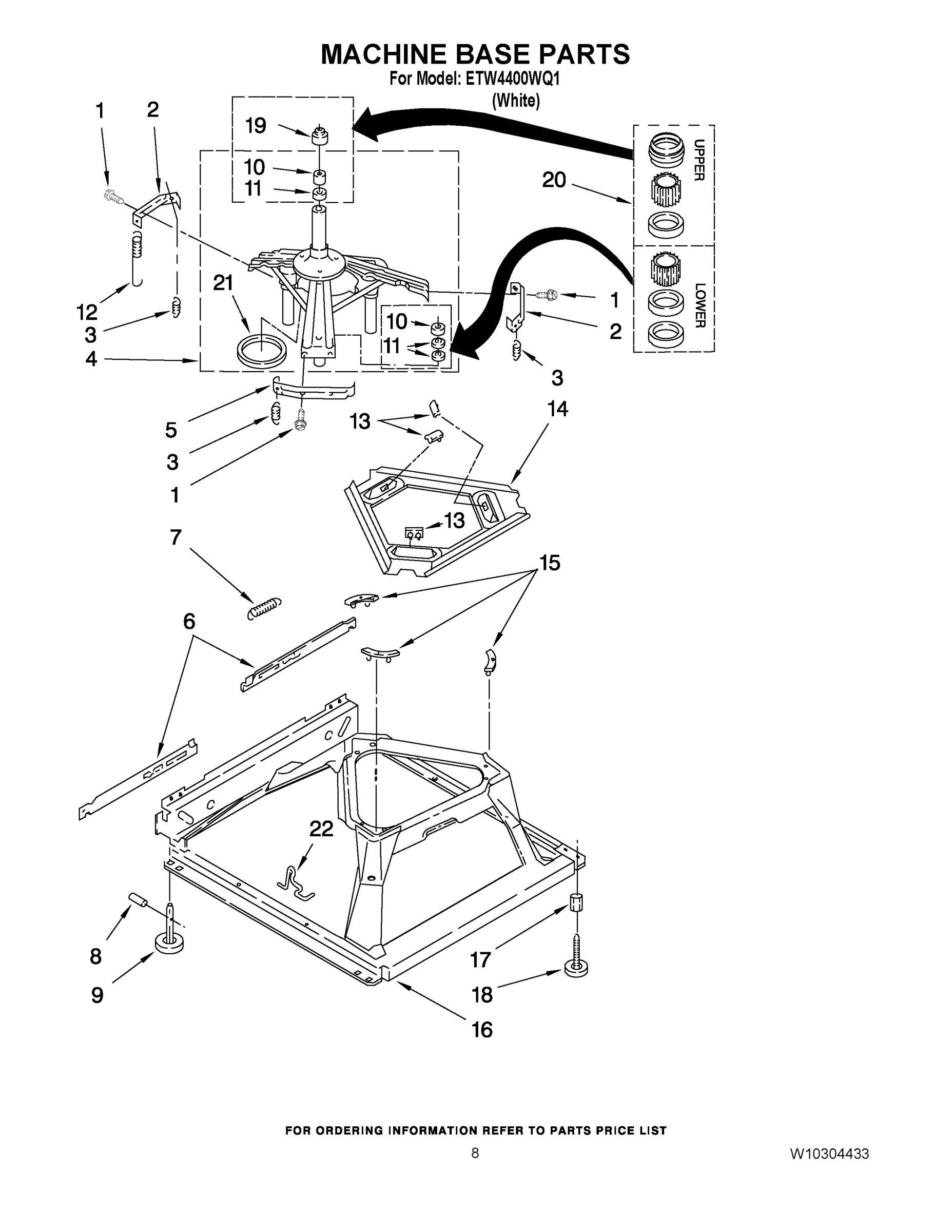

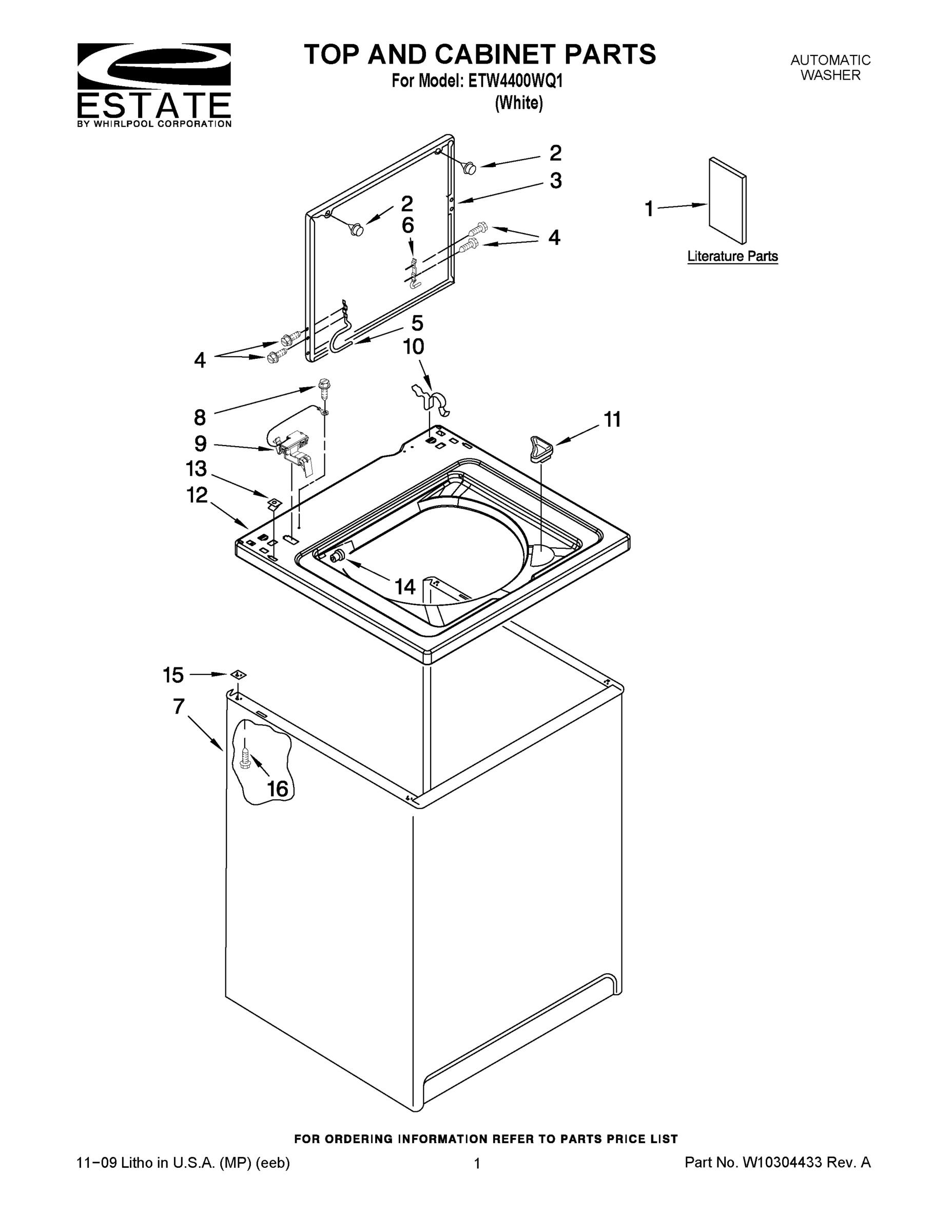

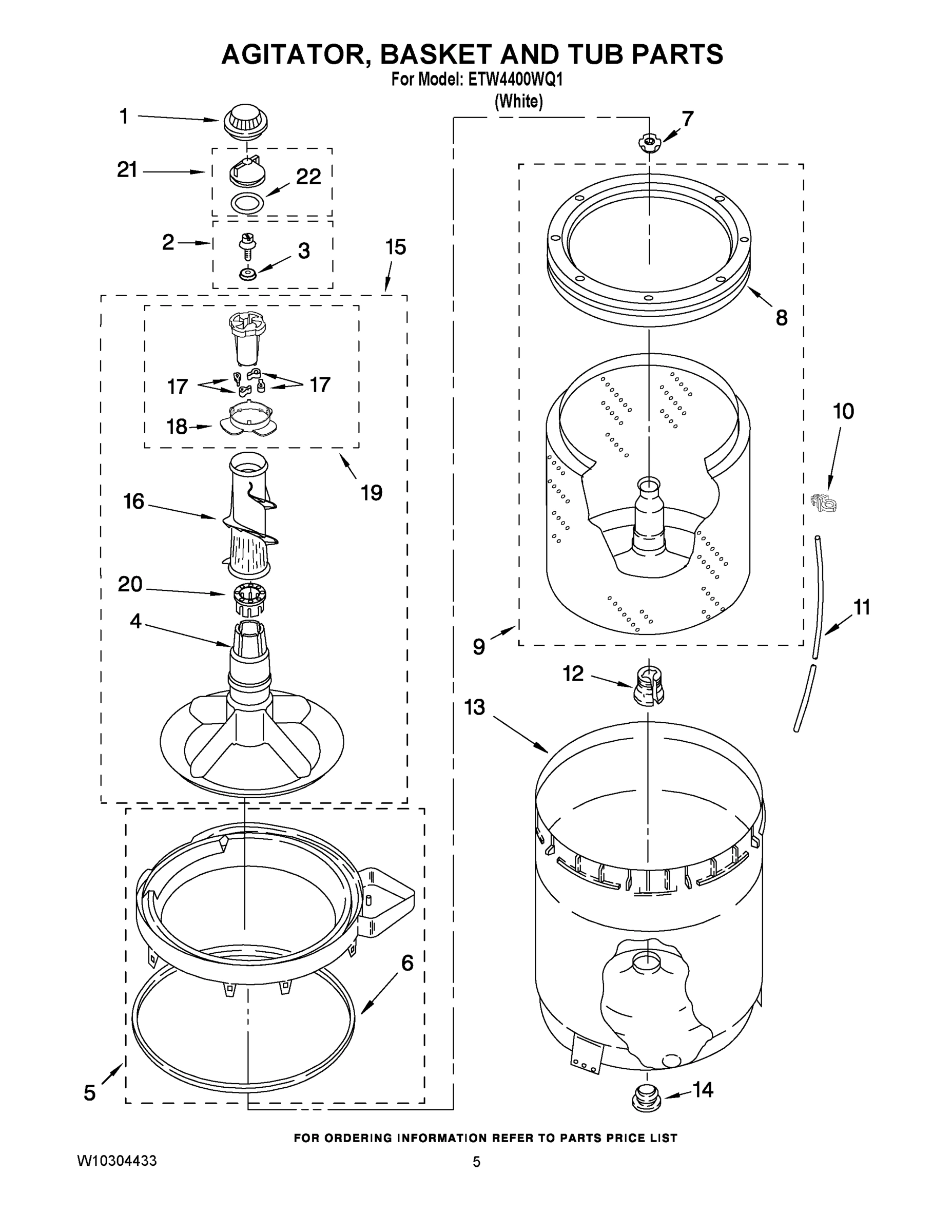

Model Whirlpool ETW4400WQ1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $9.65

1

HARNESS WIRING WPL W10307145 Contact Us For Availability

1

Retainer, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

4

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $89.99

4

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $4.82

4

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $12.99

6

WP91770 Whirlpool Hinge In Stock WPL WP91770 $17.43

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

7

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

8

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $119.89

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WPW10189267 Whirlpool Drain Hose In Stock WPL WPW10189267 $51.99

8

Timer, Block Disconnect (Natural) WPL 3948614 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

9

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $40.99

9

WPW10199989 Whirlpool Timer In Stock WPL WPW10199989 $254.96

10

353424 Whirlpool Connector Backorder WPL 353424 $14.02

10

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

10

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

11

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.99

11

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

WPW10231403 Whirlpool Washer Water Level Swit Backorder WPL WPW10231403 $113.45

13

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $191.99

13

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $4.96

15

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

15

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

16

WP3348752 Whirlpool Agitator Mover Backorder WPL WP3348752 $159.32

16

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

17

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

17

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.82

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

WPW10144820 Whirlpool Washer Water Inlet Valv In Stock WPL WPW10144820 $55.99

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $14.02

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $208.97

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.99

Plug (T.P.A) (3-Circuit) (Pressure Switch) WPL 3360056 Contact Us For Availability

20

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

WP8538949 Whirlpool Knob In Stock WPL WP8538949 $54.89

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP8538955 Whirlpool Dial Backorder WPL WP8538955 $36.59

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $4.98

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $6.57

WPW10288040 Whirlpool Water Pump Backorder WPL WPW10288040 $148.86

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

23

WP8538957 Whirlpool Knob In Stock WPL WP8538957 $39.82

24

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

24

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $9.86

25

Clip, Capacitor WPL 8318046 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

26

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

29

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.84

35

WPW10184148 Whirlpool Temperature Switch In Stock WPL WPW10184148 $68.82

37

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

285448A Whirlpool Washer In Stock WPL 285448A $5.99

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $7.72

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

8212487RP Whirlpool 5' Industrial Grade Nylon In Stock WPL 8212487RP $38.79

8212545RP Whirlpool Washer Commercial Grade 5 In Stock WPL 8212545RP $34.99

8212546RP Whirlpool Washer 4' Black Rubber Fi In Stock WPL 8212546RP $13.89

8212641RP Whirlpool Washer Hose Kit Black EPD In Stock WPL 8212641RP $16.69

8212656RP Whirlpool Fill Hose Backorder WPL 8212656RP $30.44

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
