Model Whirlpool CSP2790BN0 COMMERCIAL (STACKED) ELECTRIC DRYER – Common Parts & Diagrams

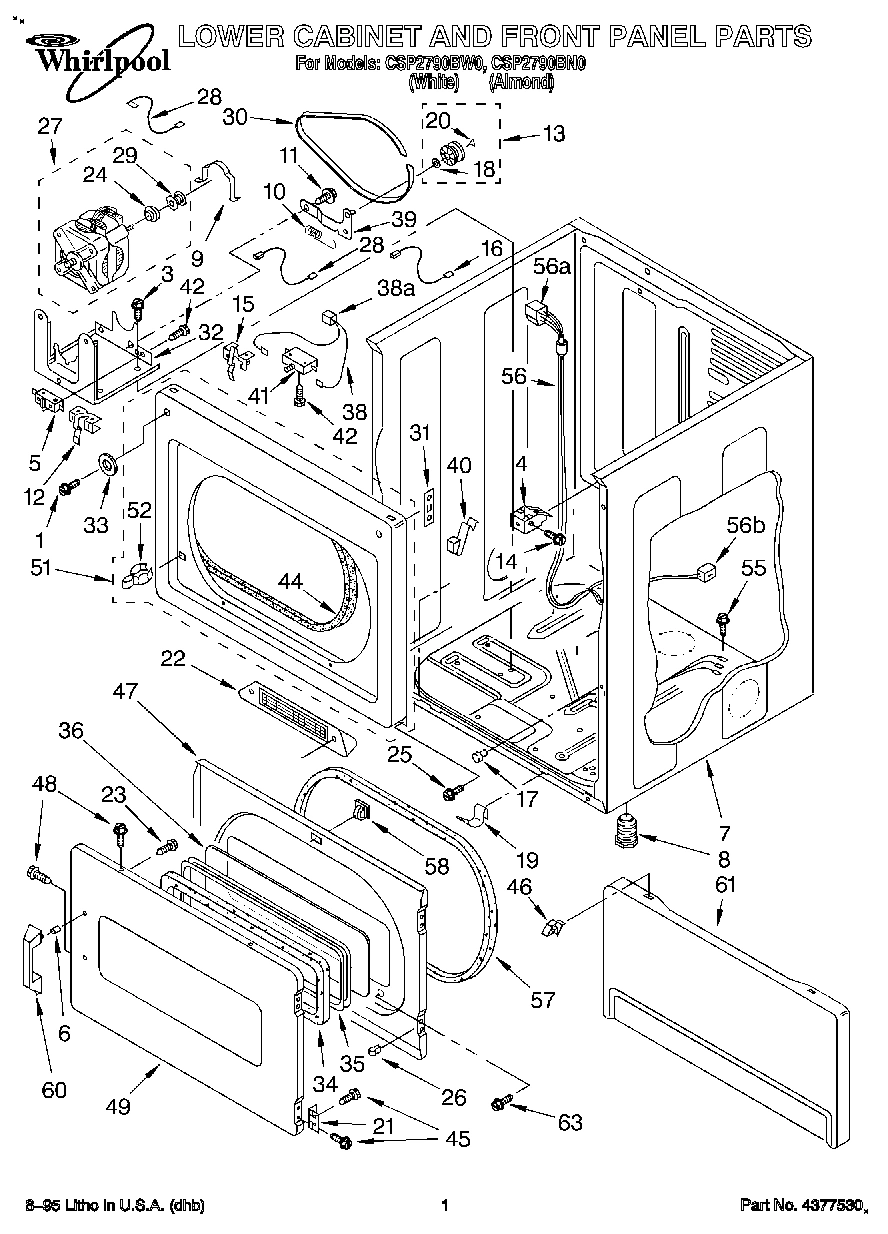

01 - LOWER CABINET AND FRONT PANEL

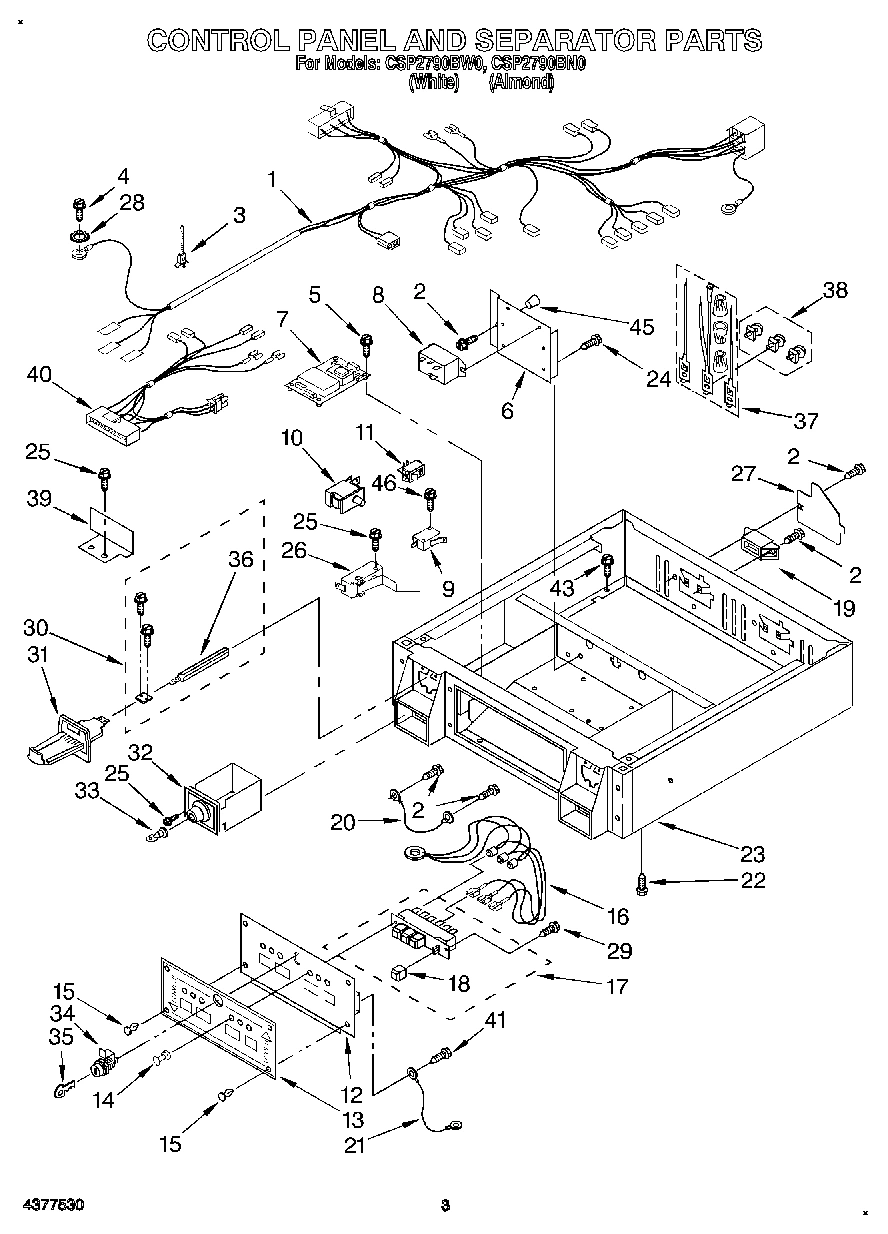

02 - CONTROL PANEL AND SEPARATOR

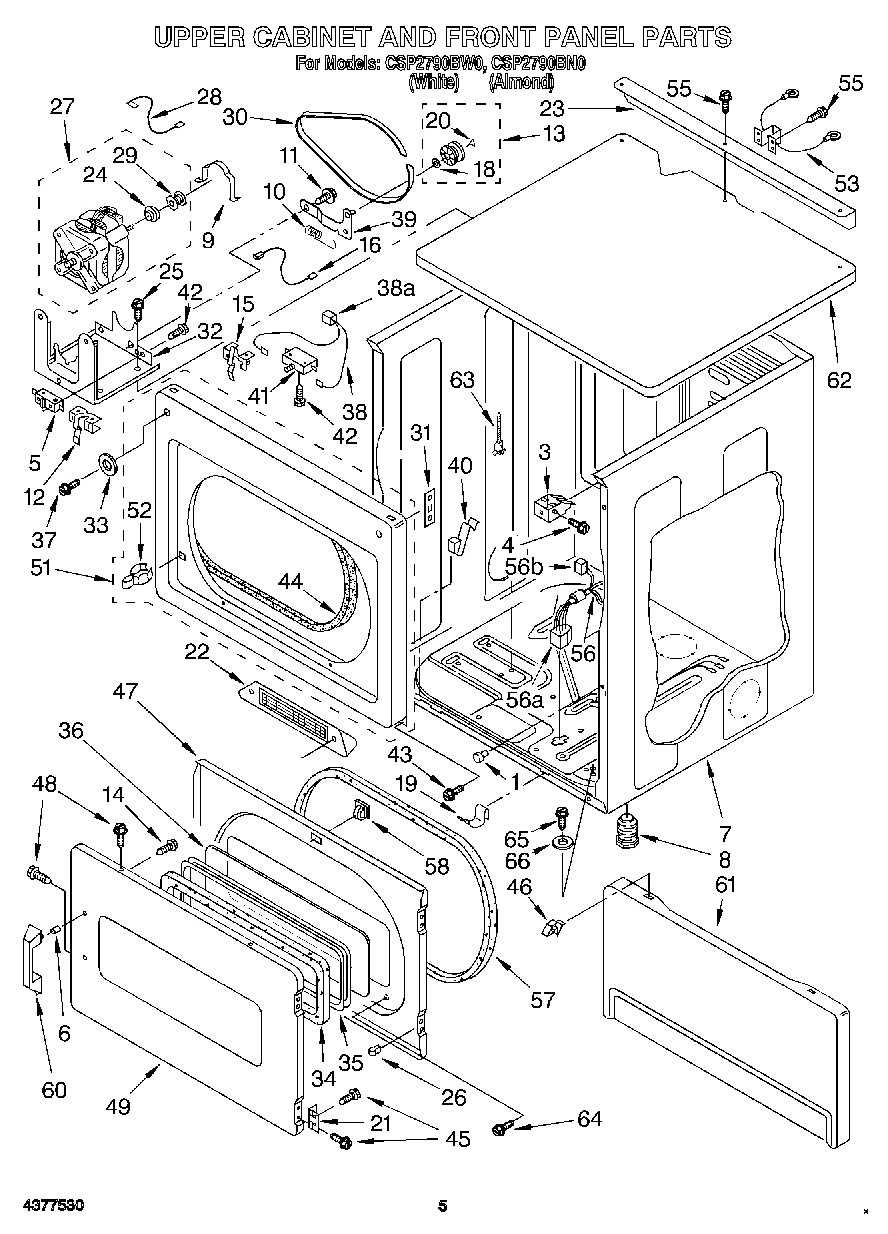

03 - UPPER CABINET AND FRONT PANEL

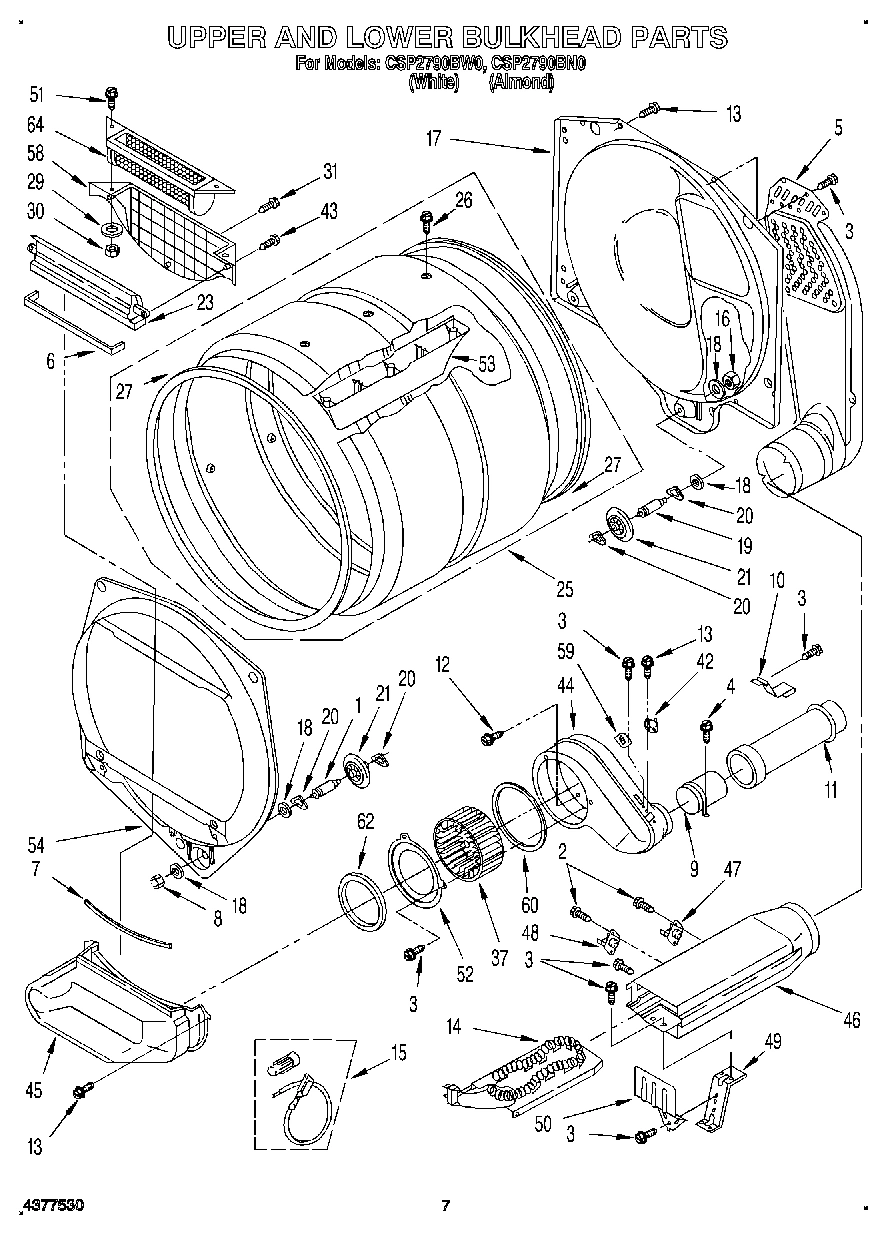

04 - UPPER AND LOWER BULKHEAD

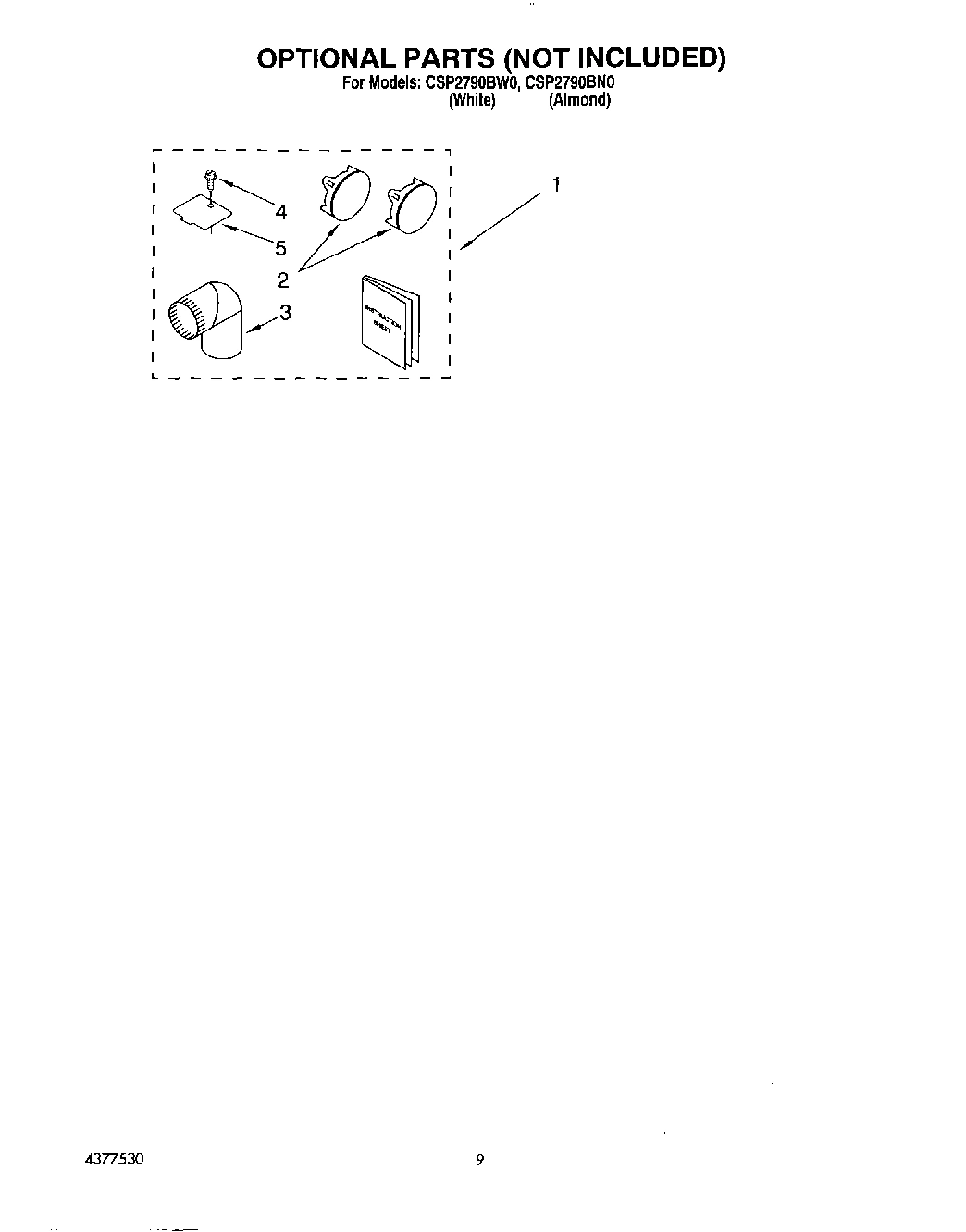

05 - OPTIONAL, LITERATURE
Common parts from model Whirlpool CSP2790BN0 COMMERCIAL (STACKED) ELECTRIC DRYER
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
Almond (Uncut) WPL 978883 Contact Us For Availability
Instructions, Installation WPL LIT3402326 Contact Us For Availability
Label, Wiring Diagram WPL LIT3402369 Contact Us For Availability
3
4``-90 ELBOW WPL 279731 Contact Us For Availability
6
Fastener, Tubular WPL 3393933 Contact Us For Availability
7
Cabinet (Upper) (White) WPL 3402264 Contact Us For Availability
7
Cabinet (Upper) (Almond) WPL 3402265 Contact Us For Availability
11
Extension, Exhaust Pipe WPL 3395997 Contact Us For Availability
14
Screw, 8-18 x 3/4 (Door Handle) WPL 718032 Contact Us For Availability
16
Wire, Belt Switch WPL 3394081 Contact Us For Availability
16
Indicator, Light (2) WPL 3401177 Contact Us For Availability
16
Nut, 3/8-16 (L.H.) WPL 3387709 Contact Us For Availability
18
Button, Pushbutton (8) WPL 3348587 Contact Us For Availability
22
Grill WPL 3391611 Contact Us For Availability
23
Bracket, Angle WPL 3393423 Contact Us For Availability
23
Housing, Outlet WPL 697768 Contact Us For Availability
26
Switch, Money (2) Vault WPL 3402411 Contact Us For Availability
26
Nut, ``U`` (4) WPL 3389249 Contact Us For Availability
26
Screw, 11-16 x 7/8 WPL 697777 Contact Us For Availability
28
Retainer, Terminal (2) WPL 3390443 Contact Us For Availability
30
Slide Extension Bag Assembly WPL ARI22153A7 Contact Us For Availability
30
Nut, Hex WPL 120614 Contact Us For Availability
31
Slide Mechanism (When Ordering, Specify Numbe WPL ARI22154A4 Contact Us For Availability
32
Money Box W/Lock Greenwald Abloy Illinios Duo WPL ARI22155A7 Contact Us For Availability
33
Key, Money Box (When Ordering, Specify Vender WPL ARI22156A7 Contact Us For Availability
33
Washer (2) WPL 3392186 Contact Us For Availability
34
Security Lock & Cam Assembly WPL ARI22157A8 Contact Us For Availability
34
Gasket, Window WPL 3392915 Contact Us For Availability
35
Key, Service Door WPL ARI22158A6 Contact Us For Availability
36
Bolt, Slide Mechanism WPL ARI22159A7 Contact Us For Availability
36
Window (2) WPL 3392918 Contact Us For Availability
38
Harness, Door Switch WPL 3389967 Contact Us For Availability
40
Harness Accountabilty WPL 3402423 Contact Us For Availability
40
Clip, Lint Duct WPL 3388600 Contact Us For Availability
44
WPL 351297 WPL 351297 Contact Us For Availability
45
Lint Duct Assembly WPL 3390531 Contact Us For Availability
46
WPL 312717 WPL 312717 Contact Us For Availability
49
Door, Front (Almond) WPL 3392881 Contact Us For Availability
49
Bracket, Heater WPL 697700 Contact Us For Availability
50
Shield, Heat WPL 697699 Contact Us For Availability
51
Upper Front Panel (White) WPL 3393081 Contact Us For Availability
53
Cable WPL 3388580 Contact Us For Availability
53
Baffle, Drum (3) WPL 3393316 Contact Us For Availability
56
Harness (Upper) WPL 3401103 Contact Us For Availability
56A
Plug, Multi- Terminal (Uses Terminals (2) 693 WPL 692997 Contact Us For Availability
58
Cover, Lint Screen WPL 3389516 Contact Us For Availability
60
WPL 3392907 WPL 3392907 Contact Us For Availability
61
WPL 697216 WPL 697216 Contact Us For Availability
62
WPL 3389352 WPL 3389352 Contact Us For Availability
64
Screen, Lint WPL 3389510 Contact Us For Availability
66
WPL 3389233 WPL 3389233 Contact Us For Availability
× ![]()
