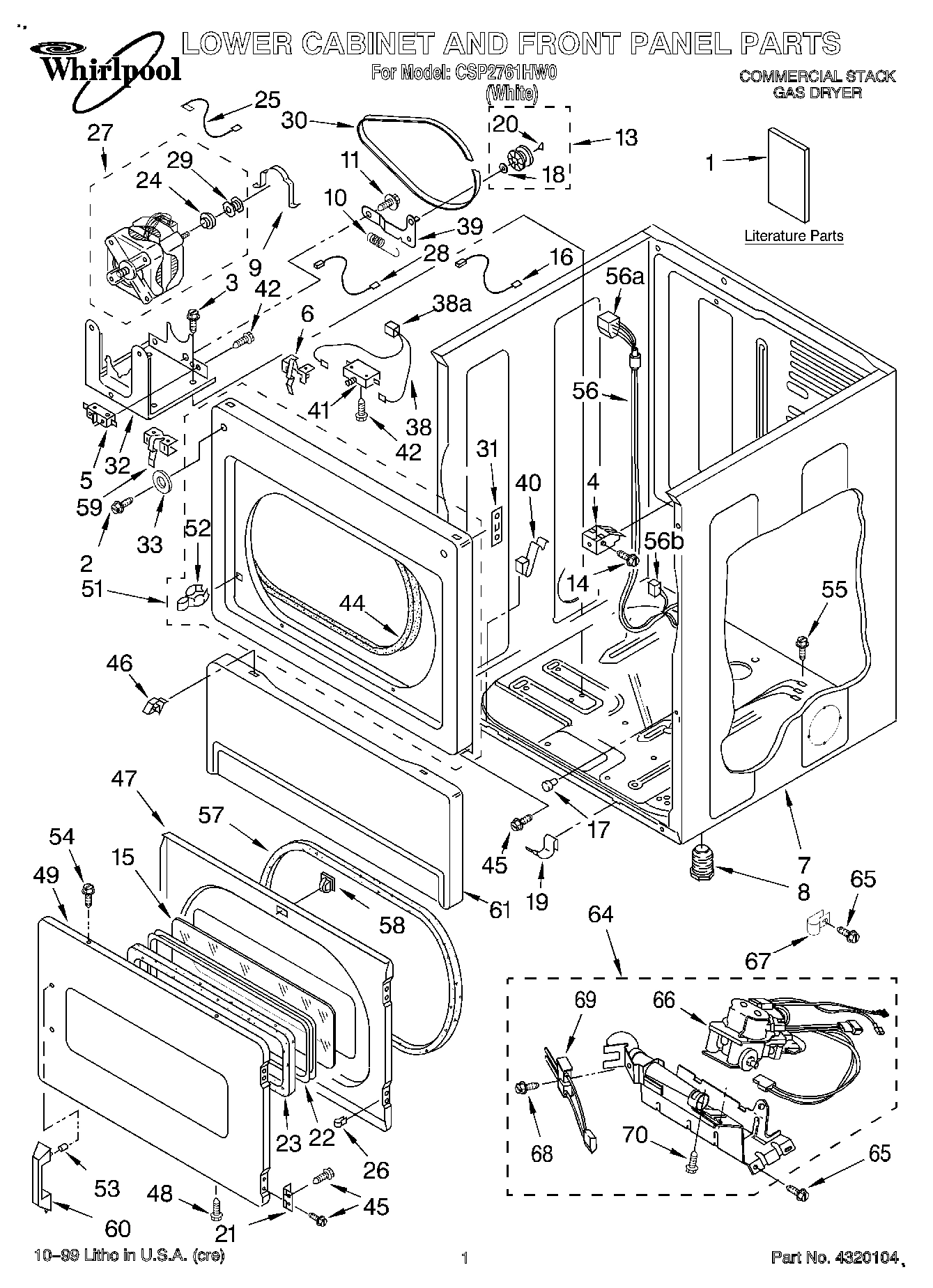

Model Whirlpool CSP2761HW0 COMMERCIAL (STACKED) GAS DRYER – Common Parts &amp; Diagrams

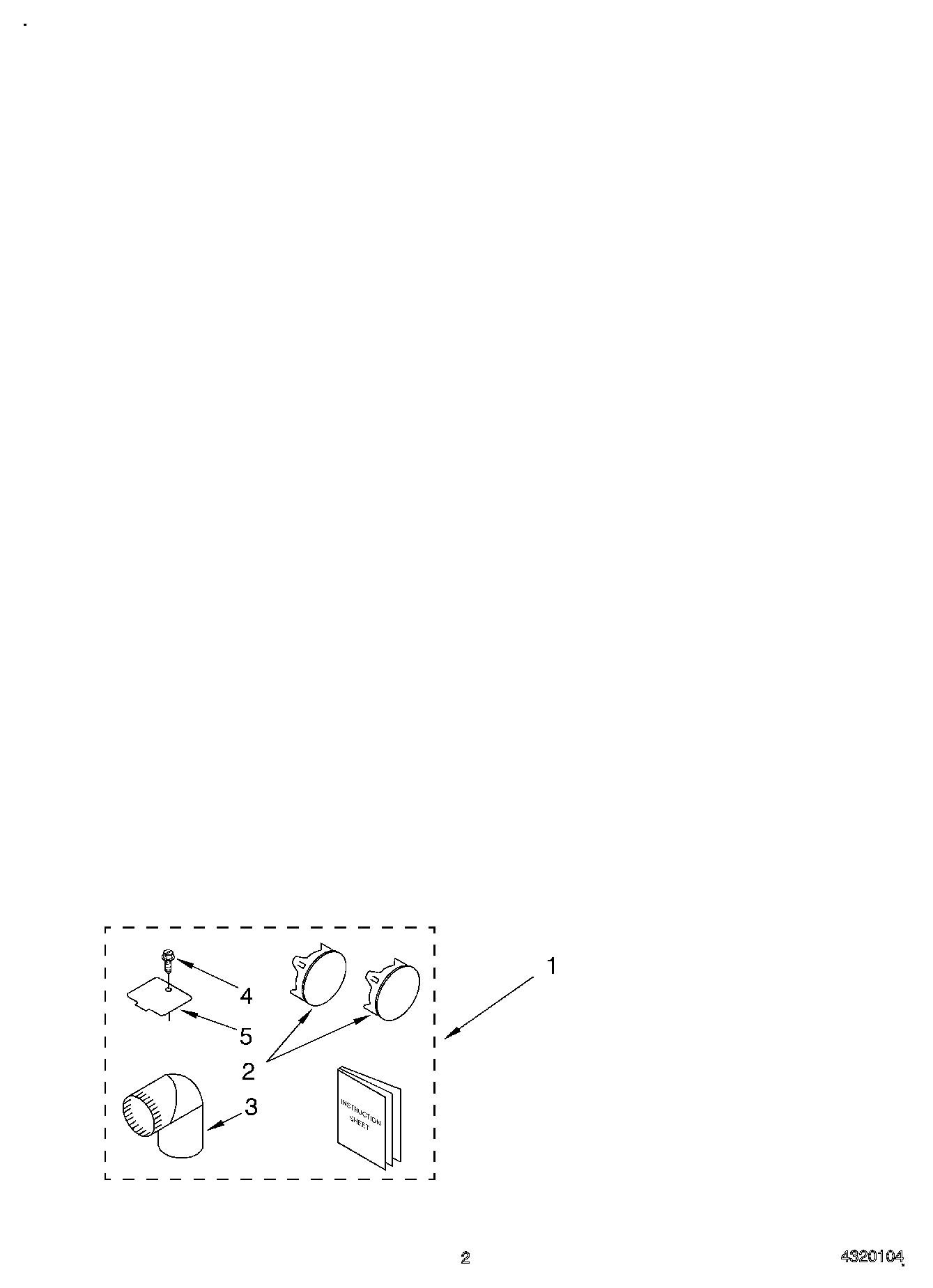

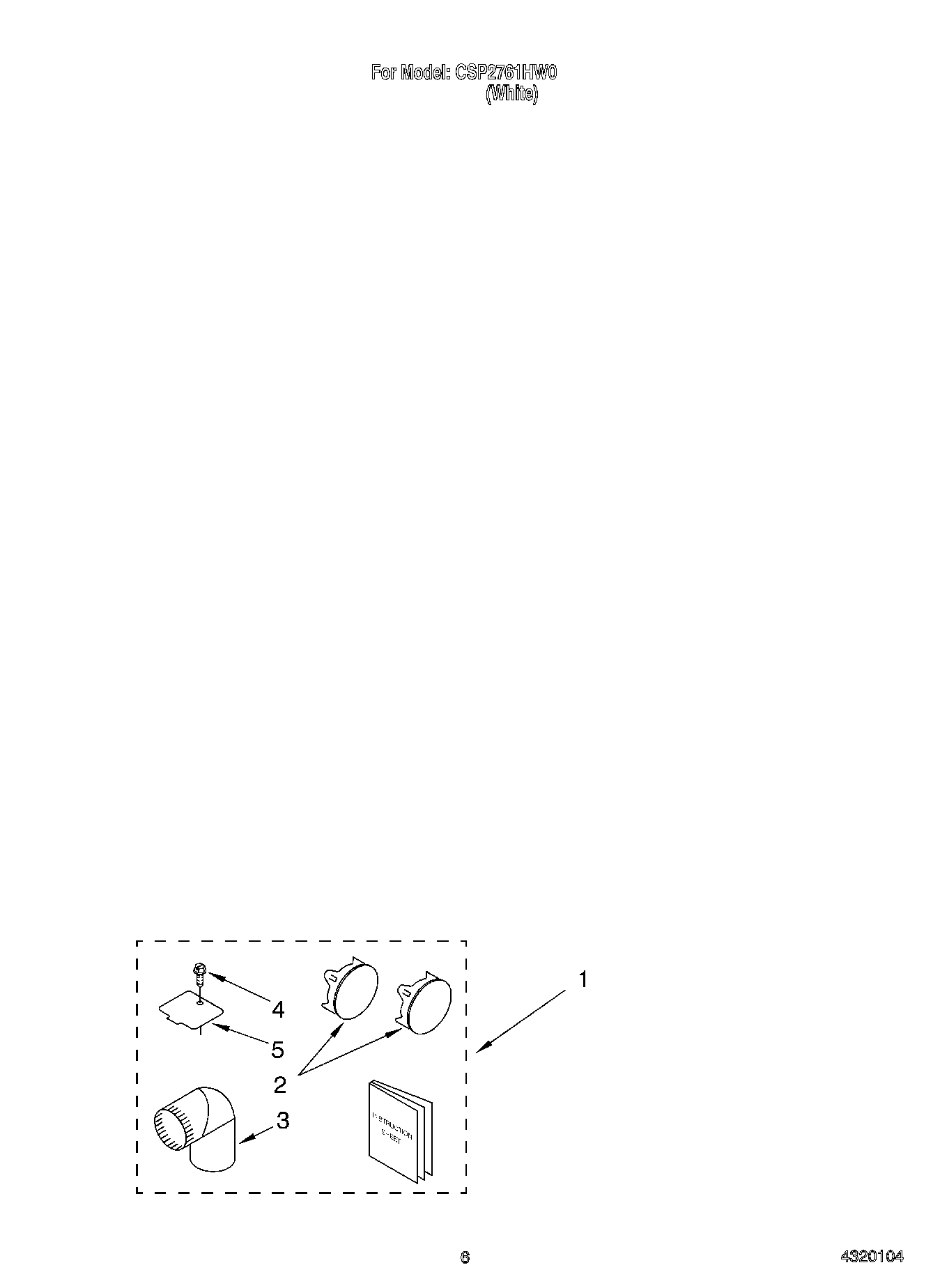

1

LITERATURE PARTS (Installation Instructions) WPL LIT3395339 Contact Us For Availability

1

LITERATURE PARTS (Wiring Diagram) WPL LIT3406277 Contact Us For Availability

1

Harness, Wire (2) WPL 3406276 Contact Us For Availability

2

W11676450 Whirlpool Screw Backorder WPL W11676450 $8.89

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $124.13

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

3

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $20.96

3

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

3

4``-90 ELBOW WPL 279731 Contact Us For Availability

4

3391846 Whirlpool Clip In Stock WPL 3391846 $14.02

4

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

5

279782 Whirlpool Lid Switch In Stock WPL 279782 $58.99

5

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $6.92

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $99.54

5

WPW10354249 Whirlpool Cover In Stock WPL WPW10354249 $5.99

6

3390115 Whirlpool Bracket Assembly Backorder WPL 3390115 $53.09

6

WP691581 Whirlpool Actuator In Stock WPL WP691581 $7.99

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.98

7

279737 Whirlpool Dryer Load Timer In Stock WPL 279737 $271.54

7

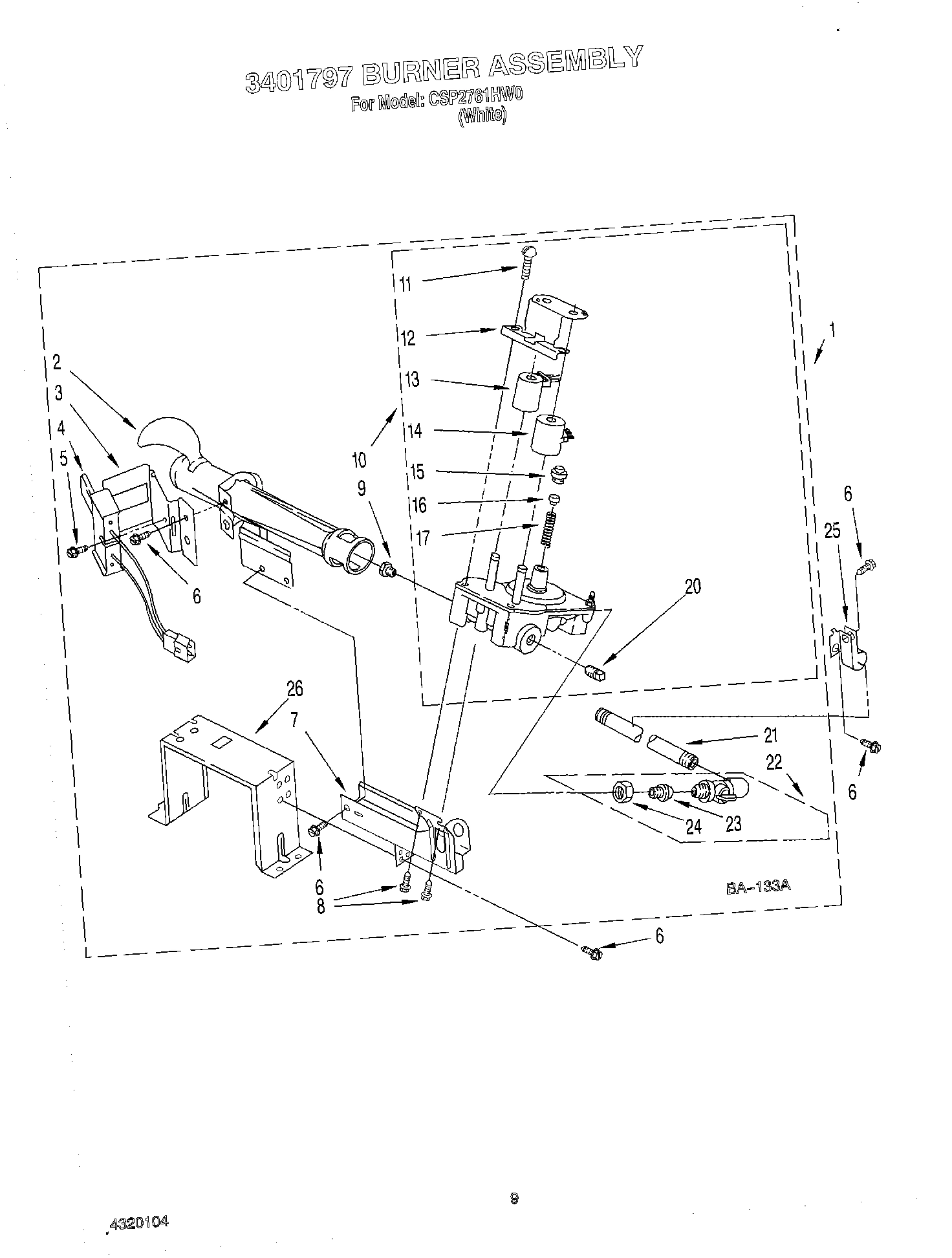

Base, Burner WPL 3389871 Contact Us For Availability

7

Cabinet, Lower WPL 3402264 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

8

WP3387974 Whirlpool Cam In Stock WPL WP3387974 $7.99

8

WP343777 Whirlpool Cam Backorder WPL WP343777 $4.82

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

9

Orifice, Burner (Type 1) WPL 3397656 Contact Us For Availability

9

Funnel, Coin (2) WPL 3389224 Contact Us For Availability

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $20.83

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $4.99

12

694538 Whirlpool Bracket Backorder WPL 694538 $51.47

12

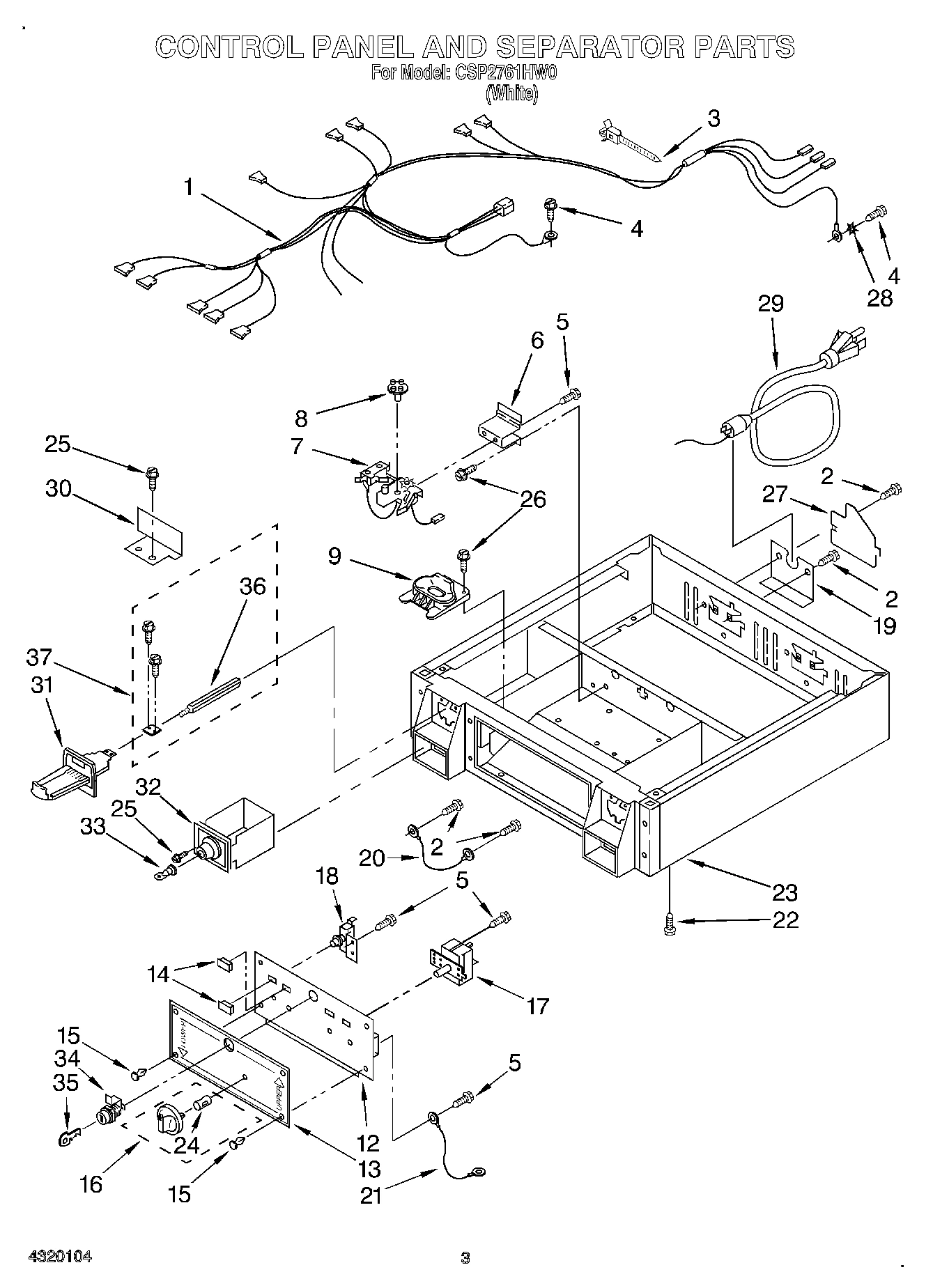

Panel, Control WPL 3391955 Contact Us For Availability

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $26.77

13

Insert, Decorative WPL 3406132 Contact Us For Availability

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $26.92

14

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $4.82

14

Lens, Light (2) WPL 3349305 Contact Us For Availability

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

15

Window WPL 3392918 Contact Us For Availability

15

Rivet (4) WPL 354239 Contact Us For Availability

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

16

Wire, Belt Switch WPL 3394081 Contact Us For Availability

16

Knob (2) WPL 3949703 Contact Us For Availability

17

693152 Whirlpool Bumper In Stock WPL 693152 $11.45

17

W10330141 Whirlpool Switch A & H Backorder WPL W10330141 $120.82

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

18

Switch, Push- To-Start (2) WPL 3388231 Contact Us For Availability

19

WP297092 Whirlpool Clip In Stock WPL WP297092 $8.99

19

Strain Relief WPL 3390189 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

20

Strut WPL 3390895 Contact Us For Availability

21

W11175815 Whirlpool Hinge Backorder WPL W11175815 $56.19

21

Pipe, Gas Supply WPL 3387224 Contact Us For Availability

21

Wire, Ground WPL 340025 Contact Us For Availability

22

3392914 Whirlpool Window Frame Backorder WPL 3392914 $176.10

22

Valve & Union Shut-Off WPL 697441 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $90.96

23

Gasket, Window WPL 3392915 Contact Us For Availability

23

Collar WPL 3402385 Contact Us For Availability

24

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $85.97

24

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.98

24

Nut, Compression WPL 233076 Contact Us For Availability

25

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $19.99

Bracket, Support WPL 3389889 Contact Us For Availability

Nut, ``U`` (4) WPL 3389249 Contact Us For Availability

Screw (8) WPL 98437 Contact Us For Availability

27

W10841144 Whirlpool Drive Motor In Stock WPL W10841144 $215.72

27

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $39.44

28

3398948 Whirlpool Wire Backorder WPL 3398948 $43.98

28

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $53.11

28

Retainer, Terminal (2) WPL 3390443 Contact Us For Availability

29

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $79.58

29

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $27.99

30

3390424 Whirlpool Extension Backorder WPL 3390424 $45.58

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $13.56

31

WP3390902 Whirlpool Clip Backorder WPL WP3390902 $7.17

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $87.42

33

Washer WPL 3392186 Contact Us For Availability

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $36.97

38

Harness, Door Switch WPL 3389967 Contact Us For Availability

38A

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $4.55

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $26.69

40

Clip, Lint Duct WPL 3388600 Contact Us For Availability

41

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $27.54

42

WP3387138 Whirlpool Cycling Thermostat In Stock WPL WP3387138 $56.61

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

43

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.91

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $11.68

45

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $9.90

46

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $4.98

47

W10244331 Whirlpool Rear Door Backorder WPL W10244331 $173.07

47

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

48

WP3391912 Whirlpool High Limit Thermostat In Stock WPL WP3391912 $83.99

48

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

49

W10322548 Whirlpool Door Assembly Backorder WPL W10322548 $62.97

51

Upper Front Panel WPL 3393081 Contact Us For Availability

54

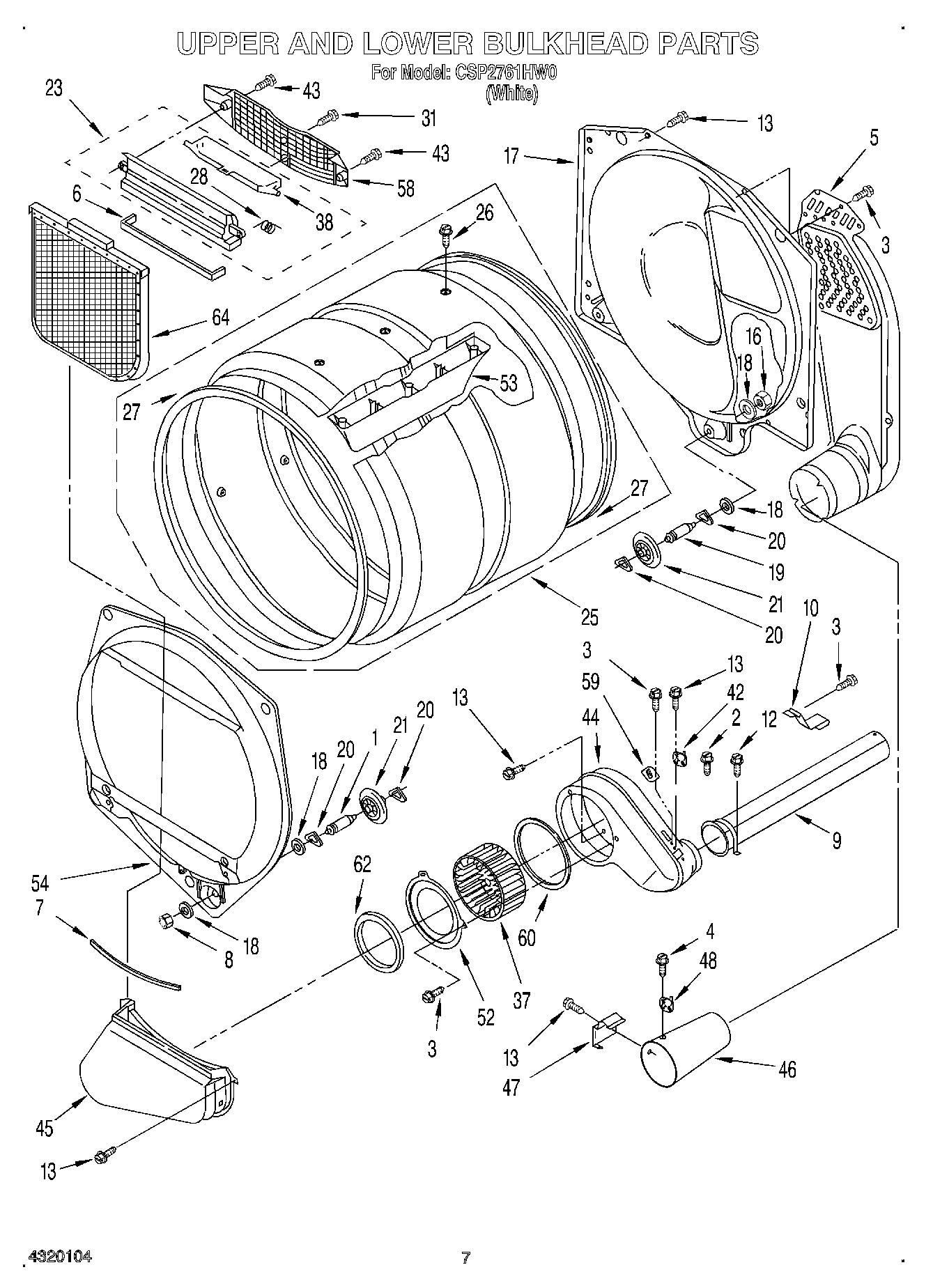

WP697557 Whirlpool Bulkhead Assembly Backorder WPL WP697557 $129.39

54

Fastener WPL 3393933 Contact Us For Availability

54

Screw, 8-18 x 3/4 WPL 718032 Contact Us For Availability

56

Harness (Lower) WPL 3401106 Contact Us For Availability

56A

Plug, Mult- Terminal (Uses Terminals 94613) WPL 3390423 Contact Us For Availability

56B

Receptacle (Uses Terminals 94614 Or 94613) WPL 717252 Contact Us For Availability

57

WP3390735 Whirlpool Door Seal In Stock WPL WP3390735 $85.48

58

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.99

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $16.99

59

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $11.99

59

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

60

WP3392906 Whirlpool Door Handle Backorder WPL WP3392906 $54.67

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.99

61

WP3406797 Whirlpool Toe Panel Backorder WPL WP3406797 $146.90

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

WPL 3401797 WPL 3401797 Contact Us For Availability

65

3400500 Whirlpool Screw In Stock WPL 3400500 $8.89

65

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

66

279923 Whirlpool Gas Valve In Stock WPL 279923 $192.99

68

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

69

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $44.99

70

3387561 Whirlpool Clamp Backorder WPL 3387561 $13.22

70

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99
