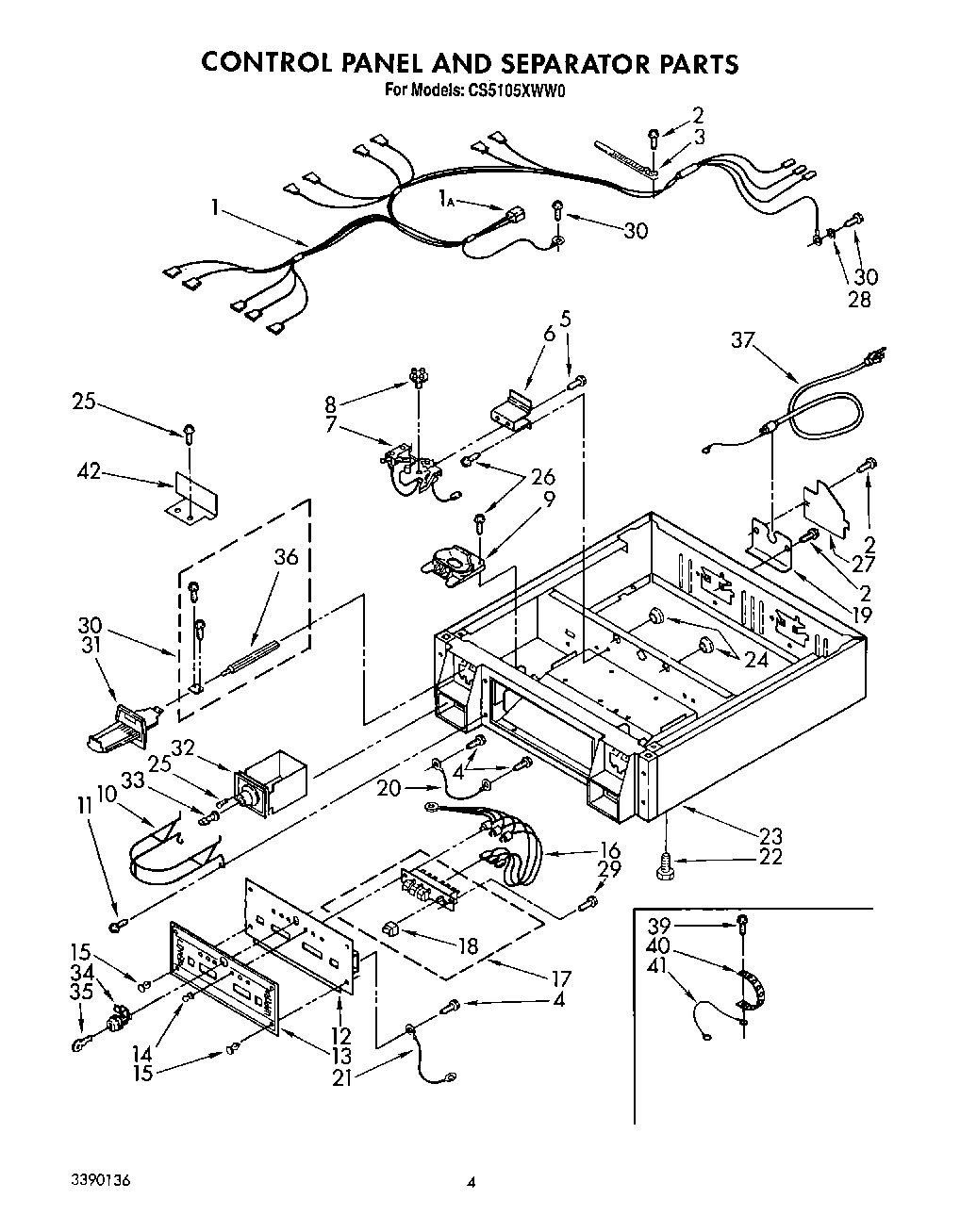

Model Whirlpool CS5105XWW0 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 799344 WPL 799344 Contact Us For Availability

1

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

1

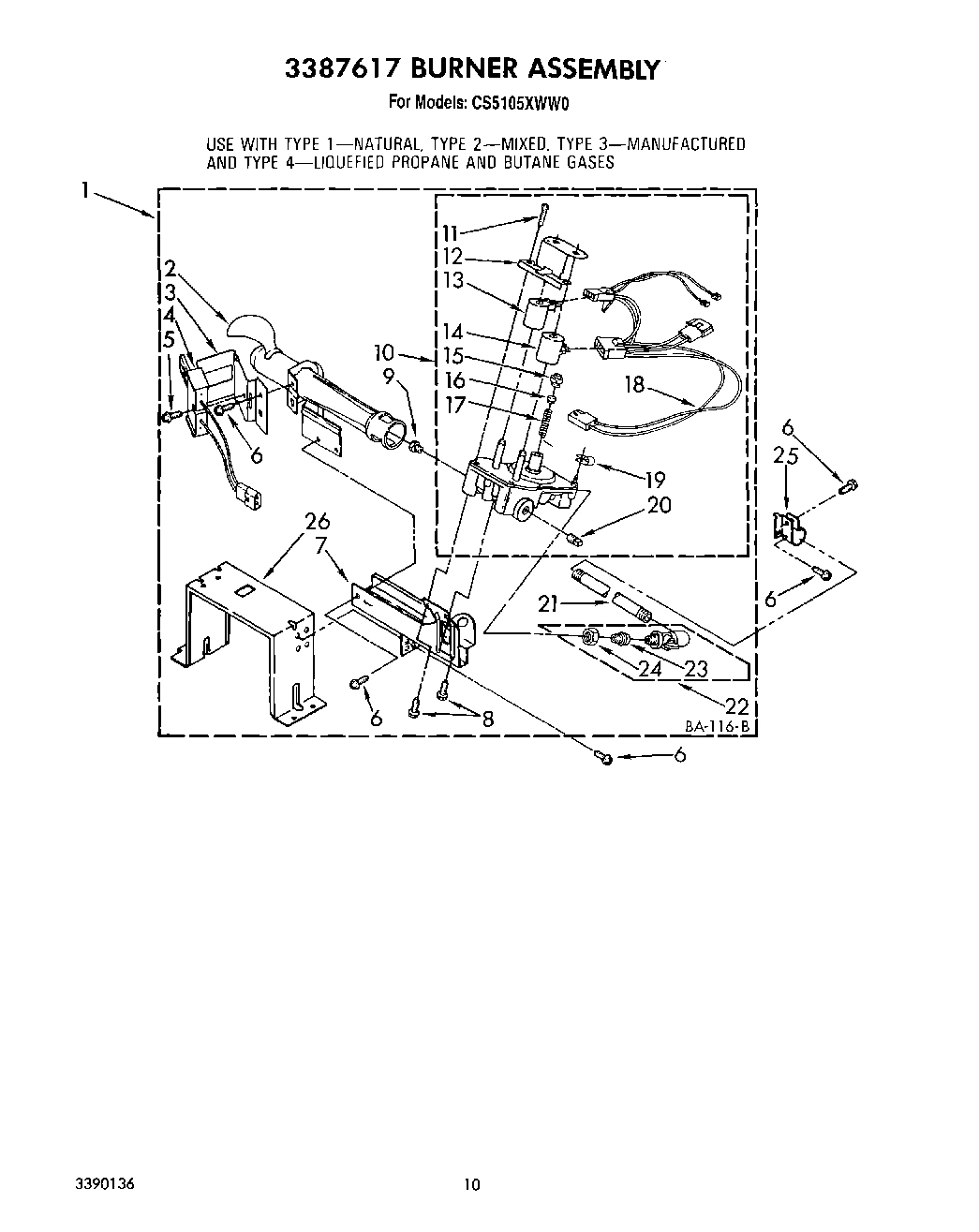

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 3387617 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $124.13

2

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $4.99

3

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $44.99

4

3391846 Whirlpool Clip In Stock WPL 3391846 $14.02

4

681615 Whirlpool Screw Backorder WPL 681615 $8.89

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

6

3390115 Whirlpool Bracket Assembly Backorder WPL 3390115 $53.09

6

WP691581 Whirlpool Actuator In Stock WPL WP691581 $7.99

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.98

7

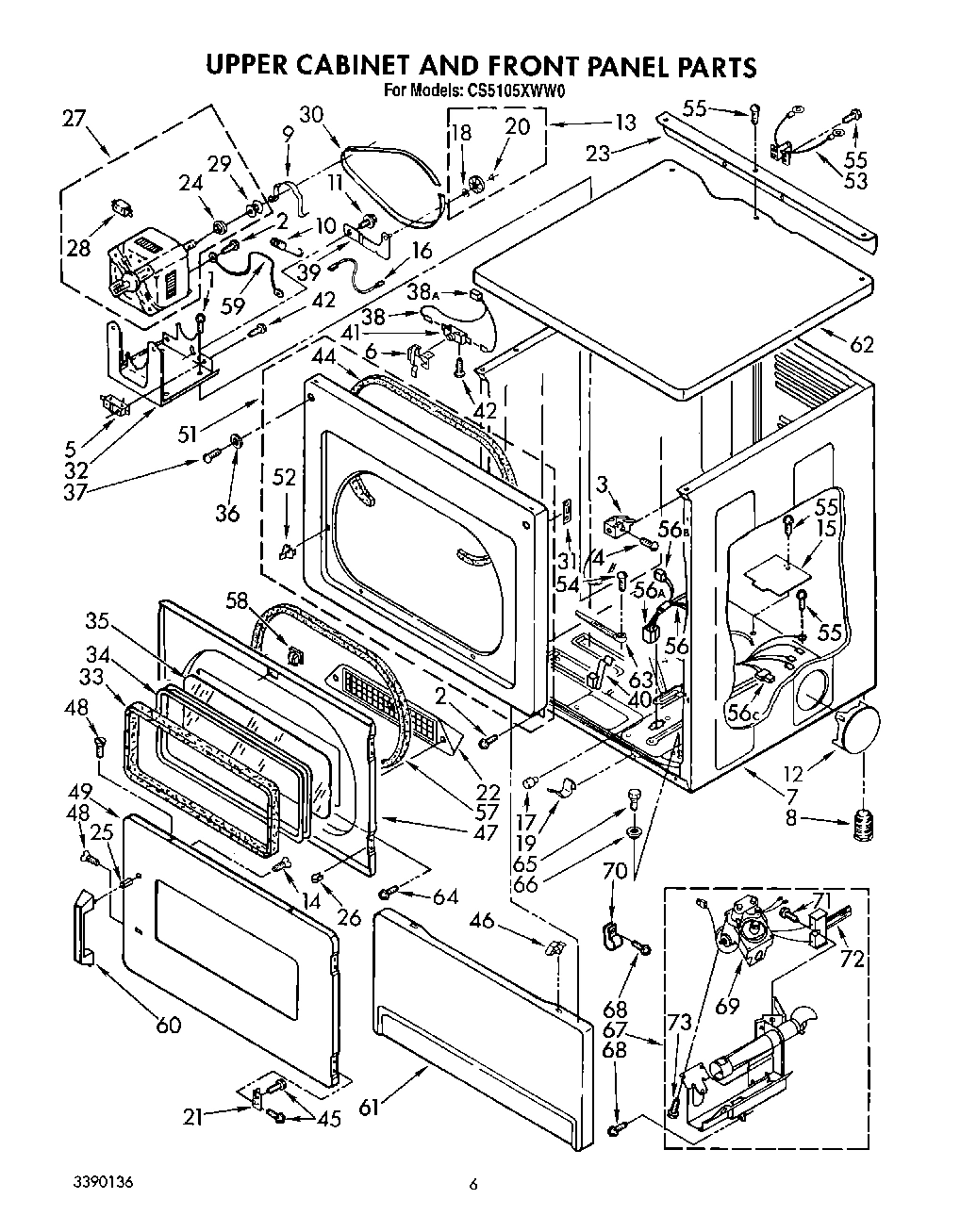

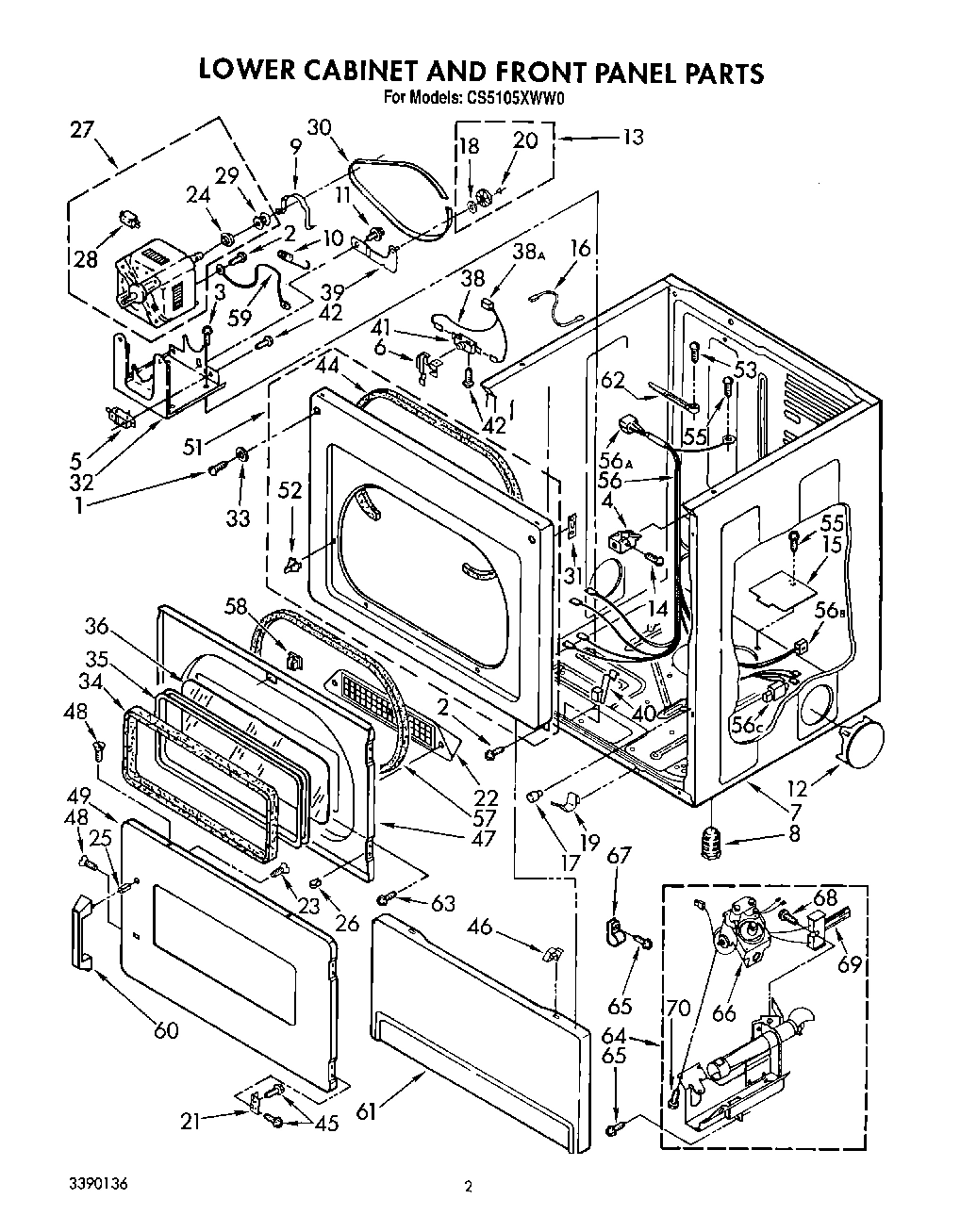

Cabinet, Lower (White) WPL 3389369 Contact Us For Availability

7

Cabinet, Lower (Almond) WPL 3389370 Contact Us For Availability

7

Cabinet (Upper) (White) WPL 3389385 Contact Us For Availability

7

Cabinet (Upper) (Almond) WPL 3389386 Contact Us For Availability

7

Base, Burner WPL 3389871 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

8

WP3387974 Whirlpool Cam In Stock WPL WP3387974 $7.99

8

WP339855 Whirlpool Cam Backorder WPL WP339855 $4.82

8

WP343777 Whirlpool Cam Backorder WPL WP343777 $4.82

8

WP689172 Whirlpool Leveling Feet Backorder WPL WP689172 $54.13

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

10

279923 Whirlpool Gas Valve In Stock WPL 279923 $192.99

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $20.83

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $4.99

12

694538 Whirlpool Bracket Backorder WPL 694538 $51.47

12

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $66.95

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $45.77

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $26.77

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $26.92

14

Screw, 8-18 x 3/4 (Door Handle) WPL 718032 Contact Us For Availability

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

15

WPW10354249 Whirlpool Cover In Stock WPL WPW10354249 $5.99

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

16

Wire, Belt Switch WPL 3387377 Contact Us For Availability

17

693152 Whirlpool Bumper In Stock WPL 693152 $11.45

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

18

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $173.55

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

18

Button, Pushbutton (8) WPL 3348587 Contact Us For Availability

19

WP297092 Whirlpool Clip In Stock WPL WP297092 $8.99

19

Clip, Harness WPL 694510 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

21

W11175815 Whirlpool Hinge Backorder WPL W11175815 $56.19

21

Pipe, Gas Supply WPL 3387224 Contact Us For Availability

22

Valve & Union Shut-Off WPL 697441 Contact Us For Availability

22

Grill WPL 3391611 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $90.96

23

Bracket, Angle WPL 3393423 Contact Us For Availability

24

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $85.97

24

Nut, Compression WPL 233076 Contact Us For Availability

25

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

25

Fastener, Tubular WPL 3393933 Contact Us For Availability

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $19.99

Screw (8) WPL 98437 Contact Us For Availability

Nut, ``U`` (4) WPL 3389249 Contact Us For Availability

Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability

Bracket, Support WPL 3389889 Contact Us For Availability

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $193.97

27

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $39.44

28

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $139.99

28

Heater, Thermostat WPL 61894 Contact Us For Availability

28

Retainer, Terminal (2) WPL 3390443 Contact Us For Availability

29

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

29

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $27.99

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $13.56

30

Slide Extension Bag Assembly WPL ARI144879A Contact Us For Availability

31

WP3390902 Whirlpool Clip Backorder WPL WP3390902 $7.17

31

Slide Mechanism (When Ordering, Specify Numbe WPL ARI144880A Contact Us For Availability

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $87.42

32

Money Box W/Lock Greenwald Abloy Illinios Duo WPL ARI144881A Contact Us For Availability

33

Key, Money Box (When Ordering, Specify Vender WPL ARI144882A Contact Us For Availability

33

Gasket, Window WPL 3392915 Contact Us For Availability

34

3392914 Whirlpool Window Frame Backorder WPL 3392914 $176.10

34

Security Lock & Cam Assembly WPL ARI144883A Contact Us For Availability

35

Key, Service Door WPL ARI144884A Contact Us For Availability

35

Window (2) WPL 3392918 Contact Us For Availability

36

Bolt, Slide Mechanism WPL ARI144885A Contact Us For Availability

36

Washer WPL 3392186 Contact Us For Availability

37

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $79.58

37

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $36.97

38

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $4.55

38

Harness, Door Switch WPL 3389967 Contact Us For Availability

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $26.69

39

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

40

Strap, Ground WPL 22965 Contact Us For Availability

40

Clip, Lint Duct WPL 3388600 Contact Us For Availability

41

WP3391902 Whirlpool Lid Switch In Stock WPL WP3391902 $36.99

41

Wire, Ground WPL 364089 Contact Us For Availability

42

3390424 Whirlpool Extension Backorder WPL 3390424 $45.58

42

WP3395530 Whirlpool Screw Backorder WPL WP3395530 $4.82

43

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.91

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $11.68

45

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $9.90

46

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $4.98

47

W10244331 Whirlpool Rear Door Backorder WPL W10244331 $173.07

47

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

48

WP3391912 Whirlpool High Limit Thermostat In Stock WPL WP3391912 $83.99

48

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

49

W10322548 Whirlpool Door Assembly Backorder WPL W10322548 $62.97

49

Door, Front (Almond) WPL 3392881 Contact Us For Availability

51

279723 Whirlpool Panel Assembly Backorder WPL 279723 $229.67

51

WP179051 Whirlpool Screw Backorder WPL WP179051 $4.99

51

Upper Front Panel (White) WPL 3393081 Contact Us For Availability

53

Cable WPL 3388580 Contact Us For Availability

54

WP308544 Whirlpool Screw In Stock WPL WP308544 $4.82

Harness (Lower) WPL 3389966 Contact Us For Availability

Plug, Mul WPL 3390423 Contact Us For Availability

WPL 691707 WPL 691707 Contact Us For Availability

WPL 717252 WPL 717252 Contact Us For Availability

Harness (Upper) WPL 3389965 Contact Us For Availability

57

WP3390735 Whirlpool Door Seal In Stock WPL WP3390735 $85.48

58

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.99

59

WPL 3387376 WPL 3387376 Contact Us For Availability

60

WP3392906 Whirlpool Door Handle Backorder WPL WP3392906 $54.67

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.99

60

WPL 3392907 WPL 3392907 Contact Us For Availability

61

WP3406797 Whirlpool Toe Panel Backorder WPL WP3406797 $146.90

61

WPL 697216 WPL 697216 Contact Us For Availability

62

3389351 Whirlpool Top Backorder WPL 3389351 $204.67

62

WPL 3389352 WPL 3389352 Contact Us For Availability

63

WPL 3389969 WPL 3389969 Contact Us For Availability

64

WPL 697777 WPL 697777 Contact Us For Availability

65

WPL 122007 WPL 122007 Contact Us For Availability

66

WPL 3389233 WPL 3389233 Contact Us For Availability

68

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

70

3387561 Whirlpool Clamp Backorder WPL 3387561 $13.22
