Model Whirlpool CET8000AQ1 ELECTRIC DRYER – Common Parts &amp; Diagrams

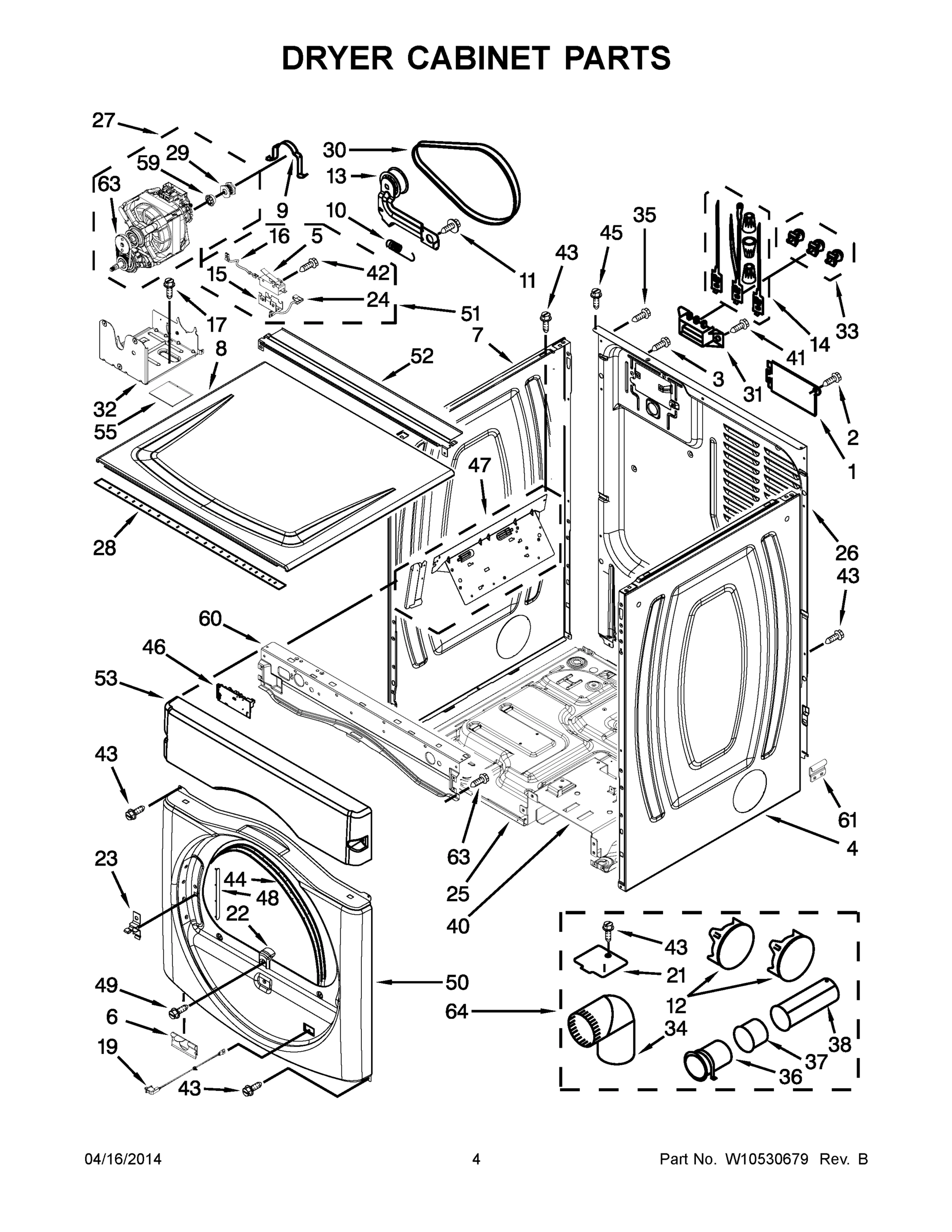

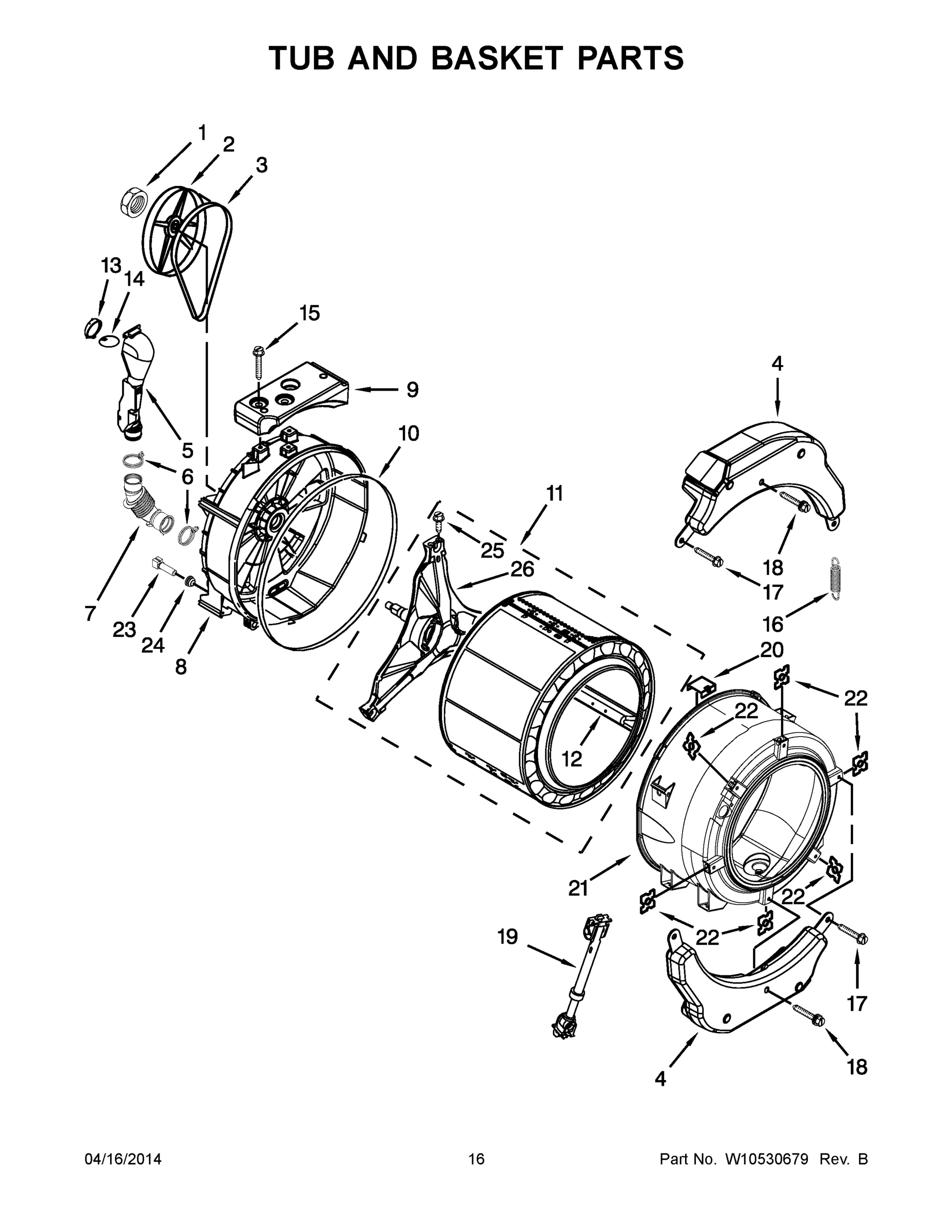

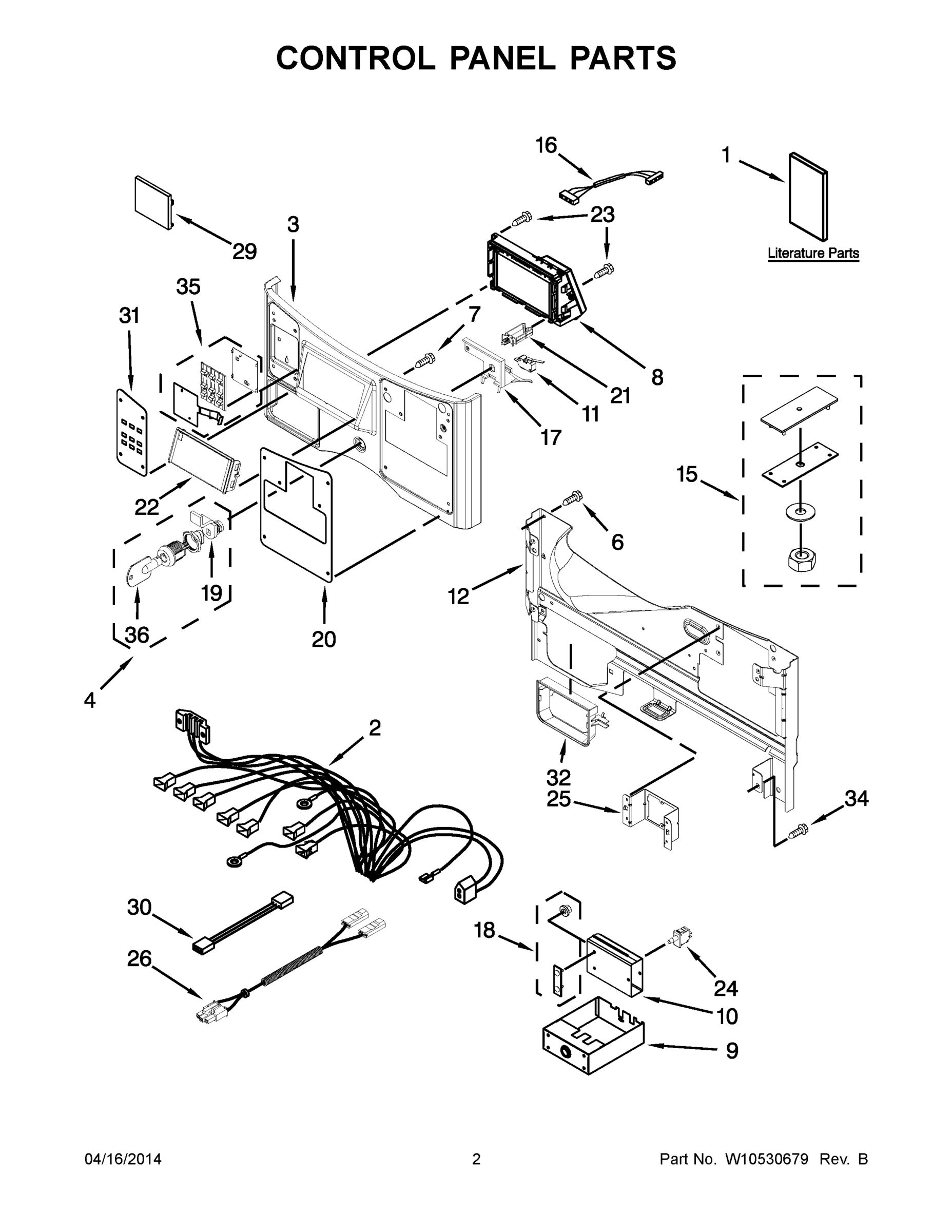

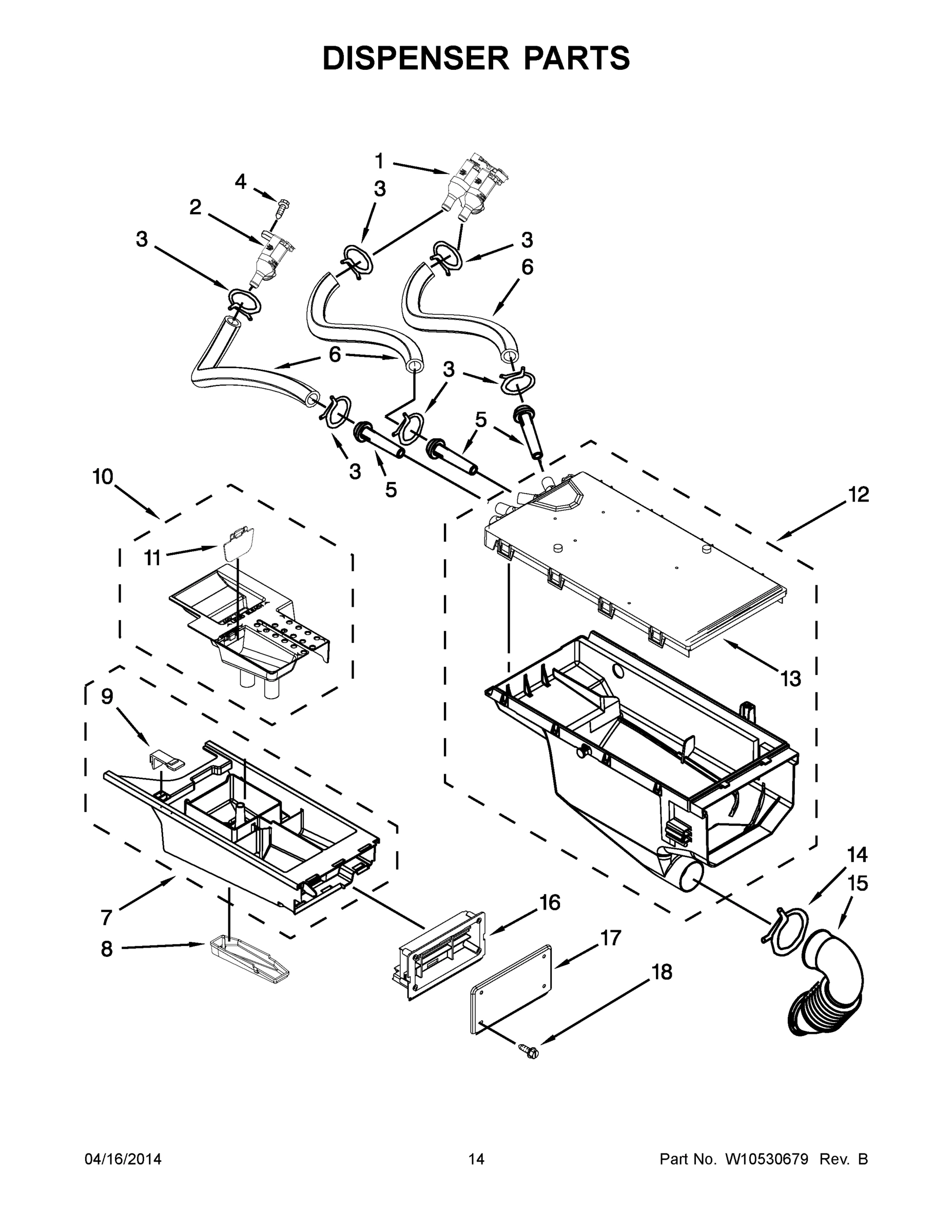

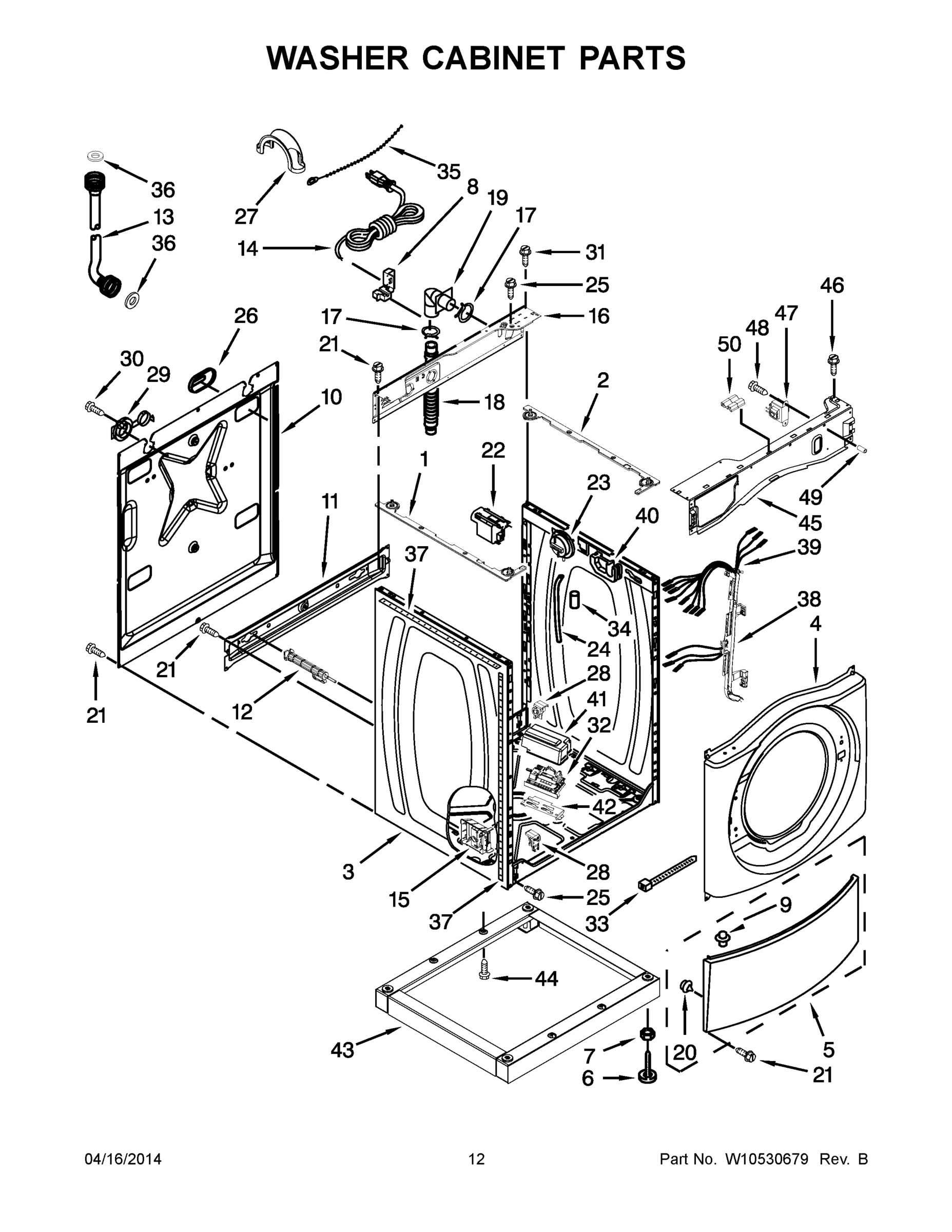

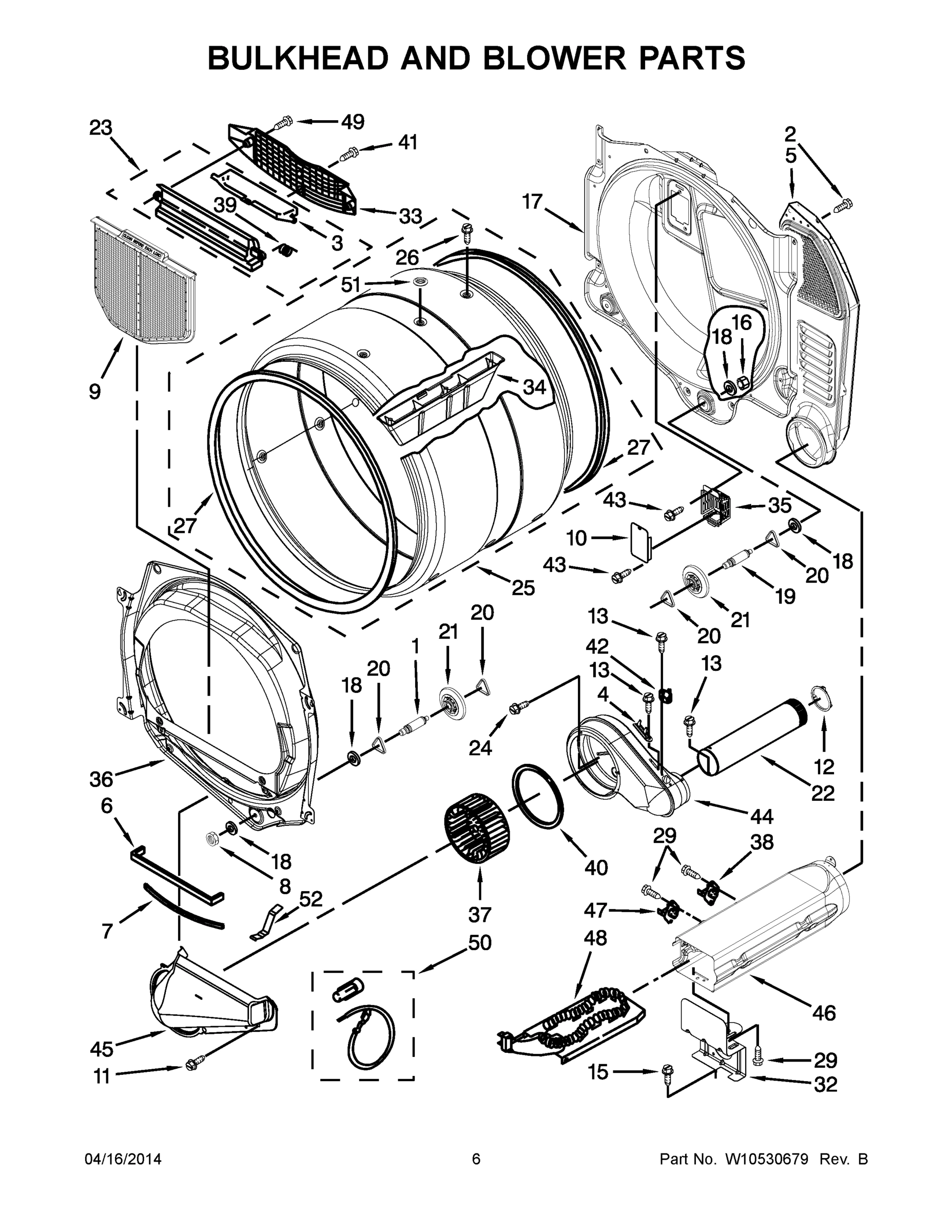

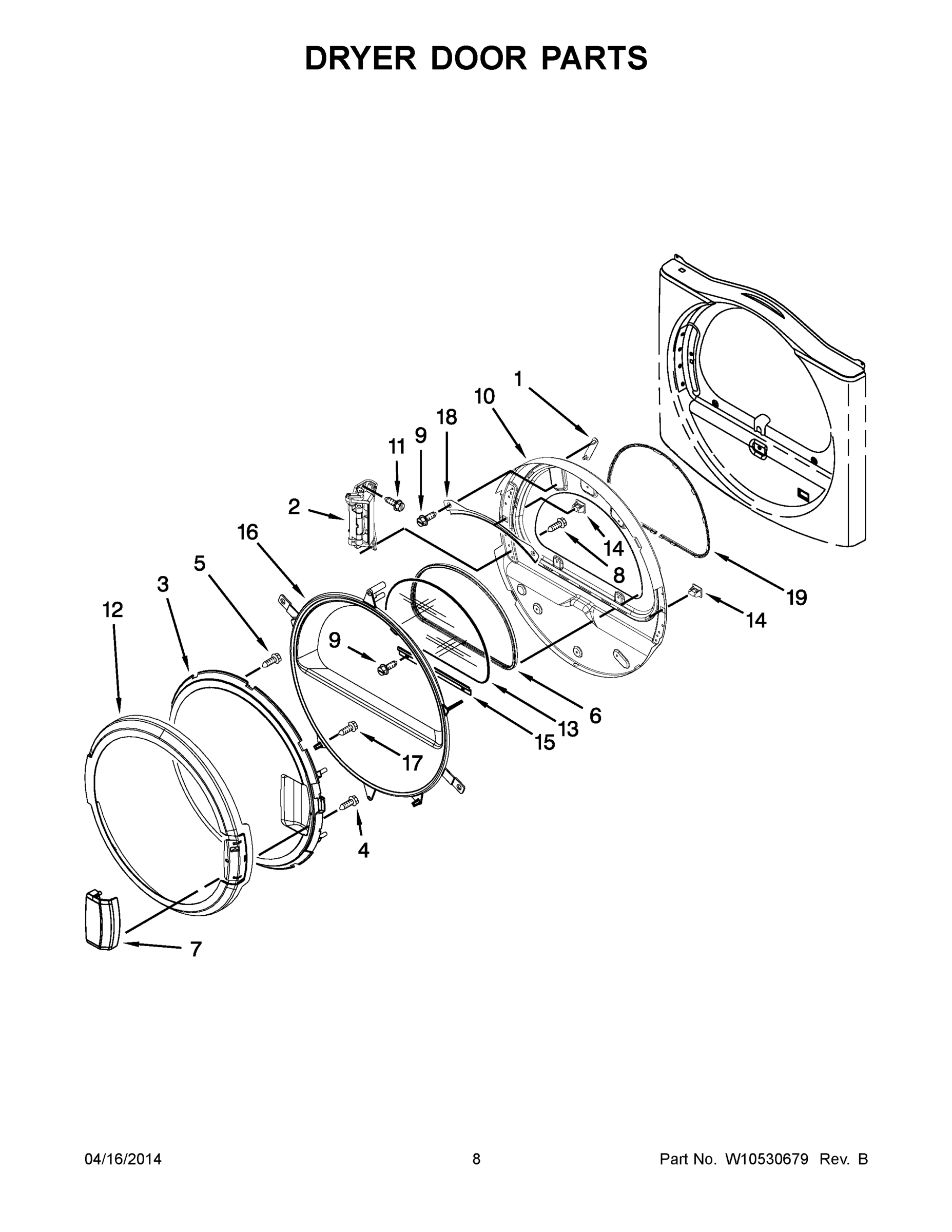

1

W11191299 Whirlpool Drive Motor Backorder WPL W11191299 $277.31

1

WPW10119283 Whirlpool Terminal Cover Backorder WPL WPW10119283 $83.81

1

WPW10212596 Whirlpool Washer Inlet Valve In Stock WPL WPW10212596 $52.20

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $37.03

2

8540134 Whirlpool Screw Backorder WPL 8540134 $14.93

2

WP8540088C Whirlpool Pulley Backorder WPL WP8540088C $146.23

2

WP8540108 Whirlpool Boot Spring Clamp In Stock WPL WP8540108 $14.61

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.46

2

WPW10212598 Whirlpool Valve In Stock WPL WPW10212598 $47.76

3

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.77

3

W11222846 Whirlpool Door Backorder WPL W11222846 $132.84

3

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.77

3

WPW10260319 Whirlpool Drive Belt In Stock WPL WPW10260319 $37.90

3

WPW10375379 Whirlpool Latch Assembly In Stock WPL WPW10375379 $172.47

3

WPW10405608 Whirlpool Trap Backorder WPL WPW10405608 $5.76

4

W10542714 Whirlpool Panel Backorder WPL W10542714 $213.81

4

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.94

4

WP8540725 Whirlpool Screw Assembly In Stock WPL WP8540725 $4.77

4

WPW10201879 Whirlpool Wire Harness Backorder WPL WPW10201879 $110.59

4

WPW10223198 Whirlpool Counterweight Backorder WPL WPW10223198 $156.04

4

SCREW WPL 9742177 Contact Us For Availability

5

3400618 Whirlpool Screw Backorder WPL 3400618 $4.37

5

W10142720 Whirlpool Vent Pipe Backorder WPL W10142720 $113.34

5

WP696392 Whirlpool Hose Clamp Backorder WPL WP696392 $5.24

5

WP8183181 Whirlpool Nozzle Backorder WPL WP8183181 $63.89

5

WP8540221 Whirlpool Door Strike Assembly In Stock WPL WP8540221 $5.02

5

WP8564010 Whirlpool Plug Switch In Stock WPL WP8564010 $61.97

6

W10803052 Whirlpool Hose In Stock WPL W10803052 $7.92

6

W10862938 Whirlpool Leveling Feet In Stock WPL W10862938 $11.37

6

W11295573 Whirlpool Clip Backorder WPL W11295573 $16.76

6

W11366249 Whirlpool Washer Tub to Pump Hose Backorder WPL W11366249 $18.40

6

W11706993 Whirlpool Seal Backorder WPL W11706993 $15.98

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.53

7

W10395619 Whirlpool Washer Dispenser Drawer In Stock WPL W10395619 $59.63

7

W11398765 Whirlpool Hose Backorder WPL W11398765 $18.18

7

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.77

7

WP616099 Whirlpool Clamp Backorder WPL WP616099 $5.04

8

W11032829 Whirlpool Clamp Assembly In Stock WPL W11032829 $11.15

8

WP8540399 Whirlpool Cover Assembly Backorder WPL WP8540399 $51.17

8

WPW10159996 Whirlpool Screw In Stock WPL WPW10159996 $4.77

8

WPW10336080 Whirlpool Top Assembly Backorder WPL WPW10336080 $207.94

9

8518891 Whirlpool Rivet Backorder WPL 8518891 $14.93

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.76

9

WP8540115 Whirlpool Clamp Backorder WPL WP8540115 $4.77

9

WPW10198458 Whirlpool Retainer In Stock WPL WPW10198458 $4.52

9

WPW10200747 Whirlpool Counterweight Backorder WPL WPW10200747 $122.58

9

WPW10730972 Whirlpool Washer Water Pump In Stock WPL WPW10730972 $163.22

W10034820 Whirlpool Grommet Backorder WPL W10034820 $12.28

W10433390 Whirlpool Dispenser Backorder WPL W10433390 $54.33

W11665946 Whirlpool Clamp Backorder WPL W11665946 $14.85

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $21.44

W11230114 Whirlpool Screw Assembly Backorder WPL W11230114 $14.93

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $4.77

WPW10298953 Whirlpool Door Assembly Backorder WPL WPW10298953 $4.52

Foot, Rubber (Lock) WPL W10034830 Contact Us For Availability

12

8540033 Whirlpool Cap Backorder WPL 8540033 $12.37

12

W10364594 Whirlpool Dispenser Backorder WPL W10364594 $277.13

12

W11700547 Whirlpool Baffle Assembly Backorder WPL W11700547 $12.15

8533964 Whirlpool Screw Backorder WPL 8533964 $11.40

WPW10212604 Whirlpool Plate Backorder WPL WPW10212604 $67.14

WPW10286878 Whirlpool Window Backorder WPL WPW10286878 $171.54

WPW10344192 Whirlpool Idler Pulley In Stock WPL WPW10344192 $67.94

WPW10388315 Whirlpool Glass Door In Stock WPL WPW10388315 $281.30

14

279318 Whirlpool Terminal In Stock WPL 279318 $46.60

14

W11622908 Whirlpool Dishwasher Clamp Backorder WPL W11622908 $16.76

14

WPW10272563 Whirlpool Hose Backorder WPL WPW10272563 $20.32

8182209 Whirlpool Clip Backorder WPL 8182209 $13.99

8564011 Whirlpool Bracket Backorder WPL 8564011 $11.95

W11028021 Whirlpool Screw Backorder WPL W11028021 $4.77

W11366227 Whirlpool Washer Dispenser Hose In Stock WPL W11366227 $12.88

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.77

WPW10198417 Whirlpool Hinge Assembly In Stock WPL WPW10198417 $146.39

WPW10384849 Whirlpool Electronic Control Boar In Stock WPL WPW10384849 $254.83

16

W10167613 Whirlpool Wire Backorder WPL W10167613 $18.44

16

WP2262071 Whirlpool Wire Tie Backorder WPL WP2262071 $5.91

16

WPW10405607 Whirlpool Handle Backorder WPL WPW10405607 $64.75

W10198368 Whirlpool Overlay Backorder WPL W10198368 $64.34

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.53

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

WP8534022 Whirlpool Screw In Stock WPL WP8534022 $4.77

WP8540282 Whirlpool Screw In Stock WPL WP8540282 $7.68

18

WPW10137456 Whirlpool Screw In Stock WPL WPW10137456 $4.77

W10128087 Whirlpool Door Switch Backorder WPL W10128087 $56.95

W10822553 Whirlpool Washer Shock Absorber In Stock WPL W10822553 $44.05

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $48.41

WPW10407973 Whirlpool Door Seal Backorder WPL WPW10407973 $72.77

20

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $112.69

20

WP8540092 Whirlpool Clamp In Stock WPL WP8540092 $5.76

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $19.06

21

WPW10354249 Whirlpool Cover In Stock WPL WPW10354249 $5.76

22

8580015 Whirlpool Ramp Backorder WPL 8580015 $56.93

22

W10198390 Whirlpool Cover In Stock WPL W10198390 $92.54

22

WP8563728 Whirlpool Exhaust Pipe Backorder WPL WP8563728 $91.84

23

W11219327 Whirlpool Grille Outlet In Stock WPL W11219327 $54.30

23

WP8565122 Whirlpool Strike Assembly Backorder WPL WP8565122 $5.76

W11252474 Whirlpool Hose Assembly In Stock WPL W11252474 $25.76

W11590578 Whirlpool Seal Backorder WPL W11590578 $4.63

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.77

WIRE, MOTOR TO BELT SWITCH WPL 8539892 Contact Us For Availability

25

8540479 Whirlpool Screw Backorder WPL 8540479 $8.81

25

W11116960 Whirlpool Base Assembly Backorder WPL W11116960 $173.56

25

WP8540382 Whirlpool Screw Backorder WPL WP8540382 $4.77

26

W10853898 Whirlpool Screw Backorder WPL W10853898 $4.77

26

Panel, Rear WPL 8565059 Contact Us For Availability

27

W11234001 Whirlpool Drive Motor In Stock WPL W11234001 $232.30

27

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $5.76

28

WPW10085220 Whirlpool Switch Backorder WPL WPW10085220 $20.35

28

Seal, Foam WPL 8318396 Contact Us For Availability

29

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $27.98

30

WPW10131172 Whirlpool Belt In Stock WPL WPW10131172 $24.20

31

WP3397659 Whirlpool Terminal Block In Stock WPL WP3397659 $22.18

32

W11181678 Whirlpool Electronic Control Board Backorder WPL W11181678 $474.10

32

W11676491 Whirlpool Base In Stock WPL W11676491 $76.73

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $18.08

33

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $16.61

33

WP2205813 Whirlpool Refrigerator Wire Tie Backorder WPL WP2205813 $4.77

34

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $18.95

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $17.81

35

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.77

36

W11685800 Whirlpool Key In Stock WPL W11685800 $39.44

36

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.77

36

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $60.48

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $52.10

37

WPW10349492 Whirlpool Wheel In Stock WPL WPW10349492 $70.86

38

W10200785 Whirlpool Retainer Backorder WPL W10200785 $6.41

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $58.52

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $52.60

40

8540643 Whirlpool Bracket Backorder WPL 8540643 $11.80

40

BRACKET Backorder WPL W10133261 $49.30

40

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.81

41

COVER, CCU WPL W10405233 Contact Us For Availability

42

W10002600 Whirlpool Screw Backorder WPL W10002600 $8.81

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $29.57

42

BRACKET, CCU WPL W10198280 Contact Us For Availability

43

W10103350A Whirlpool Pedestal Backorder WPL W10103350A $120.15

43

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $11.23

44

WPW10346892 Whirlpool Screw In Stock WPL WPW10346892 $4.77

45

BRACKET Backorder WPL W10294428 $48.02

46

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $7.10

46

WPW10376685 Whirlpool Refrigerator Electronic In Stock WPL WPW10376685 $479.83

47

W11403858 Whirlpool Transformer Backorder WPL W11403858 $177.98

47

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $78.26

47

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $112.57

48

8540329 Whirlpool Screw Backorder WPL 8540329 $4.63

48

8565043 Whirlpool Plug Backorder WPL 8565043 $62.91

48

W10864898 Whirlpool Dryer Heating Element In Stock WPL W10864898 $151.12

49

W10018050 Whirlpool Cap Assembly Backorder WPL W10018050 $7.78

49

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.07

49

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.46

50

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $4.82

50

WPW10117421 Whirlpool Panel Backorder WPL WPW10117421 $181.24

50

BASE, RETAINER WPL W10198373 Contact Us For Availability

51

W11247665 Whirlpool Switch Backorder WPL W11247665 $15.71

52

BRACKET Backorder WPL W10198224 $55.32

53

W11674367 Whirlpool Console Backorder WPL W11674367 $166.58

55

W11113654 Whirlpool Pad In Stock WPL W11113654 $16.76

59

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $85.16

60

WP8565237 Whirlpool Bracket Assembly In Stock WPL WP8565237 $119.16

61

BRACKET Backorder WPL W10198461 $0.00

63

WP3405160 Whirlpool Belt Assembly In Stock WPL WP3405160 $15.11

64

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $73.53

285863 Whirlpool Drain Hose Extension 4' In Stock WPL 285863 $24.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.73

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

W10198451 Whirlpool Cover Reader Backorder WPL W10198451 $49.40

W10330829 Whirlpool Wire Harness Backorder WPL W10330829 $331.88

HARNS-WIRE Backorder WPL W10342200 $65.98

HARNS-WIRE Backorder WPL W10342208 $85.24

HARNS-WIRE Backorder WPL W10342210 $59.50

W10342214 Whirlpool Wire Harness Backorder WPL W10342214 $49.30

THE FOLLOWING CABLE SETS: (NOT ILLUSTRATED) WPL NP Contact Us For Availability
