Model Maytag CDB7000AWS1 DISHWASHER – Common Parts & Diagrams
01 - DOOR AND PANEL PARTS
02 - CONTROL PANEL AND LATCH PARTS

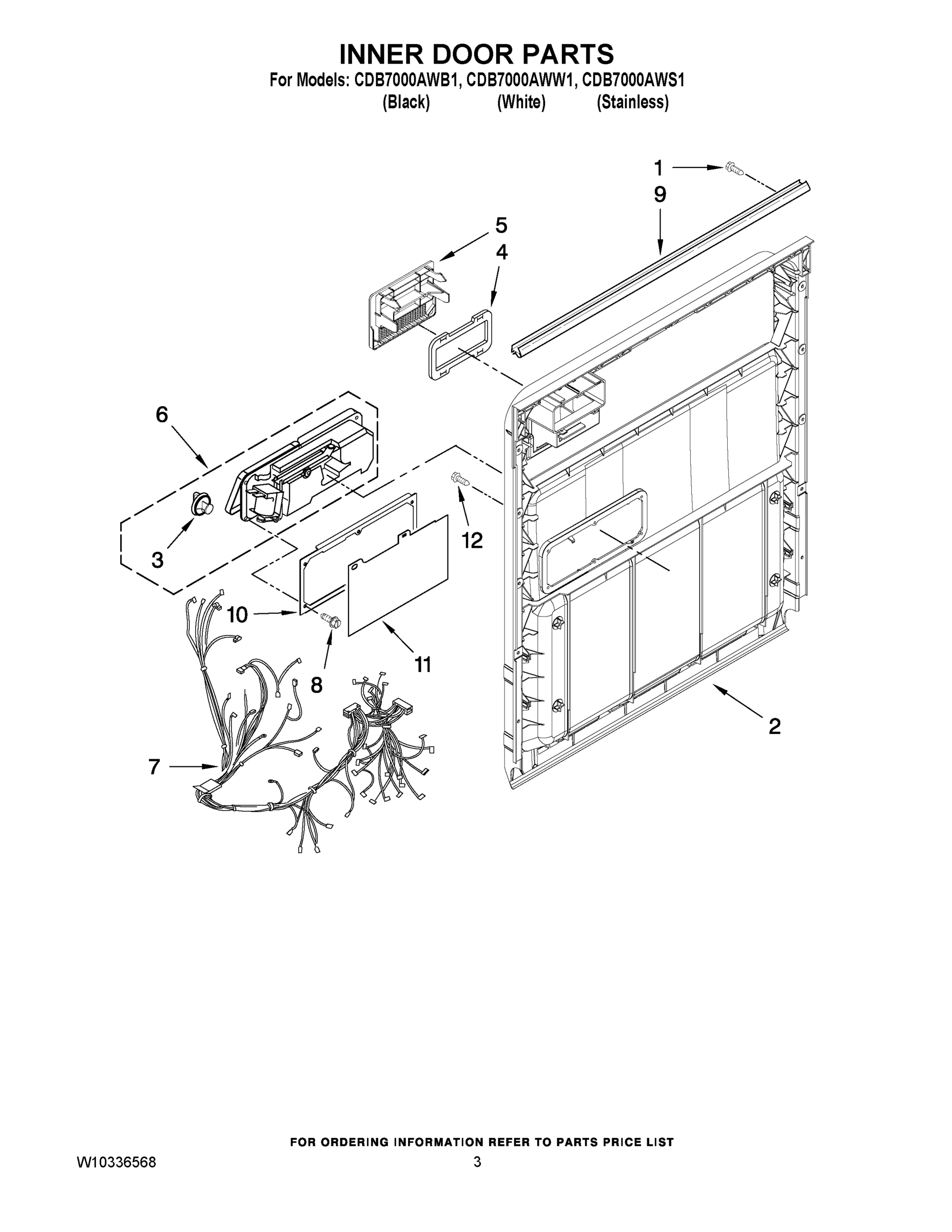

03 - INNER DOOR PARTS

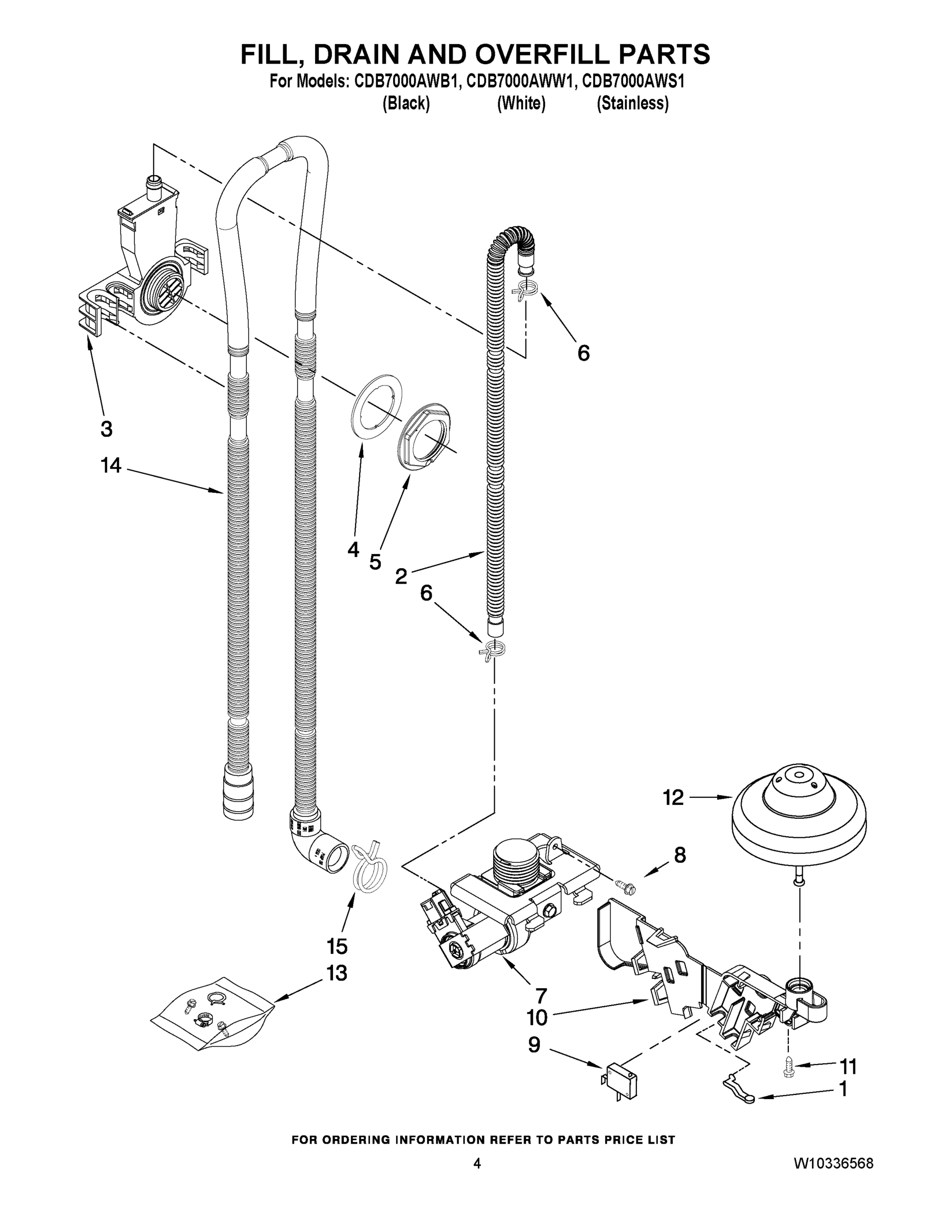

04 - FILL, DRAIN AND OVERFILL PARTS

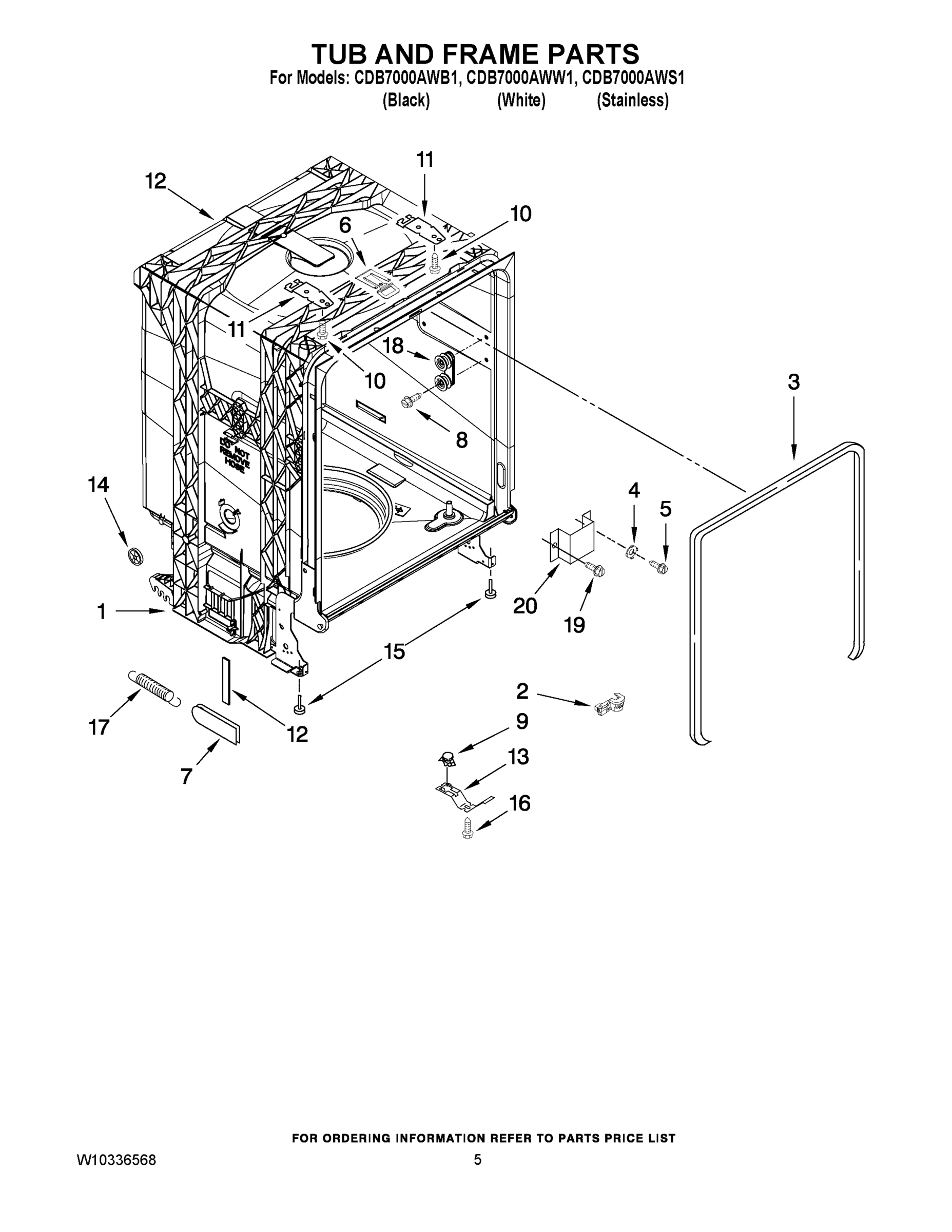

05 - TUB AND FRAME PARTS

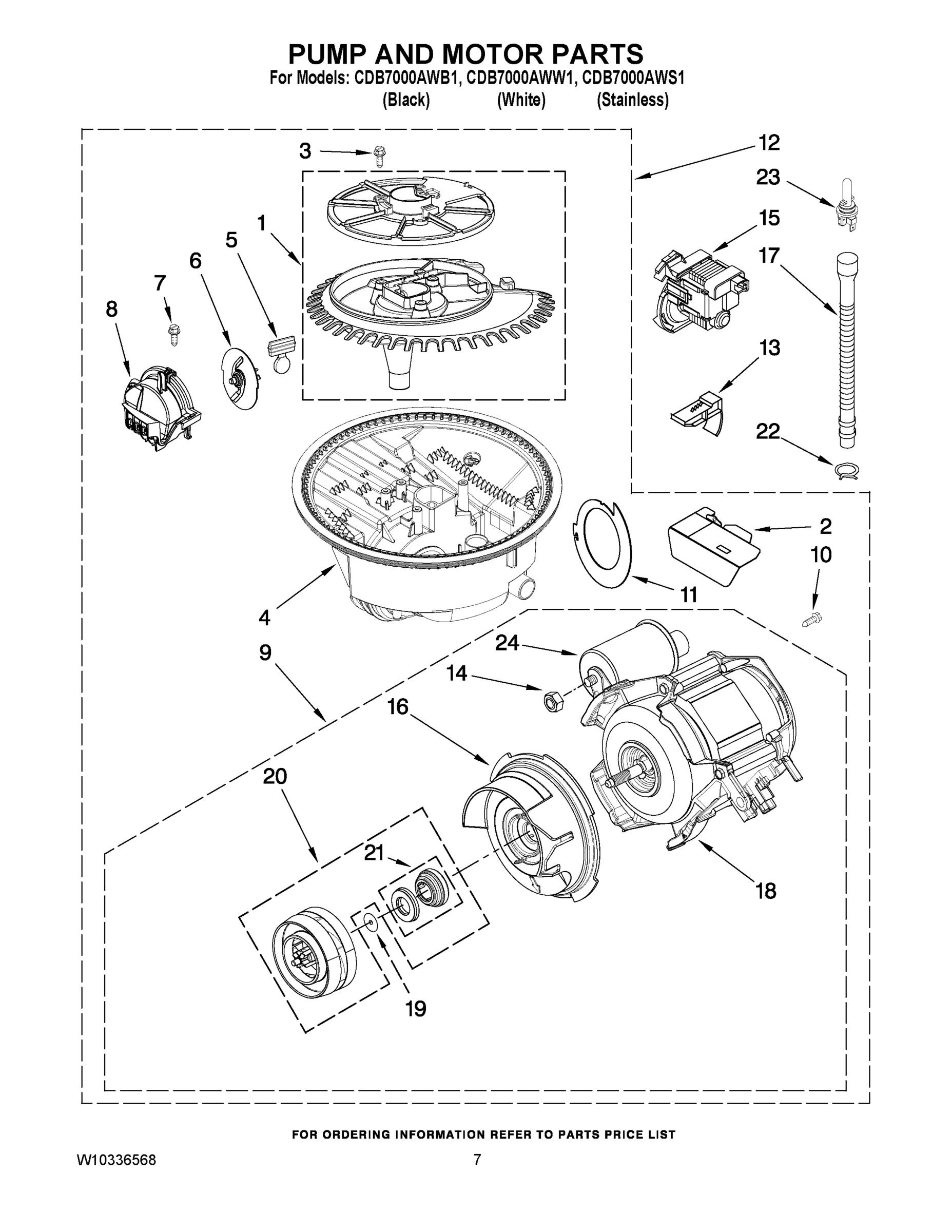

06 - PUMP AND MOTOR PARTS
07 - UPPER WASH AND RINSE PARTS

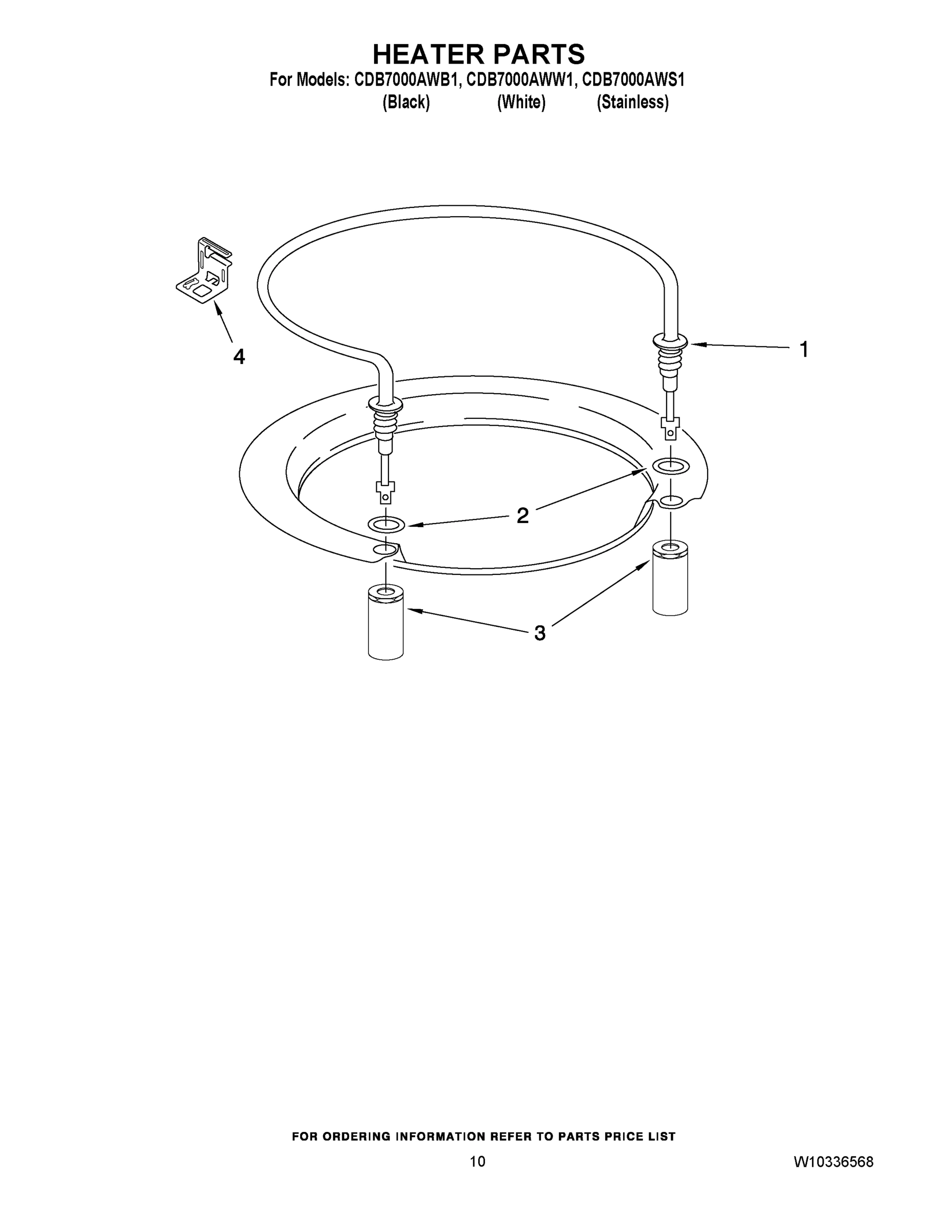

08 - HEATER PARTS

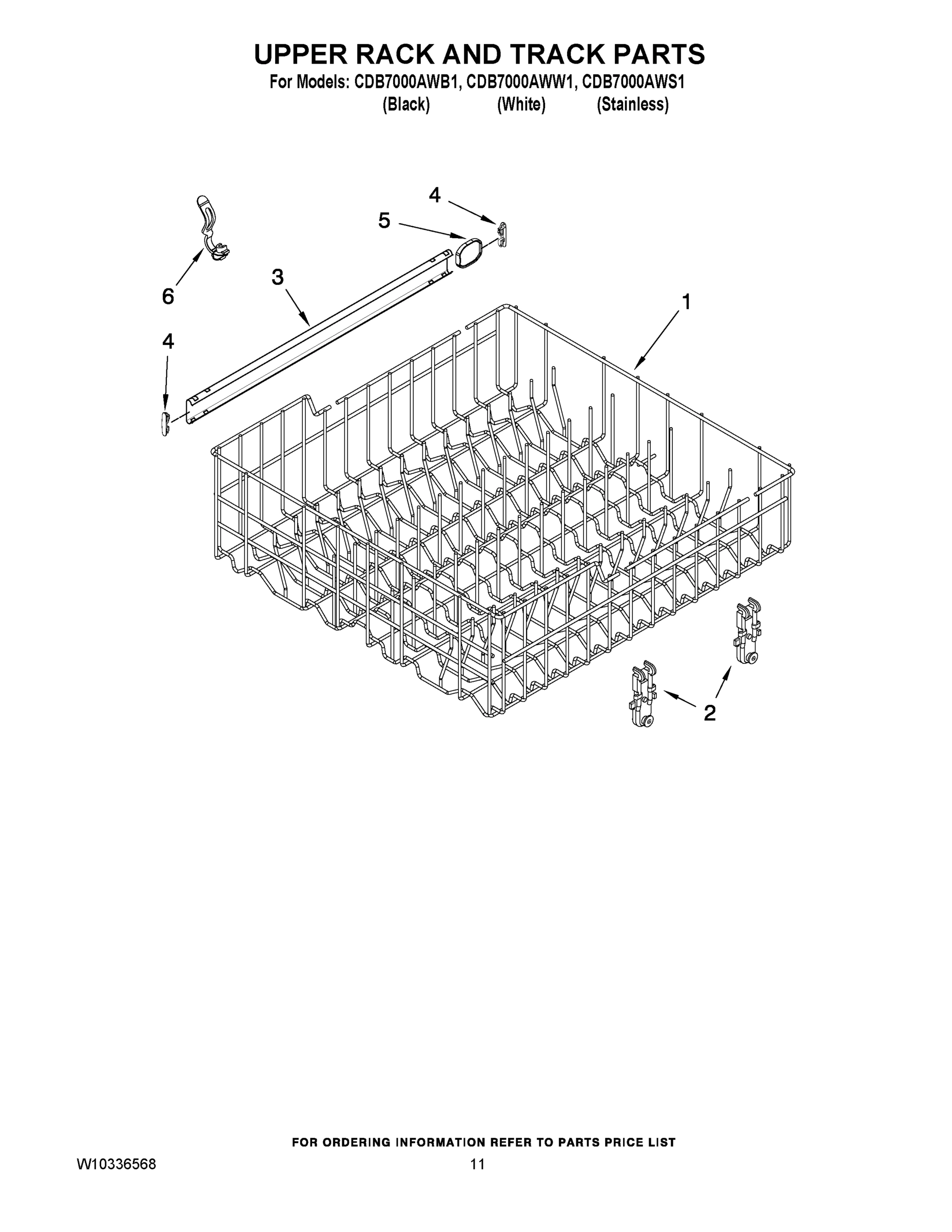

09 - UPPER RACK AND TRACK PARTS

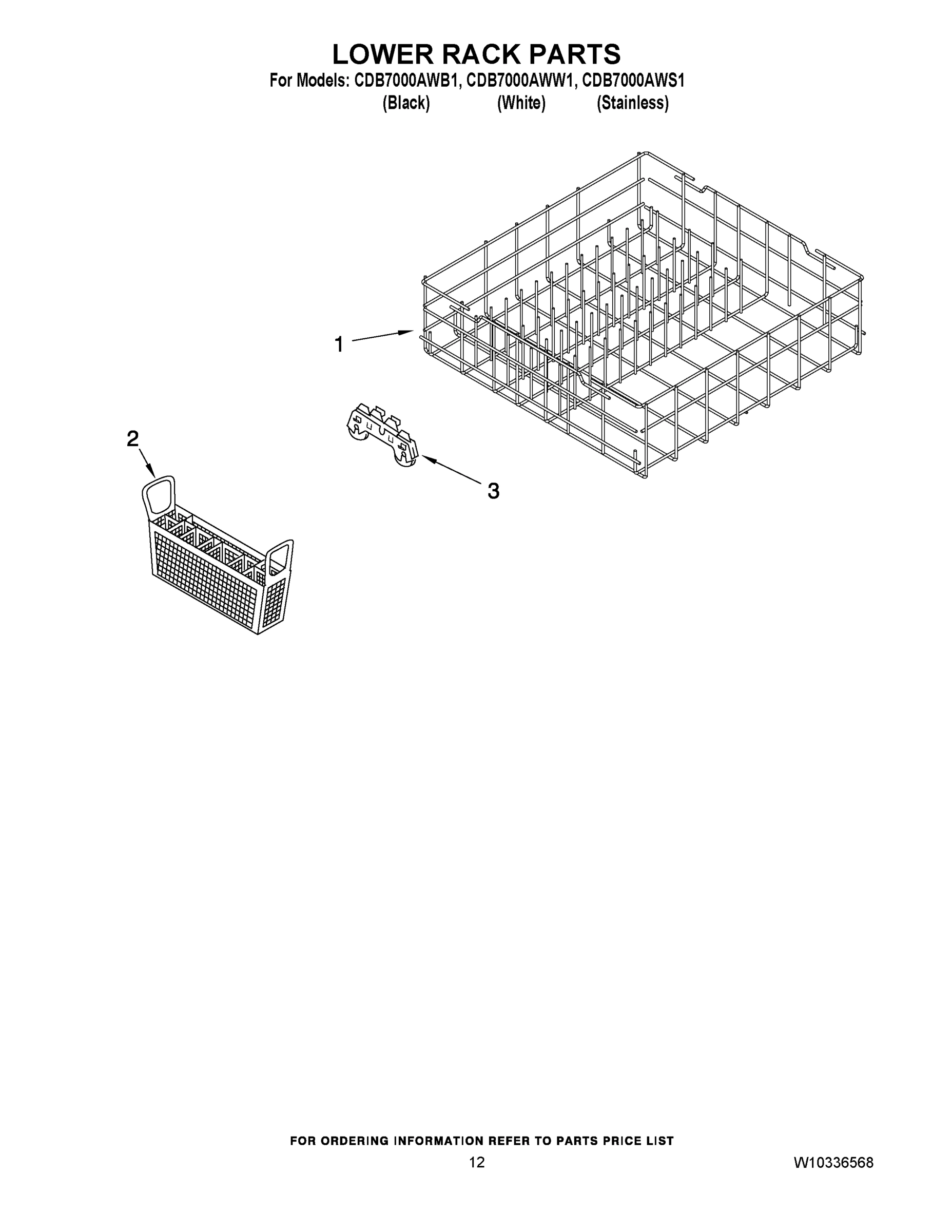

10 - LOWER RACK PARTS

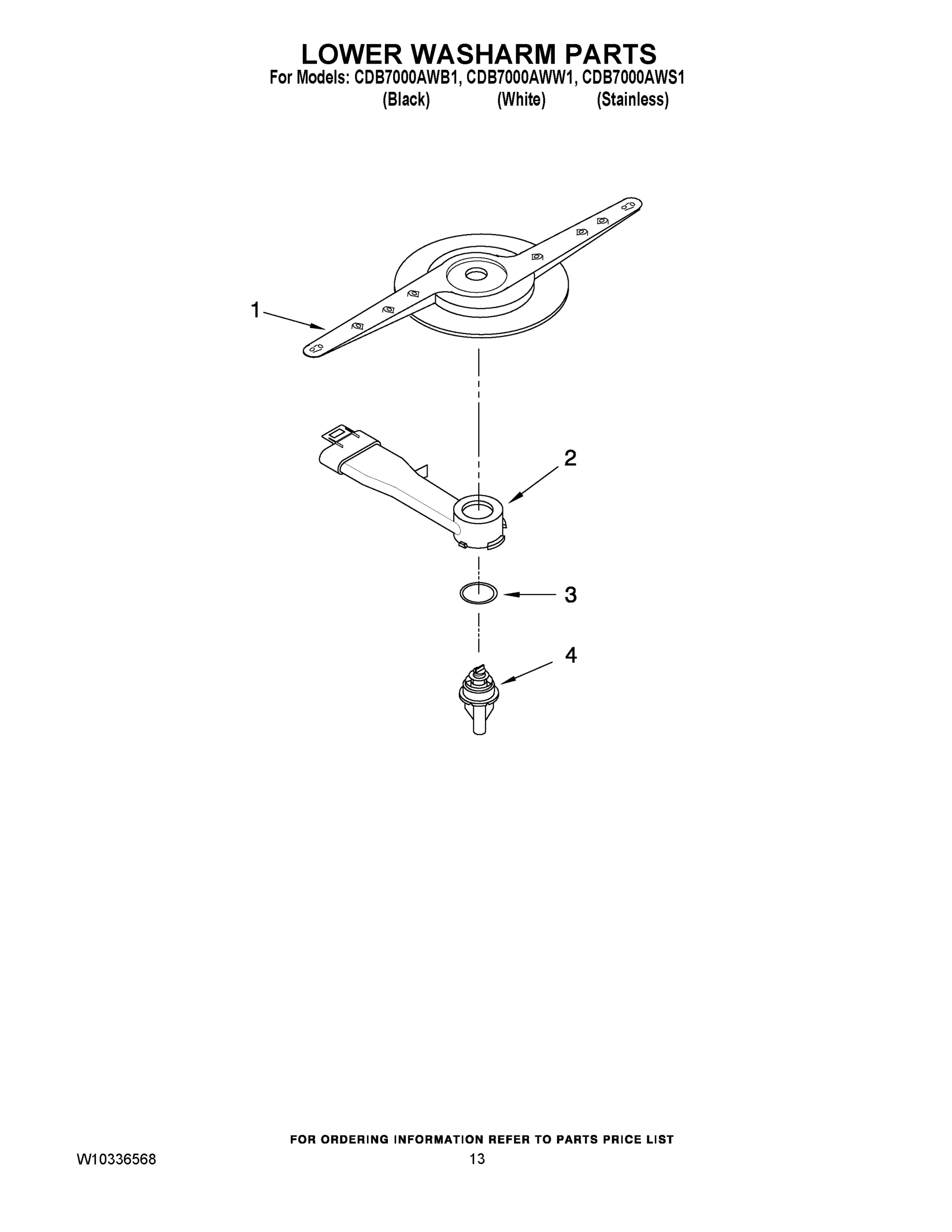

11 - LOWER WASHARM PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag CDB7000AWS1 DISHWASHER
1
MAY W10282553 MAY W10282553 Contact Us For Availability
1
MAY W10310535 MAY W10310535 Contact Us For Availability
1
MAY W10310536 MAY W10310536 Contact Us For Availability
1
MAY W10329262 MAY W10329262 Contact Us For Availability
1
MAY W10310528 MAY W10310528 Contact Us For Availability
1
MAY W10310529 MAY W10310529 Contact Us For Availability
1
LEVER, OVERFLOW SWITCH MAY 8268892 Contact Us For Availability
1
TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY) MAY W10254858 Contact Us For Availability
1
MAY 8534952 MAY 8534952 Contact Us For Availability
1
MAY W10254531 MAY W10254531 Contact Us For Availability
1
MAY W10134009 MAY W10134009 Contact Us For Availability
1
MAY W10164198 MAY W10164198 Contact Us For Availability
1
LOWER RACK ASSEMBLY (INCLUDES ITEM 3) MAY 8561705 Contact Us For Availability
1
MAY 8268333 MAY 8268333 Contact Us For Availability
2
MAY W10143373 MAY W10143373 Contact Us For Availability
2
MAY W10143374 MAY W10143374 Contact Us For Availability
2
BRACE CONTROL CONNECTOR MAY W10195284 Contact Us For Availability
2
INNER DOOR (ALSO ORDER ITEM 4) MAY W10254547 Contact Us For Availability
2
MAY 8531412 MAY 8531412 Contact Us For Availability
2
MAY 8573061 MAY 8573061 Contact Us For Availability
2
MAY 8283527 MAY 8283527 Contact Us For Availability
2
MAY 8533889 MAY 8533889 Contact Us For Availability
2
WASHER, HEATER ELEMENT MAY 717273 Contact Us For Availability
2
MOUNT, WHEEL MAY 8575281 Contact Us For Availability
2
SILVERWARE BASKET MAY 8268866 Contact Us For Availability
2
MAY 8268317 MAY 8268317 Contact Us For Availability
3
MAY 8268983 MAY 8268983 Contact Us For Availability
3
MAY 8524471 MAY 8524471 Contact Us For Availability
3
MAY 8533380 MAY 8533380 Contact Us For Availability
3
MAY W10195536 MAY W10195536 Contact Us For Availability
3
MAY W10284090 MAY W10284090 Contact Us For Availability
3
MAY 3400069 MAY 3400069 Contact Us For Availability
3
MAY 8535083 MAY 8535083 Contact Us For Availability
3
NUT, HEATER ELEMENT MAY 8268548 Contact Us For Availability
3
TRACK, RACK MAY 3385089 Contact Us For Availability
3
WHEEL & TRANSPORT ASSEMBLY MAY 8268645 Contact Us For Availability
3
MAY 8268340 MAY 8268340 Contact Us For Availability
4
MAY W10274895 MAY W10274895 Contact Us For Availability
4
MAY W10274896 MAY W10274896 Contact Us For Availability
4
PANEL FRONT (S. STEEL) MAY W10274902 Contact Us For Availability
4
MAY W10195528 MAY W10195528 Contact Us For Availability
4
MAY W10254545 MAY W10254545 Contact Us For Availability
4
MAY 8531323 MAY 8531323 Contact Us For Availability
4
MAY 3378128 MAY 3378128 Contact Us For Availability
4
MAY 8572618 MAY 8572618 Contact Us For Availability
4
MAY 3400919 MAY 3400919 Contact Us For Availability
4
MAY 8269262 MAY 8269262 Contact Us For Availability
4
STOP TRACK MAY 8565920 Contact Us For Availability
4
MAY 8268342 MAY 8268342 Contact Us For Availability
5
MAY W10195777 MAY W10195777 Contact Us For Availability
5
MAY W10195778 MAY W10195778 Contact Us For Availability
5
MAY 3400412 MAY 3400412 Contact Us For Availability
5
MAY W10254548 MAY W10254548 Contact Us For Availability
5
MAY 8531326 MAY 8531326 Contact Us For Availability
5
MAY 3400014 MAY 3400014 Contact Us For Availability
5
MAY 8268375 MAY 8268375 Contact Us For Availability
5
MAY 3385159 MAY 3385159 Contact Us For Availability
5
MAY 8562078 MAY 8562078 Contact Us For Availability
6
MAY 8269016 MAY 8269016 Contact Us For Availability
6
MAY W10195411 MAY W10195411 Contact Us For Availability
6
MAY 371505 MAY 371505 Contact Us For Availability
6
STRIKE, LATCH MAY 8580309 Contact Us For Availability
6
MAY 8268383 MAY 8268383 Contact Us For Availability
6
MANIFOLD MAY 8268845 Contact Us For Availability
6
MAY W10286810 MAY W10286810 Contact Us For Availability
7
TOE PANEL (INCLUDES No.6) (BLACK) MAY 8573286 Contact Us For Availability
7
TOE PANEL (INCLUDES No.6) (WHITE) MAY 8573287 Contact Us For Availability
7
MAY 8269323 MAY 8269323 Contact Us For Availability
7
MAY 8269324 MAY 8269324 Contact Us For Availability
7
MAY W10254615 MAY W10254615 Contact Us For Availability
7
MAY W10195049 MAY W10195049 Contact Us For Availability
7
MAY 8268990 MAY 8268990 Contact Us For Availability
7
MAY 9741232 MAY 9741232 Contact Us For Availability
7
HOLDER, FEED TUBE MAY 3385160 Contact Us For Availability
8
SCREW (BLACK) MAY 302868 Contact Us For Availability
8
MAY 8524476 MAY 8524476 Contact Us For Availability
8
MAY W10177098 MAY W10177098 Contact Us For Availability
8
Screw MAY 304392 Contact Us For Availability
8
SCREW MAY 8533836 Contact Us For Availability
8
MAY 8531857 MAY 8531857 Contact Us For Availability
8
MAY 8268433 MAY 8268433 Contact Us For Availability
9
SCREW MAY 343641 Contact Us For Availability
9
CNTRL-ELEC MAY W10395153 Contact Us For Availability
9
MAY 8269296 MAY 8269296 Contact Us For Availability
9
MAY W10102495 MAY W10102495 Contact Us For Availability
9
MAY 661566 MAY 661566 Contact Us For Availability
9
MAY W10231538 MAY W10231538 Contact Us For Availability
9
MAY 8562095 MAY 8562095 Contact Us For Availability
10
MAY 489470 MAY 489470 Contact Us For Availability
10
MAY W10274880 MAY W10274880 Contact Us For Availability
10
BRACKET, DISPENSER MAY 8535637 Contact Us For Availability
10
MAY W10175383 MAY W10175383 Contact Us For Availability
10
MAY 3367670 MAY 3367670 Contact Us For Availability
10
MAY 3400217 MAY 3400217 Contact Us For Availability
11
SHIELD, DISPENSER MAY 8531865 Contact Us For Availability
11
MAY 8269145 MAY 8269145 Contact Us For Availability
11
MAY W10084567 MAY W10084567 Contact Us For Availability
12
SCREW MAY 3400815 Contact Us For Availability
12
MAY 8268913 MAY 8268913 Contact Us For Availability
12
PAD, FRICTION TUB MAY 8268961 Contact Us For Availability
12
MAY W10237167 MAY W10237167 Contact Us For Availability
13
MISCELLANEOUS PARTS BAG (INCL. 2 SCREWS, 2 HO MAY W10292152 Contact Us For Availability
13
MAY 3378595 MAY 3378595 Contact Us For Availability
13
MAY 8269524 MAY 8269524 Contact Us For Availability
14
MAY W10137608 MAY W10137608 Contact Us For Availability
14
MAY 8269831 MAY 8269831 Contact Us For Availability
14
MAY 8533949 MAY 8533949 Contact Us For Availability
15
MAY 8524584 MAY 8524584 Contact Us For Availability
15
MAY 8558995 MAY 8558995 Contact Us For Availability
16
SCREW MAY 304231 Contact Us For Availability
16
VOLUTE W/ SEAL (ALSO ORDER ITEMS 19 & 21) MAY W10142656 Contact Us For Availability
17
MAY 8524473 MAY 8524473 Contact Us For Availability
17
MAY 8269144 MAY 8269144 Contact Us For Availability
18
MAY 8270016 MAY 8270016 Contact Us For Availability
18
MAY W10226459 MAY W10226459 Contact Us For Availability
19
MAY 3400892 MAY 3400892 Contact Us For Availability
19
MAY 8531018 MAY 8531018 Contact Us For Availability
20
MAY 8268991 MAY 8268991 Contact Us For Availability
20
IMPELLER KIT (ALSO ORDER ITEM 19) MAY 8531017 Contact Us For Availability
21
FACE SEAL ASSEMBLY (ALSO ORDER ITEM 19) MAY 8268403 Contact Us For Availability
22
MAY 356138 MAY 356138 Contact Us For Availability
23
MAY 8578828 MAY 8578828 Contact Us For Availability
24
MAY W10216724 MAY W10216724 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 3385556 MAY 3385556 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4317824 MAY 4317824 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Biscuit) MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
ANTI-TIP KIT (FLOOR MOUNT KIT) MAY 4396194 Contact Us For Availability
NI
MAY 4396199 MAY 4396199 Contact Us For Availability
NI
MAY 4396200 MAY 4396200 Contact Us For Availability
NI
MAY 4396201 MAY 4396201 Contact Us For Availability
NI
MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
MAY 4396603 MAY 4396603 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396840 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 8171656 MAY 8171656 Contact Us For Availability
NI
MAY 8171657 MAY 8171657 Contact Us For Availability
NI
MAY 8171658 MAY 8171658 Contact Us For Availability
NI
MAY 8171659 MAY 8171659 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
× ![]()
