Model Whirlpool CA2751XSW2 WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 799344 WPL 799344 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest WPL 261891 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3348934 WPL LIT3348934 Contact Us For Availability

WPL LIT3349736 WPL LIT3349736 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $59.26

1

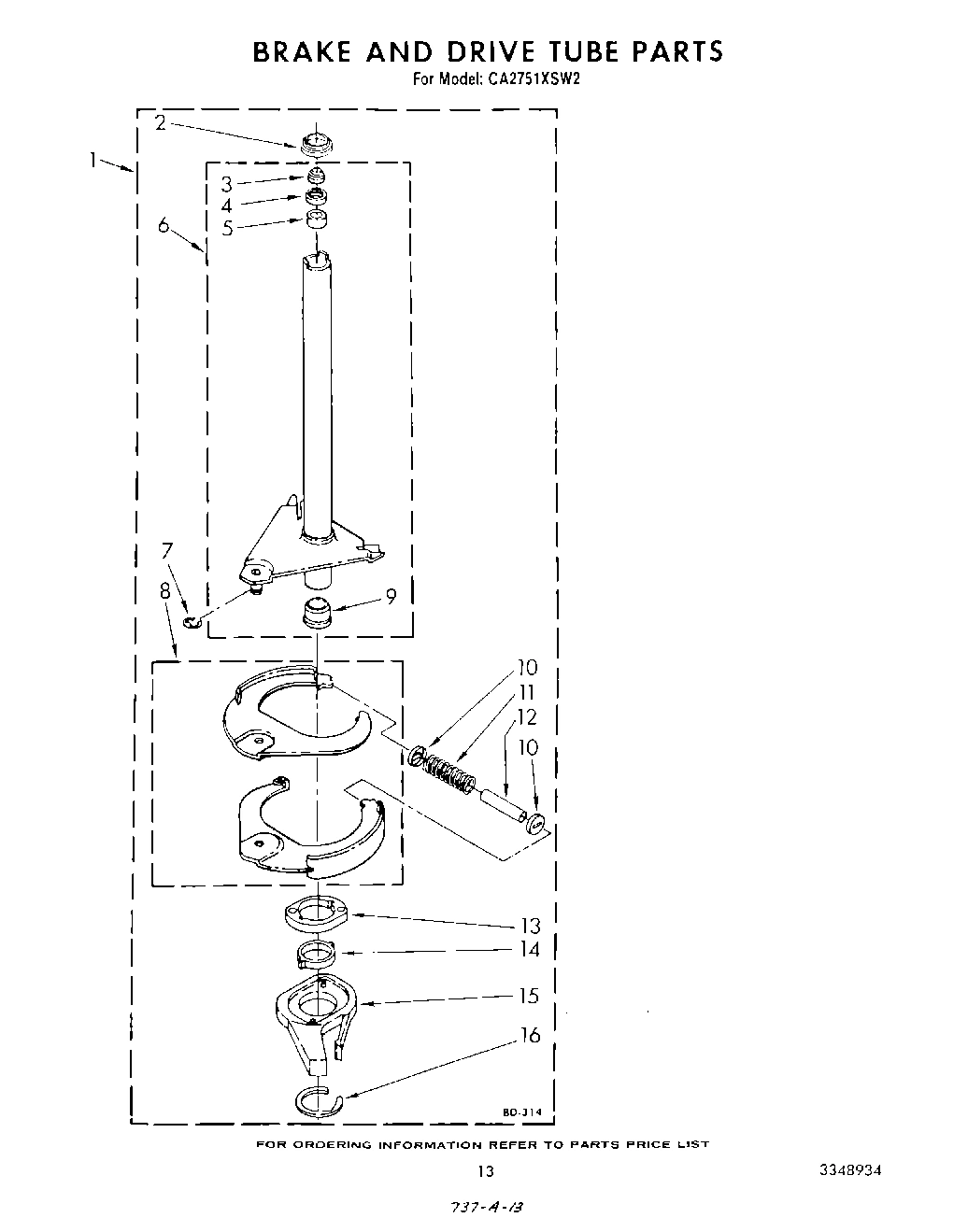

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $9.65

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

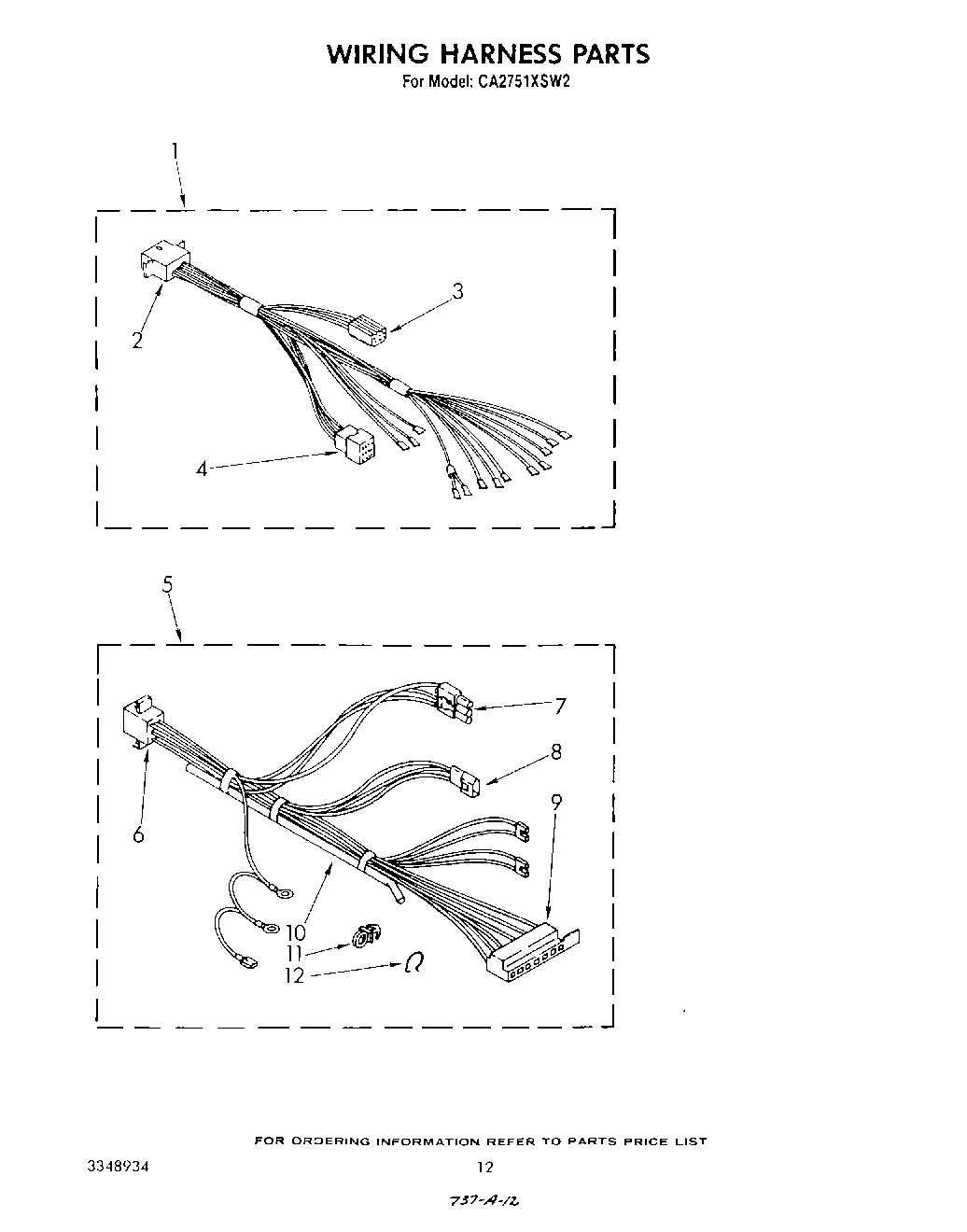

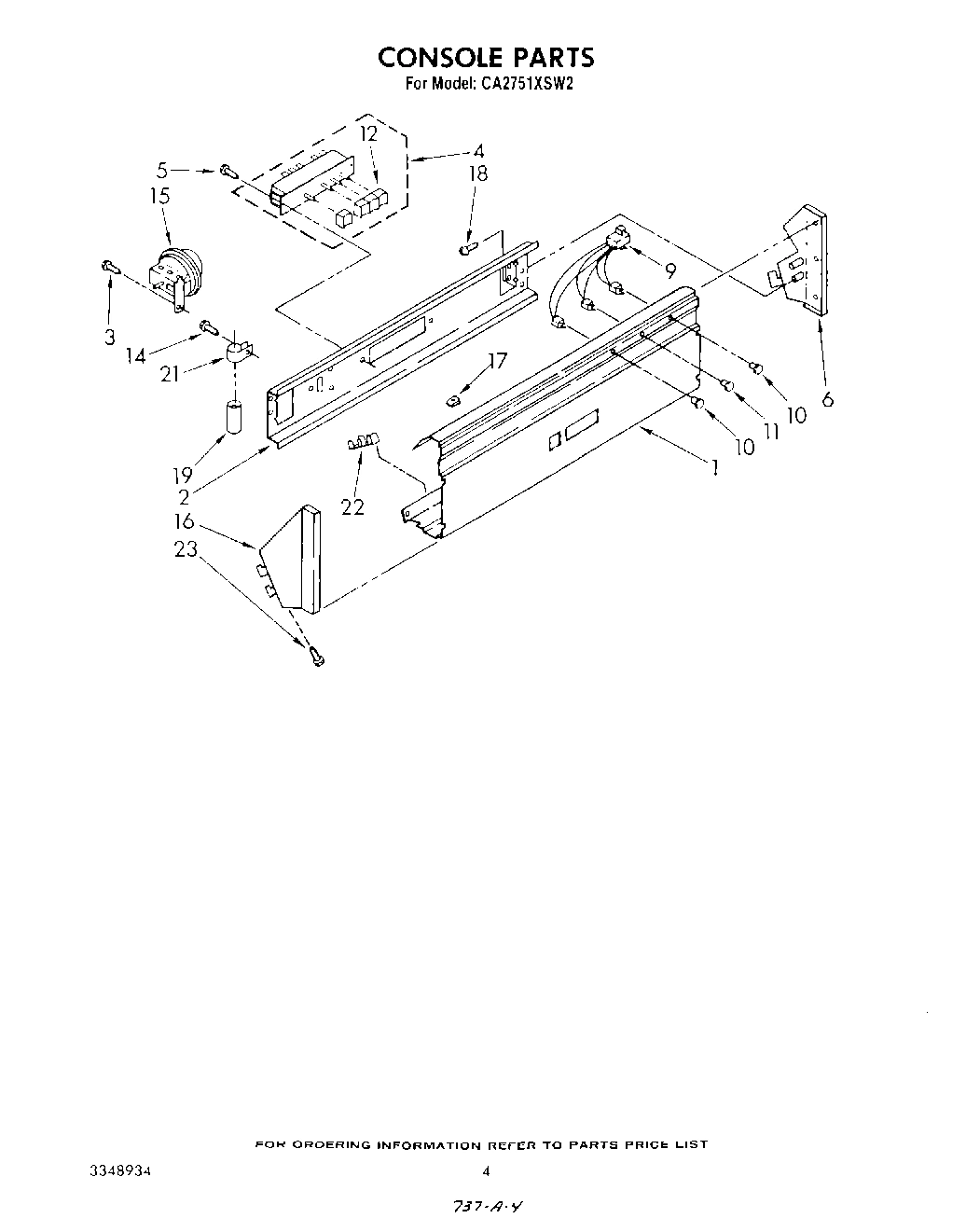

Harness, Console WPL 3348448 Contact Us For Availability

1

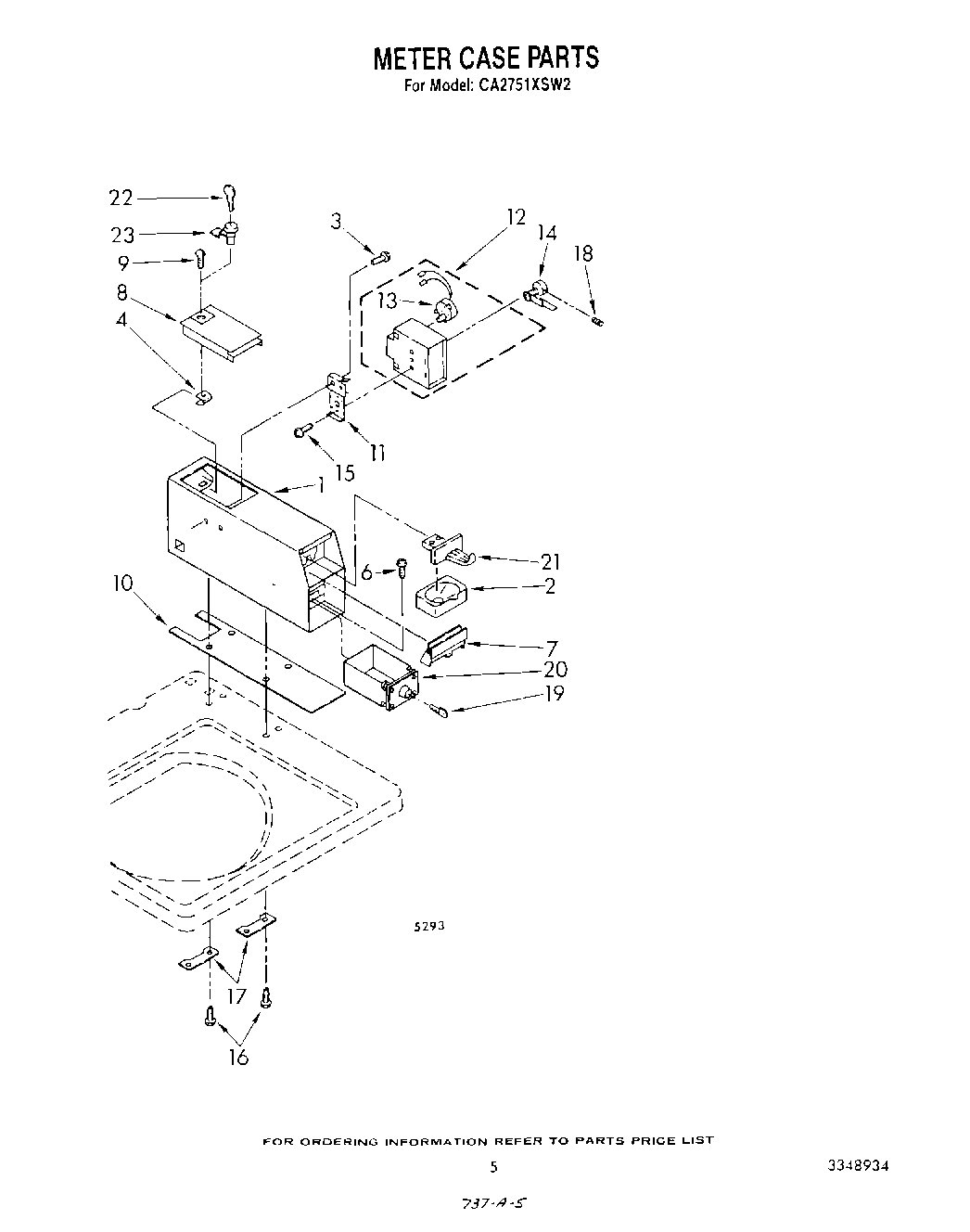

Meter Case (White) WPL 3348025 Contact Us For Availability

1

Meter Case (Almond) WPL 3348026 Contact Us For Availability

1

Meter Case (Golden Harvest) WPL 3348027 Contact Us For Availability

2

285321 Whirlpool Sleeve Backorder WPL 285321 $54.14

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP385421 Whirlpool Washer Coin-Operated Laund In Stock WPL WP385421 $48.50

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

Plug, Terminal (15 Way) Uses Terminal 94614) WPL 96894 Contact Us For Availability

2

Top (White) WPL 388666 Contact Us For Availability

2

Top (Almond) WPL 388667 Contact Us For Availability

2

Top (Golden Harvest) WPL 388668 Contact Us For Availability

3

339805 Whirlpool Screw Backorder WPL 339805 $8.89

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

3

Plug, Terminal (6 Way) Uses Terminal 94613) WPL 352457 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

4

WP90406 Whirlpool Nut Backorder WPL WP90406 $4.55

4

Cap, Terminal 12 Way (Uses Terminal 94613 WPL 94697 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $54.71

5

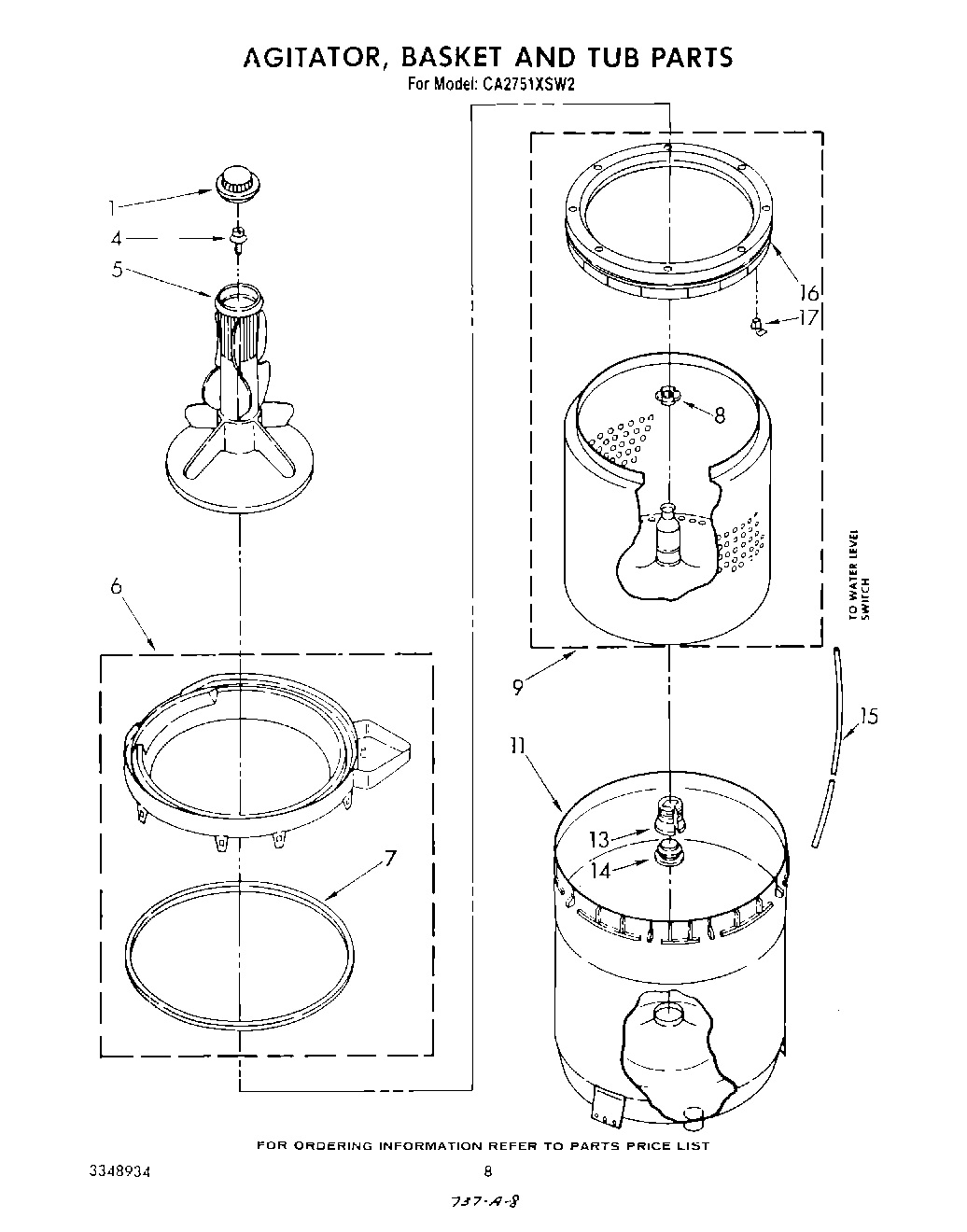

WP63235 Whirlpool Agitator Assembly Backorder WPL WP63235 $185.88

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Harness and Pressure Switch Hose WPL 3348447 Contact Us For Availability

5

Cabinet (White) WPL 3349684 Contact Us For Availability

5

Cabinet (Almond) WPL 3349685 Contact Us For Availability

5

Cabinet (Golden Harvest) WPL 3349686 Contact Us For Availability

5

Washer, 5/16 WPL 138485 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

W11715721 Whirlpool Screw Assembly Backorder WPL W11715721 $4.67

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $187.55

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Plug, Terminal (12 Way) (Uses Terminal 94614) WPL 94696 Contact Us For Availability

6

Tub Ring WPL 387966 Contact Us For Availability

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

7

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $58.99

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

7

Spacer, Money Vault WPL ARI144280A Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $103.99

8

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

8

353424 Whirlpool Connector Backorder WPL 353424 $14.02

8

W11283272 Whirlpool Washer Dryer Access Door In Stock WPL W11283272 $85.93

8

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Screw & Washer, Lid Switch (2) WPL 354764 Contact Us For Availability

8

Door, Service (Almond) WPL 385758 Contact Us For Availability

8

Door, Service (Golden Harvest) WPL 385760 Contact Us For Availability

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.98

9

Harness, Lid Switch WPL 63833 Contact Us For Availability

9

Screw & Washer WPL 358409 Contact Us For Availability

9

Basket WPL 3347764 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

WP3348109 Whirlpool Light Lens In Stock WPL WP3348109 $8.72

WP359231 Whirlpool Shield In Stock WPL WP359231 $5.99

WP3954812 Whirlpool Cushion Backorder WPL WP3954812 $19.74

Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 3349491 Contact Us For Availability

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $27.54

WP3348110 Whirlpool Light Lens In Stock WPL WP3348110 $5.99

WP62611 Whirlpool Plate In Stock WPL WP62611 $76.63

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $4.55

Tub WPL 63125 Contact Us For Availability

Clip, Harness WPL 62749 Contact Us For Availability

Bracket, Timer WPL 385575 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP3955668 Whirlpool Timer In Stock WPL WP3955668 $261.59

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

Pushbutton (5) WPL 3348587 Contact Us For Availability

Protector, Harness WPL 63523 Contact Us For Availability

Actuator, Lid Switch WPL 357347 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

Motor, Timer WPL 388290 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

W11573574 Whirlpool Screw In Stock WPL W11573574 $11.84

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

Clutch, Timer WPL 385571 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $6.99

WP91770 Whirlpool Hinge In Stock WPL WP91770 $17.43

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Screw WPL 3349579 Contact Us For Availability

3347825 Whirlpool Plate Backorder WPL 3347825 $4.67

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.99

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Nut, Push-In (2) WPL 689559 Contact Us For Availability

Balance Ring WPL 387868 Contact Us For Availability

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

18

Screw, Set WPL 98654 Contact Us For Availability

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $208.97

WPW10193854 Whirlpool Lid Assembly Backorder WPL WPW10193854 $236.76

Lid (Almond) WPL 3348404 Contact Us For Availability

Lid (Golden Harvest) WPL 3348405 Contact Us For Availability

Key, Money Box WPL ARI144281A Contact Us For Availability

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $8.99

Gear, Main Drive WPL 62528 Contact Us For Availability

Switch, Main Drive Motor WPL 62851 Contact Us For Availability

Money Box With Lock WPL ARI144282A Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

Coin Chute WPL ARI144283A Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

BUMPER WPL 356908 Contact Us For Availability

Key, Service Door WPL ARI144284A Contact Us For Availability

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $66.43

Ring, Retaining WPL 95082 Contact Us For Availability

Security Lock & Cam Assembly WPL ARI144285A Contact Us For Availability

To Order Coin Mechanism Parts Contact One O WPL ARI144286A Contact Us For Availability

Reed Industries 1445 Rock Mountain Boulevard WPL ARI144287A Contact Us For Availability

H. GreenWald Company 1340 Metropolitan Avenue WPL ARI144288A Contact Us For Availability

Equiptment Systems Devices 1401 Dreshertown R WPL ARI144289A Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $58.99

Washer Kit, Thrust WPL 285292 Contact Us For Availability

Clip WPL 3349322 Contact Us For Availability

Spring & Button, Lid ((L.H.)) WPL 53749 Contact Us For Availability

25

3350013 Whirlpool Foam Seal Backorder WPL 3350013 $58.08

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

Plug, Button WPL 54690 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

26

Stop, Push-In Top WPL 358472 Contact Us For Availability

27

Plug, Terminal (3-Way) WPL 62888 Contact Us For Availability

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $50.83

28

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

30

Rivet, Serial Nameplate WPL 354239 Contact Us For Availability

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

35

Molding, Service Panel (White) WPL 3349680 Contact Us For Availability

35

Molding, Service Panel (Almond) WPL 3349681 Contact Us For Availability

35

Molding, Service Panel (Golden Harvest) WPL 3349682 Contact Us For Availability

36

Panel, Service (White) WPL 3349599 Contact Us For Availability

36

Panel, Service (Almond) WPL 3349600 Contact Us For Availability

36

Panel, Service (Golden Harvest) WPL 3349601 Contact Us For Availability

37

Housing, Lock WPL 3349596 Contact Us For Availability

38

Clip, Lock WPL 3348254 Contact Us For Availability

39

Lock Screw WPL 3349597 Contact Us For Availability

40

Cam Lock WPL 3348467 Contact Us For Availability

41

Nut Jam WPL 124829 Contact Us For Availability

43

Washer WPL 3348846 Contact Us For Availability

44

Stand Off (3) WPL 388249 Contact Us For Availability

45

Screw, 6-32 x 1/4 (3) WPL 3349977 Contact Us For Availability

50

PLUG LOCK WPL 387371 Contact Us For Availability

58

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $58.36
