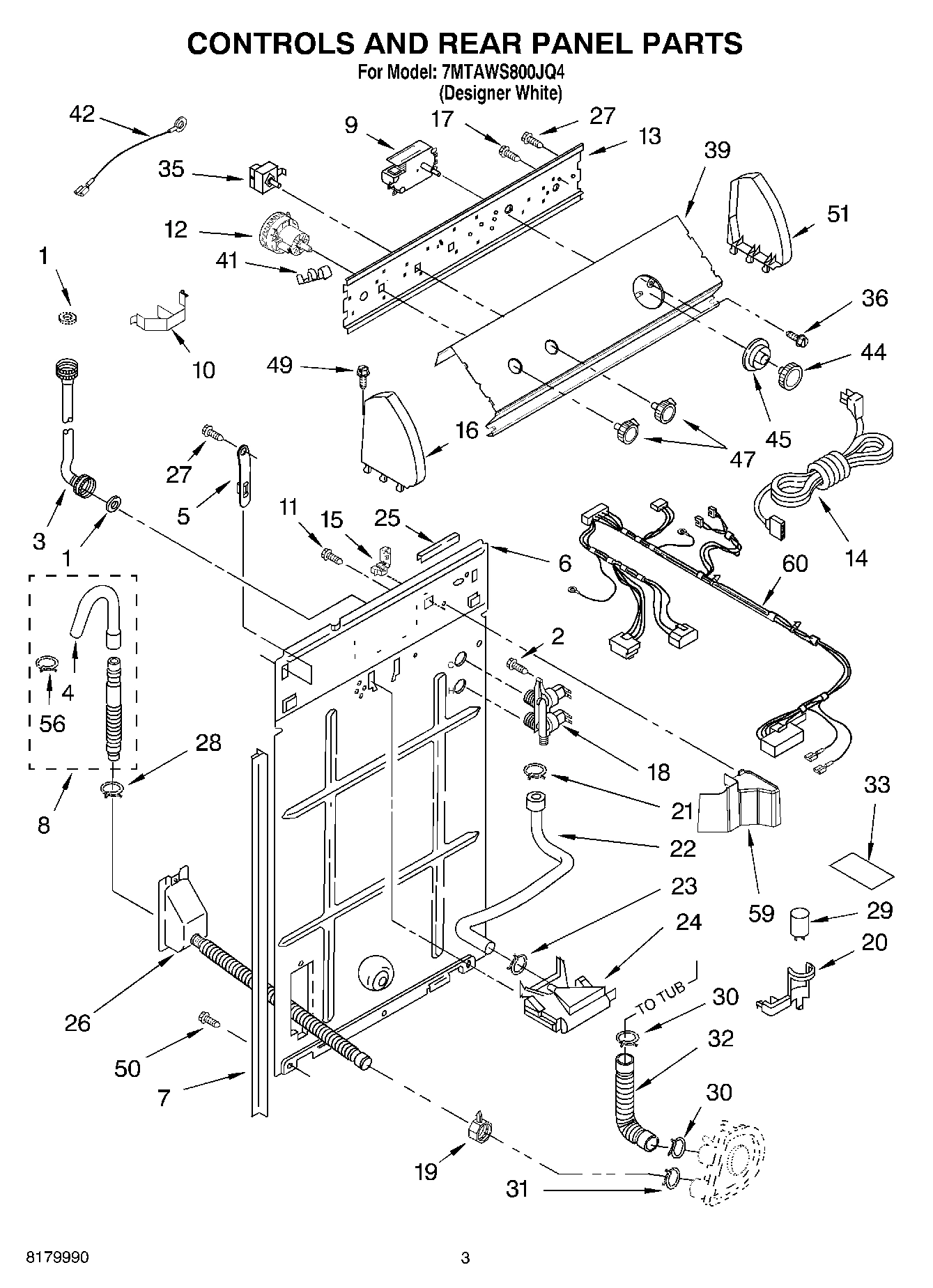

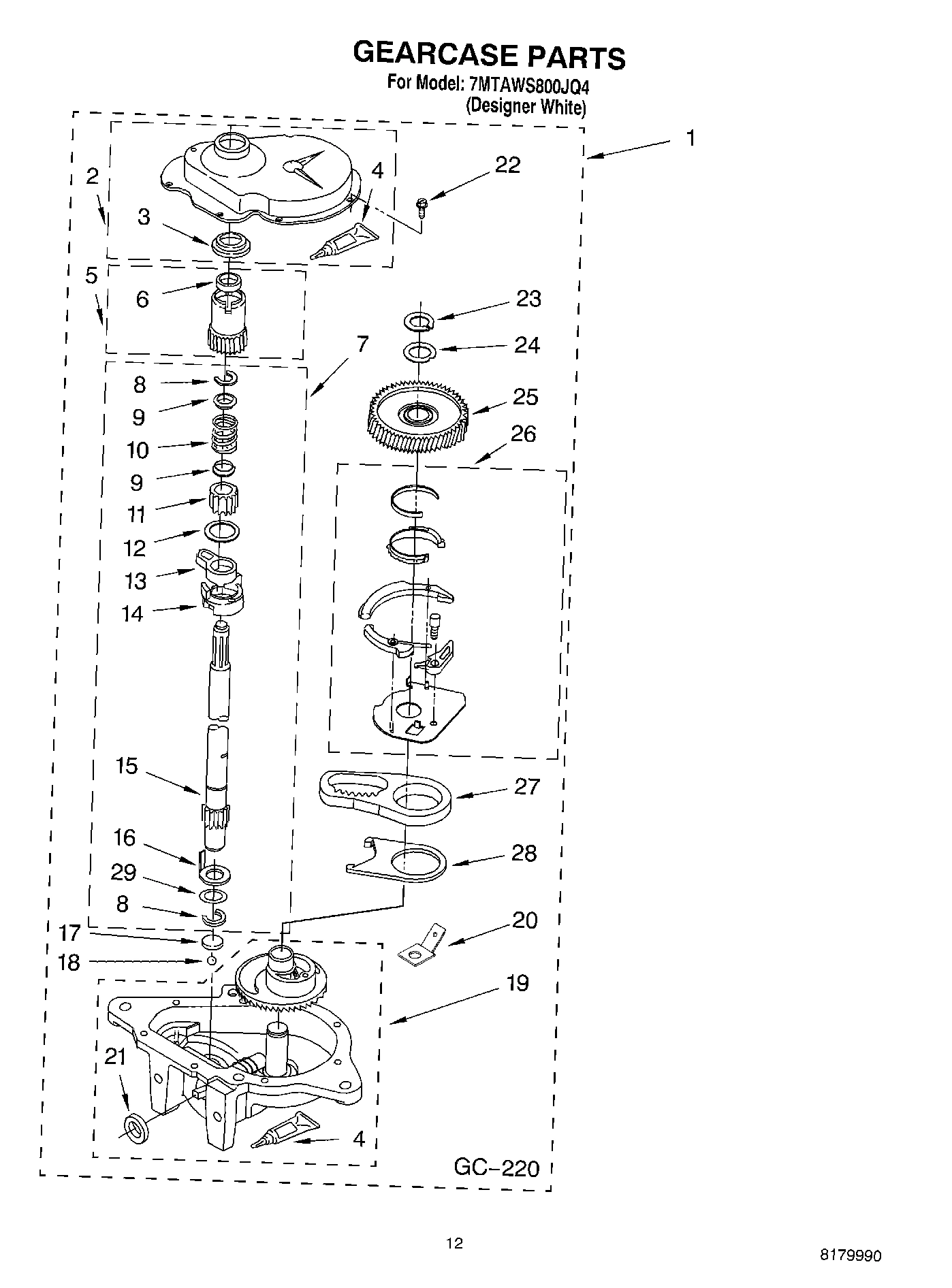

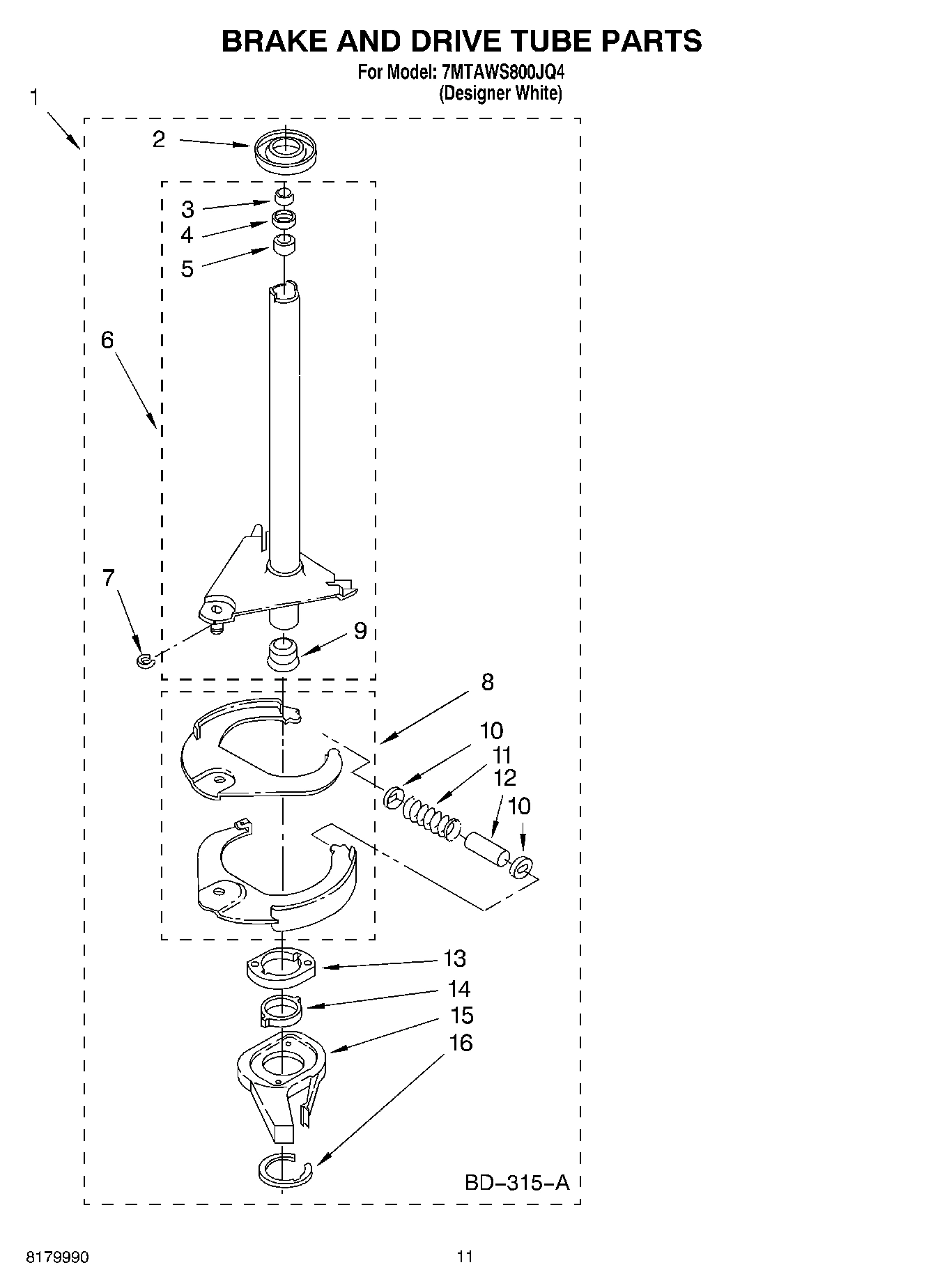

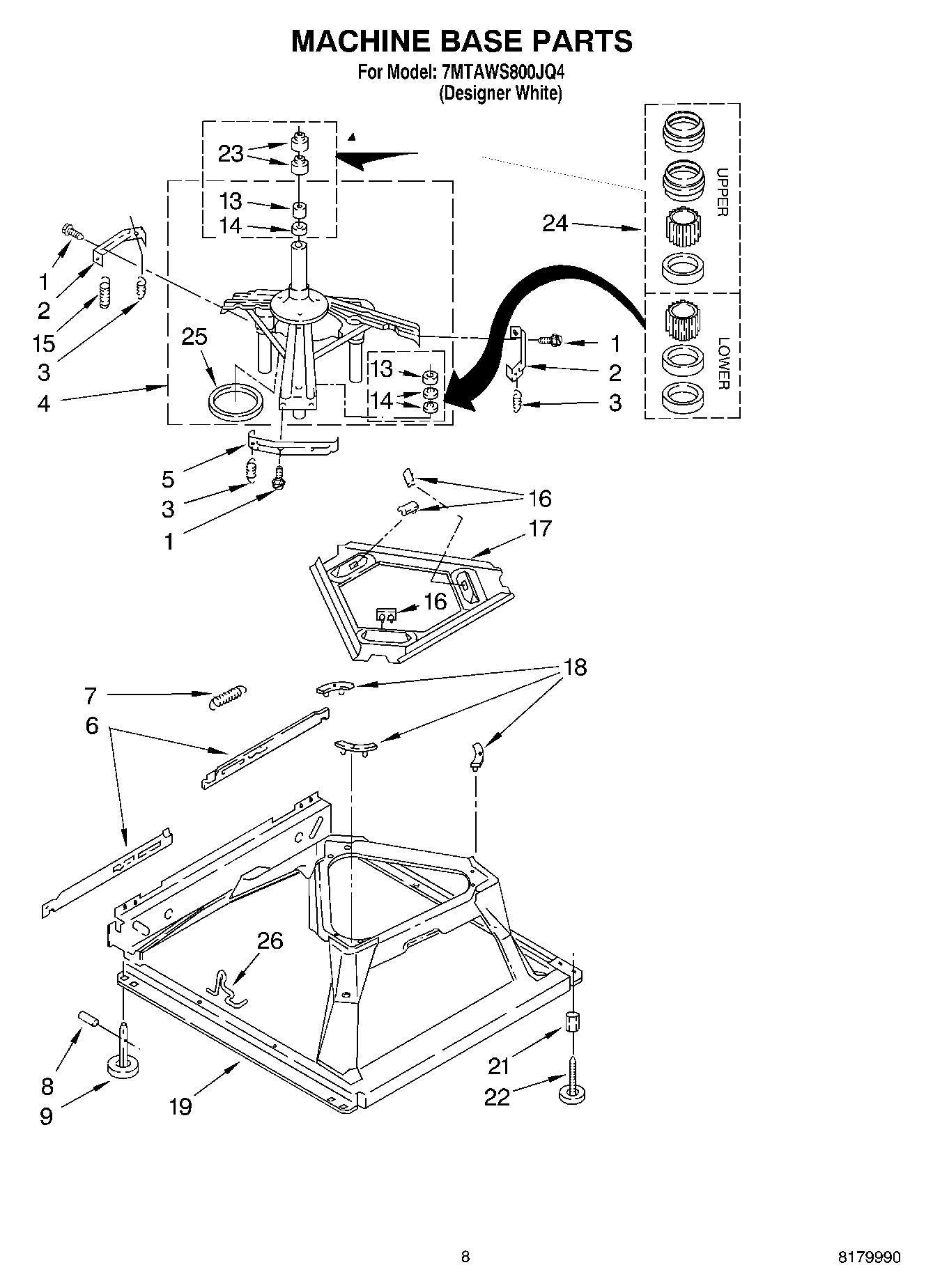

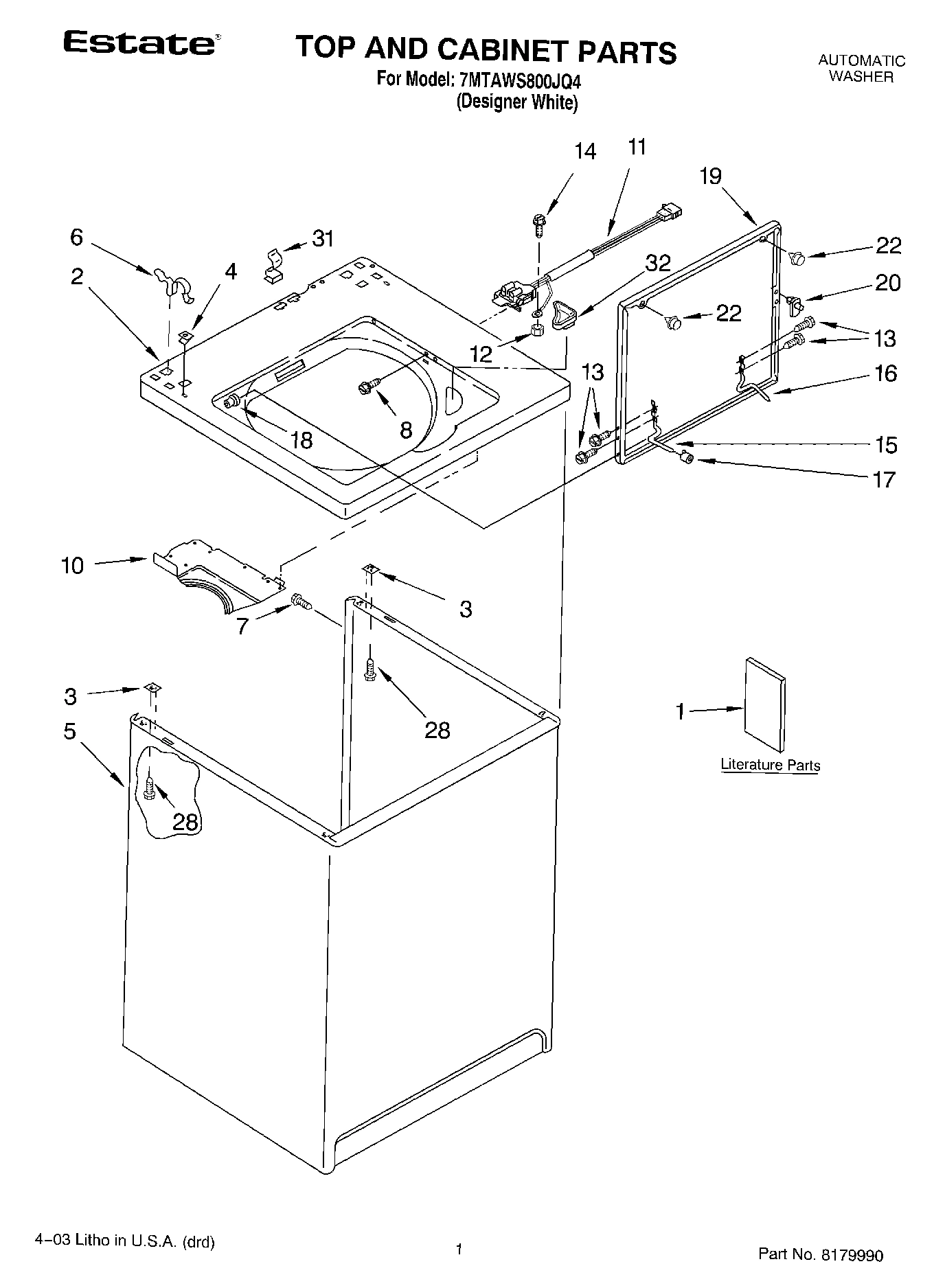

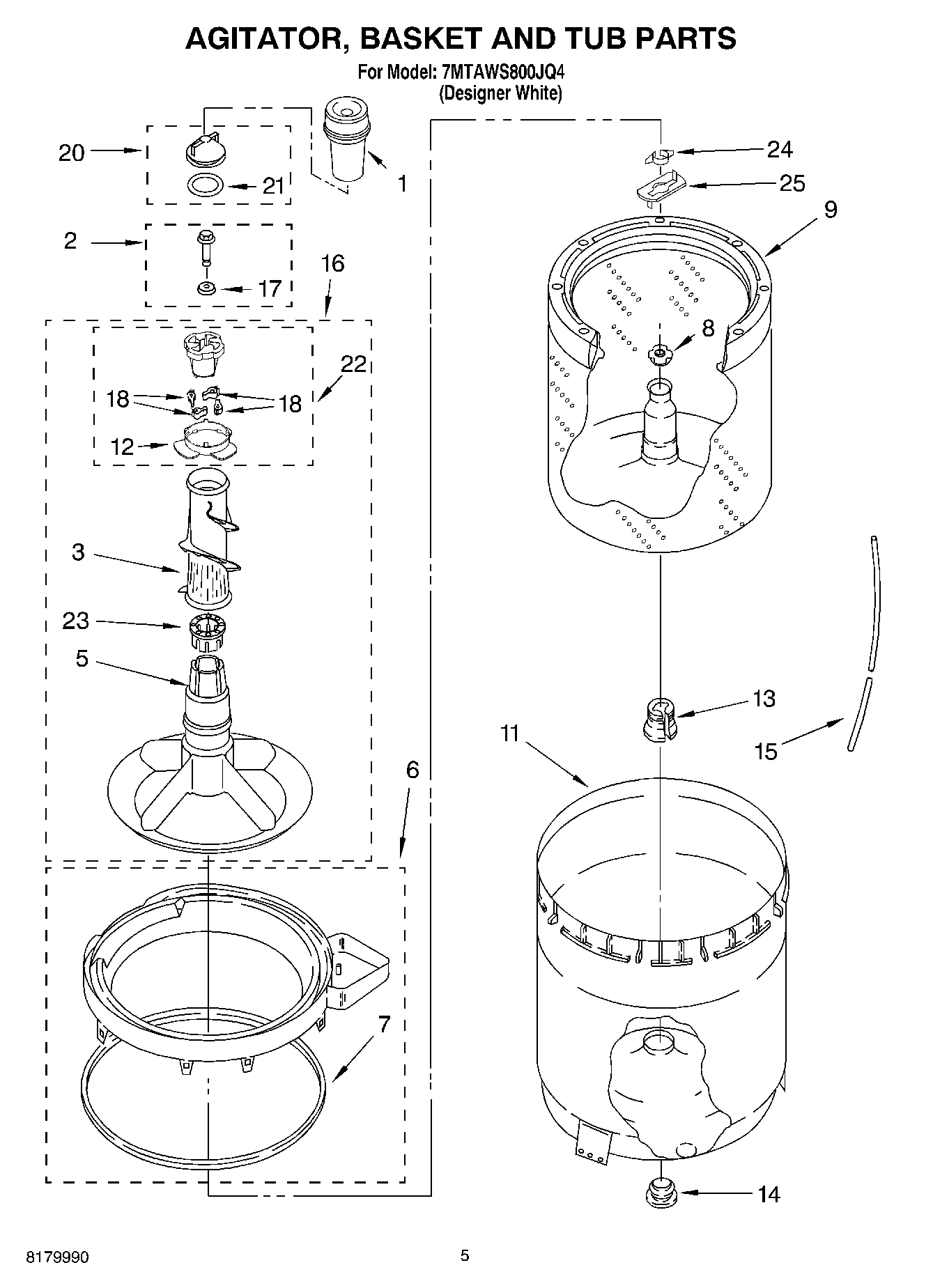

Model Whirlpool 7MTAWS800JQ4 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.75

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $129.24

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $3.22

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT3954763 Contact Us For Availability

1

Literature Parts (Wiring Diagram) WPL LIT3954906 Contact Us For Availability

1

Literature Parts (Energy Guide (Mexico)) WPL LIT8532070 Contact Us For Availability

1

Use & Care Guide WPL LIT8539753 Contact Us For Availability

1

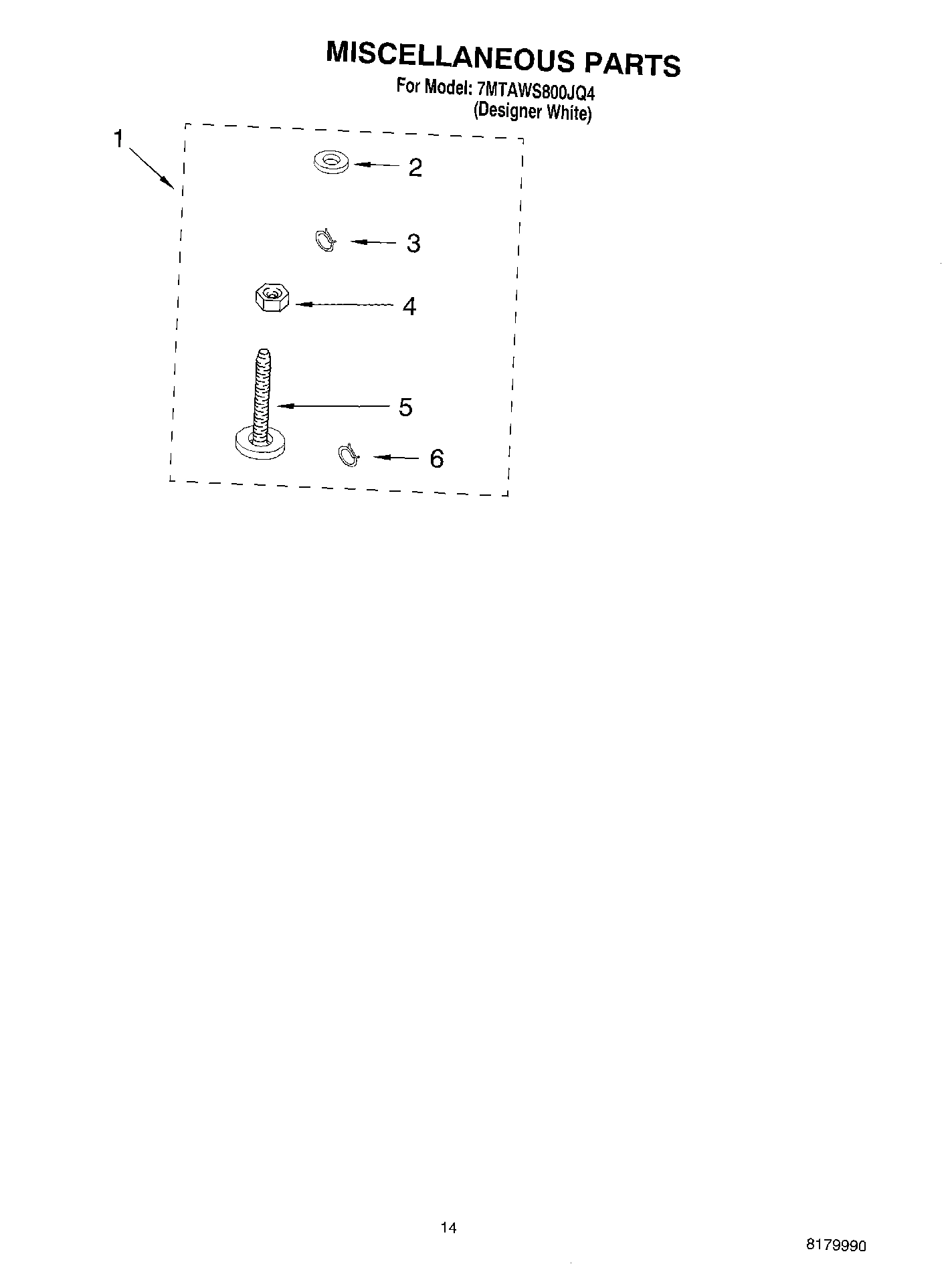

Miscellaneous Parts Bag WPL 3976263 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $123.80

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.77

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.80

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $6.75

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.19

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.20

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $3.22

2

Top WPL 8271378 Contact Us For Availability

3

WP3348752 Whirlpool Agitator Mover Backorder WPL WP3348752 $104.77

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.46

3

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.53

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $4.19

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.53

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.53

3

WPW10080230 Whirlpool Ring In Stock WPL WPW10080230 $6.37

4

285353 Whirlpool Ring Backorder WPL 285353 $4.05

4

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $34.75

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.51

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $42.12

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $414.05

5

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $89.65

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.80

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $54.86

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.55

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.94

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

6

350938 Whirlpool Spray Gun In Stock WPL 350938 $28.93

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

6

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

6

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $100.66

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $70.05

6

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.81

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.53

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.19

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $157.92

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Drain Protector WPL 367031 Contact Us For Availability

6

OIL WPL ARI142900A Contact Us For Availability

6

LUBRICANT WPL ARI142901A Contact Us For Availability

6

SEALER WPL ARI142902A Contact Us For Availability

6

ACCESSORY PARTS WPL ARI142903A Contact Us For Availability

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.70

7

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.07

7

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $12.98

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.59

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $13.77

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $93.92

8

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.53

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $3.22

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.19

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.56

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $11.80

9

W10389329 Whirlpool Microwave Basket Backorder WPL W10389329 $209.04

9

WP3948852 Whirlpool Timer Assembly Backorder WPL WP3948852 $221.94

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.53

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $10.03

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $3.22

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.19

Shield, Lid Switch WPL 3950994 Contact Us For Availability

Spring, Agitate WPL 62676 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $16.76

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $166.13

WP3950298 Whirlpool Lid Switch Backorder WPL WP3950298 $84.86

WP62611 Whirlpool Plate Backorder WPL WP62611 $44.98

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $14.93

W10080180 Whirlpool Nut Backorder WPL W10080180 $14.93

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.51

WP62505 Whirlpool Connector Backorder WPL WP62505 $13.77

WP62691 Whirlpool Grommet In Stock WPL WP62691 $6.79

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.79

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.34

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $3.22

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.07

14

8316060 Whirlpool Shield Backorder WPL 8316060 $49.13

14

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.94

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $17.49

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.50

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $118.71

WP54584 Whirlpool Hinge Backorder WPL WP54584 $12.90

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $174.18

WP91770 Whirlpool Hinge Backorder WPL WP91770 $11.26

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $5.65

Washer, Cam Thrust WPL 62618 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI142899A Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $5.76

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $127.92

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.79

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.19

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $2.16

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $22.96

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $4.19

Clamp, Hose WPL 3976395 No Longer Available

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $162.24

Lid WPL 8532145 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $4.20

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.14

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

BLOCK TAB, TERMINAL WPL 3949116 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $33.22

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $3.22

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $4.20

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $4.53

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $11.51

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.77

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.91

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $30.73

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.85

23

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.68

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.74

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $88.08

24

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $13.19

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.19

25

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $6.46

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $36.05

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.53

27

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $13.54

27

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.46

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $3.46

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.77

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $6.11

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.92

35

Switch, Water Temperature WPL 661614 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $3.22
