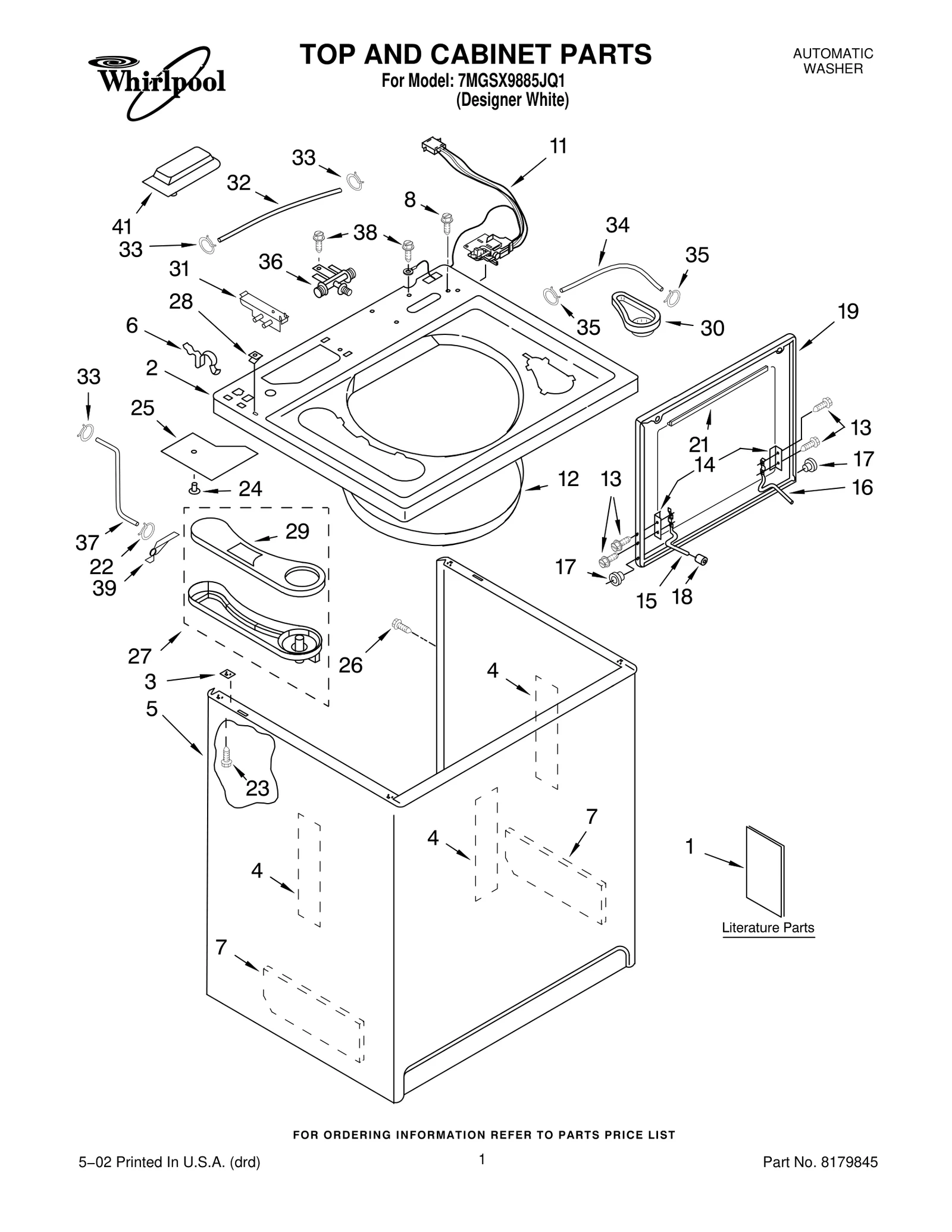

Model Whirlpool 7MGSX9885JQ1 Automatic Washer – Common Parts &amp; Diagrams

1

W10846509 Whirlpool Screw In Stock WPL W10846509 $4.82

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $5.30

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 3976263 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $133.74

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

Bracket, Spring Outer (2) WPL 8282552 Contact Us For Availability

2

Switch, Pressure WPL 8054764 Contact Us For Availability

2

Clip, Harness WPL 388498 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $15.68

3

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $5.30

4

8559320 Whirlpool Clip Backorder WPL 8559320 $31.46

4

Cabinet−Sound Damper WPL 3976348 Contact Us For Availability

4

Clip, Drape WPL 8282566 Contact Us For Availability

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

4

Bracket, Control WPL 8274302 Contact Us For Availability

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $5.19

5

Bracket, Spring Outer (L.F.) WPL 8282550 Contact Us For Availability

5

Control, Electronic WPL 8526076 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

6

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

6

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

6

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

6

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $62.44

6

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $148.47

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $200.68

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

White (Uncut) OIL WPL 799344 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

6

Lubricant (Use Only in Brake Shoe Assembly On WPL 285208 Contact Us For Availability

7

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $139.95

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $6.49

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $4.82

7

Cap, End (L.H.) WPL 8271365 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $91.39

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Medallion WPL 8274343 Contact Us For Availability

8

Timer, Block Disconnect WPL 352090 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $14.95

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $5.30

9

Seal, Tub Ring WPL 8054355 Contact Us For Availability

9

Panel, Console WPL 8532094 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

Valve, 2−Way WPL 3358559 Contact Us For Availability

Clip, Sound Board (2) WPL 3976276 Contact Us For Availability

Cap, End (R.H.) WPL 8271359 Contact Us For Availability

Spring, Agitate WPL 62676 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

WP8054980 Whirlpool Lid Switch Assembly In Stock WPL WP8054980 $137.92

Plug, Terminal WPL 353424 Contact Us For Availability

Spring, Brake WPL 387806 Contact Us For Availability

3400826 Whirlpool Screw Backorder WPL 3400826 $5.51

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP8271956 Whirlpool Shield Backorder WPL WP8271956 $104.65

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $20.50

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

Tub WPL 8055061 Contact Us For Availability

Screw WPL 3179795 Contact Us For Availability

Block, Disconnect (Use Term. 94613 Or 94614.) WPL 3348075 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $15.42

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $171.26

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

Harness, Wiring (For Detail, See Pages 11 & 1 WPL 3955129 Contact Us For Availability

Block, Disconnect WPL 3347243 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $35.11

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $176.44

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $4.85

Hinge, Lid WPL 8055257 Contact Us For Availability

Transducer, Pressure WPL 8299559 Contact Us For Availability

Protector WPL 63523 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $17.52

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Connector WPL 717252 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $69.08

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

Plug, Terminal WPL 387566 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $9.92

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Assembly, Bleach Outlet Hose WPL 8526794 Contact Us For Availability

Clip, Harness WPL 3352944 Contact Us For Availability

WP3352287 Whirlpool Drive Motor Backorder WPL WP3352287 $258.27

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $5.30

Base Assembly (Includes Illus. 3, 6, 7, 8, 9, WPL 3946512 Contact Us For Availability

Block, Disconnect WPL 3390423 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

Switch, Kickout WPL 8283252 Contact Us For Availability

Sound Absorber WPL 8283230 Contact Us For Availability

Receptacle WPL 3347730 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $40.48

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $6.88

Seal, Lid WPL 8054939 Contact Us For Availability

Plug, Terminal (Use Term. 94613 Or 94614.) WPL 388818 Contact Us For Availability

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

22

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

22

Timer, Block Disconnect (Black) (Amp) WPL 3369366 Contact Us For Availability

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $5.30

Connector, Etc WPL 3349494 Contact Us For Availability

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

Valve, Inlet WPL 8271904 Contact Us For Availability

Connector, Relay WPL 60687 Contact Us For Availability

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

Hose, Detergent WPL 8271982 Contact Us For Availability

25

E.T.C. Control WPL 3407125 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $42.58

26

WP2172937 Whirlpool Connector Backorder WPL WP2172937 $12.98

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $3.50

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $304.47

WP8055237 Whirlpool Dispenser Backorder WPL WP8055237 $58.65

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Connector (T.P.A) (Use Term.3948619 OR 394862 WPL 3360056 Contact Us For Availability

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

Hose, Bleach WPL 8271984 Contact Us For Availability

Clip, Snap−In WPL 3350282 Contact Us For Availability

Block, Connector WPL 3354925 Contact Us For Availability

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

Cover, Dispenser WPL 8272009 Contact Us For Availability

Block, Connector WPL 3354926 Contact Us For Availability

30

Connector (T.P.A.) (Use Term.3948619 OR 39486 WPL 3948615 Contact Us For Availability

31

Hose, Fabric Softener WPL 8271983 Contact Us For Availability

32

Hose, Fabric Softener WPL 8055266 Contact Us For Availability

34

Check Valve, Duck Bill WPL 8055306 Contact Us For Availability

37

WP8283537 Whirlpool Hose Assembly Backorder WPL WP8283537 $17.78

46

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

48

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.09

49

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

50

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

54

WP356907 Whirlpool Rivet Backorder WPL WP356907 $4.82

57

Hose, Tub to Pump WPL 8055063 Contact Us For Availability

61

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $62.59

62

Clamp, Hose WPL 3976395 No Longer Available
