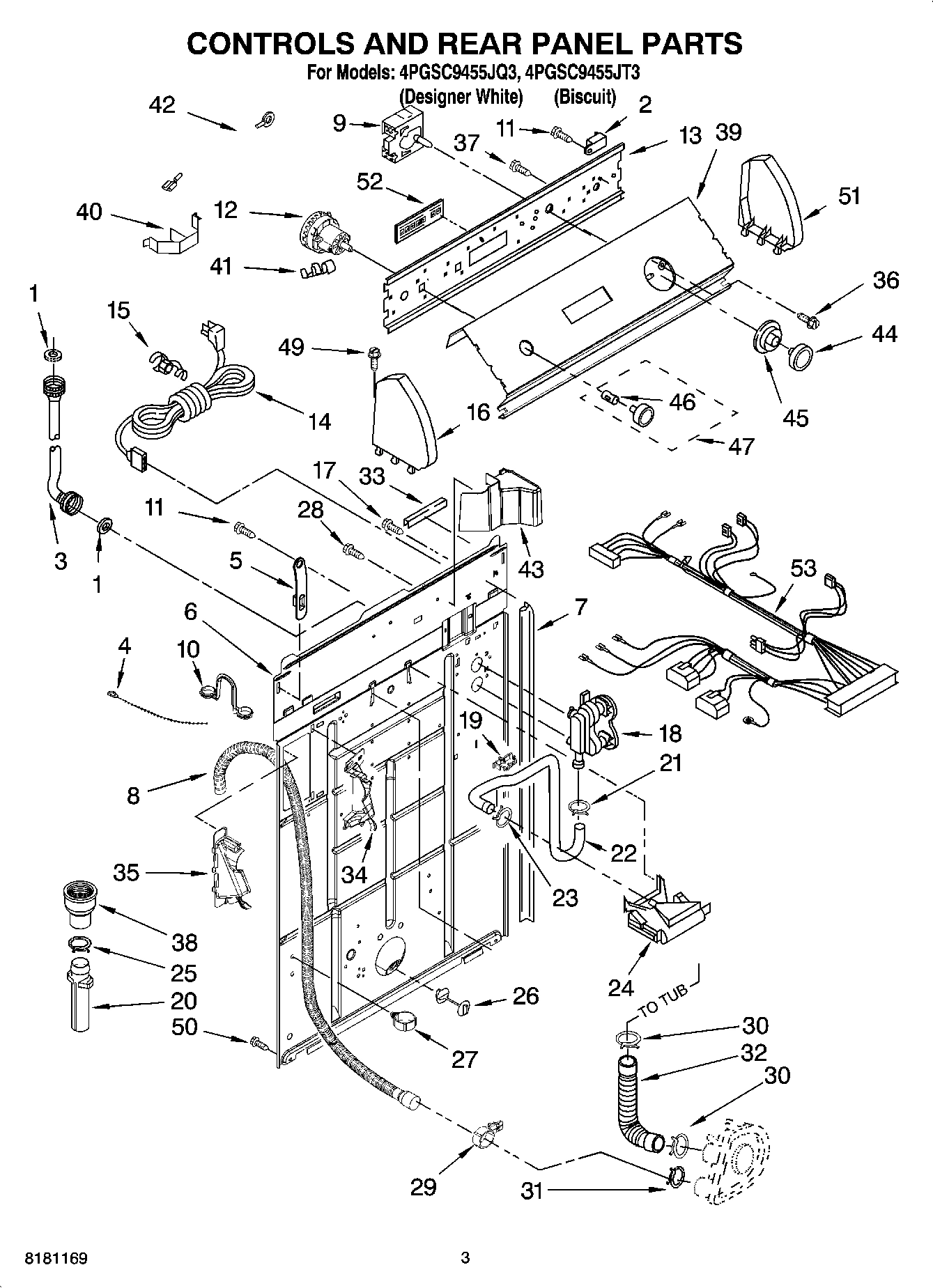

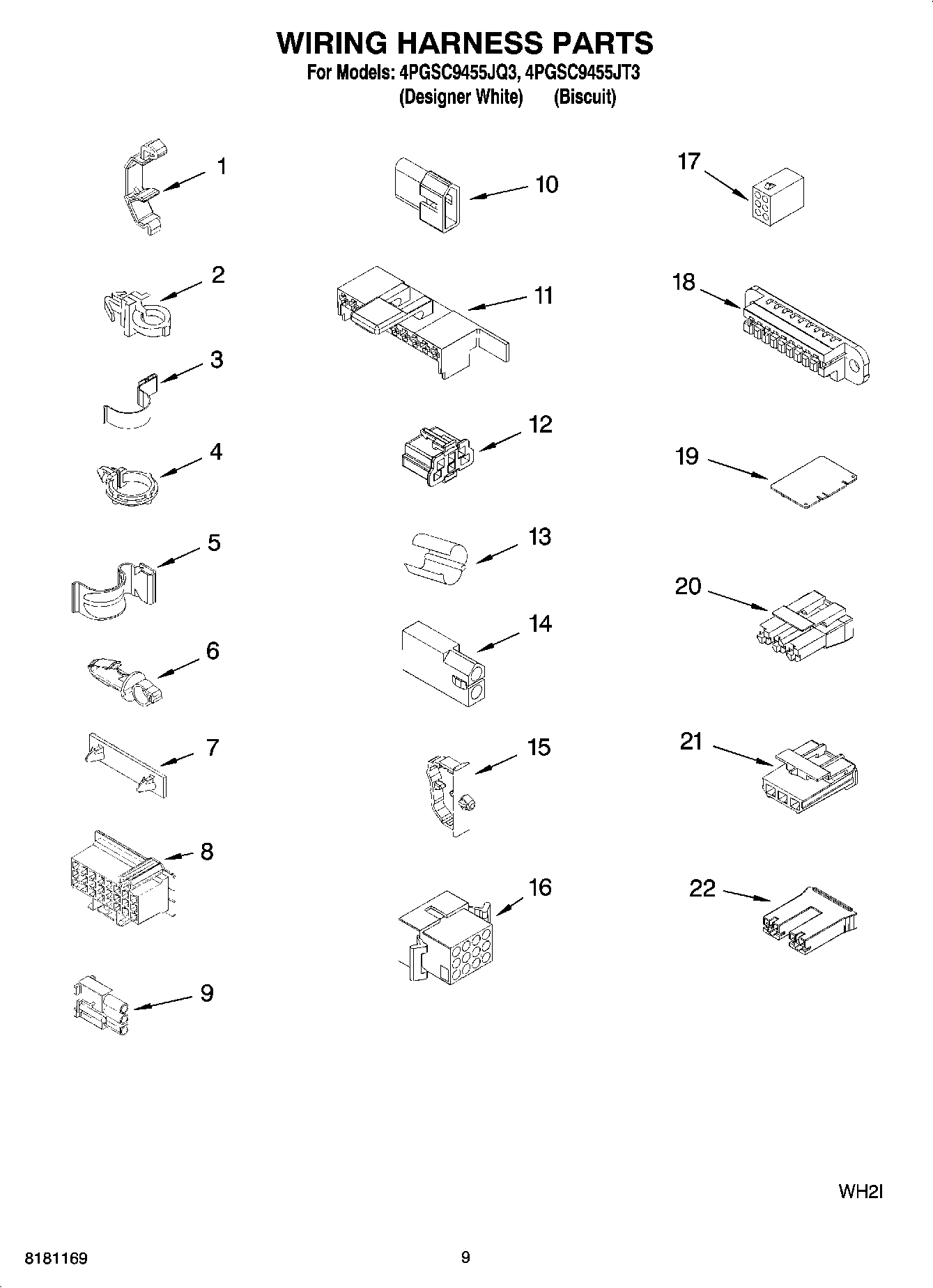

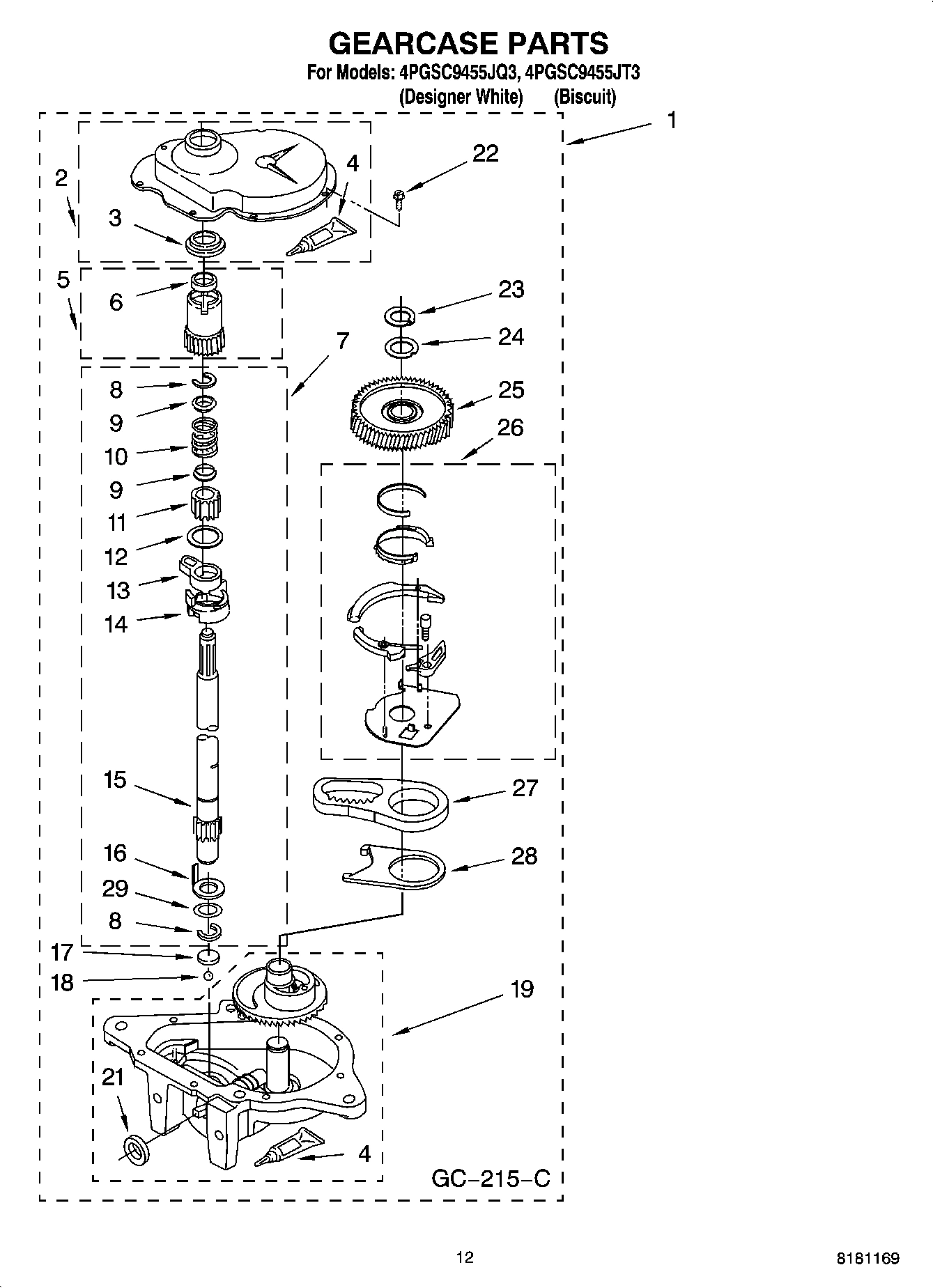

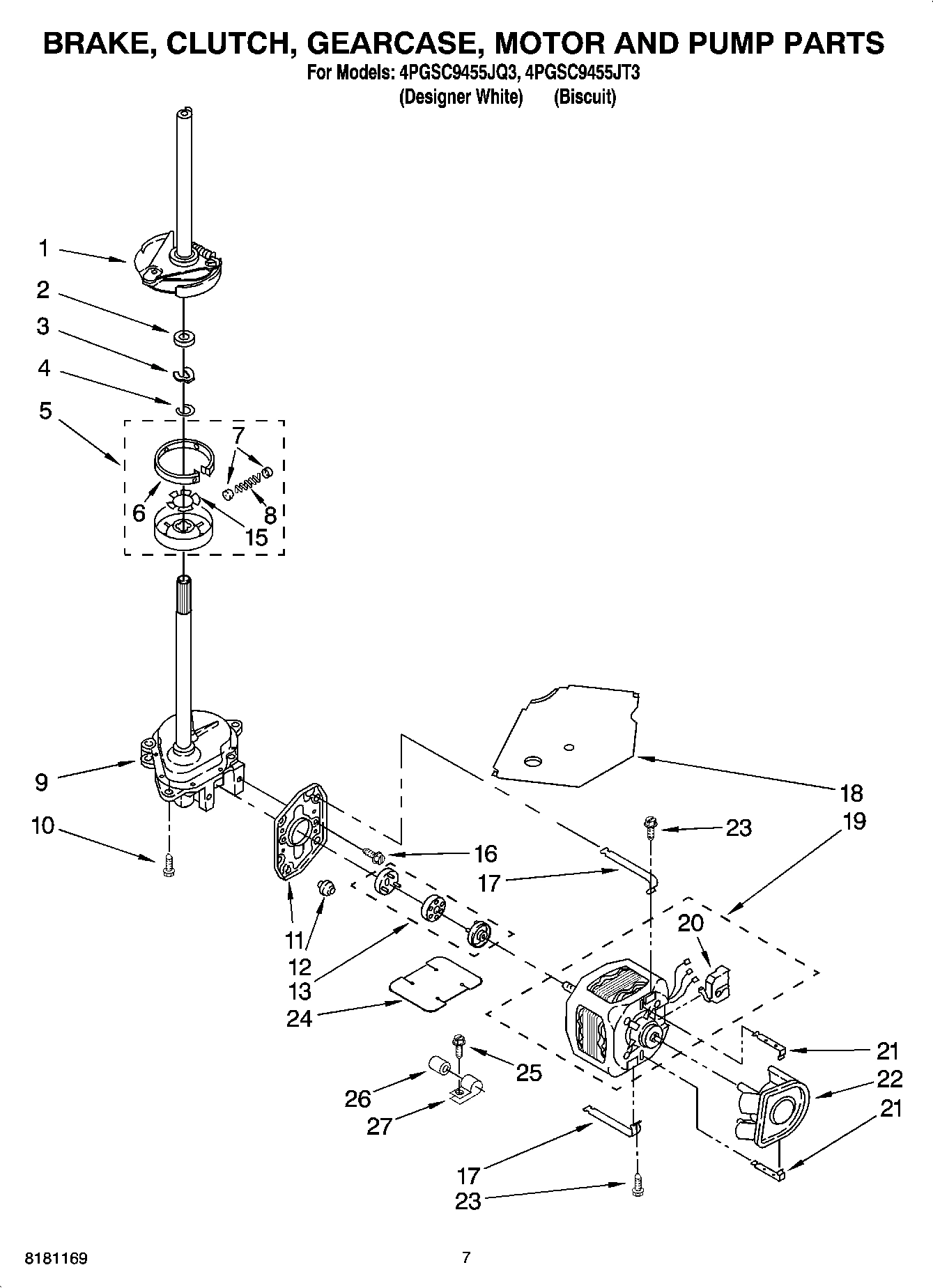

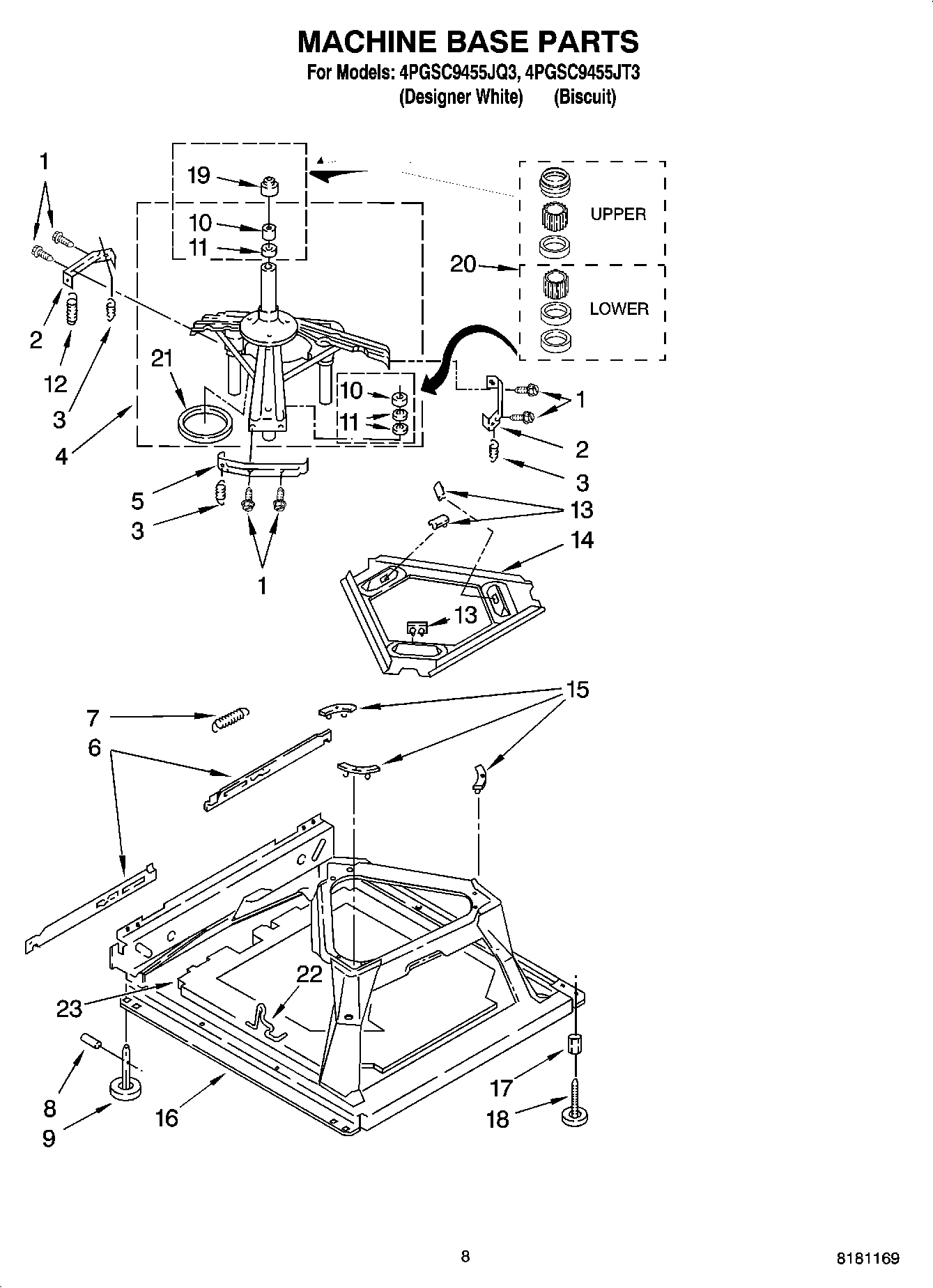

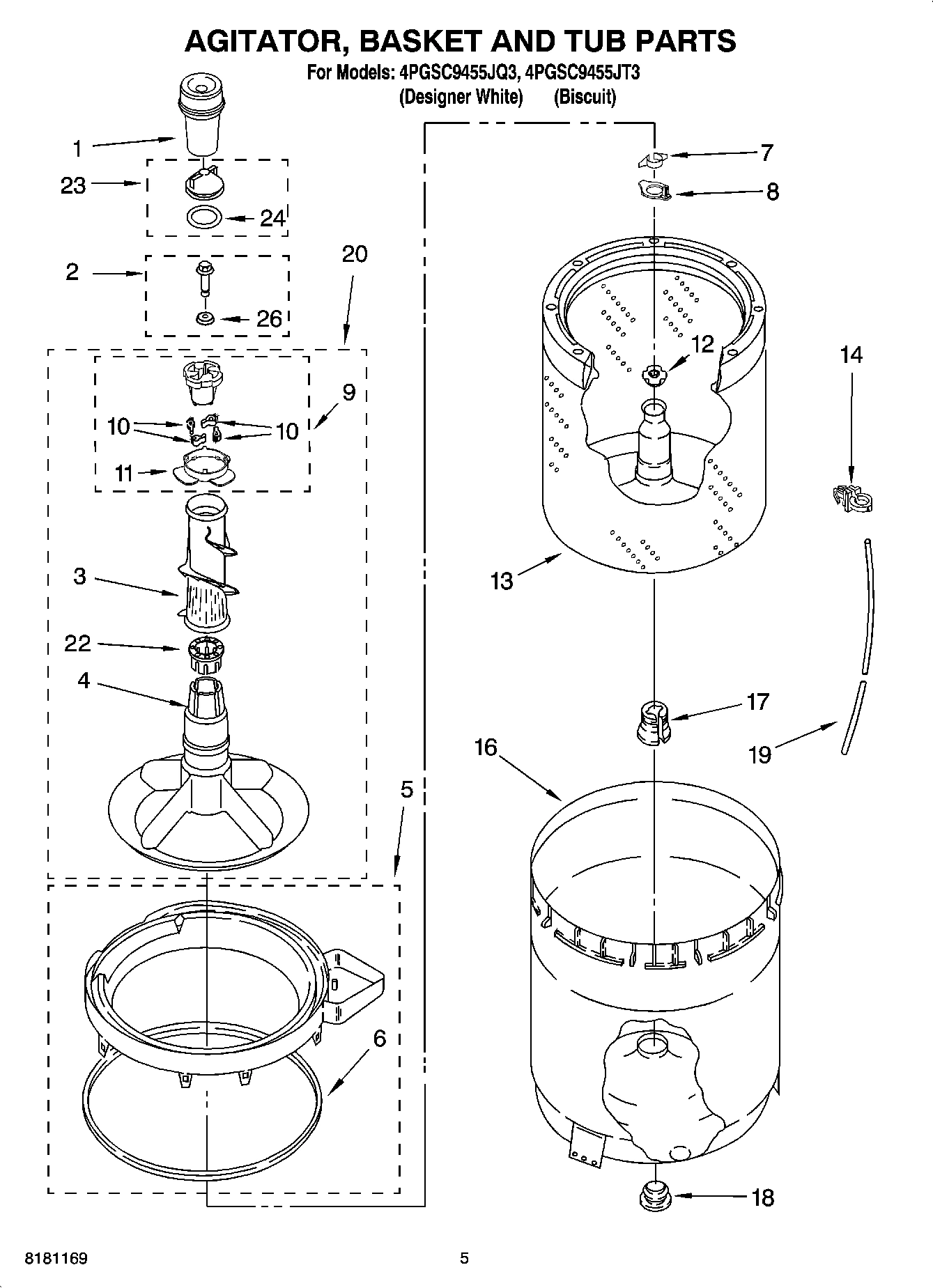

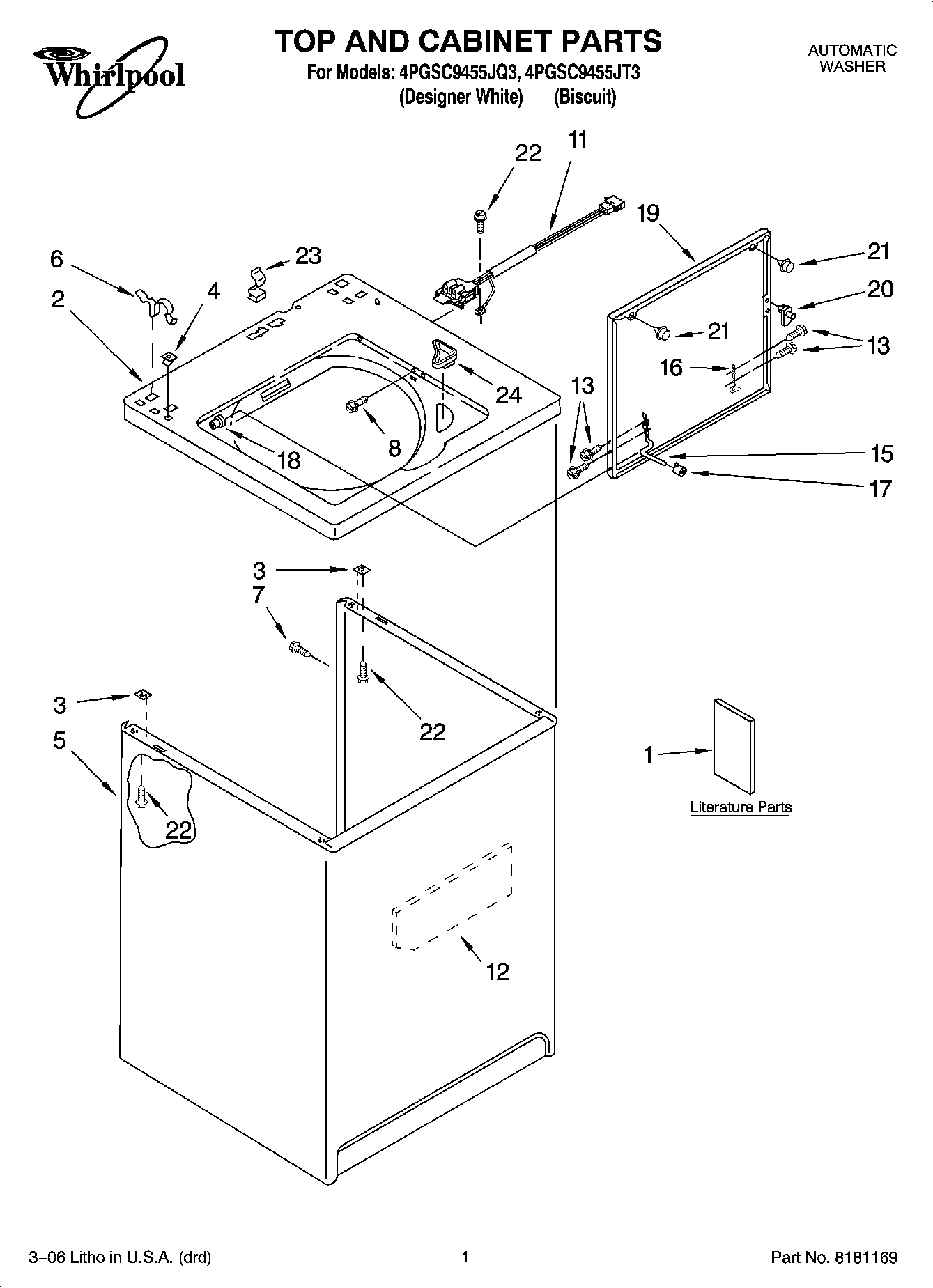

Model Whirlpool 4PGSC9455JT3 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

PAINT WPL 799344 Contact Us For Availability

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.99

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

Clip, Harness WPL 388498 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $160.05

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

8559320 Whirlpool Clip Backorder WPL 8559320 $31.46

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $95.99

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $54.71

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $12.99

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $4.82

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

8

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $6.91

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

9

Timer, Control (60 Hz.) (Motor Not A Service WPL 3954733 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $14.02

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $4.82

11

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

11

WP62611 Whirlpool Plate In Stock WPL WP62611 $76.63

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

Sound Dampener, Cabinet WPL 3976348 Contact Us For Availability

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

13

Protector WPL 63523 Contact Us For Availability

14

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

14

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

Clip, Harness WPL 3352944 Contact Us For Availability

16

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $191.99

16

WP91770 Whirlpool Hinge In Stock WPL WP91770 $17.43

16

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

Connector, Etc WPL 3349494 Contact Us For Availability

19

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.99

19

Motor, Main Drive WPL 3353846 Contact Us For Availability

19

E.T.C. Control WPL 3407125 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $216.99

WP2172937 Whirlpool Connector In Stock WPL WP2172937 $12.98

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $8.99

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

Connector (T.P.A.) (3-Circuit) (Pressure Swit WPL 3360056 Contact Us For Availability

3354925 Whirlpool Connector Backorder WPL 3354925 $14.02

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $9.86

Block, Connector (Hot Valve) WPL 3354926 Contact Us For Availability

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

23

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

24

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.99

24

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

25

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.84

27

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

28

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

29

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $14.02

35

WPW10096921 Whirlpool Hose In Stock WPL WPW10096921 $45.99

40

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

41

W10113937 Whirlpool Clamp Backorder WPL W10113937 $7.16

42

Wire, Ground WPL 3398893 Contact Us For Availability

43

Shield, Suds WPL 8539874 Contact Us For Availability

44

W10807860 Whirlpool White Control Knob In Stock WPL W10807860 $45.60

44

WP3957822 Whirlpool Knob Backorder WPL WP3957822 $36.87

45

WP3957849 Whirlpool Timer Dial Backorder WPL WP3957849 $32.71

45

D WPL 3957850 Contact Us For Availability

46

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $9.86

47

3957797 Whirlpool Knob In Stock WPL 3957797 $35.99

47

WP3957799 Whirlpool Knob Backorder WPL WP3957799 $36.18

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

51

WPL 8271359 WPL 8271359 Contact Us For Availability

51

WPL 8271362 WPL 8271362 Contact Us For Availability

52

WPL 8532104 WPL 8532104 Contact Us For Availability

52

WPL 8532105 WPL 8532105 Contact Us For Availability

53

WPL 3954785 WPL 3954785 Contact Us For Availability
