Model Whirlpool 3RLSQ8000JQ6 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.94

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350938 Whirlpool Spray Gun In Stock WPL 350938 $28.93

40922 Whirlpool Drain Hose Extension Kit In Stock WPL 40922 $29.84

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $70.05

Drain Hose WPL 280130 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Drain Protector WPL 367031 Contact Us For Availability

OIL WPL ARI140262A Contact Us For Availability

LUBRICANT WPL ARI140263A Contact Us For Availability

SEALER WPL ARI140264A Contact Us For Availability

ACCESSORY PARTS WPL ARI140265A Contact Us For Availability

Adapter Kit WPL ARI140266A Contact Us For Availability

Ext WPL ARI140267A Contact Us For Availability

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.75

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $3.22

1

WP3349365 Whirlpool Hose In Stock WPL WP3349365 $8.49

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Wiring Diagram WPL 3954738 Contact Us For Availability

1

Installation & User Guide WPL 8315975 Contact Us For Availability

1

Use & Care Guide WPL 8316482 Contact Us For Availability

1

Installation Instructions WPL 8316566 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $123.80

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.80

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.19

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.20

2

Clip, Harness WPL 388498 Contact Us For Availability

2

TOP WPL 8318064 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $50.35

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.46

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $108.72

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $4.19

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.53

4

8559320 Whirlpool Clip Backorder WPL 8559320 $31.16

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.51

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $95.57

4

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $4.19

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $414.05

5

WP8568314 Whirlpool Strap In Stock WPL WP8568314 $4.19

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $6.11

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.53

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $12.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.19

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $13.19

7

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.92

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $5.76

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $13.77

8

W10876590 Whirlpool Connector Backorder WPL W10876590 $7.78

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.56

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $11.80

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.07

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.19

353424 Whirlpool Connector Backorder WPL 353424 $16.76

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $13.04

Sound Dampener, Cabinet WPL 3976348 Contact Us For Availability

Spring, Agitate WPL 62676 Contact Us For Availability

11

WP62505 Whirlpool Connector Backorder WPL WP62505 $13.77

11

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $32.68

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.46

62619 Whirlpool Washer Backorder WPL 62619 $14.93

W10080180 Whirlpool Nut Backorder WPL W10080180 $14.93

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.53

WP62691 Whirlpool Grommet In Stock WPL WP62691 $6.79

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $17.49

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.79

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.07

13

Protector WPL 63523 Contact Us For Availability

14

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $127.92

14

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $21.43

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $118.71

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $6.46

Clip, Harness WPL 3352944 Contact Us For Availability

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $166.13

WP54583 Whirlpool Hinge Backorder WPL WP54583 $11.99

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $5.76

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $3.22

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.34

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.94

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $4.19

WP3360397 Whirlpool Valve Backorder WPL WP3360397 $242.71

Connector, Etc WPL 3349494 Contact Us For Availability

3363395 Whirlpool Gearcase Backorder WPL 3363395 $305.17

Motor, Main Drive WPL 3950297 Contact Us For Availability

E.T.C. Control WPL 3407125 Contact Us For Availability

Lid WPL 8541743 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $88.08

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $174.18

WP2172937 Whirlpool Connector Backorder WPL WP2172937 $11.08

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.85

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $33.22

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $13.54

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $3.46

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.19

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $4.20

3354925 Whirlpool Connector Backorder WPL 3354925 $16.76

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.77

WP3357319 Whirlpool Hose In Stock WPL WP3357319 $10.74

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $30.73

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $4.20

Block, Connector (Hot Valve) WPL 3354926 Contact Us For Availability

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.79

25

WPW10233584 Whirlpool Spin Gear Backorder WPL WPW10233584 $161.93

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $36.05

26

WP482156 Whirlpool Refrigerator Capacitor Backorder WPL WP482156 $50.59

26

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $10.18

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.53

27

Clamp, Capacitor WPL 3949496 Contact Us For Availability

28

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $16.76

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.77

29

Sensor, Inline WPL 3352282 Contact Us For Availability

29

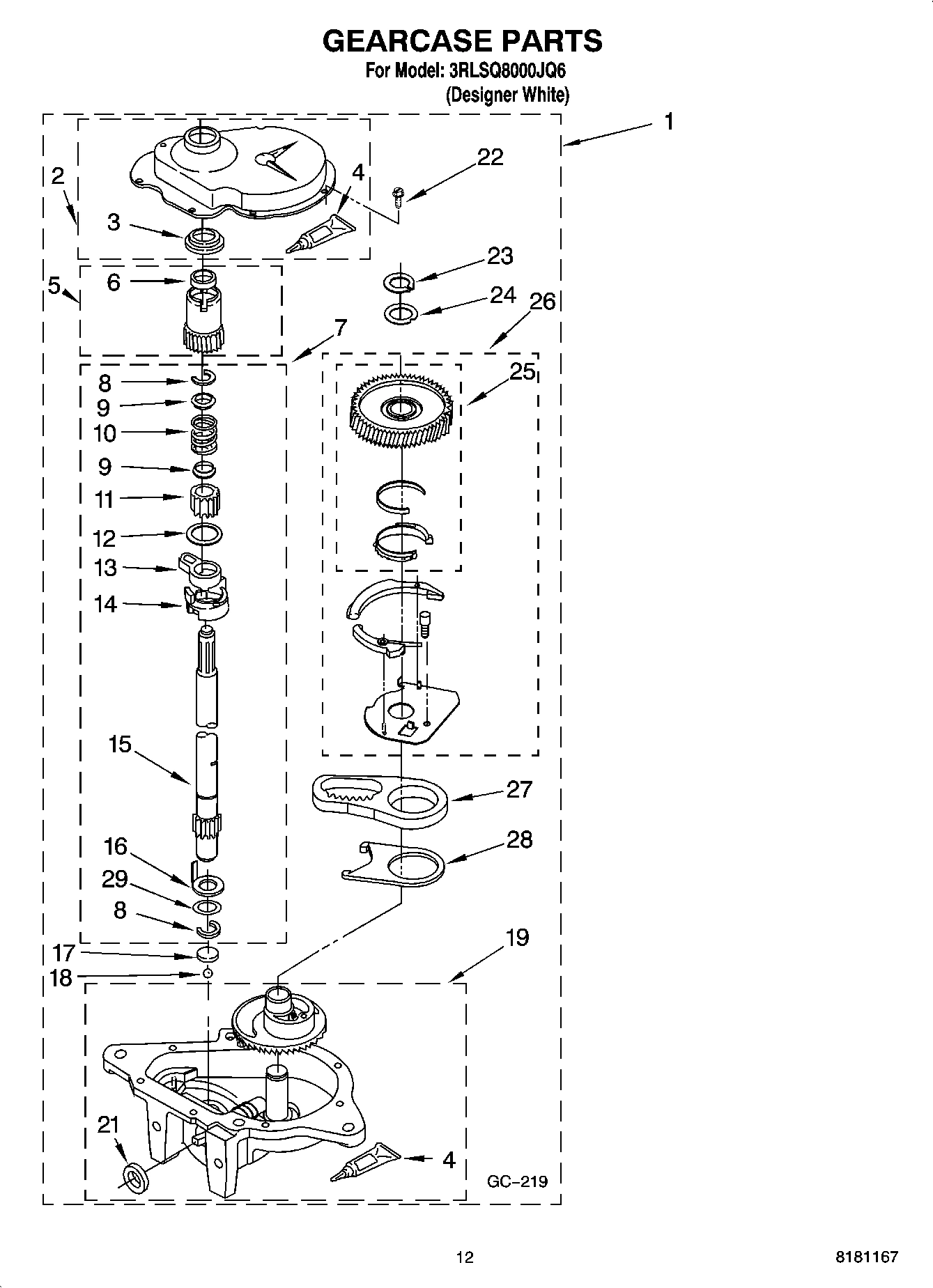

GC-219 WPL ARI140261A Contact Us For Availability

45

WP3957849 Whirlpool Timer Dial Backorder WPL WP3957849 $31.11

46

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $4.20

47

WP3957799 Whirlpool Knob Backorder WPL WP3957799 $37.03

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $3.22

54

WPW10096921 Whirlpool Hose In Stock WPL WPW10096921 $45.59
