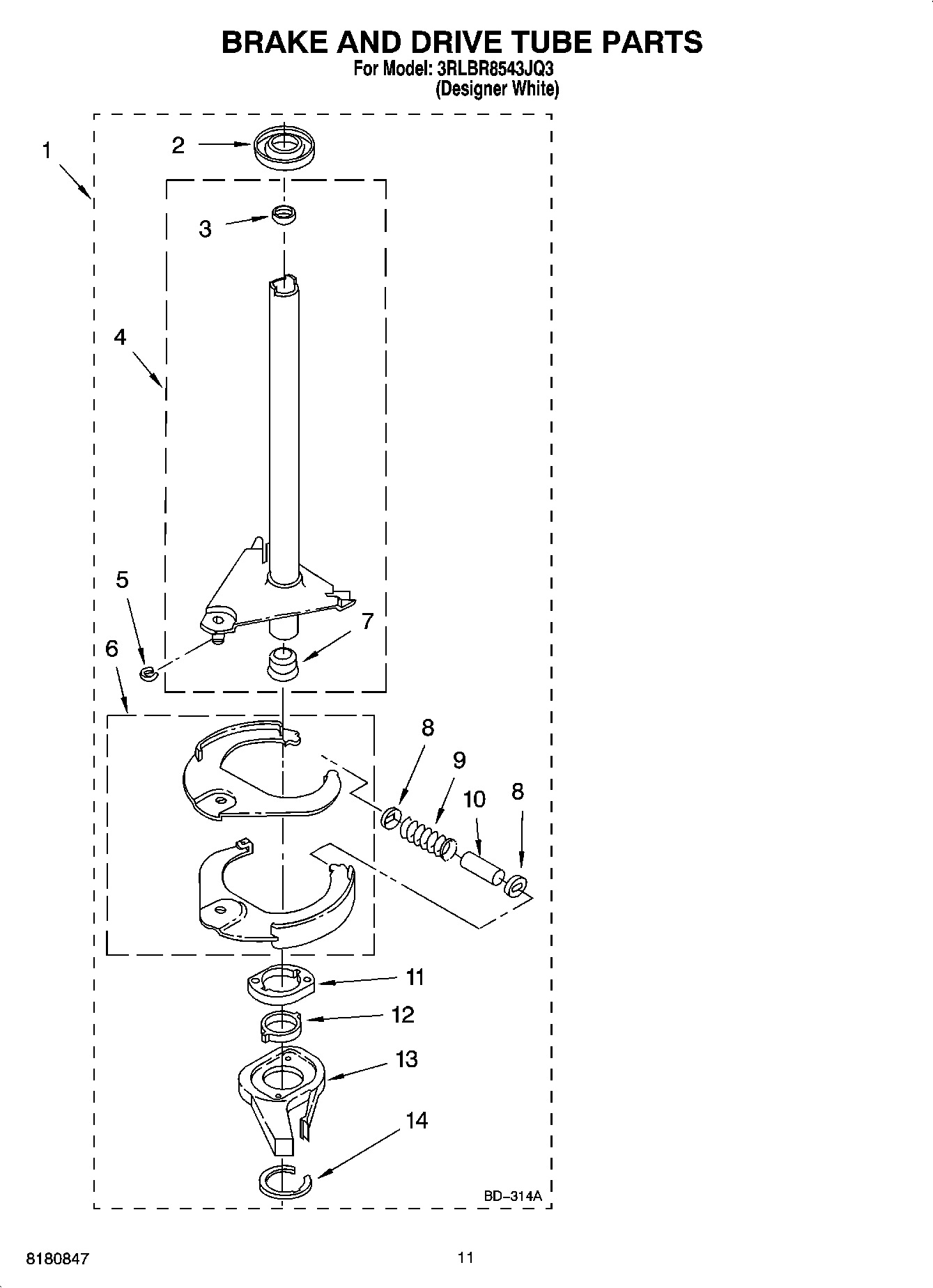

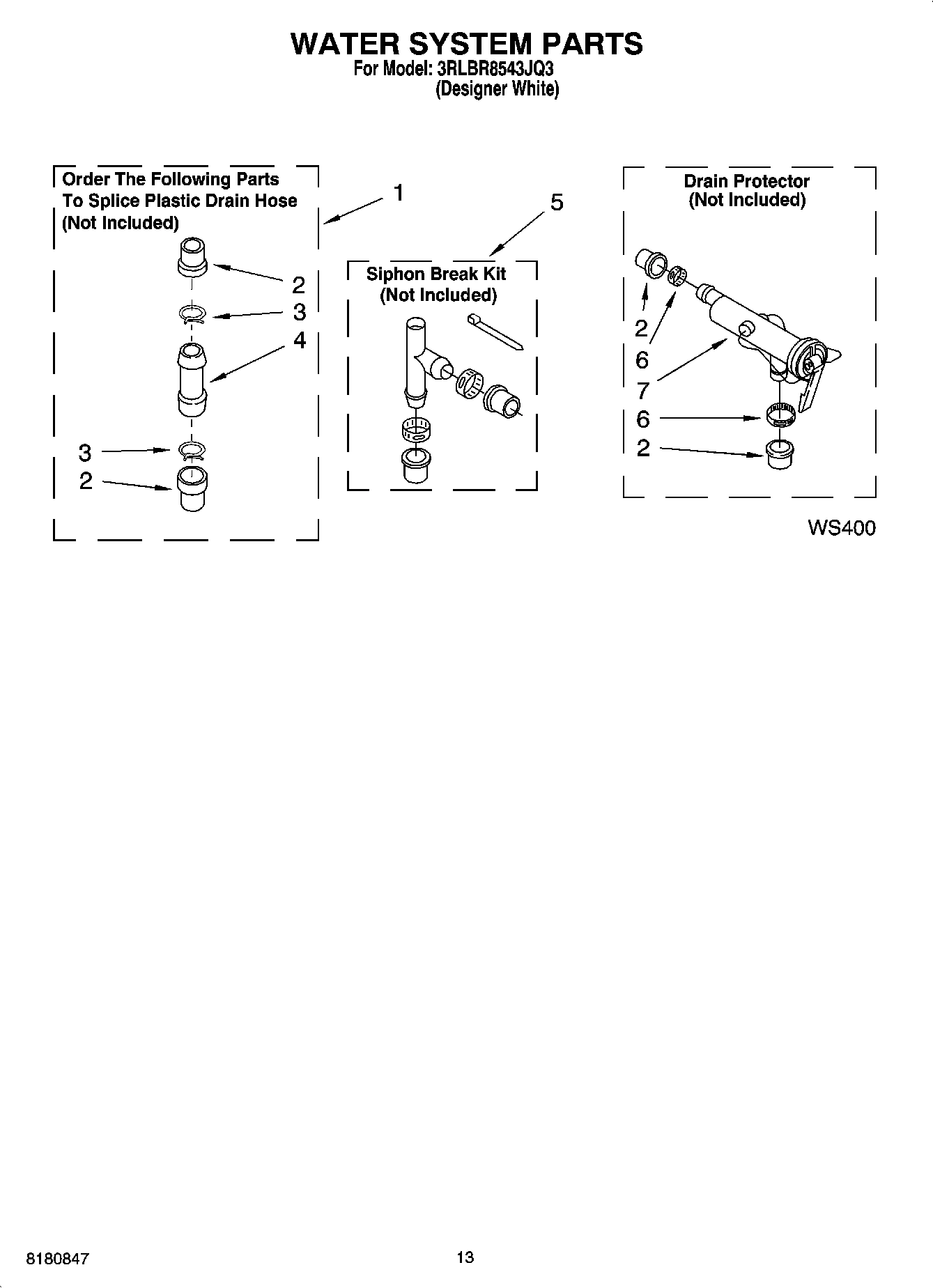

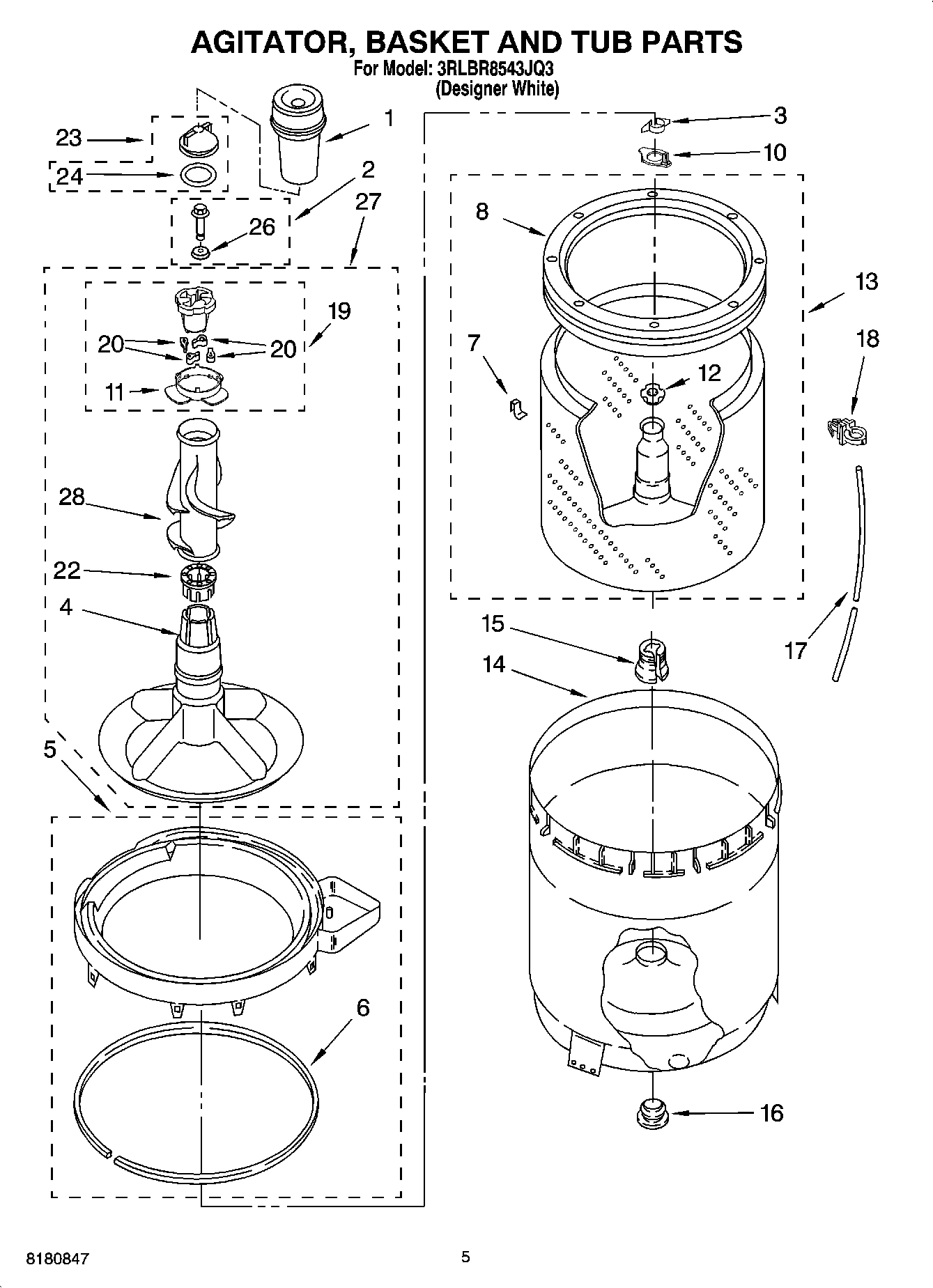

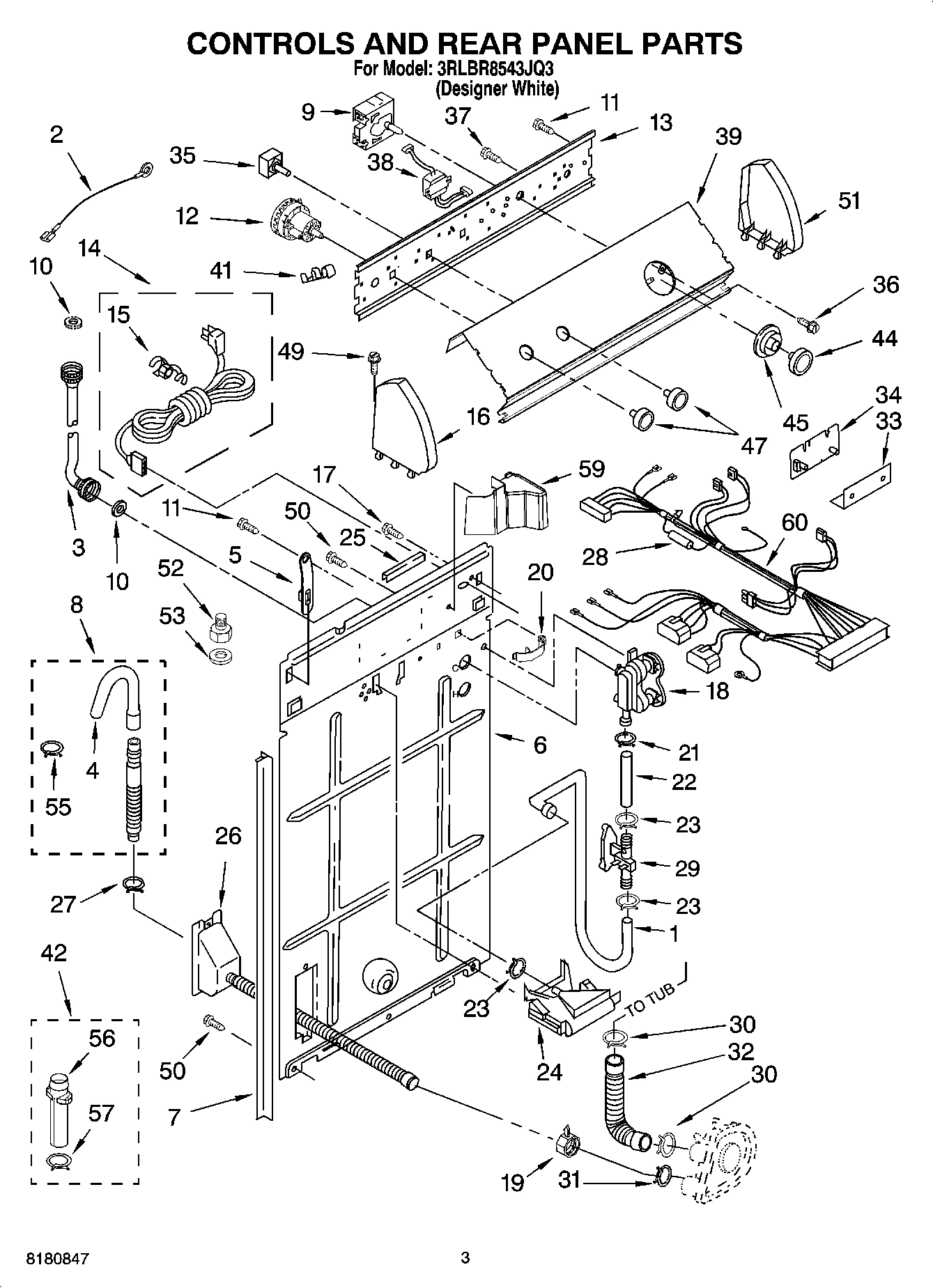

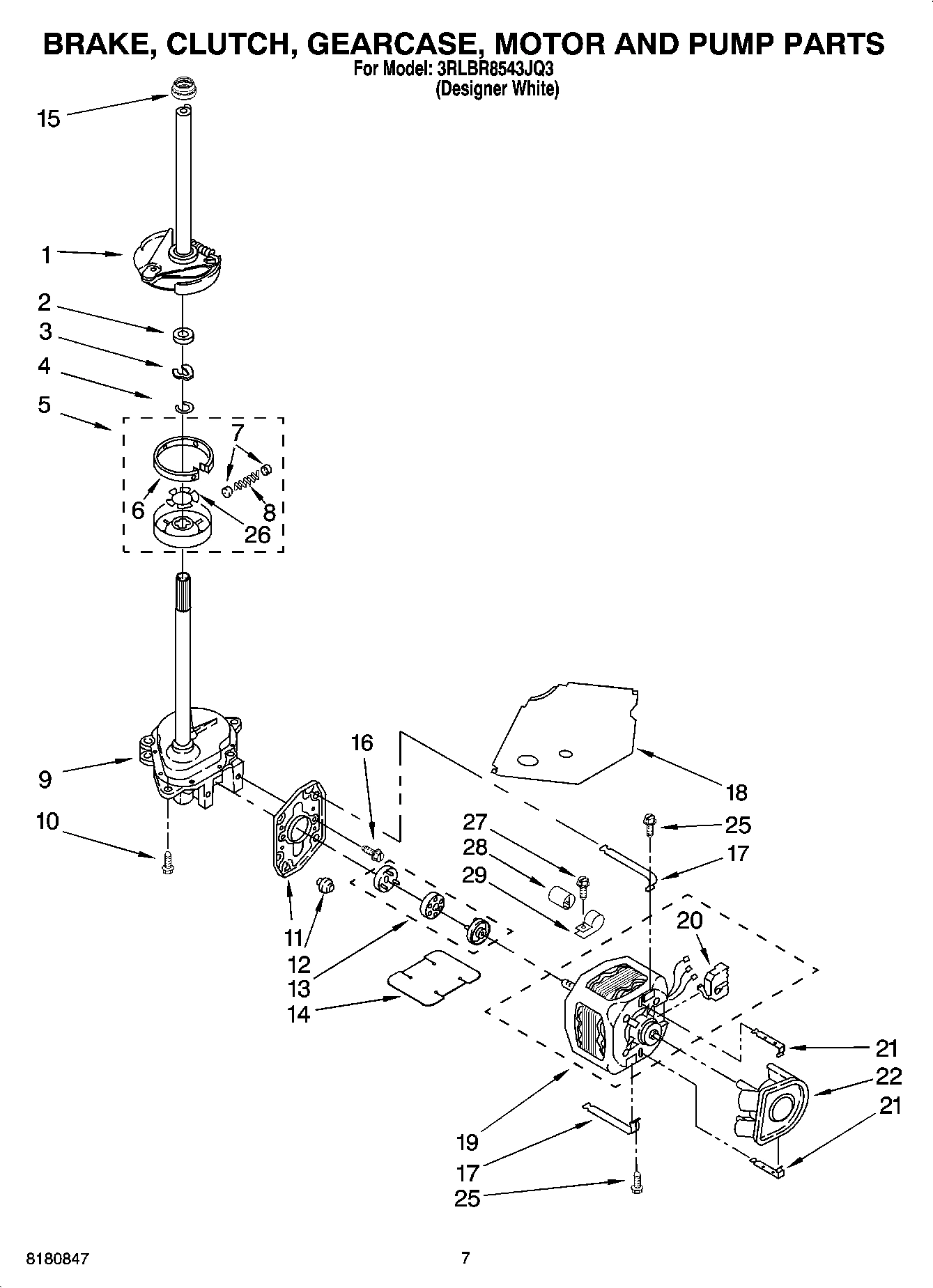

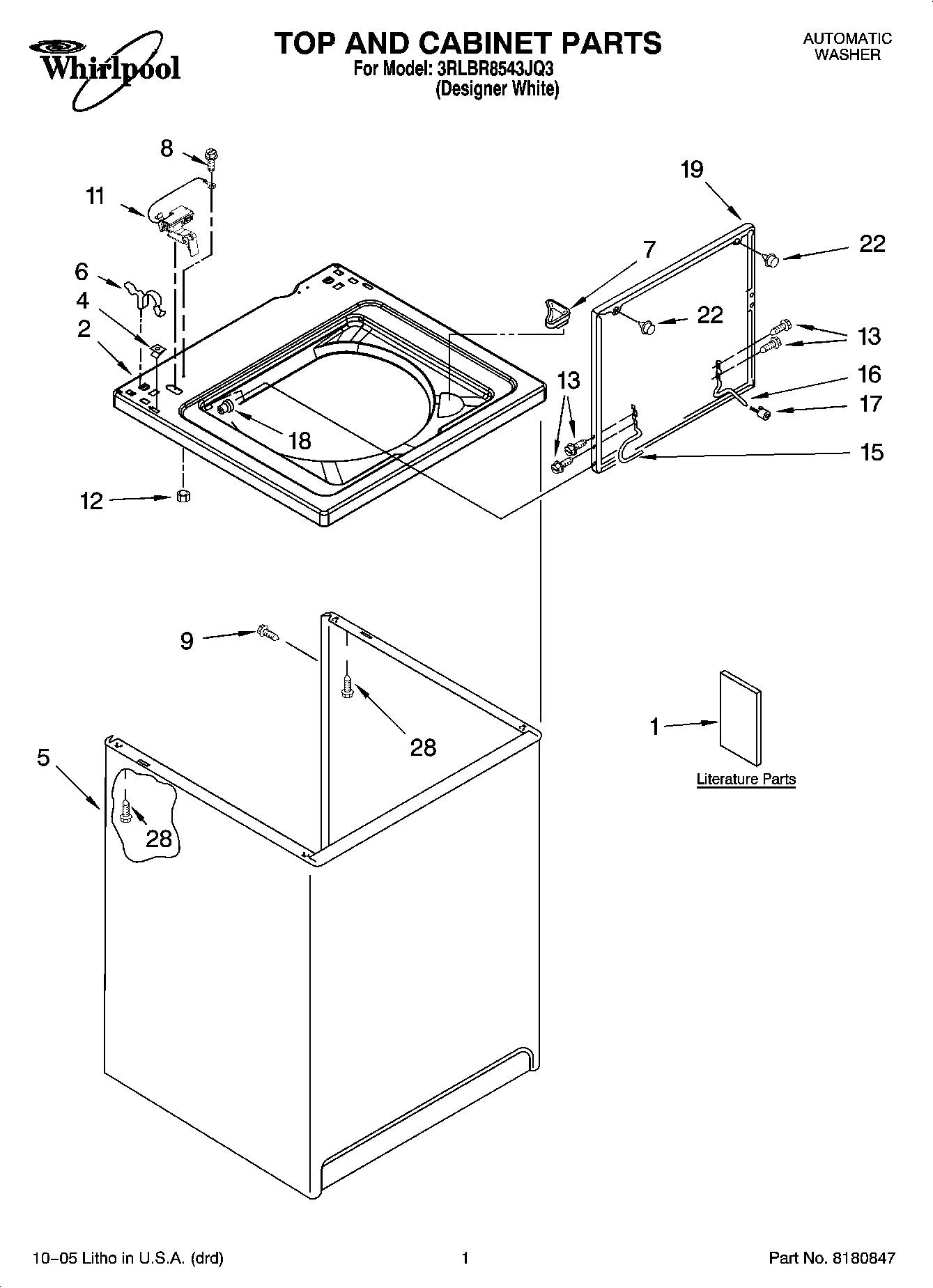

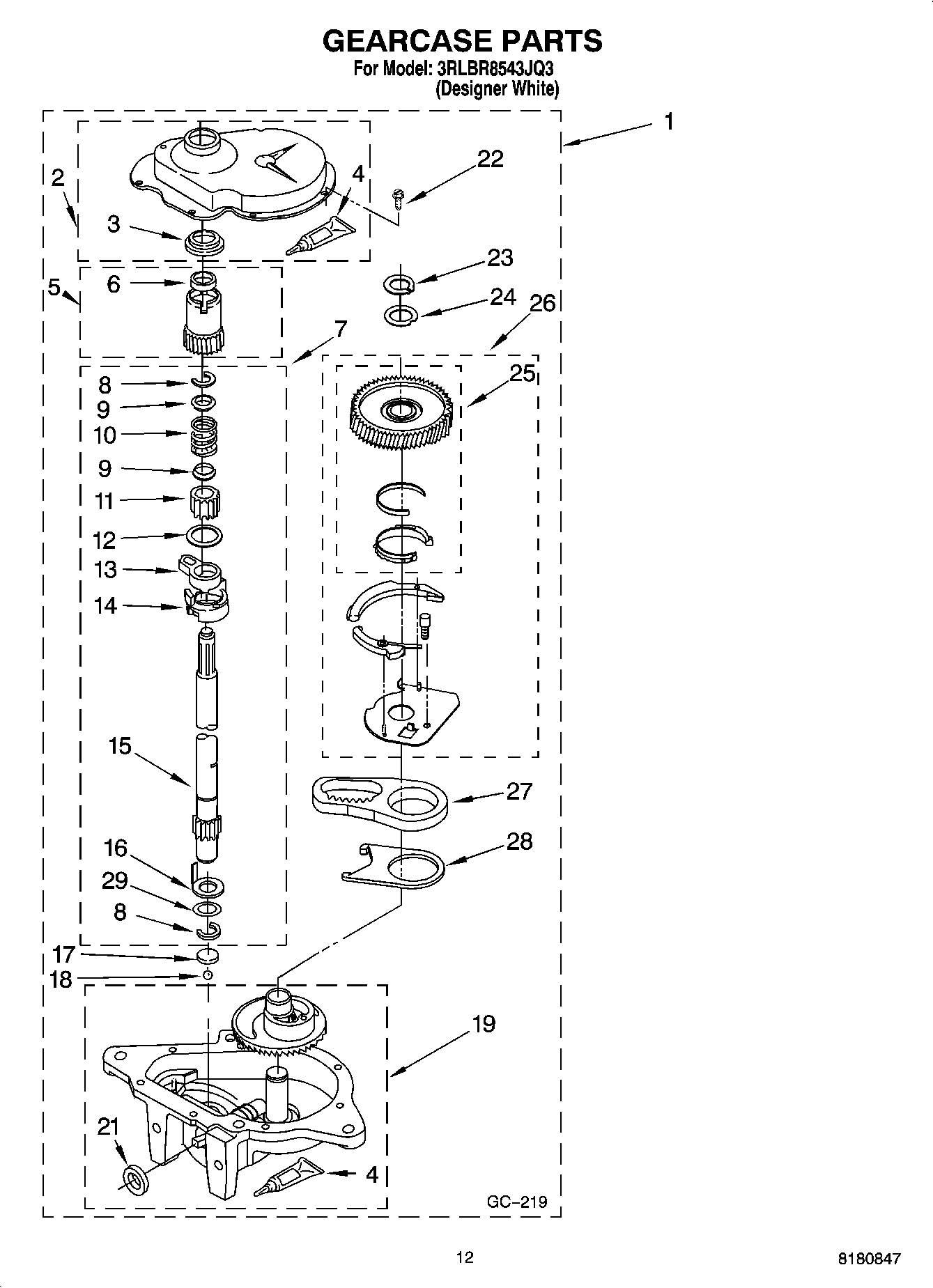

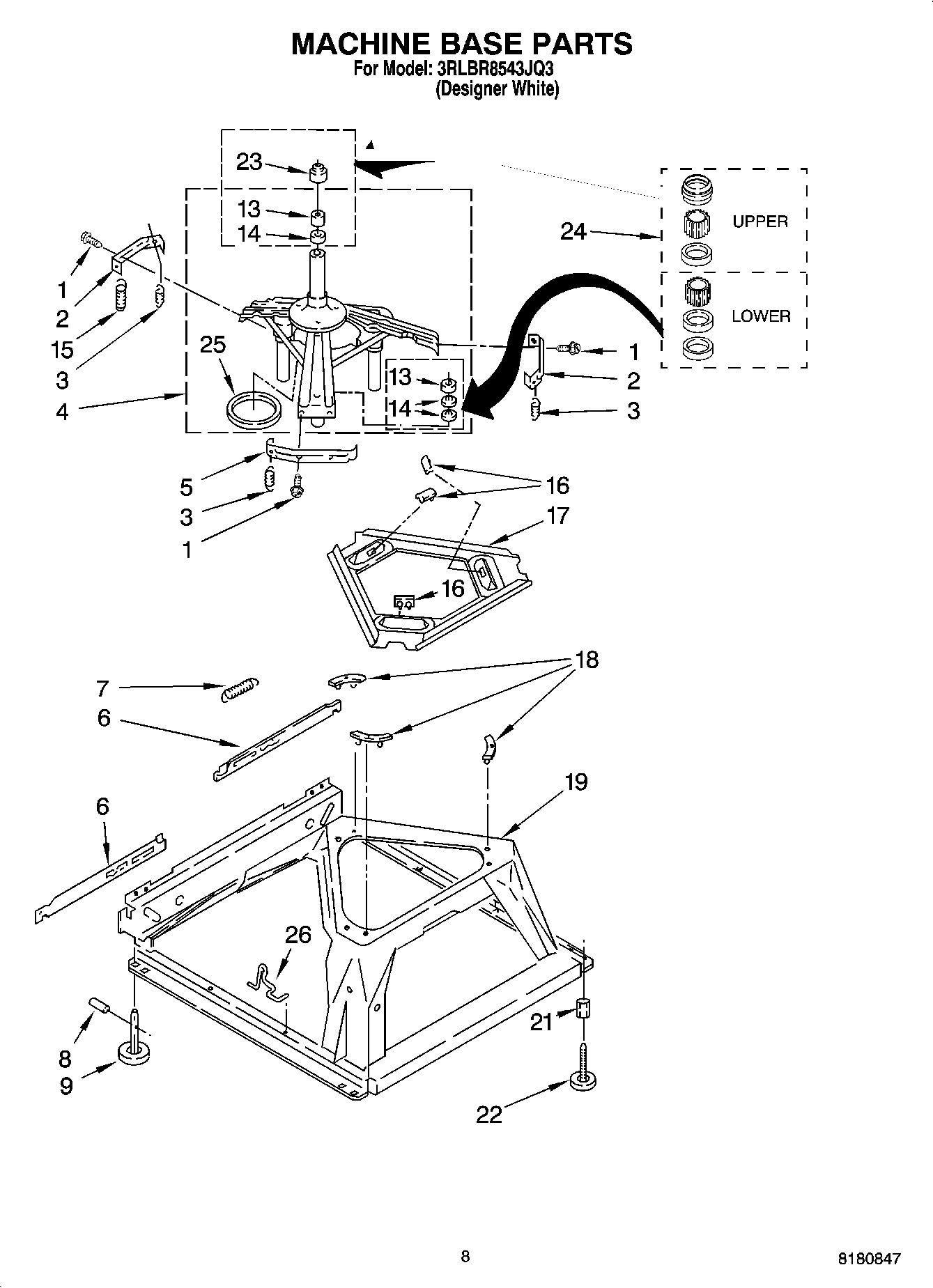

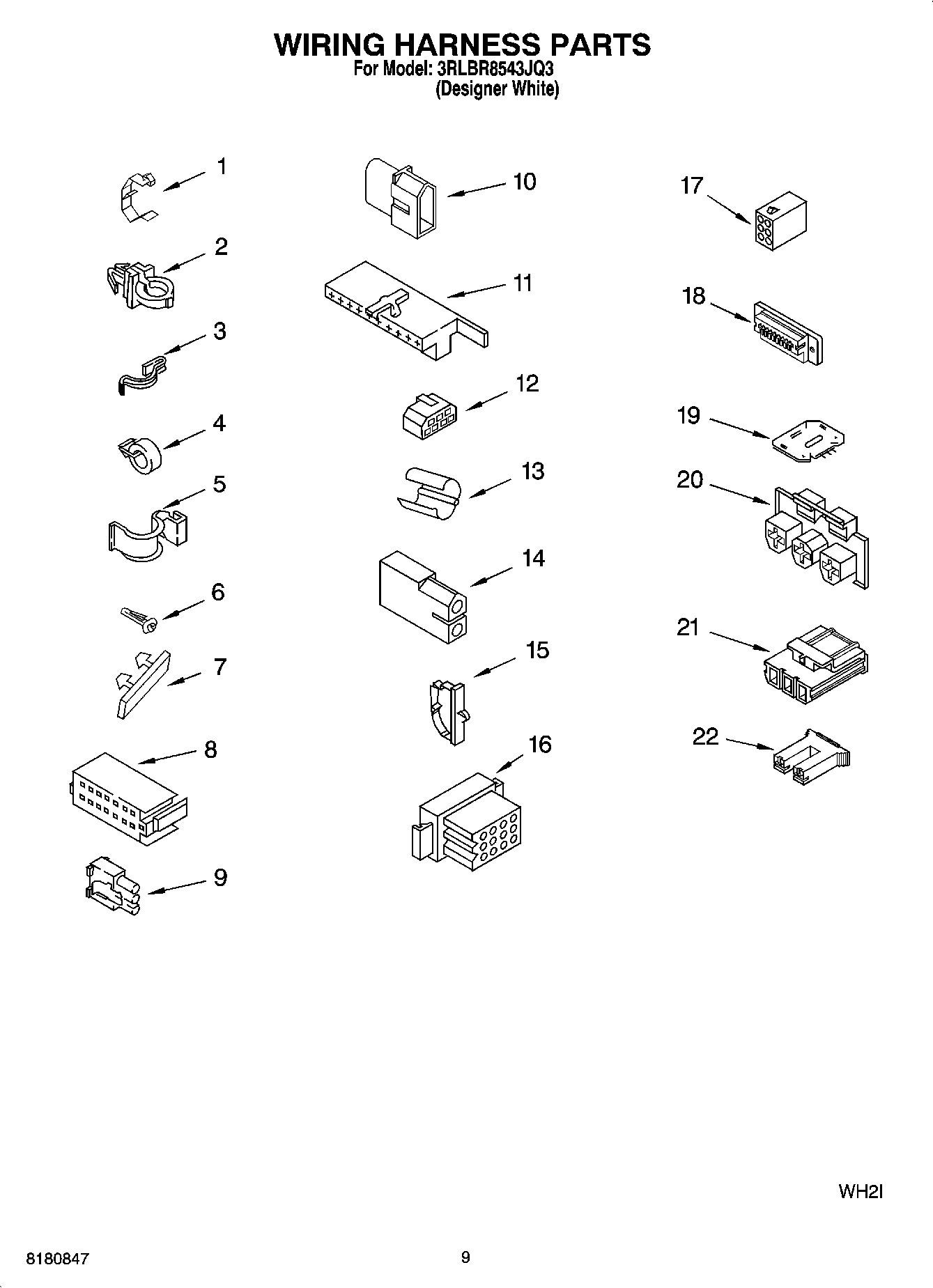

Model Whirlpool 3RLBR8543JQ3 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $59.26

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.99

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

1

Hose, Sensor (Lower) WPL 3363509 Contact Us For Availability

1

Wiring Diagram WPL 3954740 Contact Us For Availability

1

Installation & User Guide WPL 8315975 Contact Us For Availability

1

Use & Care Guide WPL 8316481 Contact Us For Availability

1

Installation Instructions WPL 8318424 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

Clip, Harness WPL 388498 Contact Us For Availability

2

Top WPL 8541617 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

4

8559320 Whirlpool Clip Backorder WPL 8559320 $31.46

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

4

WP3350830 Whirlpool Agitator Assembly In Stock WPL WP3350830 $112.73

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet WPL 63128 Contact Us For Availability

5

Tub Ring WPL 3950568 Contact Us For Availability

6

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $58.99

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.99

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $4.82

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $6.99

8

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Balance Ring WPL 3956205 Contact Us For Availability

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

353424 Whirlpool Connector Backorder WPL 353424 $14.02

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $6.91

Spring, Agitate WPL 62676 Contact Us For Availability

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.82

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62611 Whirlpool Plate In Stock WPL WP62611 $76.63

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $40.99

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

62619 Whirlpool Washer Backorder WPL 62619 $8.89

W10080180 Whirlpool Nut Backorder WPL W10080180 $8.89

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

Protector WPL 63523 Contact Us For Availability

BASKET WPL 3956206 Contact Us For Availability

14

8316060 Whirlpool Shield Backorder WPL 8316060 $49.60

14

Tub WPL 63125 Contact Us For Availability

14

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $21.64

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $4.96

Clip, Harness WPL 3352944 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

WP54583 Whirlpool Hinge Backorder WPL WP54583 $18.77

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

2219077 Whirlpool Refrigerator Clip Backorder WPL 2219077 $42.00

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

WP3360397 Whirlpool Valve Backorder WPL WP3360397 $178.51

Connector, Etc WPL 3349494 Contact Us For Availability

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $11.96

3363395 Whirlpool Gearcase Backorder WPL 3363395 $263.92

Clamp, Hose WPL 3976395 Contact Us For Availability

Motor, Main Drive WPL 3950297 Contact Us For Availability

E.T.C. Control WPL 3407125 Contact Us For Availability

Lid WPL 8541743 Contact Us For Availability

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $2.61

WP2172937 Whirlpool Connector In Stock WPL WP2172937 $12.98

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

Retainer, Harness WPL 3349557 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

Connector (T.P.A.) (3-Circuit) (Pressure Swit WPL 3360056 Contact Us For Availability

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.99

3354925 Whirlpool Connector Backorder WPL 3354925 $14.02

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

Block, Connector (Hot Valve) WPL 3354926 Contact Us For Availability

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.99

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.59

23

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $58.99

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $4.98

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

WPW10233584 Whirlpool Spin Gear Backorder WPL WPW10233584 $163.49

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

26

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

27

Agitator (Complete) WPL 3350829 Contact Us For Availability

28

WP3349019 Whirlpool Upper Agitator Backorder WPL WP3349019 $140.53

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

28

WP482156 Whirlpool Refrigerator Capacitor Backorder WPL WP482156 $75.73

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

Sensor, Inline WPL 3352282 Contact Us For Availability

Clamp, Capacitor WPL 3949496 Contact Us For Availability

GC-219 WPL ARI140230A Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82
