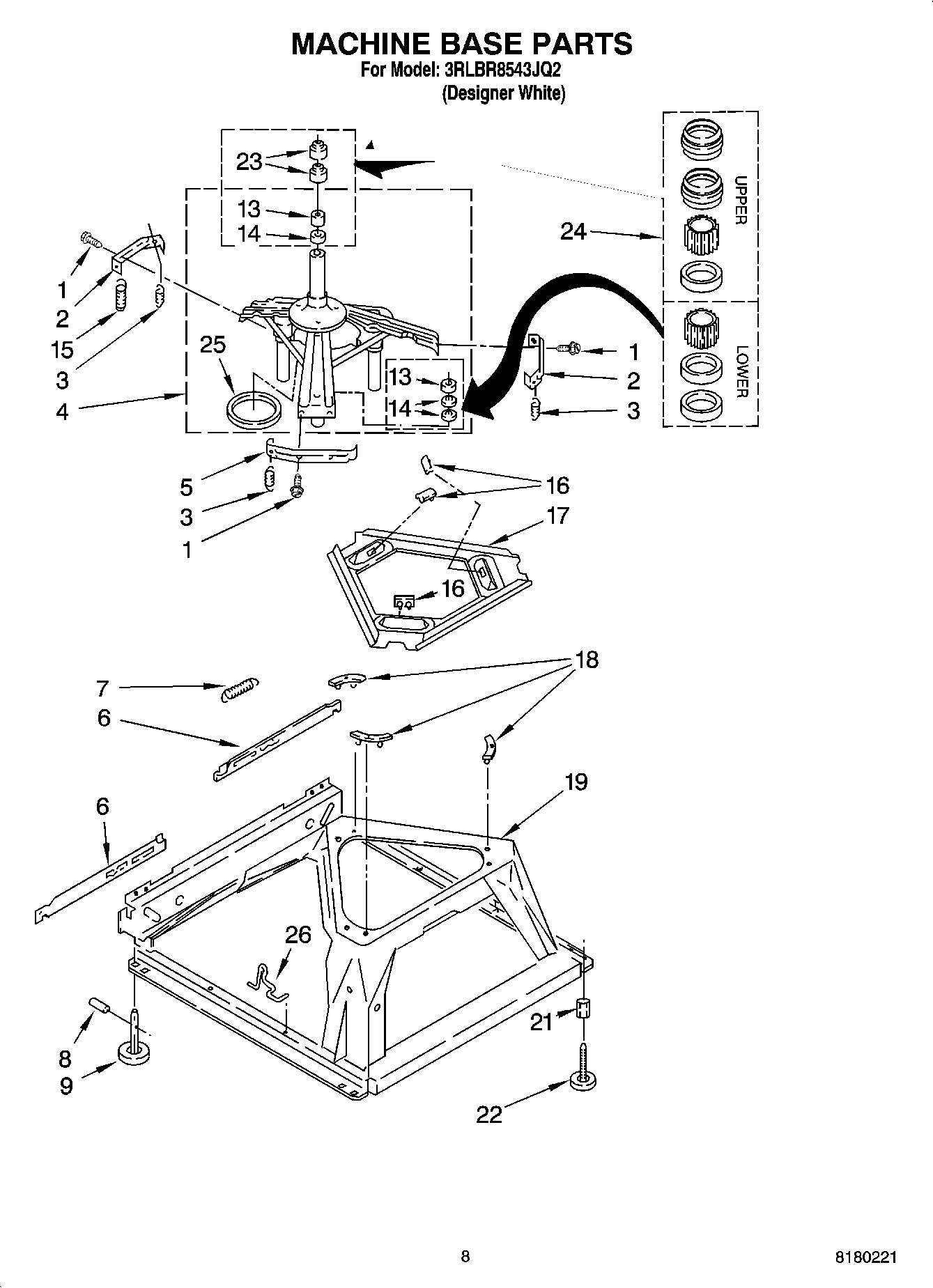

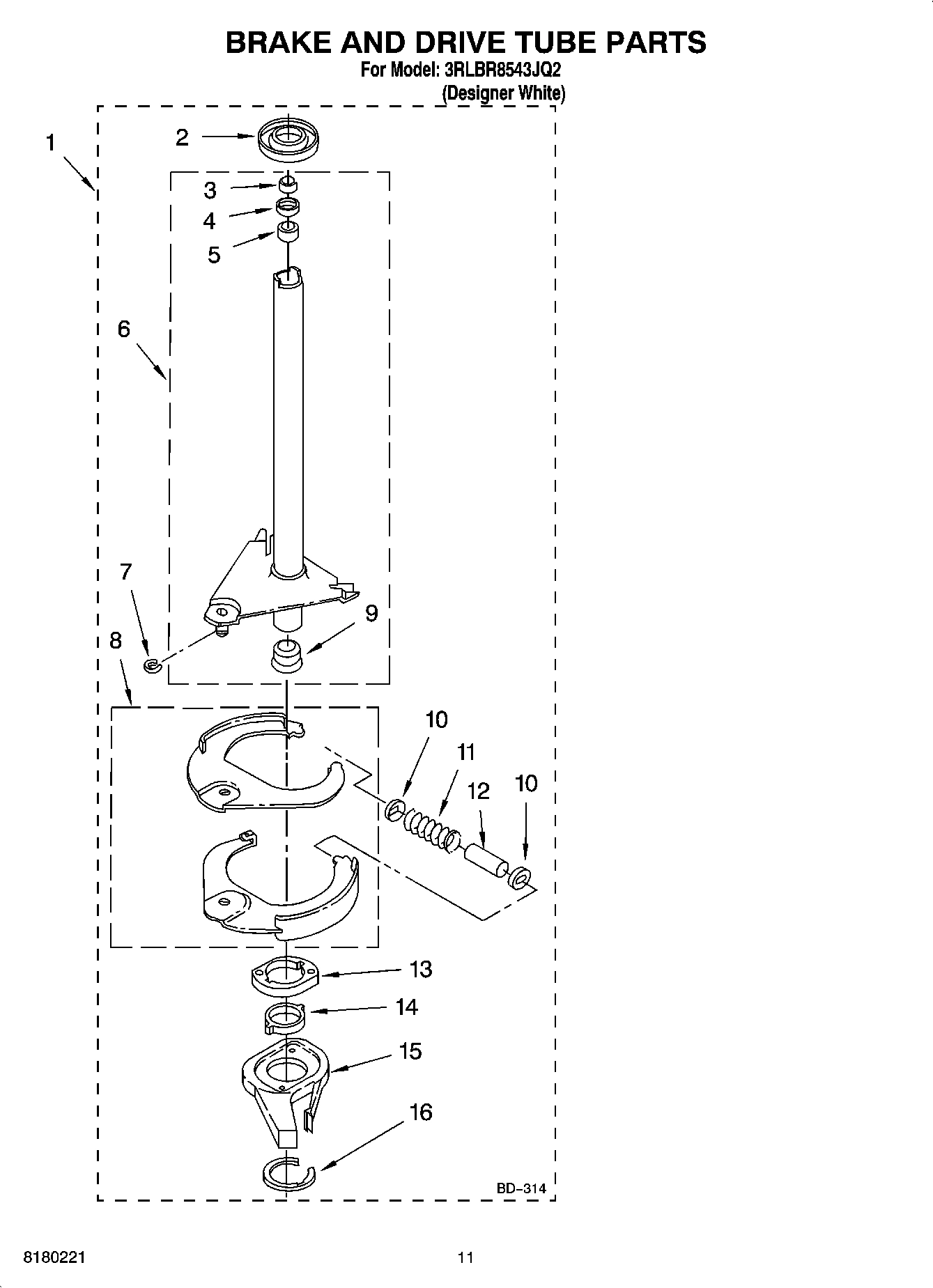

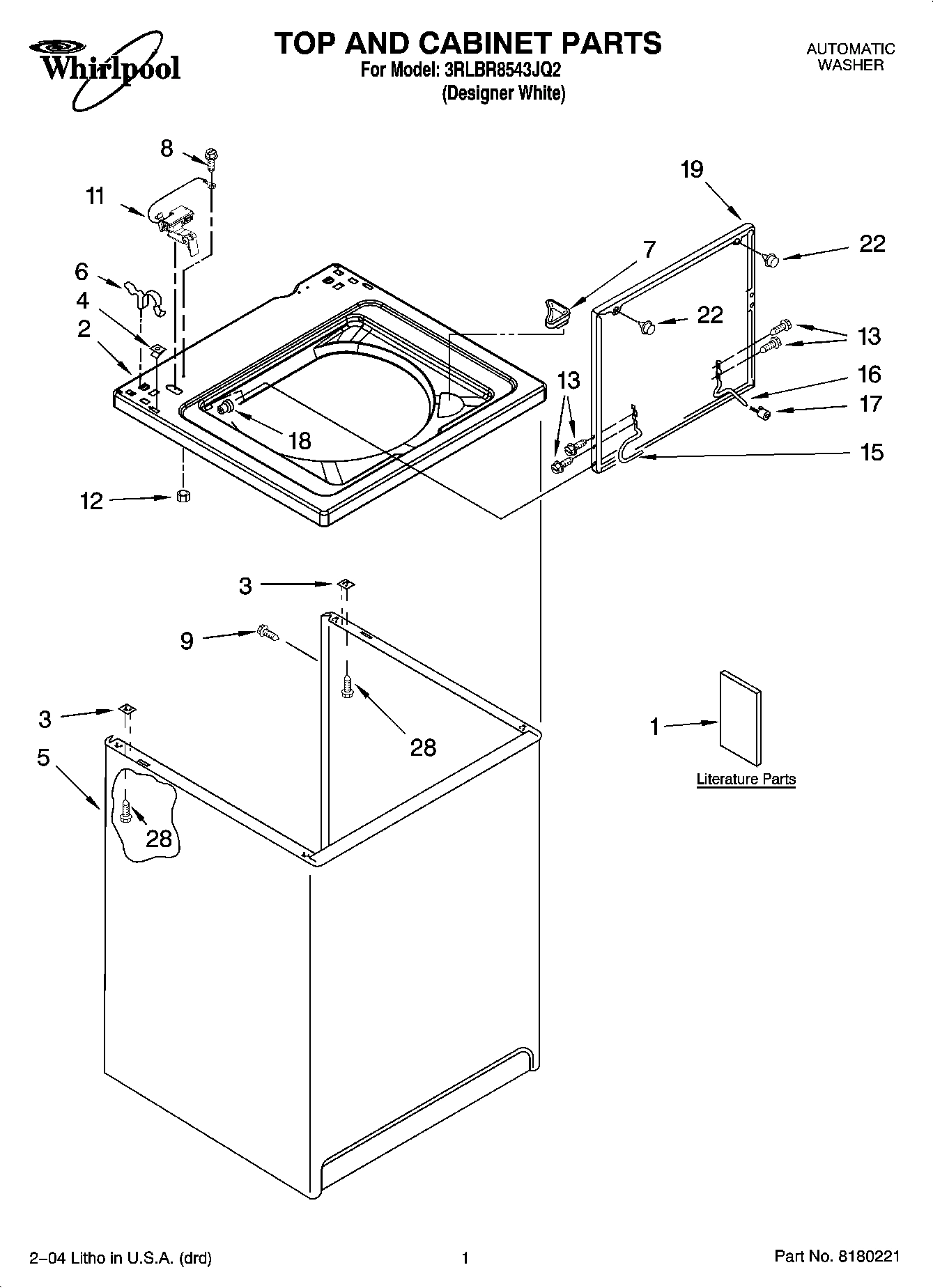

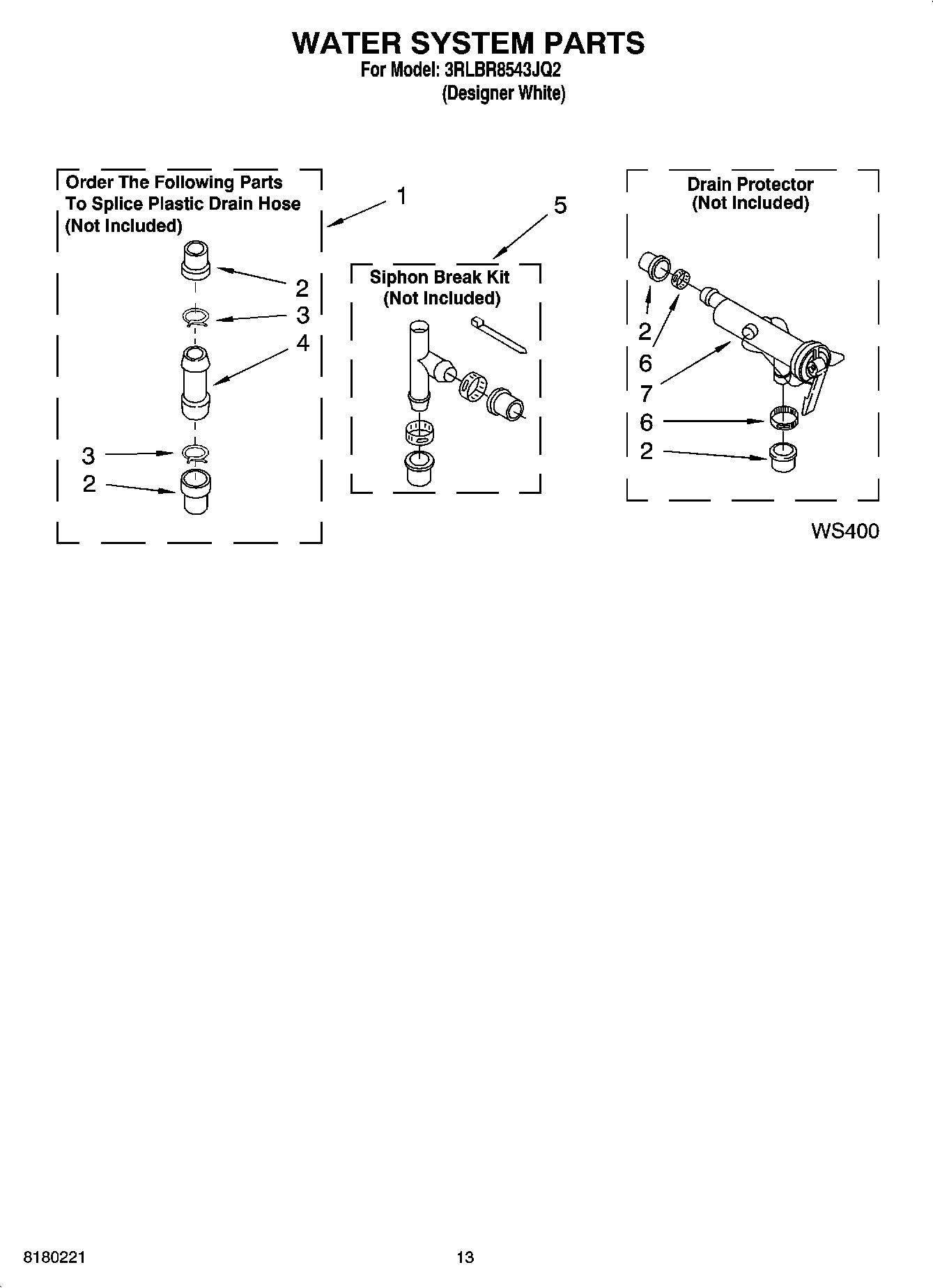

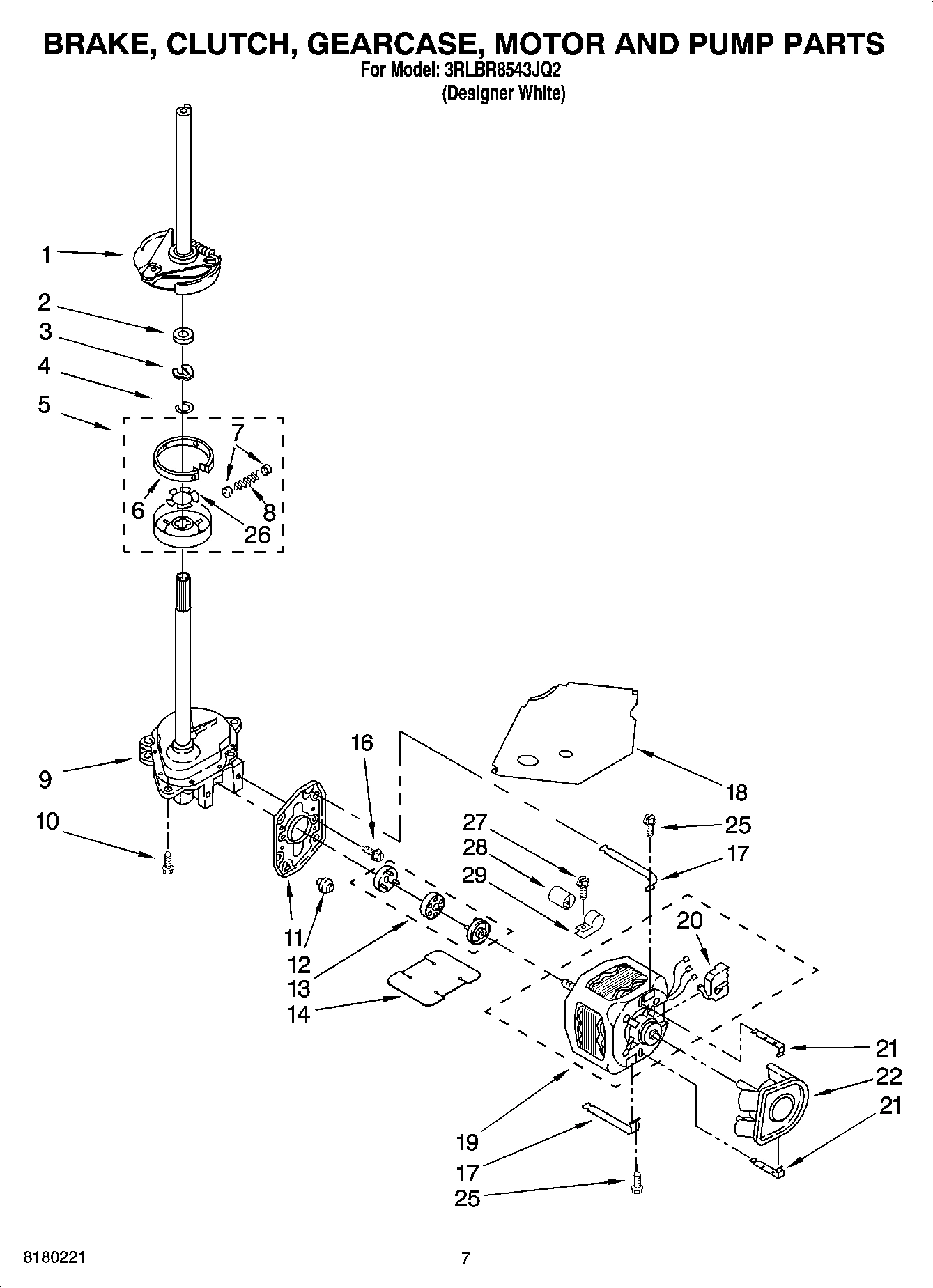

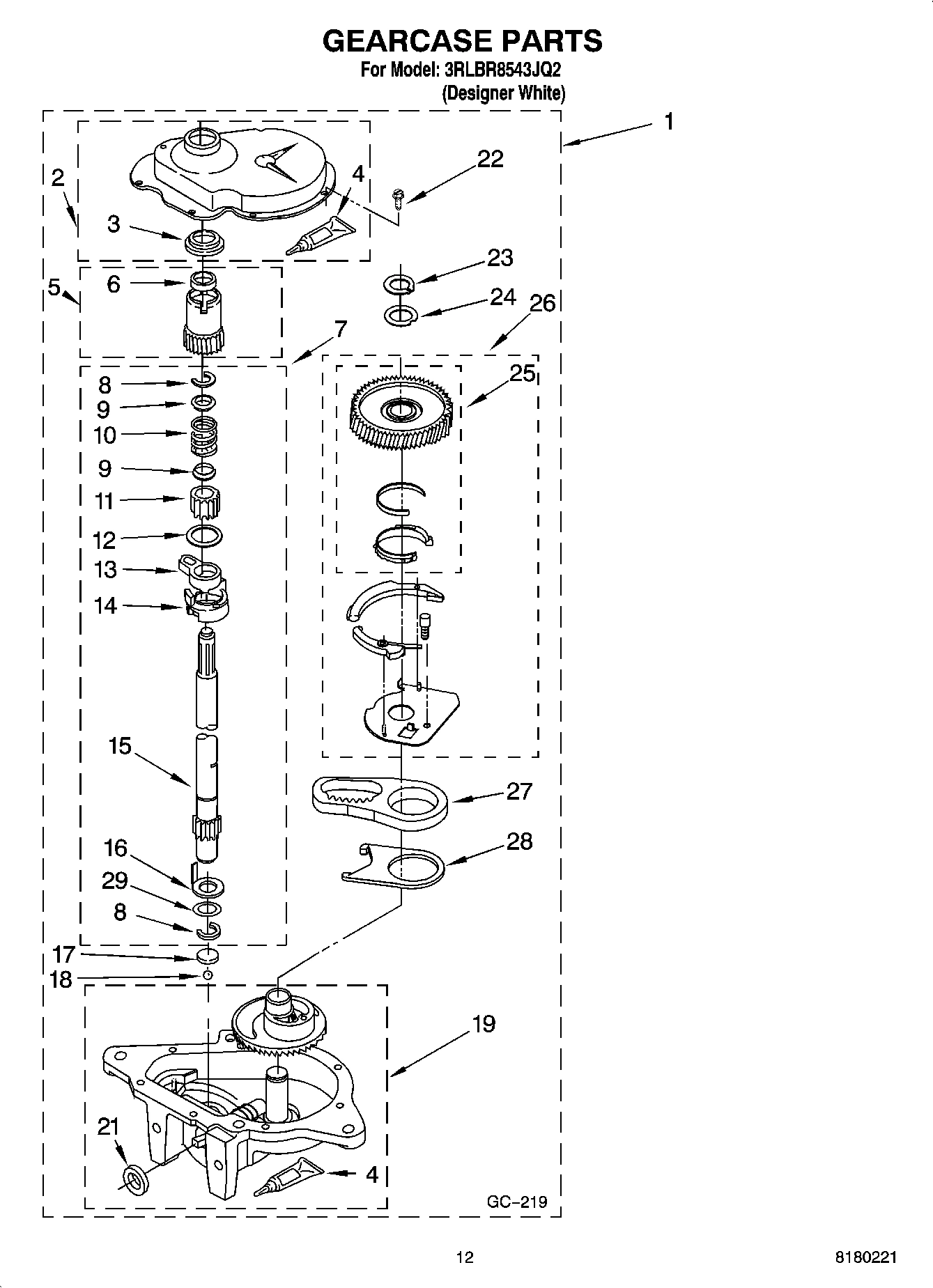

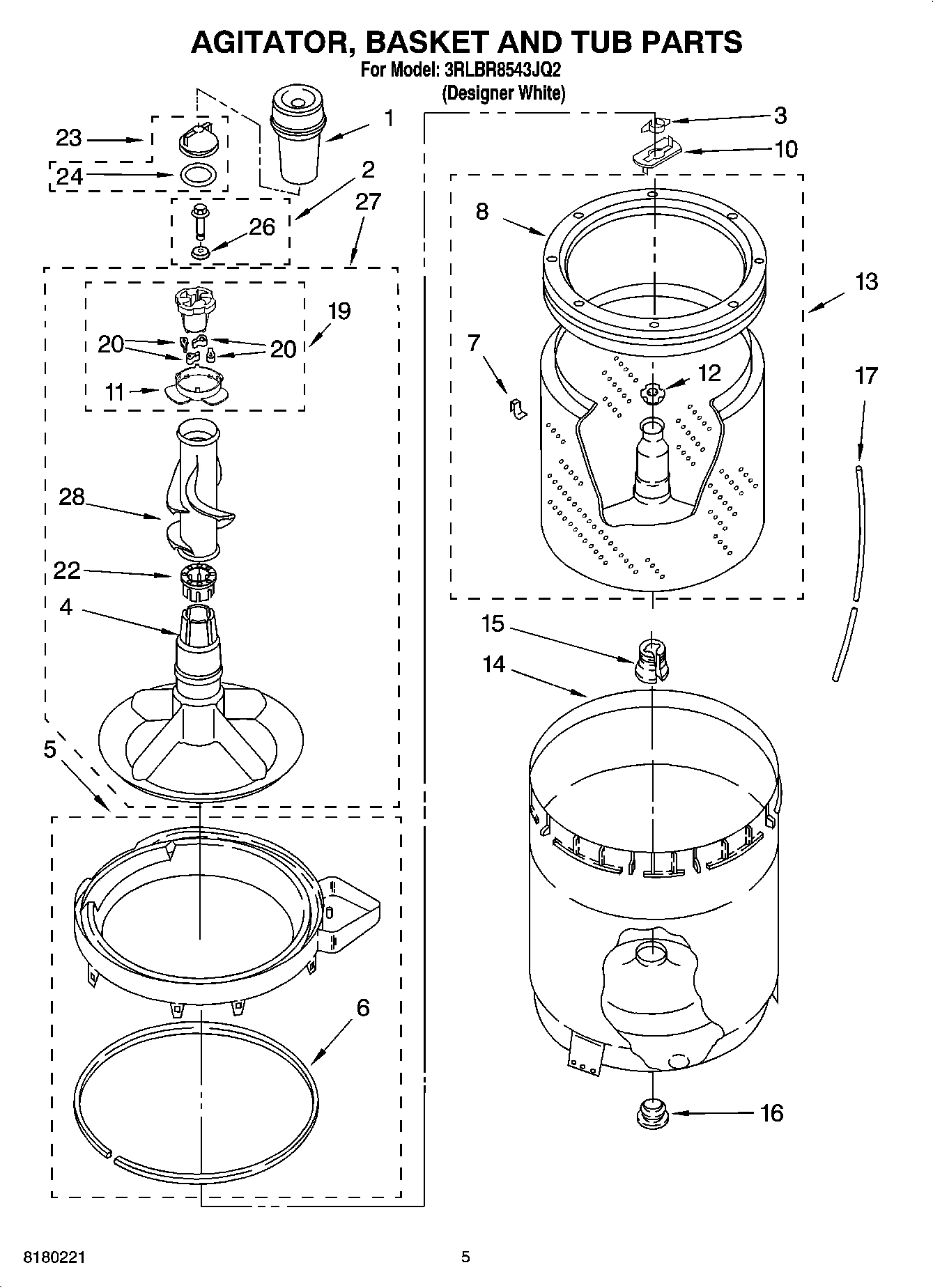

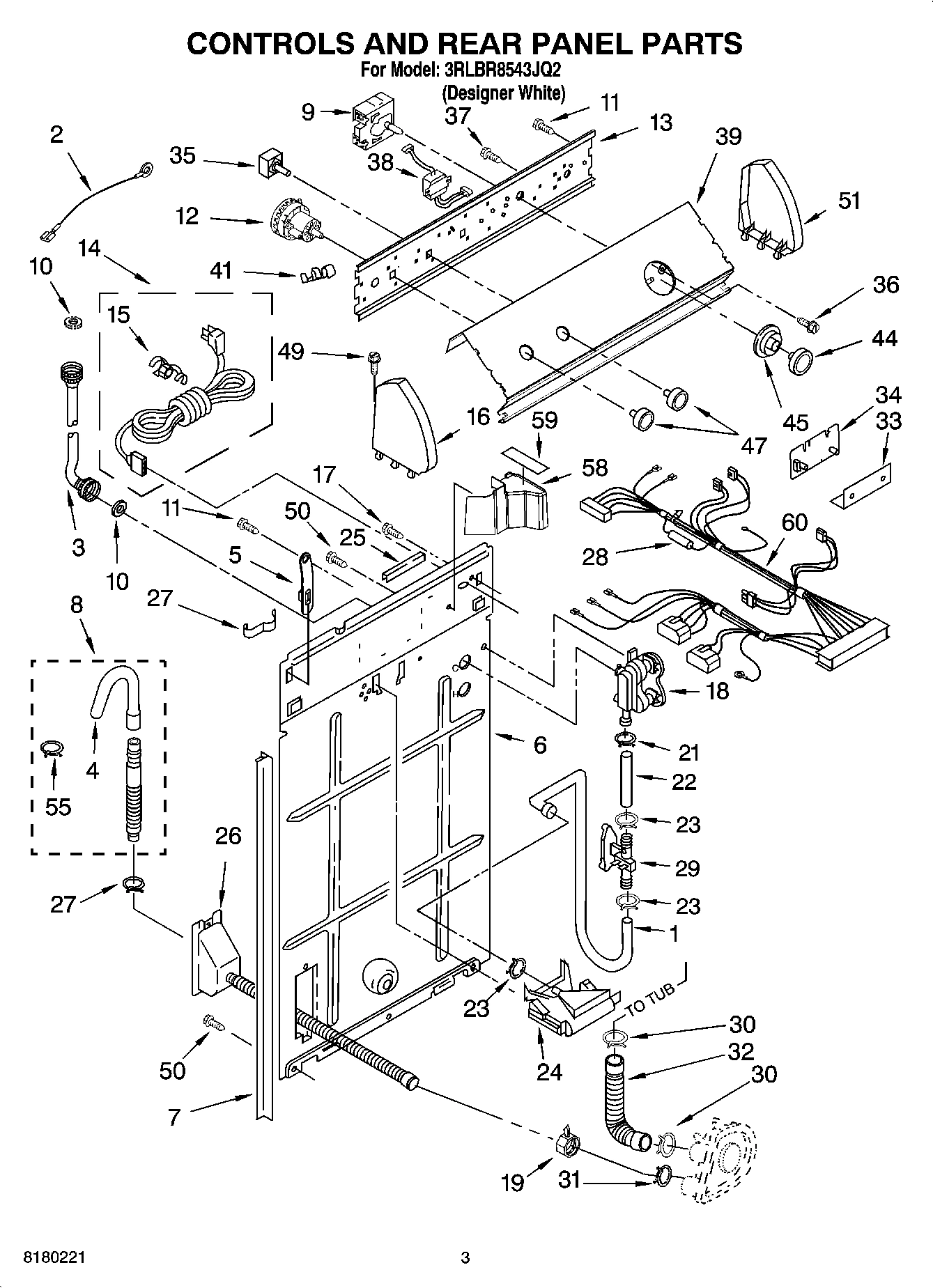

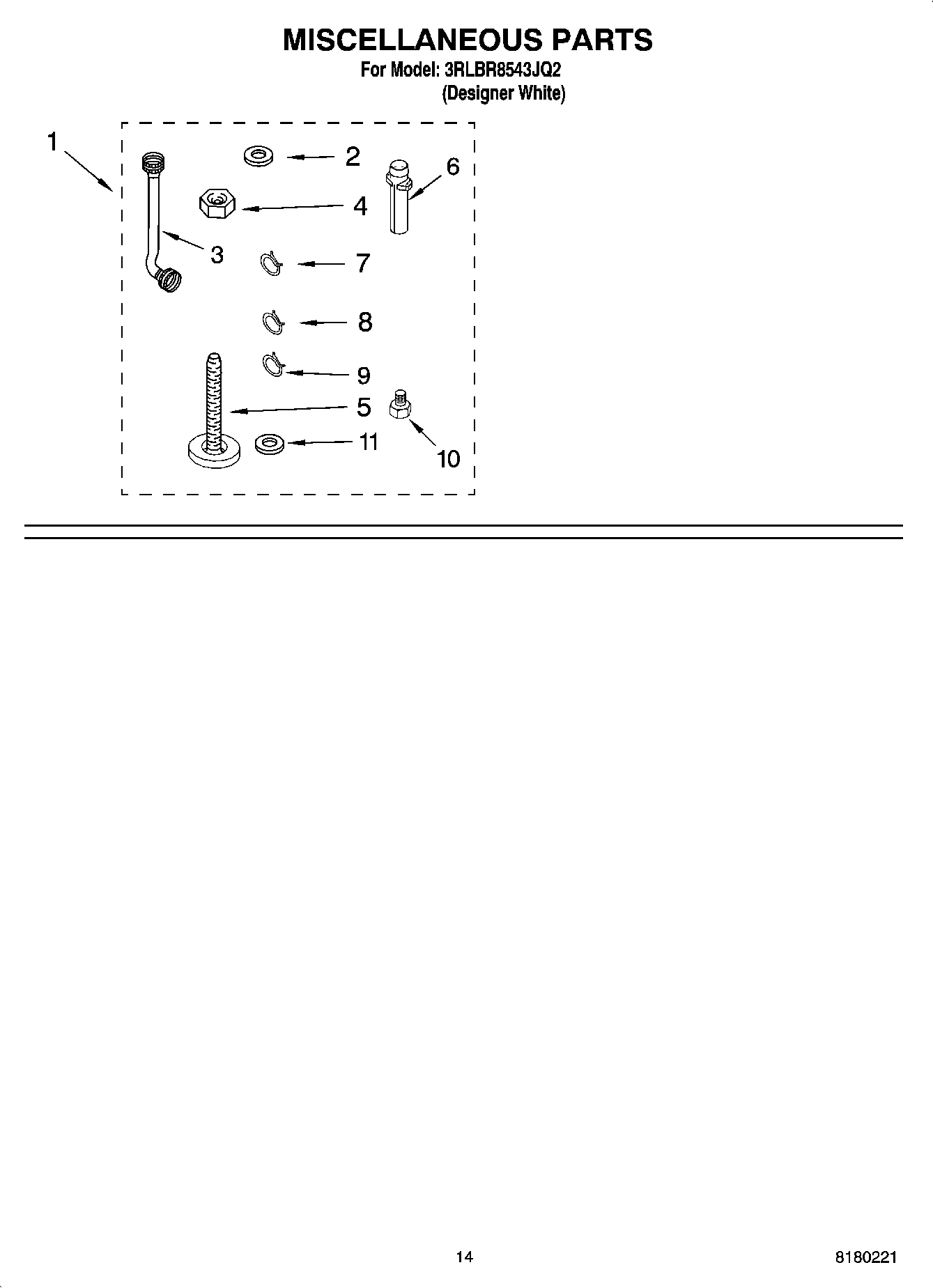

Model Whirlpool 3RLBR8543JQ2 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.99

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

1

Hose, Sensor (Lower) WPL 3363509 Contact Us For Availability

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

285321 Whirlpool Sleeve Backorder WPL 285321 $54.14

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

4

WP3350830 Whirlpool Agitator Assembly In Stock WPL WP3350830 $112.73

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $54.71

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

6

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $58.99

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

7

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.99

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $6.99

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285702 Whirlpool Extensions Backorder WPL 285702 $34.84

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Balance Ring WPL 3956205 Contact Us For Availability

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

Timer, Control (50 Hz.) (Motor Not A Service WPL 3954730 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

Spring, Agitate WPL 62676 Contact Us For Availability

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

353424 Whirlpool Connector Backorder WPL 353424 $14.02

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.82

WP62611 Whirlpool Plate In Stock WPL WP62611 $76.63

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $40.99

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

W10820051 Whirlpool Washer Pressure Switch In Stock WPL W10820051 $143.99

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

13

Bracket, Control WPL 3948814 Contact Us For Availability

8316060 Whirlpool Shield Backorder WPL 8316060 $49.60

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

Tub WPL 63125 Contact Us For Availability

Cord, Power WPL 8316047 Contact Us For Availability

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $21.64

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

Strain Relief, Power Cord WPL 3949468 Contact Us For Availability

16

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

16

WP54583 Whirlpool Hinge Backorder WPL WP54583 $18.77

16

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

18

WP3360397 Whirlpool Valve Backorder WPL WP3360397 $178.51

19

3363395 Whirlpool Gearcase Backorder WPL 3363395 $263.92

19

Clamp, Hose WPL 3976395 Contact Us For Availability

19

Motor, Main Drive WPL 3950297 Contact Us For Availability

20

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

Connector (T.P.A.) (3-Circuit) (Pressure Swit WPL 3360056 Contact Us For Availability

Hose, Sensor (Upper) WPL 3363516 Contact Us For Availability

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $58.99

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

WPW10233584 Whirlpool Spin Gear Backorder WPL WPW10233584 $163.49

Edge Protector WPL 303294 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $17.99

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

27

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

WP3349019 Whirlpool Upper Agitator Backorder WPL WP3349019 $140.53

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

WP482156 Whirlpool Refrigerator Capacitor Backorder WPL WP482156 $75.73

WPW10111181 Whirlpool Fuse Assembly Backorder WPL WPW10111181 $19.64

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

Sensor, Inline WPL 3352282 Contact Us For Availability

Clamp, Capacitor WPL 3949496 Contact Us For Availability

GC-219 WPL ARI140223A Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.99

33

Shield, ATC WPL 8316039 Contact Us For Availability

34

WPW10110247 Whirlpool Electronic Control Boar Backorder WPL WPW10110247 $81.52

35

W10168172 Whirlpool Temperature Switch Backorder WPL W10168172 $64.22

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $4.82

37

Screw, Ground WPL 3179795 Contact Us For Availability

38

3407160 Whirlpool Transformer Backorder WPL 3407160 $166.73

39

Panel, Console WPL 8318782 Contact Us For Availability

41

W10113937 Whirlpool Clamp Backorder WPL W10113937 $7.16

44

W10807860 Whirlpool White Control Knob In Stock WPL W10807860 $45.60

45

WP3957849 Whirlpool Timer Dial Backorder WPL WP3957849 $32.71

47

WP3957799 Whirlpool Knob Backorder WPL WP3957799 $36.18

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

55

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

58

Shield, Inlet Valve WPL 8314879 Contact Us For Availability

59

Shield Extension WPL 3950829 Contact Us For Availability

60

Harness, Wiring (For Detail See Pages 9 & 10) WPL 3956872 Contact Us For Availability
