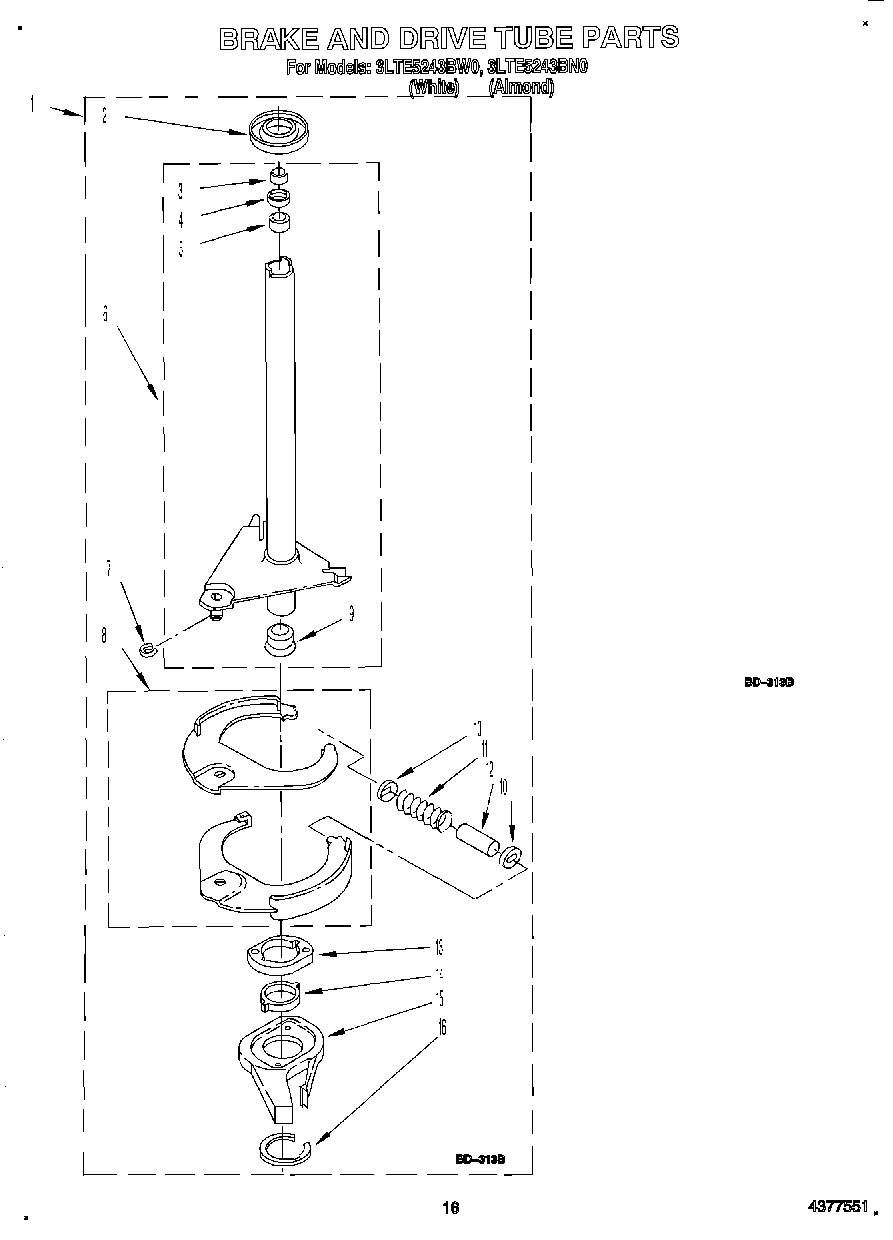

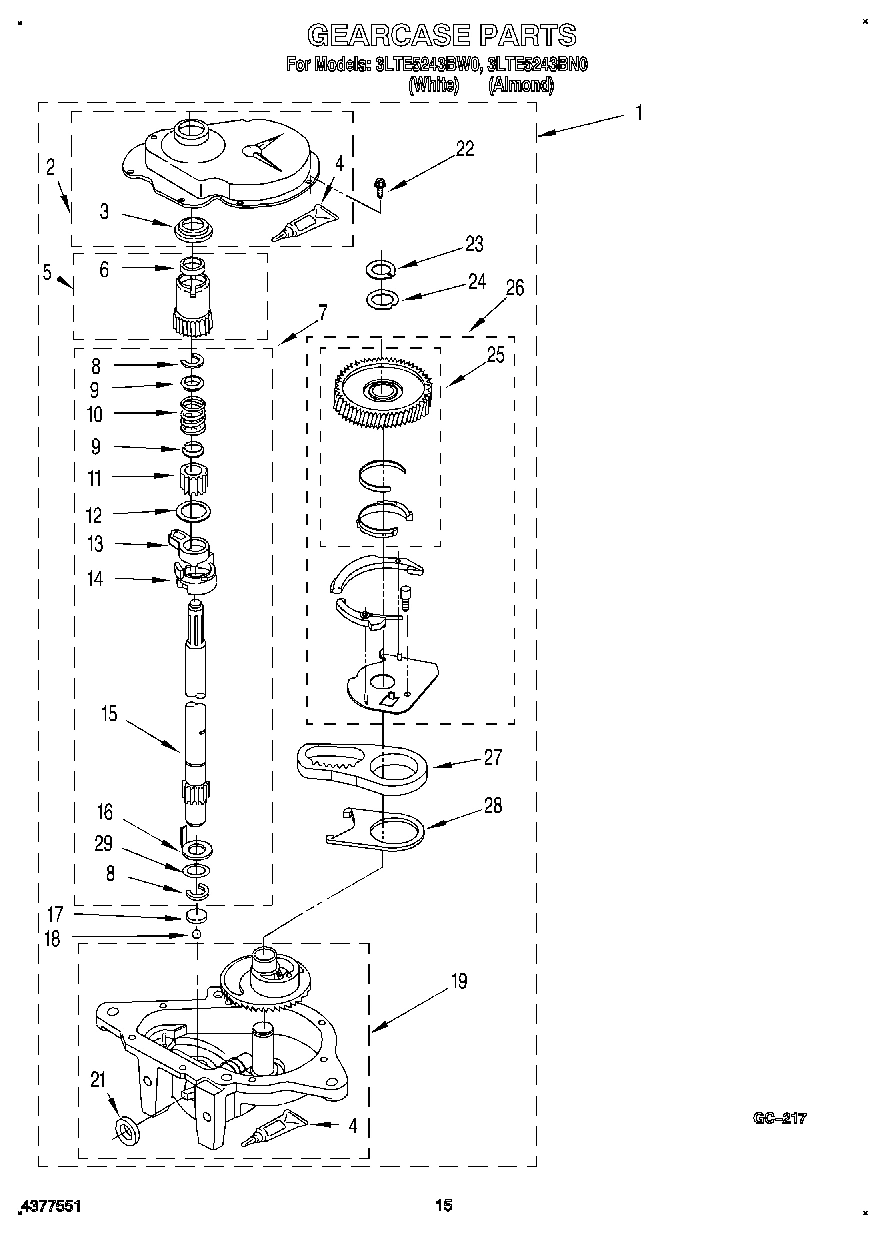

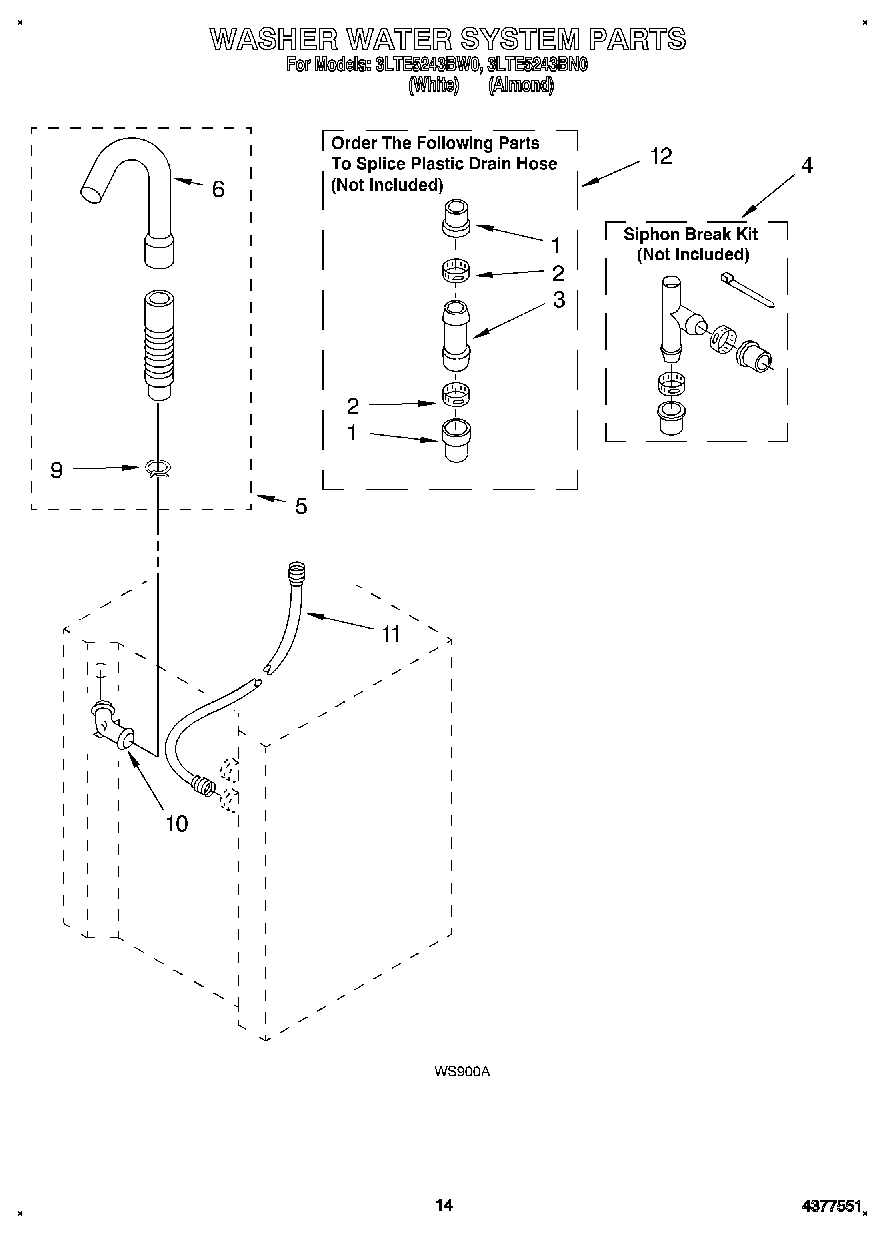

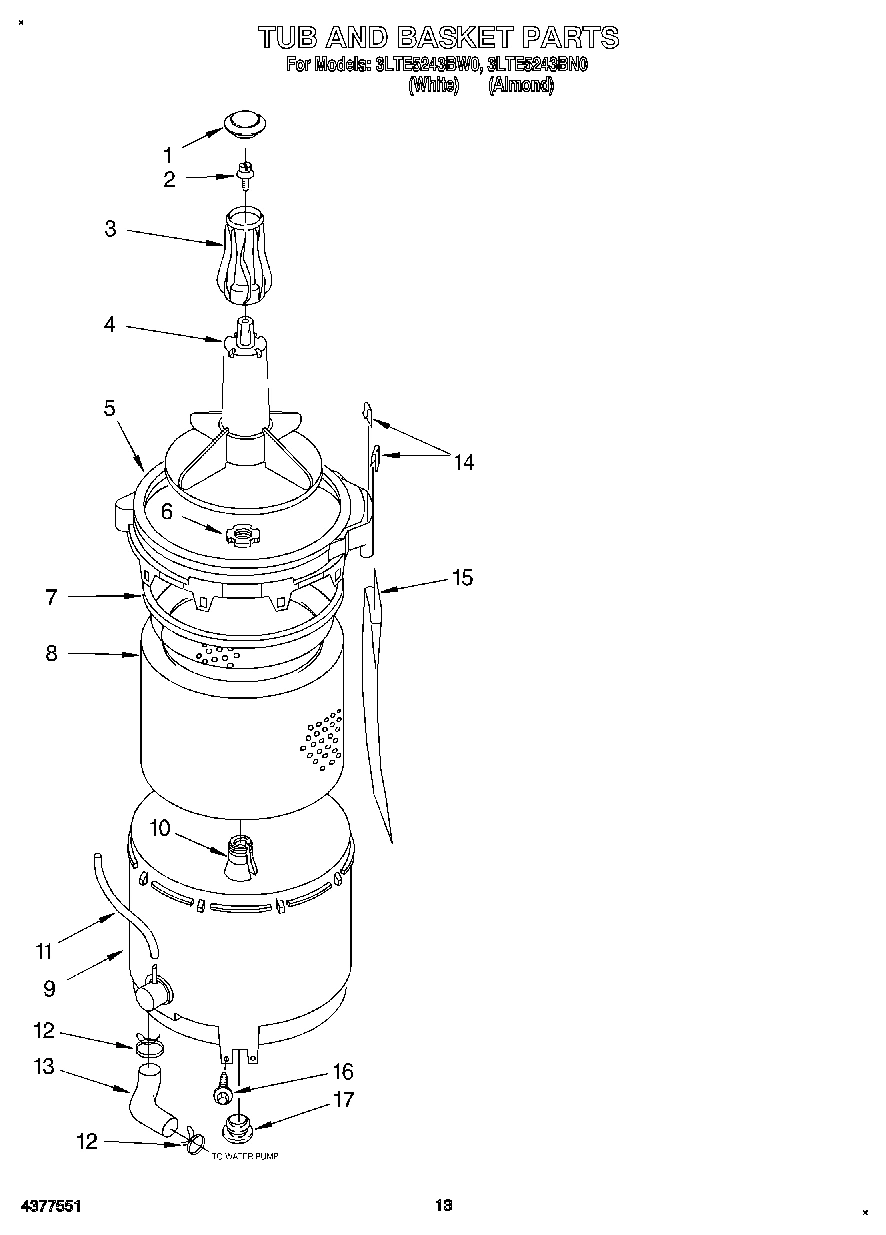

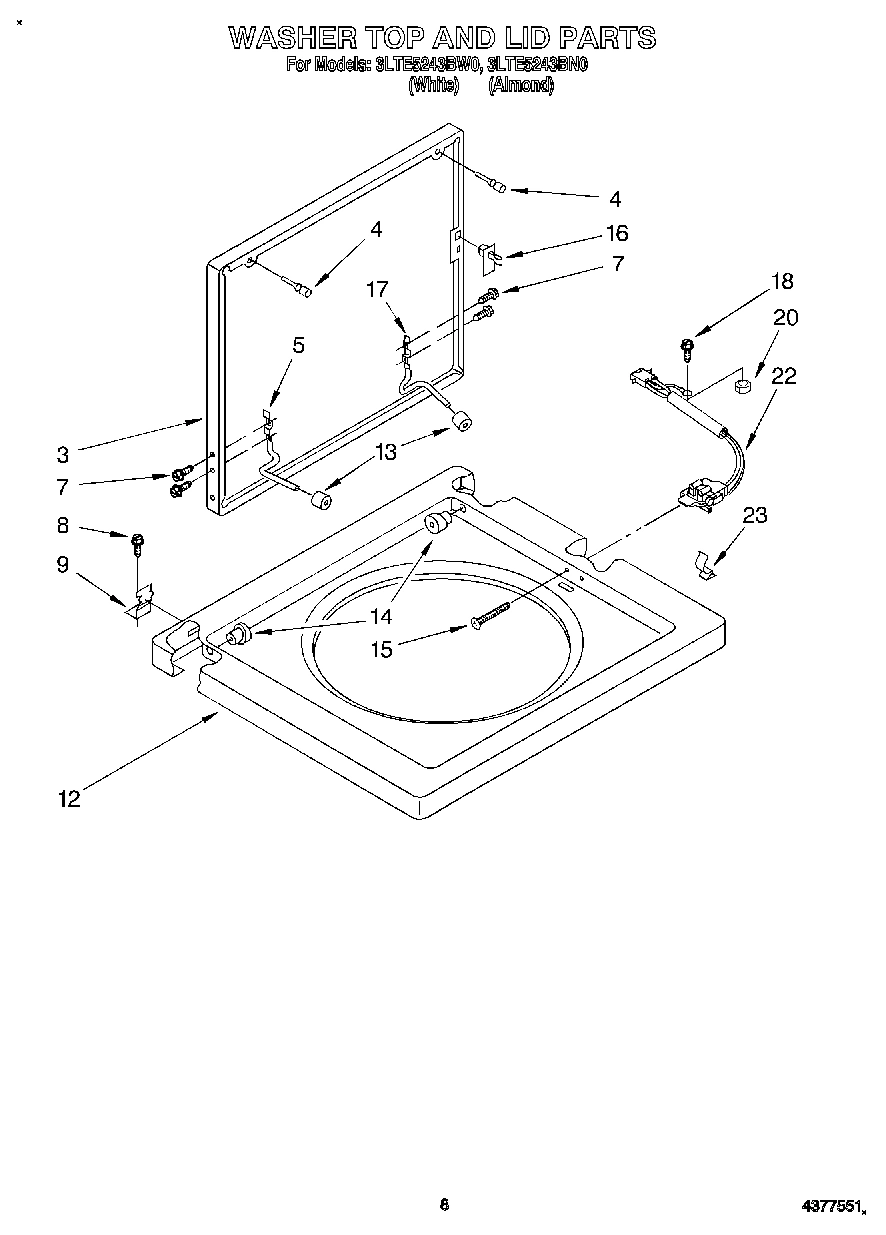

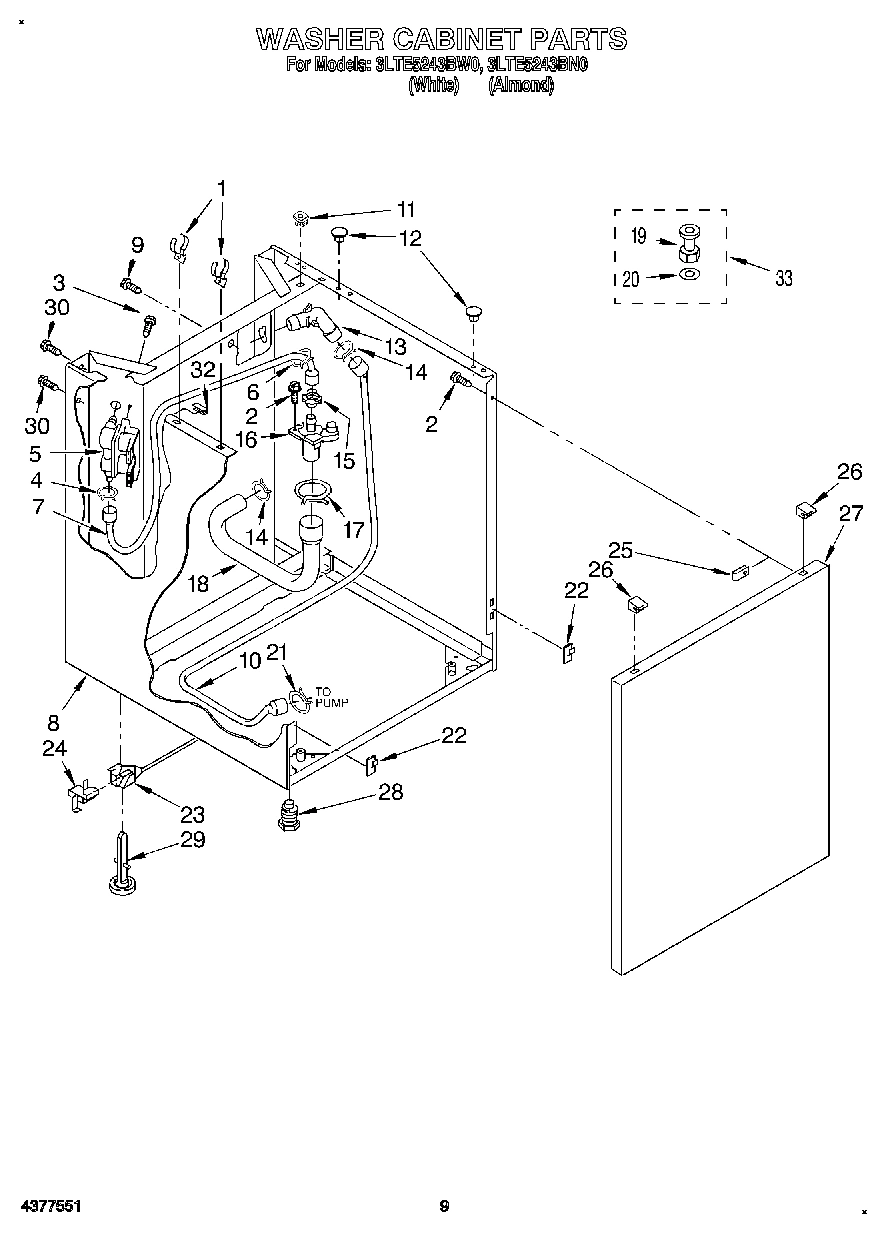

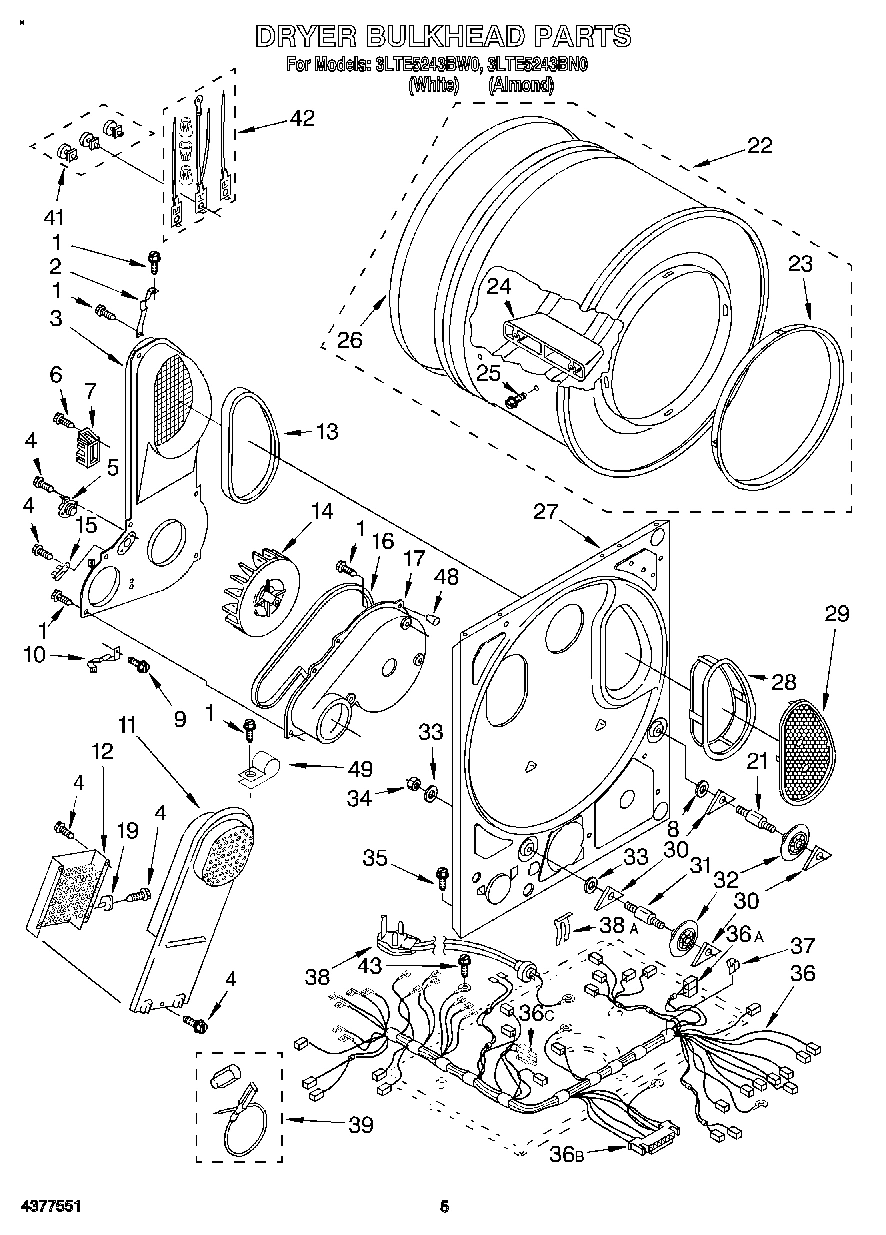

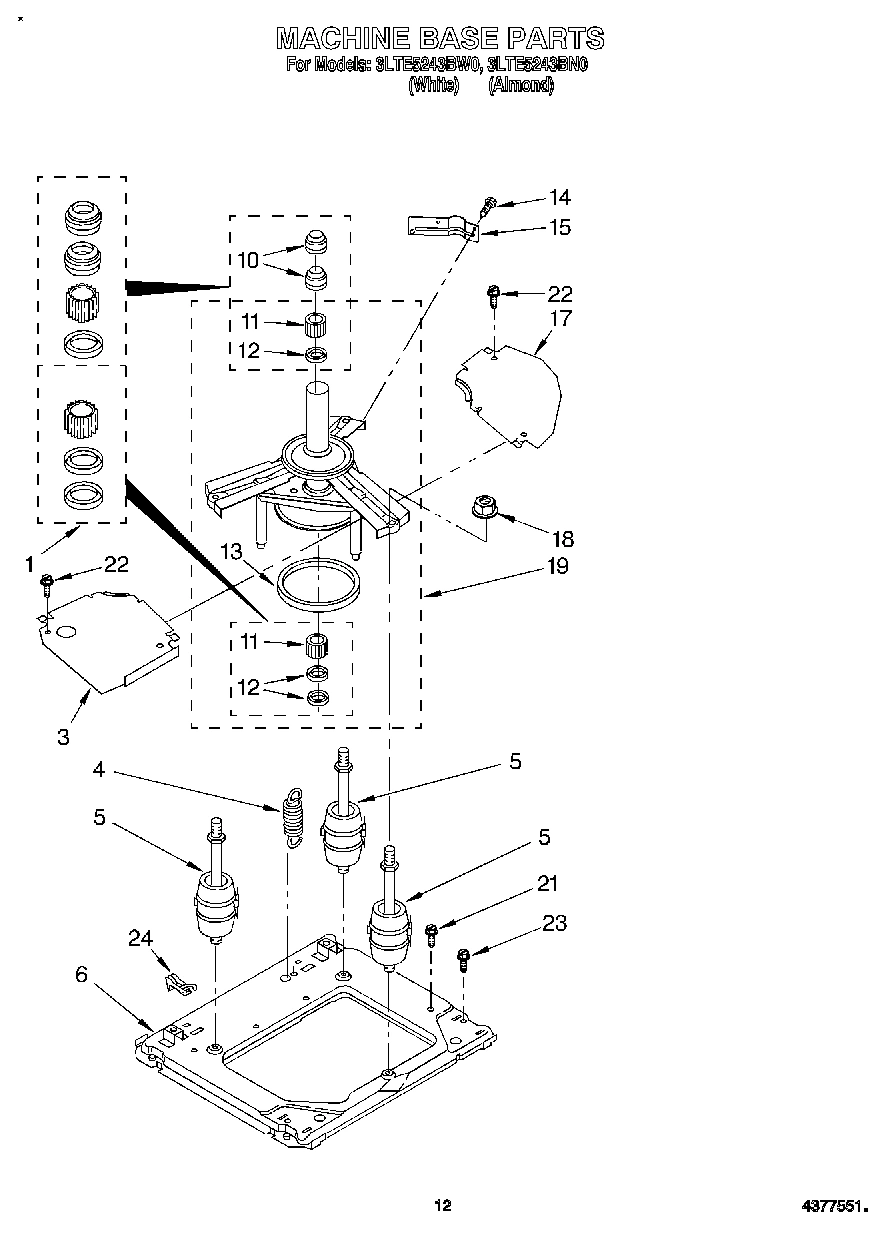

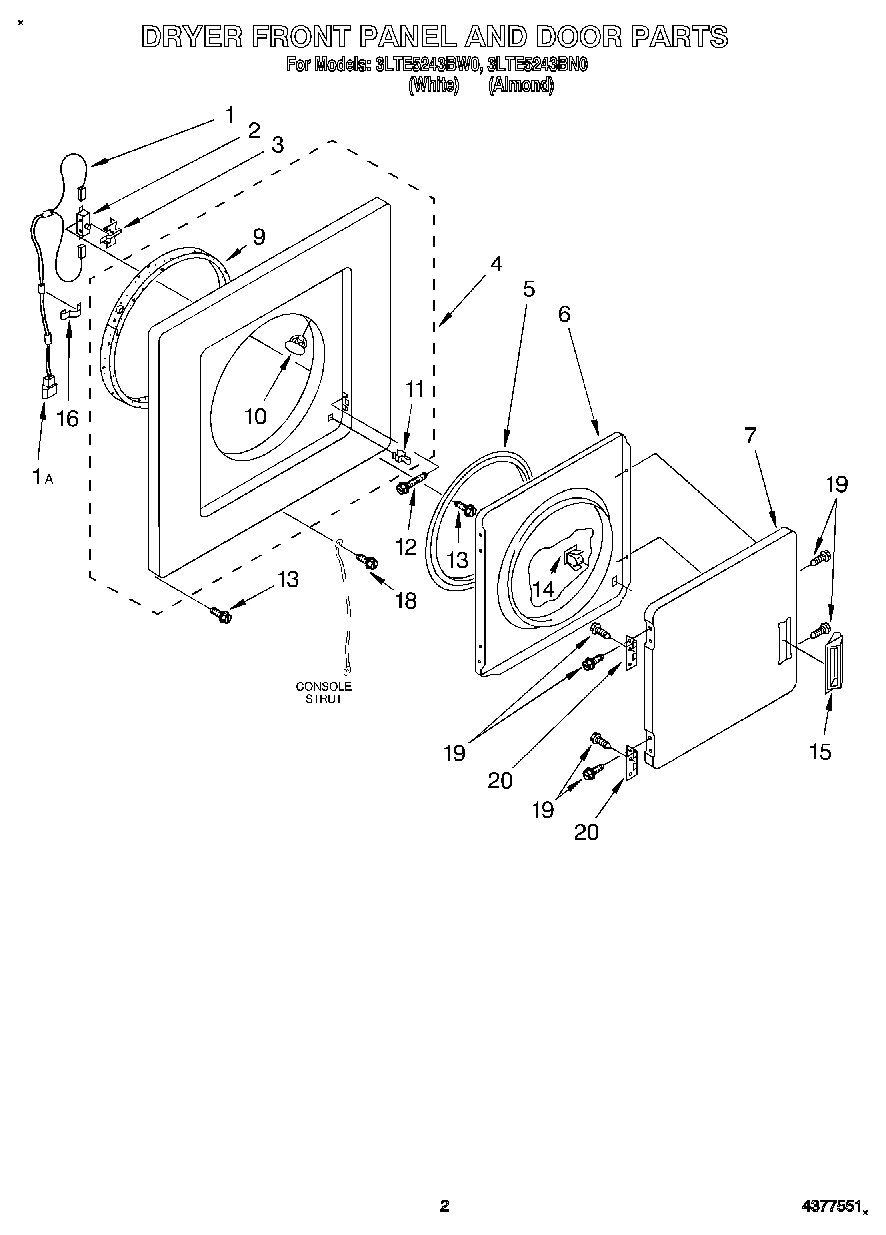

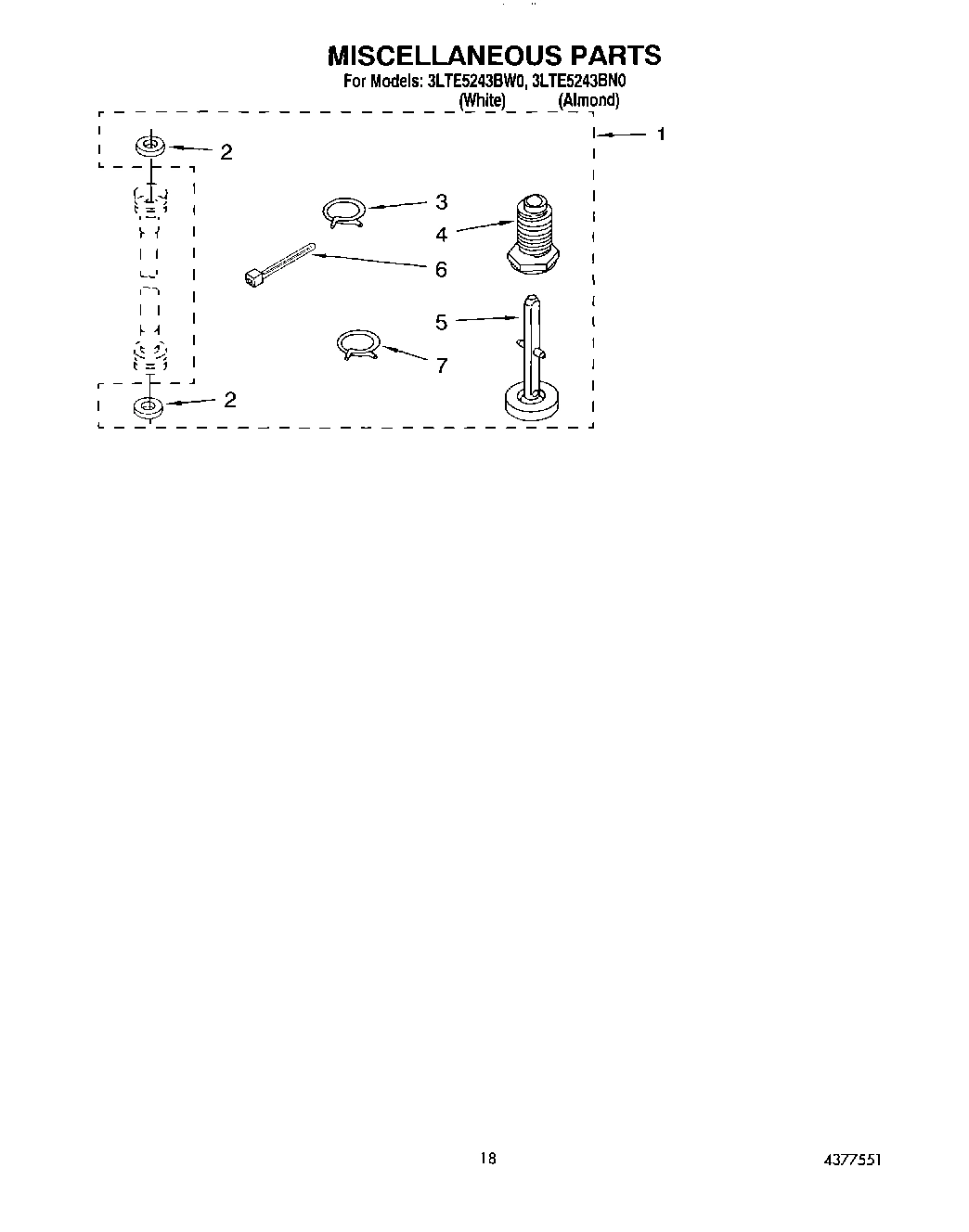

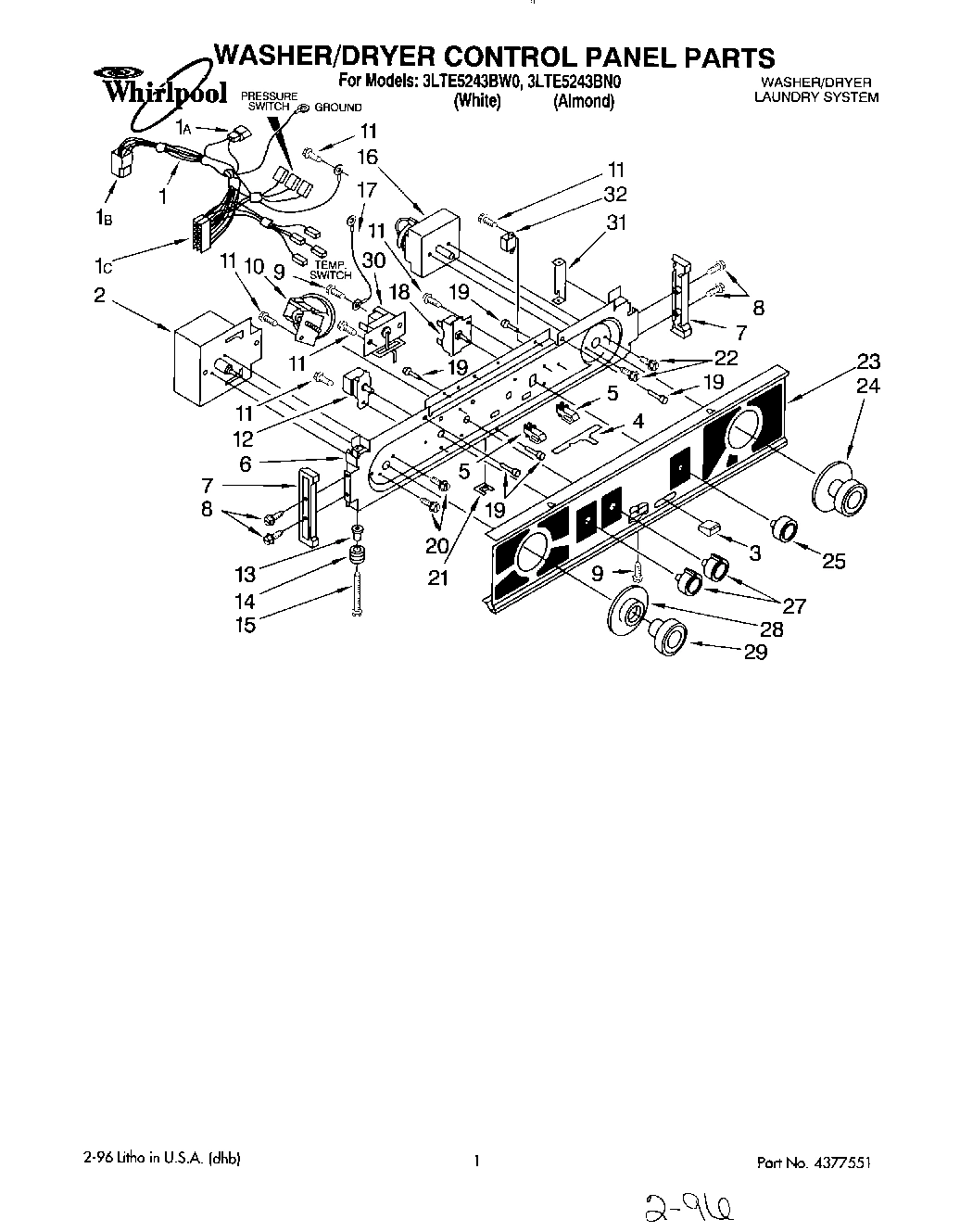

Model Whirlpool 3LTE5243BW0 WASHER/DRYER LAUNDRY SYSTEM – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

692790 Whirlpool Plug Backorder WPL 692790 $53.93

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

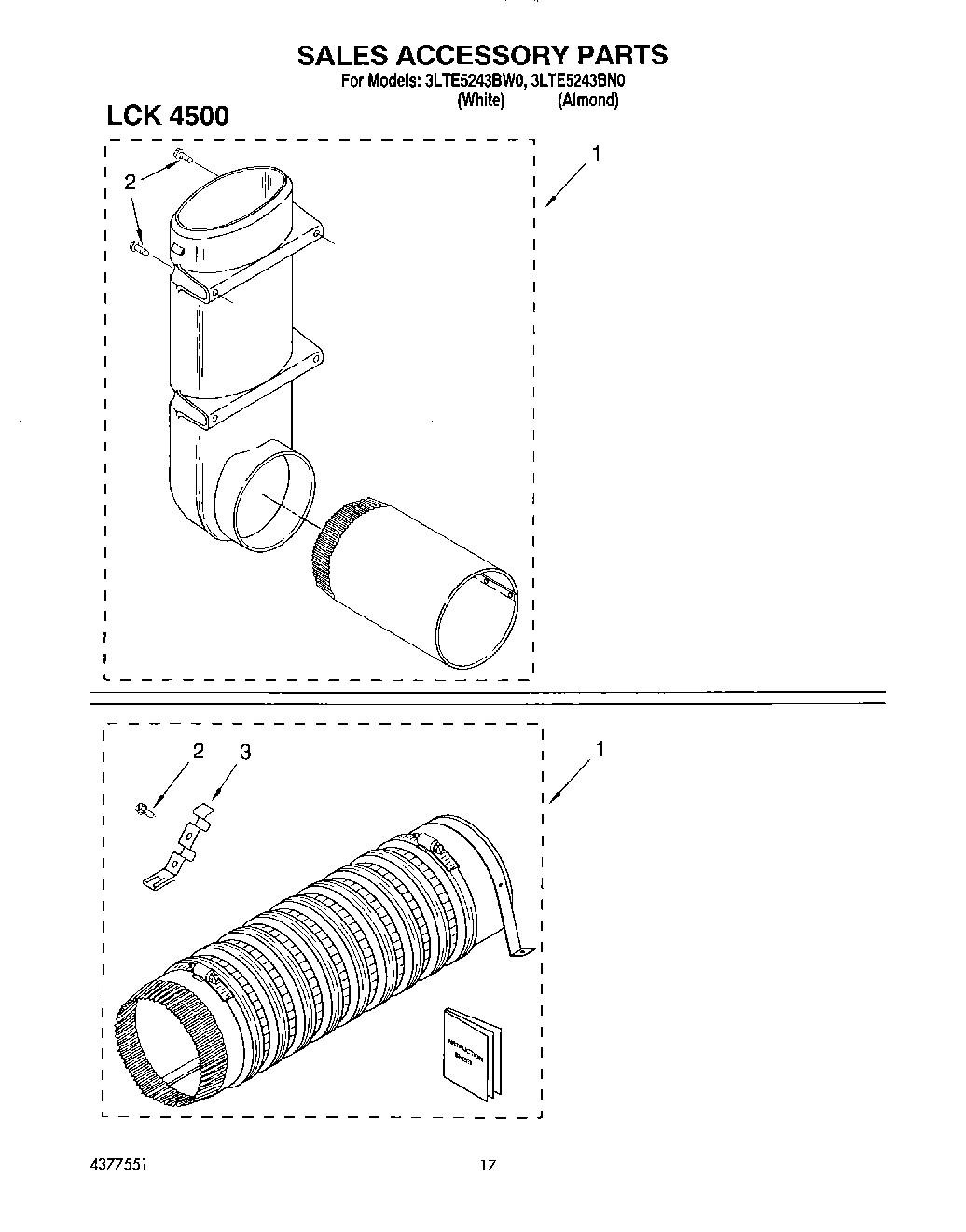

1

279823 Whirlpool Exhaust Pipe Backorder WPL 279823 $90.30

1

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

1

285321 Whirlpool Sleeve Backorder WPL 285321 $54.14

1

356746 Whirlpool Clip Backorder WPL 356746 $14.02

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $9.65

1

Exhaust Deflector Kit (Complete) WPL 694609 Contact Us For Availability

1

Harness, Door Switch (Includes Illus. 1A) WPL 692728 Contact Us For Availability

1A

3350130 Whirlpool Connector Backorder WPL 3350130 $8.82

1A

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $4.55

1B

696073 Whirlpool Connector Backorder WPL 696073 $60.09

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $27.54

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

3

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP3395536 Whirlpool Clip Assembly Backorder WPL WP3395536 $55.18

3

WP3398848 Whirlpool Lid Backorder WPL WP3398848 $212.66

3

WP63840 Whirlpool Filter In Stock WPL WP63840 $148.99

3

WP64137 Whirlpool Shield Assembly Backorder WPL WP64137 $18.59

3

WP691581 Whirlpool Actuator In Stock WPL WP691581 $7.99

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

3

Lid (Almond) WPL 3398844 Contact Us For Availability

4

285314 Whirlpool O/S1 Panel In Stock WPL 285314 $330.65

4

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

4

80011 Whirlpool Washer Lid Bumper Kit of 2 In Stock WPL 80011 $8.71

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

4

WP3349098 Whirlpool Agitator Assembly In Stock WPL WP3349098 $121.51

4

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.99

4

Panel, Front (Almond) WPL 692620 Contact Us For Availability

5

285664 Whirlpool Drain Hose In Stock WPL 285664 $21.99

5

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $43.99

5

384458 Whirlpool Hinge Assembly Backorder WPL 384458 $57.89

5

696541 Whirlpool Base Backorder WPL 696541 $60.36

5

W10207783 Whirlpool Washer Suspension Spring In Stock WPL W10207783 $132.49

5

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $33.70

5

WP3387137 Whirlpool Thermostat In Stock WPL WP3387137 $88.77

5

Tub Ring & Gasket (Includes Illus. 7, 14 & 15 WPL 64175 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

280077 Whirlpool Door Backorder WPL 280077 $116.66

6

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

6

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $187.55

6

WP8577373 Whirlpool Base Assembly In Stock WPL WP8577373 $215.99

6B

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

6C

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

7

End Cap, Console (L.H. & R.H.) WPL 692993 No Longer Available

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

7

WP3359587 Whirlpool Tub Seal Backorder WPL WP3359587 $17.57

7

WP348205 Whirlpool Door Backorder WPL WP348205 $91.02

7

WP692699 Whirlpool Hose In Stock WPL WP692699 $27.63

7

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

7

Door, Front (Almond) WPL 689314 Contact Us For Availability

8

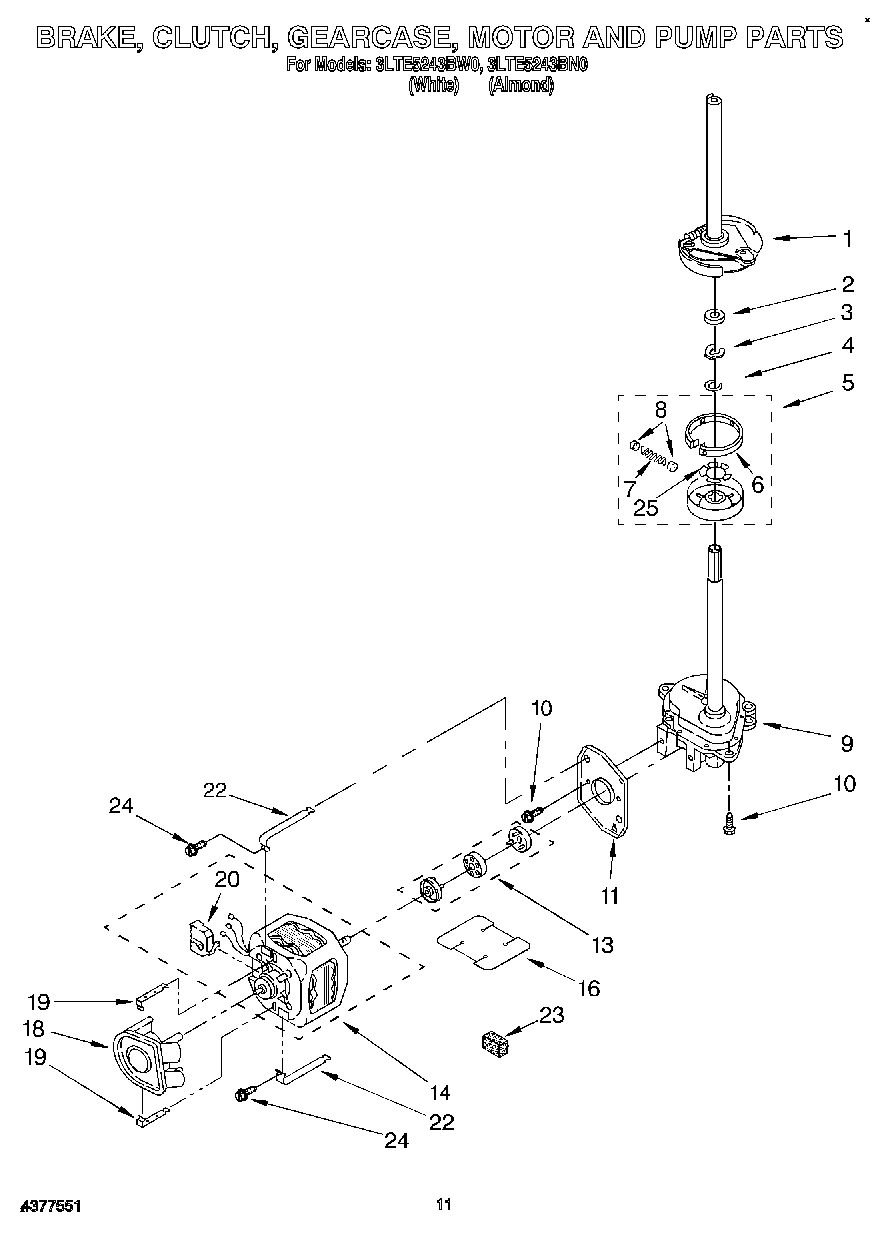

285438 Whirlpool Brake Shoe In Stock WPL 285438 $103.99

8

Basket WPL 3351985 Contact Us For Availability

9

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $60.99

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

9

WP692985 Whirlpool Clip Assembly Backorder WPL WP692985 $4.82

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.98

9

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

9

Tub WPL 63782 Contact Us For Availability

279220 Whirlpool Clip In Stock WPL 279220 $18.99

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

W11213338 Whirlpool Connector Backorder WPL W11213338 $47.92

WP3362987 Whirlpool Washer Water Level Switch In Stock WPL WP3362987 $134.99

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP696710 Whirlpool Hose In Stock WPL WP696710 $39.99

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.99

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.99

WP3401380 Whirlpool Box In Stock WPL WP3401380 $191.52

WP63748 Whirlpool Spring Backorder WPL WP63748 $4.82

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $16.85

285442 Whirlpool Coupling Backorder WPL 285442 $59.26

62619 Whirlpool Washer Backorder WPL 62619 $8.89

W11095997 Whirlpool Seal In Stock WPL W11095997 $13.63

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

WP384693 Whirlpool Top Backorder WPL WP384693 $188.97

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $4.82

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

Top (Almond) WPL 384694 Contact Us For Availability

693711 Whirlpool Sleeve Backorder WPL 693711 $5.42

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.98

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

Bumper, Lid Hinge (2) WPL 19119 Contact Us For Availability

8577411 Whirlpool Pad Backorder WPL 8577411 $5.36

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $4.98

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

WP693151 Whirlpool Lock Spring Backorder WPL WP693151 $4.82

WP696426 Whirlpool Wheel In Stock WPL WP696426 $48.64

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

356398 Whirlpool Tube Backorder WPL 356398 $54.56

63636 Whirlpool Bracket Backorder WPL 63636 $30.61

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

WP3399849 Whirlpool Thermal Fuse In Stock WPL WP3399849 $15.71

WP356471 Whirlpool Cap In Stock WPL WP356471 $4.82

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $4.72

Handle, Door (Almond) WPL 689308 Contact Us For Availability

WP356363 Whirlpool Siphon Break In Stock WPL WP356363 $7.99

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $8.99

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Support Protector WPL 692846 Contact Us For Availability

3399603 Whirlpool Elbow Backorder WPL 3399603 $77.77

384459 Whirlpool Hinge Backorder WPL 384459 $58.28

63637 Whirlpool Shield Backorder WPL 63637 $18.59

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

279710 Whirlpool Nut In Stock WPL 279710 $52.99

WP308544 Whirlpool Screw In Stock WPL WP308544 $4.82

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

WP696394 Whirlpool Hose In Stock WPL WP696394 $67.99

693152 Whirlpool Bumper In Stock WPL 693152 $11.45

W10863713 Whirlpool Support In Stock WPL W10863713 $288.78

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

THRMST-FIX WPL 696818 Contact Us For Availability

20

3394652 Whirlpool Drum Belt In Stock WPL 3394652 $32.46

20

W10080180 Whirlpool Nut Backorder WPL W10080180 $8.89

20

WP348023 Whirlpool Hinge Backorder WPL WP348023 $4.82

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

21

60001022 Whirlpool Oven Screw Backorder WPL 60001022 $39.77

21

694037 Whirlpool Clip Backorder WPL 694037 $56.53

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $7.99

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3355806 Whirlpool Lid Switch In Stock WPL WP3355806 $31.95

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $8.58

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

23

386011 Whirlpool Screw Backorder WPL 386011 $30.26

23

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $79.99

23

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

24

696044 Whirlpool Block In Stock WPL 696044 $57.56

24

WP359364 Whirlpool Clip In Stock WPL WP359364 $4.96

24

BAFFLE-DRM WPL 685207 Contact Us For Availability

25

WP692400 Whirlpool Nut In Stock WPL WP692400 $7.99

25

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

26

WP345670 Whirlpool Lock In Stock WPL WP345670 $7.99

27

692933 Whirlpool Panel Backorder WPL 692933 $148.74

27

Panel, Front (White) WPL 692628 Contact Us For Availability

W10828351 Whirlpool Dryer Filter Lint Screen In Stock WPL W10828351 $47.98

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $11.69

Dial, Timer (Washer) (White) WPL 3403095 Contact Us For Availability

Dial, Timer (Washer) (Almond) WPL 3403096 Contact Us For Availability

29

WP3364293 Whirlpool Timer Knob In Stock WPL WP3364293 $36.77

29

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $8.99

30

W11676450 Whirlpool Screw Backorder WPL W11676450 $8.89

30

WP693145 Whirlpool Lid Latch Backorder WPL WP693145 $54.39

30

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

31

WP692983 Whirlpool Console Lock Backorder WPL WP692983 $57.77

31

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $57.82

32

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $20.99

32

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $88.11

33

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

33

WP693304 Whirlpool Screw Backorder WPL WP693304 $4.82

34

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

35

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

36

Harness, Main Dryer Wiring (Includes Nos.36A, WPL 3404314 Contact Us For Availability

36A

Receptacle, Terminal (2-Way) (Connects With D WPL 717252 Contact Us For Availability

36B

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

37

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

37

CLIP WPL 693141 Contact Us For Availability

38

Cord, Power WPL 3387258 Contact Us For Availability

38A

W11712577 Whirlpool Clip In Stock WPL W11712577 $4.93

39

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $4.99

41

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $18.53

42

279318 Whirlpool Terminal In Stock WPL 279318 $46.99

43

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

48

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $5.74

49

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $13.22
