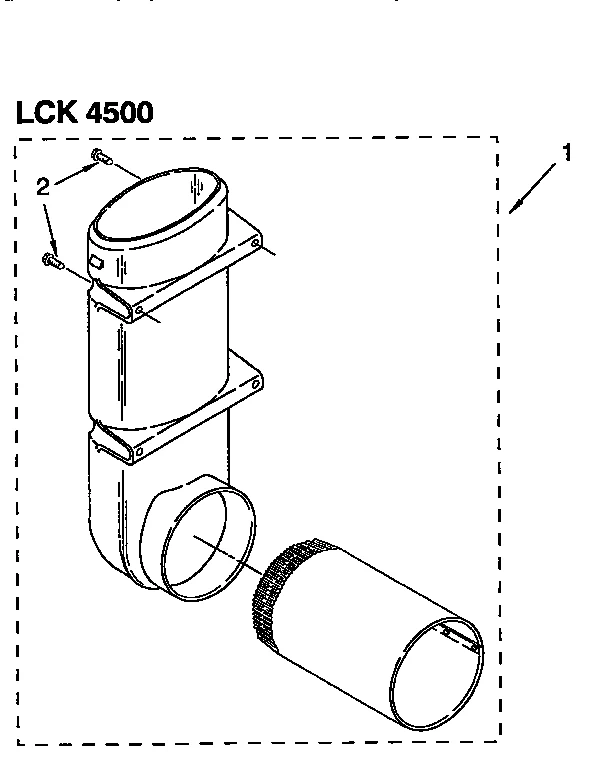

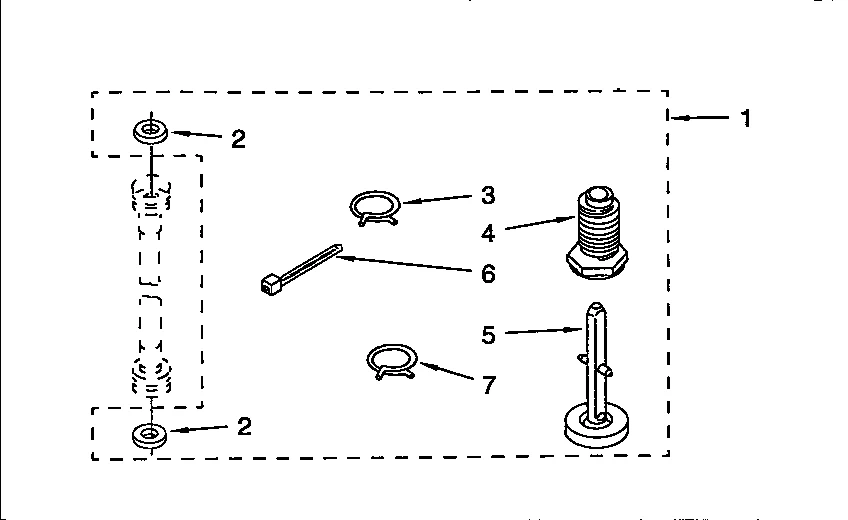

Model Whirlpool 110.99575810 Gas Washer/Dryer (Kenmore 11099575810) – Common Parts &amp; Diagrams

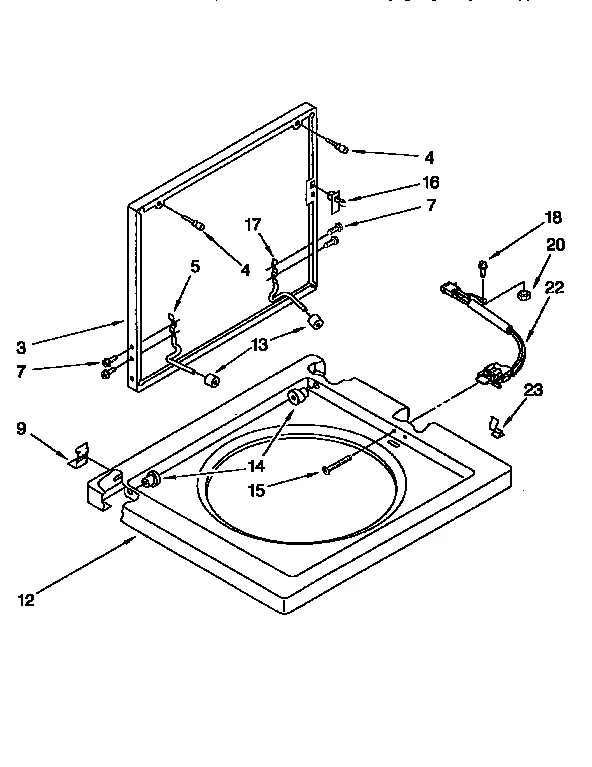

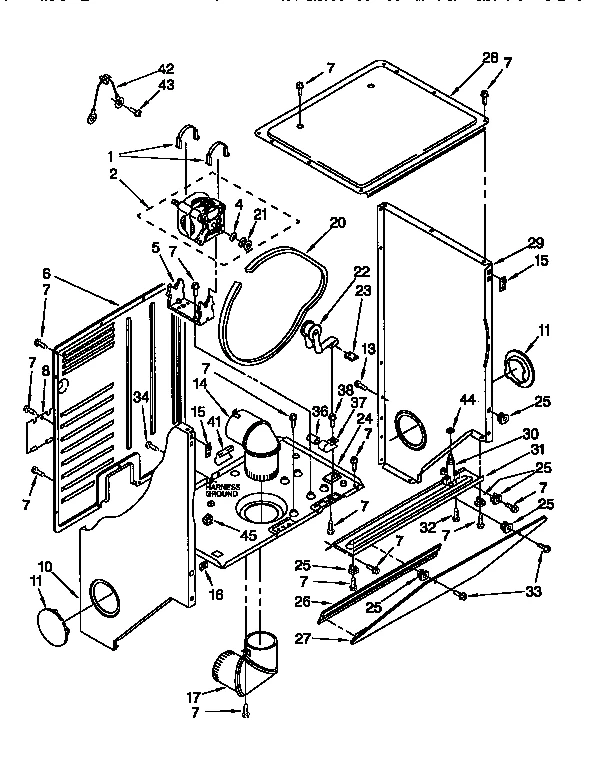

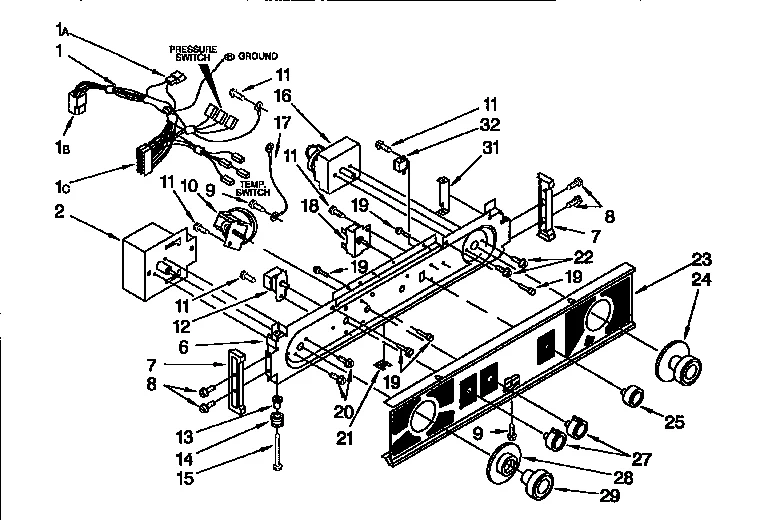

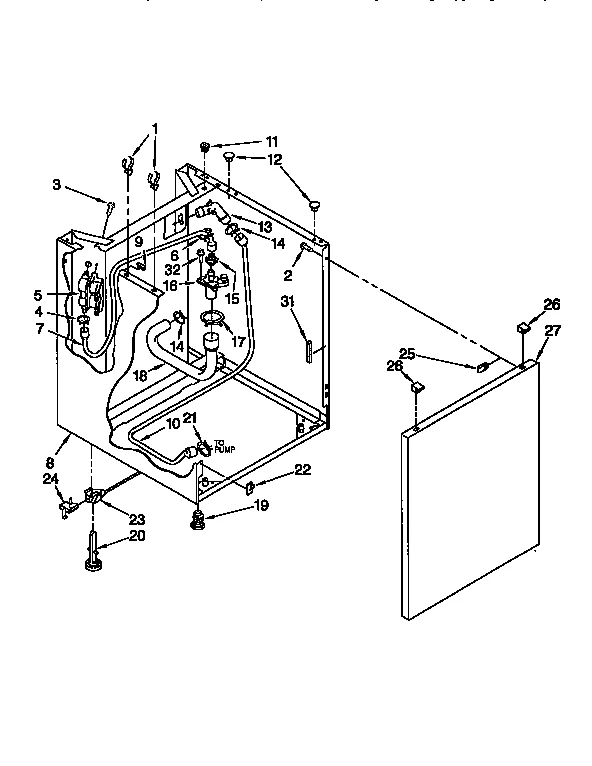

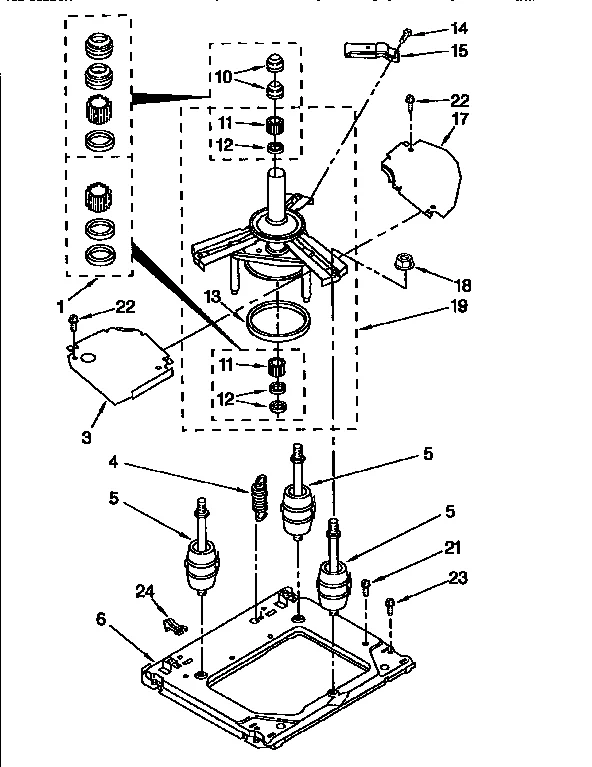

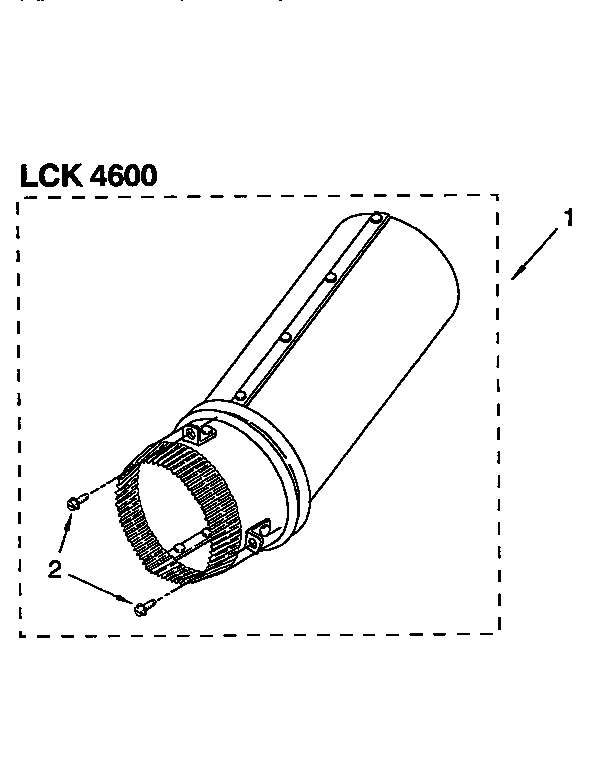

1

356746 Whirlpool Clip Backorder WPL 356746 $14.02

1

694304 Whirlpool Channel Cover Backorder WPL 694304 $53.30

1

WP387095 Whirlpool Cap Backorder WPL WP387095 $39.10

1

Wire Harness WPL 3398879 Contact Us For Availability

1

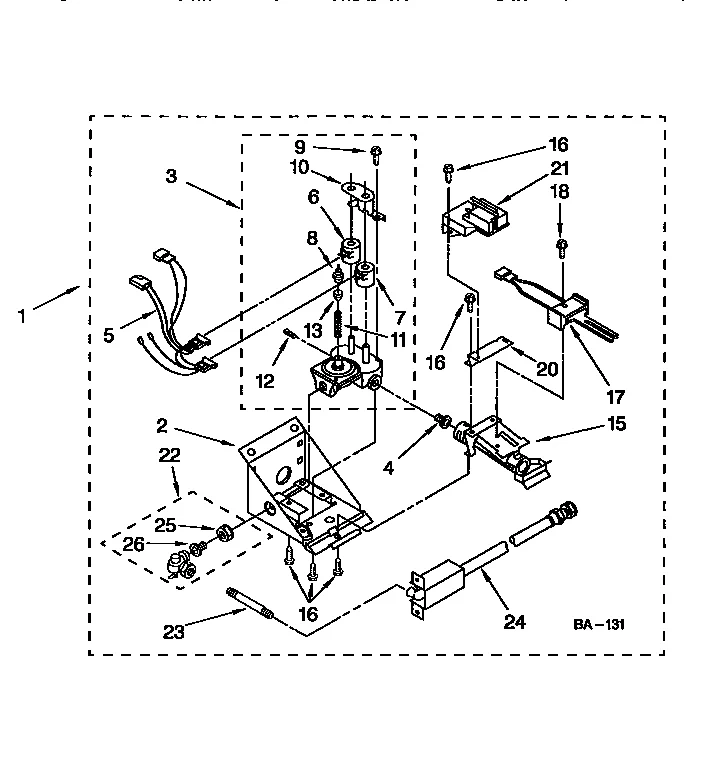

Gas Burner WPL 3401796 Contact Us For Availability

1A

3350130 Whirlpool Connector Backorder WPL 3350130 $8.82

1A

W10402145 Whirlpool LP Gas Connection Backorder WPL W10402145 $77.69

1B

696073 Whirlpool Connector Backorder WPL 696073 $64.30

1C

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

2

W11174025 Whirlpool Support Assembly Backorder WPL W11174025 $36.39

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP3946432 Whirlpool Timer In Stock WPL WP3946432 $217.64

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

Burner Base WPL 697408 Contact Us For Availability

3

63977 Whirlpool Agitator Auger Backorder WPL 63977 $135.27

3

696529 Whirlpool Air Duct Backorder WPL 696529 $82.24

3

WP3398848 Whirlpool Lid Backorder WPL WP3398848 $227.55

3

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

3

WP691581 Whirlpool Actuator In Stock WPL WP691581 $5.30

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $5.30

3A

Lid Al WPL 3387725 Contact Us For Availability

4

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $59.84

4

80011 Whirlpool Washer Lid Bumper Kit of 2 In Stock WPL 80011 $6.91

4

W11676450 Whirlpool Screw Backorder WPL W11676450 $8.89

4

WP234822 Whirlpool Gas Orifice Backorder WPL WP234822 $18.30

4

WP3349098 Whirlpool Agitator Assembly In Stock WPL WP3349098 $79.15

4

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $91.99

4

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

4

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

4A

WP347743 Whirlpool Gas Orifice Backorder WPL WP347743 $38.39

5

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.16

5

384458 Whirlpool Hinge Assembly Backorder WPL 384458 $61.94

5

696541 Whirlpool Base Backorder WPL 696541 $64.59

5

W11174024 Whirlpool Support Backorder WPL W11174024 $93.31

5

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $33.70

5

WP3398128 Whirlpool Cycling Thermostat In Stock WPL WP3398128 $40.72

5

WP3401849 Whirlpool Wire Harness Backorder WPL WP3401849 $85.18

5

Washer Tub Ring WPL 64175 Contact Us For Availability

6

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $25.18

6

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

6

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

6

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $62.59

6

Bracket WPL 694338 Contact Us For Availability

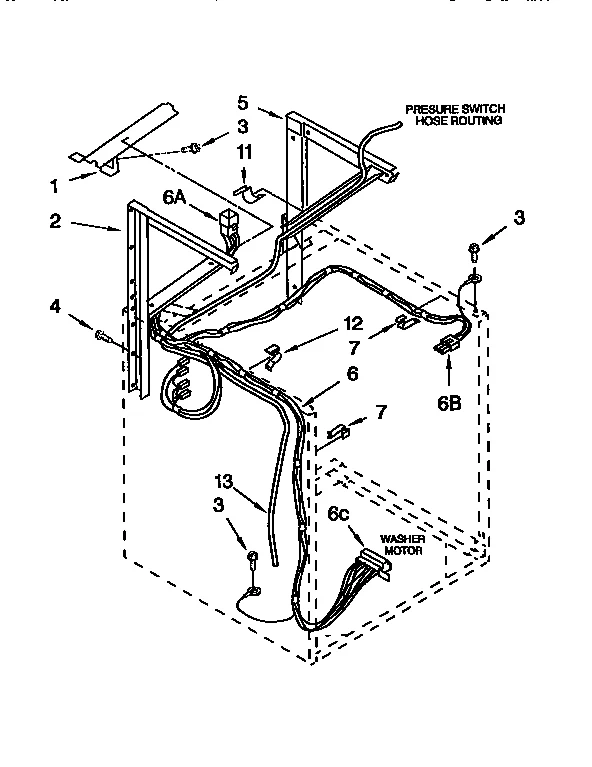

6

Laundry Center Wire Harness WPL 3388677 Contact Us For Availability

6A

Connector WPL 696074 Contact Us For Availability

6B

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

6C

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

7

End Cap (White) WPL 692993 No Longer Available

7

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

7

WP3359587 Whirlpool Tub Seal Backorder WPL WP3359587 $17.57

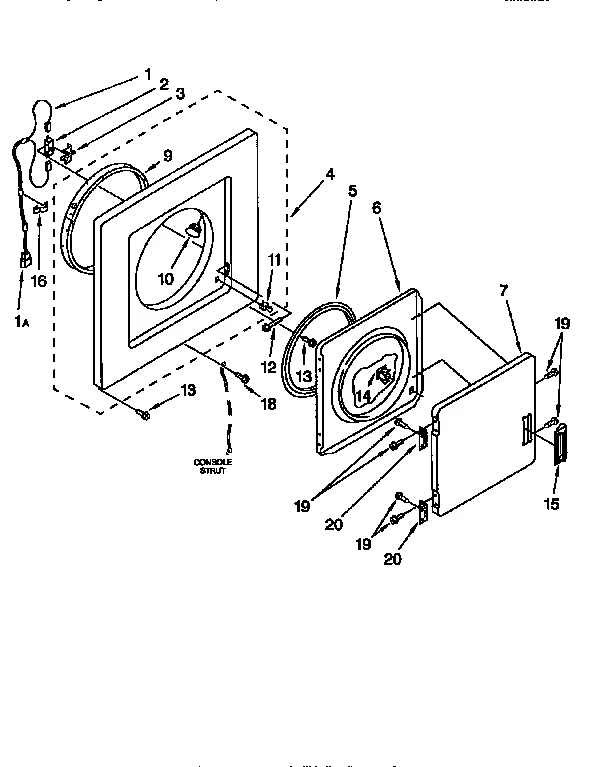

7

WP348205 Whirlpool Door Backorder WPL WP348205 $97.40

7

WP692699 Whirlpool Hose Backorder WPL WP692699 $27.63

7

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

8

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.32

8

Cabinet WPL 696013 Contact Us For Availability

8

Appliance Screw, 8-18 x 3/4-in WPL 348689 Contact Us For Availability

8A

Cabnt Al WPL 696014 Contact Us For Availability

9

3390046 Whirlpool Protector Backorder WPL 3390046 $5.51

9

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

9

WP692985 Whirlpool Clip Assembly Backorder WPL WP692985 $4.82

9

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

9

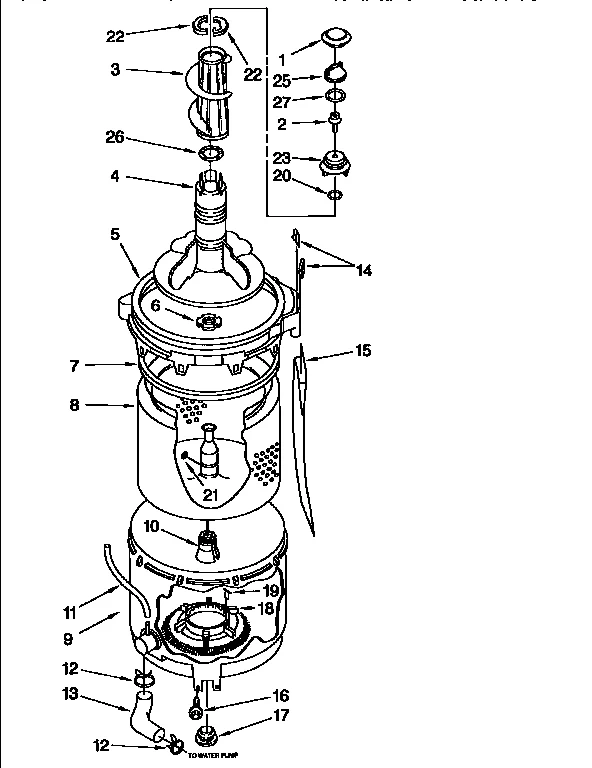

Washer Outer Tub WPL 63782 Contact Us For Availability

WP3362987 Whirlpool Washer Water Level Switch In Stock WPL WP3362987 $144.20

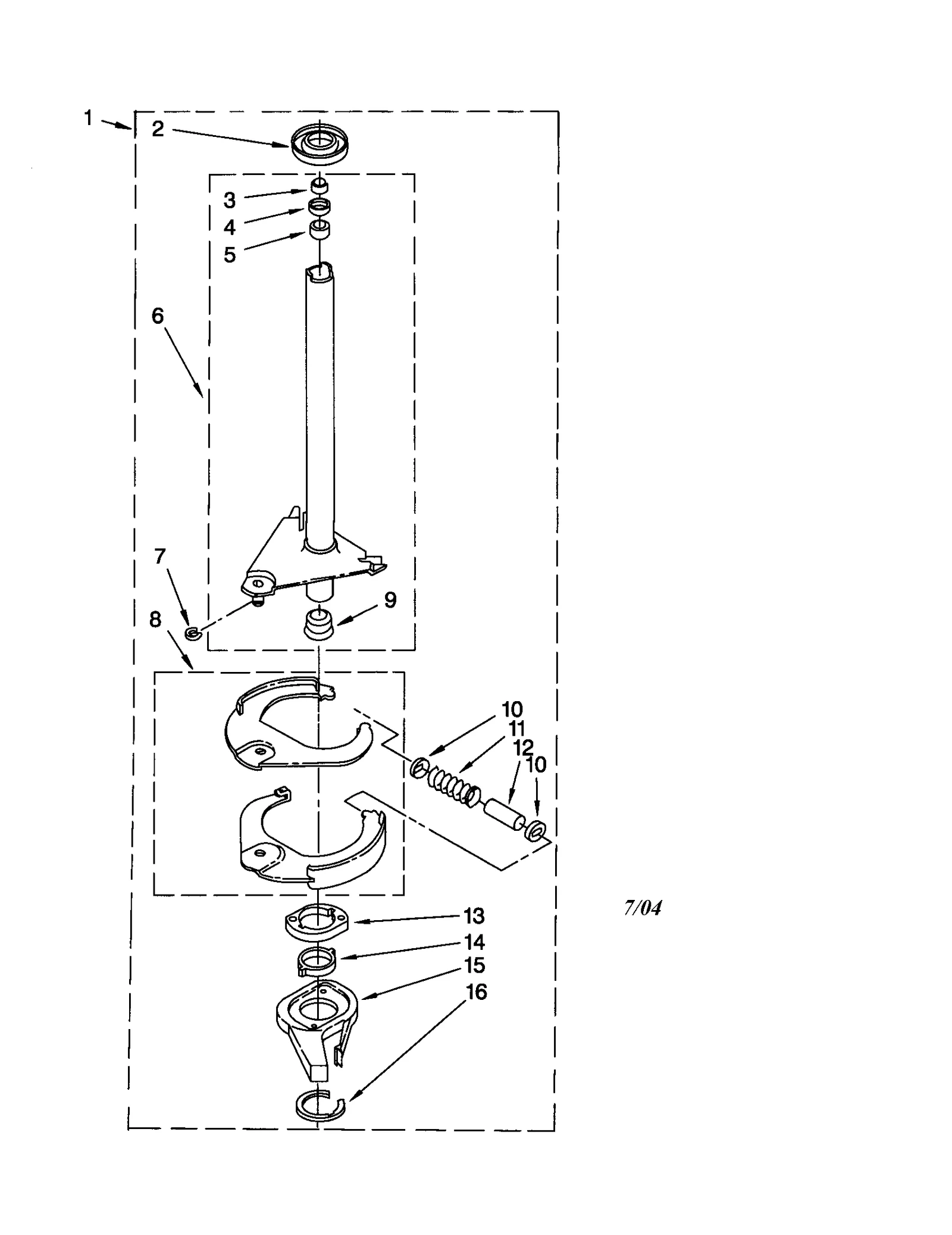

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

WP696710 Whirlpool Hose Backorder WPL WP696710 $39.99

Sears Canada Dryer Valve Coil Bracket WPL 694538 Contact Us For Availability

11

692790 Whirlpool Plug Backorder WPL 692790 $57.71

11

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

285442 Whirlpool Coupling Backorder WPL 285442 $63.41

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

WP384693 Whirlpool Top Backorder WPL WP384693 $202.20

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $4.82

Temperature Switch WPL 3363042 Contact Us For Availability

Clip WPL 693141 Contact Us For Availability

12A

Top (Almond) WPL 384694 Contact Us For Availability

280120 Whirlpool Hose Backorder WPL 280120 $24.55

693711 Whirlpool Sleeve Backorder WPL 693711 $5.42

W10834213 Whirlpool Hose Backorder WPL W10834213 $23.39

W11213338 Whirlpool Connector Backorder WPL W11213338 $51.27

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $5.30

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

8577411 Whirlpool Pad Backorder WPL 8577411 $5.36

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $5.30

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

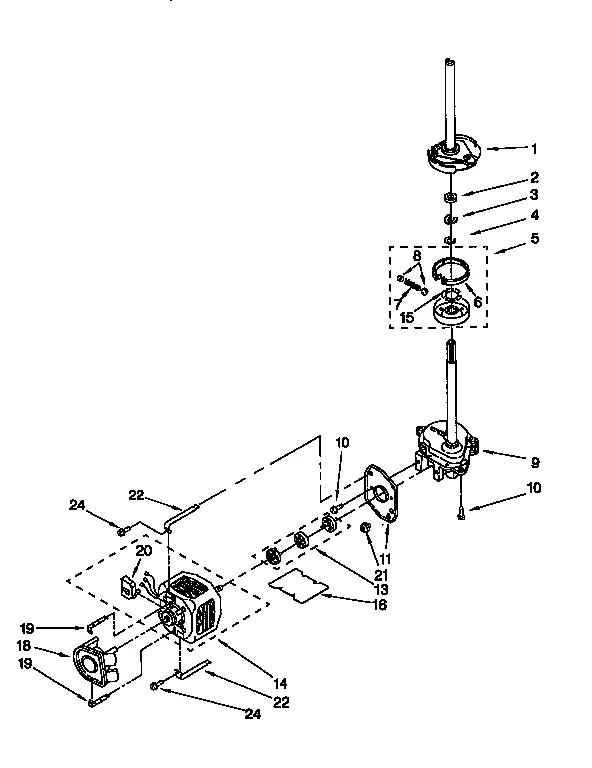

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $148.95

WP693151 Whirlpool Lock Spring Backorder WPL WP693151 $4.82

WP696426 Whirlpool Wheel In Stock WPL WP696426 $41.44

356398 Whirlpool Tube Backorder WPL 356398 $58.38

63636 Whirlpool Bracket Backorder WPL 63636 $32.75

8578392 Whirlpool Burner Backorder WPL 8578392 $107.55

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

WP356471 Whirlpool Cap In Stock WPL WP356471 $4.82

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $5.30

Console Lock Screw WPL 693710 Contact Us For Availability

15A

Dryer Door Handle WPL 689308 Contact Us For Availability

W11573574 Whirlpool Screw In Stock WPL W11573574 $11.38

WP356363 Whirlpool Siphon Break In Stock WPL WP356363 $5.30

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $5.30

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.09

Timer WPL 696165 Contact Us For Availability

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $32.84

3399603 Whirlpool Elbow Backorder WPL 3399603 $83.21

384459 Whirlpool Hinge Backorder WPL 384459 $62.36

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

Strut WPL 693175 Contact Us For Availability

WP308544 Whirlpool Screw In Stock WPL WP308544 $4.82

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

WP696394 Whirlpool Hose In Stock WPL WP696394 $46.00

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

Filtr-lint WPL 3351992 Contact Us For Availability

Push-to-Start Switch WPL 660936 Contact Us For Availability

693152 Whirlpool Bumper In Stock WPL 693152 $11.45

W10863713 Whirlpool Support In Stock WPL W10863713 $243.69

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $11.69

Clip WPL 383718 Contact Us For Availability

3394652 Whirlpool Drum Belt In Stock WPL 3394652 $48.48

W10080180 Whirlpool Nut Backorder WPL W10080180 $8.89

WP348023 Whirlpool Hinge Backorder WPL WP348023 $4.82

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $9.46

O-Ring WPL 64002 Contact Us For Availability

Bracket WPL 697409 Contact Us For Availability

694037 Whirlpool Clip Backorder WPL 694037 $60.49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $27.24

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

Stopper WPL 21265 Contact Us For Availability

Dryer Gas Shut-Off Valve WPL 697441 No Longer Available

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $4.85

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $8.77

WP3355806 Whirlpool Lid Switch In Stock WPL WP3355806 $33.37

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $3.92

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $16.43

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

285751 Whirlpool Washer Agitator Cam and 4 Do In Stock WPL 285751 $18.91

386011 Whirlpool Screw Backorder WPL 386011 $32.38

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $53.86

WP358652 Whirlpool Link Backorder WPL WP358652 $58.19

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

Control Panel WPL 3398815 Contact Us For Availability

23A

Control Panel WPL 3398824 Contact Us For Availability

696044 Whirlpool Block In Stock WPL 696044 $61.59

WP359364 Whirlpool Clip In Stock WPL WP359364 $5.30

WP3957750 Whirlpool Knob Backorder WPL WP3957750 $46.21

Sears Canada Dryer Drum Baffle WPL 685207 Contact Us For Availability

Gas Line WPL 3391118 Contact Us For Availability

285550 Whirlpool Cap Backorder WPL 285550 $63.20

WP3957800 Whirlpool Knob Backorder WPL WP3957800 $38.51

WP692400 Whirlpool Nut In Stock WPL WP692400 $5.30

WP98234 Whirlpool Nut In Stock WPL WP98234 $7.88

Nut Union WPL 233076 Contact Us For Availability

26

285620 Whirlpool Washer In Stock WPL 285620 $7.86

26

3393767 Whirlpool Pipe Backorder WPL 3393767 $97.32

26

WP345670 Whirlpool Lock In Stock WPL WP345670 $5.30

692933 Whirlpool Panel Backorder WPL 692933 $159.16

WP3957796 Whirlpool Knob Backorder WPL WP3957796 $40.49

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $5.30

Washer Front Panel WPL 692628 Contact Us For Availability

27A

3957797 Whirlpool Knob Backorder WPL 3957797 $38.51

27A

Panel (Almond) WPL 692629 Contact Us For Availability

28

Dial Wh WPL 3398325 Contact Us For Availability

28A

Dial Al WPL 3398326 Contact Us For Availability

29

WP3364293 Whirlpool Timer Knob In Stock WPL WP3364293 $39.34

29A

Washer Control Knob WPL 3358422 Contact Us For Availability

30

WP693145 Whirlpool Lid Latch In Stock WPL WP693145 $58.20

31

3350013 Whirlpool Foam Seal Backorder WPL 3350013 $62.14

31

WP692983 Whirlpool Console Lock Backorder WPL WP692983 $61.81

32

60001022 Whirlpool Oven Screw Backorder WPL 60001022 $42.56

32

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $94.27

33

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

33

WP693304 Whirlpool Screw Backorder WPL WP693304 $4.82

34

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

35

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

36B

Connector WPL 697780 Contact Us For Availability

36D

3395683 Whirlpool Connector Backorder WPL 3395683 $39.64

37

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

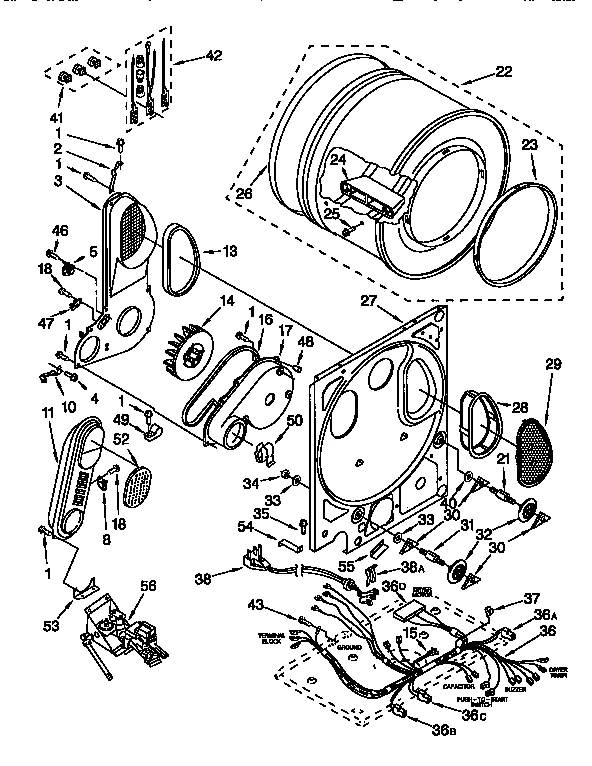

41

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $19.81

42

279318 Whirlpool Terminal In Stock WPL 279318 $52.31

44

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

47

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $17.27

52

345335 Whirlpool Cover Backorder WPL 345335 $75.27

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Paint (White) WPL 799344 Contact Us For Availability

Washer Brake Shoe Roller and Pin Lubricant WPL 285208 Contact Us For Availability

Grease WPL 389236 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability

Energy Guide WPL LIT3362287 Contact Us For Availability

Operating Instructions WPL LIT3394996 Contact Us For Availability

Installation Instructions WPL LIT3395334 Contact Us For Availability

Operating Instructions WPL LIT3398273 Contact Us For Availability

Wiring Diagram WPL LIT3399986 Contact Us For Availability

Parts List WPL LIT3401552 Contact Us For Availability

Laundry Guide WPL LIT694633 Contact Us For Availability
