Model Whirlpool 110.87994100 Dryer (Kenmore 11087994100) – Common Parts &amp; Diagrams

1

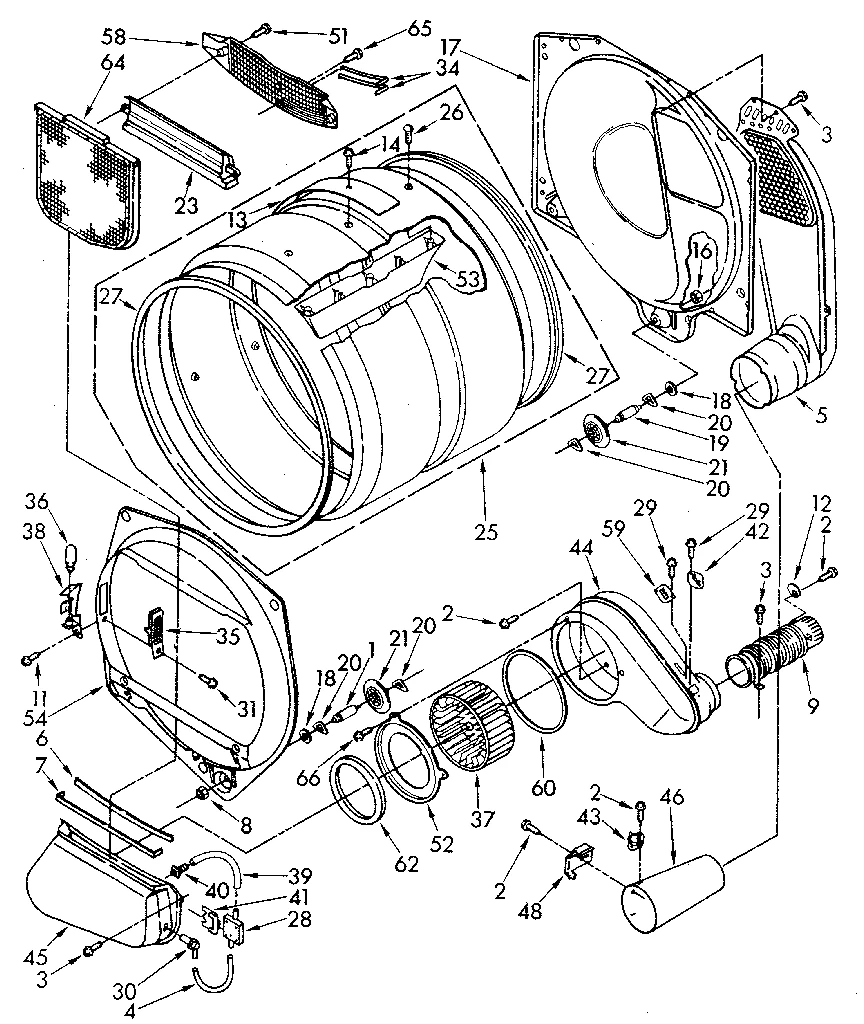

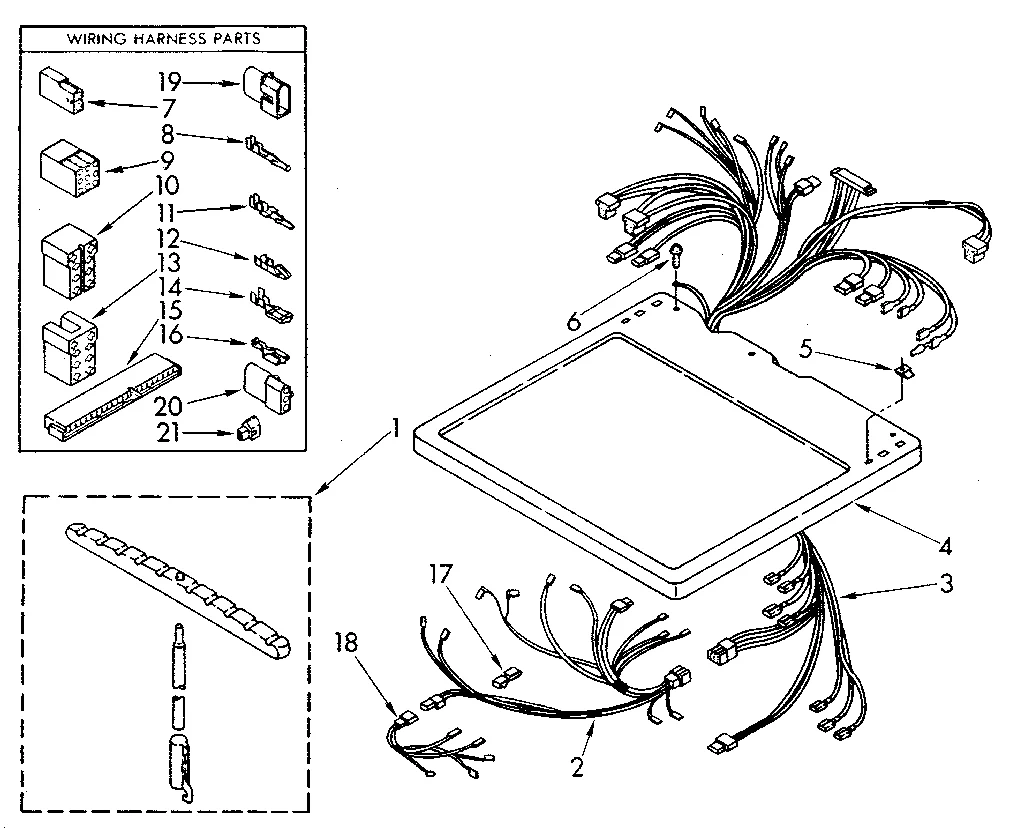

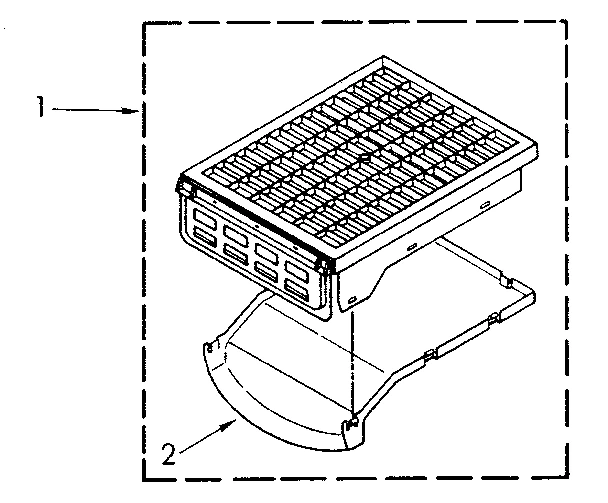

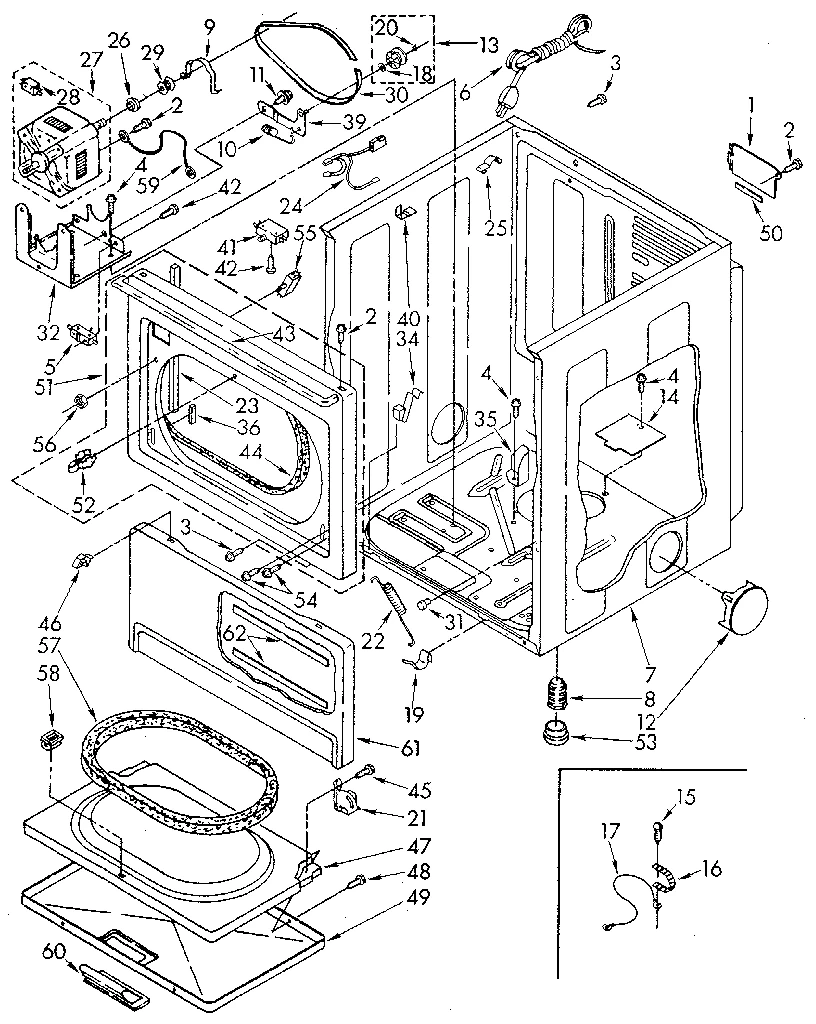

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $38.09

1

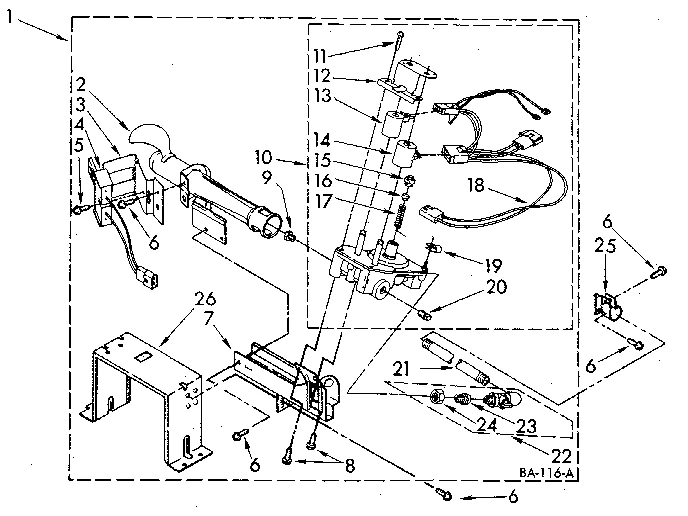

Gas Burner WPL 3387617 Contact Us For Availability

1

Hanger WPL 3388707 Contact Us For Availability

1A

Terminal Cover (White) WPL 3388624 Contact Us For Availability

1B

Terminal Cover (Almond) WPL 3388625 Contact Us For Availability

1C

Terminal Cover WPL 3388626 Contact Us For Availability

1D

Terminal Cover (Platinum) WPL 3388627 Contact Us For Availability

1E

Terminal Cover WPL 3388628 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $132.83

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

2

Wire Harness WPL 3390289 Contact Us For Availability

3

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

3

Wire Harness WPL 3390168 Contact Us For Availability

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $32.84

4

(338471) (ALT.) WPL N/P Contact Us For Availability

4

Tubing WPL 3391035 Contact Us For Availability

4A

Top W WPL 3388603 Contact Us For Availability

4B

Top Eby WPL 3388607 Contact Us For Availability

4C

Top Al WPL 3388604 Contact Us For Availability

4D

Top Tst WPL 3388605 Contact Us For Availability

4E

Top Plt WPL 3388606 Contact Us For Availability

5

WP3391902 Whirlpool Lid Switch In Stock WPL WP3391902 $33.33

5

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

5

Air Duct WPL 3387259 Contact Us For Availability

6

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $60.20

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.53

7

Sears Canada Bracket WPL 3389871 Contact Us For Availability

7A

Cabinet WPL 3388456 Contact Us For Availability

7A

Connector WPL 696669 Contact Us For Availability

7B

Cabnt Eby WPL 3388460 Contact Us For Availability

7B

PLUG (RED) WPL 717251 Contact Us For Availability

7C

Cabnt Al WPL 3388457 Contact Us For Availability

7C

Receptacle WPL 717252 Contact Us For Availability

7D

Cabnt Tst WPL 3388458 Contact Us For Availability

7E

Cabnt Plt WPL 3388459 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $4.07

8

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.09

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

9

Connector WPL 355410 Contact Us For Availability

9

Exhaust Extension WPL 3389494 Contact Us For Availability

9A

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

9B

Burner Orifice WPL 15775 Contact Us For Availability

9C

Burner Orifice WPL 15419 Contact Us For Availability

9D

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9E

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

10

279923 Whirlpool Gas Valve In Stock WPL 279923 $142.44

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $18.11

10A

Receptacle WPL 3387626 Contact Us For Availability

10B

Receptacle WPL 3387627 Contact Us For Availability

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

11

WP3389420 Whirlpool Screw Backorder WPL WP3389420 $4.99

11

Screw WPL 342043 Contact Us For Availability

12

Sears Canada Dryer Valve Coil Bracket WPL 694538 Contact Us For Availability

12

Terminal WPL 60279 Contact Us For Availability

12

Washer WPL 3390028 Contact Us For Availability

12B

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $70.15

12C

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $48.97

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $23.67

13

Housing WPL 60688 Contact Us For Availability

13

Aluminum Tape WPL 3388646 Contact Us For Availability

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $25.18

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $60.93

WPW10354249 Whirlpool Cover Backorder WPL WPW10354249 $4.82

Terminal WPL 308569 Contact Us For Availability

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.32

15

Screw WPL 3390648 Contact Us For Availability

15

Connector WPL 60278 Contact Us For Availability

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

Ground Strap WPL 22965 Contact Us For Availability

Terminal WPL 3388644 Contact Us For Availability

Hex Nut WPL 3387709 Contact Us For Availability

W11299300 Whirlpool Bulkhead Assembly Backorder WPL W11299300 $199.49

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

Ground Wire WPL 364089 Contact Us For Availability

Clip WPL 689180 Contact Us For Availability

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $11.95

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $185.70

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

Lint Harness WPL 3390290 Contact Us For Availability

WP297092 Whirlpool Clip In Stock WPL WP297092 $5.30

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $44.89

Washer Terminal Connector WPL 353424 Contact Us For Availability

Clip WPL 694510 Contact Us For Availability

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

Receptacle WPL 691707 Contact Us For Availability

WP3387560 Whirlpool Door Hinge In Stock WPL WP3387560 $79.52

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $4.55

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $18.60

Pipe WPL 3387224 Contact Us For Availability

21A

WP3387559 Whirlpool Door Hinge Backorder WPL WP3387559 $71.28

22

Dryer Gas Shut-Off Valve WPL 697441 No Longer Available

22

WP3387565 Whirlpool Door Spring Backorder WPL WP3387565 $25.62

22A

Endcap Wh WPL 3350662 Contact Us For Availability

22B

Endcap Plt WPL 3350665 Contact Us For Availability

22C

End Cap WPL 372138 Contact Us For Availability

22D

Endcap Tst WPL 3350664 Contact Us For Availability

22E

Endcap Alm WPL 3350663 Contact Us For Availability

3393767 Whirlpool Pipe Backorder WPL 3393767 $97.32

Light Tab WPL 343496 Contact Us For Availability

Light Seal WPL 3388392 Contact Us For Availability

Housing WPL 697768 Contact Us For Availability

24

Nut Union WPL 233076 Contact Us For Availability

24

End Cap Clip WPL 689559 Contact Us For Availability

24

Wire Harness WPL 3390159 Contact Us For Availability

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $13.22

25

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

25

W10545924 Whirlpool Drum Assembly Backorder WPL W10545924 $229.87

26

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $91.99

26

Bracket WPL 3389889 Contact Us For Availability

26

Screw WPL 697777 Contact Us For Availability

26A

Endcap Wh WPL 3350654 Contact Us For Availability

26B

Endcap Plt WPL 3350657 Contact Us For Availability

26C

End Cap WPL 372131 Contact Us For Availability

26D

Endcap Tst WPL 3350656 Contact Us For Availability

26E

Endcap Alm WPL 3350655 Contact Us For Availability

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $149.82

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $37.02

27

Lamp Ballast WPL 387700 Contact Us For Availability

28

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $78.97

28

Microcomputer WPL 3407051 Contact Us For Availability

28

Sensor WPL 3407033 Contact Us For Availability

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $9.23

29

Wire Harness WPL 696674 Contact Us For Availability

30

W11667280 Whirlpool Belt Assembly Backorder WPL W11667280 $20.15

30

Light Socket WPL 387698 Contact Us For Availability

30

Tap WPL 339625 Contact Us For Availability

31

693152 Whirlpool Bumper In Stock WPL 693152 $11.45

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $93.54

32

Screw WPL 3387486 Contact Us For Availability

33

Relay WPL 696819 Contact Us For Availability

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $5.19

34

Clip WPL 3388600 Contact Us For Availability

35

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $4.82

35

Guard Idler WPL 3389503 Contact Us For Availability

35

Lens WPL 3390788 Contact Us For Availability

36

Bumper WPL 3390174 Contact Us For Availability

36

Bulb WPL 3387683 Contact Us For Availability

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $48.15

37

Screw WPL 3387484 Contact Us For Availability

38

Socket WPL 3390655 Contact Us For Availability

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $27.19

39

Tubing WPL 339892 Contact Us For Availability

39A

Touch Module WPL 3390804 Contact Us For Availability

39B

Touch Module WPL 3390807 Contact Us For Availability

39C

Touch Module WPL 3390808 Contact Us For Availability

39D

Touch Module WPL 3390806 Contact Us For Availability

39E

Touch Module WPL 3390805 Contact Us For Availability

40

Harness Clip WPL 3390514 Contact Us For Availability

40

Relay WPL 389265 Contact Us For Availability

40

Tap WPL 339624 Contact Us For Availability

41

Lamp Cover WPL 3347692 Contact Us For Availability

41

Switch WPL 691361 Contact Us For Availability

41

Clip WPL 339745 Contact Us For Availability

42

WP3395530 Whirlpool Screw Backorder WPL WP3395530 $4.82

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $31.82

43

W11568973 Whirlpool Thermostat Fix Backorder WPL W11568973 $10.13

43

Control Panel WPL 64236 Contact Us For Availability

43

Trim Strip WPL 3388778 Contact Us For Availability

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $15.87

44

WP8544363 Whirlpool Housing Backorder WPL WP8544363 $106.28

44

Socket WPL 387699 Contact Us For Availability

45

Appliance Florescent Light Starter WPL 387695 Contact Us For Availability

45

Duct Lint WPL 3390533 Contact Us For Availability

46

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $5.30

46

Speaker WPL 387973 Contact Us For Availability

46

Funnel WPL 697757 Contact Us For Availability

47

Hinge Panel WPL 387402 Contact Us For Availability

47

Door WPL 697655 Contact Us For Availability

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $27.24

48A

Rear Panel (White) WPL 3387649 Contact Us For Availability

48B

Rear Panel (Platinum) WPL 3387652 Contact Us For Availability

48C

Rear Panel WPL 3387653 Contact Us For Availability

48D

Rear Panel WPL 3387651 Contact Us For Availability

48E

Rear Panel (Almond) WPL 3387650 Contact Us For Availability

49A

Dryer Door WPL 697221 Contact Us For Availability

49B

Door Eby WPL 3388441 Contact Us For Availability

49C

Door Al WPL 697222 Contact Us For Availability

49D

Door To WPL 697223 Contact Us For Availability

49E

Door Pl WPL 697224 Contact Us For Availability

50

Pad WPL 693960 Contact Us For Availability

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.28

51A

Panel WPL 3388511 Contact Us For Availability

51B

Panel Eby WPL 3388515 Contact Us For Availability

51C

Panel Al WPL 3388512 Contact Us For Availability

51D

Panel Tst WPL 3388513 Contact Us For Availability

51E

Panel Plt WPL 3388514 Contact Us For Availability

52

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $6.56

52

279780 Whirlpool Plate Cover Backorder WPL 279780 $65.26

53

WP3391943 Whirlpool Foot Boot Backorder WPL WP3391943 $4.82

53

Drum Baffle WPL 697693 Contact Us For Availability

54

Bulkhead WPL 697563 Contact Us For Availability

55A

Switch-mty WPL 3387542 Contact Us For Availability

55B

Switch-mty WPL 3387541 Contact Us For Availability

56

Nut WPL 3388390 Contact Us For Availability

57

W10823582 Whirlpool Door Seal In Stock WPL W10823582 $77.58

58

Grill WPL 697767 Contact Us For Availability

59

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $18.68

59

Wire WPL 3387376 Contact Us For Availability

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $5.30

60A

WP348721 Whirlpool Handle In Stock WPL WP348721 $45.66

60B

Handle WPL 693848 Contact Us For Availability

60C

Handle (Almond) WPL 695712 Contact Us For Availability

60D

Handle WPL 695713 Contact Us For Availability

60E

Handle (Platinum) WPL 695714 Contact Us For Availability

61A

WP3406797 Whirlpool Toe Panel Backorder WPL WP3406797 $157.17

61B

Toepnl Eby WPL 3390282 Contact Us For Availability

61C

Toepnl Al WPL 3390276 Contact Us For Availability

61D

Toepnl Tst WPL 3390278 Contact Us For Availability

61E

Toepnl Plt WPL 3390280 Contact Us For Availability

62

WP8566209 Whirlpool Seal Backorder WPL WP8566209 $37.28

62

Shield WPL 693925 Contact Us For Availability

64

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $26.66

65

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

66

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $26.29

Paint (White) WPL 799344 Contact Us For Availability

Conversion Kit WPL 279243 Contact Us For Availability

Spray (Toast) WPL 285365 Contact Us For Availability

Spray (Platinum) WPL 285366 Contact Us For Availability

Paint To WPL 285367 Contact Us For Availability

Paint Pl WPL 285368 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Spray WPL 786020 Contact Us For Availability

Paint (Ebony) WPL 786032 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability
