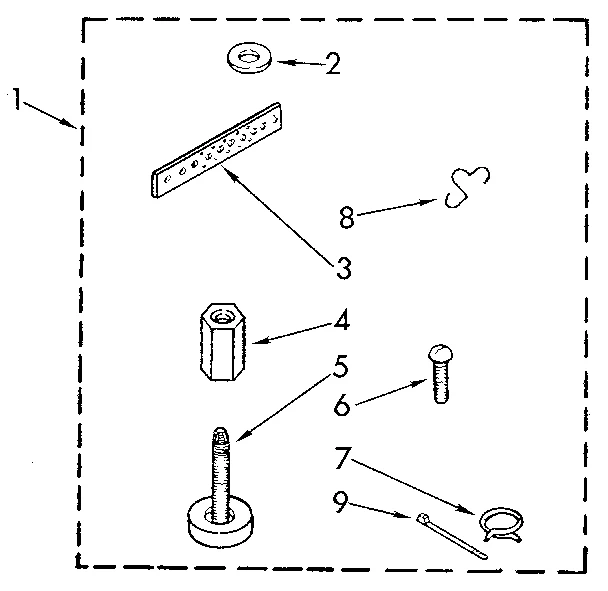

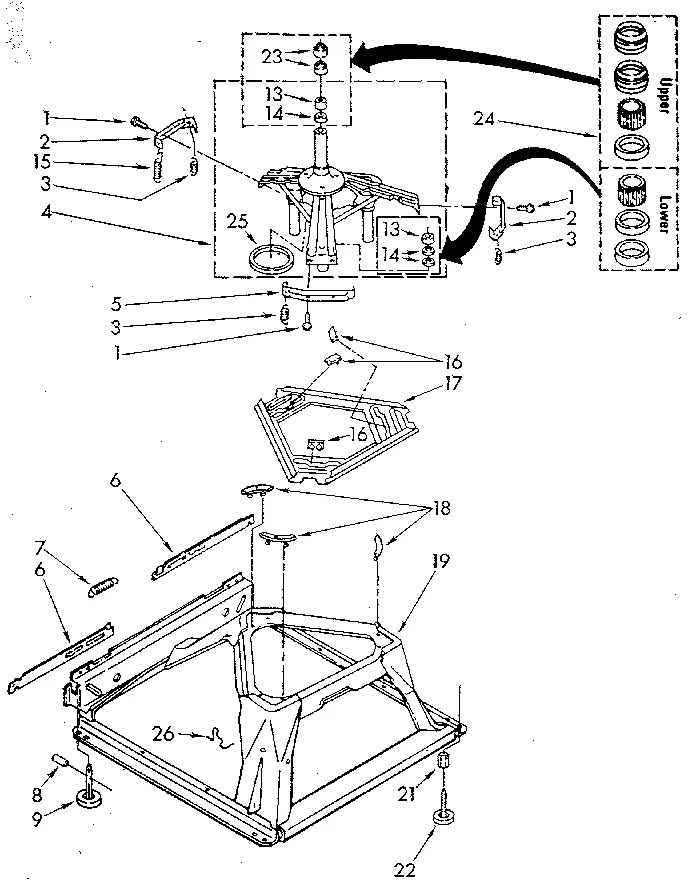

Model Whirlpool 110.81864620 Washer (Kenmore 11081864620) – Common Parts &amp; Diagrams

1

WP3352483 Whirlpool Cap Backorder WPL WP3352483 $43.18

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

1A

Laundry Guide WPL LIT3349103 Contact Us For Availability

1B

Installation Instructions WPL LIT3350299 Contact Us For Availability

1C

Operating Instructions WPL LIT3349401 Contact Us For Availability

1D

Technical Sheet WPL LIT3351284 Contact Us For Availability

1E

Wiring Diagram WPL LIT3351742 Contact Us For Availability

1F

Energy Guide WPL LIT3351201 Contact Us For Availability

1G

Parts List WPL LIT3351966 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $133.74

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

2

Washer Water-Level Pressure Switch WPL 387383 Contact Us For Availability

2A

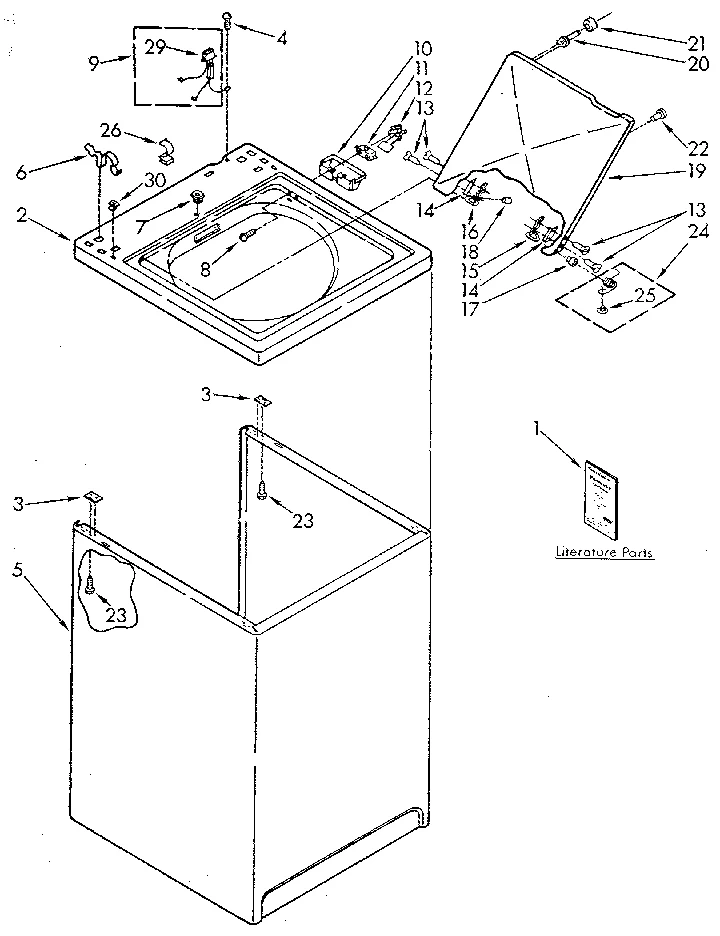

Top (White) WPL 63104 Contact Us For Availability

2B

Top WPL 63108 Contact Us For Availability

2C

Top (Almond) WPL 63105 Contact Us For Availability

2D

Top WPL 386649 Contact Us For Availability

2E

Platinum (Platinum) WPL 386650 Contact Us For Availability

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $15.68

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63594 Whirlpool Dispenser In Stock WPL WP63594 $23.37

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $12.77

3

Temperature Switch WPL 661538 Contact Us For Availability

4

285664 Whirlpool Drain Hose In Stock WPL 285664 $30.66

4

Bracket WPL 388250 Contact Us For Availability

5

Hinge Panel WPL 387402 Contact Us For Availability

5

Bracket WPL 64065 Contact Us For Availability

5A

Cabinet (White) WPL 63128 Contact Us For Availability

5B

Cabinet WPL 63132 Contact Us For Availability

5C

Cabinet (Almond) WPL 63129 Contact Us For Availability

5D

Cabinet WPL 386617 Contact Us For Availability

5E

Cabinet (Platinum) WPL 386618 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

6

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

6

Washer Leveling Link Assembly WPL 63138 Contact Us For Availability

6

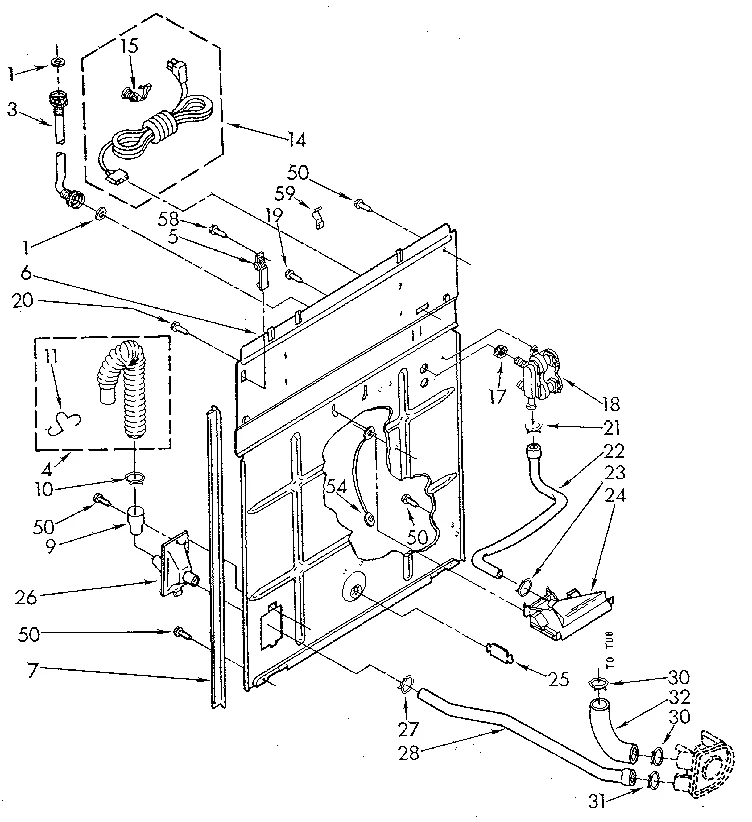

Rear Panel WPL 3349693 Contact Us For Availability

7

98460 Whirlpool Nut Backorder WPL 98460 $8.89

7

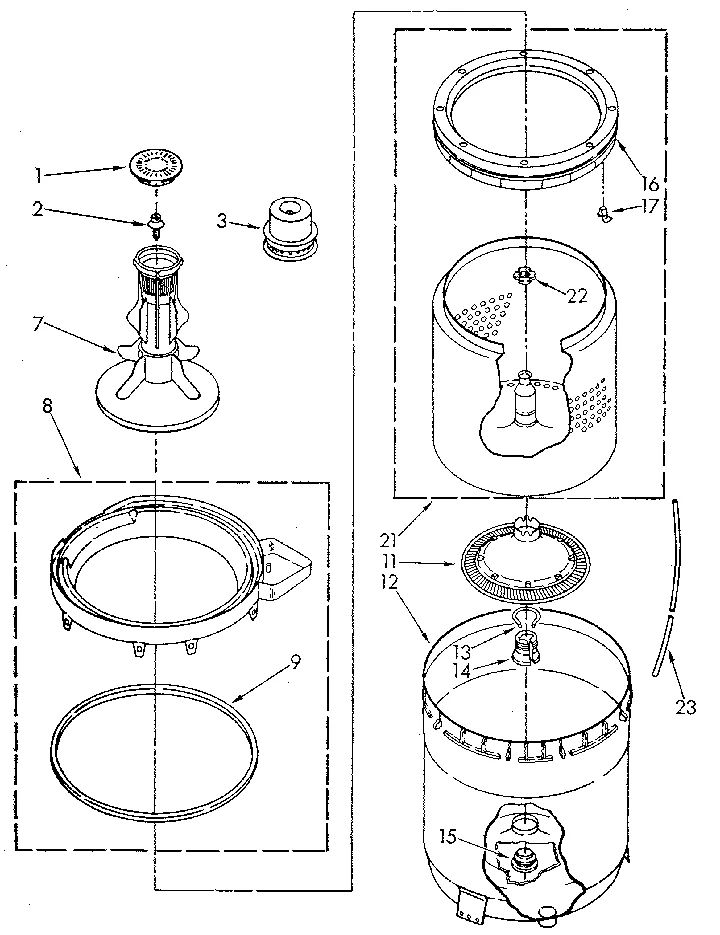

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $176.44

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

WPW10131112 Whirlpool Agitator In Stock WPL WPW10131112 $81.03

7

End Cap WPL 388203 Contact Us For Availability

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Terminal WPL 352088 Contact Us For Availability

8

Laundry Center Control Knob WPL 388029 Contact Us For Availability

8

Retaining Ring WPL 90369 Contact Us For Availability

8

Washer Lid Switch Screw WPL 354764 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $62.44

9

Washer Control Knob WPL 388026 Contact Us For Availability

9

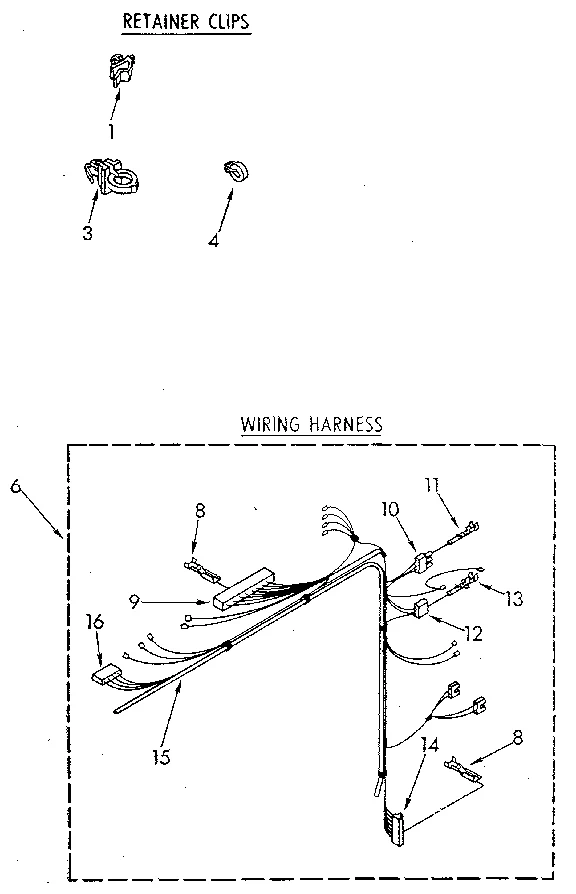

Harness WPL 63595 Contact Us For Availability

WP359231 Whirlpool Shield In Stock WPL WP359231 $5.99

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

End Cap WPL 388209 Contact Us For Availability

Spring WPL 62676 Contact Us For Availability

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $15.30

WP388257 Whirlpool Trim Ring Backorder WPL WP388257 $4.82

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

Retainer WPL 3350222 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

Washer Outer Tub WPL 63125 Contact Us For Availability

Washer Terminal Connector WPL 353424 Contact Us For Availability

Dial WPL 387996 Contact Us For Availability

Actuator WPL 357347 Contact Us For Availability

13

WP3362624 Whirlpool Washer Timer Knob In Stock WPL WP3362624 $27.37

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

13

Washer Filter Plate Lock Ring WPL 62942 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

End Cap Clip WPL 689559 Contact Us For Availability

Cord WPL 62734 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

Ground Wire WPL 388853 Contact Us For Availability

Shaft WPL 389231 Contact Us For Availability

Washer Power Cord Strain Relief WPL 63848 Contact Us For Availability

16

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

16

WP54583 Whirlpool Hinge In Stock WPL WP54583 $18.77

16

Washer WPL 62618 Contact Us For Availability

17

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

17

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

17

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $5.83

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.16

18

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

19

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

19

WP661549 Whirlpool Timer Assembly Backorder WPL WP661549 $238.29

19

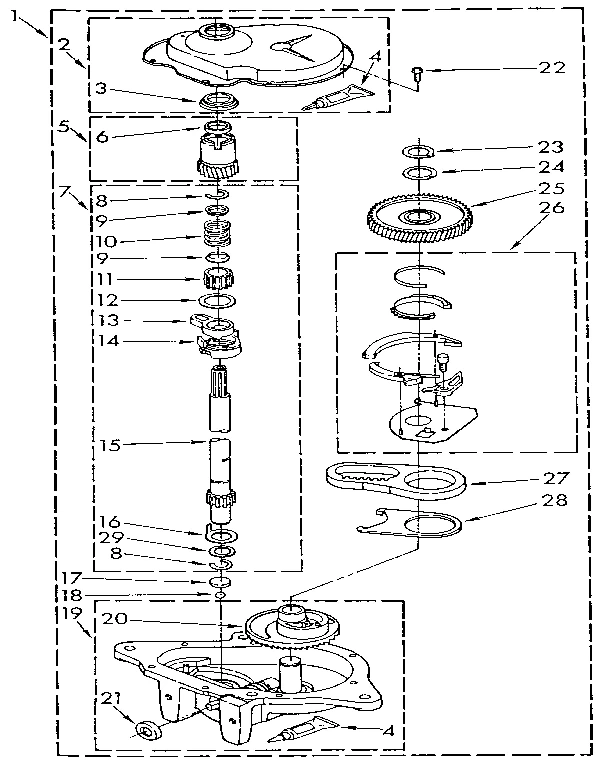

Gear Case WPL 389229 Contact Us For Availability

19A

Lid (White) WPL 63070 Contact Us For Availability

19B

Lid WPL 63074 Contact Us For Availability

19C

Lid (Almond) WPL 63071 Contact Us For Availability

19D

Lid WPL 385436 Contact Us For Availability

19E

Platinum (Platinum) WPL 385437 Contact Us For Availability

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $55.95

Gear WPL 62528 Contact Us For Availability

Strike WPL 357141 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $40.48

21

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

21

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $4.82

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $14.97

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

Rack WPL 3352312 Contact Us For Availability

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

Fastener WPL 3389802 Contact Us For Availability

Ring WPL 95082 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $40.15

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

Washer Kit WPL 285292 Contact Us For Availability

Hinge Spring WPL 3349948 Contact Us For Availability

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

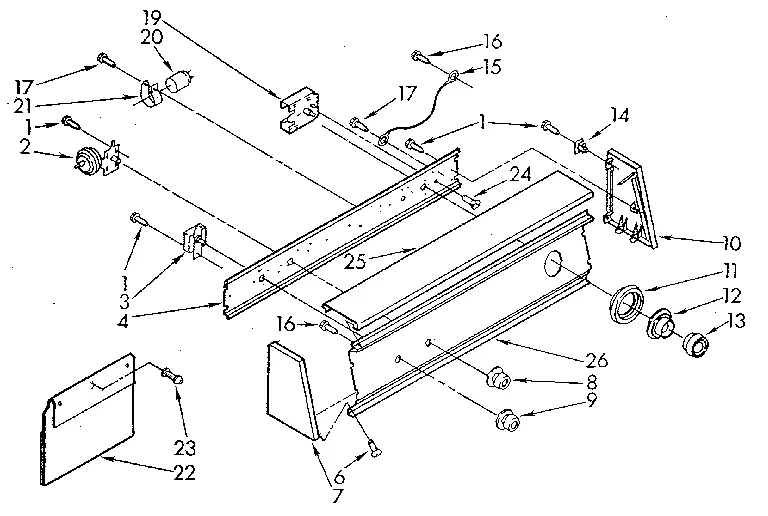

Control Panel WPL 3349269 Contact Us For Availability

Plug WPL 54690 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $42.58

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $22.96

Control Panel WPL 388265 Contact Us For Availability

27

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $54.39

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

29

Plug WPL 62888 Contact Us For Availability

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

31A

(338471) (ALT.) WPL N/P Contact Us For Availability

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $15.57

54

Ground Wire WPL 364089 Contact Us For Availability

58

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

59

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $13.75

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Paint (White) WPL 799344 Contact Us For Availability
