Model Whirlpool 110.28832700 Washer (Kenmore 11028832700) – Common Parts &amp; Diagrams

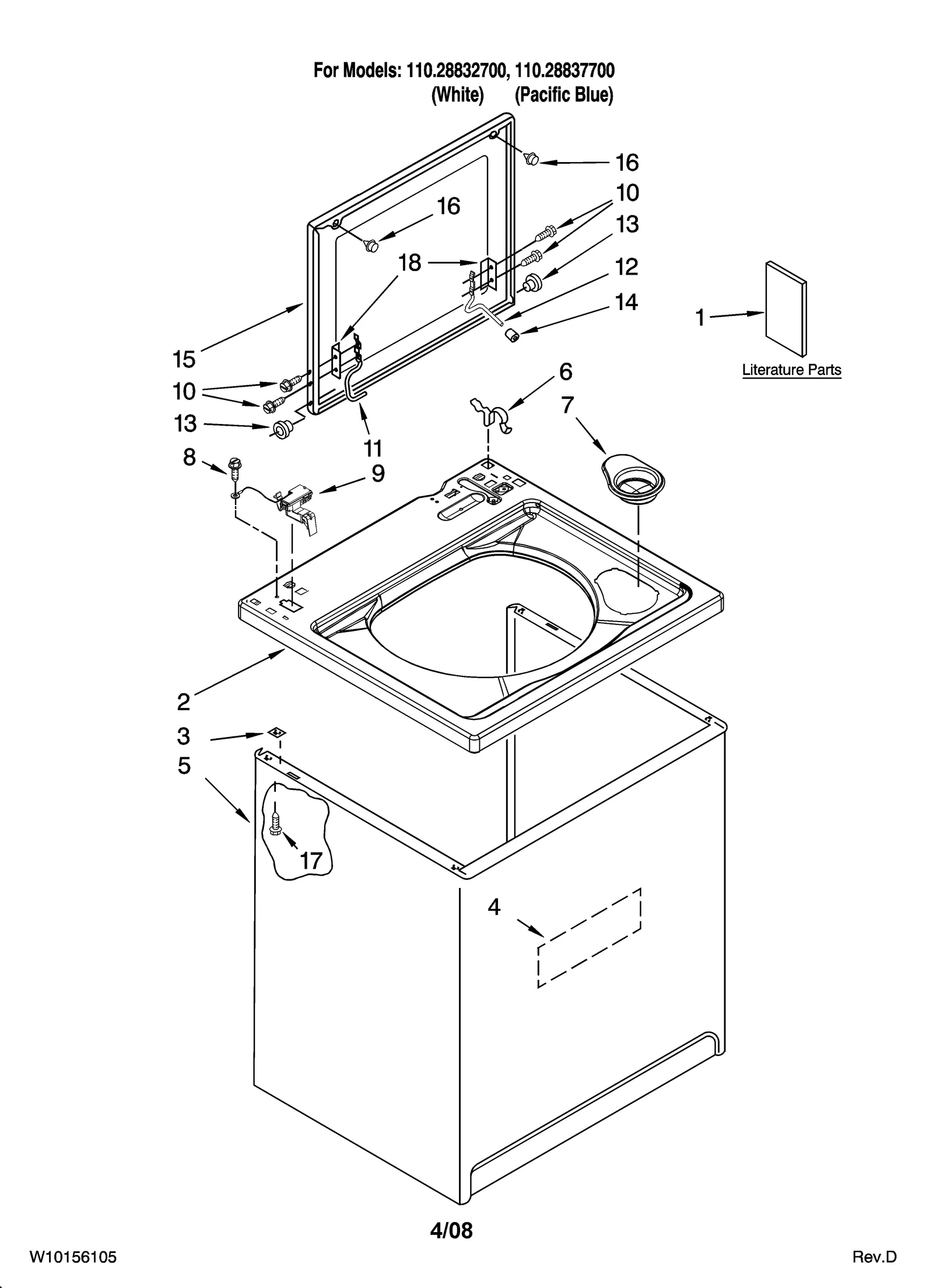

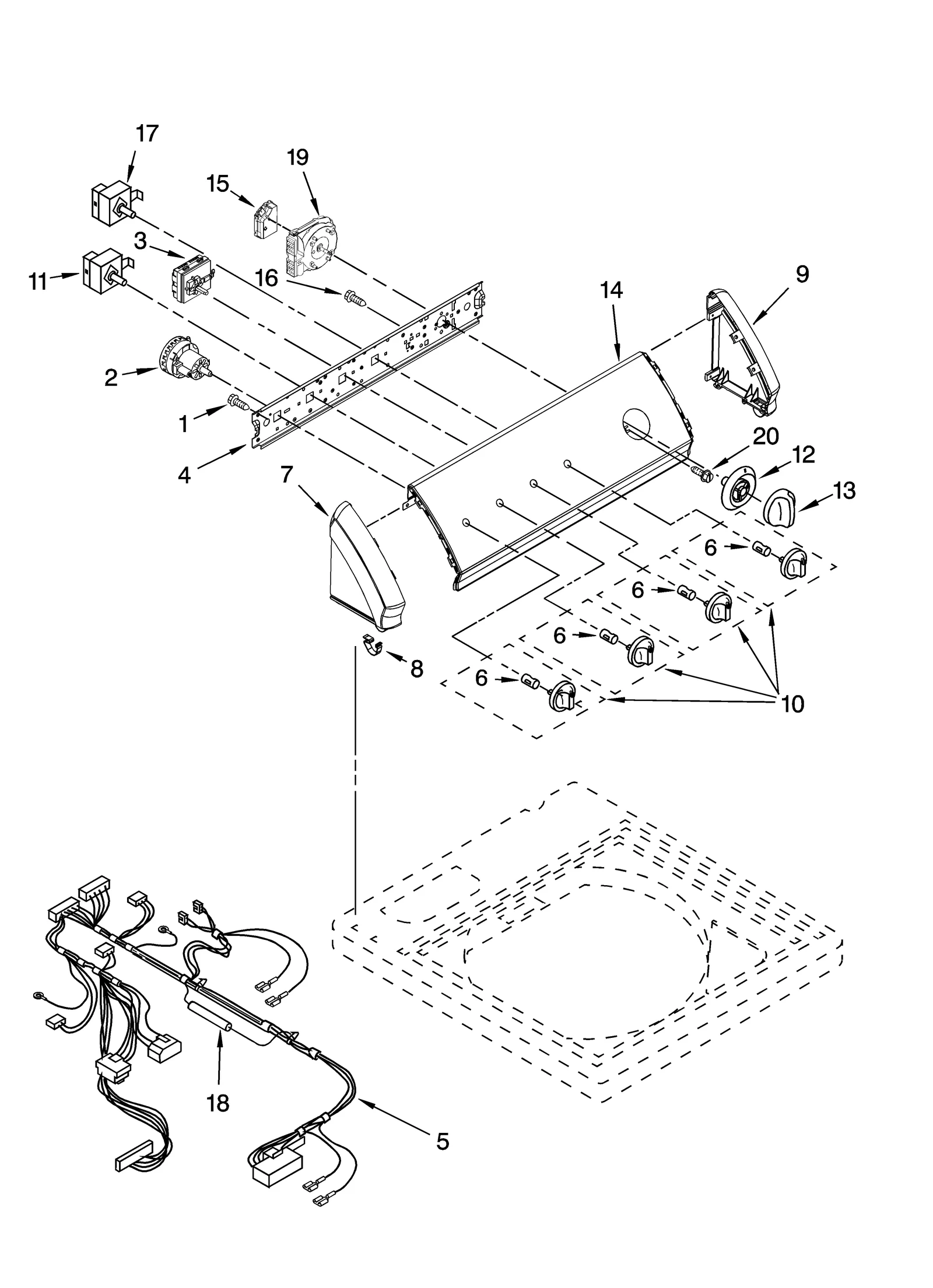

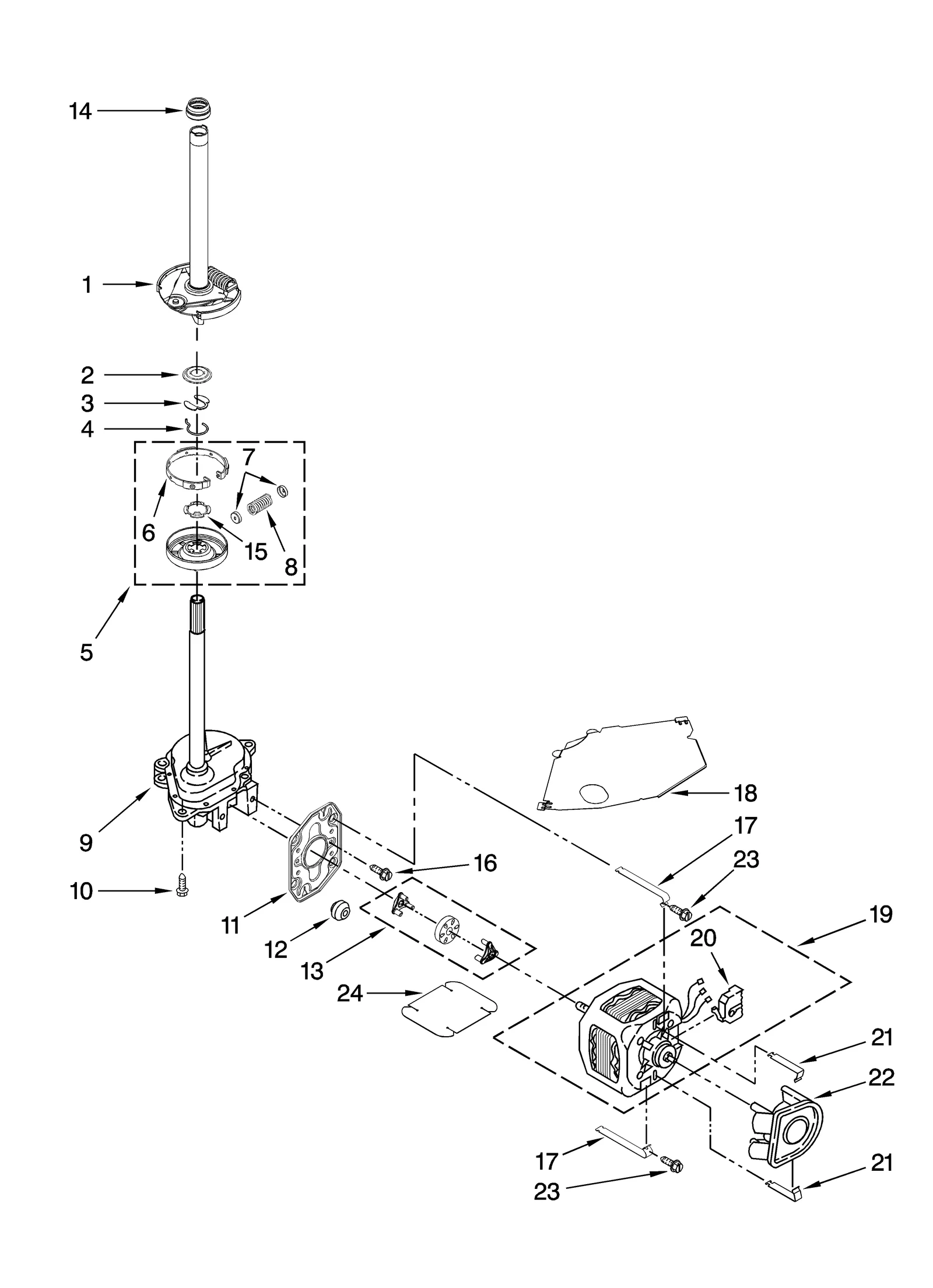

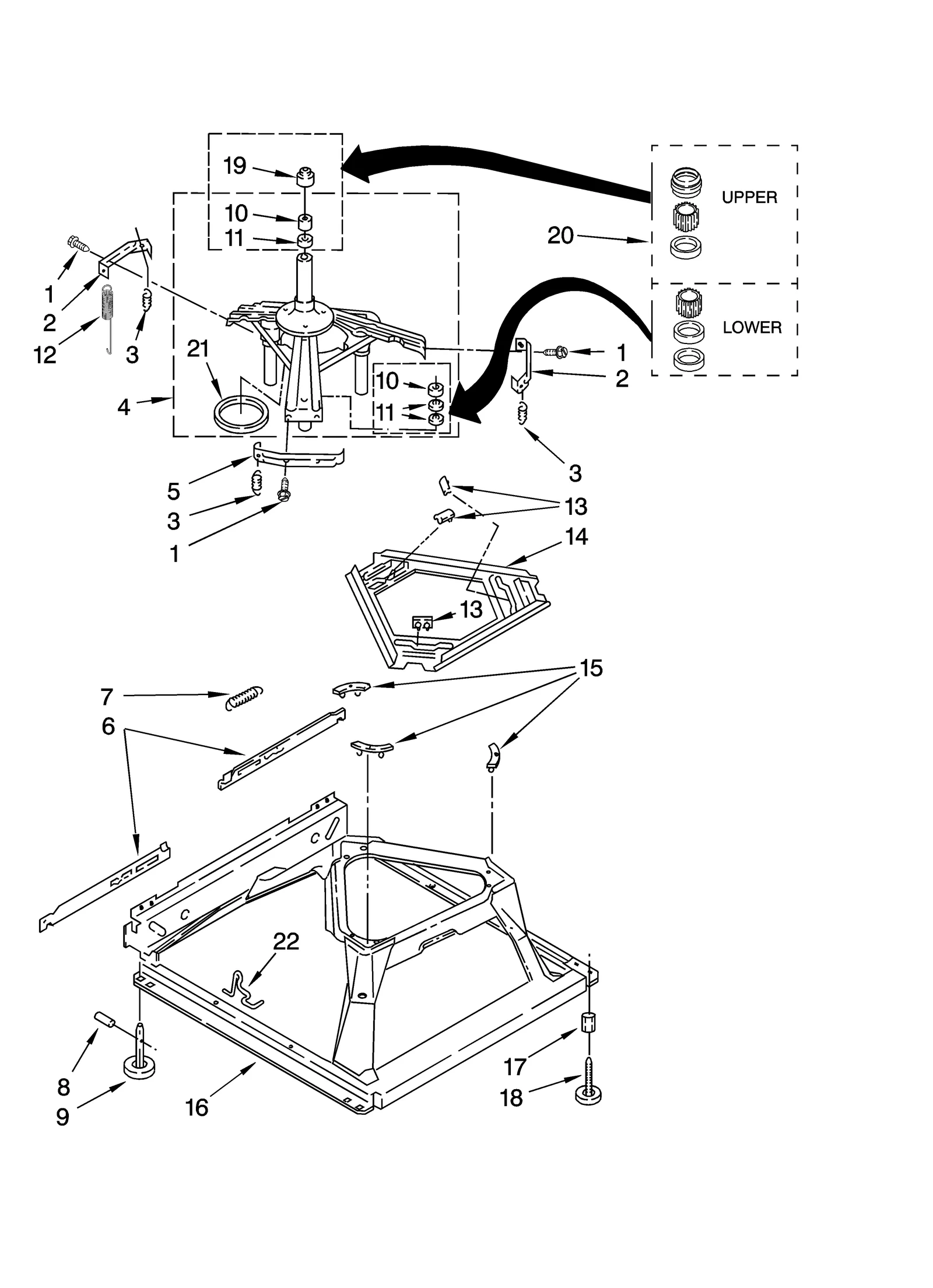

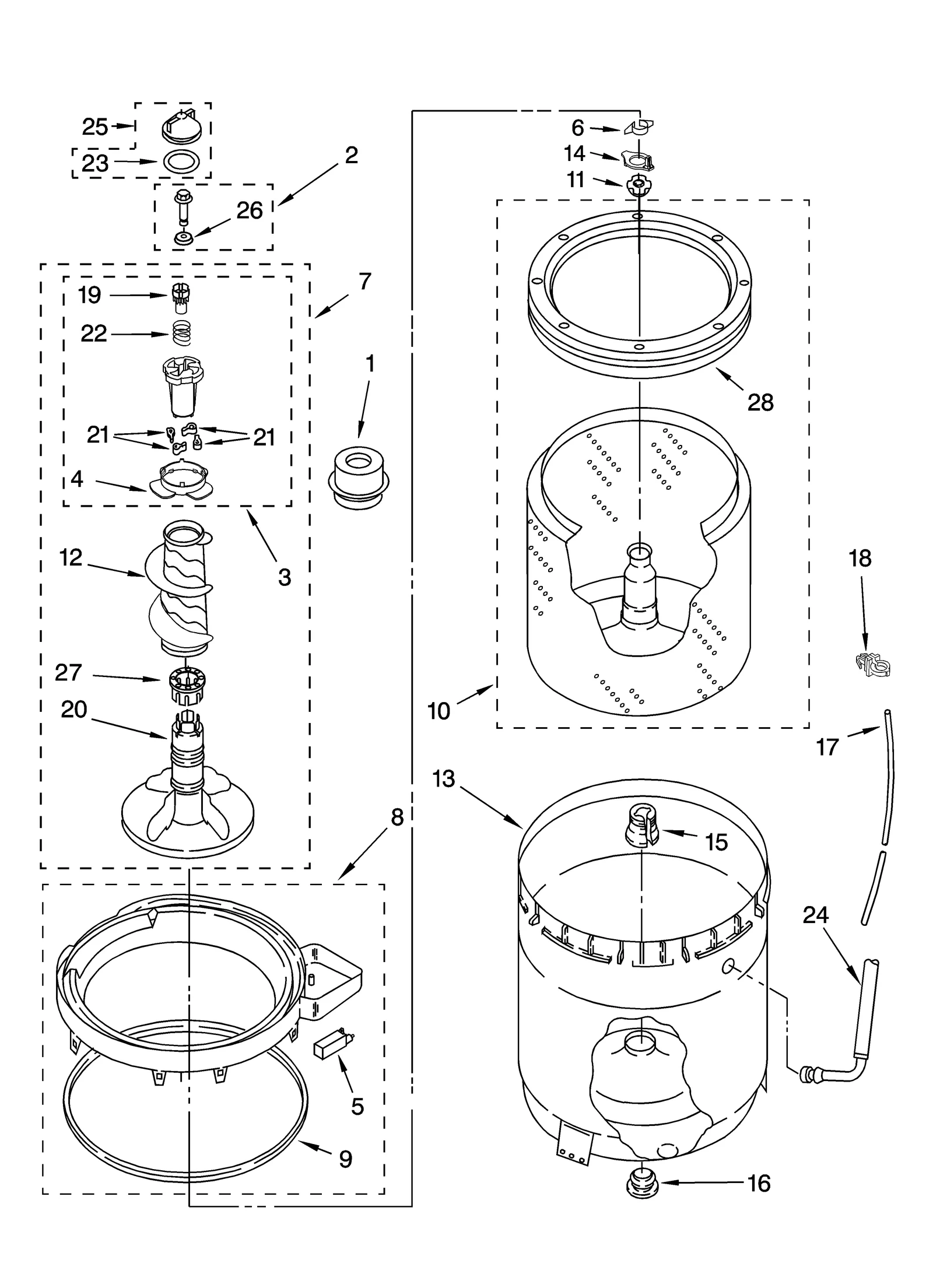

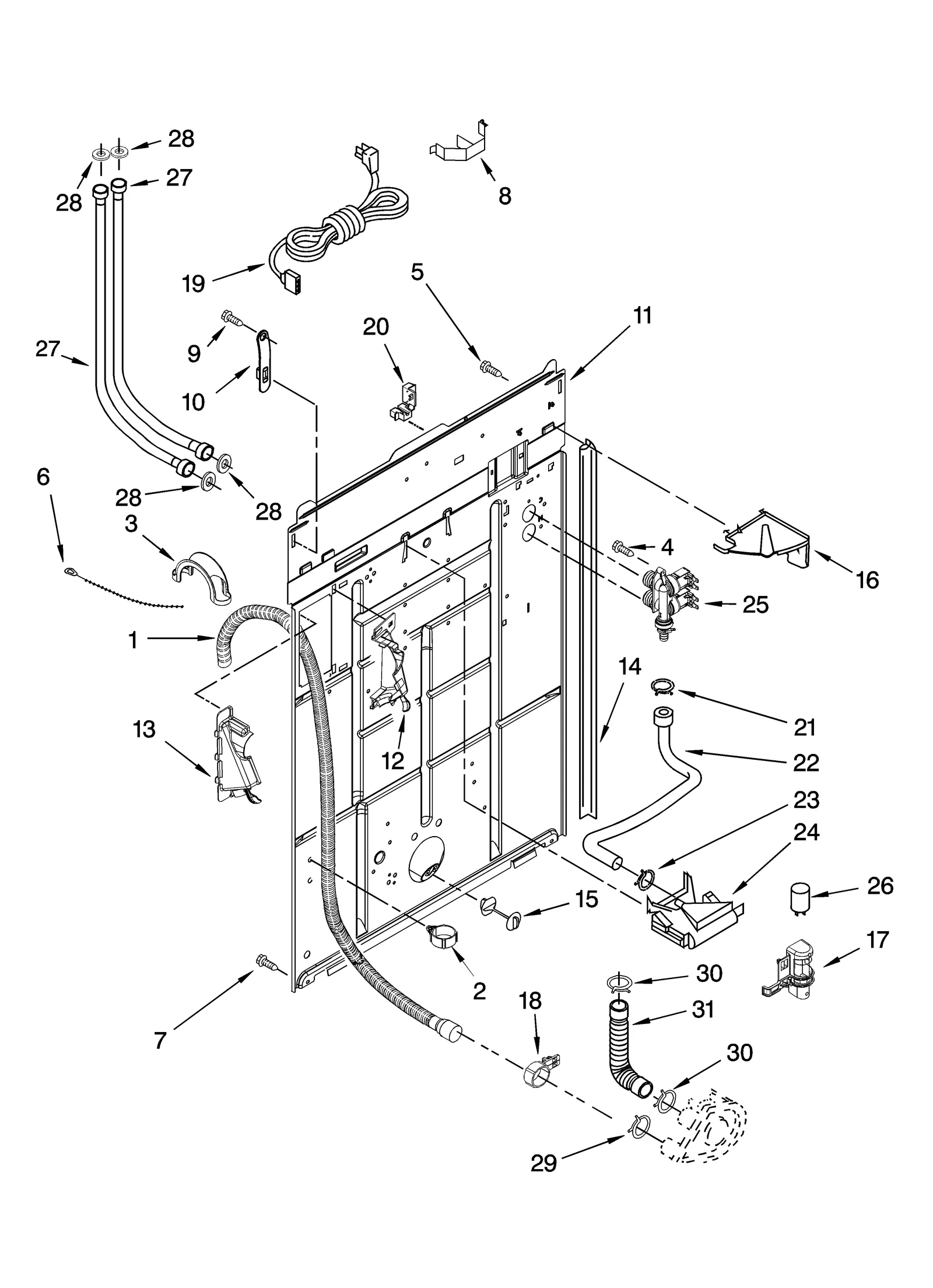

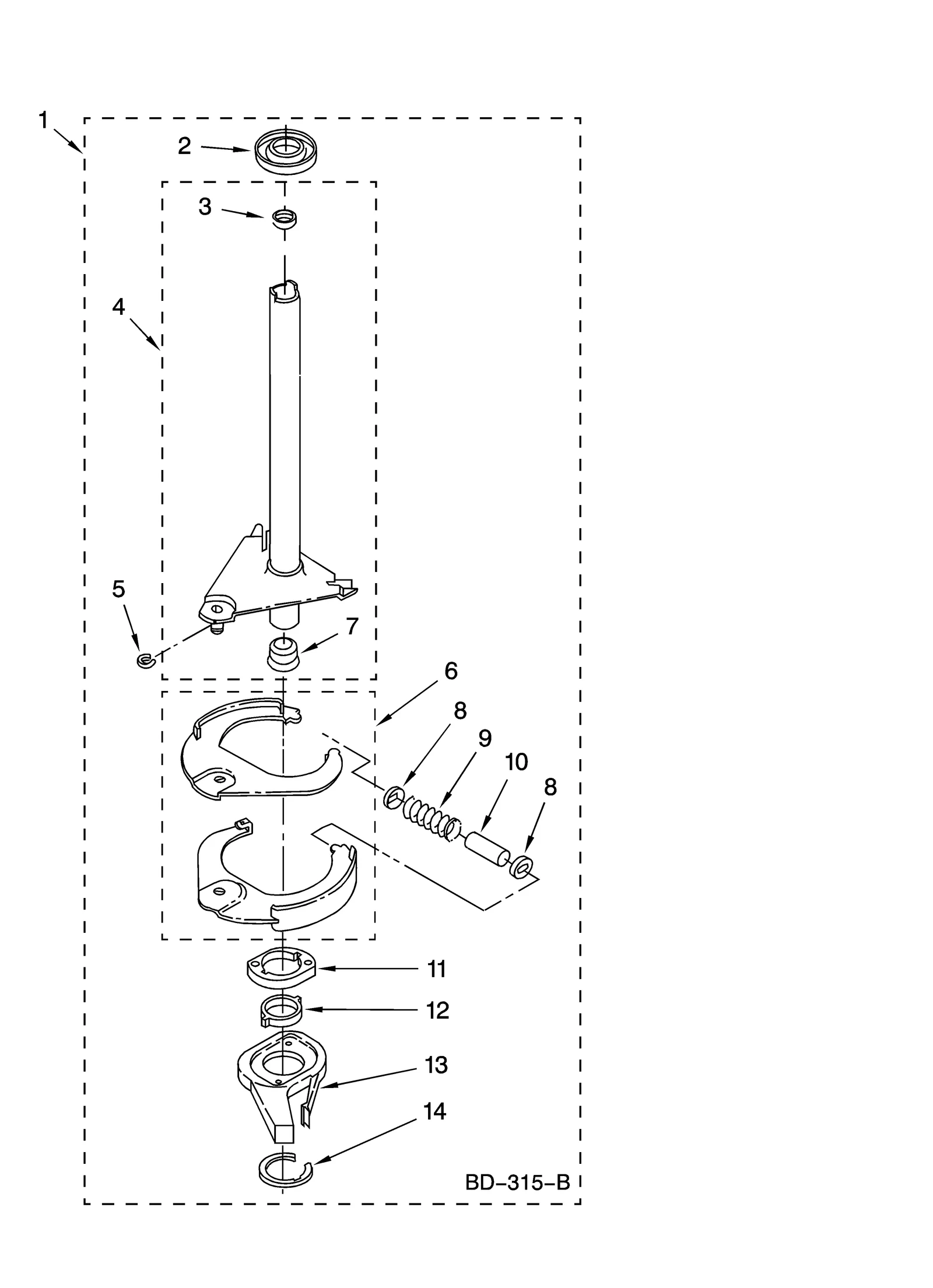

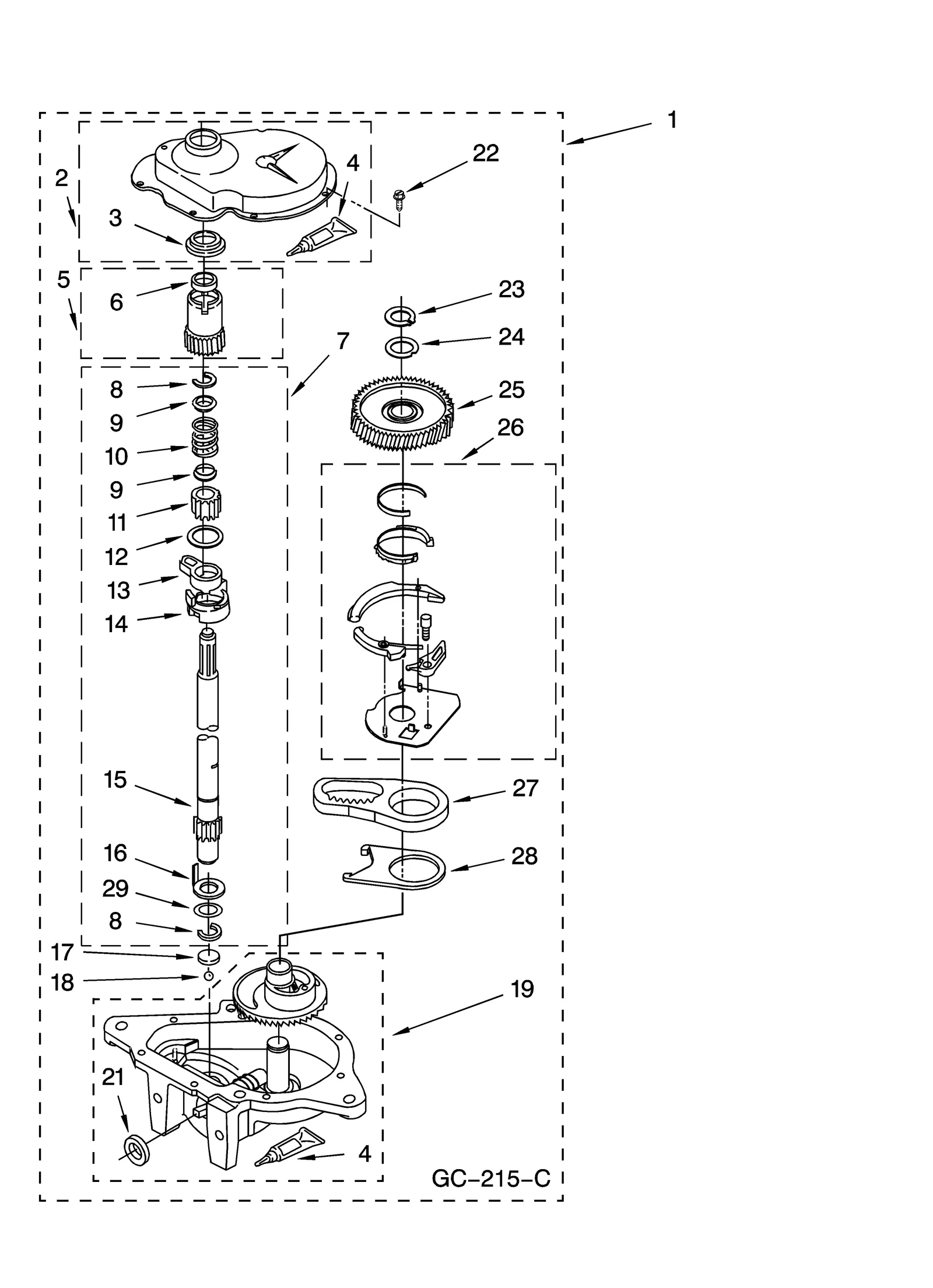

1

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

1

Installation Instructions WPL W10026350 Contact Us For Availability

1A

Washer Owner's Manual WPL 8566934 Contact Us For Availability

1B

Laundry Guide WPL W10026641 Contact Us For Availability

1C

Wiring Diagram WPL W10129636 Contact Us For Availability

1D

Energy Guide WPL W10052901 Contact Us For Availability

1E

(338471) (ALT.) WPL N/P Contact Us For Availability

1F

Washer Owner's Manual WPL 4314044 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $133.74

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

2

Top (White) WPL 8566016 Contact Us For Availability

2A

Top WPL W10027635 Contact Us For Availability

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $15.68

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

3

WP8537434 Whirlpool Agitator Cam Backorder WPL WP8537434 $68.84

3

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $4.82

3

WP8578336 Whirlpool Temperature Control Switc Backorder WPL WP8578336 $120.78

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

4

Sound Absorber WPL 3349654 Contact Us For Availability

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

Bracket WPL 64065 Contact Us For Availability

5

Washer Wire Harness WPL 3958086 Contact Us For Availability

5A

Cabinet WPL W10027607 Contact Us For Availability

6

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

6

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $5.30

6

Leveling Link Assembly WPL 63466 Contact Us For Availability

7

WP8559502 Whirlpool Endcap Assembly Backorder WPL WP8559502 $50.26

7

WP8578210 Whirlpool Agitator Backorder WPL WP8578210 $182.01

7

Washer Dispenser Assembly WPL 8566266 Contact Us For Availability

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP8312709 Whirlpool Endcap Clip In Stock WPL WP8312709 $10.92

8

Washer Timer Wire Harness Connector WPL 3948614 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

9

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $34.37

9

WP8559501 Whirlpool Endcap Backorder WPL WP8559501 $50.11

9

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

W10816321 Whirlpool Knob Backorder WPL W10816321 $39.65

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

Washer Terminal Connector WPL 353424 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62611 Whirlpool Plate In Stock WPL WP62611 $81.99

WP8578416 Whirlpool Cycle Switch Backorder WPL WP8578416 $111.56

Hinge WPL 8559336 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP54583 Whirlpool Hinge In Stock WPL WP54583 $18.77

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

WP8054468 Whirlpool Agitator Auger Backorder WPL WP8054468 $183.48

Washer Timer Dial WPL 8559524 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $20.50

WPW10096921 Whirlpool Hose In Stock WPL WPW10096921 $48.95

Washer Outer Tub WPL 8283125 Contact Us For Availability

Washer Timer Knob (Gray and White) WPL 3956786 Contact Us For Availability

Washer Lid Hinge Bearing WPL 8319539 Contact Us For Availability

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $8.64

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $5.30

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $176.44

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

Washer Agitation Delay Control Board WPL W10104800 Contact Us For Availability

Clip WPL 3355454 Contact Us For Availability

Lid WPL W10171315 Contact Us For Availability

15A

Lid WPL W10145139 Contact Us For Availability

16

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

16

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

16

Shield WPL 8539874 Contact Us For Availability

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

Washer Capacitor Strap WPL 8318046 Contact Us For Availability

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $14.02

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $5.19

WP8529935 Whirlpool Drive Motor In Stock WPL WP8529935 $255.01

WP8533540 Whirlpool Retainer Clip In Stock WPL WP8533540 $5.30

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $5.30

Connector WPL 3360056 Contact Us For Availability

20

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

20

WP8578209 Whirlpool Agitator In Stock WPL WP8578209 $100.66

20

Washer Motor Switch WPL 8529896 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $40.48

21

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $5.30

22

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

22

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $3.50

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

23

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $5.30

24

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

24

Washer Bleach Dispenser Hose WPL 3948705 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $42.58

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $6.88

27

WP8055228 Whirlpool Washer In Stock WPL WP8055228 $15.56

28

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $127.80

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

4396816 Whirlpool Touch-Up Backorder WPL 4396816 $8.00

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

Paint (White) WPL 799344 Contact Us For Availability
