Model Whirlpool TGDL660WW0 GAS DRYER – Common Parts & Diagrams
02 - TOP AND CONSOLE, LITERATURE AND OPTIONAL

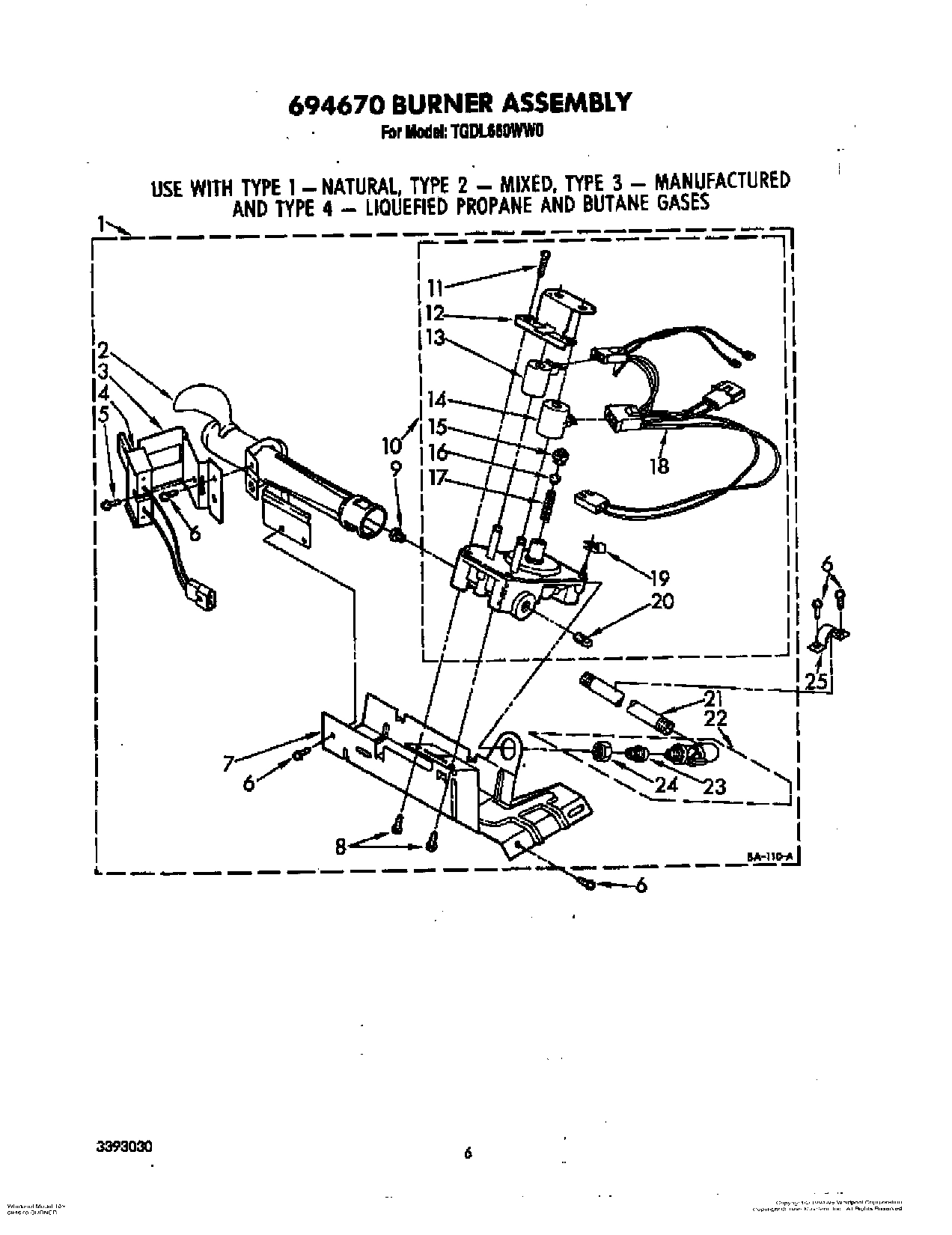

04 - 694670 BURNER

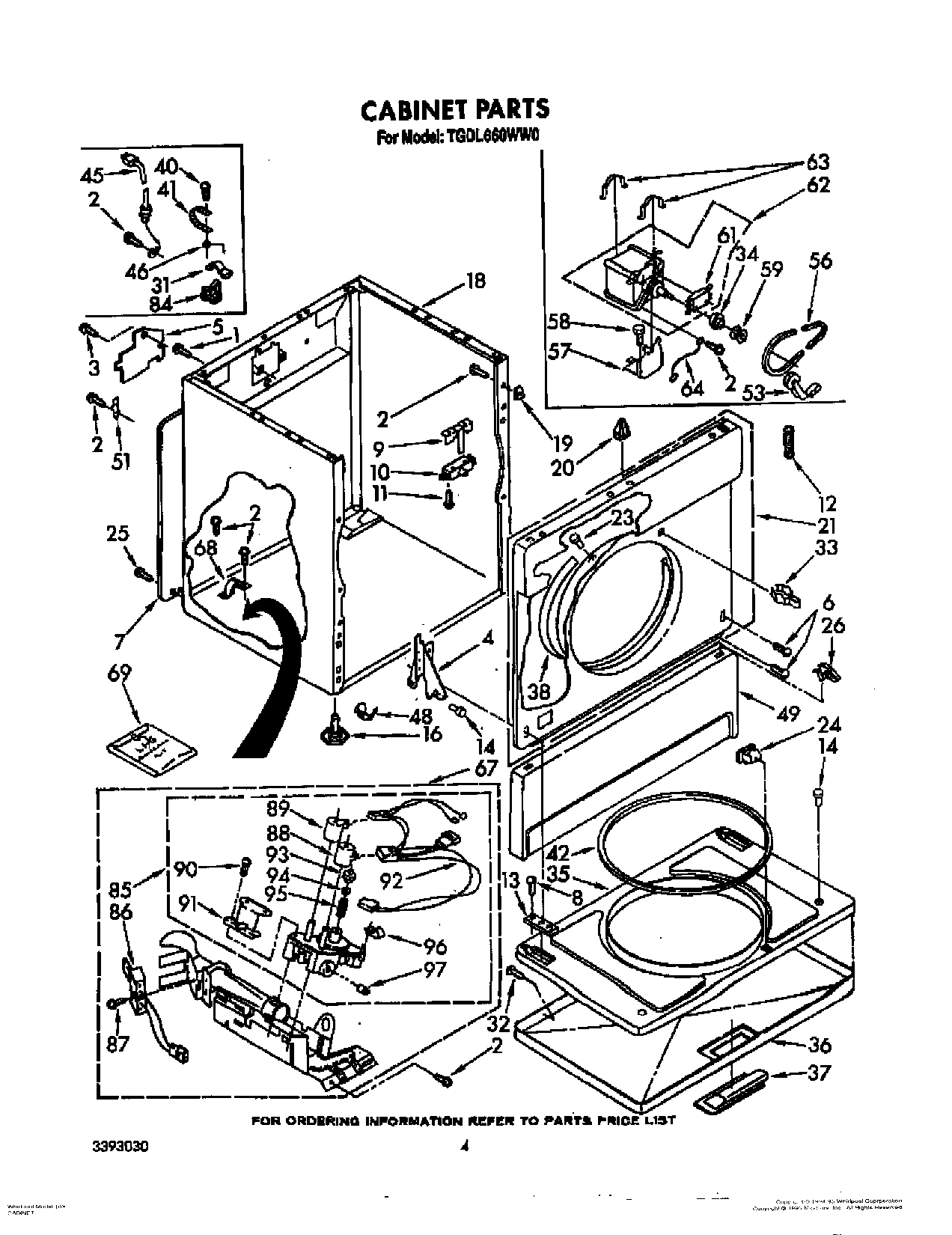

03 - CABINET

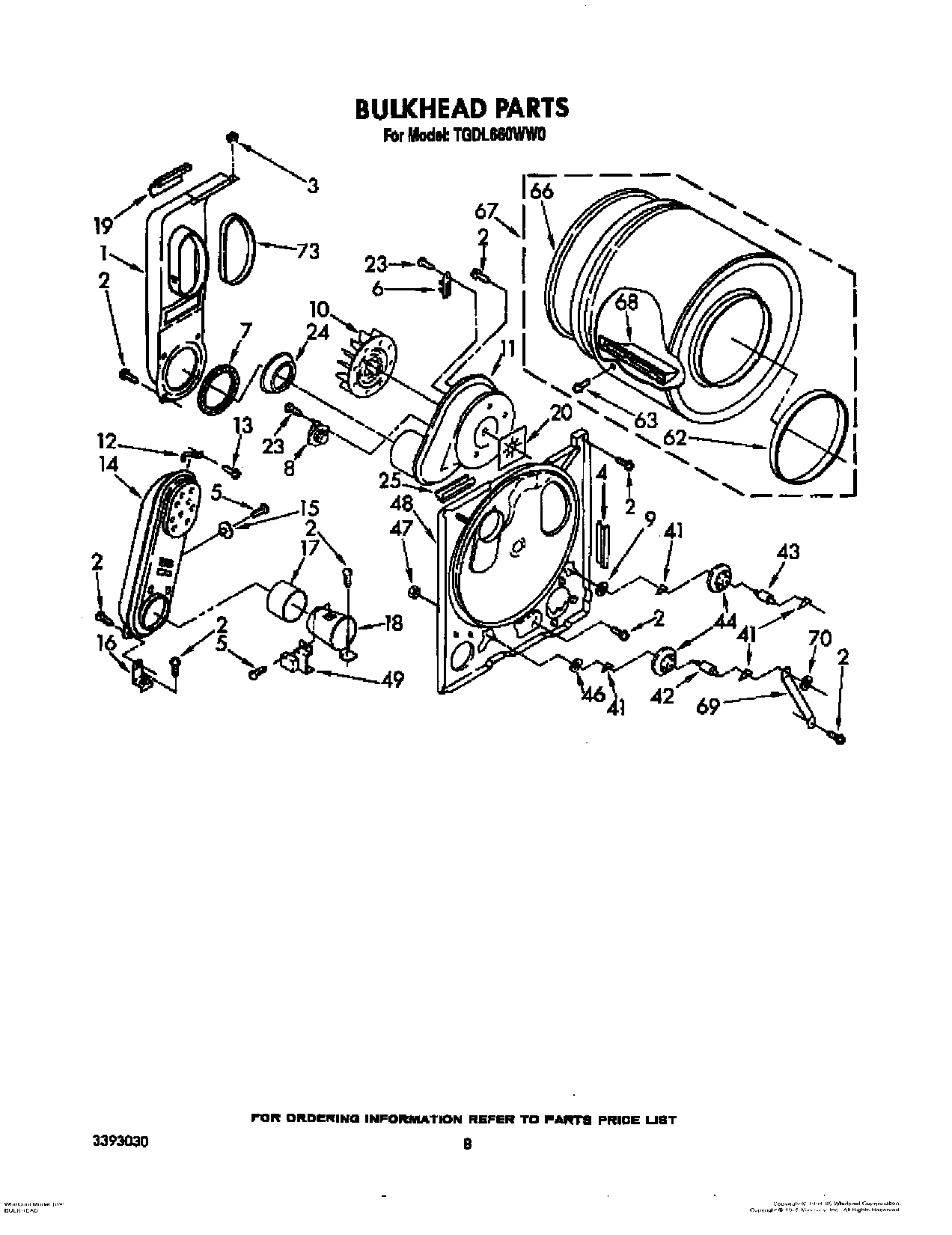

05 - BULKHEAD
Common parts from model Whirlpool TGDL660WW0 GAS DRYER
WPL 799344 WPL 799344 Contact Us For Availability
4
Hinge, R.H. WPL 687905 Contact Us For Availability
4
Hinge, L.H. WPL 687906 Contact Us For Availability
6
Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability
7
Panel, Rear WPL 347736 Contact Us For Availability
8
Nut, Push-In (2) WPL 358473 Contact Us For Availability
9
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
9
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
11
Housing, Blower WPL 695081 Contact Us For Availability
12
Spring, Door (2) WPL 237979 Contact Us For Availability
15
Thermostat, 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability
15
Thermostat, 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability
15
Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability
16
Support, Heater Box (2) WPL 337445 Contact Us For Availability
18
Cabinet (White) WPL 690847 Contact Us For Availability
18
Cabinet (Almond) WPL 690848 Contact Us For Availability
20
Seal, Blower WPL 3392123 Contact Us For Availability
21
Pipe, Gas Supply WPL 233273 Contact Us For Availability
21
Upper Front Panel (White) WPL 338012 Contact Us For Availability
21
Upper Front Panel (Almond) WPL 689533 Contact Us For Availability
22
Valve & Union, Shut-Off WPL 345062 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
35
Door, Rear WPL 695954 Contact Us For Availability
36
Door, Front (White) WPL 348728 Contact Us For Availability
36
Door, Front (Almond) WPL 689330 Contact Us For Availability
37
Handle, Door (Almond) WPL 690271 Contact Us For Availability
40
Screw, 10-24 x 1 WPL 132848 Contact Us For Availability
41
Strap, Ground WPL 22965 Contact Us For Availability
46
Wire, Ground (60 Hz.) WPL 364089 Contact Us For Availability
48
Bulkhead WPL 685775 Contact Us For Availability
49
Panel, Toe (White) WPL 692427 Contact Us For Availability
49
Panel, Toe (Almond) WPL 692428 Contact Us For Availability
63
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
64
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
67
Clip, Push-On (4) WPL 689559 Contact Us For Availability
67
Burner Assembly 60 Hz. (Alternate) (Re WPL 694670 Contact Us For Availability
69
WPL 279243 WPL 279243 Contact Us For Availability
69
Bracket, Support WPL 348945 Contact Us For Availability
84
WPL 688412 WPL 688412 Contact Us For Availability
96
WPL 694510 WPL 694510 Contact Us For Availability
× ![]()
