Model Whirlpool TGDL640DQ0 GAS DRYER – Common Parts & Diagrams

PAINT, BULK (1 QT.) (WHITE (UNCUT))
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
10
SCREEN
SCREEN WPL 339392 Contact Us For Availability
View on Model
11
Housing, Blower
Housing, Blower WPL 695081 Contact Us For Availability
View on Model
12
GUIDE
GUIDE WPL 337182 Contact Us For Availability
View on Model
12
Guide, Cable (R.H.)
Guide, Cable (R.H.) WPL 337183 Contact Us For Availability
View on Model
14
Cable, Door (2)
Cable, Door (2) WPL 230131 Contact Us For Availability
View on Model
16
Support, Heater Box (2)
Support, Heater Box (2) WPL 337445 Contact Us For Availability
View on Model
20
Connector, Timer
Connector, Timer WPL 3397269 Contact Us For Availability
View on Model
21
Timer Assembly, 60 Hz.
Timer Assembly, 60 Hz. WPL 3398134 Contact Us For Availability
View on Model
22
Plug, Front Panel (White)
Plug, Front Panel (White) WPL 3394975 Contact Us For Availability
View on Model
24
Nut, Compression
Nut, Compression WPL 233076 Contact Us For Availability
View on Model
26
Seal, Blower Shaft
Seal, Blower Shaft WPL 3392123 Contact Us For Availability
View on Model
28
Hinge, Door (R.H.)
Hinge, Door (R.H.) WPL 238456 Contact Us For Availability
View on Model
48

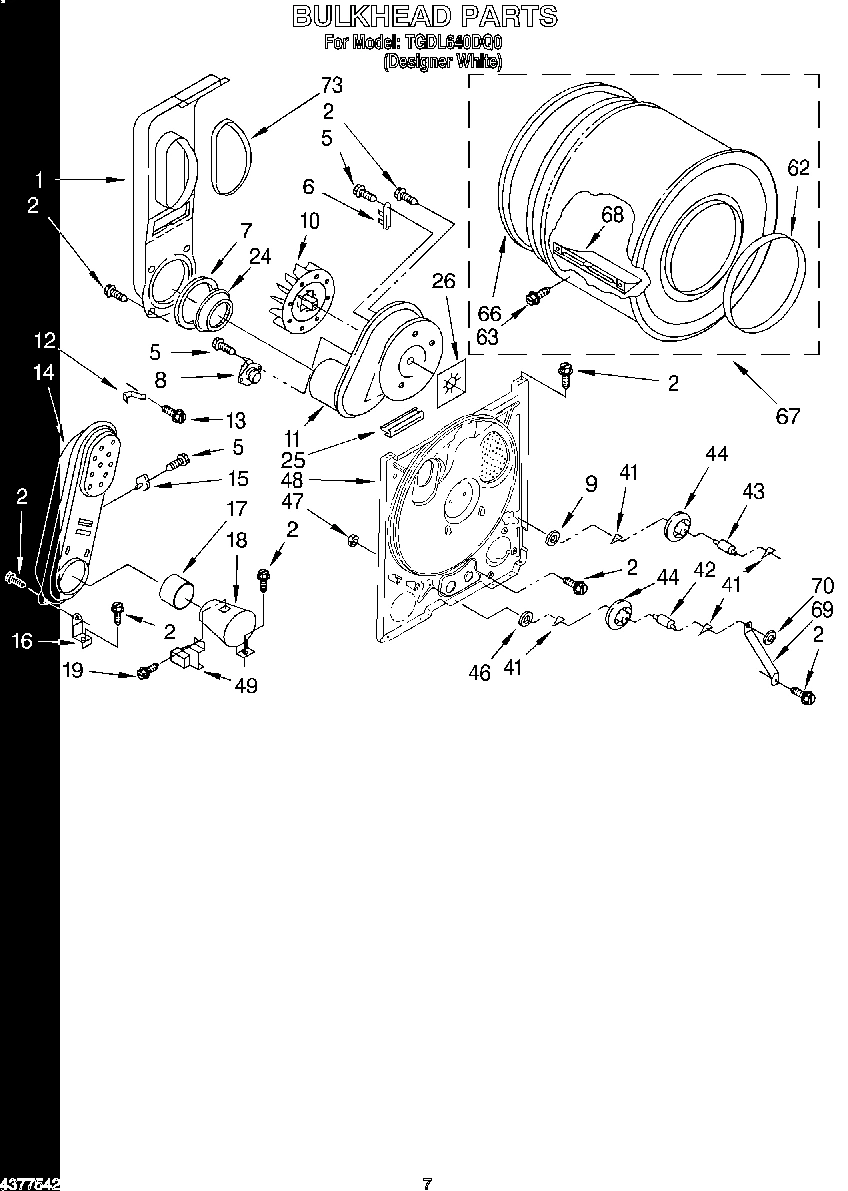

Bulkhead
Bulkhead WPL 3397264 Contact Us For Availability
View on Model
67

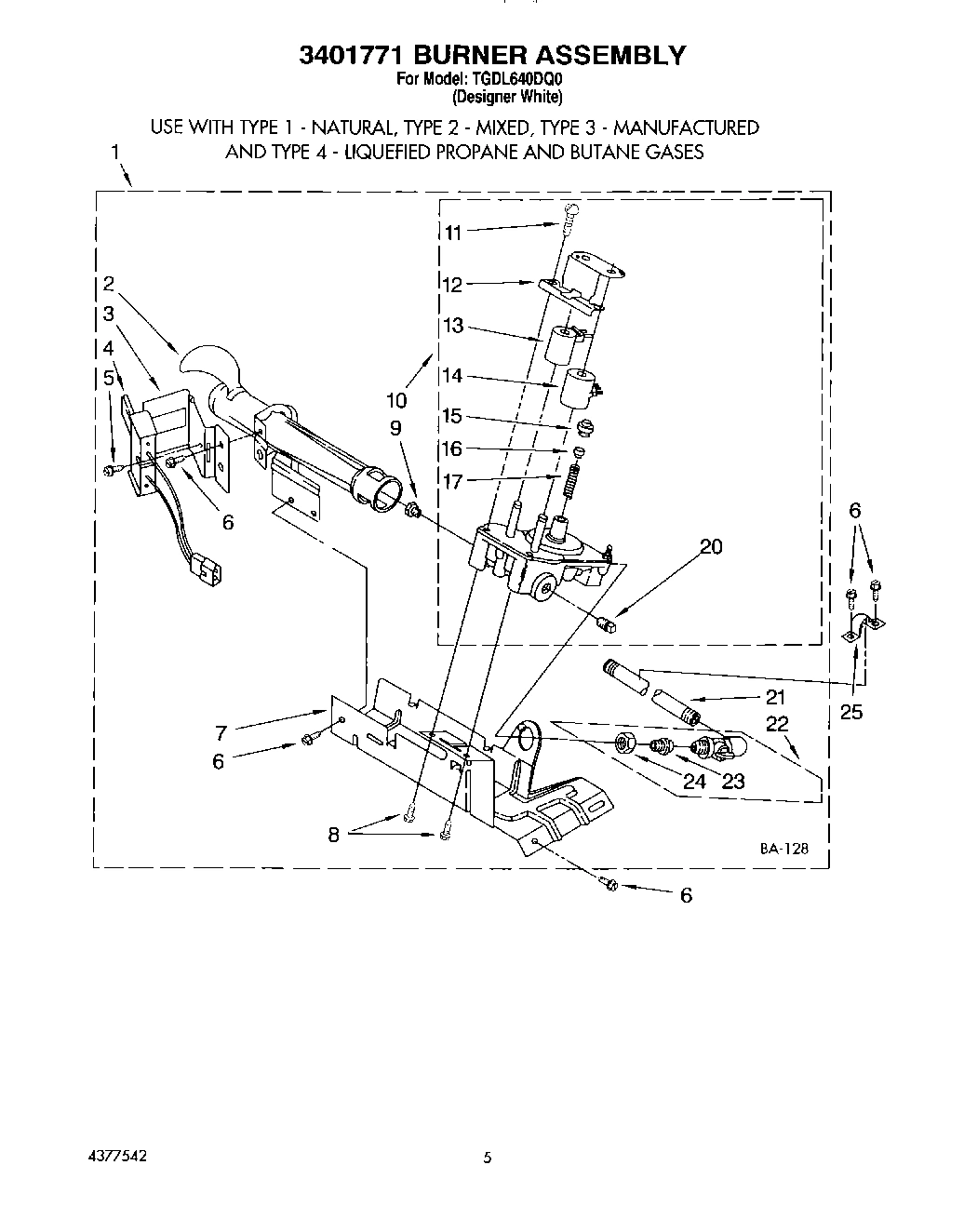

Burner Assembly 60 Hz. (Alternate) (Refer To
Burner Assembly 60 Hz. (Alternate) (Refer To WPL 3401771 Contact Us For Availability
View on Model
69
Bracket, Support
Bracket, Support WPL 348945 Contact Us For Availability
View on Model
