Model Maytag MEDC700VW0 ELECTRIC DRYER – Common Parts & Diagrams

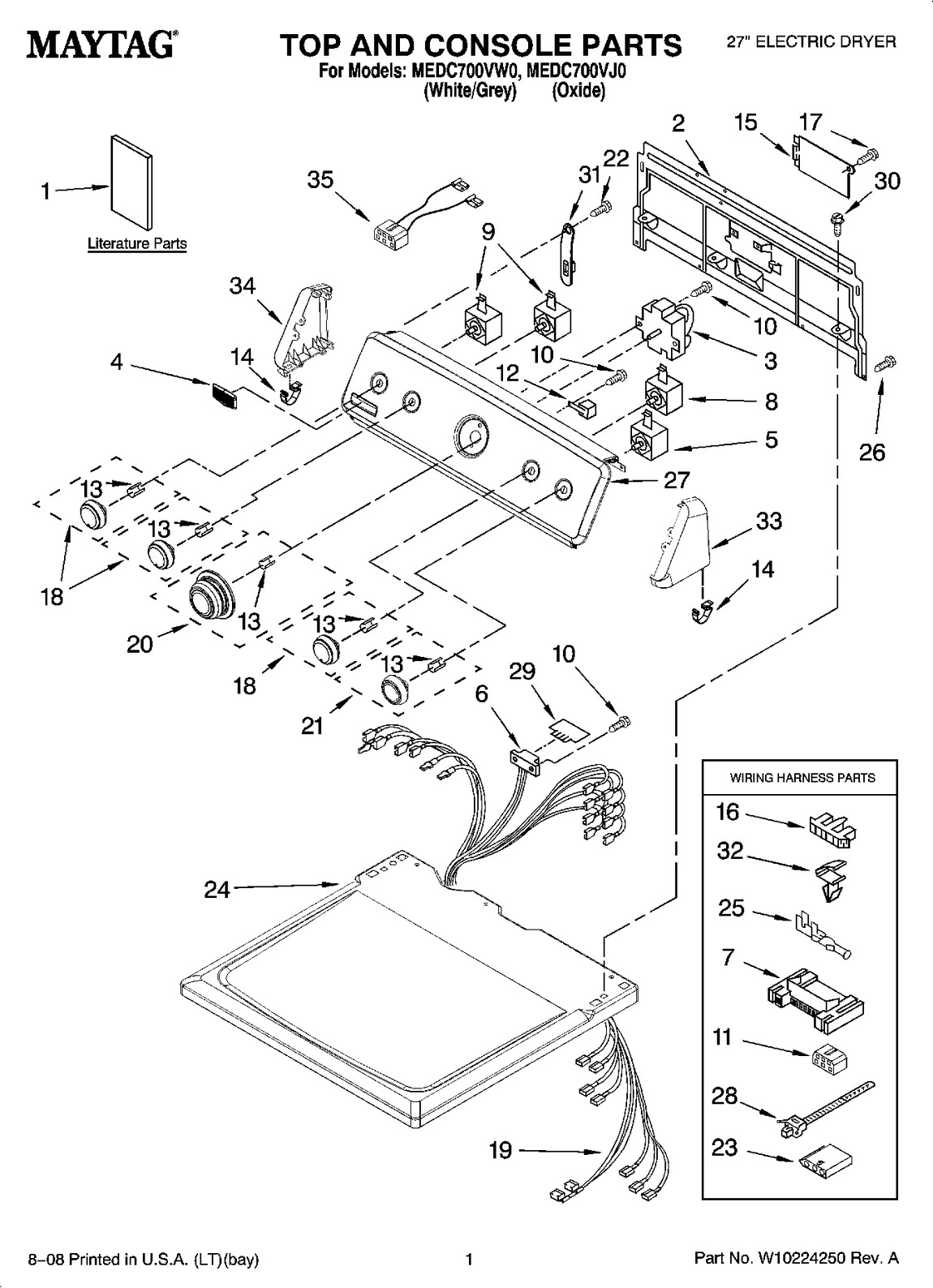

01 - TOP AND CONSOLE PARTS

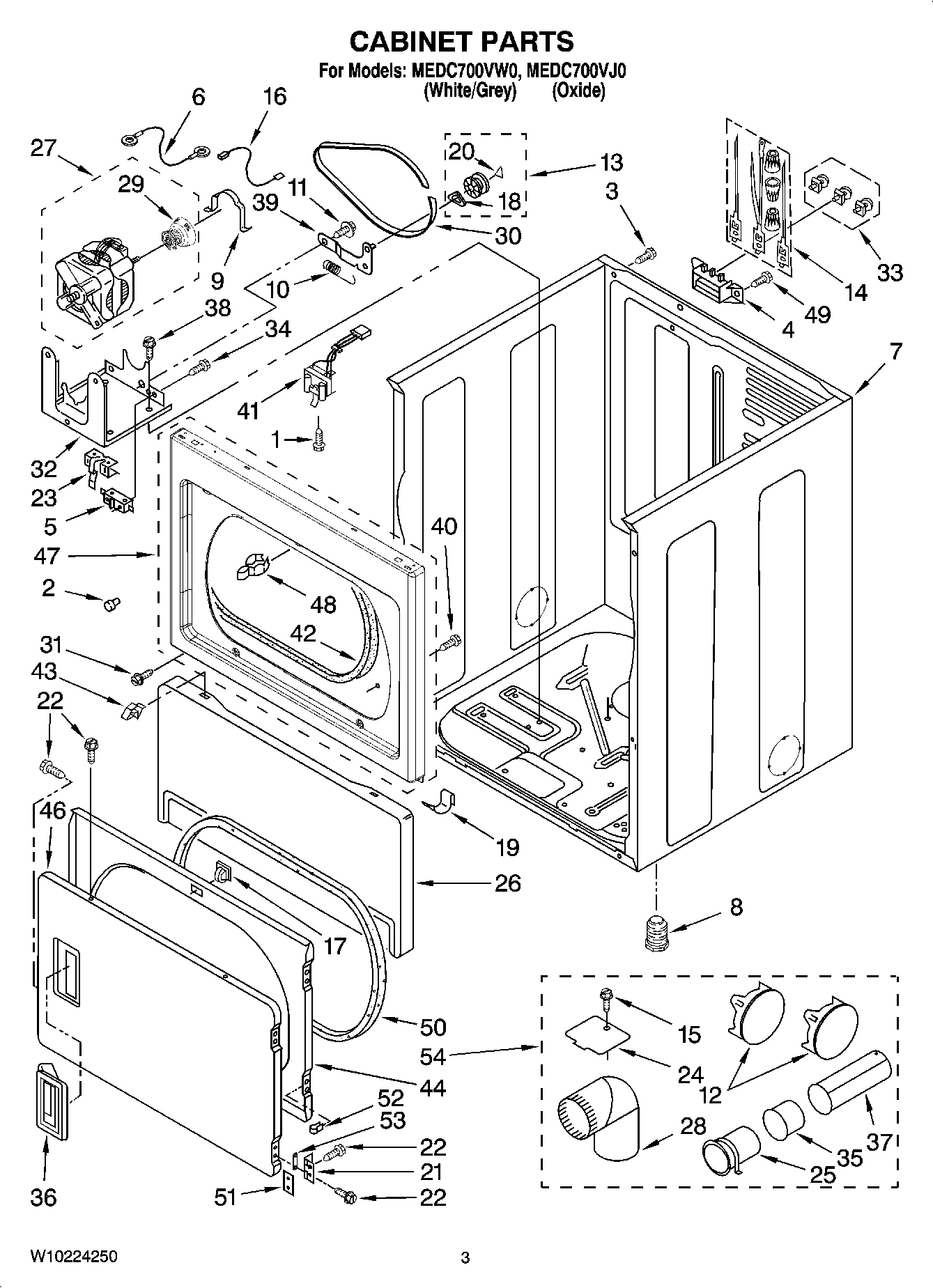

02 - CABINET PARTS

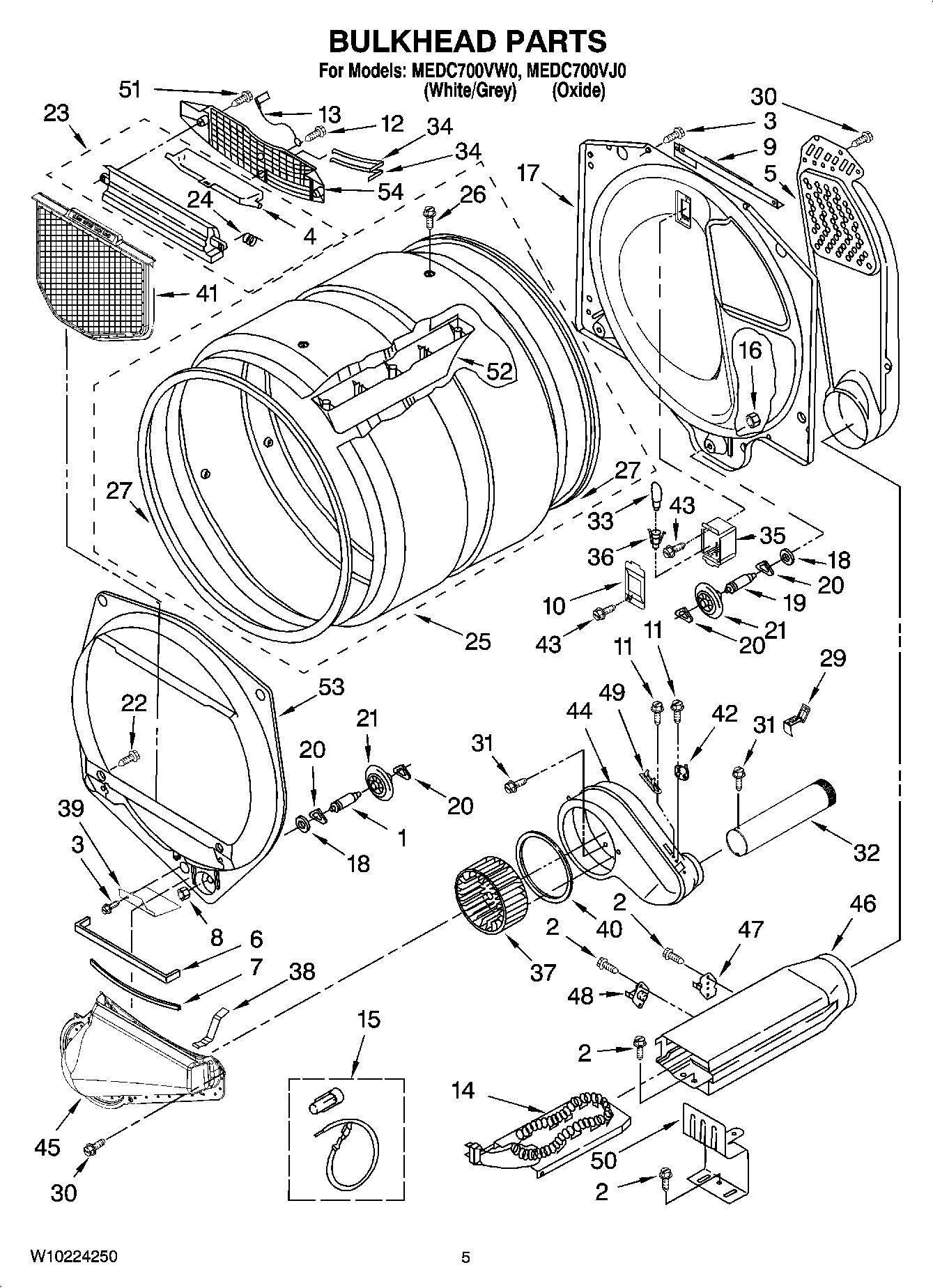

03 - BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MEDC700VW0 ELECTRIC DRYER
1
Guide, Use & Care MAY W10088780 Contact Us For Availability
1
MAY W10088973 MAY W10088973 Contact Us For Availability
1
Dryer Cycle Sheet MAY W10089180 Contact Us For Availability
1
MAY W10151000 MAY W10151000 Contact Us For Availability
1
MAY 697773 MAY 697773 Contact Us For Availability
1
MAY 8575324 MAY 8575324 Contact Us For Availability
2
MAY 8317305 MAY 8317305 Contact Us For Availability
2
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
2
MAY 693152 MAY 693152 Contact Us For Availability
3
MAY 8566184 MAY 8566184 Contact Us For Availability
3
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
3
SCREW GROUND MAY 8533974 Contact Us For Availability
4
Badge Assembly (White) MAY W10101390 Contact Us For Availability
4
MAY W10103431 MAY W10103431 Contact Us For Availability
4
MAY 3397659 MAY 3397659 Contact Us For Availability
4
MAY 3394984 MAY 3394984 Contact Us For Availability
5
Switch, Push-To-Start MAY 3398094 Contact Us For Availability
5
MAY 3394881 MAY 3394881 Contact Us For Availability
5
MAY 697354 MAY 697354 Contact Us For Availability
6
MAY 3391885 MAY 3391885 Contact Us For Availability
6
Wire, Jumper (Broken Belt Switch) MAY 3398948 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
7
CONNECTOR (MOTOR) MAY 3395683 Contact Us For Availability
7
MAY 8310656 MAY 8310656 Contact Us For Availability
7
MAY W10212721 MAY W10212721 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
8
Switch, Rotary Temperature MAY 8578352 Contact Us For Availability
8
MAY 279810 MAY 279810 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT,3/8 X 16(R.H.) MAY 3934666 Contact Us For Availability
9
Switch, Rotary MAY 3405156 Contact Us For Availability
9
Clamp, Motor (2) MAY 660658 Contact Us For Availability
9
BRACKET-BULKHEAD UPPER MOUNTING MAY 8571651 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
11
Connector 6-Circuit MAY 3347243 Contact Us For Availability
11
MAY 3389420 MAY 3389420 Contact Us For Availability
12
MAY 694419 MAY 694419 Contact Us For Availability
12
MAY 697750 MAY 697750 Contact Us For Availability
12
MAY W10151499 MAY W10151499 Contact Us For Availability
12
Screw, 8-18 x 1/2 MAY 359625 Contact Us For Availability
13
CLIP, SPRING MAY 8536939 Contact Us For Availability
13
MAY 3388672 MAY 3388672 Contact Us For Availability
13
Wire MAY 3392258 Contact Us For Availability
14
MAY 8312709 MAY 8312709 Contact Us For Availability
14
Terminal, Brass & Tinned (3) (Includes Illus. MAY 279318 Contact Us For Availability
14
Heater Element MAY 3387747 Contact Us For Availability
15
MAY 8576583 MAY 8576583 Contact Us For Availability
15
MAY 3390646 MAY 3390646 Contact Us For Availability
15
MAY 279457 MAY 279457 Contact Us For Availability
16
Connector-Timer MAY 3397269 Contact Us For Availability
16
MAY W10167612 MAY W10167612 Contact Us For Availability
16
MAY W10001120 MAY W10001120 Contact Us For Availability
17
Screw, 8-18 x 3/8 MAY 3390814 Contact Us For Availability
17
MAY 3392538 MAY 3392538 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
18
Knob, Control (3) (Oxide) MAY W10112582 Contact Us For Availability
18
Knob, Control (3) (White) MAY W10180218 Contact Us For Availability
18
MAY 3387459 MAY 3387459 Contact Us For Availability
19
MAY W10150995 MAY W10150995 Contact Us For Availability
19
Clip (2) MAY 297092 Contact Us For Availability
19
MAY 8575325 MAY 8575325 Contact Us For Availability
20
Knob, Timer Assembly (Oxide) MAY W10112584 Contact Us For Availability
20
Knob, Timer Assembly (White) MAY W10180219 Contact Us For Availability
20
MAY 690997 MAY 690997 Contact Us For Availability
20
MAY W10121334 MAY W10121334 Contact Us For Availability
21
Knob Assembly Push-To-Start (Oxide) MAY W10112586 Contact Us For Availability
21
Knob Assembly Push-To-Start (White) MAY W10180220 Contact Us For Availability
21
Hinge & Pin Assembly (2) MAY 3389247 Contact Us For Availability
21
MAY 8536973 MAY 8536973 Contact Us For Availability
22
Screw, 8-18 x 1/2 MAY 342055 Contact Us For Availability
22
Screw, 10-16 x 1/2 MAY 3387230 Contact Us For Availability
23
MAY 3936144 MAY 3936144 Contact Us For Availability
23
MAY 8066120 MAY 8066120 Contact Us For Availability
23
Outlet Housing Assembly MAY 3394985 Contact Us For Availability
24
MAY 8541355 MAY 8541355 Contact Us For Availability
24
MAY W10212718 MAY W10212718 Contact Us For Availability
24
COVER PLATE MAY 3394331 Contact Us For Availability
24
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
25
Terminal MAY 94614 Contact Us For Availability
25
MAY 8563747 MAY 8563747 Contact Us For Availability
25
Complete Drum Assembly MAY 8318215 Contact Us For Availability
26
SCREW,8-18 X 3/8 MAY 693995 Contact Us For Availability
26
Toe Panel (Includes Item. 2) (White) MAY 697215 Contact Us For Availability
26
MAY W10212779 MAY W10212779 Contact Us For Availability
26
MAY W10109200 MAY W10109200 Contact Us For Availability
27
MAY W10086738 MAY W10086738 Contact Us For Availability
27
MAY W10086741 MAY W10086741 Contact Us For Availability
27
Motor Assembly 60 HZ. MAY 8538263 Contact Us For Availability
27
MAY W10166807 MAY W10166807 Contact Us For Availability
28
Tie, Cable (Push-Mount) MAY 3391018 Contact Us For Availability
28
MAY 49026 MAY 49026 Contact Us For Availability
29
MAY 8558178 MAY 8558178 Contact Us For Availability
29
MAY 8578220 MAY 8578220 Contact Us For Availability
29
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
30
Screw MAY 8533971 Contact Us For Availability
30
MAY W10112954 MAY W10112954 Contact Us For Availability
31
Strap, Console MAY 8568314 Contact Us For Availability
31
Screw, 8-18 x 3/8 MAY 8281212 Contact Us For Availability
31
Screw MAY 489463 Contact Us For Availability
32
CLIP, HARNESS MAY 3394427 Contact Us For Availability
32
MAY 3387118 MAY 3387118 Contact Us For Availability
32
MAY 8066224 MAY 8066224 Contact Us For Availability
33
MAY W10101397 MAY W10101397 Contact Us For Availability
33
Cap, End (R.H.) (White) MAY W10193821 Contact Us For Availability
33
TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
33
MAY 3406124 MAY 3406124 Contact Us For Availability
34
MAY W10101398 MAY W10101398 Contact Us For Availability
34
Cap, End (L.H.) (White) MAY W10193824 Contact Us For Availability
34
Screw, 6-20 x 1 3/8 MAY 98129 Contact Us For Availability
34
MAY 3387223 MAY 3387223 Contact Us For Availability
35
Harness, Buzzer (On/Off) MAY W10124166 Contact Us For Availability
35
MAY 8563750 MAY 8563750 Contact Us For Availability
35
MAY 3977373 MAY 3977373 Contact Us For Availability
36
Handle, Door (White) MAY W10116360 Contact Us For Availability
36
MAY W10212775 MAY W10212775 Contact Us For Availability
36
MAY W10136369 MAY W10136369 Contact Us For Availability
37
MAY 8563749 MAY 8563749 Contact Us For Availability
37
MAY 697772 MAY 697772 Contact Us For Availability
38
MAY 343641 MAY 343641 Contact Us For Availability
38
CLIP-SPRING MAY 8066208 Contact Us For Availability
39
Idler Bracket MAY 3388674 Contact Us For Availability
39
Shield, Blower Housing MAY W10128629 Contact Us For Availability
40
MAY 697770 MAY 697770 Contact Us For Availability
41
MAY 3406107 MAY 3406107 Contact Us For Availability
41
MAY W10049370 MAY W10049370 Contact Us For Availability
42
MAY 3387242 MAY 3387242 Contact Us For Availability
42
Thermostat, Internal-Bias MAY 8318268 Contact Us For Availability
43
Retainer MAY 3388229 Contact Us For Availability
43
MAY 487909 MAY 487909 Contact Us For Availability
44
MAY 3392563 MAY 3392563 Contact Us For Availability
44
MAY 8544362 MAY 8544362 Contact Us For Availability
45
Lint Duct Assembly MAY 8066168 Contact Us For Availability
46
MAY 3387872 MAY 3387872 Contact Us For Availability
46
MAY W10207719 MAY W10207719 Contact Us For Availability
46
HEATER BOX, MAY 3392537 Contact Us For Availability
47
Upper Front Panel (White) MAY W10193554 Contact Us For Availability
47
MAY W10212762 MAY W10212762 Contact Us For Availability
47
Thermal Cutoff (Includes Illus. 48) MAY 3977394 Contact Us For Availability
48
MAY 696144 MAY 696144 Contact Us For Availability
48
Thermostat 250 F (122 C) MAY 3390291 Contact Us For Availability
49
SCREW, 10-16 X 1/2 MAY 3393008 Contact Us For Availability
49
Thermal Fuse MAY 3392519 Contact Us For Availability
50
MAY 3390735 MAY 3390735 Contact Us For Availability
50
MAY 8066099 MAY 8066099 Contact Us For Availability
51
MAY 3357011 MAY 3357011 Contact Us For Availability
51
MAY 3390902 MAY 3390902 Contact Us For Availability
52
Nut, Inner Door (4) MAY 3389249 Contact Us For Availability
52
Baffle, Drum MAY 697693 Contact Us For Availability
53
PLUG, HINGE SCREW MAY W10191265 Contact Us For Availability
53
MAY 697557 MAY 697557 Contact Us For Availability
54
MAY 279818 MAY 279818 Contact Us For Availability
54
DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) MAY W10186596 Contact Us For Availability
54
MAY 8299979 MAY 8299979 Contact Us For Availability
NI
Dry Rack MAY 3406911 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 80047 MAY 80047 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
NI
MAY W10202939 MAY W10202939 Contact Us For Availability
× ![]()
