Model LXR7244JQ2 – Common Parts & Diagrams

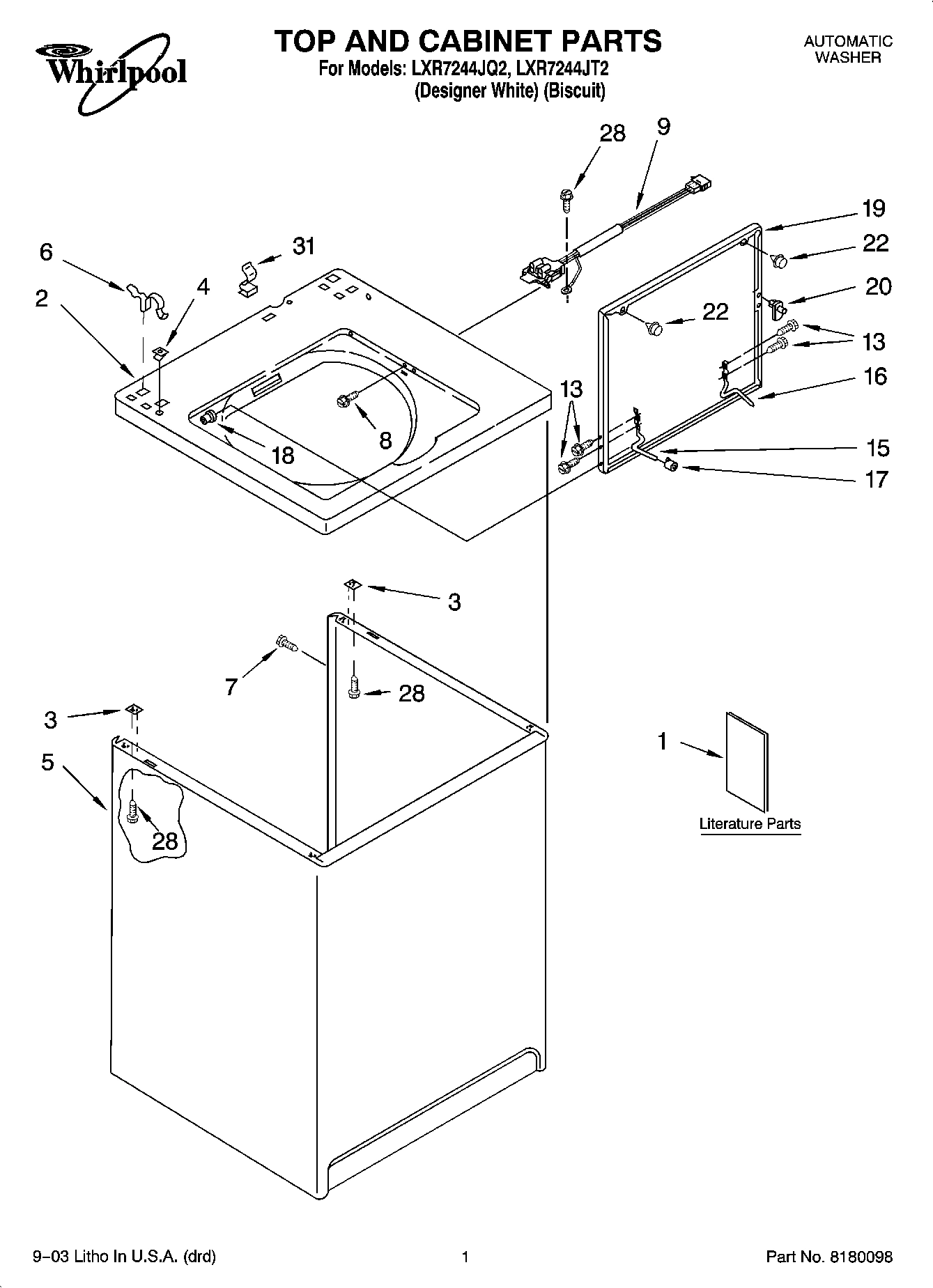

01 - TOP AND CABINET PARTS

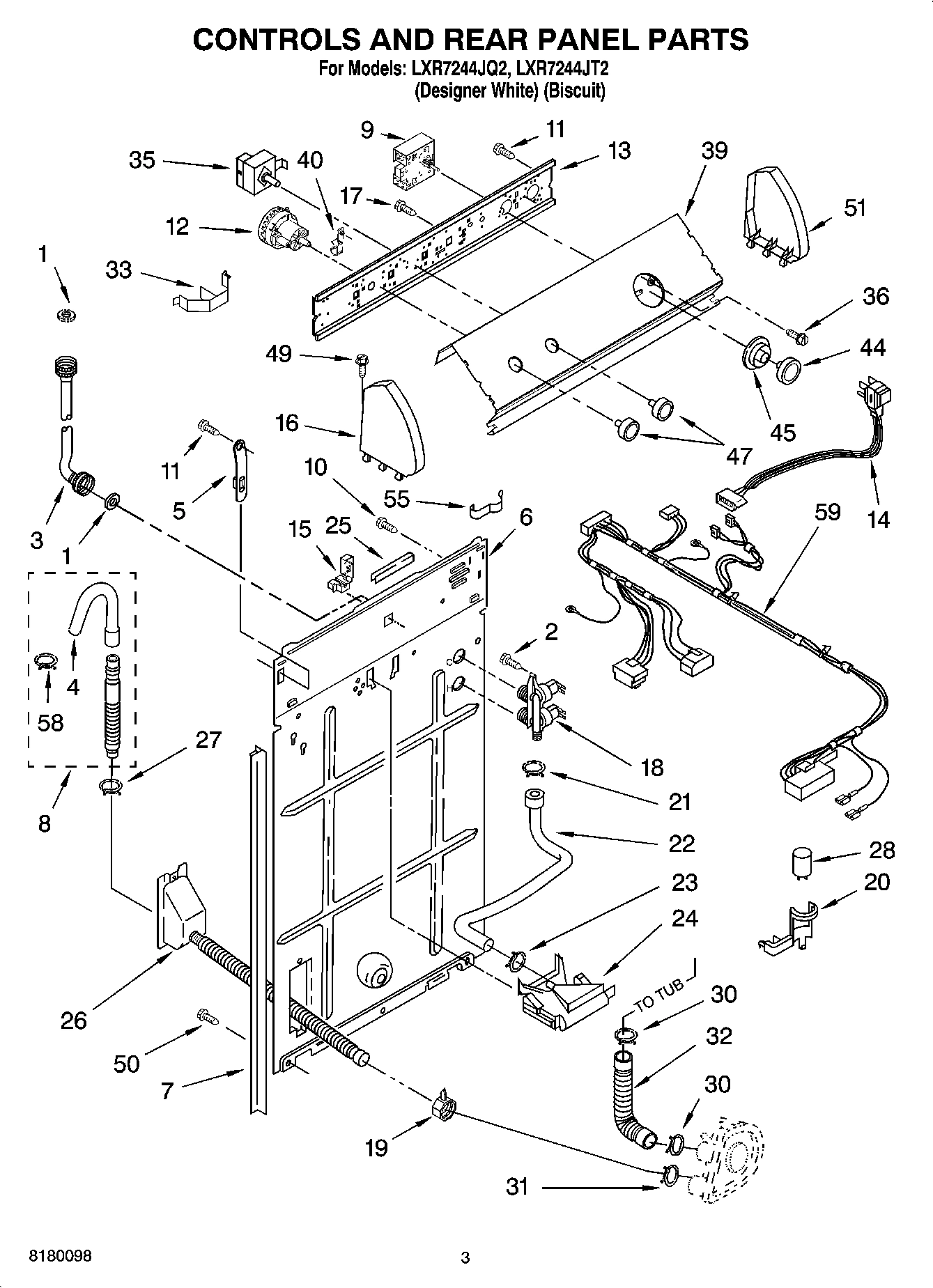

02 - CONTROL AND REAR PANEL PARTS

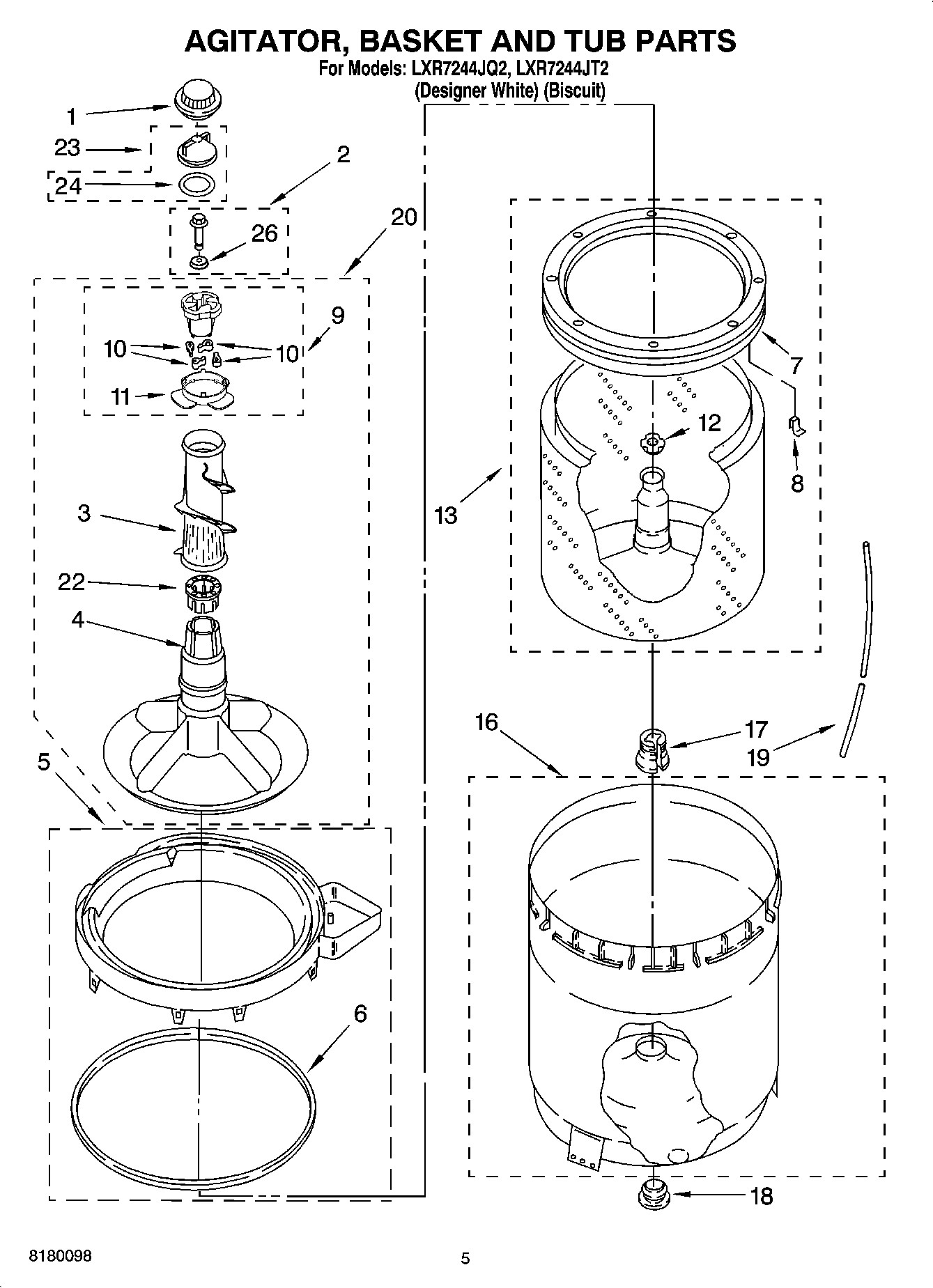

03 - AGITATOR, BASKET AND TUB PARTS

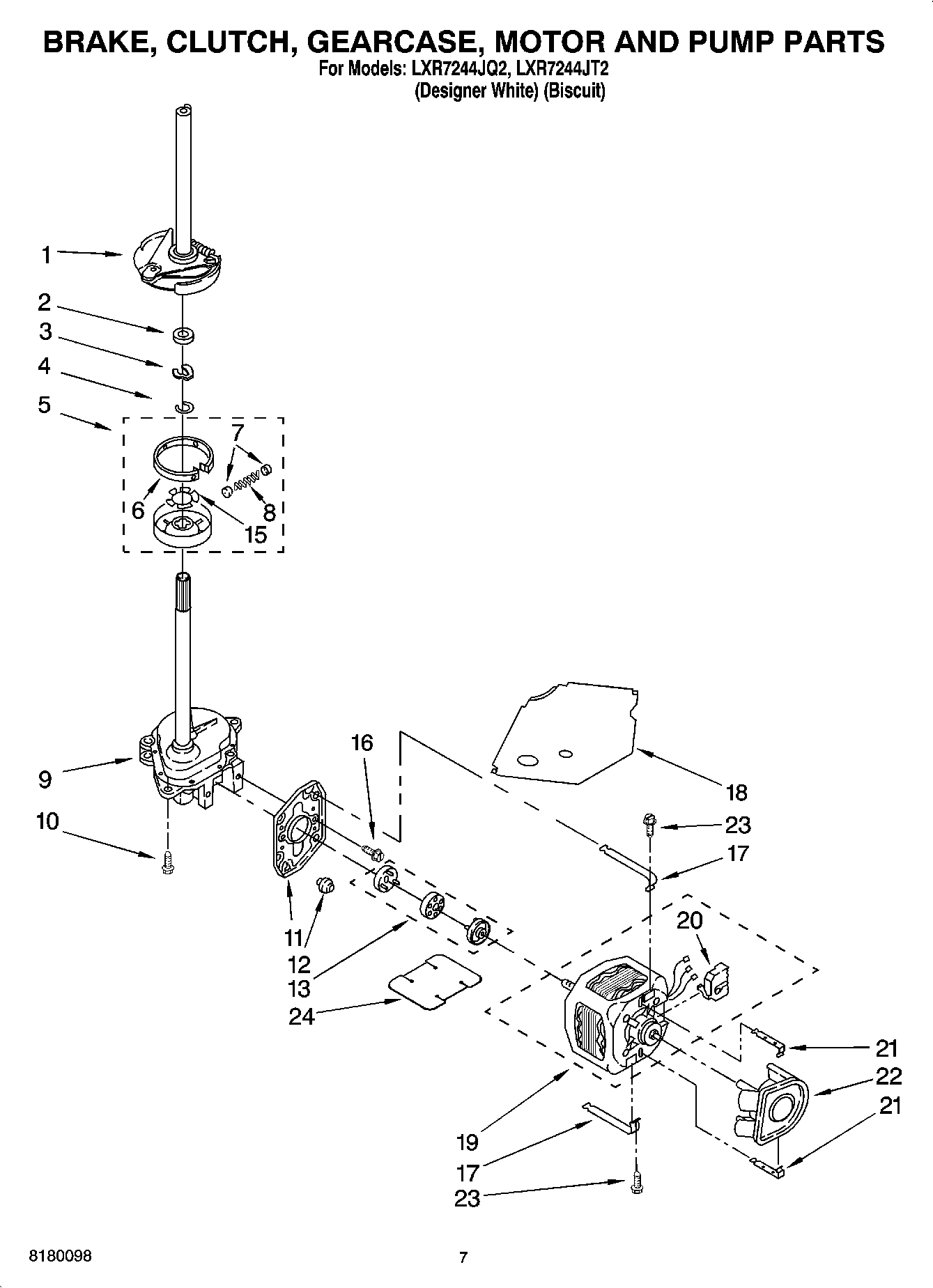

04 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

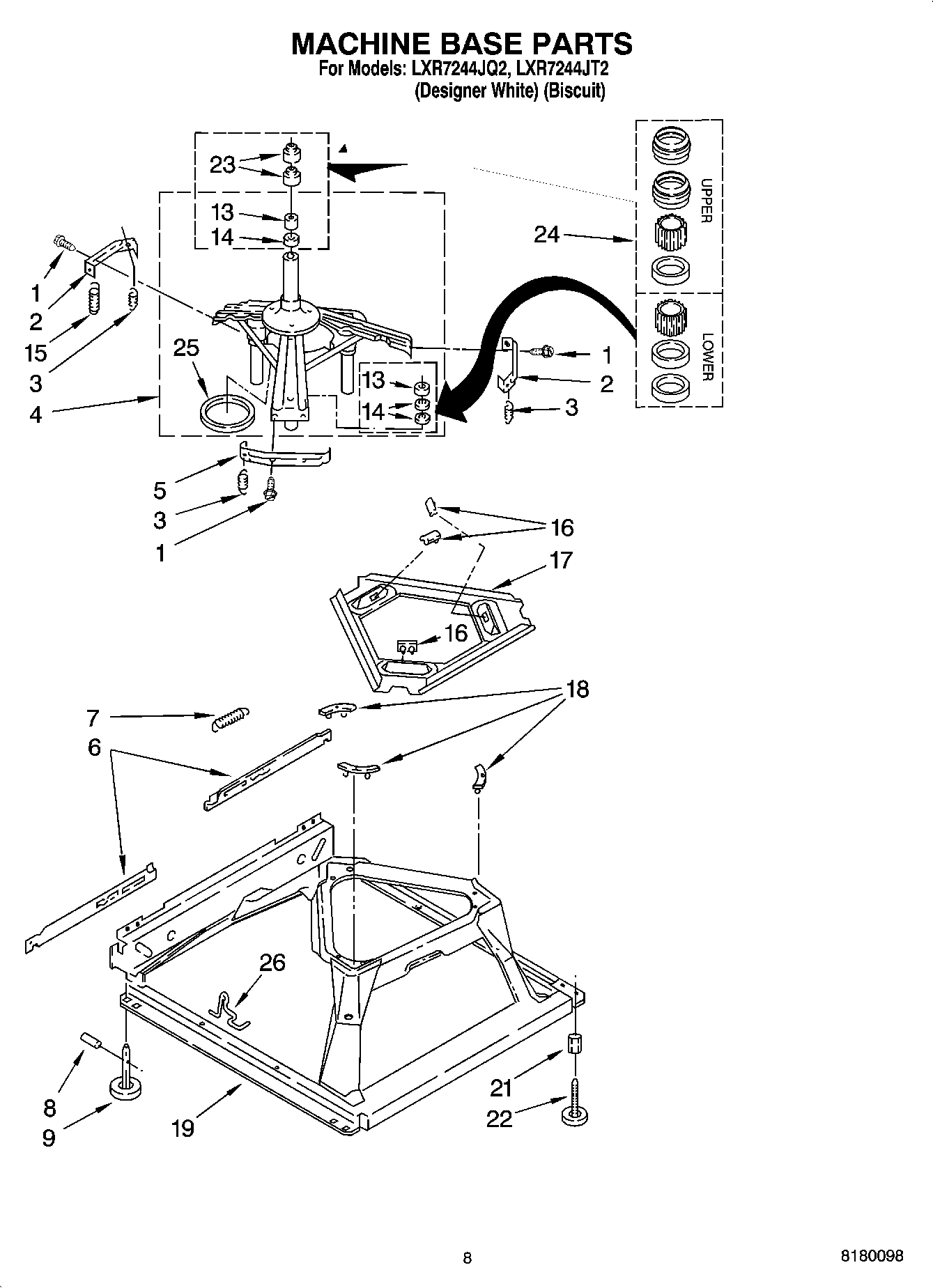

05 - MACHINE BASE PARTS
06 - WIRING HARNESS PARTS
07 - WATER SYSTEM PARTS

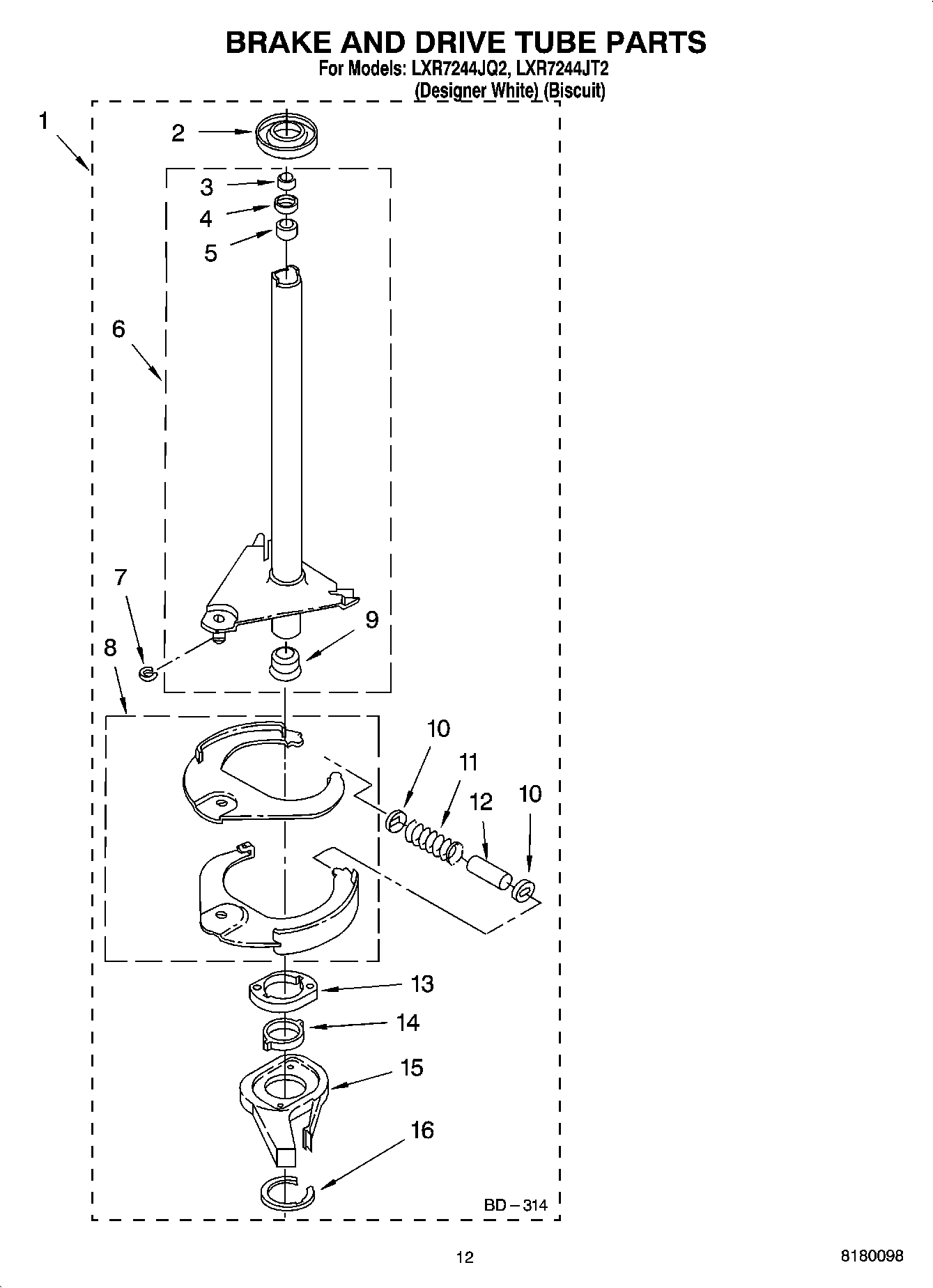

08 - BRAKE AND DRIVE TUBE PARTS
09 - GEARCASE PARTS

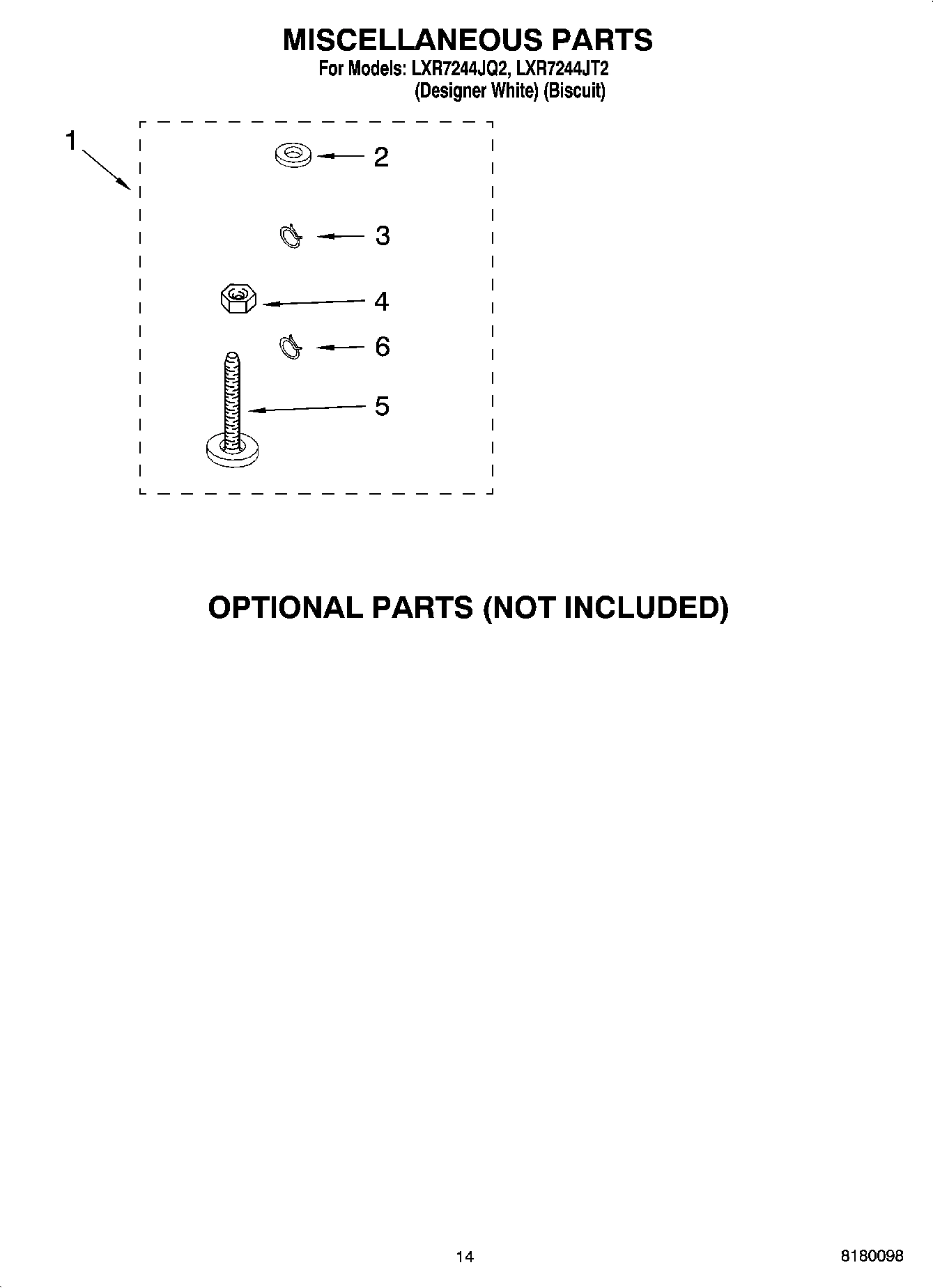

10 - MISCELLANEOUS PARTS - OPTIONAL PARTS (NOT INCLUDED)
