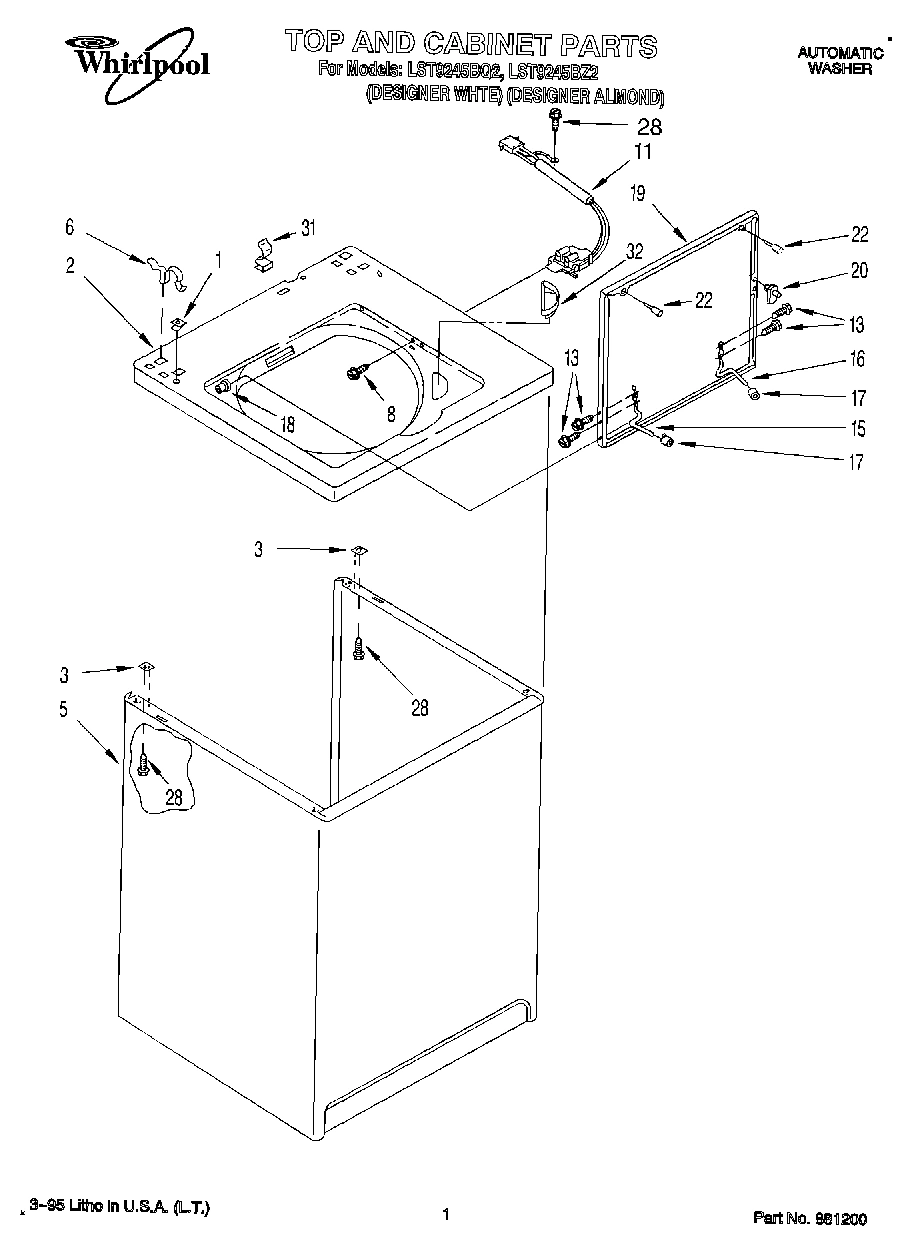

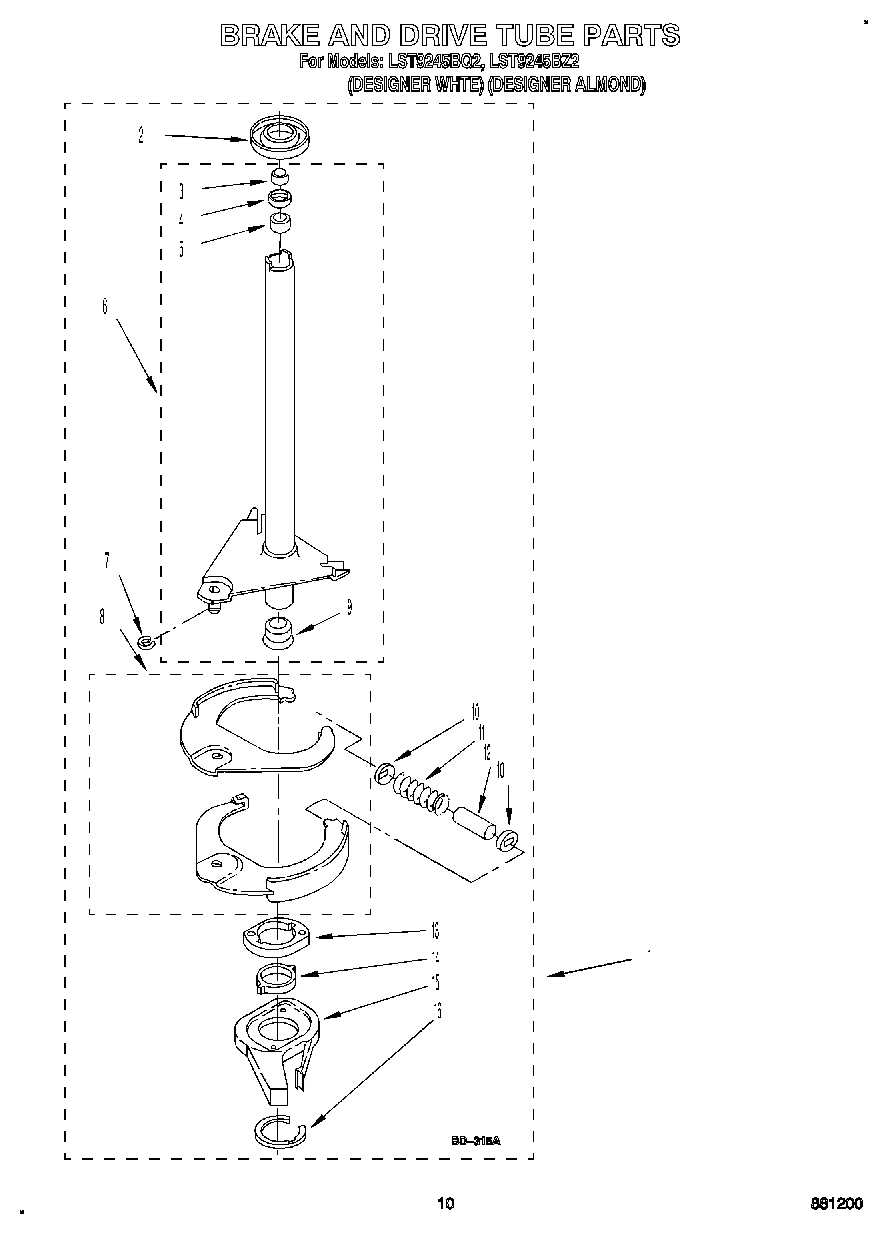

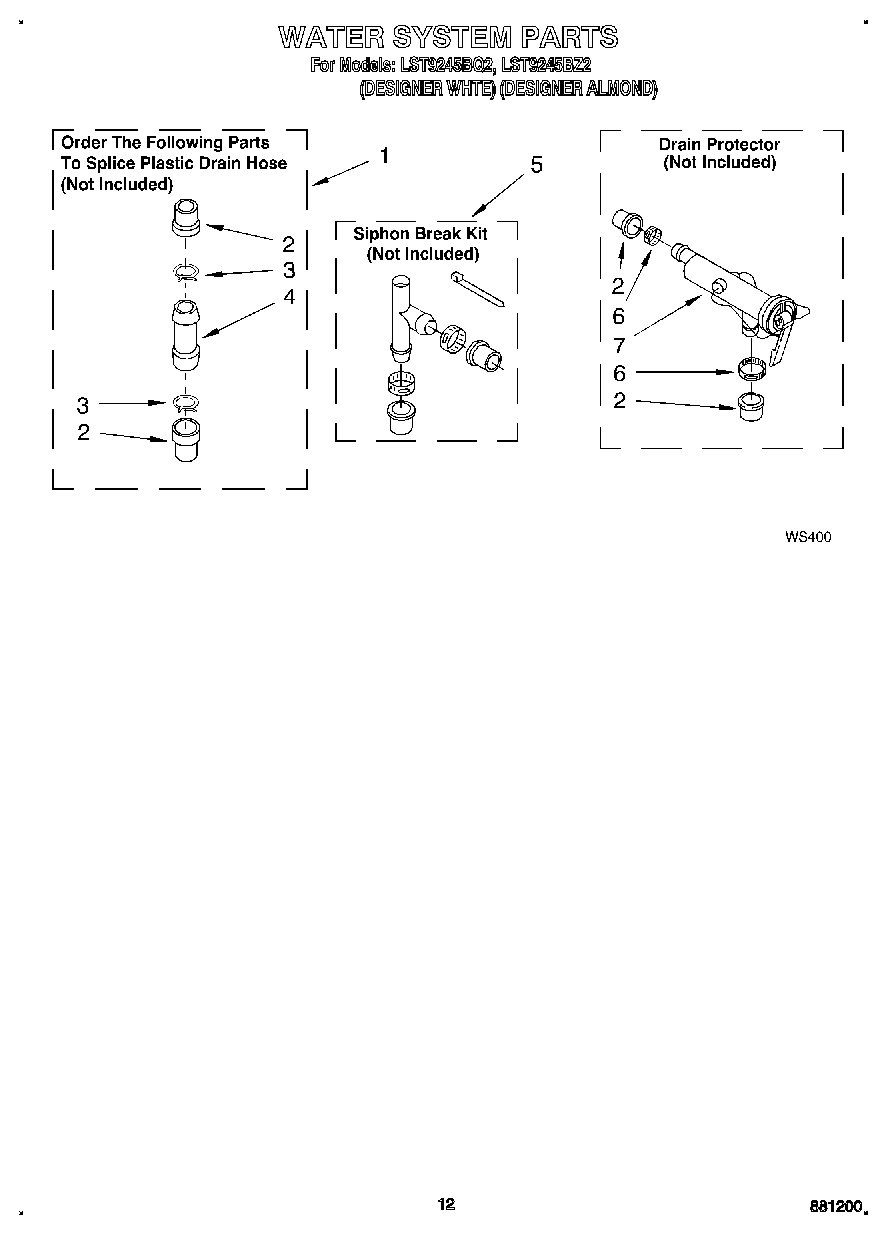

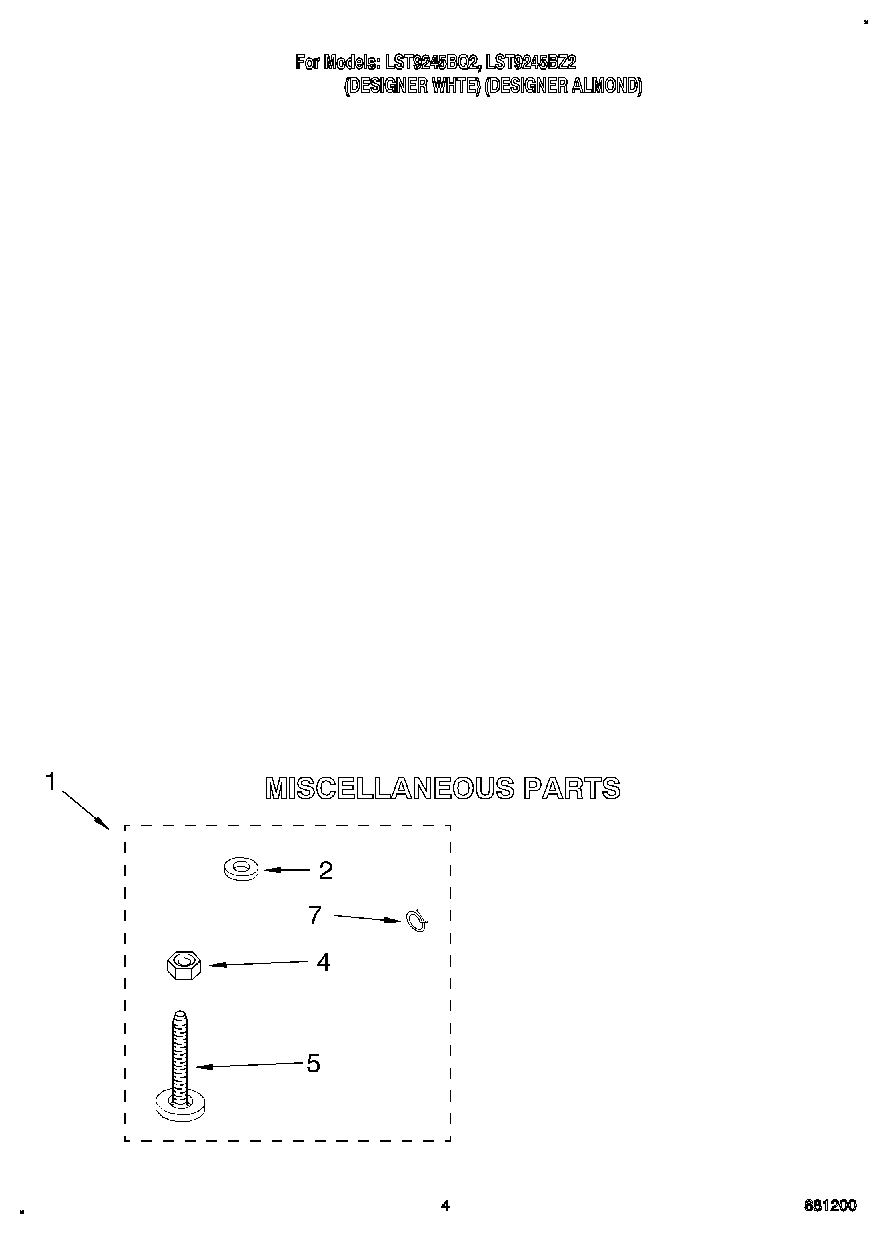

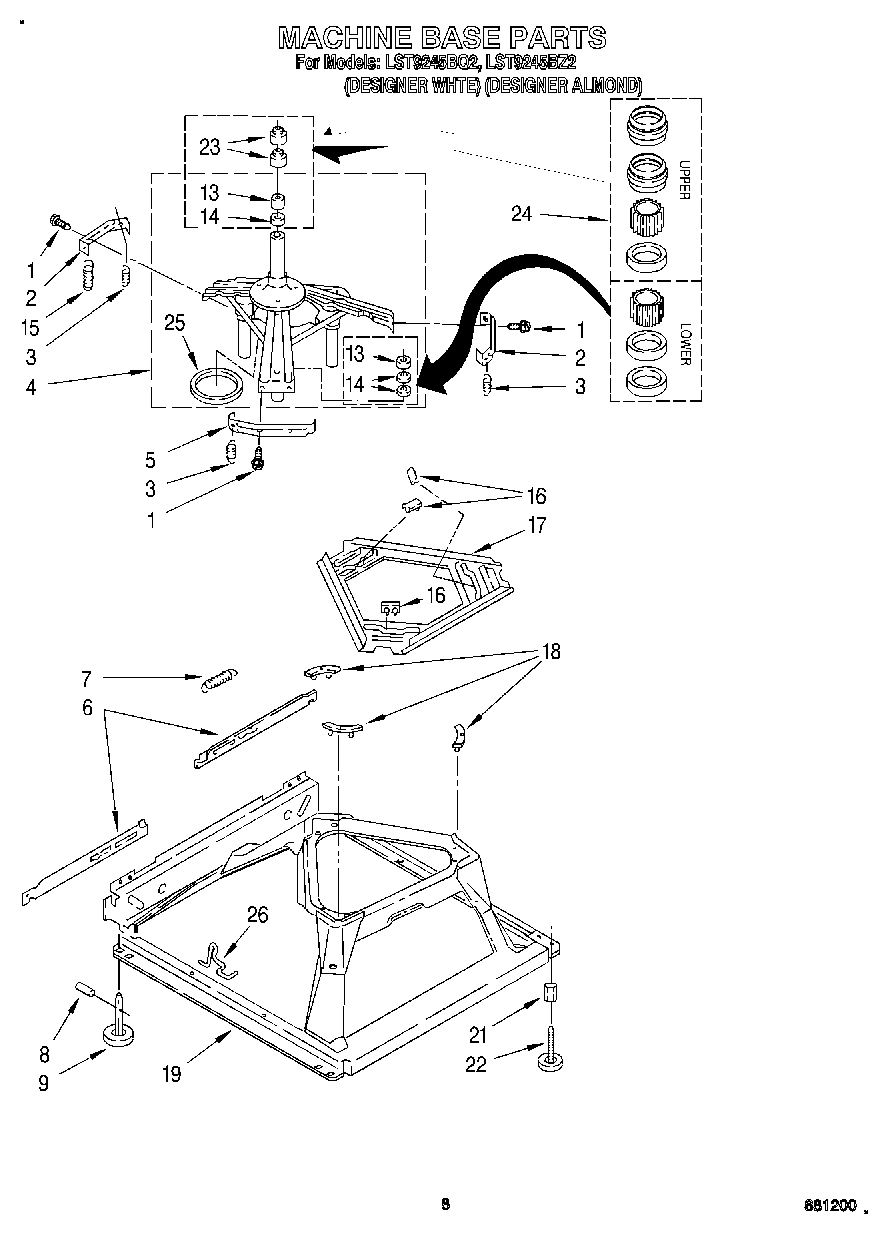

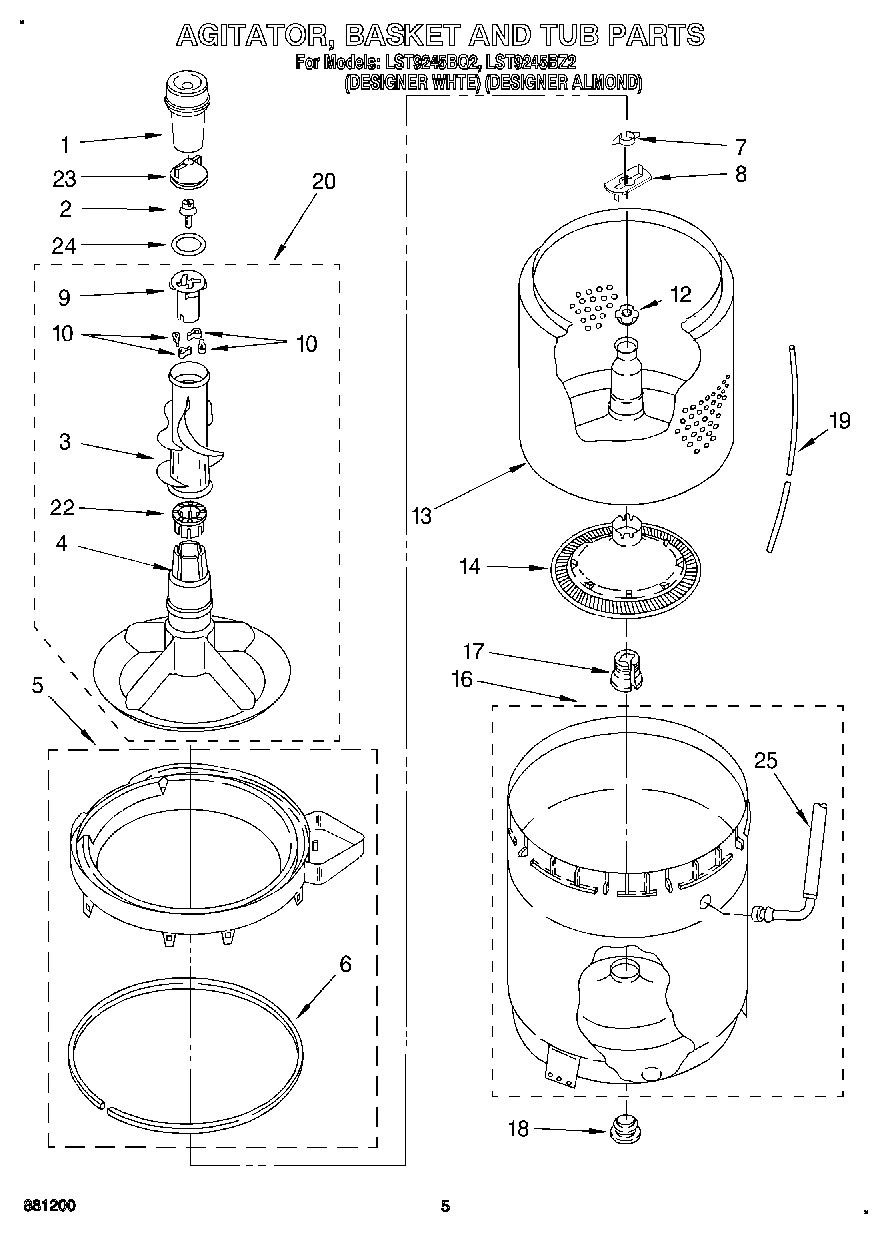

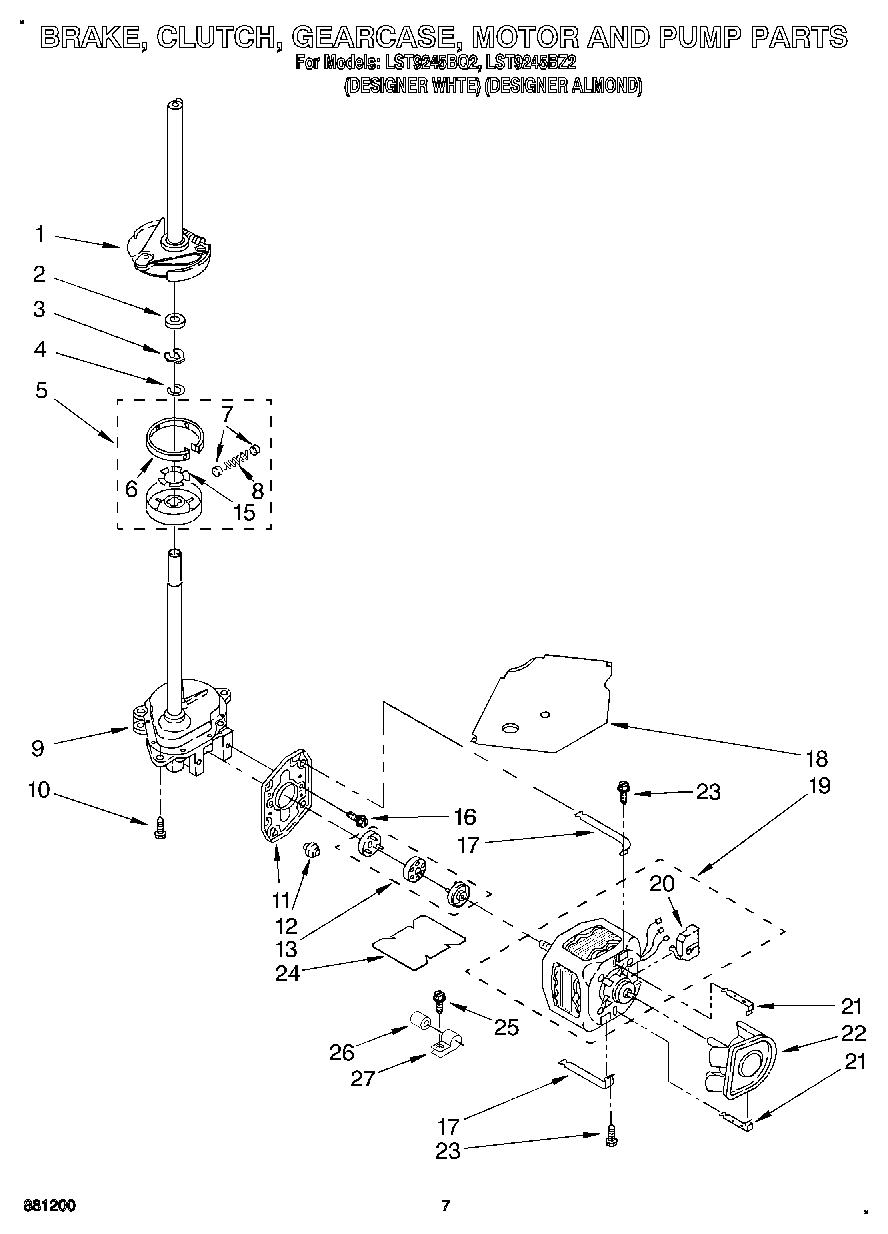

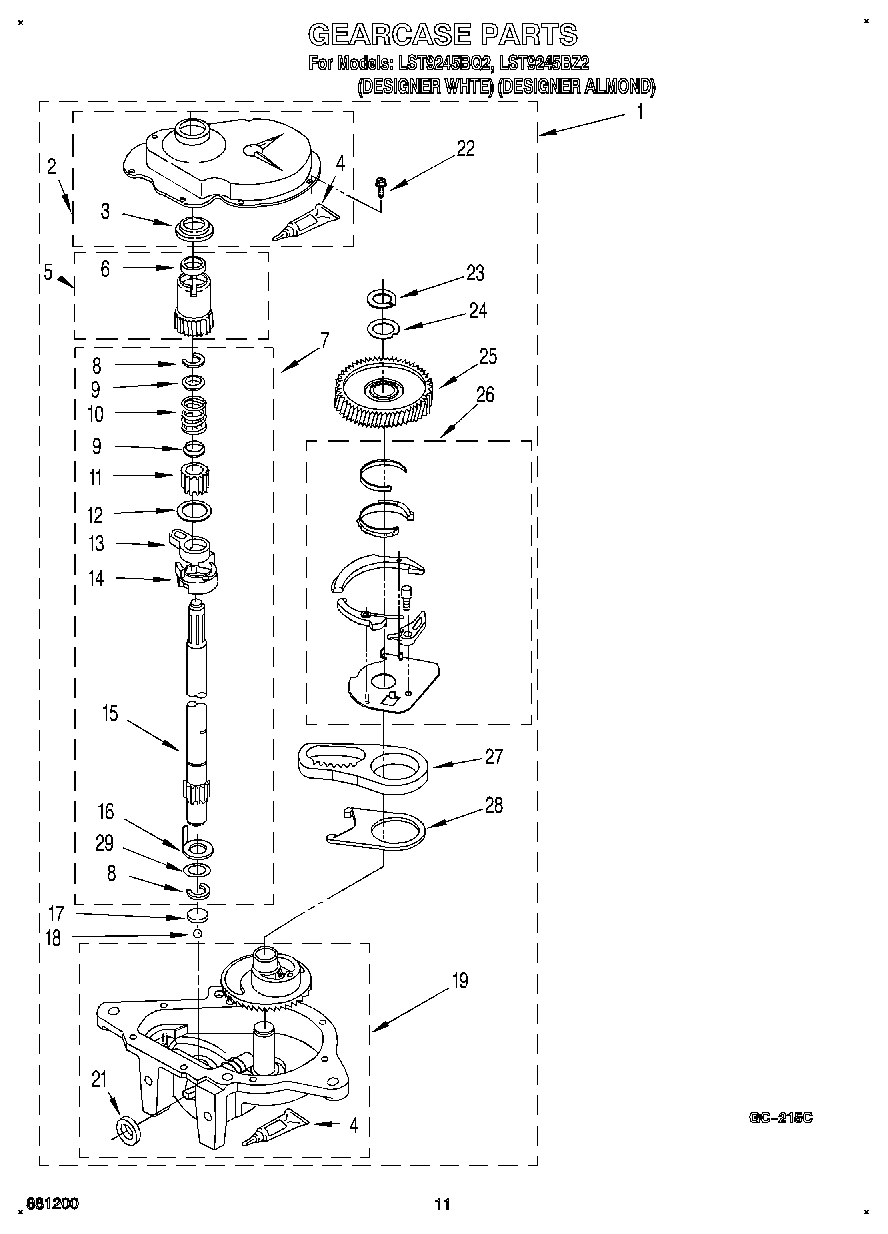

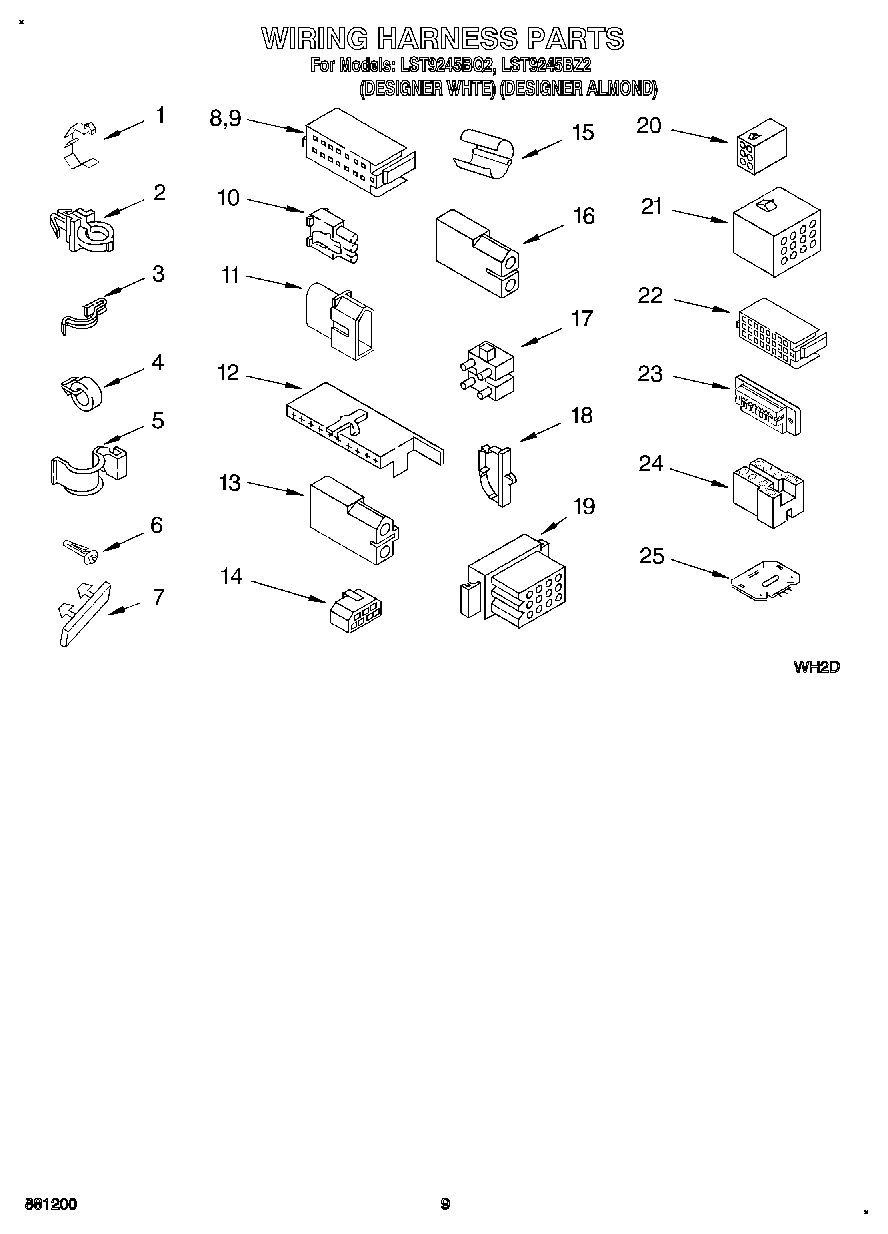

Model Whirlpool LST9245BQ2 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350938 Whirlpool Spray Gun In Stock WPL 350938 $28.93

350956 Whirlpool Spray Assembly In Stock WPL 350956 $17.07

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.38

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.60

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Shipping Kit WPL 3348675 Contact Us For Availability

Drain Protector WPL 367031 Contact Us For Availability

Stand-Pipe Kit WPL 89121 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Guide, Use and Care WPL LIT3357471 Contact Us For Availability

Sheet, Installation Instructions WPL LIT3360057 Contact Us For Availability

Label, Wiring Diagram WPL LIT3361183 Contact Us For Availability

Energy Guide WPL LIT3361373 Contact Us For Availability

Manual, (Washer) Do-It-Yourself WPL LIT4313896 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $58.70

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.75

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $129.24

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $123.80

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.77

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.80

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $6.75

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.19

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.20

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.46

2

Top (White) WPL 3358200 Contact Us For Availability

2

Top (Almond) WPL 3358201 Contact Us For Availability

2

Clip, Harness WPL 388498 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $50.35

3

WP3348752 Whirlpool Agitator Mover Backorder WPL WP3348752 $104.77

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.46

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $4.19

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.53

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.53

4

8559320 Whirlpool Clip Backorder WPL 8559320 $31.16

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $70.05

4

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $89.65

4

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $60.62

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $54.86

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $414.05

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (Almond) WPL 63425 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.53

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.19

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $157.92

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.70

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $13.19

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $5.76

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $13.77

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $93.92

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $3.22

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.19

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.56

8

Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $11.80

9

W10876590 Whirlpool Connector Backorder WPL W10876590 $7.78

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.53

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $10.03

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $34.75

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.19

Spring, Agitator WPL 62676 Contact Us For Availability

285671 Whirlpool Lid Switch Assembly In Stock WPL 285671 $28.98

353424 Whirlpool Connector Backorder WPL 353424 $16.76

WP62611 Whirlpool Plate Backorder WPL WP62611 $44.98

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $14.93

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.53

WP62505 Whirlpool Connector Backorder WPL WP62505 $13.77

WP62691 Whirlpool Grommet In Stock WPL WP62691 $6.79

Switch, Water Level (White) WPL 3357481 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.79

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $3.22

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.07

Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $17.49

14

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.55

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $118.71

WP54584 Whirlpool Hinge Backorder WPL WP54584 $12.90

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

Protector WPL 63523 Contact Us For Availability

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $3.22

WP54583 Whirlpool Hinge Backorder WPL WP54583 $11.99

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $5.65

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $5.76

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.34

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $127.92

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.83

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.19

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.94

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $22.96

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $4.19

Clip, Harness WPL 3352944 Contact Us For Availability

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $162.24

Lid (White) WPL 3361392 Contact Us For Availability

Lid (Almond) WPL 3361393 Contact Us For Availability

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $4.20

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

20

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $33.22

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $3.22

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $4.20

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.77

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.91

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $30.73

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.85

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.74

23

Connector, Etc WPL 3349494 Contact Us For Availability

23

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $88.08

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $12.87

Connector, Relay (Use Term. 308569 Or 338664) WPL 60687 Contact Us For Availability

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $3.46

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.19

25

Control, ETC WPL 3407125 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $36.05

26

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.39

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.53

27

357030 Whirlpool Clamp Backorder WPL 357030 $13.77

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.53

28

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.77

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.44

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $6.11

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.92

44

WP3364293 Whirlpool Timer Knob In Stock WPL WP3364293 $35.00
