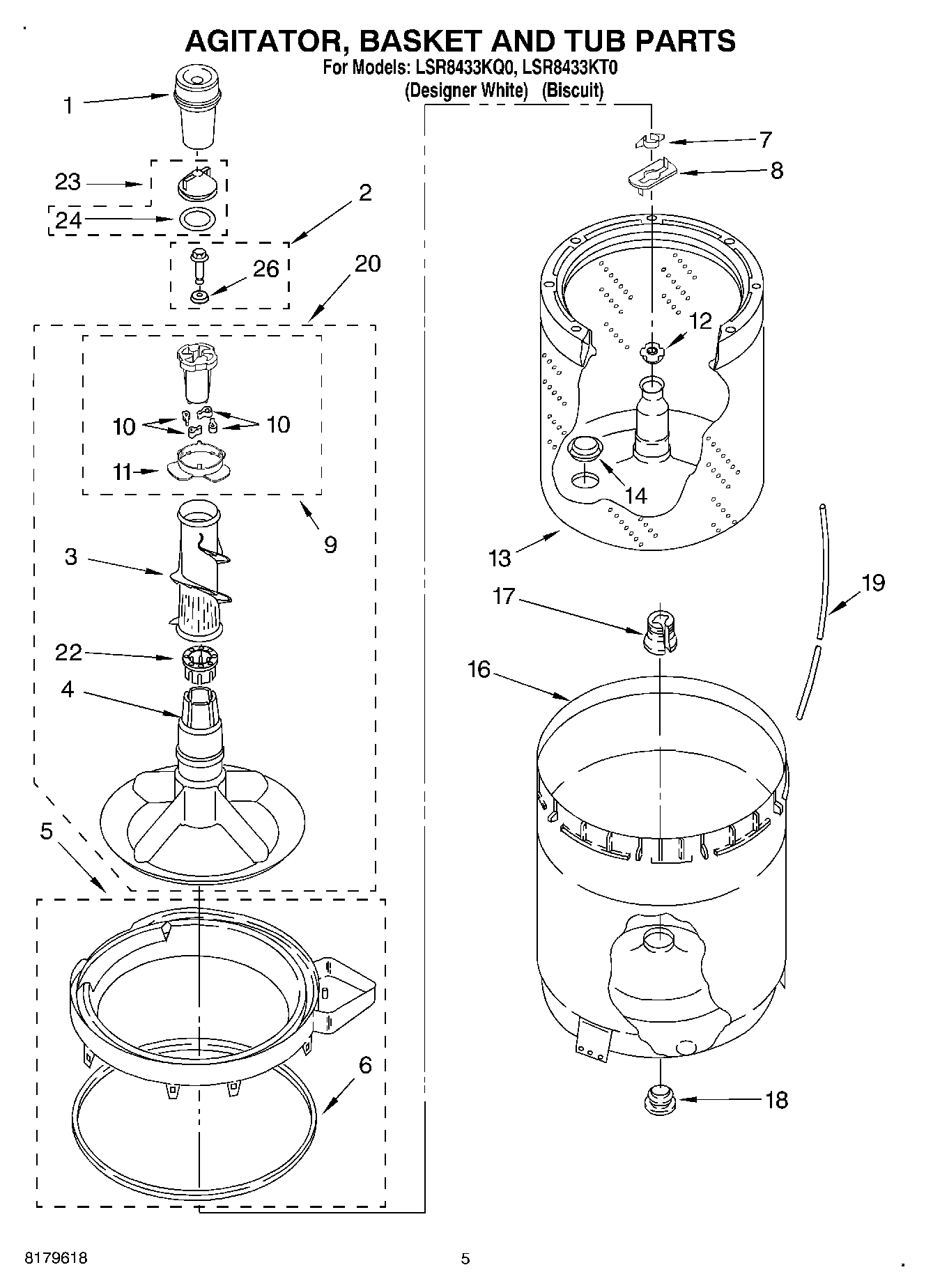

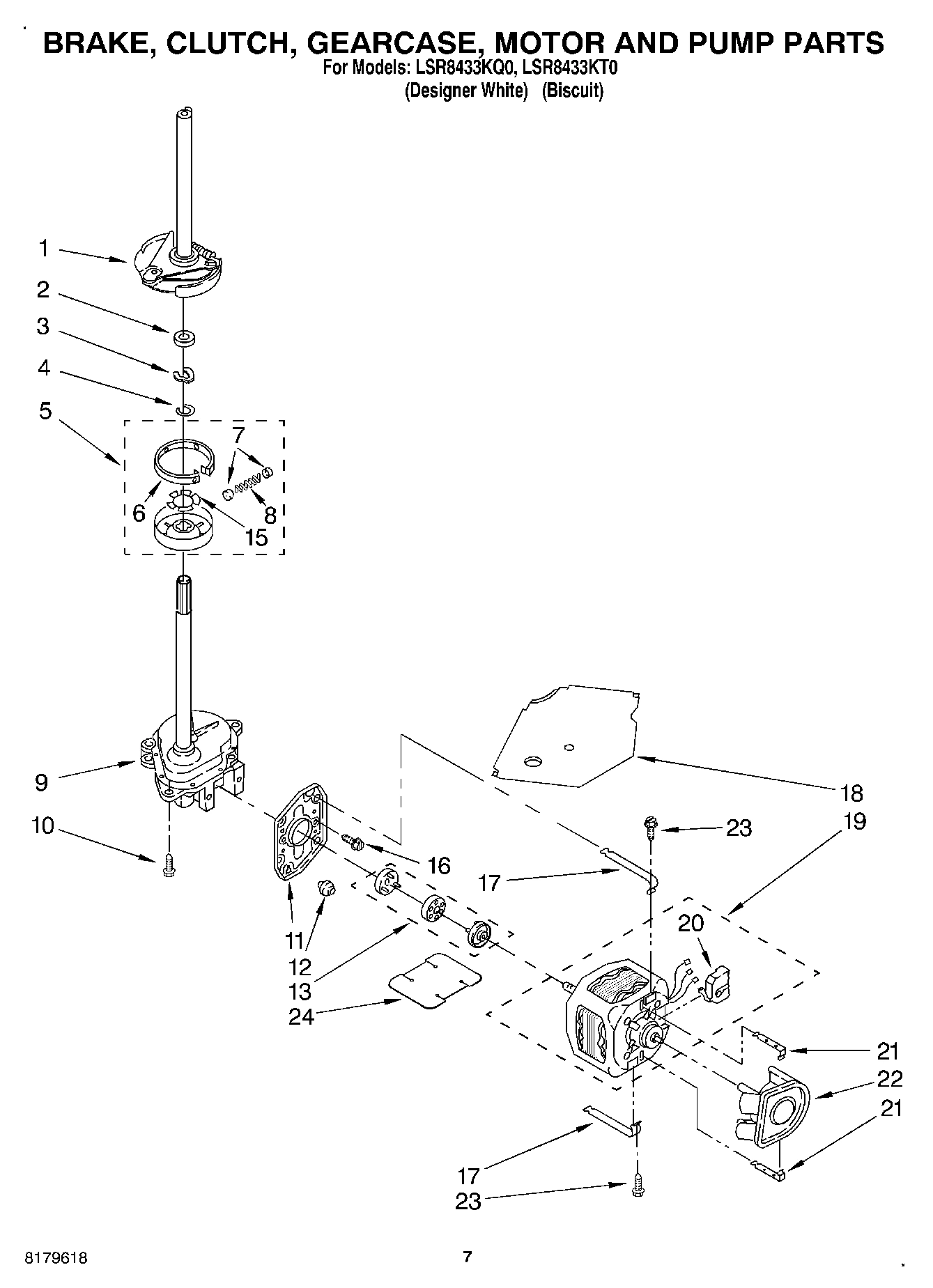

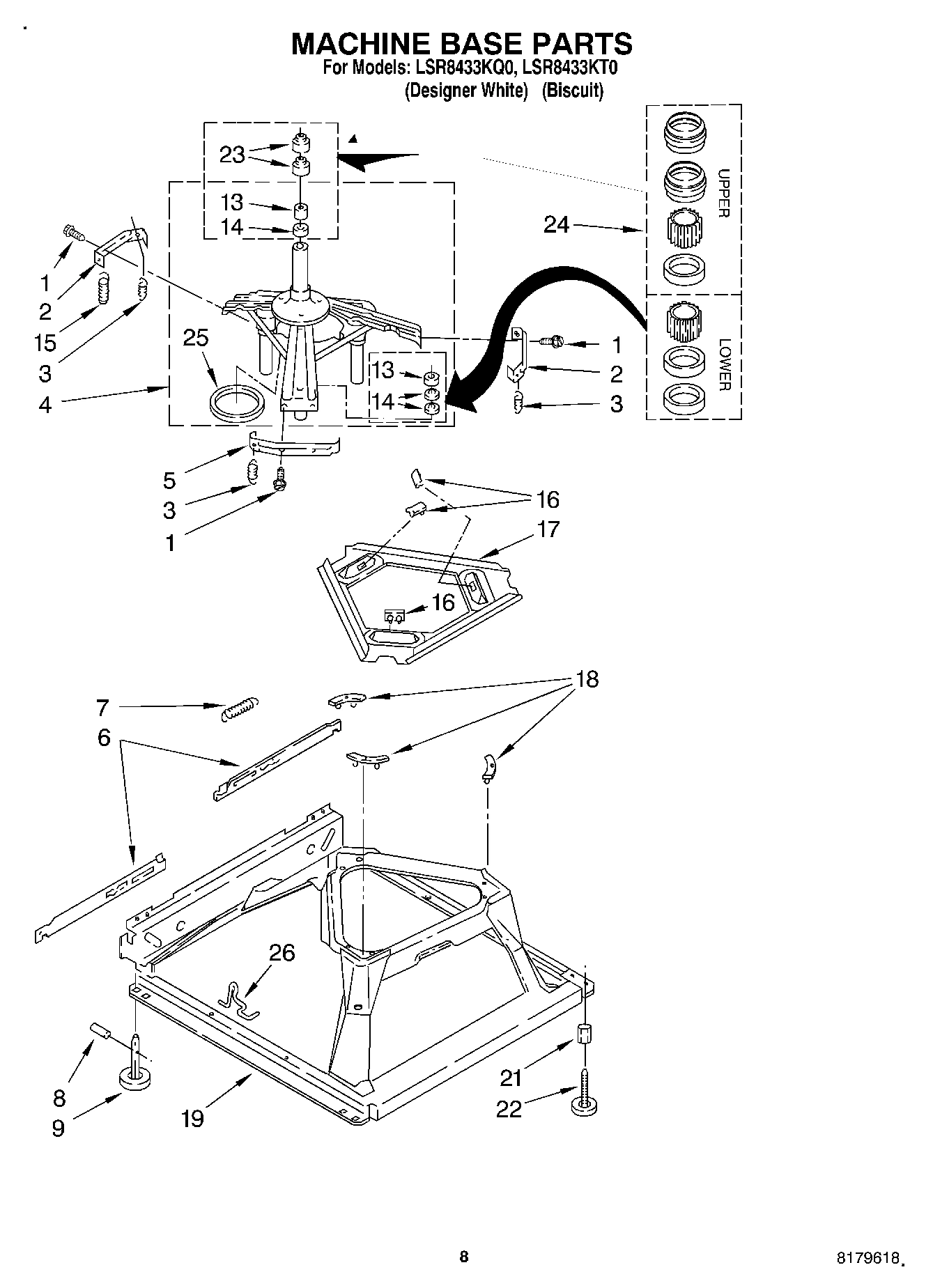

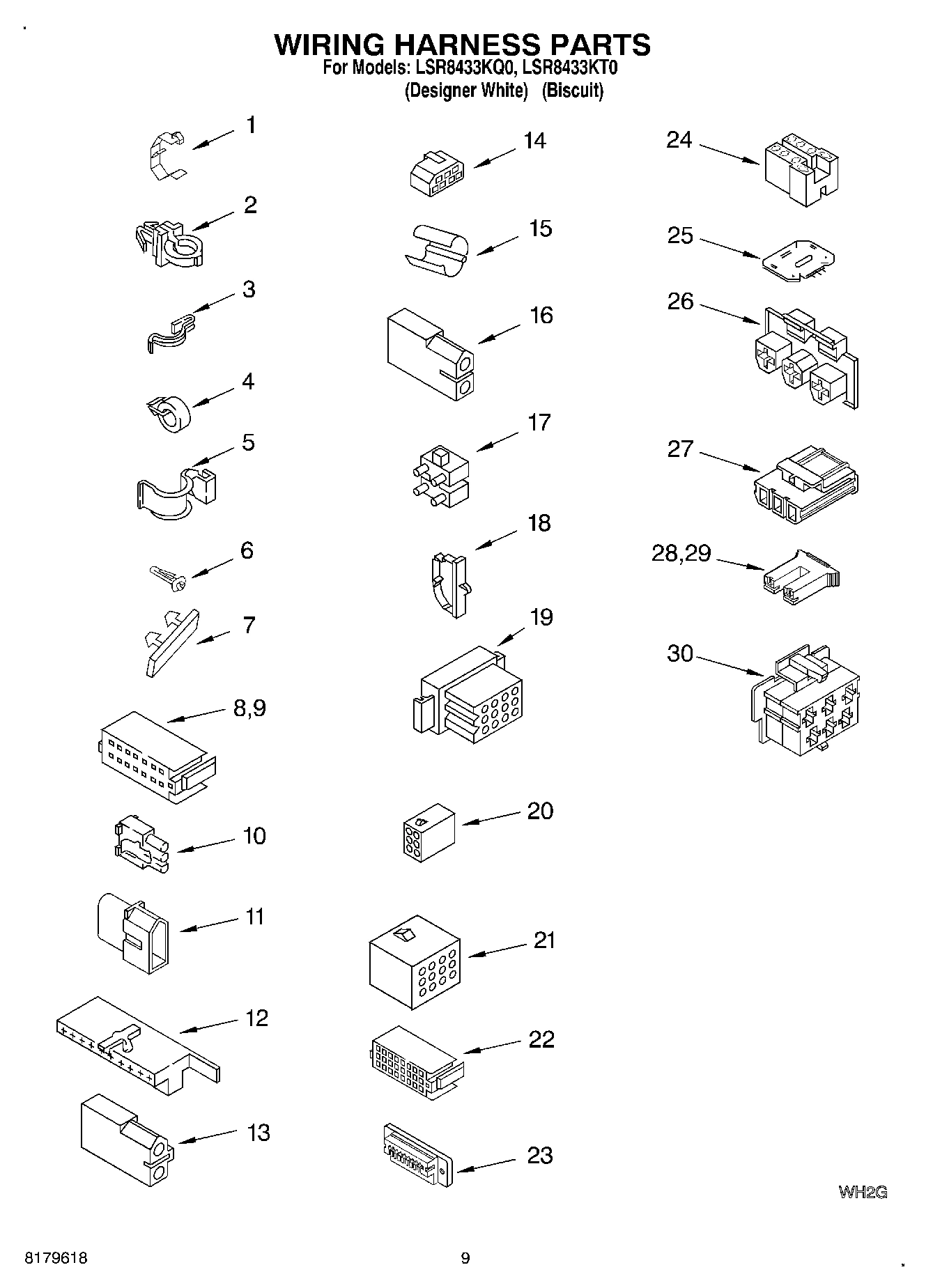

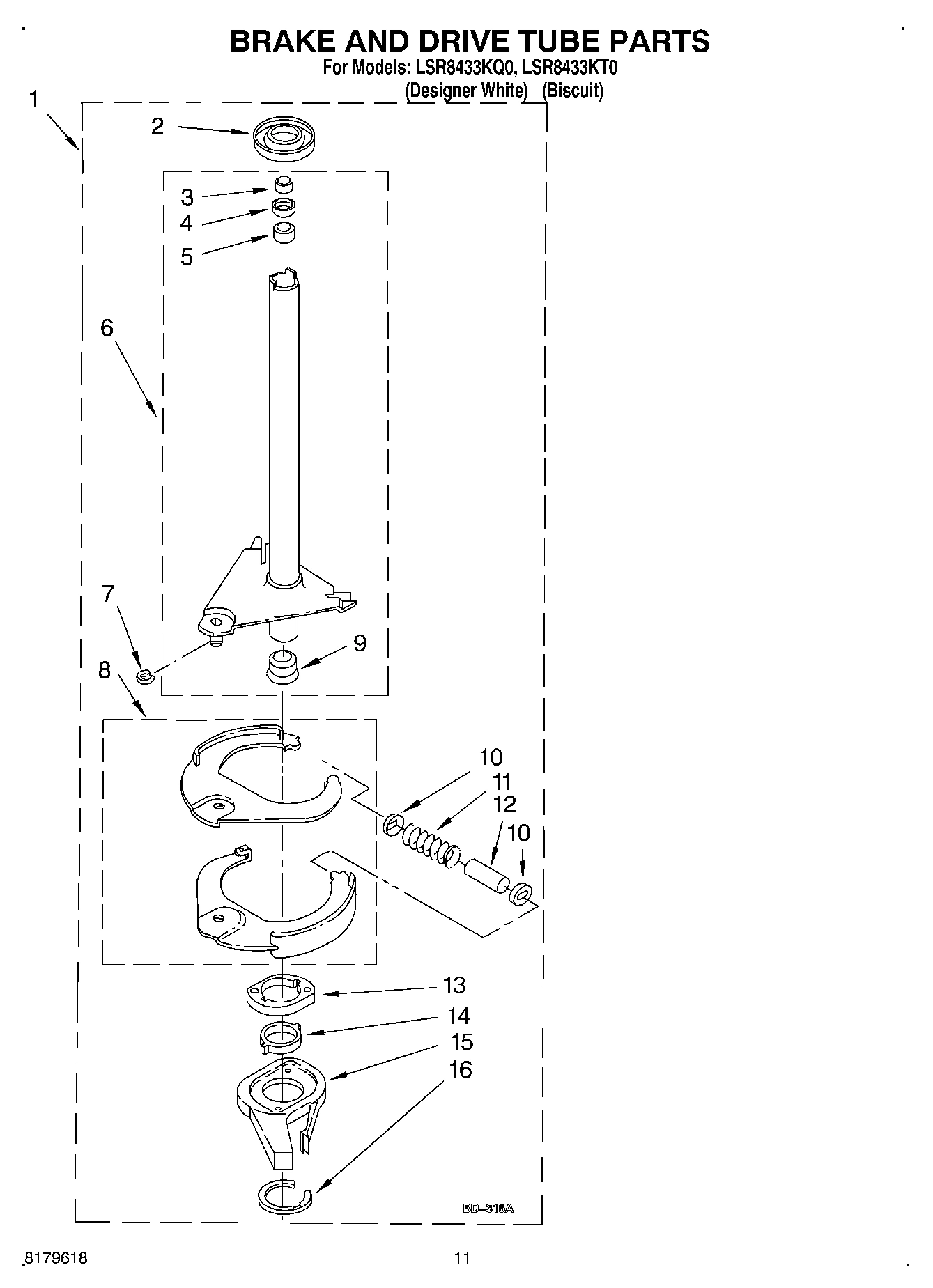

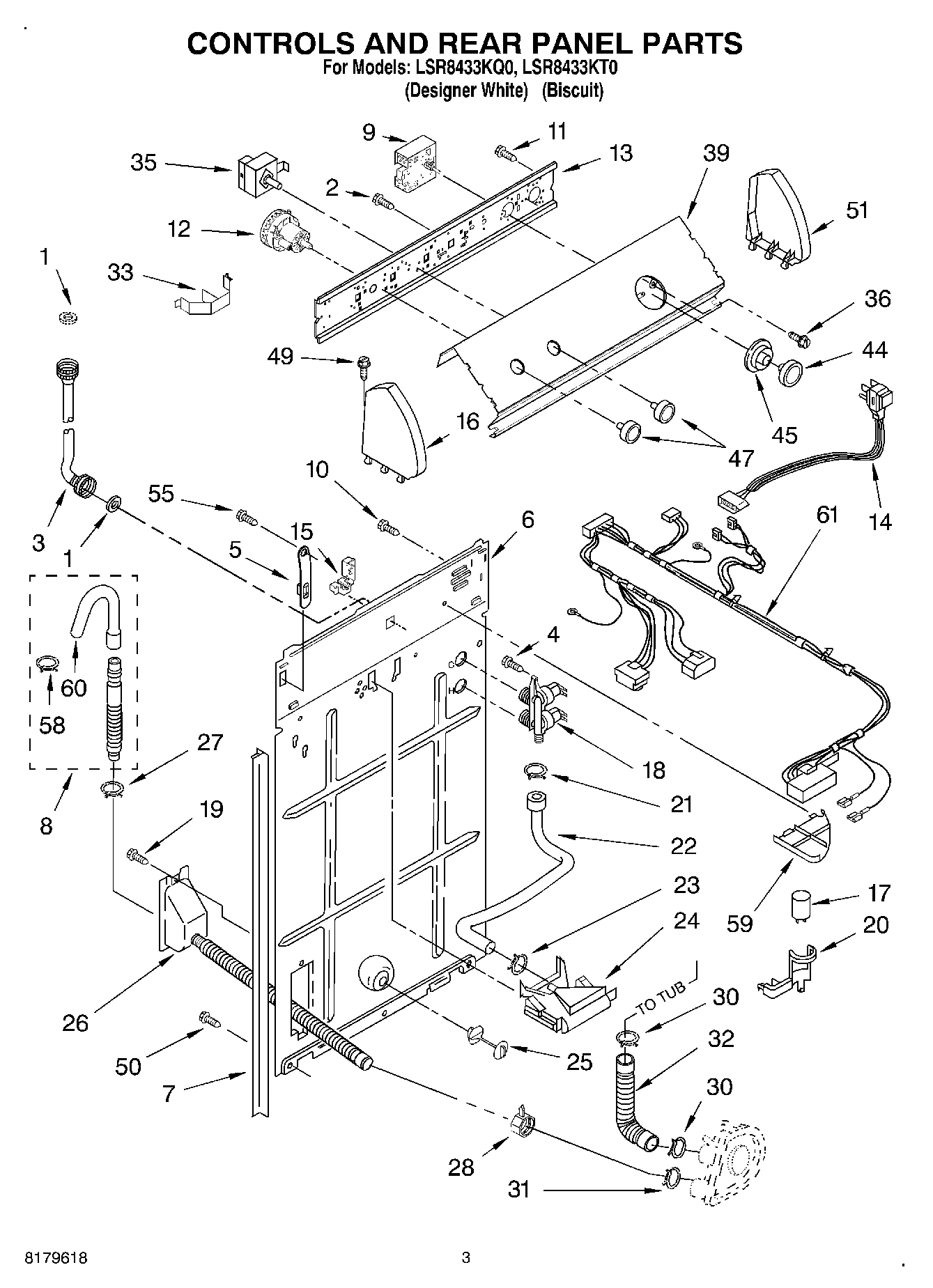

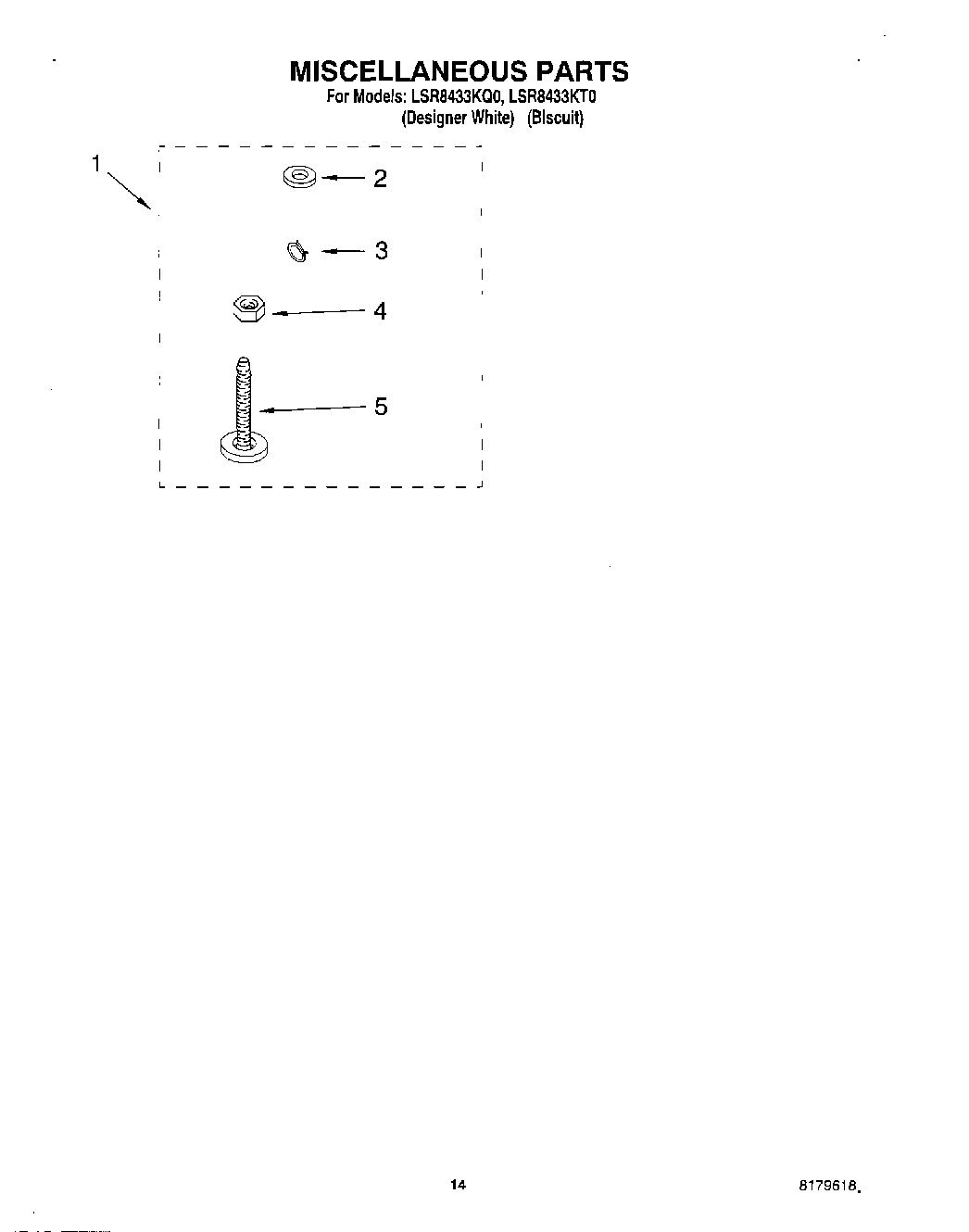

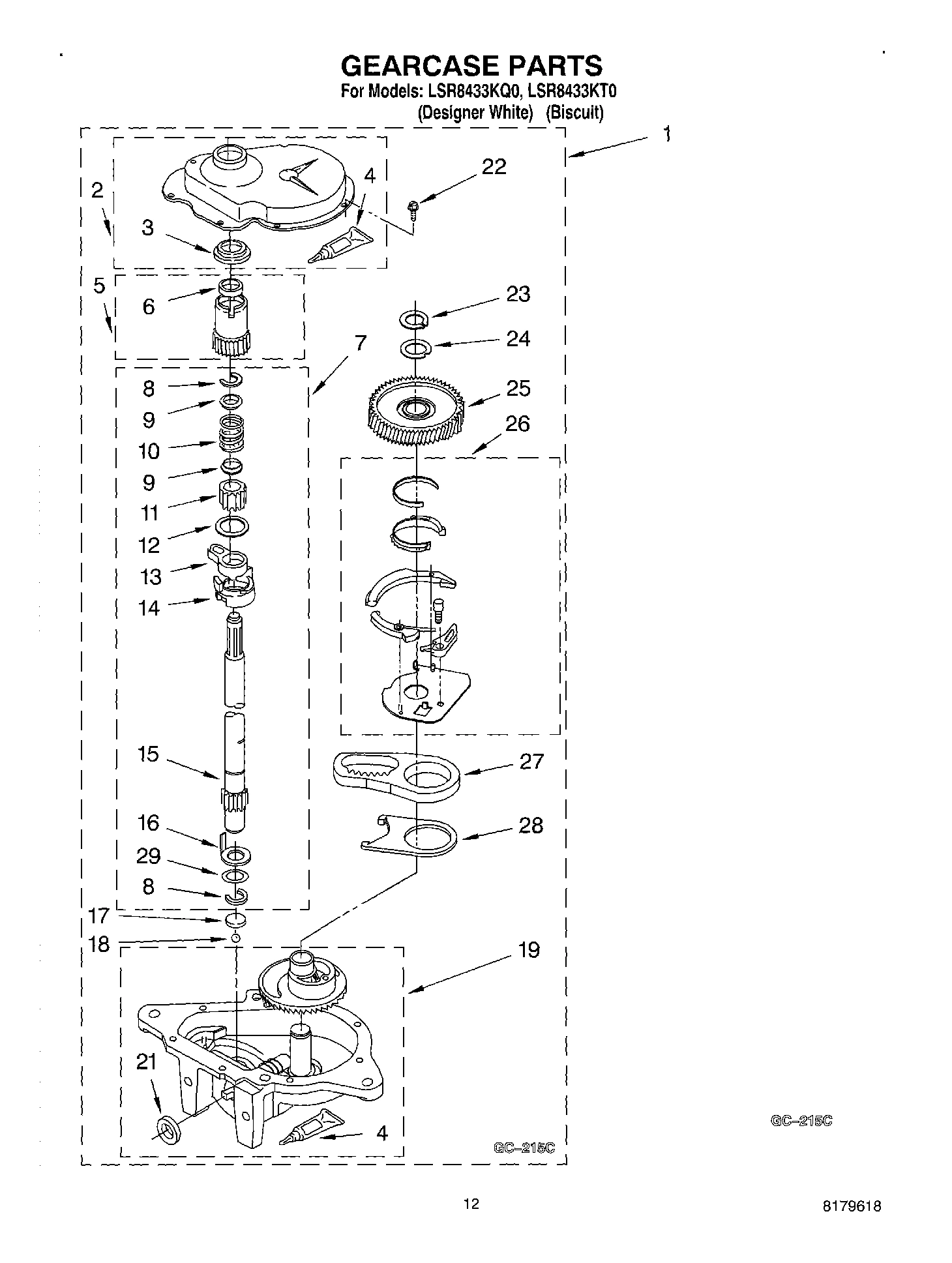

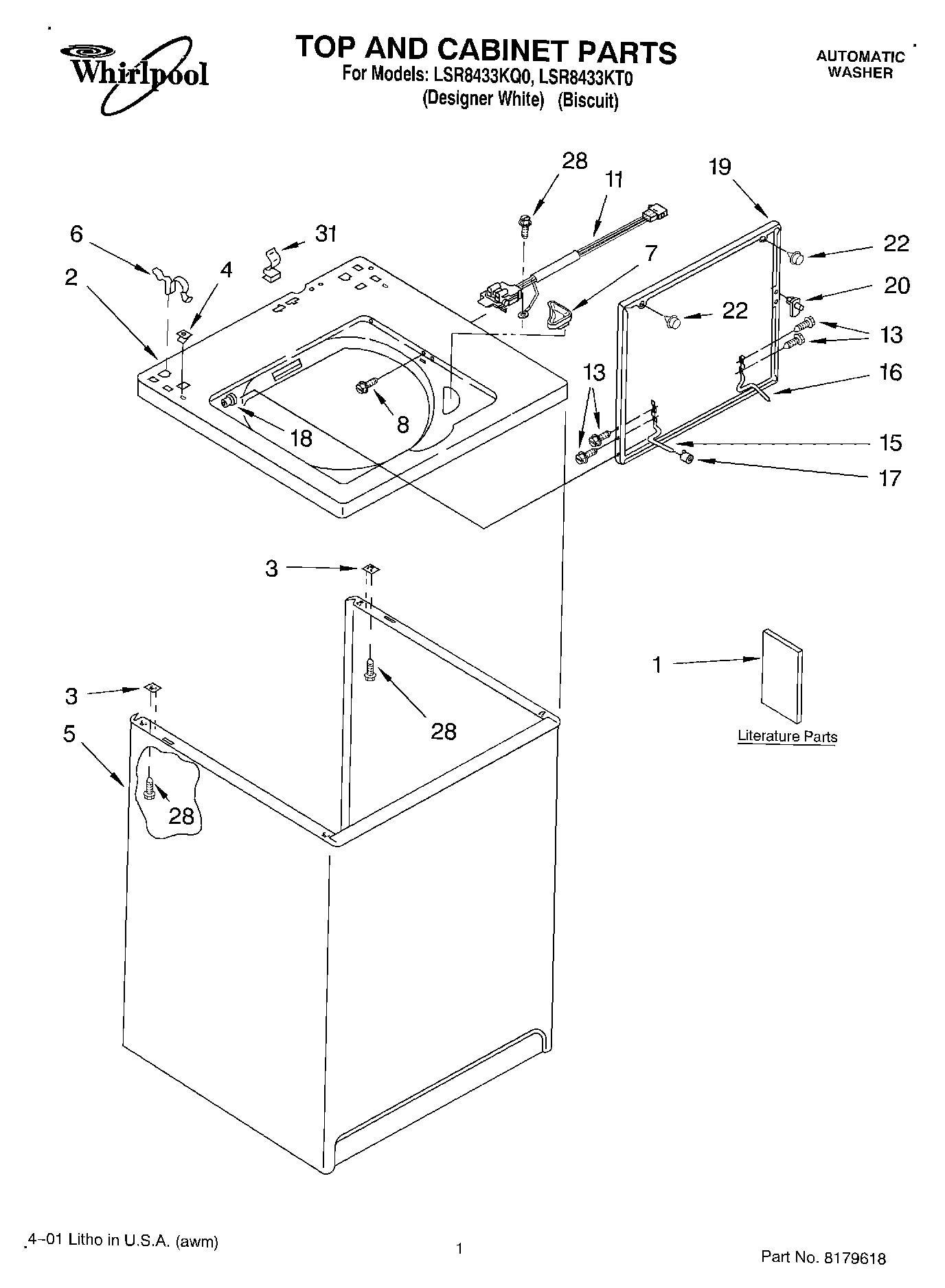

Model Whirlpool LSR8433KT0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.75

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $129.24

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $3.22

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $123.80

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.80

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.19

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.20

2

Clip, Harness WPL 388498 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $50.35

3

WP3348752 Whirlpool Agitator Mover Backorder WPL WP3348752 $104.77

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.46

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $4.19

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.53

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.53

3

WPW10080230 Whirlpool Ring In Stock WPL WPW10080230 $6.37

4

285353 Whirlpool Ring Backorder WPL 285353 $4.05

4

8559320 Whirlpool Clip Backorder WPL 8559320 $31.16

4

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $89.65

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.51

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $3.22

5

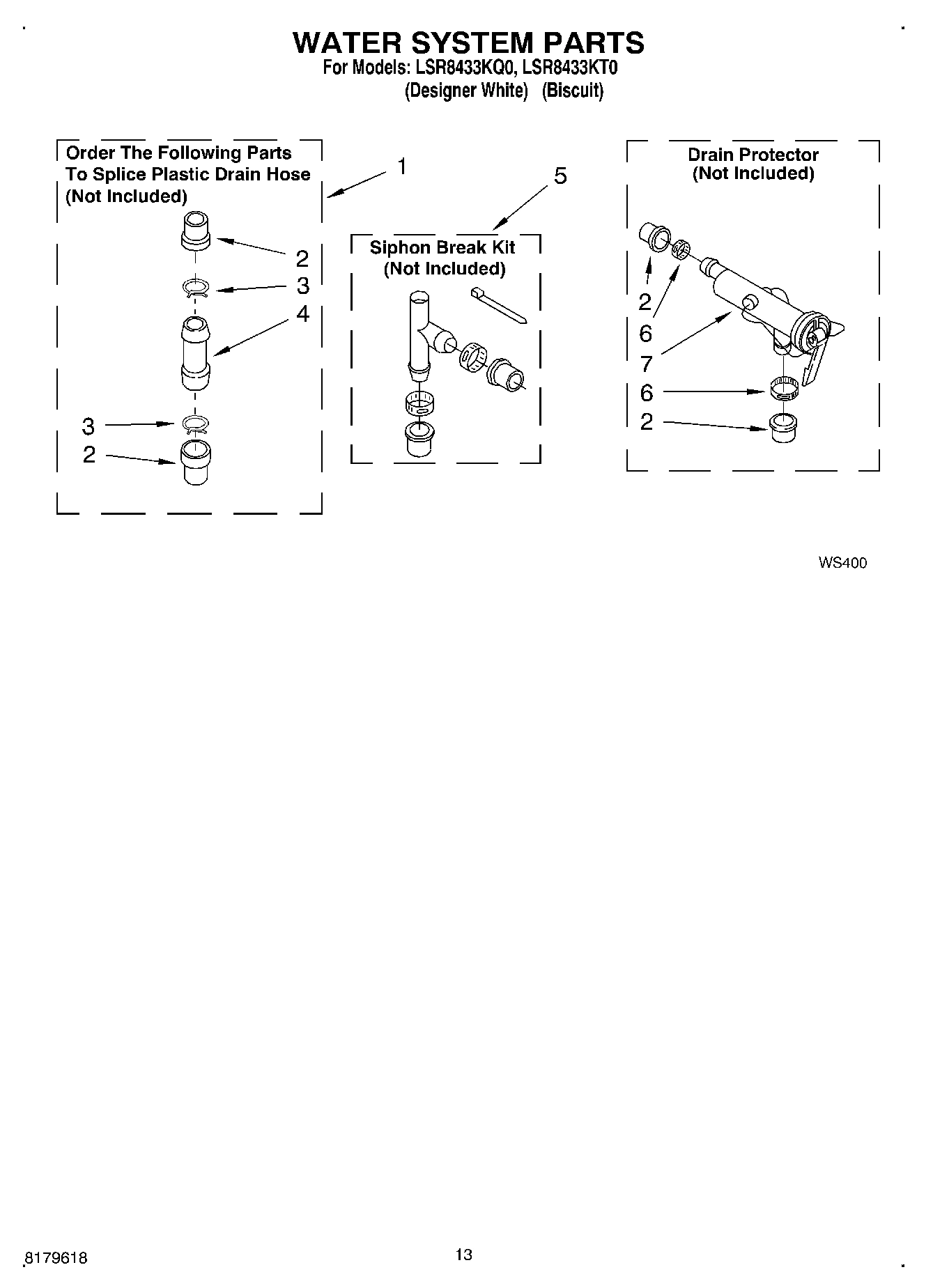

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $54.86

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $42.12

5

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.94

5

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

5

350938 Whirlpool Spray Gun In Stock WPL 350938 $28.93

5

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.51

5

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.92

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $414.05

5

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

5

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

5

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $70.05

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.55

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.53

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.19

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $13.19

7

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.92

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $5.76

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.59

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $13.77

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $3.22

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.19

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.56

8

Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.53

9

62677 Whirlpool Retainer Backorder WPL 62677 $11.80

9

W10876590 Whirlpool Connector Backorder WPL W10876590 $7.78

9

WP3948852 Whirlpool Timer Assembly Backorder WPL WP3948852 $221.94

10

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $3.22

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.19

353424 Whirlpool Connector Backorder WPL 353424 $16.76

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.51

WP62611 Whirlpool Plate Backorder WPL WP62611 $44.98

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.46

62619 Whirlpool Washer Backorder WPL 62619 $14.93

W10820051 Whirlpool Washer Pressure Switch In Stock WPL W10820051 $102.78

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.53

WP62505 Whirlpool Connector Backorder WPL WP62505 $13.77

WP62691 Whirlpool Grommet In Stock WPL WP62691 $6.79

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.79

13

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $75.47

13

Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability

14

W10820044 Whirlpool Power Cord Backorder WPL W10820044 $73.90

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $17.49

14

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $118.71

WP54584 Whirlpool Hinge Backorder WPL WP54584 $12.90

Strain Relief, Power Cord WPL 3952821 Contact Us For Availability

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

Protector WPL 63523 Contact Us For Availability

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $166.13

WP91770 Whirlpool Hinge Backorder WPL WP91770 $11.26

Cap, End (L.H.) (BIscuit) WPL 8271368 Contact Us For Availability

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.34

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $127.92

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.39

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.19

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $37.68

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.94

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $22.96

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $4.19

Clip, Harness WPL 3352944 Contact Us For Availability

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $162.24

19

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $4.20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

Clip, Capacitor WPL 8318201 Contact Us For Availability

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $33.22

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $3.22

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.85

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $4.20

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.77

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.91

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $30.73

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.85

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.74

23

Connector, Etc WPL 3349494 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $88.08

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $29.83

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $12.87

Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.19

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $10.18

25

Control, ETC WPL 3407125 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $36.05

WP2172937 Whirlpool Connector Backorder WPL WP2172937 $11.08

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.79

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $17.63

27

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $13.54

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.53

28

3354925 Whirlpool Connector Backorder WPL 3354925 $16.76

28

Clamp, Hose WPL 3976395 No Longer Available

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $3.46

29

WPL 3354926 WPL 3354926 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.15

30

WPL 3948615 WPL 3948615 Contact Us For Availability

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.81

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $6.11

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.71

33

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

35

WPW10168256 Whirlpool Temperature Switch Backorder WPL WPW10168256 $61.77

36

W10915367 Whirlpool Screw Assembly Backorder WPL W10915367 $4.77

39

Panel, Console (White) WPL 3955356 Contact Us For Availability

39

Panel, Console (Biscuit) WPL 3955357 Contact Us For Availability

44

W10807860 Whirlpool White Control Knob In Stock WPL W10807860 $34.49

44

WP3957822 Whirlpool Knob Backorder WPL WP3957822 $35.05

45

WP3957849 Whirlpool Timer Dial Backorder WPL WP3957849 $31.11

45

Dial, Timer (Biscuit) WPL 8271370 Contact Us For Availability

47

3957797 Whirlpool Knob Backorder WPL 3957797 $45.83

47

WP3957799 Whirlpool Knob Backorder WPL WP3957799 $37.03

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $3.22

51

W10820038 Whirlpool Endcap In Stock WPL W10820038 $53.45

51

WPL 8271362 WPL 8271362 Contact Us For Availability

55

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.81

59

WPL 3348424 WPL 3348424 Contact Us For Availability

60

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $34.75

61

WPL 3955015 WPL 3955015 Contact Us For Availability
