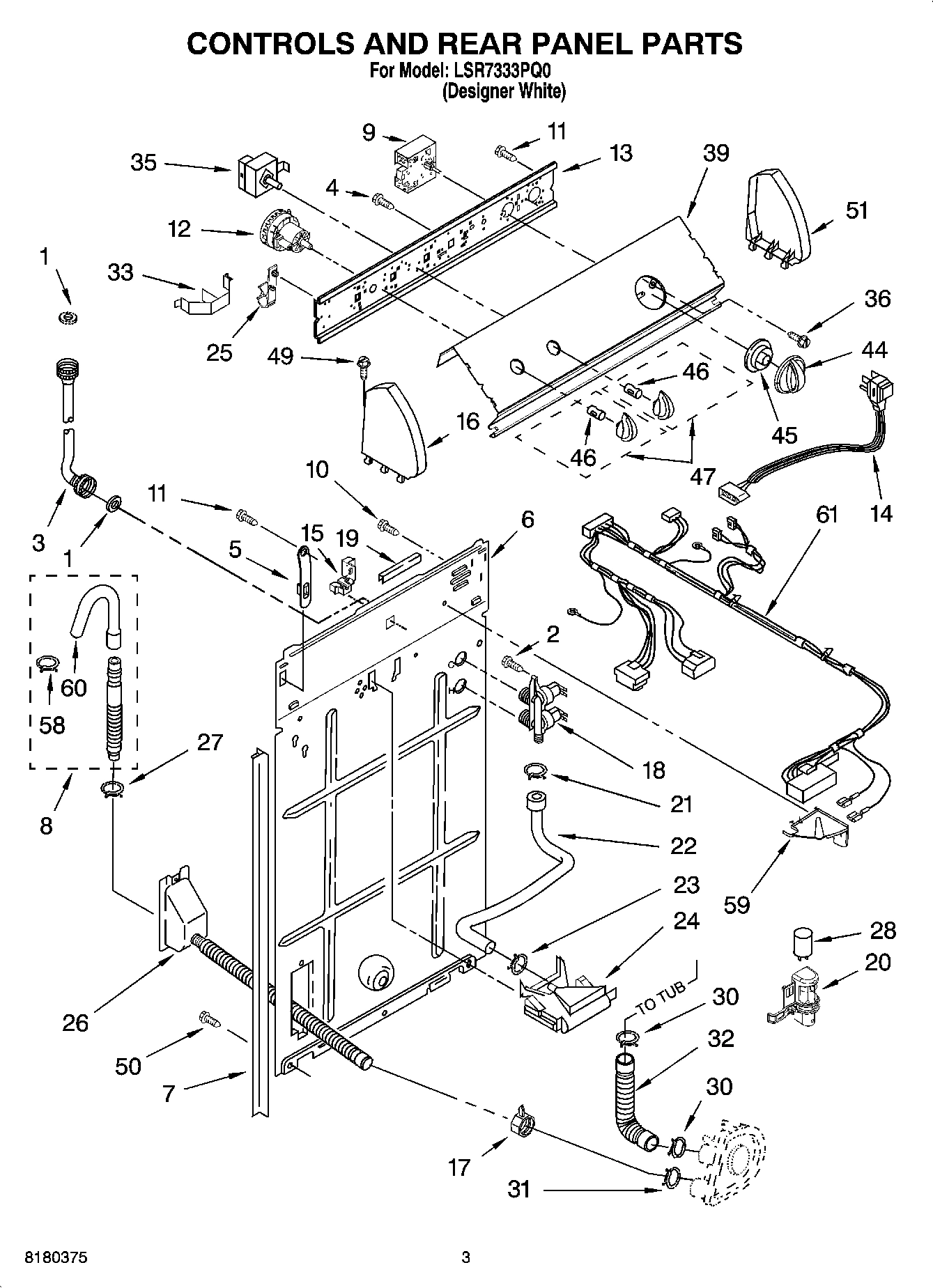

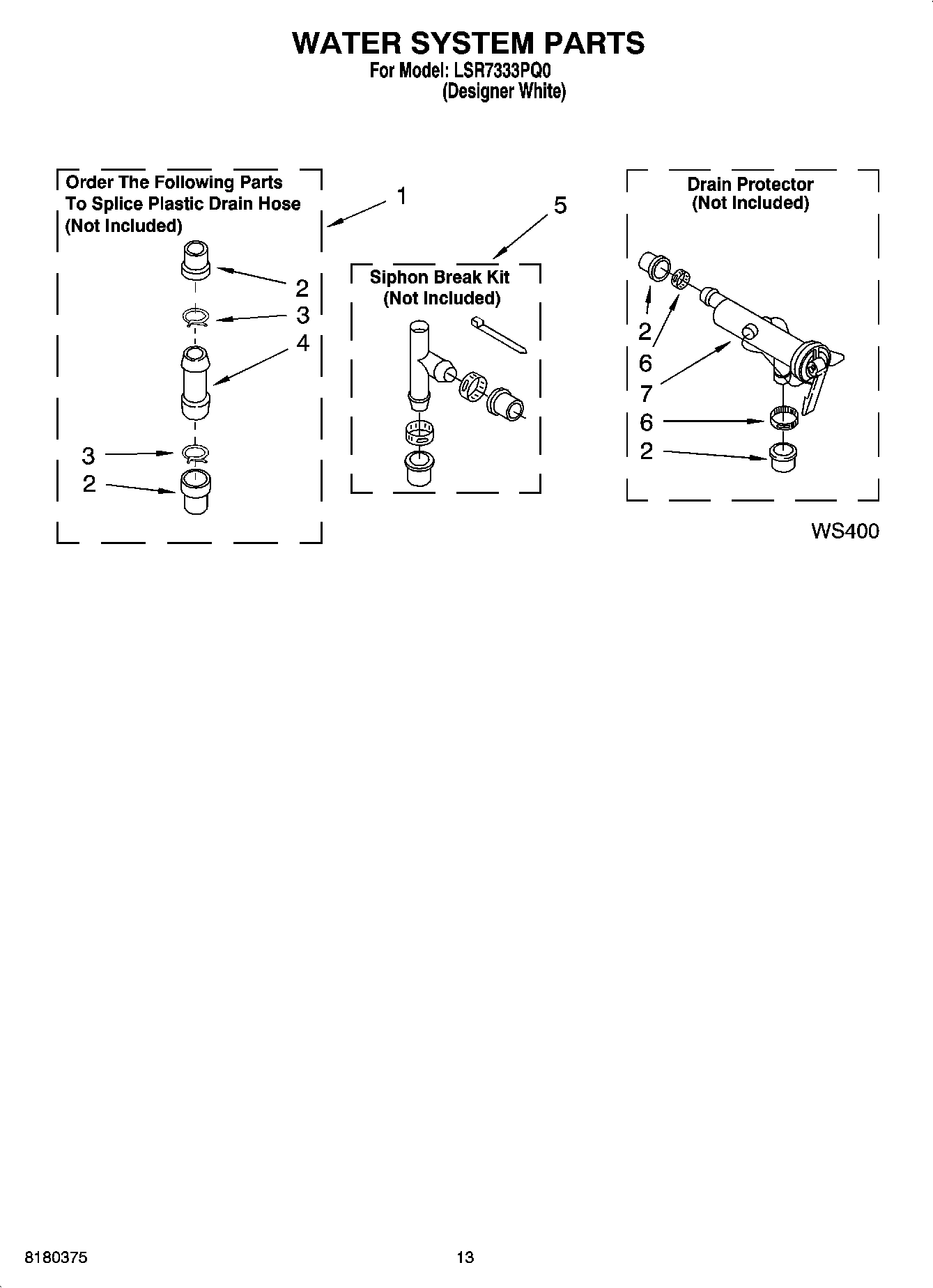

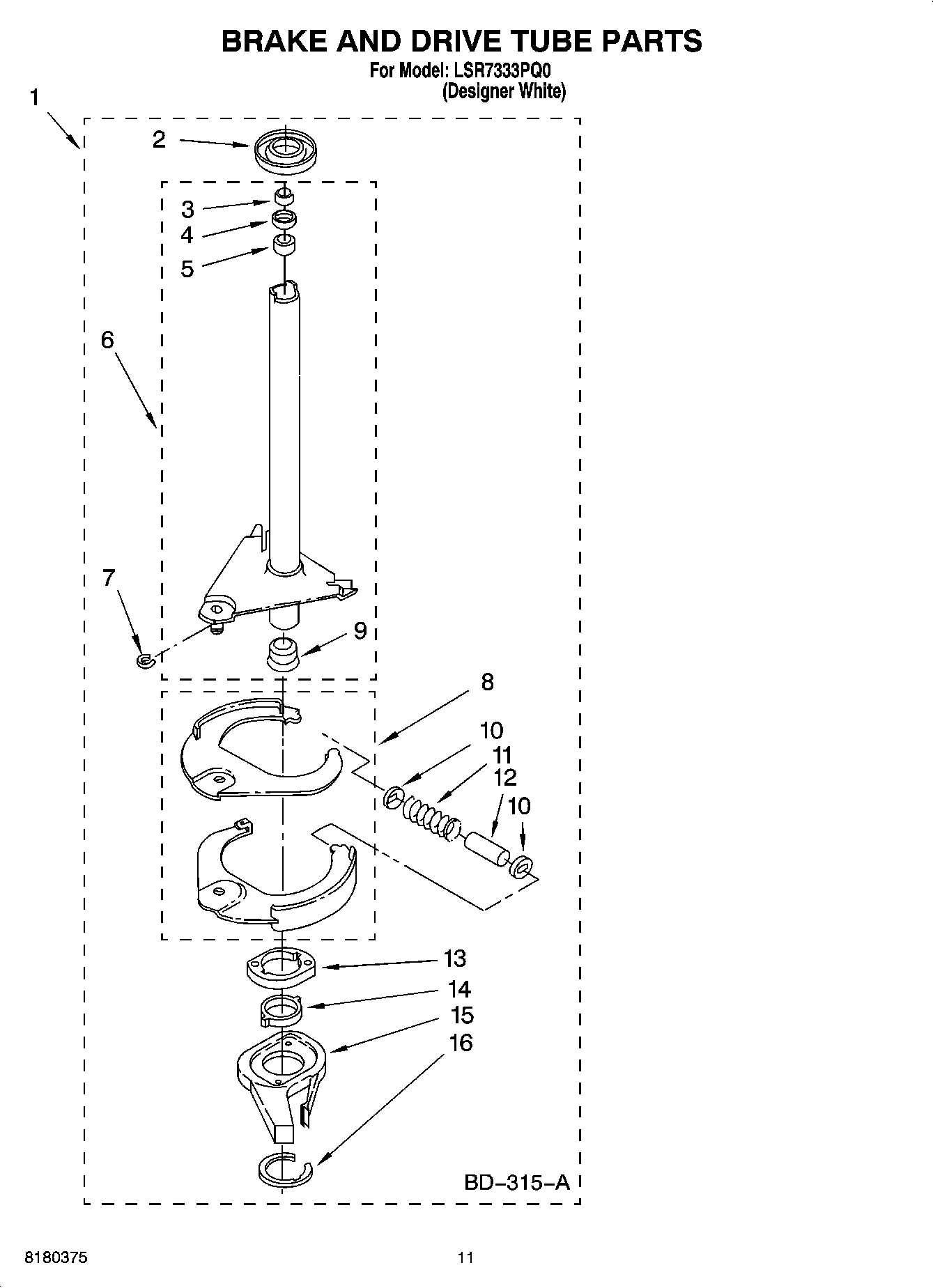

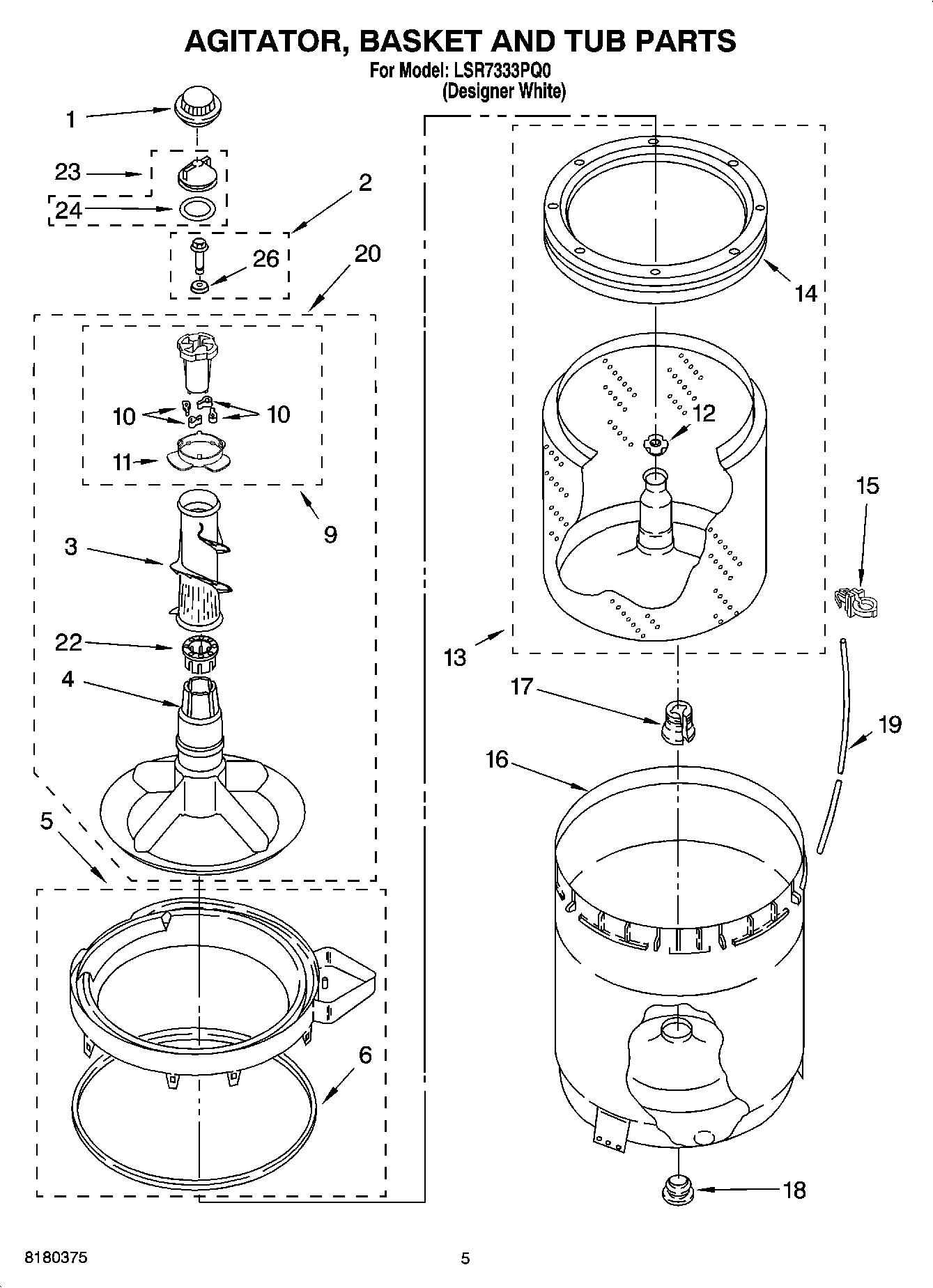

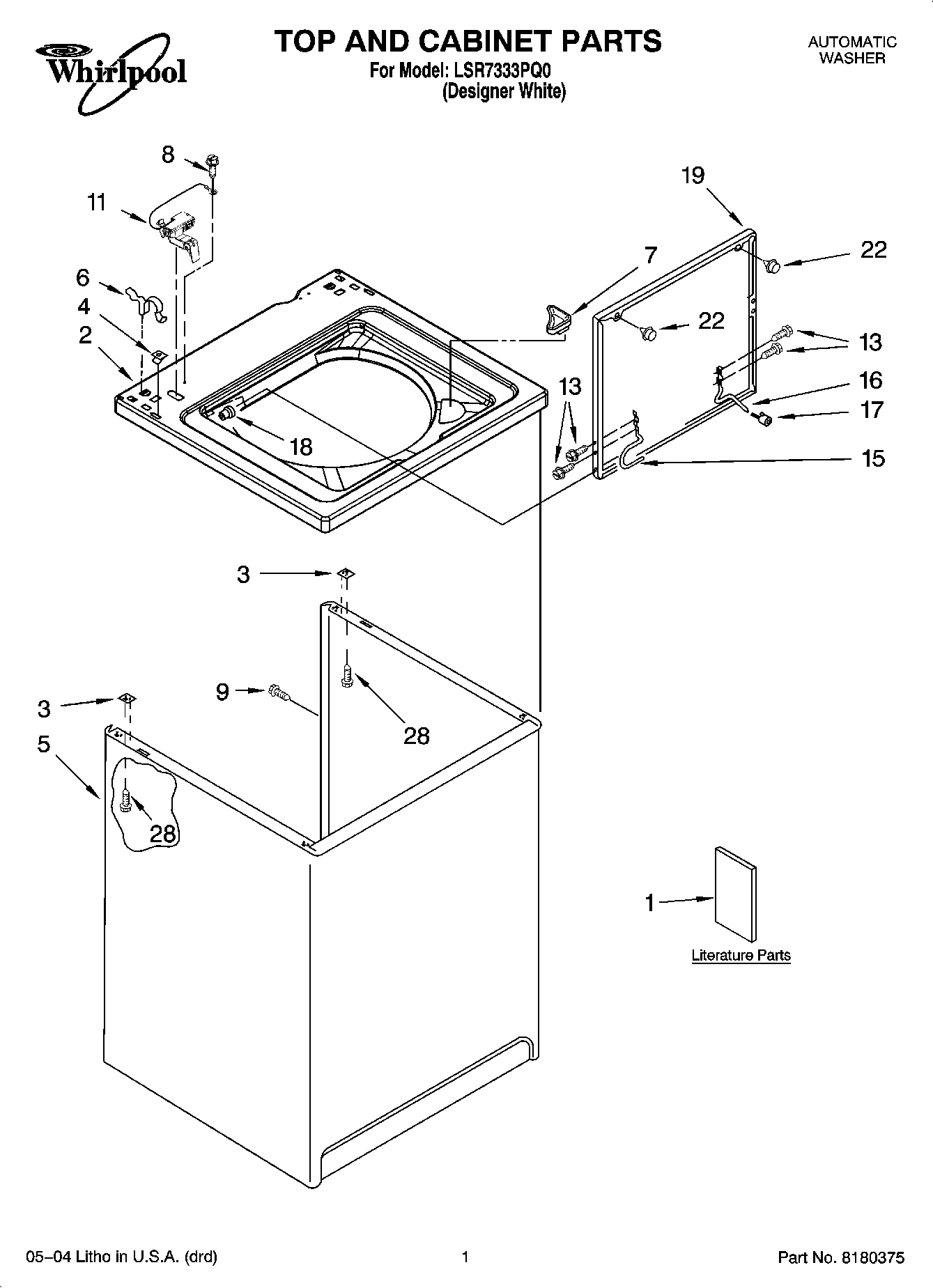

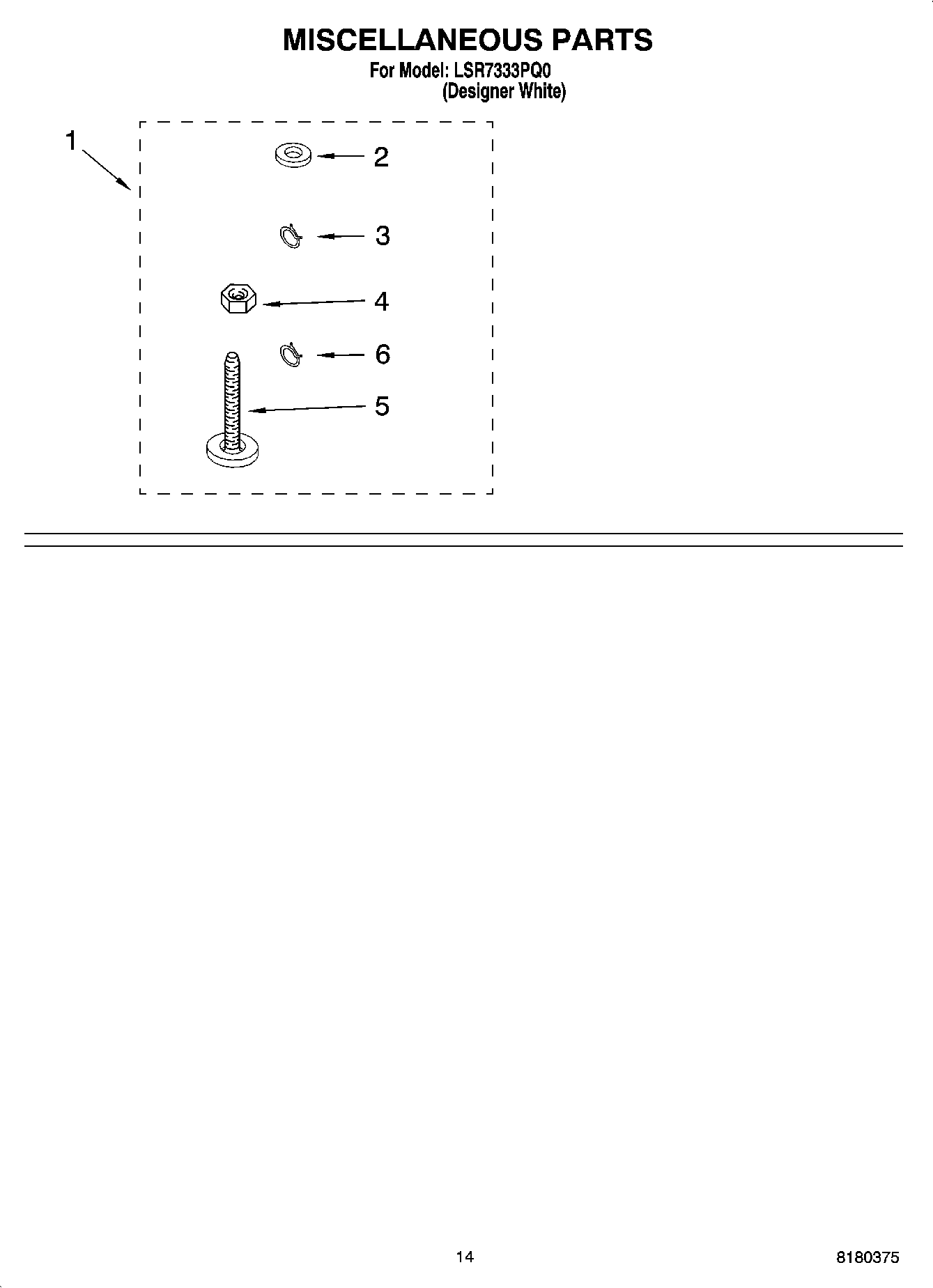

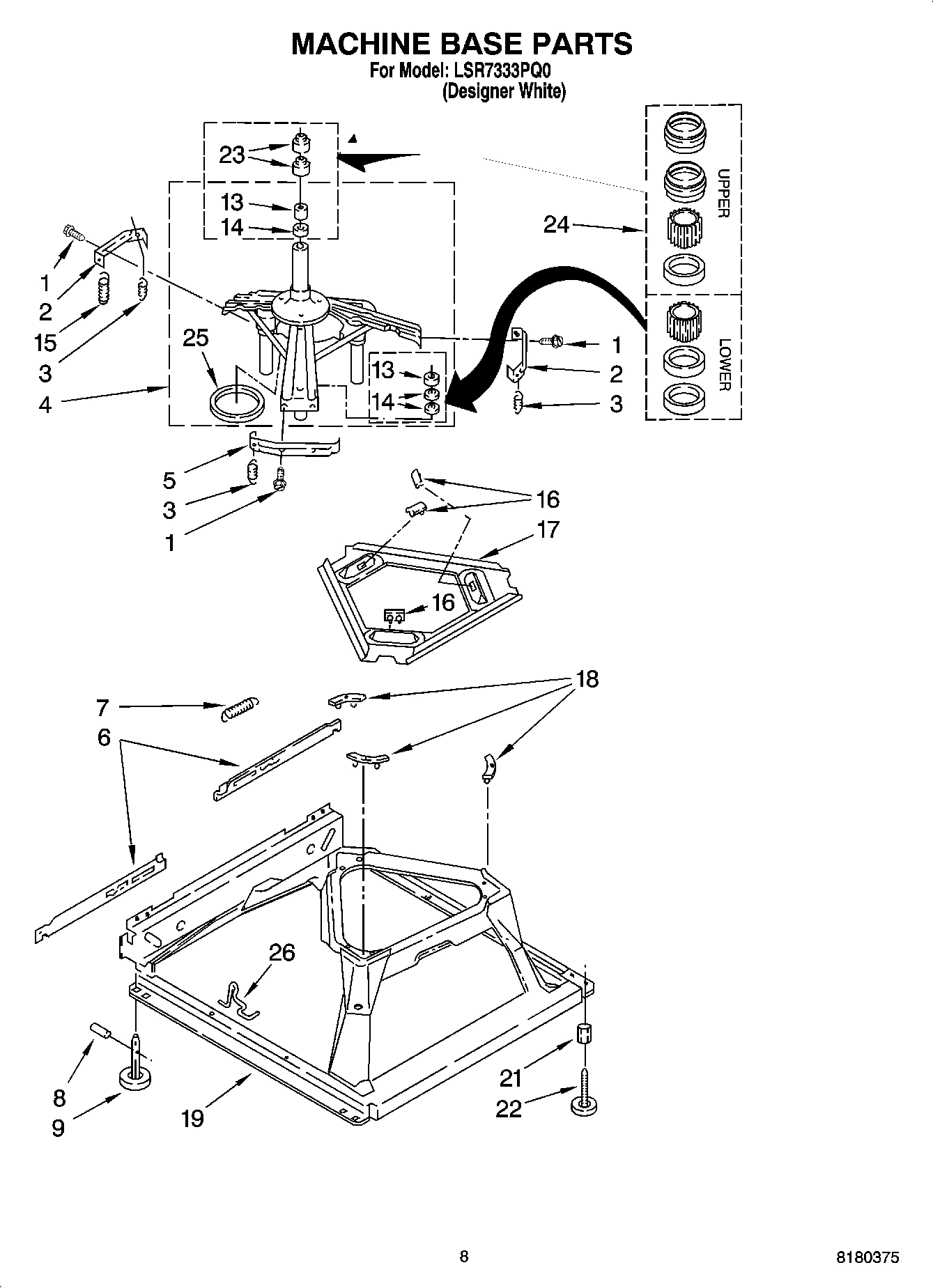

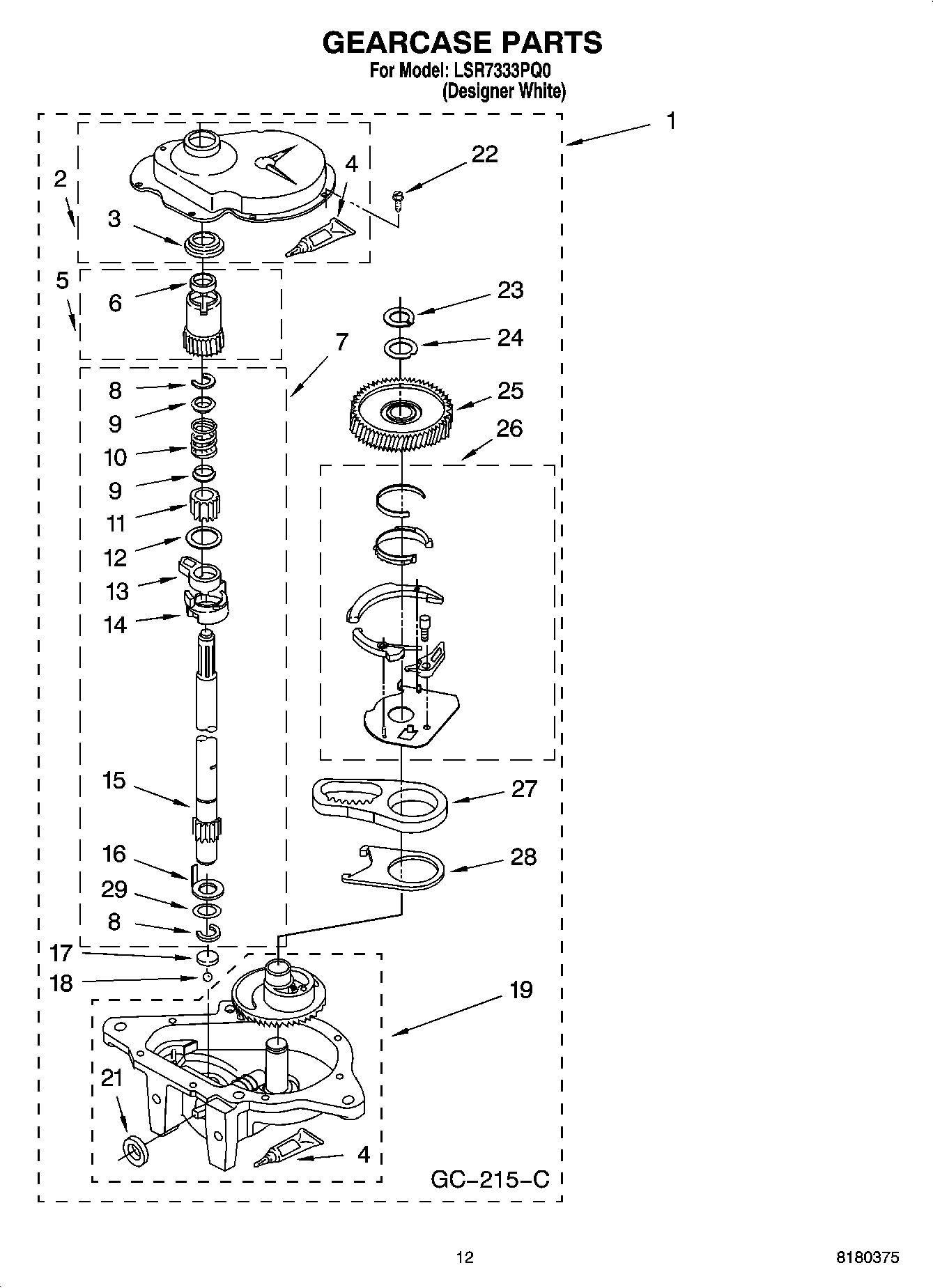

Model Whirlpool LSR7333PQ0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $129.24

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $3.22

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $4.19

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $123.80

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.80

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.19

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.20

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $3.22

2

Clip, Harness WPL 388498 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $50.35

3

WP3348752 Whirlpool Agitator Mover Backorder WPL WP3348752 $104.77

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.46

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $4.19

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.53

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.53

3

WPW10080230 Whirlpool Ring In Stock WPL WPW10080230 $6.37

4

285353 Whirlpool Ring Backorder WPL 285353 $4.05

4

8559320 Whirlpool Clip Backorder WPL 8559320 $31.16

4

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $89.65

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.51

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $42.12

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $414.05

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $6.11

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $54.86

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.55

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.94

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

6

350938 Whirlpool Spray Gun In Stock WPL 350938 $28.93

6

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.75

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

6

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $70.05

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.53

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $12.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.19

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.92

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $5.76

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.59

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $13.77

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.19

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.56

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $11.80

9

W10876590 Whirlpool Connector Backorder WPL W10876590 $7.78

9

WP8546685 Whirlpool Timer In Stock WPL WP8546685 $203.53

10

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $3.22

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.19

10

Spring, Agitate WPL 62676 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $16.76

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.51

WP62611 Whirlpool Plate Backorder WPL WP62611 $44.98

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $32.68

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.46

62619 Whirlpool Washer Backorder WPL 62619 $14.93

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.53

WP62505 Whirlpool Connector Backorder WPL WP62505 $13.77

WP62691 Whirlpool Grommet In Stock WPL WP62691 $6.79

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.79

13

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $17.49

14

Protector WPL 63523 Contact Us For Availability

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $21.43

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $118.71

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $166.13

WP54583 Whirlpool Hinge Backorder WPL WP54583 $11.99

Clip, Harness WPL 3352944 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $5.76

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.34

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $127.92

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.19

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.94

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $22.96

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $4.19

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $162.24

19

Connector, Etc WPL 3349494 Contact Us For Availability

19

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

20

Clip, Capacitor WPL 8318046 Contact Us For Availability

20

E.T.C. Control WPL 3407125 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $33.22

WP2172937 Whirlpool Connector Backorder WPL WP2172937 $11.08

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $3.22

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $4.20

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.77

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $13.54

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $30.73

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.85

23

3354925 Whirlpool Connector Backorder WPL 3354925 $16.76

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.74

23

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $88.08

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $12.87

Block, Connector (Hot Valve) WPL 3354926 Contact Us For Availability

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.19

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $36.05

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.79

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.53

27

Clamp, Hose WPL 3976395 No Longer Available

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $3.46

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.77

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.81

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.71

33

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

35

WPW10168256 Whirlpool Temperature Switch Backorder WPL WPW10168256 $61.77

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $3.22

39

Panel, Console WPL 3956551 Contact Us For Availability

44

Knob, Timer WPL 8544943 Contact Us For Availability

45

WP8544947 Whirlpool Dial Backorder WPL WP8544947 $33.58

46

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $4.20

47

Knob, Control WPL 8544935 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $3.22

51

W10820038 Whirlpool Endcap In Stock WPL W10820038 $53.45

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.81

59

Shield, Suds WPL 8539874 Contact Us For Availability

60

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $34.75

61

Wiring Harness (For Detail See P WPL 3957014 Contact Us For Availability
