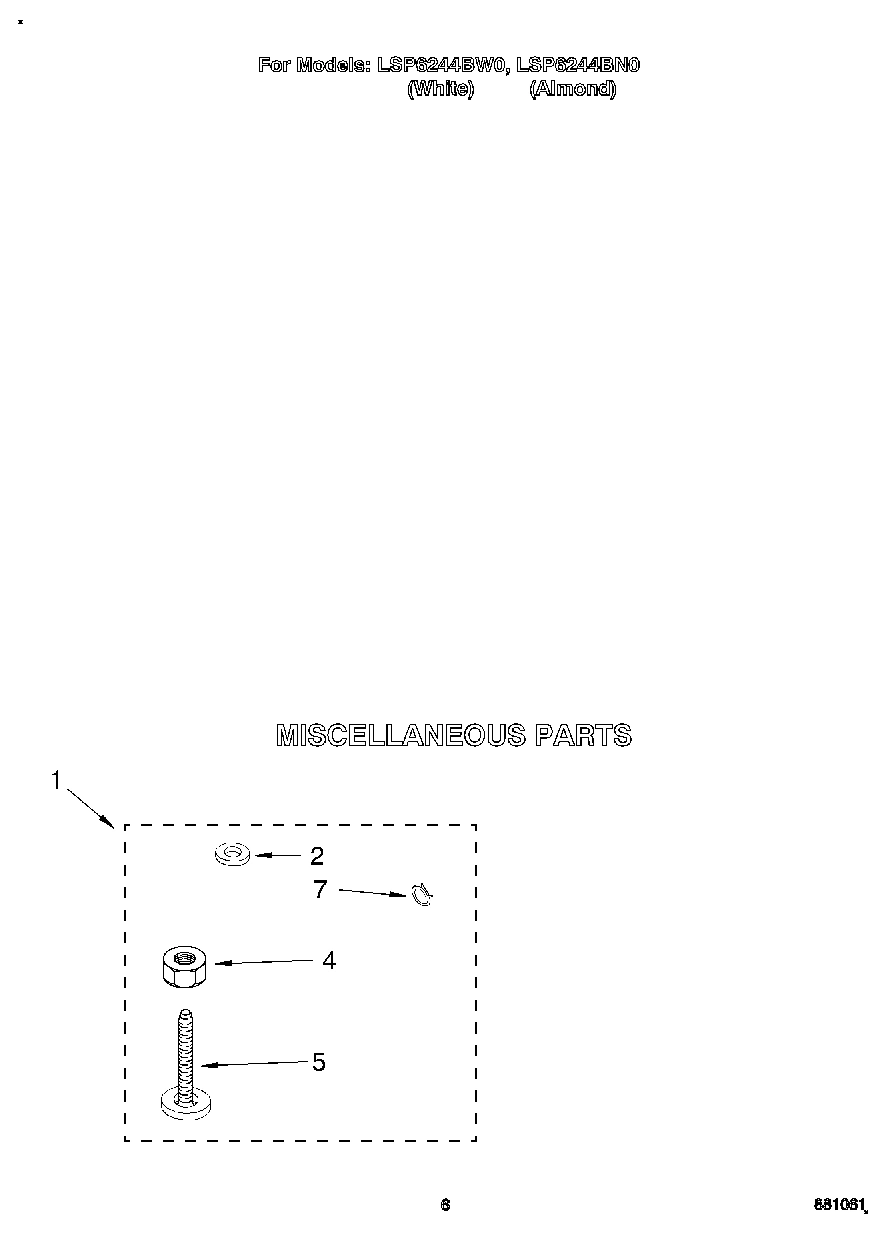

Model Whirlpool LSP6244BW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Shipping Kit WPL 3348675 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Drain Protector WPL 367031 Contact Us For Availability

Stand-Pipe Kit WPL 89121 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Guide, Use and Care WPL LIT3357469 Contact Us For Availability

Sheet, Installation Instructions WPL LIT3360057 Contact Us For Availability

Label, Wiring D WPL LIT3361180 Contact Us For Availability

WPL LIT3361370 WPL LIT3361370 Contact Us For Availability

WPL LIT4313896 WPL LIT4313896 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $59.26

1

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.99

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

Top (For White Model) WPL 3358200 Contact Us For Availability

2

Top (For Almond Model) WPL 3358201 Contact Us For Availability

2

Switch, Cycle Modifier WPL 3354281 Contact Us For Availability

3

627711 Whirlpool Refrigerator Ice Flex Tray Backorder WPL 627711 $5.88

3

WP3348752 Whirlpool Agitator Mover Backorder WPL WP3348752 $159.32

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $16.85

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

4

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $89.99

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (For Almond Model) WPL 63425 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $222.60

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $187.55

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $103.99

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $21.99

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $43.99

8

285702 Whirlpool Extensions Backorder WPL 285702 $34.84

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP3946448 Whirlpool Timer In Stock WPL WP3946448 $260.54

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.98

10

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

10

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

10

Spring, Agitator WPL 62676 Contact Us For Availability

285671 Whirlpool Lid Switch Assembly In Stock WPL 285671 $28.99

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $4.99

Seal, Agitator WPL 357574 Contact Us For Availability

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

Switch, Water Level WPL 3356466 Contact Us For Availability

13

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

13

Bracket, Control WPL 3361414 Contact Us For Availability

14

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

14

Cord, Power WPL 3360514 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

Lock, Filter WPL 62942 Contact Us For Availability

Strain Relief, Power Cord WPL 63848 Contact Us For Availability

WP54583 Whirlpool Hinge Backorder WPL WP54583 $18.77

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Cap, End (L.H.) (For White Model) WPL 3358531 Contact Us For Availability

Cap, End (L.H.) (For Almond Model) WPL 3358532 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.99

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $36.94

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

19

Lid (For White Model) WPL 3361392 Contact Us For Availability

19

Lid (For Almond Model) WPL 3361393 Contact Us For Availability

19

Bottom and Pinion, Gearcase WPL 389229 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $8.99

20

Gear, Main Drive WPL 3360263 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

22

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

22

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $17.91

22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

23

Ring, Retaining WPL 95082 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

24

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $52.99

24

Washer Kit, Thrust WPL 285292 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $17.99

27

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $50.83

28

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.99

32

Dispenser, Bleach WPL 3358198 Contact Us For Availability

35

Switch, Pushbutton (4) WPL 3361334 Contact Us For Availability

36

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

39

Panel, Console (For White Model) WPL 3359264 Contact Us For Availability

39

Panel, Console (For Almond Model) WPL 3359265 Contact Us For Availability

44

WP3364293 Whirlpool Timer Knob In Stock WPL WP3364293 $36.77

45

280193 Whirlpool Timer Knob Backorder WPL 280193 $40.76

47

WP8538957 Whirlpool Knob In Stock WPL WP8538957 $39.82

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

51

Cap , End (R.H.) (For White Model) WPL 3358516 Contact Us For Availability

51

Cap, End (R.H.) (For Alm WPL 3358517 Contact Us For Availability

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

59

WPL 3348424 WPL 3348424 Contact Us For Availability
