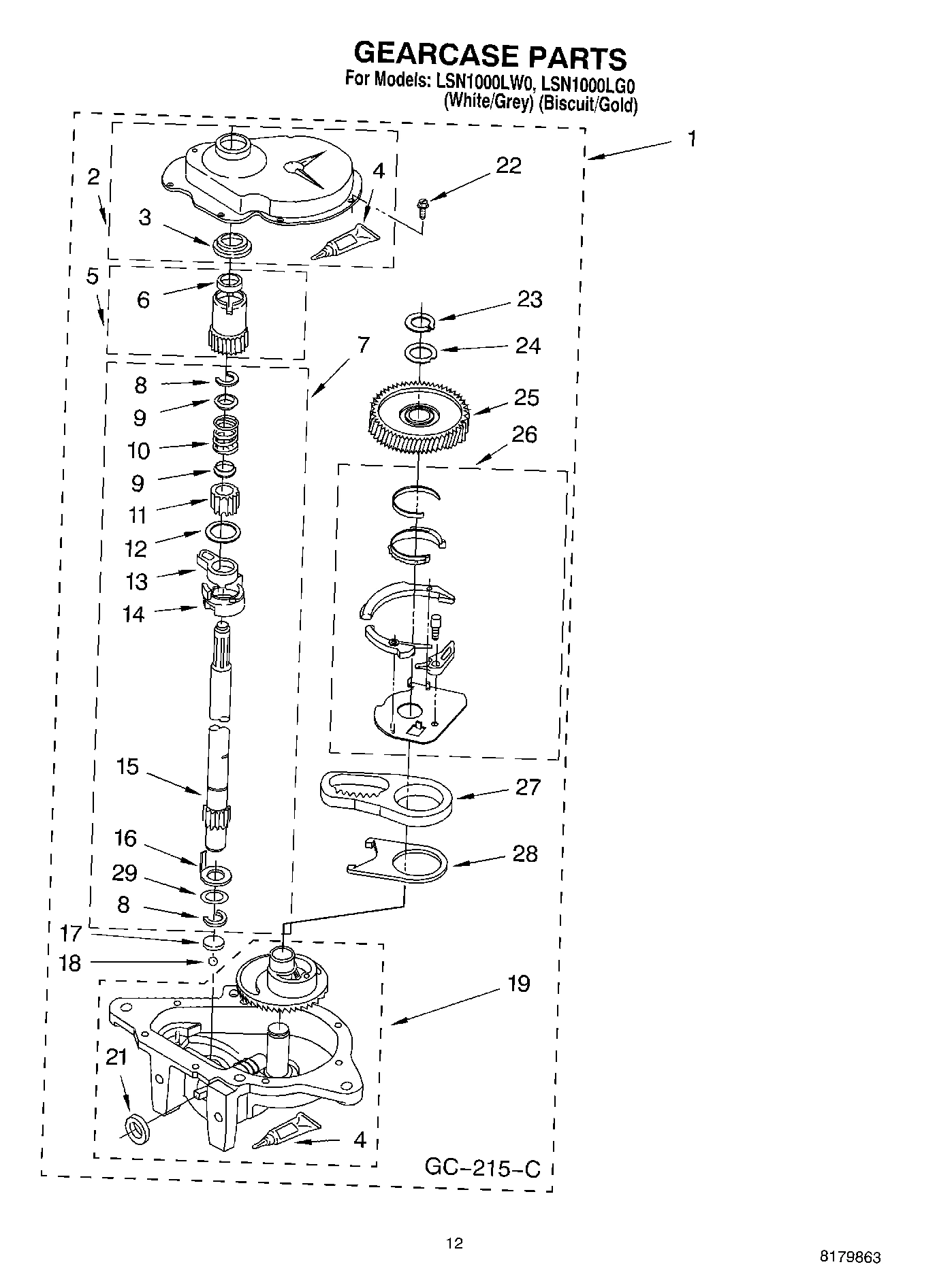

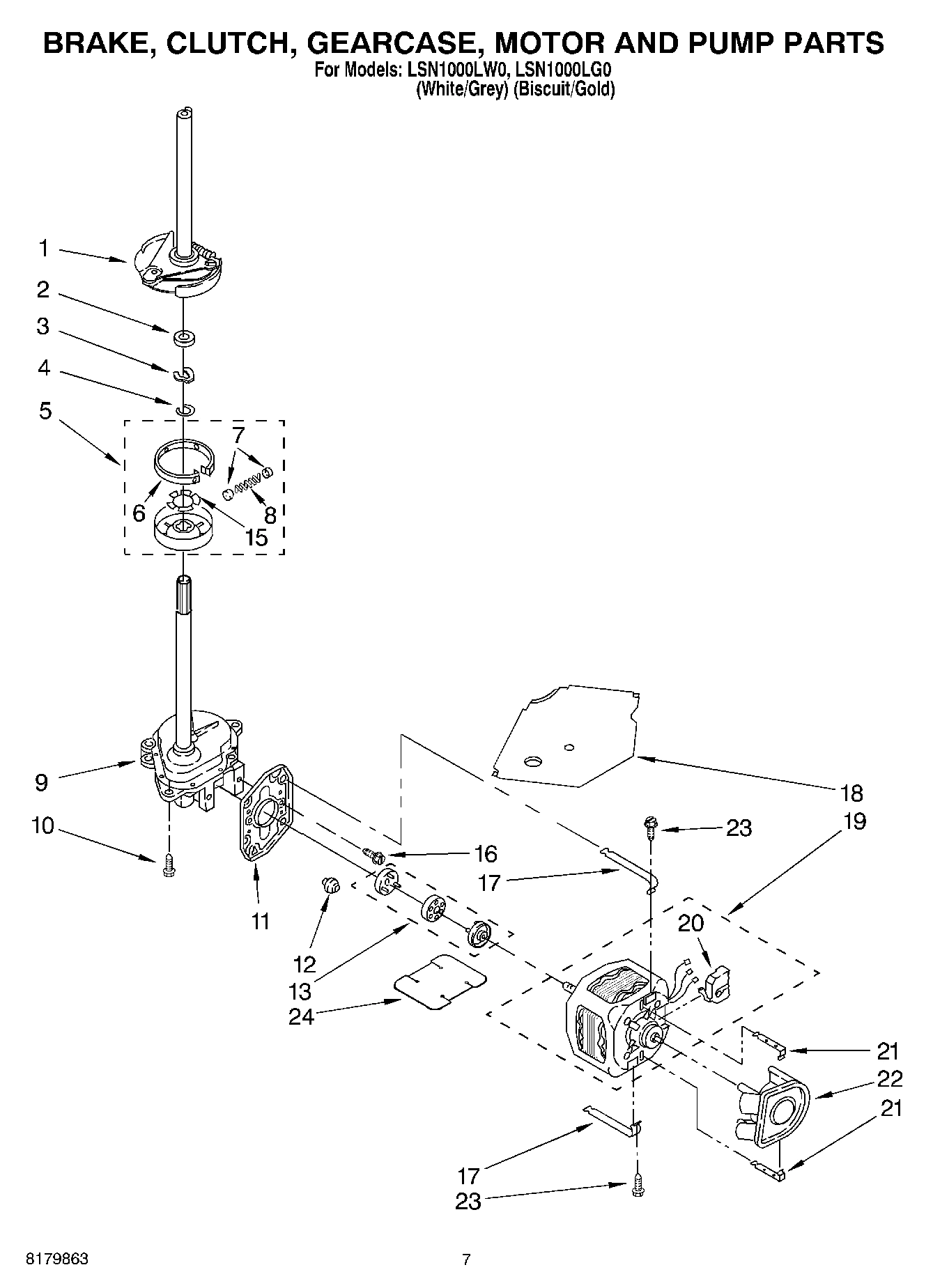

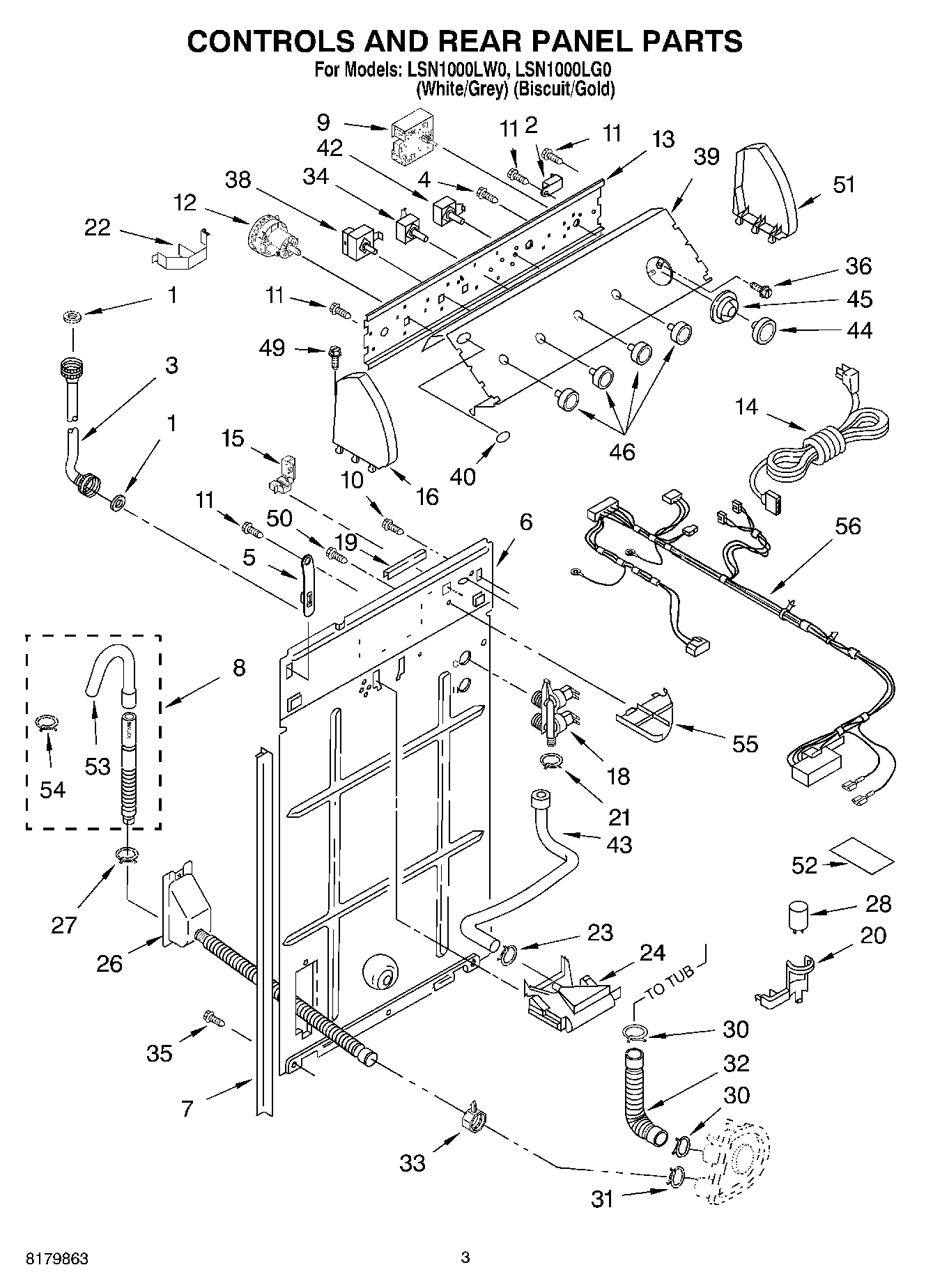

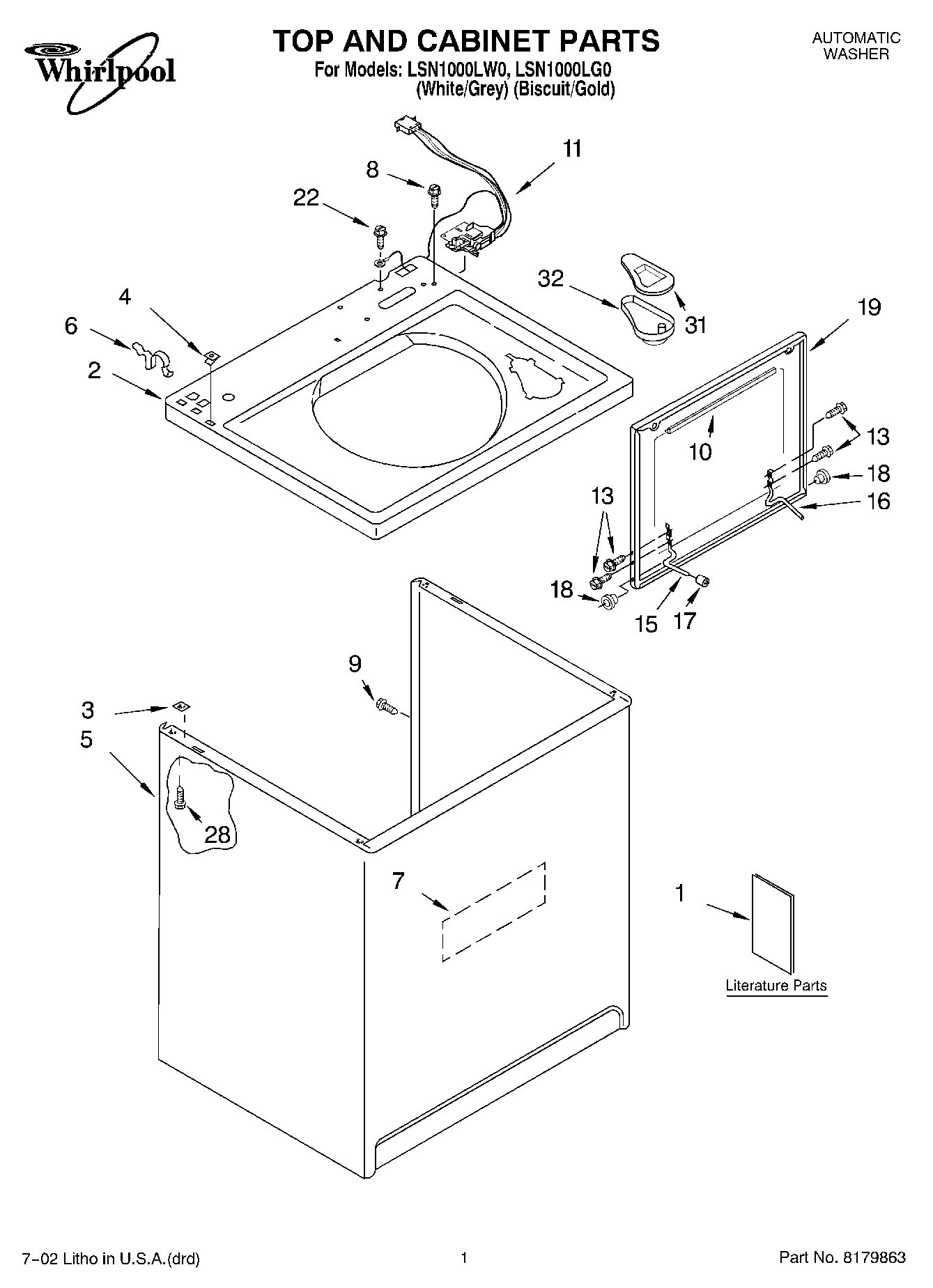

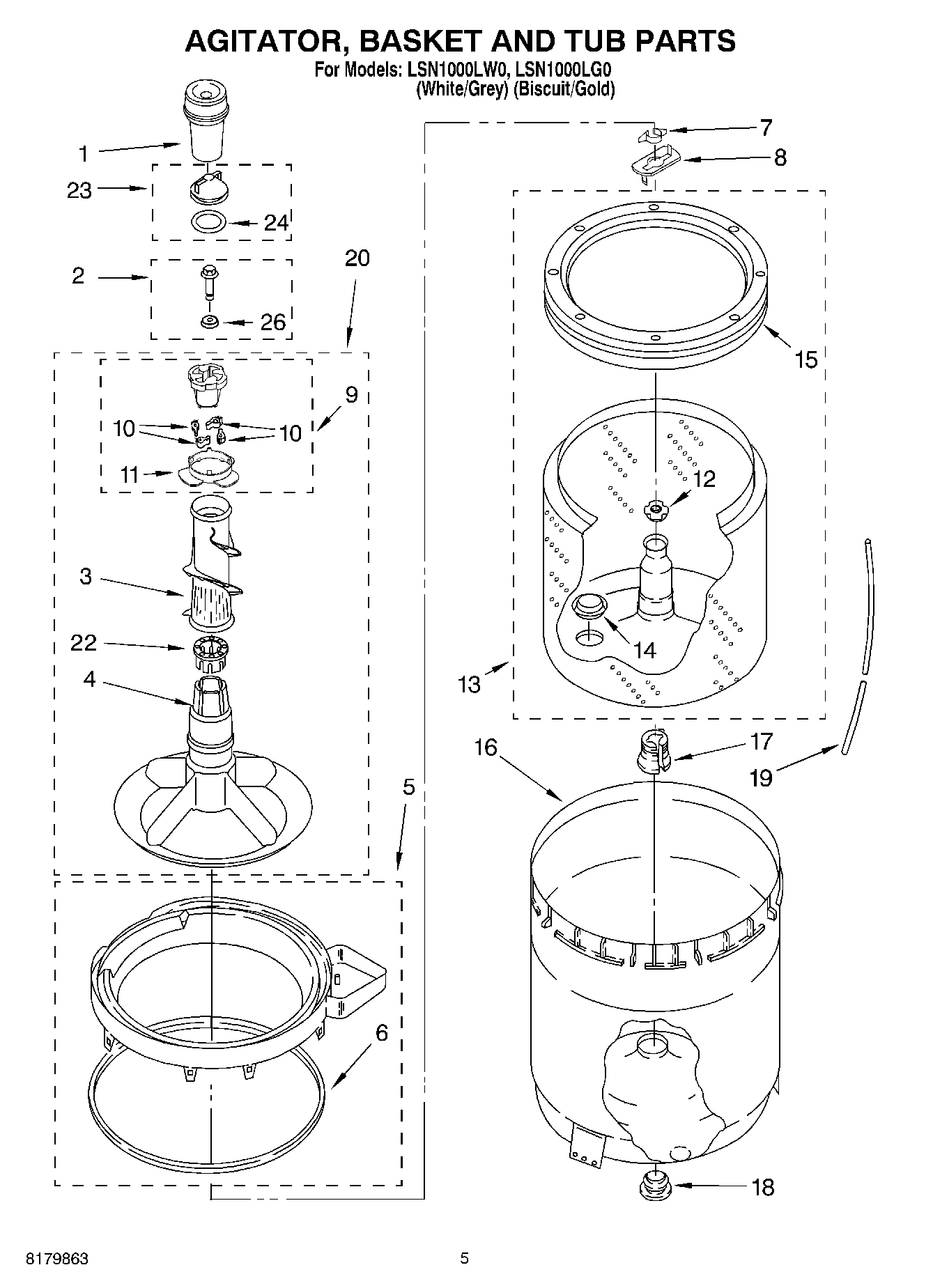

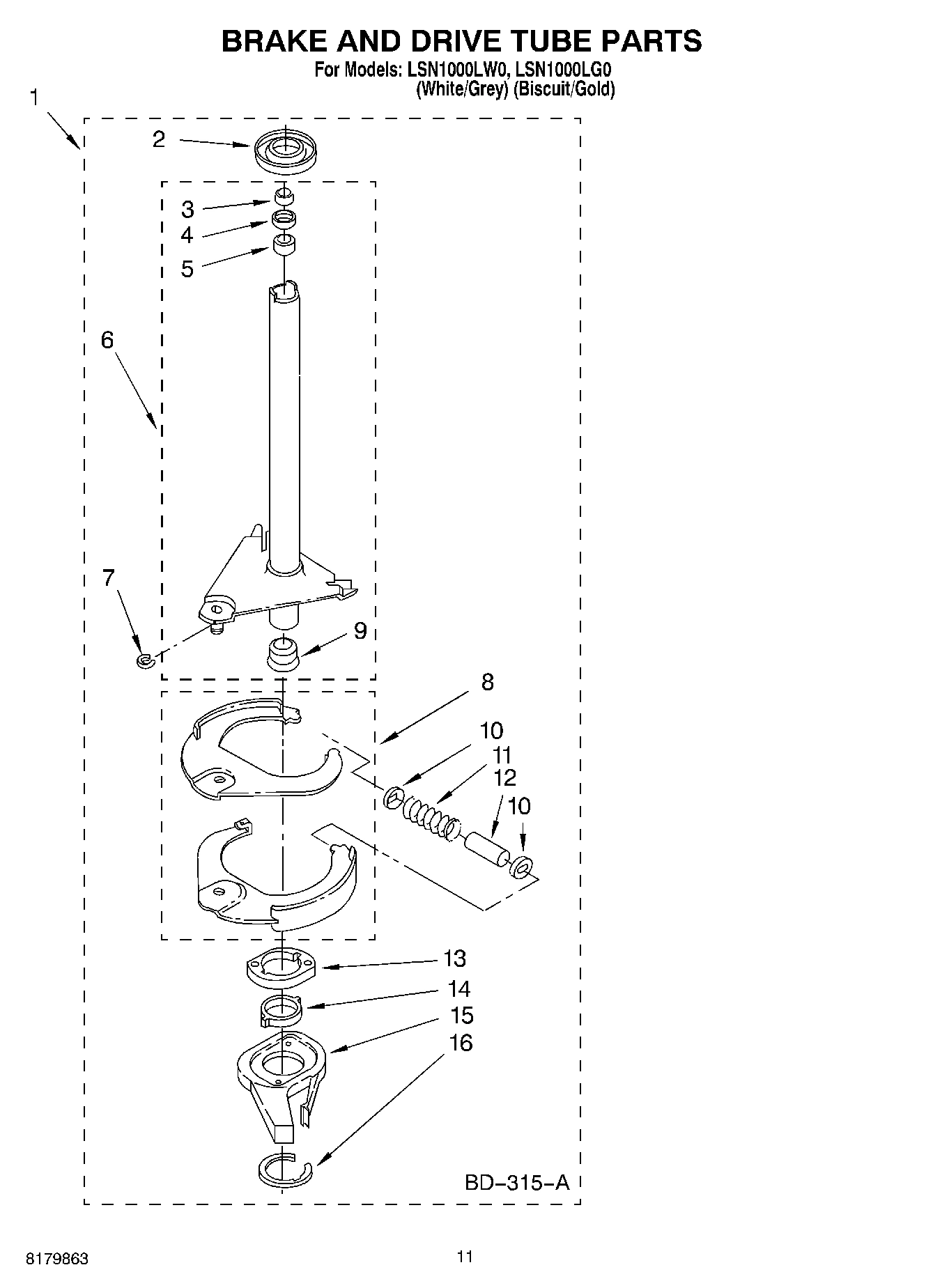

Model Whirlpool LSN1000LW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.99

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

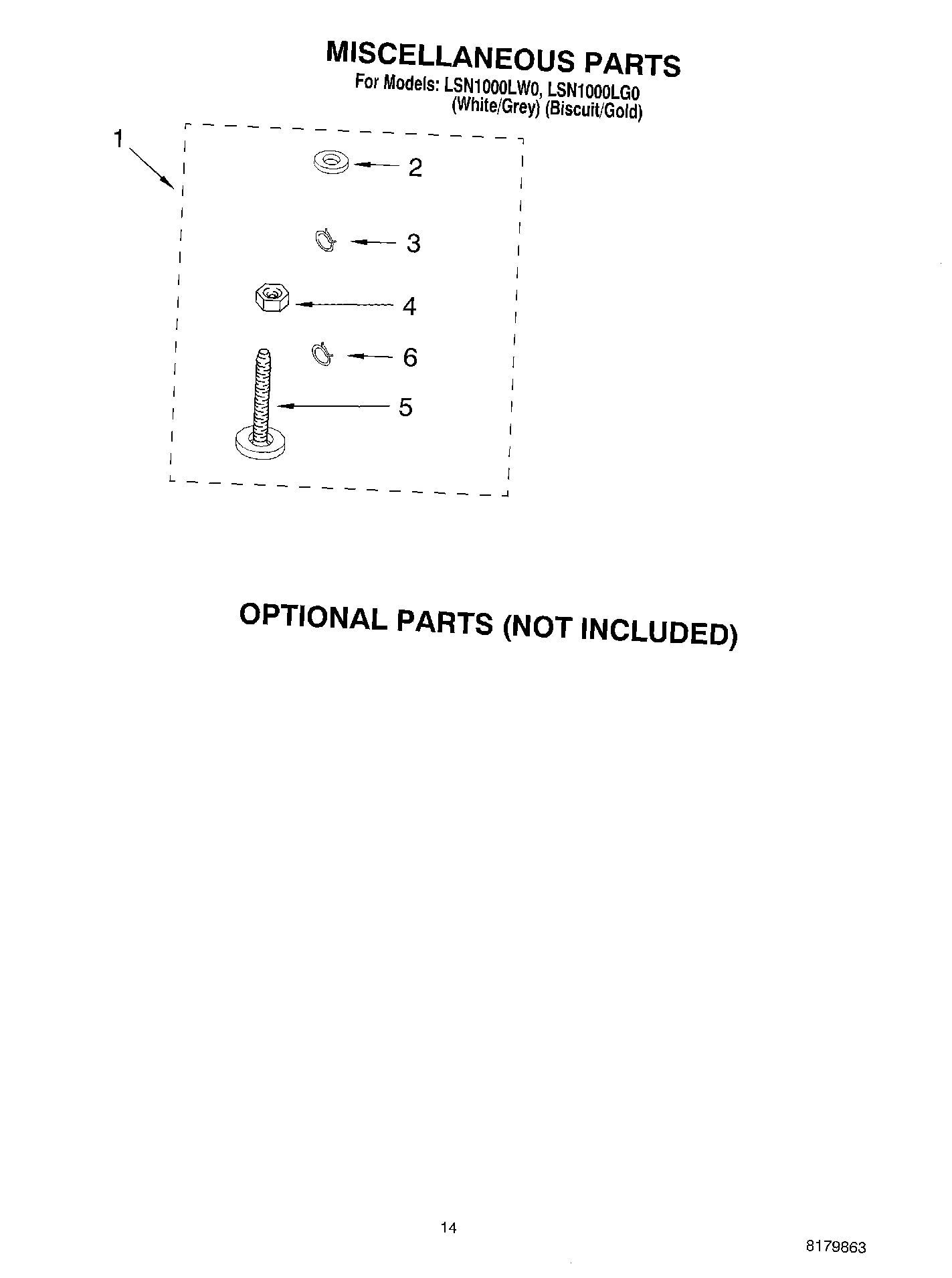

Miscellaneous Parts Bag WPL 3976263 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

285321 Whirlpool Sleeve Backorder WPL 285321 $54.14

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $88.11

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $160.05

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $16.85

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

4

3400073 Whirlpool Screw Backorder WPL 3400073 $5.85

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $95.99

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

6

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

6

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

6

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $222.60

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

6

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

6

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

Cabinet - Sound Damper WPL 3976348 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $21.99

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $43.99

8

285702 Whirlpool Extensions Backorder WPL 285702 $34.84

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Screw, Lid Switch (2) WPL 3400611 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

9

WP3954071 Whirlpool Timer Backorder WPL WP3954071 $240.48

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

10

Seal, Lid WPL 8054939 Contact Us For Availability

10

Spring, Agitate WPL 62676 Contact Us For Availability

11

353424 Whirlpool Connector Backorder WPL 353424 $14.02

11

WP8054980 Whirlpool Lid Switch Assembly In Stock WPL WP8054980 $117.95

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

62619 Whirlpool Washer Backorder WPL 62619 $8.89

W10335056 Whirlpool Washer Water Level Pressu In Stock WPL W10335056 $53.47

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

13

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $76.20

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

14

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $95.99

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

15

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

15

Hinge, Lid (L.H.) WPL 8055257 Contact Us For Availability

15

Strain Relief, Power Cord WPL 3952821 Contact Us For Availability

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $191.99

Hinge, Lid (R.H.) WPL 8055256 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

Cap, End (L.H.) (White) WPL 8271365 Contact Us For Availability

Cap, End (L.H.) (BIscuit) WPL 8271368 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $36.94

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

18

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

WP8529935 Whirlpool Drive Motor Backorder WPL WP8529935 $238.33

Lid (White) WPL 3956016 Contact Us For Availability

Lid (Biscuit) WPL 3956017 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

Edge Protector WPL 303294 Contact Us For Availability

20

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $216.99

20

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

20

Clip, Capacitor WPL 8318201 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $9.86

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

24

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $52.99

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $17.99

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

28

WP8572720 Whirlpool Capacitor In Stock WPL WP8572720 $77.77

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

31

Cover, Dispenser WPL 3955788 Contact Us For Availability

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.99

32

Dispenser, Bleach WPL 8519517 Contact Us For Availability

33

Clamp, Hose WPL 3976395 Contact Us For Availability

34

WPW10168257 Whirlpool Cycle Switch Backorder WPL WPW10168257 $92.01

36

WP3400064 Whirlpool Screw Backorder WPL WP3400064 $4.82

38

Switch, Temperature WPL 661614 Contact Us For Availability

39

Panel, Console (Grey (Includes No.40)) WPL 3955808 Contact Us For Availability

39

Panel, Console (Gold (Includes No.40)) WPL 3955809 Contact Us For Availability

40

Medallion WPL 3955775 Contact Us For Availability

42

W10851055 Whirlpool Cycle Switch Backorder WPL W10851055 $107.37

43

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $17.91

44

Knob, Timer ((For LSN1000LW0)) WPL 8316542 Contact Us For Availability

45

WP8538955 Whirlpool Dial Backorder WPL WP8538955 $36.59

45

WPL 8316547 WPL 8316547 Contact Us For Availability

46

WP8538957 Whirlpool Knob In Stock WPL WP8538957 $39.82

46

WPL 8316545 WPL 8316545 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

50

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

51

WPL 8271359 WPL 8271359 Contact Us For Availability

51

WPL 8271362 WPL 8271362 Contact Us For Availability

52

WPL 3976286 WPL 3976286 Contact Us For Availability

53

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50

54

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

55

WPL 3348424 WPL 3348424 Contact Us For Availability

56

WPL 3956009 WPL 3956009 Contact Us For Availability
