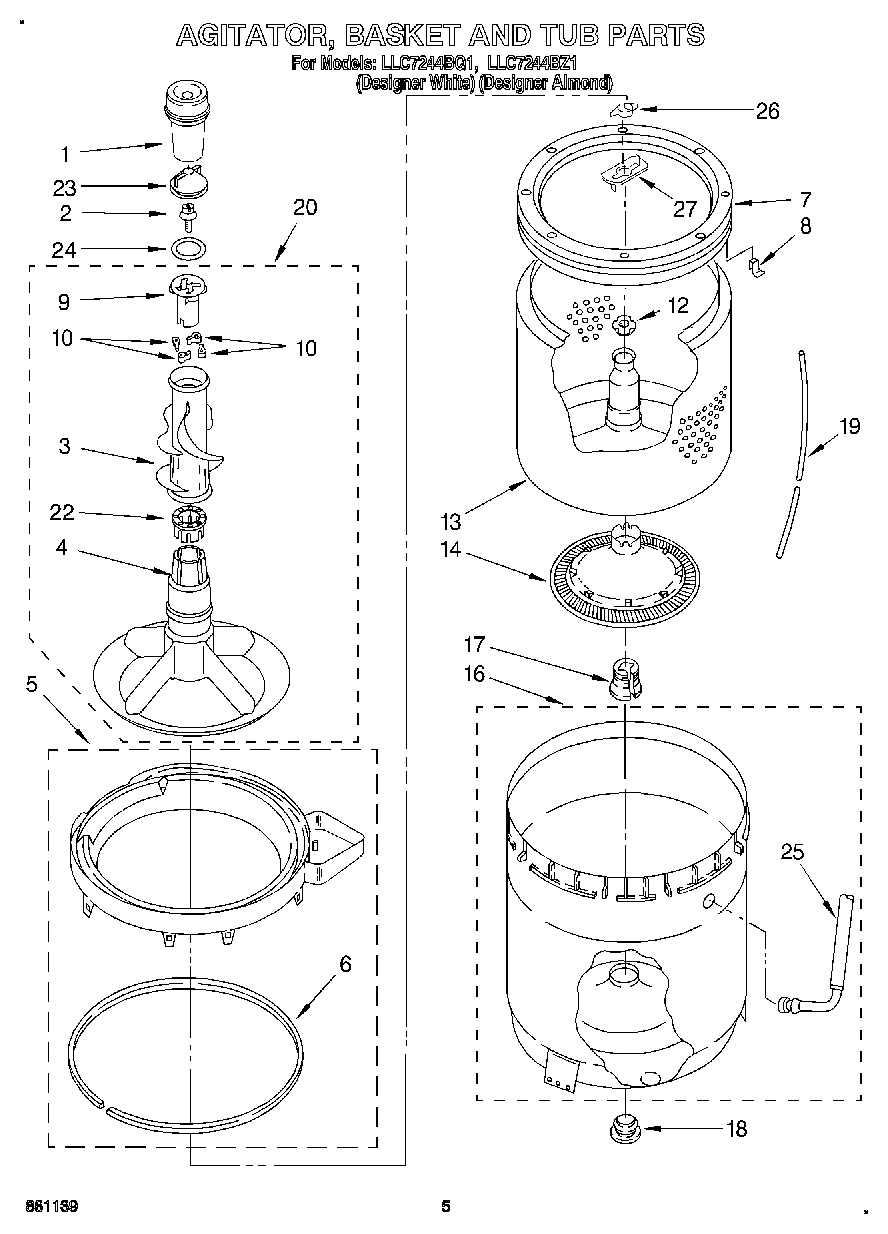

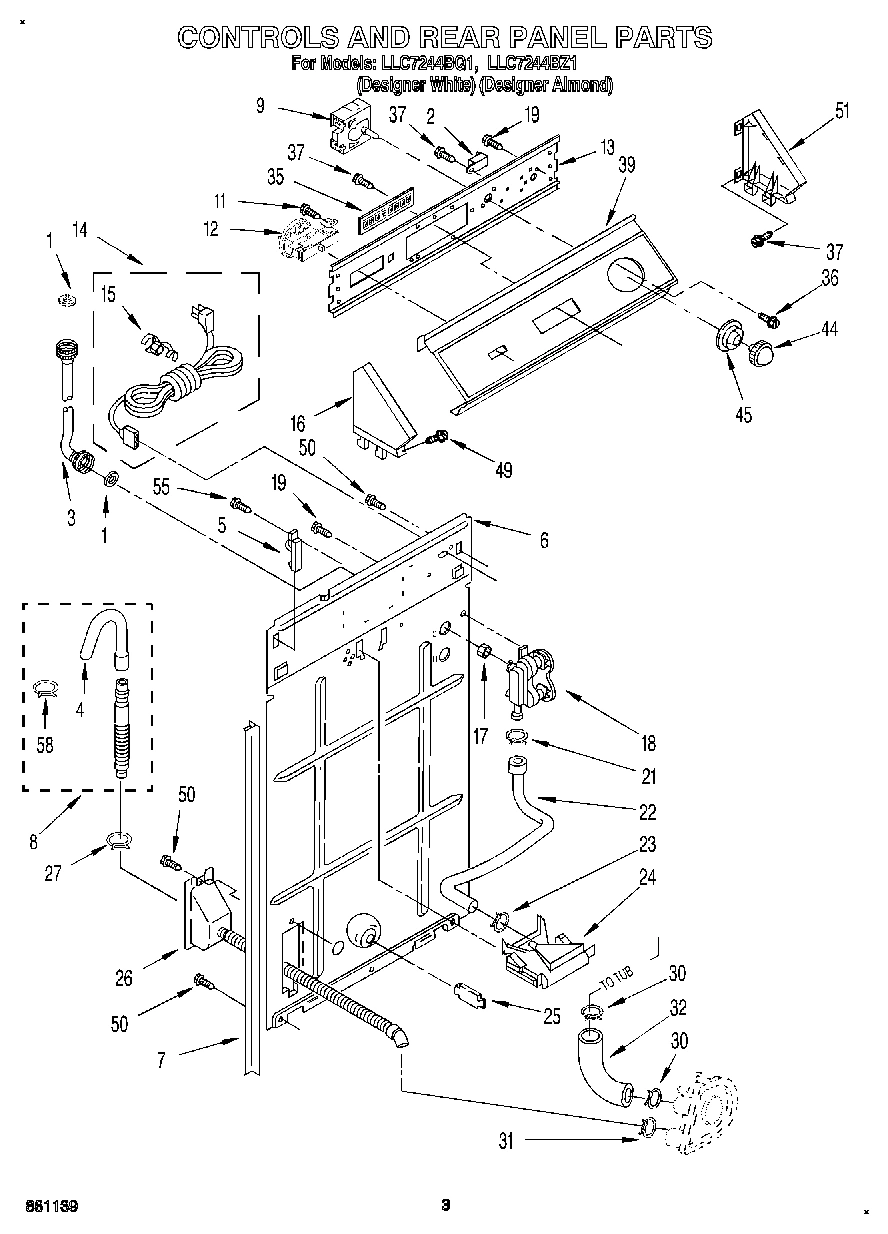

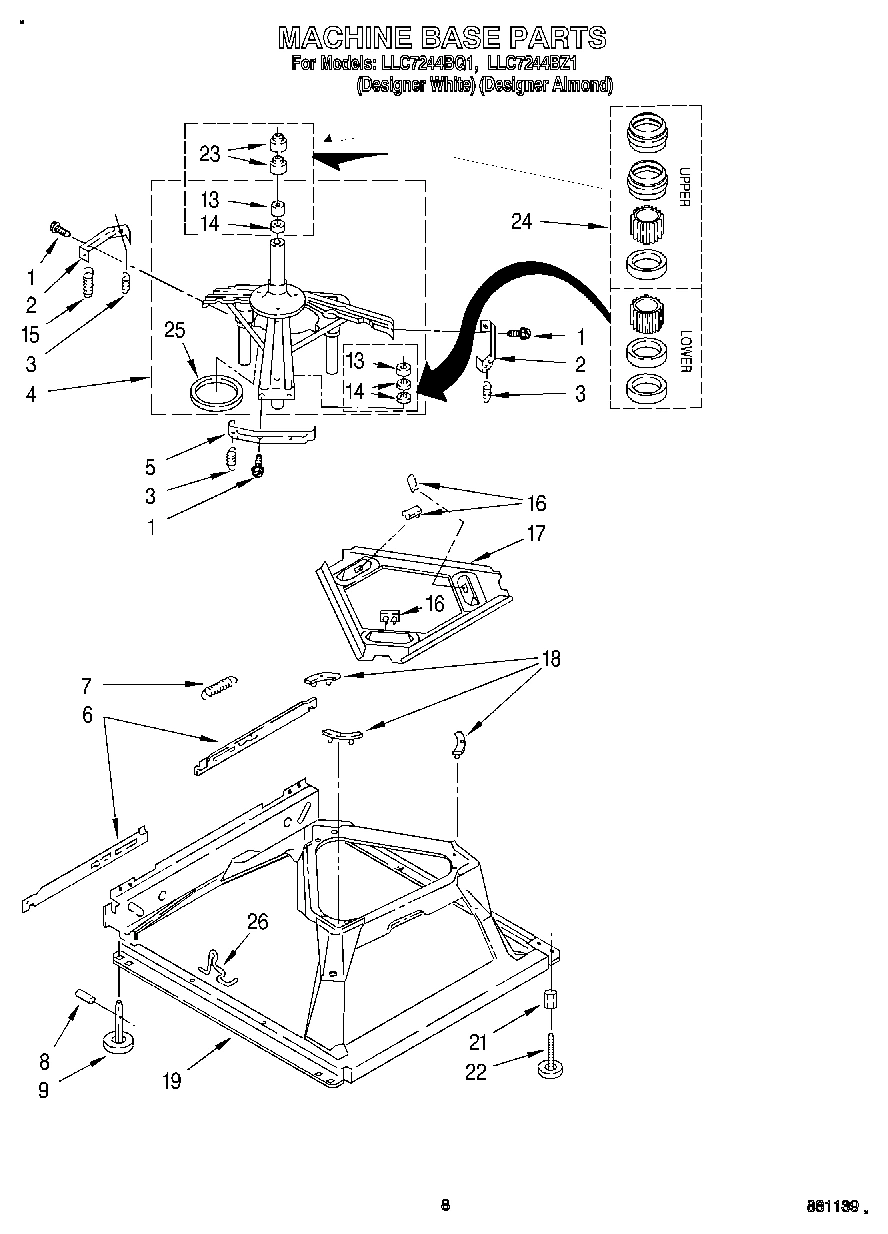

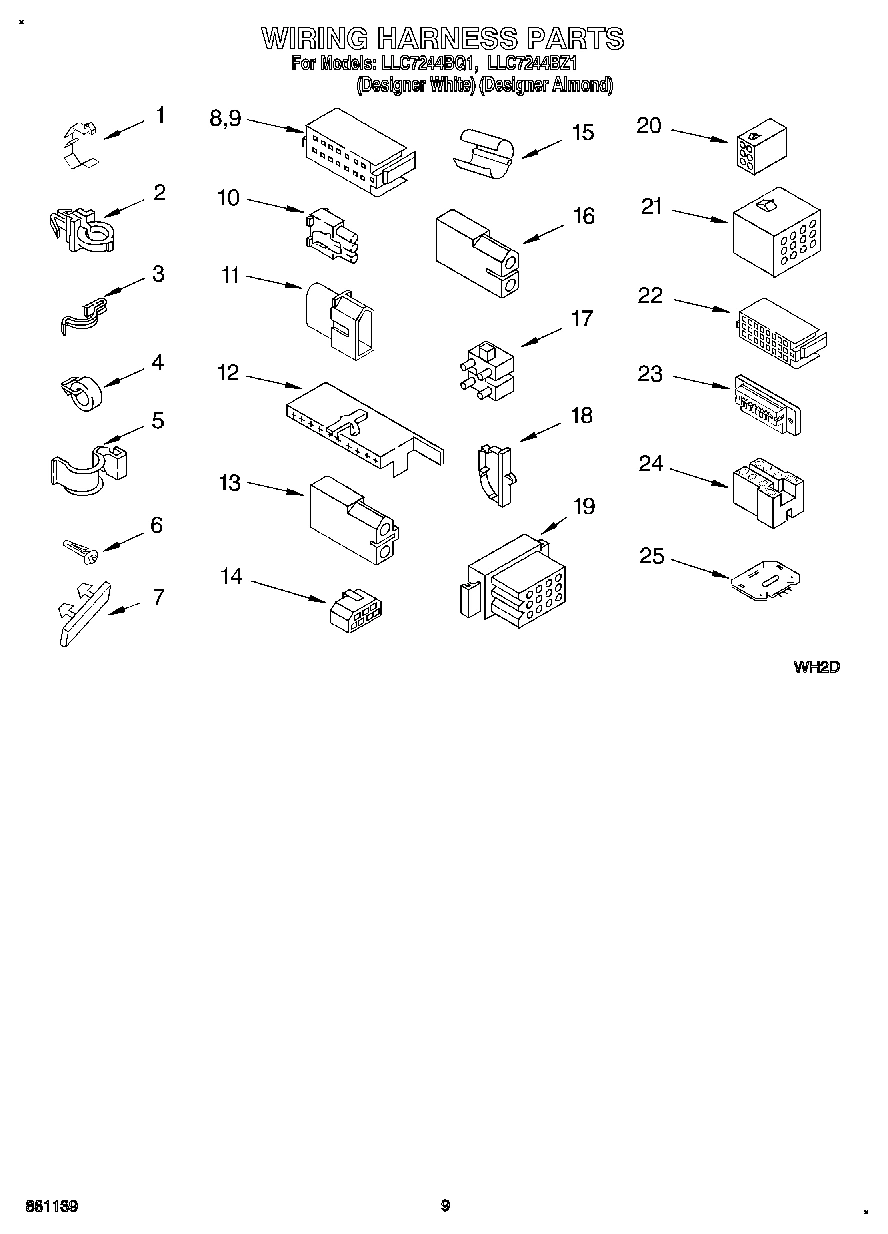

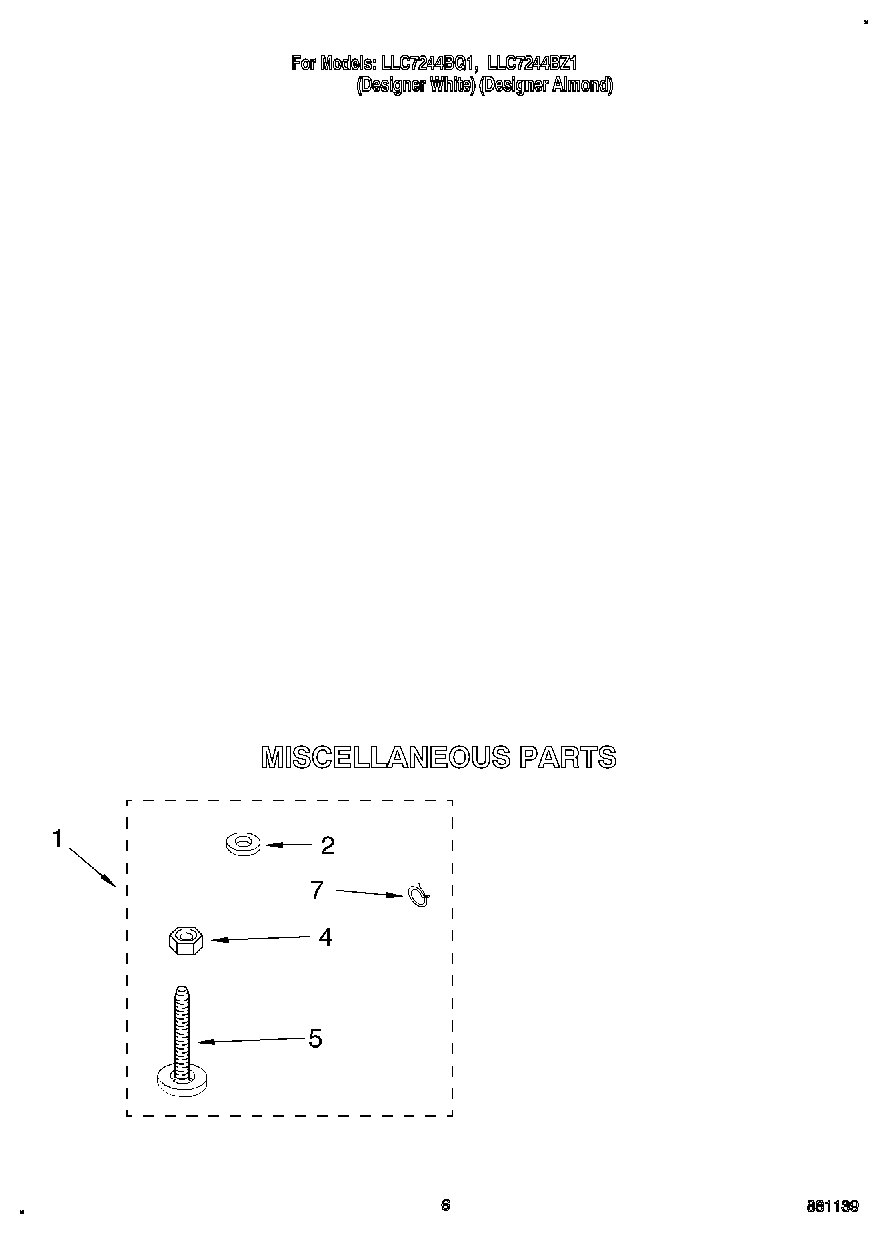

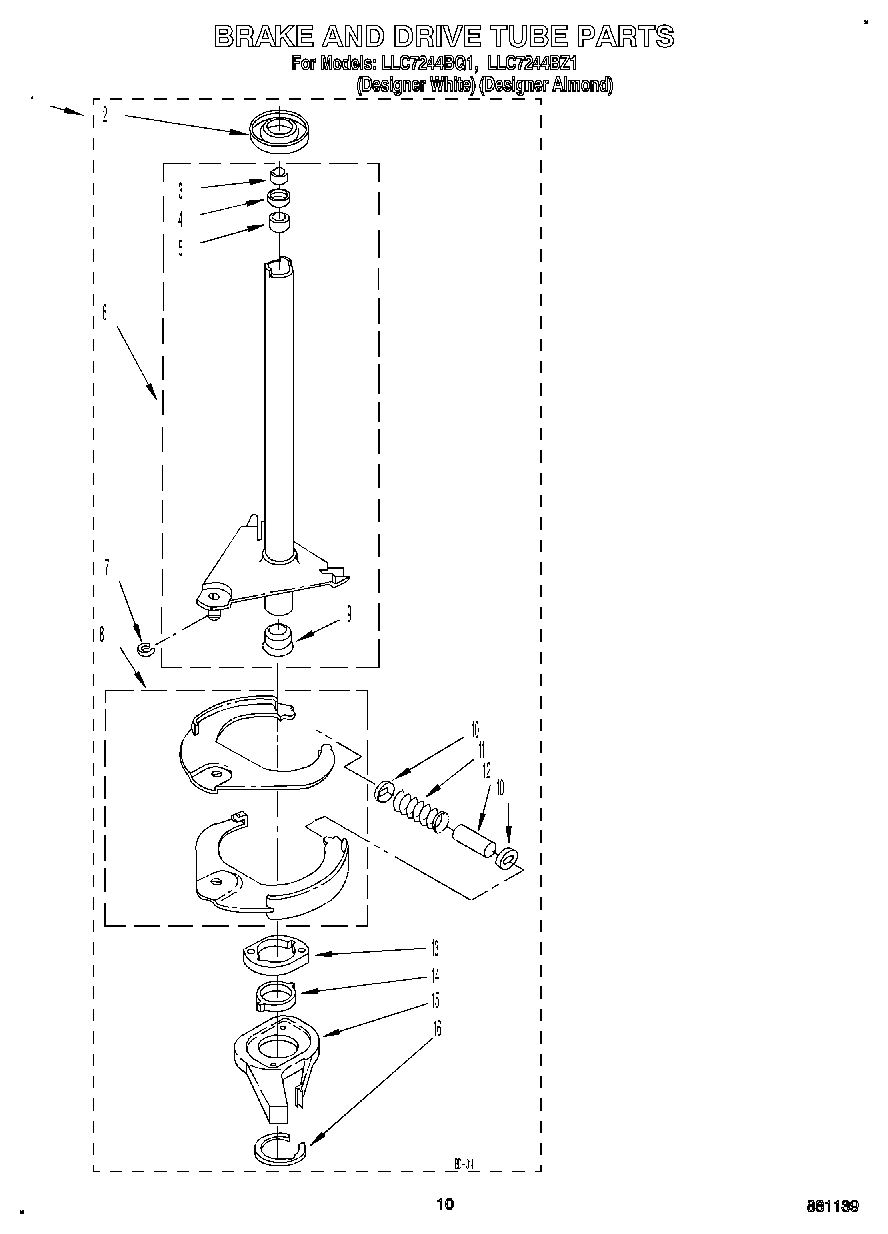

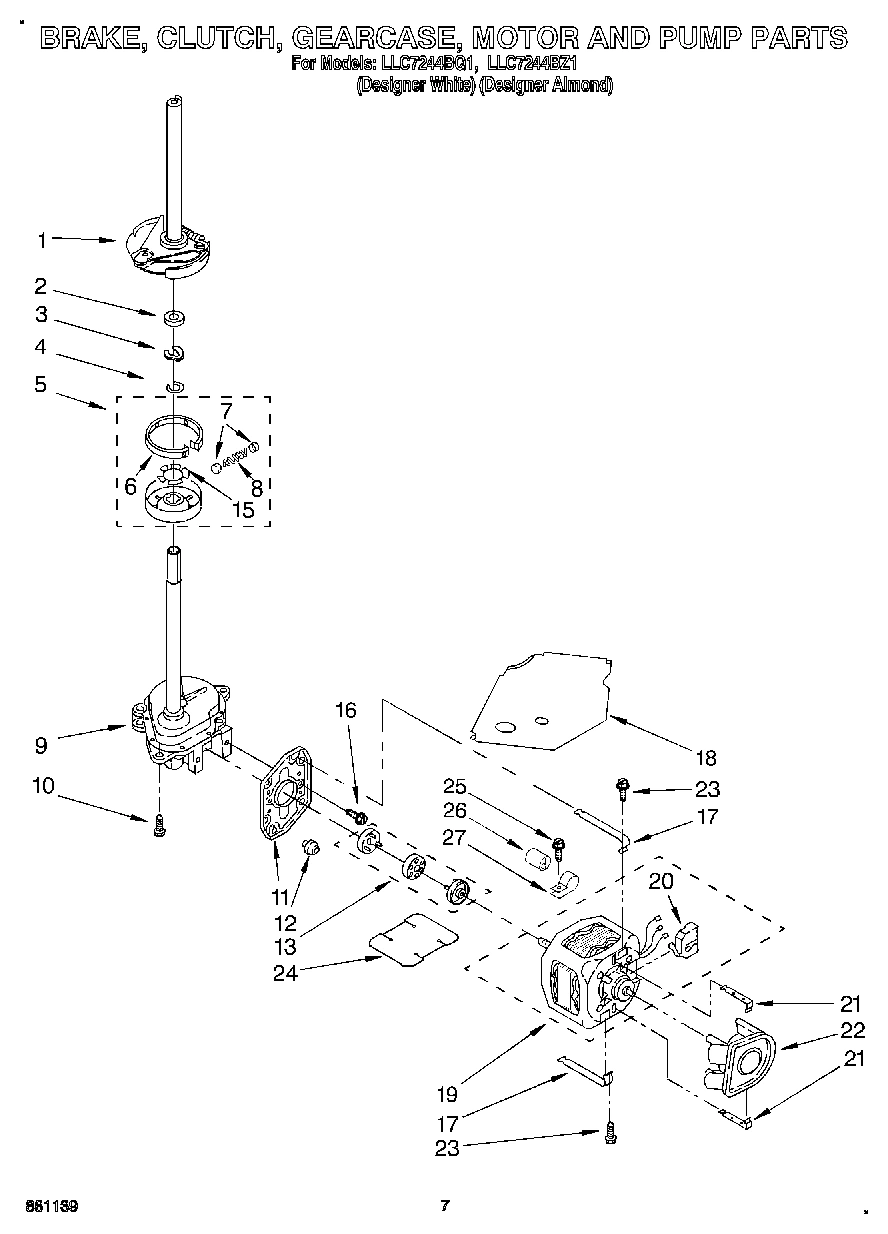

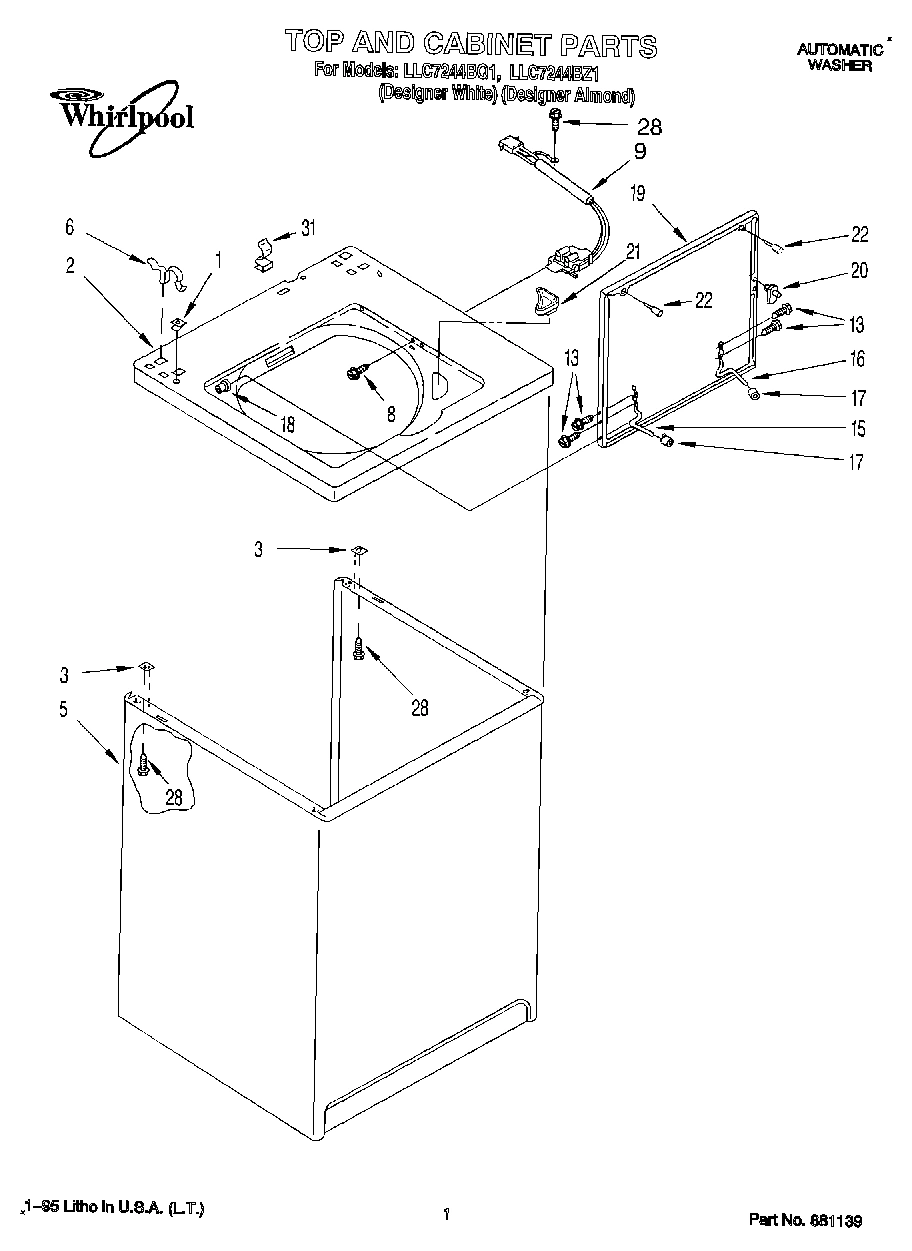

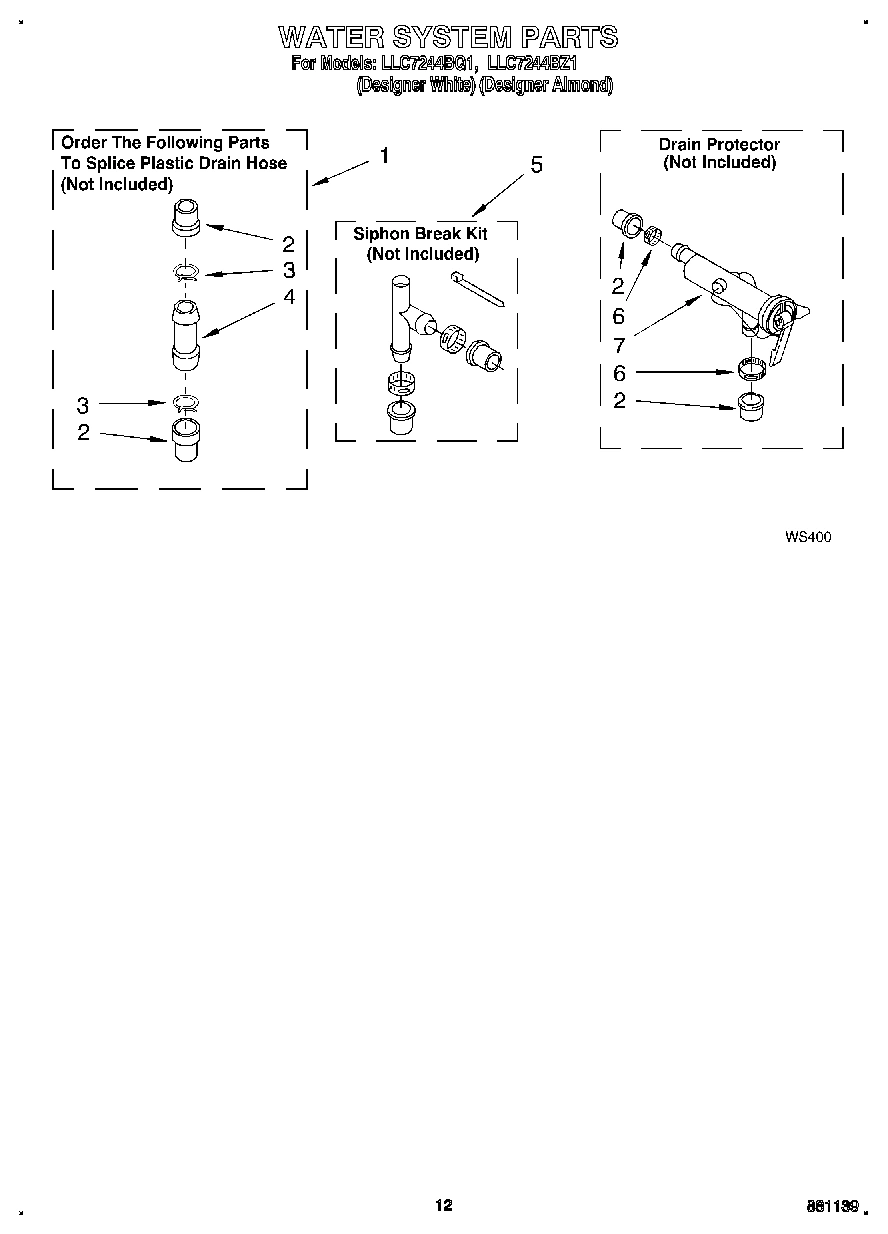

Model Whirlpool LLC7244BQ1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350938 Whirlpool Spray Gun In Stock WPL 350938 $28.93

350956 Whirlpool Spray Assembly In Stock WPL 350956 $17.07

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.38

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.60

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Shipping Kit WPL 3348675 Contact Us For Availability

Stand-Pipe Kit WPL 89121 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Guide, Use and Care WPL LIT3357471 Contact Us For Availability

Sheet, Insta WPL LIT3360057 Contact Us For Availability

WPL LIT3361184 WPL LIT3361184 Contact Us For Availability

WPL LIT3361372 WPL LIT3361372 Contact Us For Availability

WPL LIT4313896 WPL LIT4313896 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $58.70

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.75

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $129.24

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.51

1

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 3359460 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $123.80

2

285321 Whirlpool Sleeve Backorder WPL 285321 $53.62

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.77

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.80

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $6.75

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.19

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.20

2

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $60.62

2

Top (For Designer White Model) WPL 3358200 Contact Us For Availability

2

Top (For Designer Almond Model) WPL 3358201 Contact Us For Availability

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.81

3

WP3349019 Whirlpool Upper Agitator Backorder WPL WP3349019 $94.88

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.46

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $4.19

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.53

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.53

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.77

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $70.05

4

WP3350830 Whirlpool Agitator Assembly Backorder WPL WP3350830 $81.87

4

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $34.75

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $54.86

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $414.05

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.80

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Tub Ring & Gasket WPL 3360611 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (For Designer Almond Model) WPL 63425 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

WP3359586 Whirlpool Tub Seal Backorder WPL WP3359586 $58.43

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.53

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.19

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $157.92

6

Link, Leveling Mechanism (2) WPL 3348727 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $4.20

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.70

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $13.77

7

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $3.22

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $93.92

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $3.22

8

WP3956205 Whirlpool Balance Ring Backorder WPL WP3956205 $100.62

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.56

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.83

9

285671 Whirlpool Lid Switch Assembly In Stock WPL 285671 $28.98

9

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $11.51

9

62677 Whirlpool Retainer Backorder WPL 62677 $11.80

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.53

10

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $10.03

10

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $2.16

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.19

11

353424 Whirlpool Connector Backorder WPL 353424 $16.76

11

WP62647 Whirlpool Spring Pressure Backorder WPL WP62647 $5.47

62619 Whirlpool Washer Backorder WPL 62619 $14.93

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.53

WP62505 Whirlpool Connector Backorder WPL WP62505 $13.77

WP62691 Whirlpool Grommet In Stock WPL WP62691 $6.79

Switch, Water Level (For Designer White Model WPL 3357481 Contact Us For Availability

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $13.04

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $3.22

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.07

Basket WPL 3357245 Contact Us For Availability

14

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $13.67

14

W11095997 Whirlpool Seal In Stock WPL W11095997 $13.18

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $17.49

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.55

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $118.71

WP54584 Whirlpool Hinge Backorder WPL WP54584 $12.90

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.80

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $11.59

WP54583 Whirlpool Hinge Backorder WPL WP54583 $11.99

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $5.65

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Tub (Includes Item 25) WPL 63039 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.34

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $127.92

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.83

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.86

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.94

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $4.19

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.50

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $162.24

Lid (For Designer White Model) WPL 3361392 Contact Us For Availability

Lid (For Designer Almond Model) WPL 3361393 Contact Us For Availability

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3946512 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $4.20

20

Agitator, Asy (Complete) WPL 3350829 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $33.22

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $3.22

21

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.92

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.68

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.77

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.91

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $30.73

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.85

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.81

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.14

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $88.08

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $32.62

24

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $4.53

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.19

25

Control, ETC WPL 3407125 Contact Us For Availability

25

Hose, Bleach WPL 3358198 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $36.05

26

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $13.19

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.53

27

357030 Whirlpool Clamp Backorder WPL 357030 $13.77

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.53

27

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $6.46

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.44

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $6.11

37

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.46

44

WP3364293 Whirlpool Timer Knob In Stock WPL WP3364293 $35.00
