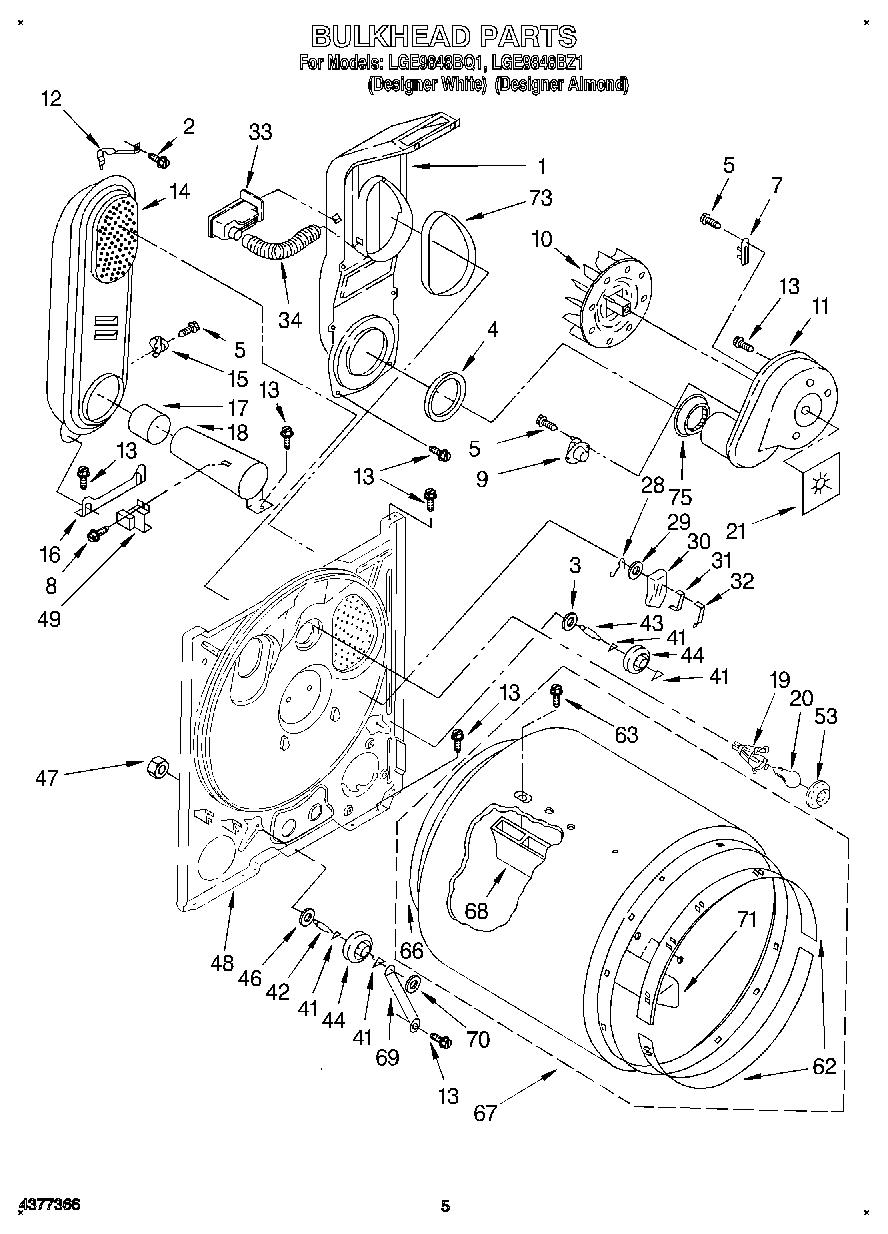

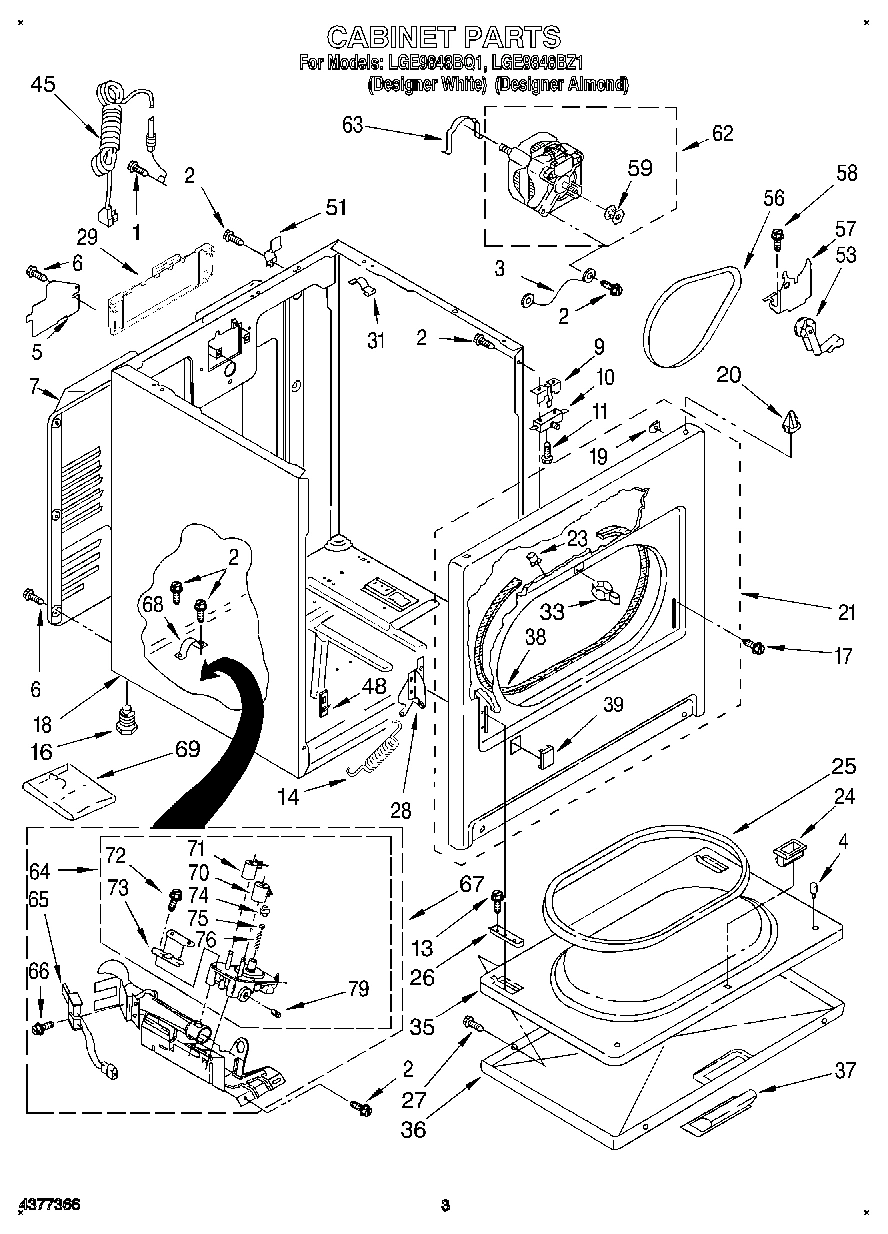

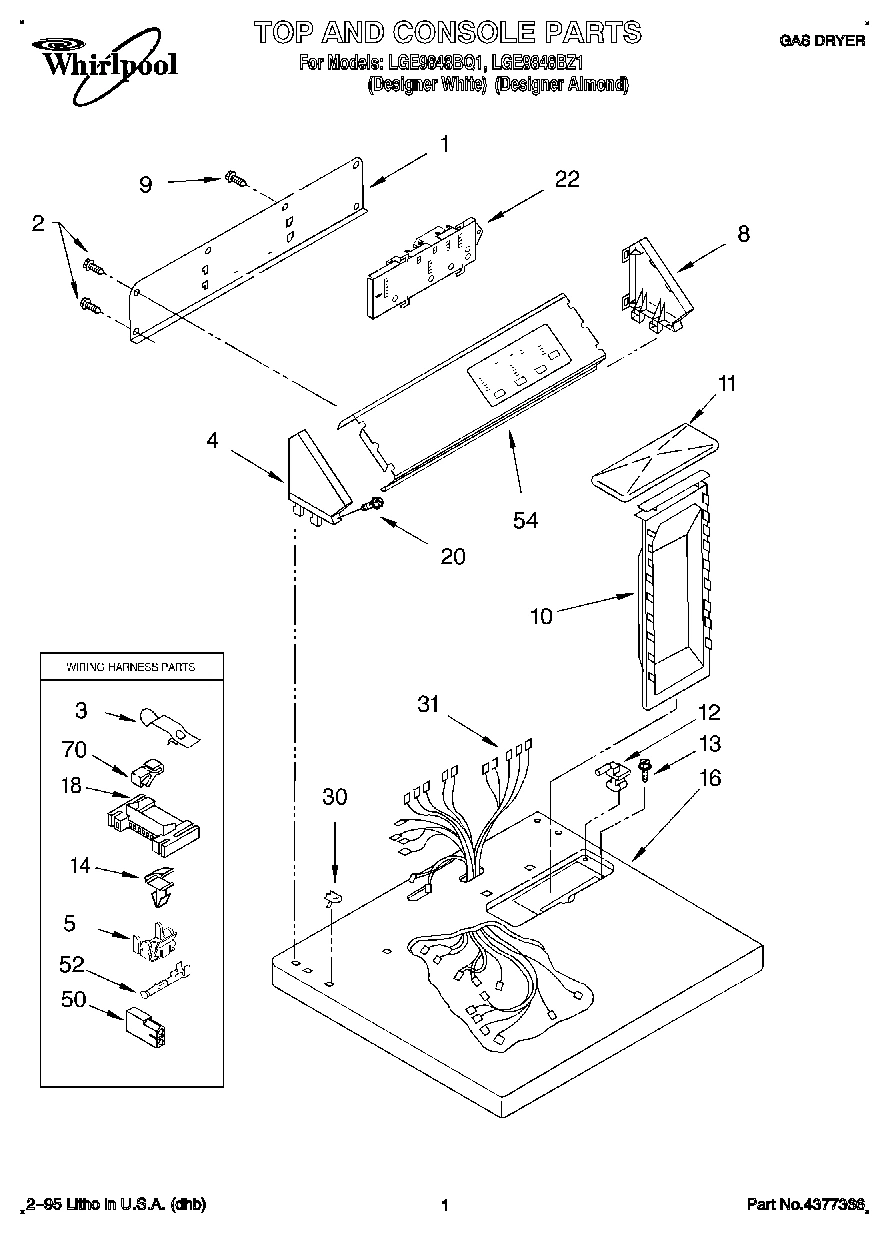

Model Whirlpool LGE9848BZ1 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Instructions, Installation WPL LIT3395332 Contact Us For Availability

Guide, Use & Care WPL LIT3396304 Contact Us For Availability

Label, Wiring Diagram WPL LIT3398176 Contact Us For Availability

Dryer WPL LIT677818 Contact Us For Availability

1

Panel, Rear Console WPL 3401176 Contact Us For Availability

1

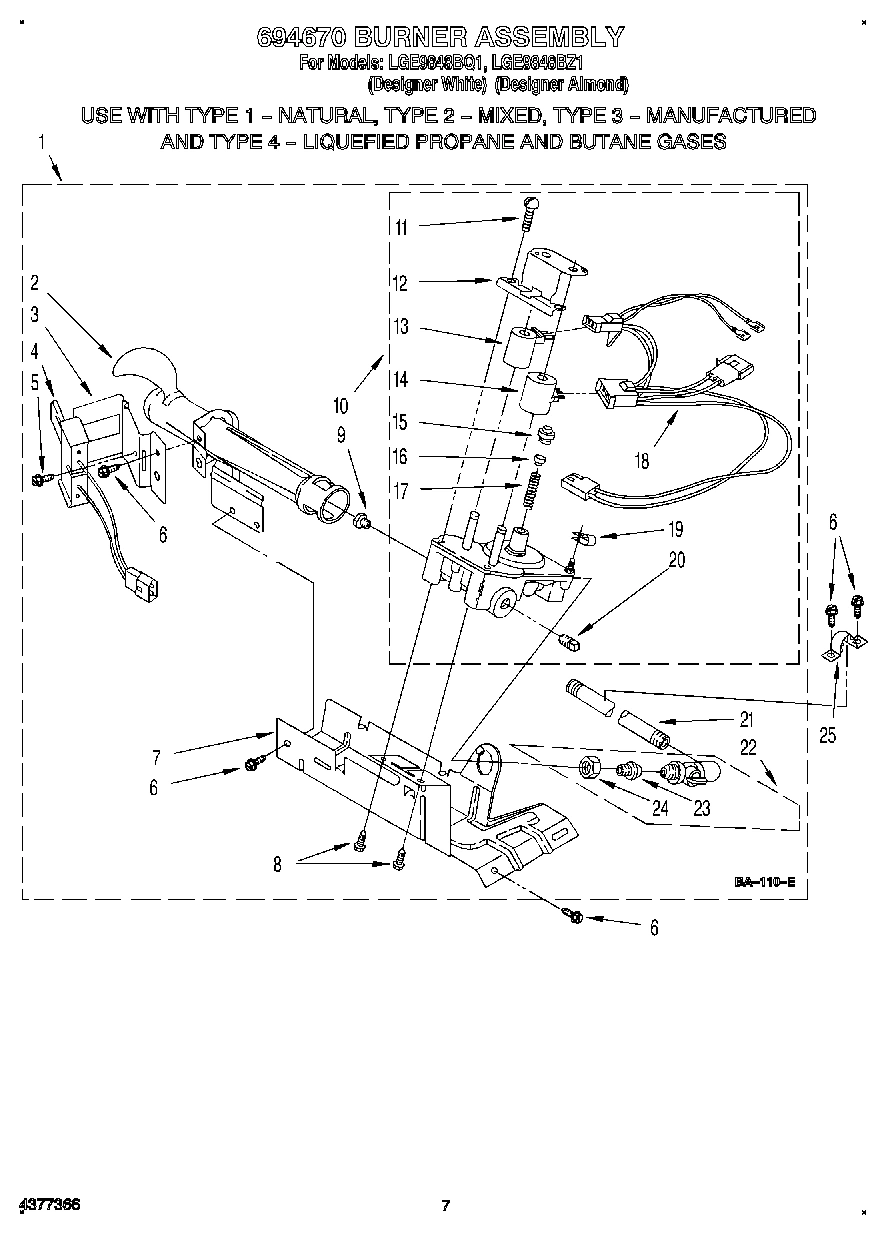

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $124.13

3

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.67

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

3

Clip, Wire WPL 357144 Contact Us For Availability

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $66.43

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $44.99

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $8.78

4

Cap, End (L.H.) (White) WPL 3358531 Contact Us For Availability

4

Cap, End (L.H.) (Almond) WPL 3358532 Contact Us For Availability

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $39.44

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

5

Clip, Ground WPL 3397658 Contact Us For Availability

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

7

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

7

Base, Burner WPL 693986 Contact Us For Availability

8

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

8

Cap, End (R.H.) (White) WPL 3358516 Contact Us For Availability

8

Cap, End (R.H.) (Almond) WPL 3358517 Contact Us For Availability

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $7.99

9

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

9

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $29.99

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

10

279923 Whirlpool Gas Valve In Stock WPL 279923 $192.99

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $30.54

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $23.48

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

Housing, Blower WPL 348013 Contact Us For Availability

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $9.33

694538 Whirlpool Bracket Backorder WPL 694538 $51.47

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $5.99

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $5.99

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $26.92

14

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

15

(Alt.) WPL 341196 Contact Us For Availability

15

Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

Support, Heater Box WPL 348484 Contact Us For Availability

Top (White) WPL 3396022 Contact Us For Availability

Top (Almond) WPL 3396023 Contact Us For Availability

18

279900 Whirlpool Box O/S1 Backorder WPL 279900 $213.99

18

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

18

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $173.55

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

19

Socket Assembly WPL 691034 Contact Us For Availability

19

Clip, Harness WPL 694510 Contact Us For Availability

20

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

20

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

21

Seal, Blower WPL 3392123 Contact Us For Availability

21

Pipe, Gas Supply WPL 233273 Contact Us For Availability

22

Electronic Control Board WPL 3398015 Contact Us For Availability

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $90.96

24

Nut, Compression WPL 233076 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $8.13

25

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $19.99

25

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $72.99

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $14.02

28

WP342267 Whirlpool Clip Backorder WPL WP342267 $4.62

29

WP298877 Whirlpool Washer Backorder WPL WP298877 $15.23

30

279366 Whirlpool Sensor Kit In Stock WPL 279366 $71.82

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

31

WP348859 Whirlpool Electrode Assembly Backorder WPL WP348859 $4.82

31

Harness, Wiring WPL 3398180 Contact Us For Availability

32

WP348860 Whirlpool Electrode Backorder WPL WP348860 $4.82

33

Alert, Lint WPL 690981 Contact Us For Availability

34

Hose, Differential WPL 686577 Contact Us For Availability

35

WP695737 Whirlpool Door Backorder WPL WP695737 $158.45

36

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $107.01

39

Plug, Front Panel (White) WPL 3394975 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $57.82

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $56.99

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $20.99

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

48

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $7.99

48

Bulkhead WPL 3396791 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

50

Receptacle, 2-Way WPL 696669 Contact Us For Availability

52

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $8.58

53

Lens, Drum Light WPL 341165 Contact Us For Availability

54

Panel, Control Bracket Assembly (White) WPL 3403637 Contact Us For Availability

54

Panel, Control Bracket Assembly (Almond) WPL 3403638 Contact Us For Availability

57

WP348780 Whirlpool Base In Stock WPL WP348780 $74.99

62

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $73.74

63

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $4.99

66

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $30.60

67

W10899578 Whirlpool Dryer Drum Assembly In Stock WPL W10899578 $175.99

68

WP692490 Whirlpool Drum Baffle Backorder WPL WP692490 $101.99

69

W11684613 Whirlpool Bracket Backorder WPL W11684613 $13.15

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

70

Clip, Retainer WPL 689180 Contact Us For Availability

71

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $92.28

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.98

74

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

75

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $14.02

75

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

76

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83
