Model Whirlpool LGC6646AW2 GAS DRYER – Common Parts & Diagrams
01 - TOP AND CONSOLE, LIT/OPTIONAL
03 - 3401771 BURNER ASSEMBLY

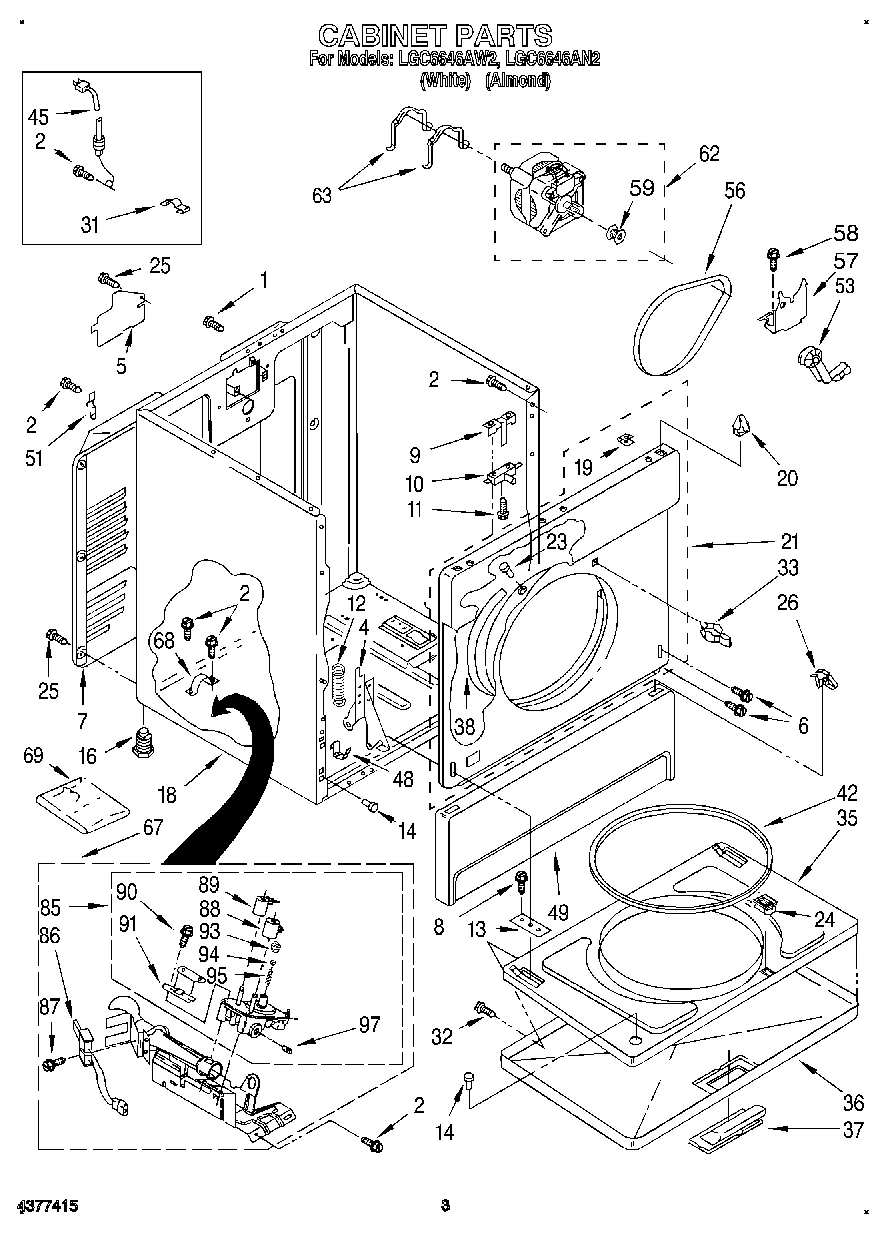

02 - CABINET
04 - BULKHEAD
Common parts from model Whirlpool LGC6646AW2 GAS DRYER
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
4
Hinge, R.H. WPL 687905 Contact Us For Availability
4
Hinge, L.H. WPL 687906 Contact Us For Availability
6
Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability
11
Housing, Blower WPL 695081 Contact Us For Availability
12
Spring, Door (2) WPL 237979 Contact Us For Availability
16
Support, Heater Box WPL 348484 Contact Us For Availability
18
Cabinet (Includes Illus. Nos. 5, 7, 16, & 57) WPL 3399585 Contact Us For Availability
18
Cabinet (Includes Illus. Nos. 5, 7, 16, & 57) WPL 3399586 Contact Us For Availability
20
Seal, Blower WPL 3392123 Contact Us For Availability
21
Pipe, Gas Supply WPL 233273 Contact Us For Availability
21
Upper Front Panel (White) WPL 338012 Contact Us For Availability
21
Upper Front Panel (Almond) WPL 689533 Contact Us For Availability
22
Valve & Union, Shut-Off WPL 345062 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
35
Door, Rear WPL 695954 Contact Us For Availability
36
Door, Front (White) WPL 348728 Contact Us For Availability
36
Door, Front (Almond) WPL 689330 Contact Us For Availability
37
Handle, Door (Almond) WPL 690271 Contact Us For Availability
48
Bulkhead WPL 3399464 Contact Us For Availability
49
Panel, Toe (White) WPL 692427 Contact Us For Availability
49
Panel, Toe (Almond) WPL 692428 Contact Us For Availability
66
Seal, Rear Drum WPL 3397509 Contact Us For Availability
67
Burner Assembly 60 Hz. (Alternate) (Refer To WPL 3401771 Contact Us For Availability
67
Drum Assembly WPL 3396778 Contact Us For Availability
73
Seal WPL 3398160 Contact Us For Availability
82
Connector, Timer WPL 3397269 Contact Us For Availability
× ![]()
