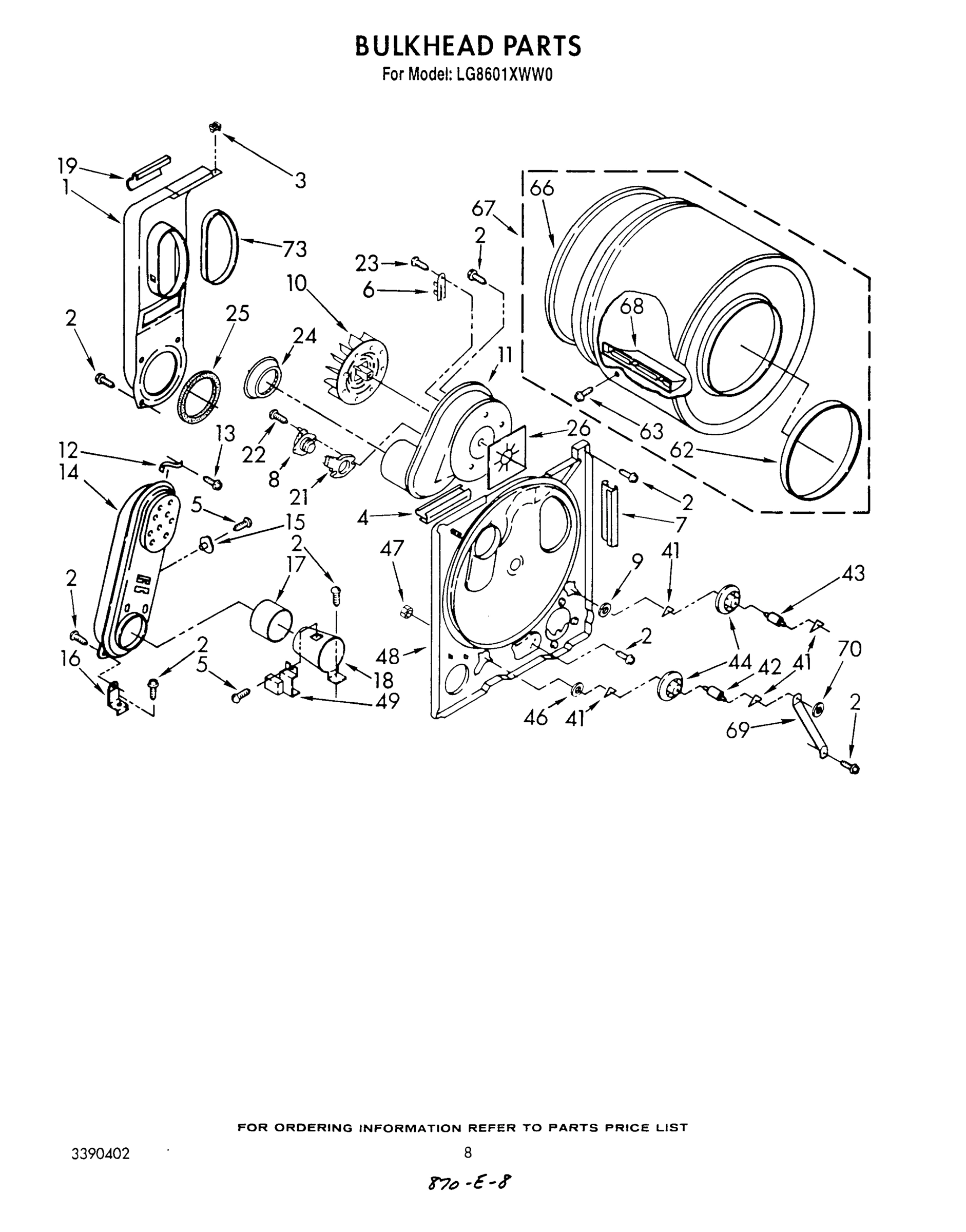

Model Whirlpool LG8601XWW0 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

279505 Whirlpool Chute Backorder WPL 279505 $197.13

1

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

3

98460 Whirlpool Nut Backorder WPL 98460 $8.89

3

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

4

686889 Whirlpool Pad Backorder WPL 686889 $14.02

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $39.44

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

7

Panel, Rear WPL 347736 Contact Us For Availability

8

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $9.90

8

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $33.63

8

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

9

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.67

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $7.99

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

10

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $27.54

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $23.48

10

SCREEN WPL 339392 Contact Us For Availability

11

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

11

Housing, Blower WPL 695081 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $9.33

12

GUIDE WPL 337182 Contact Us For Availability

12

Guide, Cable (R.H.) WPL 337183 Contact Us For Availability

13

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

14

Cable, Door (2) WPL 230131 Contact Us For Availability

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $4.98

Thermostat, 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability

Thermostat, 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability

Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

16

Support, Heater Box (2) WPL 337445 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $213.99

17

WP337186 Whirlpool Door Spring In Stock WPL WP337186 $4.99

18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

18

Cabinet (White) WPL 690847 Contact Us For Availability

18

Cabinet (Almond) WPL 690848 Contact Us For Availability

19

686770 Whirlpool Support Bracket Backorder WPL 686770 $8.05

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.99

Heater, Thermostat WPL 61894 Contact Us For Availability

Pipe, Gas Supply WPL 233273 Contact Us For Availability

Upper Front Panel (White) WPL 337470 Contact Us For Availability

Upper Front Panel (Almond) WPL 689529 Contact Us For Availability

22

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

279220 Whirlpool Clip In Stock WPL 279220 $18.99

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $90.96

23

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.99

24

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $14.02

24

Nut, Compression WPL 233076 Contact Us For Availability

25

W11415783 Whirlpool Seal In Stock WPL W11415783 $8.78

25

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

26

Seal, Blower Shaft WPL 3392123 Contact Us For Availability

28

WP238460 Whirlpool Hinge In Stock WPL WP238460 $4.99

28

Hinge, Door (R.H.) WPL 238456 Contact Us For Availability

29

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $4.82

31

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

32

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

35

Door, Rear WPL 695953 Contact Us For Availability

36

Door, Front (White) WPL 348737 Contact Us For Availability

36

Door, Front (Almond) WPL 689485 Contact Us For Availability

37

WP348721 Whirlpool Handle In Stock WPL WP348721 $65.89

37

Handle, Door (Almond) WPL 690271 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $60.99

40

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

41

Strap, Ground WPL 22965 Contact Us For Availability

42

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $33.70

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $57.82

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $56.99

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $20.99

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $79.58

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

46

Wire, Ground (60 Hz.) WPL 364089 Contact Us For Availability

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $4.82

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $8.99

48

Bulkhead WPL 685775 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

49

Panel, Toe (White) WPL 692427 Contact Us For Availability

49

Panel, Toe (Almond) WPL 692428 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $4.82

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $8.58

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $15.75

57

WP348780 Whirlpool Base In Stock WPL WP348780 $74.99

58

3400500 Whirlpool Screw In Stock WPL 3400500 $8.89

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $27.99

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $139.99

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $79.99

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.98

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

64

Wire, Ground (Motor) WPL 690236 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $46.99

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $246.94

67

Clip, Push-On (4) WPL 689559 Contact Us For Availability

67

Burner Assembly 60 Hz. (Alternate) (Refer WPL 694670 Contact Us For Availability

68

341029 Whirlpool Clamp Backorder WPL 341029 $8.13

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $97.97

69

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $19.99

69

WPL 279243 WPL 279243 Contact Us For Availability

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.98

84

WPL 688412 WPL 688412 Contact Us For Availability

85

279923 Whirlpool Gas Valve In Stock WPL 279923 $192.99

86

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $44.99

87

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

88

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $26.92

90

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

91

694538 Whirlpool Bracket Backorder WPL 694538 $51.47

92

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $173.55

93

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

94

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

95

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

96

WPL 694510 WPL 694510 Contact Us For Availability

97

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58
