Model Whirlpool LG6801XPW0 GAS DRYER – Common Parts & Diagrams

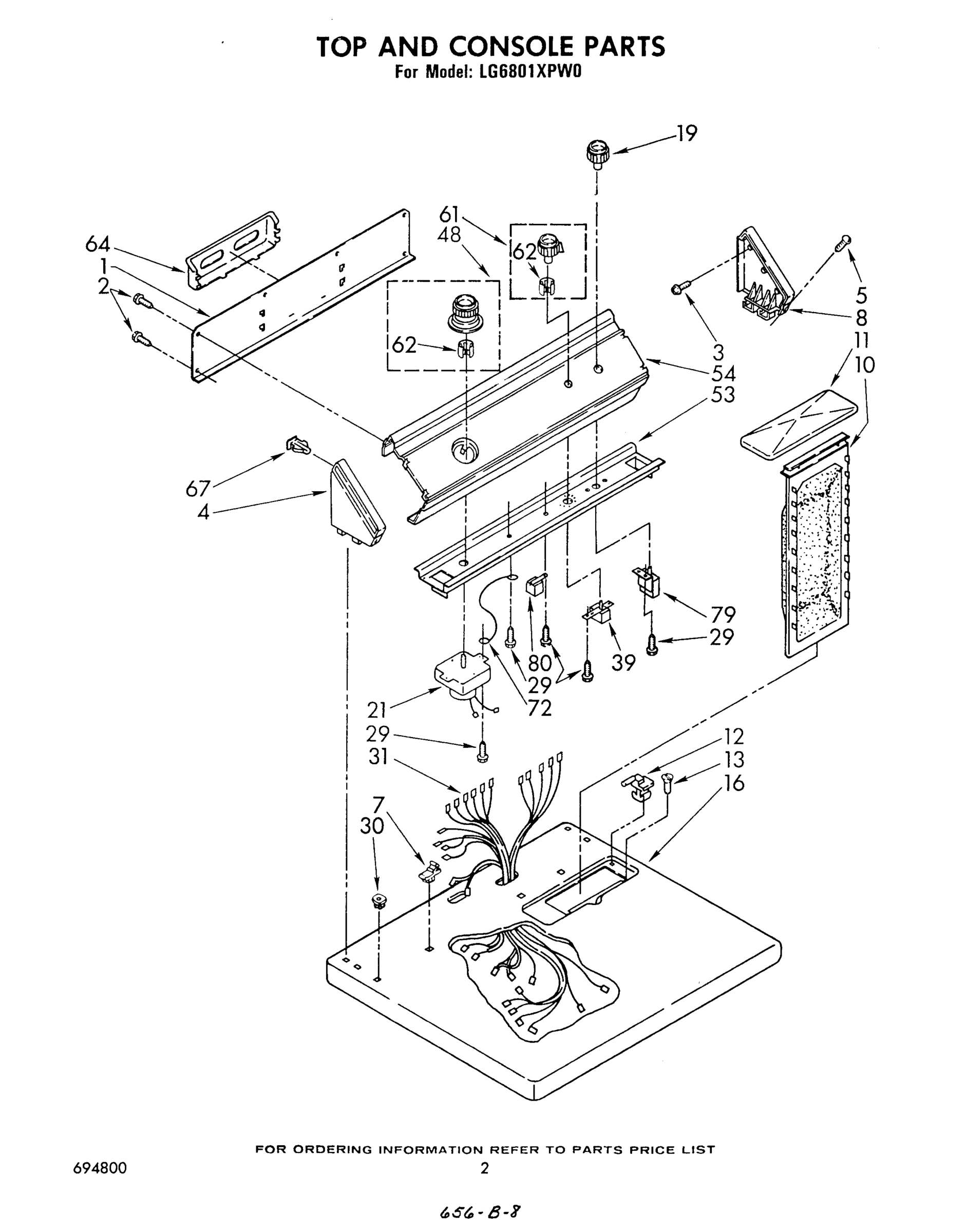

02 - TOP AND CONSOLE, LITERATURE AND OPTIONAL

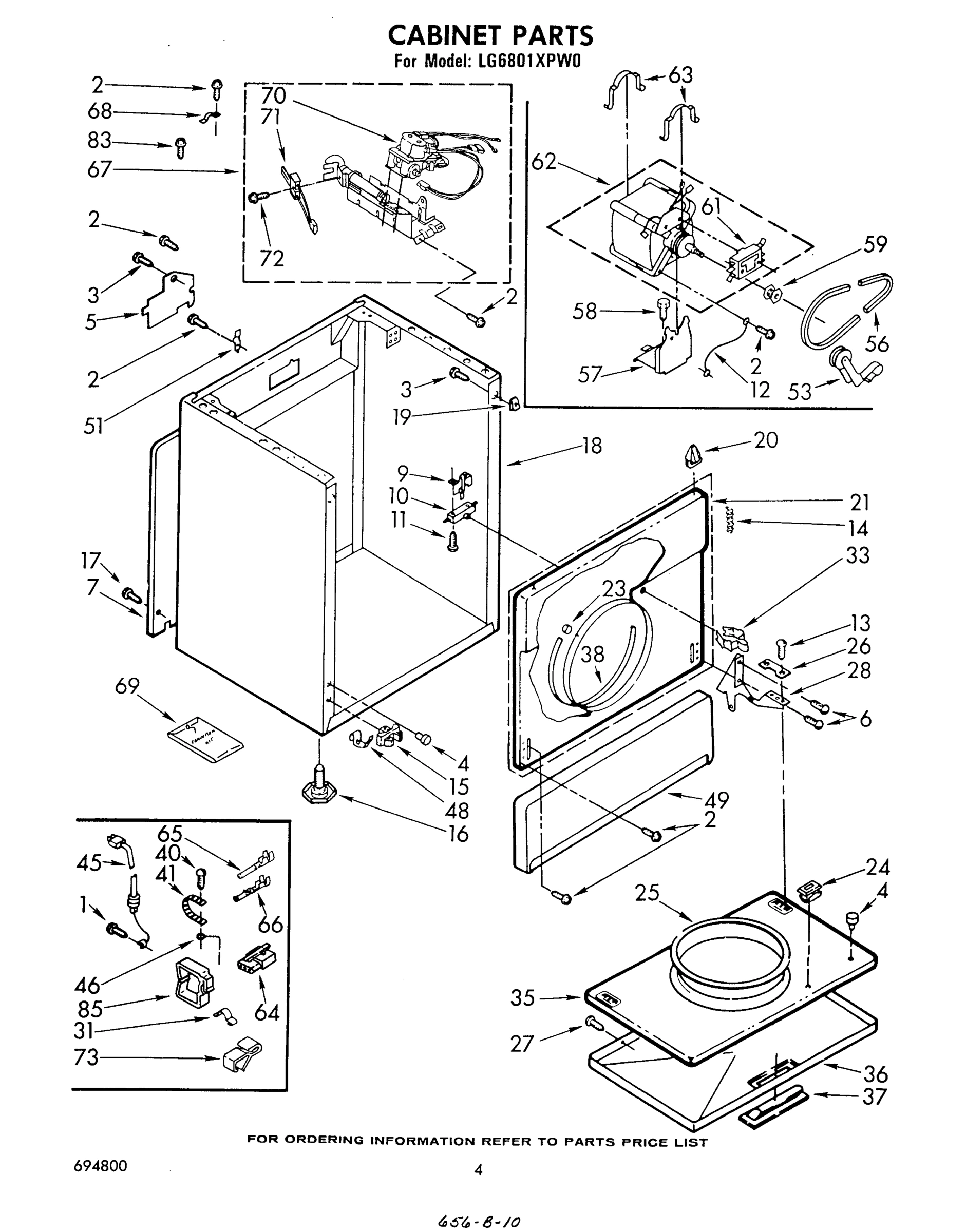

03 - CABINET

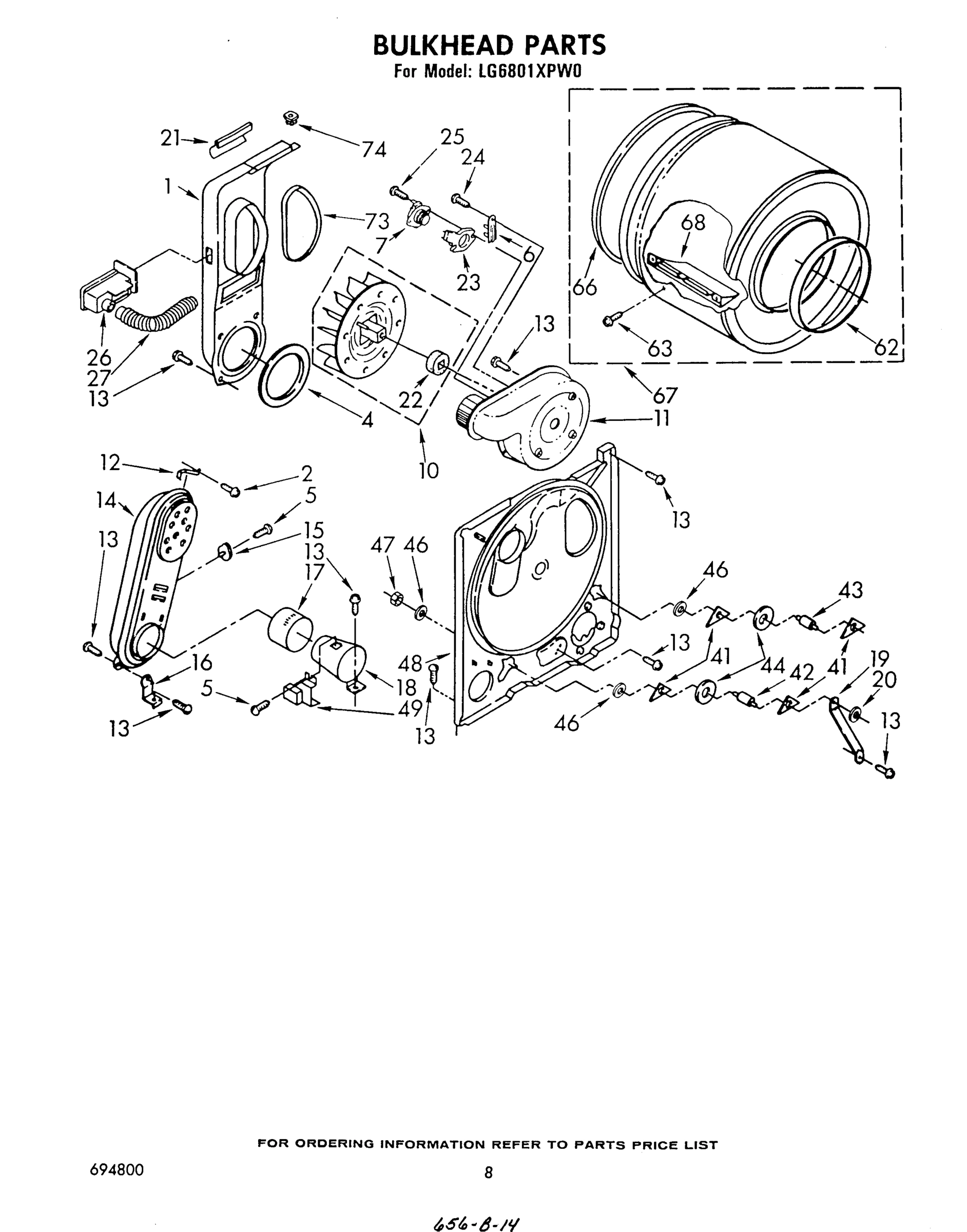

05 - BULKHEAD

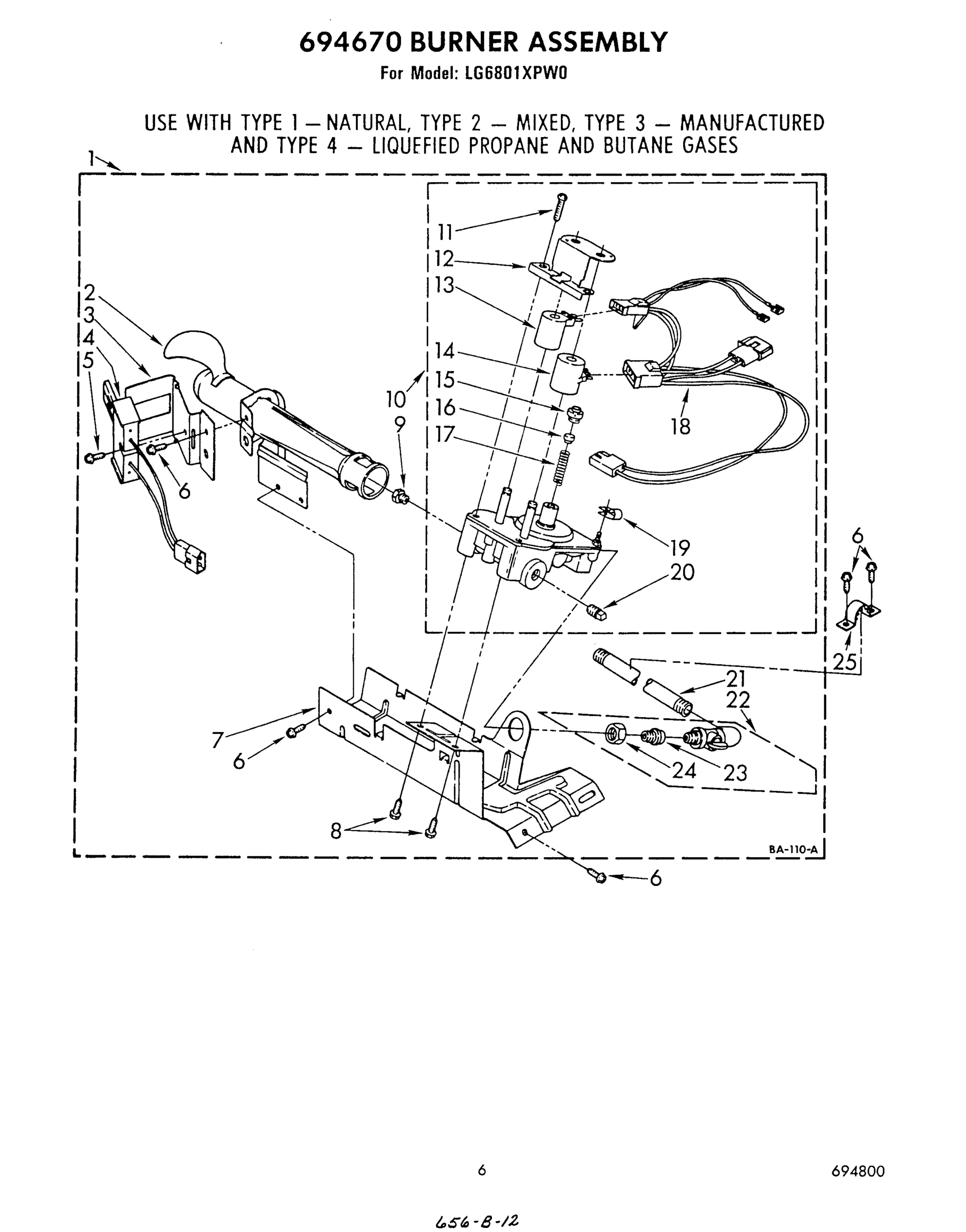

04 - 694670 BURNER
Common parts from model Whirlpool LG6801XPW0 GAS DRYER
WPL 799344 WPL 799344 Contact Us For Availability
1
Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability
1
Lint Chute WPL 686215 Contact Us For Availability
6
Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability
7
Panel, Rear WPL 347736 Contact Us For Availability
7
Base, Burner WPL 693986 Contact Us For Availability
9
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
9
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
11
Housing, Blower WPL 695081 Contact Us For Availability
12
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
14
Spring, Door (2) WPL 237979 Contact Us For Availability
15
Thermostat, 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability
15
Clip, Toe Panel (2) WPL 690625 Contact Us For Availability
15
Thermostat, 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability
15
Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability
16
Support, Heater Box (2) WPL 337445 Contact Us For Availability
18
Cabinet (White) WPL 690847 Contact Us For Availability
18
Cabinet (Almond) WPL 690848 Contact Us For Availability
18
Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability
18
Cabinet (Toast) WPL 694874 Contact Us For Availability
18
Cabinet (Platinum) WPL 694875 Contact Us For Availability
19
Bracket, Support Shaft WPL 348945 Contact Us For Availability
19
Clip, Harness WPL 694510 Contact Us For Availability
21
Panel Assembly, Upper Front (Also Includes Il WPL 338012 Contact Us For Availability
21
Panel Assembly, Upper Front (Also Includes Il WPL 689533 Contact Us For Availability
21
Panel Assembly, Upper Front (Also Includes Il WPL 689535 Contact Us For Availability
21
Panel Assembly, Upper Front (Also Includes Il WPL 695026 Contact Us For Availability
21
Panel Assembly, Upper Front (Also Includes Il WPL 695027 Contact Us For Availability
21
Pipe, Gas Supply WPL 233273 Contact Us For Availability
22
Seal, Blower WPL 694630 Contact Us For Availability
22
Valve & Union, Shut-Off WPL 345062 Contact Us For Availability
23
Thermostat, Heater WPL 61298 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
25
Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability
26
Alert, Lint WPL 690981 Contact Us For Availability
27
Hose, Differential WPL 686577 Contact Us For Availability
28
Hinge, R.H. WPL 687905 Contact Us For Availability
28
Hinge, L.H. WPL 687906 Contact Us For Availability
30
Nut, Push-In (2) WPL 358473 Contact Us For Availability
35
Door, Rear (White) WPL 346370 Contact Us For Availability
35
Door, Rear (Almond) WPL 689258 Contact Us For Availability
35
Door, Rear (Golden Harvest) WPL 689261 Contact Us For Availability
35
Door, Rear (Toast) WPL 695003 Contact Us For Availability
35
Door, Rear (Platinum) WPL 695004 Contact Us For Availability
36
Door, Front (White) WPL 348728 Contact Us For Availability
36
Door, Front (Almond) WPL 689330 Contact Us For Availability
36
Door, Front (Golden WPL 689333 Contact Us For Availability
36
WPL 695034 WPL 695034 Contact Us For Availability
36
WPL 695035 WPL 695035 Contact Us For Availability
37
WPL 690266 WPL 690266 Contact Us For Availability
37
WPL 690269 WPL 690269 Contact Us For Availability
37
WPL 695016 WPL 695016 Contact Us For Availability
37
WPL 695017 WPL 695017 Contact Us For Availability
40
WPL 132848 WPL 132848 Contact Us For Availability
41
WPL 22965 WPL 22965 Contact Us For Availability
46
WPL 364089 WPL 364089 Contact Us For Availability
48
Bulkhead WPL 685769 Contact Us For Availability
49
WPL 237035 WPL 237035 Contact Us For Availability
49
WPL 689537 WPL 689537 Contact Us For Availability
49
WPL 689539 WPL 689539 Contact Us For Availability
49
WPL 694999 WPL 694999 Contact Us For Availability
49
WPL 695000 WPL 695000 Contact Us For Availability
63
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
64
WPL 691707 WPL 691707 Contact Us For Availability
67
Clip, Push-On (4) WPL 689559 Contact Us For Availability
73
WPL 689180 WPL 689180 Contact Us For Availability
80
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
80
Golden Harvest WPL 261890 Contact Us For Availability
80
Toast WPL 285365 Contact Us For Availability
80
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
80
Wire, Splicing 240 Volt WPL 299885 Contact Us For Availability
80
Leveler (Thinner) WPL 350941 Contact Us For Availability
80
Use & Care Guide WPL 693689 Contact Us For Availability
80
Guide, Dryer WPL 693849 Contact Us For Availability
80
List, Service Parts WPL 694800 Contact Us For Availability
80
Instructions, Installati WPL 696233 Contact Us For Availability
80
WPL 72112 WPL 72112 Contact Us For Availability
80
WPL 799351 WPL 799351 Contact Us For Availability
83
WPL 343826 WPL 343826 Contact Us For Availability
85
WPL 688412 WPL 688412 Contact Us For Availability
× ![]()
