Model Whirlpool LG5781XMW2 GAS DRYER – Common Parts & Diagrams
05 - 694670 BURNER ASSEMBLY
02 - TOP AND CONSOLE , LITERATURE AND OPTIONAL

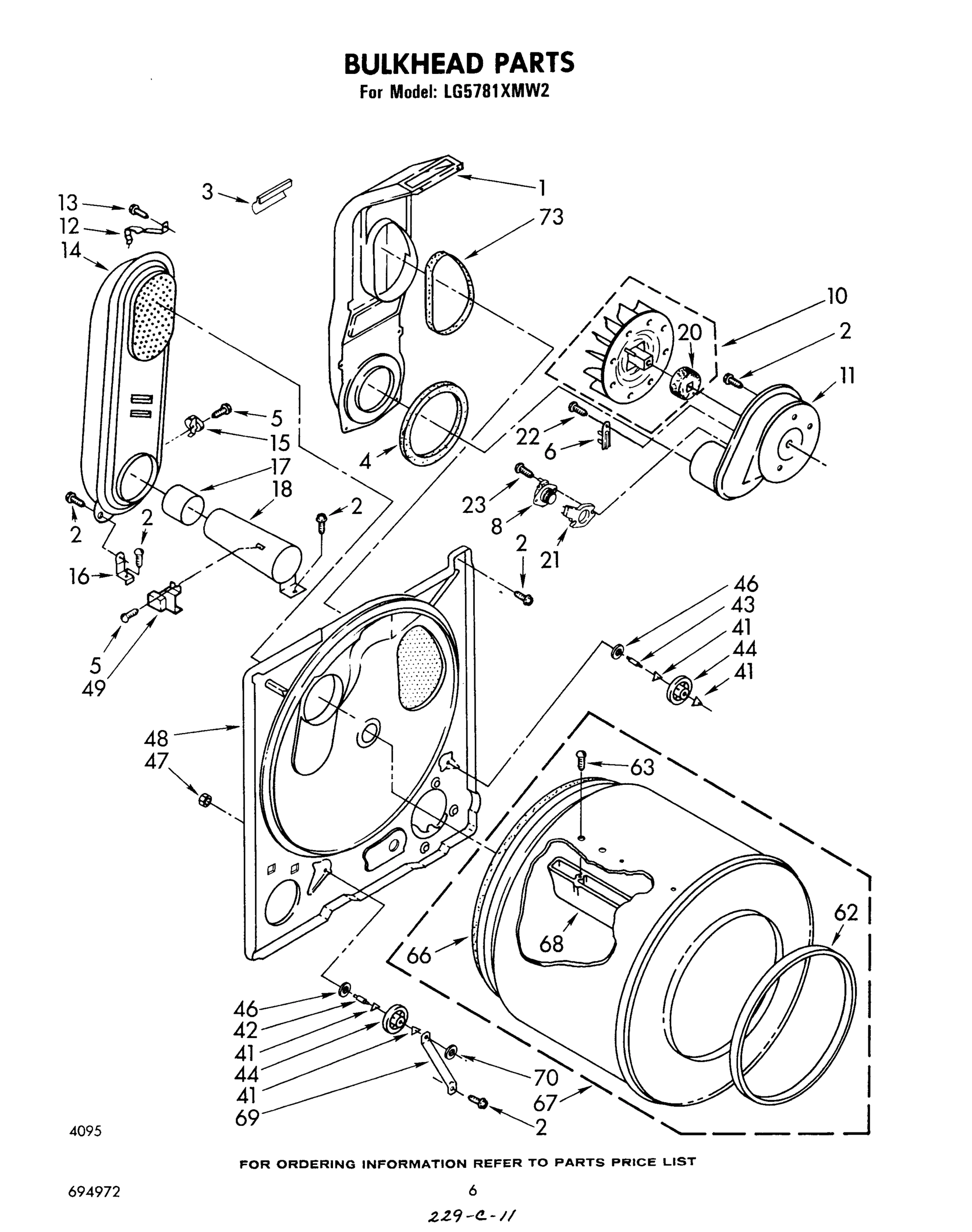

04 - BULKHEAD

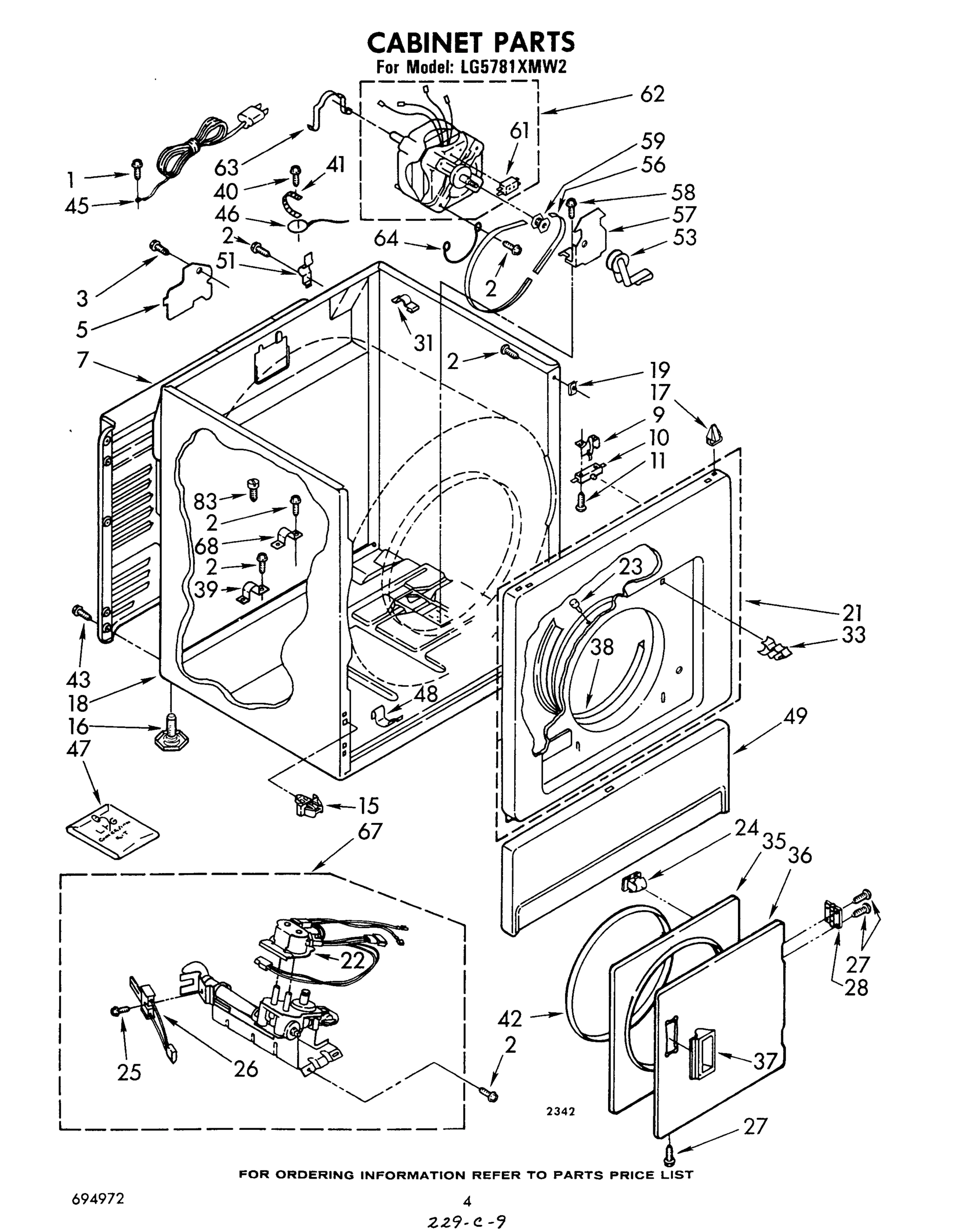

03 - CABINET
Common parts from model Whirlpool LG5781XMW2 GAS DRYER
WPL 799344 WPL 799344 Contact Us For Availability
6
Clip, Harness Retainer WPL 688412 Contact Us For Availability
7
Panel, Rear WPL 347736 Contact Us For Availability
8
Nut, Push-In (2) WPL 358473 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
11
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
11
Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability
11
Housing, Blower WPL 695081 Contact Us For Availability
14
Screw, 8-18 x 1 (2) WPL 358225 Contact Us For Availability
15
Thermostat, High Limit 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability
15
Thermostat, High Limit 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability
15
Thermostat, High Limit 205~F (96~C) WPL 660036 Contact Us For Availability
15
Clip, Toe Panel (2) WPL 690625 Contact Us For Availability
16
top (white) WPL 688479 Contact Us For Availability
16
Top (Almond) WPL 689449 Contact Us For Availability
16
Top (Golden Harvest) WPL 689452 Contact Us For Availability
16
Support, Heater Box (2) WPL 337445 Contact Us For Availability
18
Cabinet (White) WPL 690847 Contact Us For Availability
18
Cabinet (Almond) WPL 690848 Contact Us For Availability
18
Cabinet (Golden Wheat) WPL 690851 Contact Us For Availability
19
Control Knob, Temperature WPL 690292 Contact Us For Availability
20
Seal, Blower WPL 694630 Contact Us For Availability
21
Timer Assembly 60 Hz. WPL 690208 Contact Us For Availability
21
Thermostat, Heater WPL 61298 Contact Us For Availability
21
Front Panel Assembly (Also Includes Illus. 19 WPL 693202 Contact Us For Availability
21
Front Panel Assembly (Also Includes Illus. 19 WPL 693203 Contact Us For Availability
21
Front Panel Assembly (Also Includes Illus. 19 WPL 693206 Contact Us For Availability
22
Harness, Wiring WPL 694690 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
36
Door, Front (Almond) WPL 689314 Contact Us For Availability
36
Door Front (Golden Harvest) WPL 689319 Contact Us For Availability
37
Handle, Door (Almond) WPL 689306 Contact Us For Availability
37
Handle, Door (Golden Harvest) WPL 689584 Contact Us For Availability
39
Switch, Push-To-Start (Alt.) WPL 346364 Contact Us For Availability
39
Switch, Push-To-Start WPL 660936 Contact Us For Availability
39
Switch, Push-To-Start (Alt.) WPL 692021 Contact Us For Availability
39
Clamp, Pipe (Front) WPL 695885 Contact Us For Availability
40
Screw, 10-24 x 1 WPL 132848 Contact Us For Availability
41
Strap, Ground WPL 22965 Contact Us For Availability
46
Wire, Ground WPL 364089 Contact Us For Availability
47
Conversion Kit (Type 1 To Type 3) (MFD) (Gas) WPL 279243 Contact Us For Availability
48
Timer Knob Assembly WPL 690200 Contact Us For Availability
48
Bulkhead WPL 685769 Contact Us For Availability
49
WPL 237035 WPL 237035 Contact Us For Availability
49
WPL 689537 WPL 689537 Contact Us For Availability
49
WPL 689539 WPL 689539 Contact Us For Availability
53
Bracket, Control WPL 359708 Contact Us For Availability
54
Panel, Control WPL 692006 Contact Us For Availability
62
Clip WPL 90015 Contact Us For Availability
63
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
64
WPL 690236 WPL 690236 Contact Us For Availability
67
Nut, Push-In WPL 694055 Contact Us For Availability
67
WPL 694670 WPL 694670 Contact Us For Availability
69
Bracket, Support WPL 348945 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
75
Receptacle, 3-Way Terminal (Use W/94614) WPL 353425 Contact Us For Availability
79
Switch, Temperature Selector WPL 695091 Contact Us For Availability
81
Button, Push-To-Start WPL 689857 Contact Us For Availability
82
Stop, Push-In (2) WPL 358472 Contact Us For Availability
83
Rack, Literature WPL 357645 Contact Us For Availability
83
WPL 343826 WPL 343826 Contact Us For Availability
84
Golden Harvest WPL 261890 Contact Us For Availability
84
WPL 350941 WPL 350941 Contact Us For Availability
84
WPL 693671 WPL 693671 Contact Us For Availability
84
WPL 693849 WPL 693849 Contact Us For Availability
84
WPL 694344 WPL 694344 Contact Us For Availability
84
WPL 694972 WPL 694972 Contact Us For Availability
84
WPL 799351 WPL 799351 Contact Us For Availability
× ![]()
