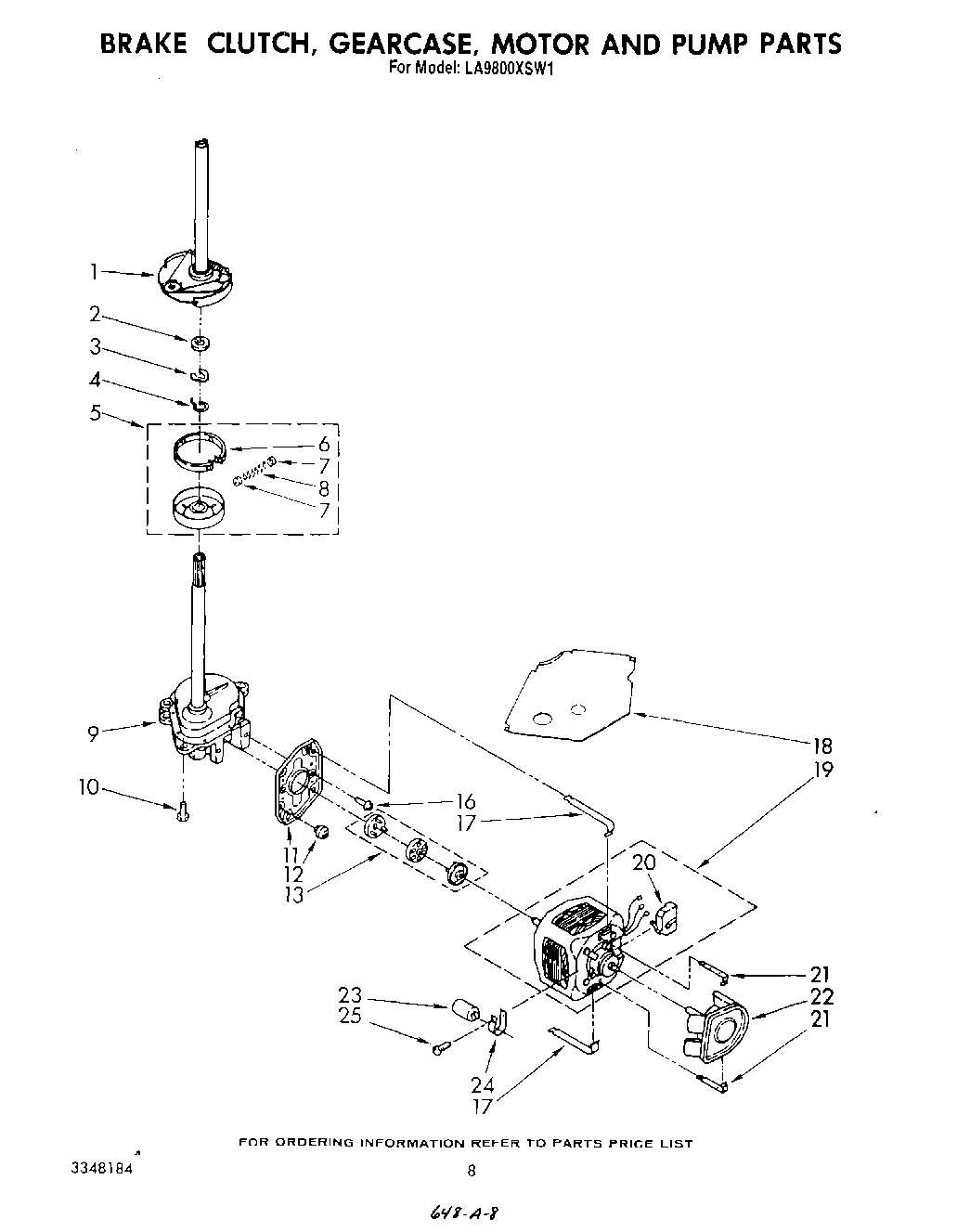

Model Whirlpool LA9800XSW1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 799344 WPL 799344 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $59.26

1

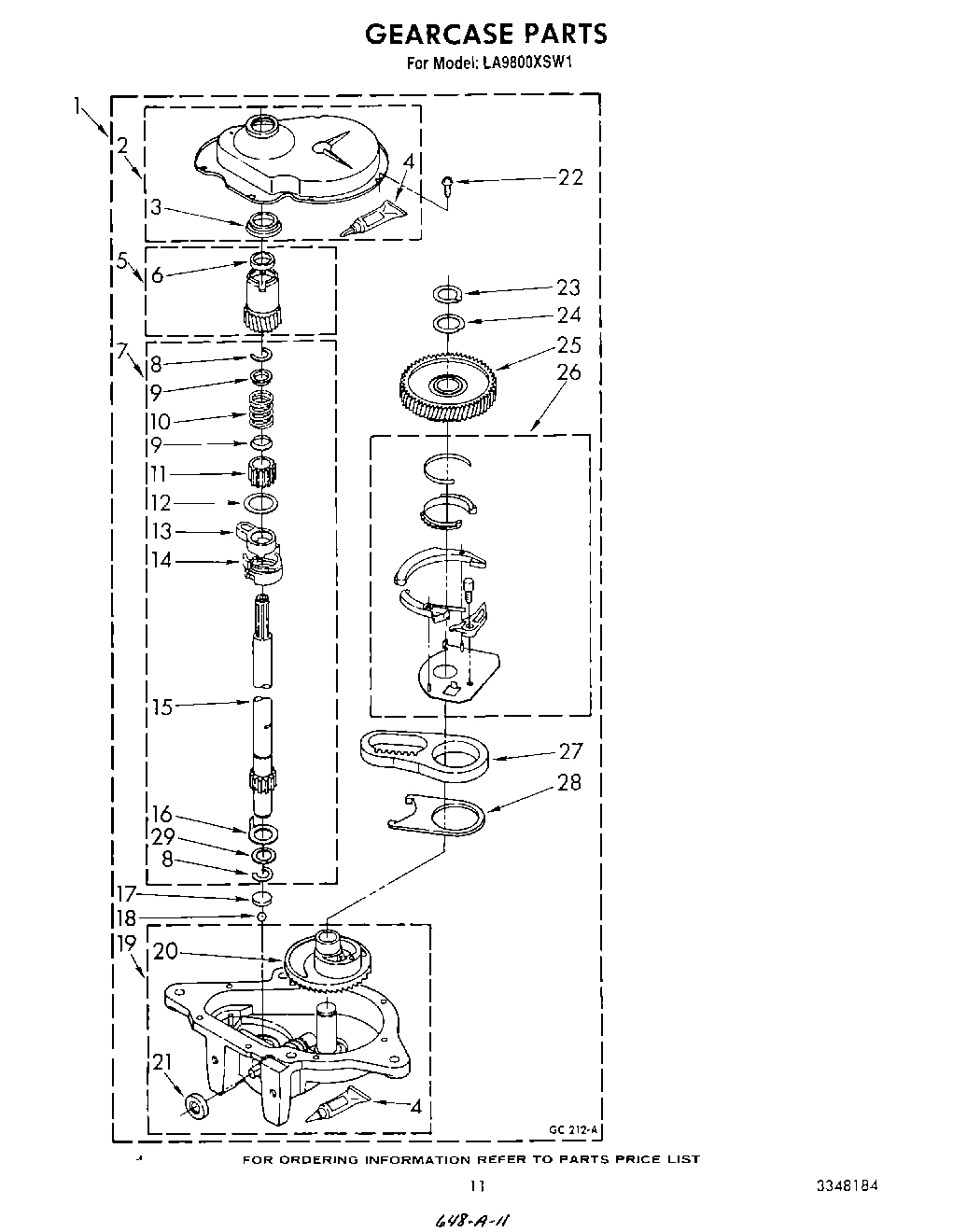

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.99

1

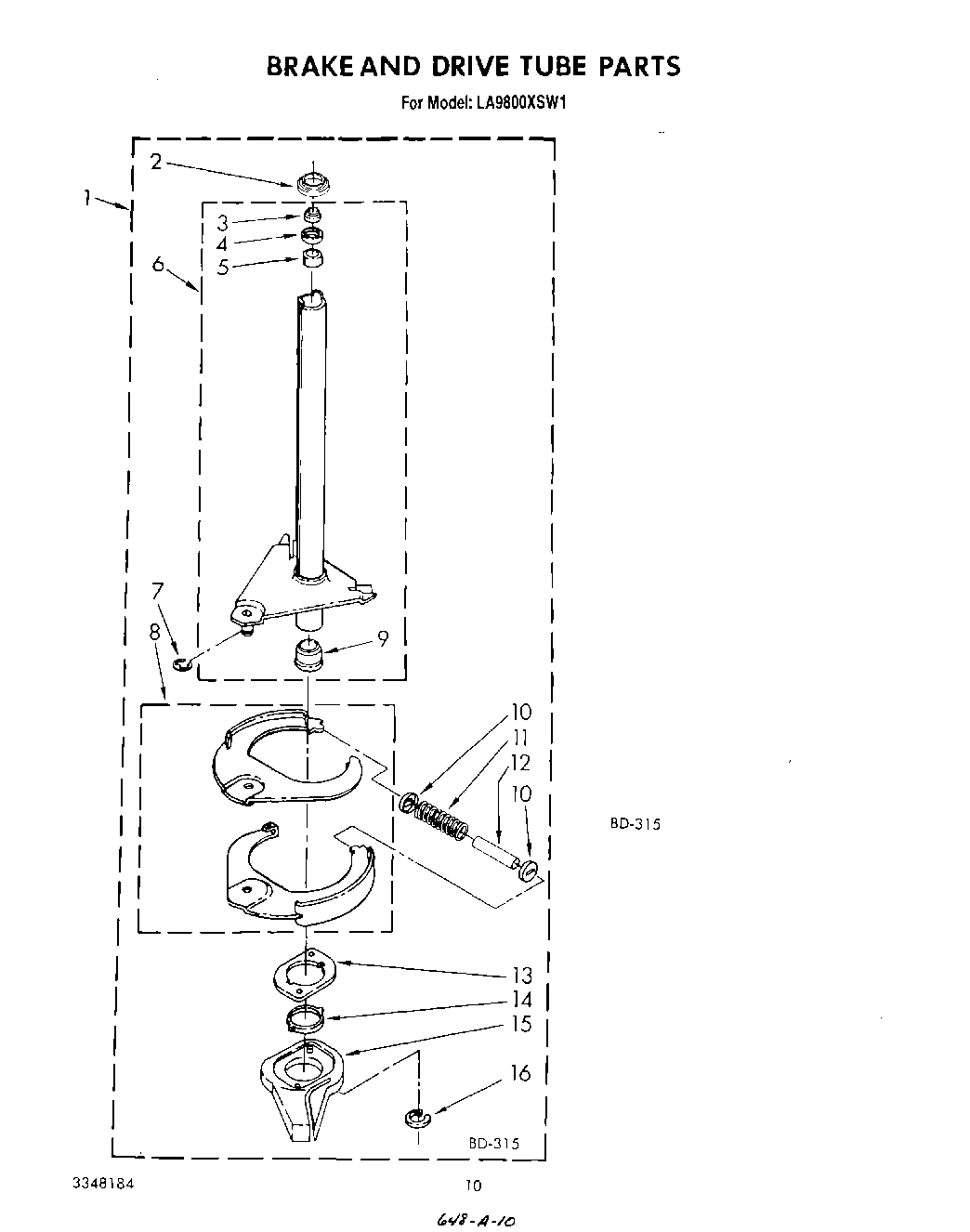

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

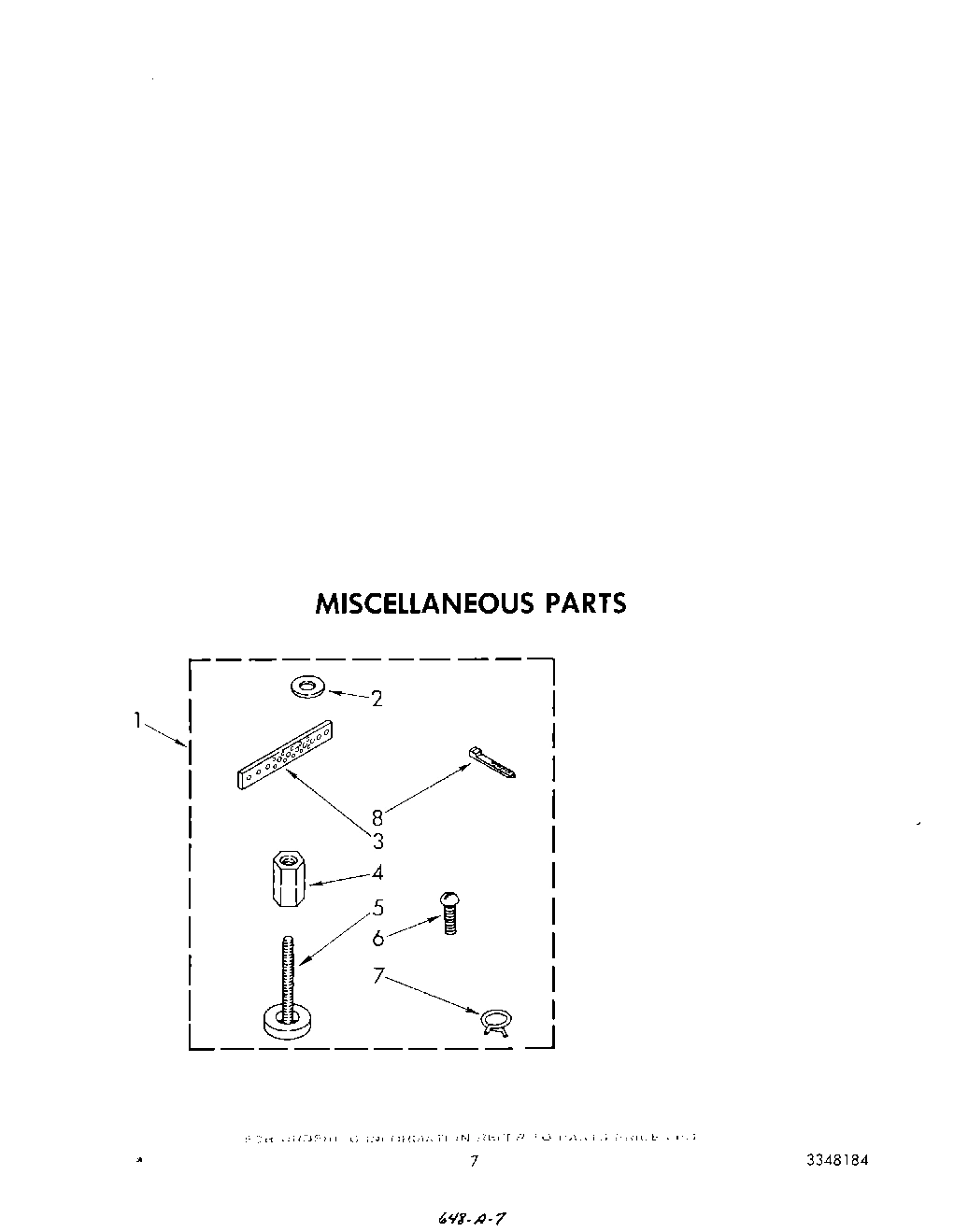

Miscellaneous Parts Bag WPL 384254 Contact Us For Availability

1

Clip, Harness WPL 62732 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

285321 Whirlpool Sleeve Backorder WPL 285321 $54.14

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $16.85

2

Clip, Harness WPL 62749 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

3

Strap, Ground WPL 22965 Contact Us For Availability

3

Retainer, Wire WPL 357247 Contact Us For Availability

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

4

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

4

Support & Brake, Tub WPL 389350 Contact Us For Availability

4

Clip, Harness WPL 387551 Contact Us For Availability

5

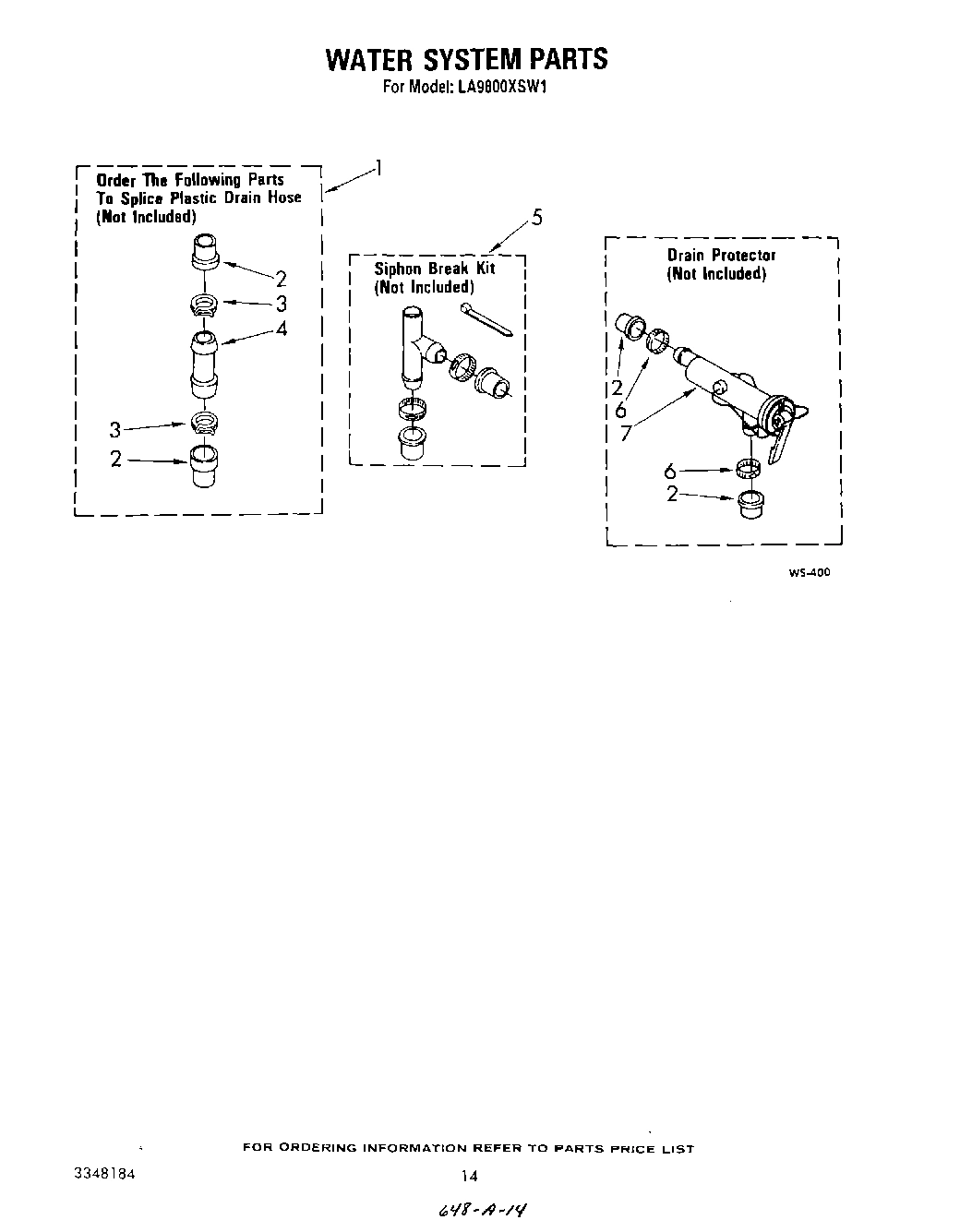

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

5

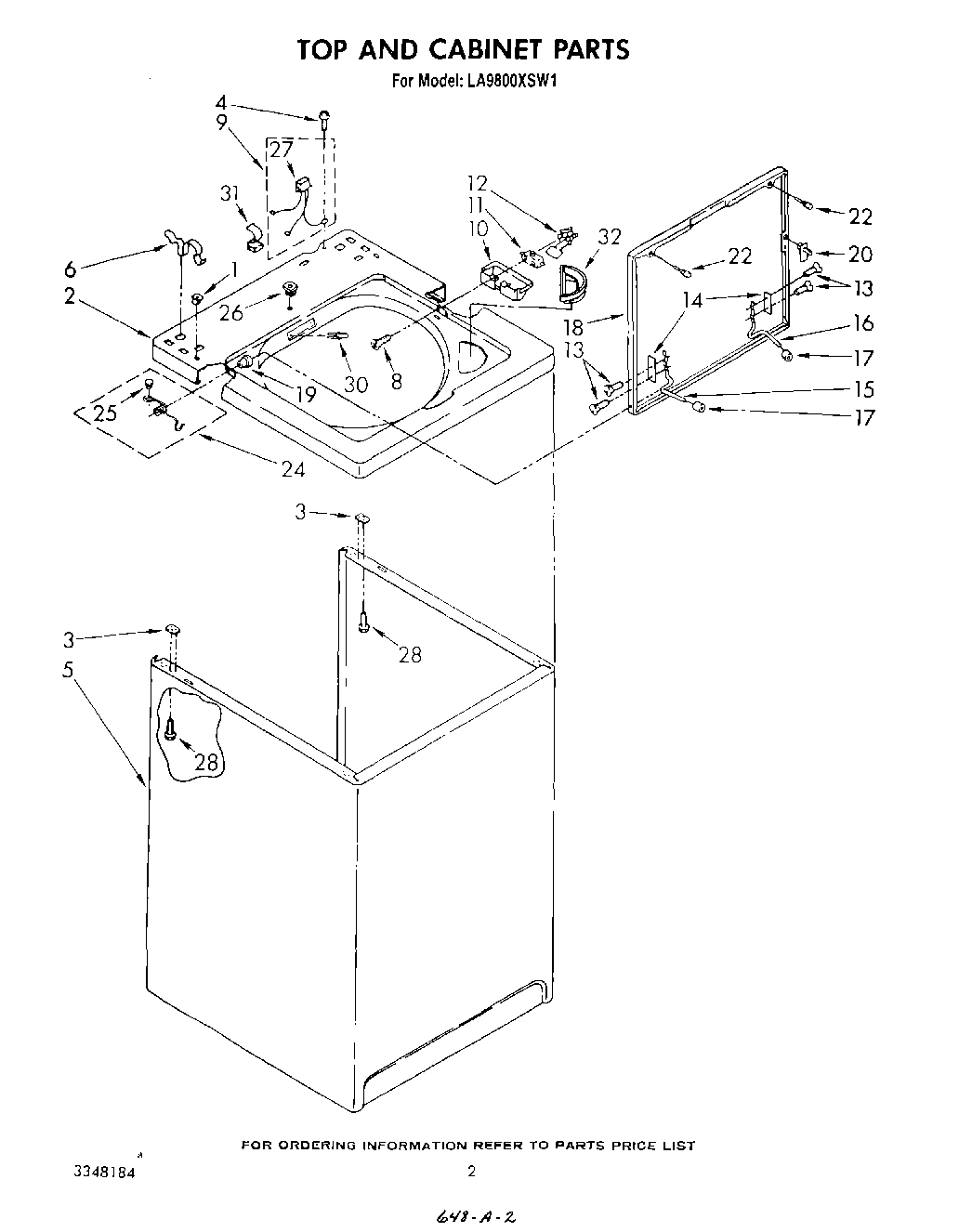

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $58.36

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $187.55

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

6

Protector, Harness WPL 63523 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $6.49

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

7

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

7

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $17.99

7

Wiring Harness & Pressure Switch Hose (Base) WPL 387928 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $103.99

8

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $22.99

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.98

9

Clip, Strain Relief WPL 63848 Contact Us For Availability

9

Plug, Terminal (15 Way) WPL 96894 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

285664 Whirlpool Drain Hose In Stock WPL 285664 $21.99

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $43.99

WP359231 Whirlpool Shield In Stock WPL WP359231 $5.99

Spring, Agitator WPL 62676 Contact Us For Availability

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

Hinge, Console (2) WPL 387402 Contact Us For Availability

Lock, Filter WPL 62942 Contact Us For Availability

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

353424 Whirlpool Connector Backorder WPL 353424 $14.02

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

Cord, Power WPL 62734 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $13.63

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

Nut, Push-In (2) WPL 689559 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.99

Cap, End (L.H.) WPL 63789 Contact Us For Availability

Shaft, Agitator WPL 389231 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $22.76

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

WP54583 Whirlpool Hinge Backorder WPL WP54583 $18.77

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Rack, Literature WPL 63020 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Panel, Rear WPL 387692 Contact Us For Availability

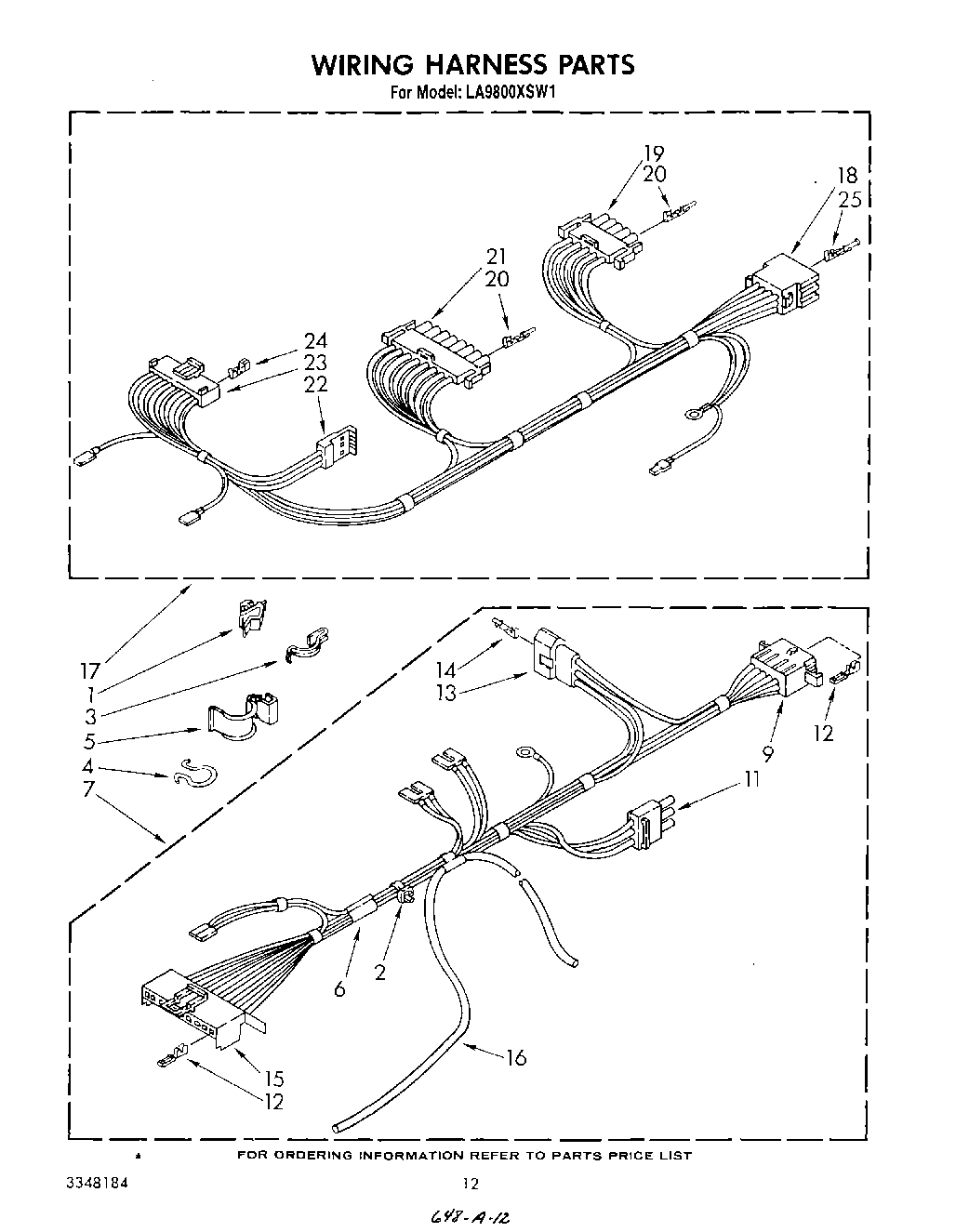

Harness, Wiring (Console) WPL 387927 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.99

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

Wire, Ground WPL 364089 Contact Us For Availability

Cap, Terminal (15 Way) WPL 96895 Contact Us For Availability

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

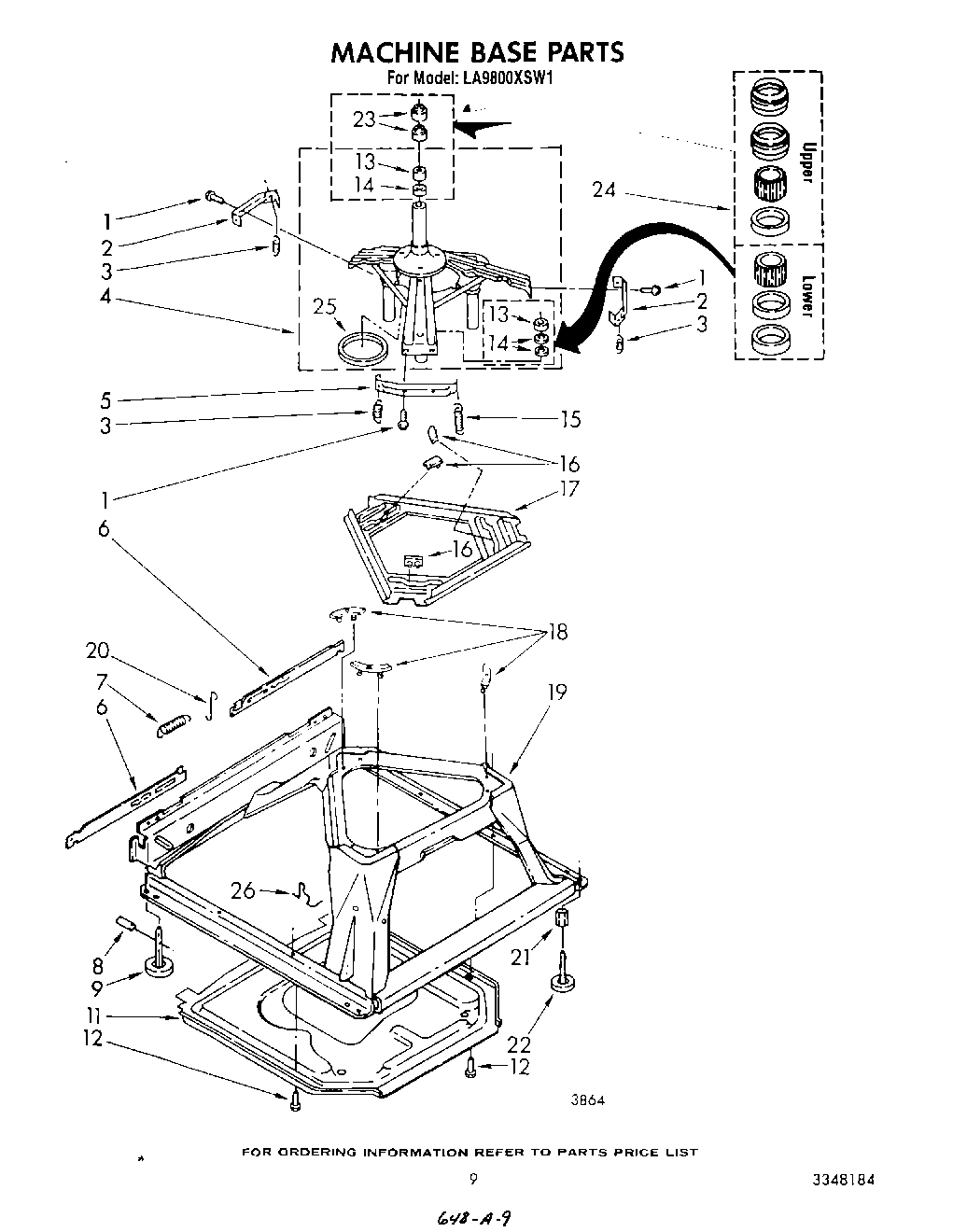

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 389149 Contact Us For Availability

Connector, 5 Terminal (Uses Terminal 388499) WPL 388500 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389229 Contact Us For Availability

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $50.83

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $8.99

Terminal WPL 388499 Contact Us For Availability

Gear, Main Drive WPL 62528 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

Connector, 8 Terminal (Uses Terminal 388499) WPL 388501 Contact Us For Availability

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

Connector, 3 Terminal WPL 388497 Contact Us For Availability

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.99

Cap, 10 Pin (Uses Terminal 772581) WPL 772579 Contact Us For Availability

Ring, Retaining WPL 95082 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.99

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

Spring & Button, Lid ((R.H.)) WPL 53748 Contact Us For Availability

Spring & Button, Lid ((L.H.)) WPL 53749 Contact Us For Availability

Terminal WPL 772581 Contact Us For Availability

Washer Kit, Thrust WPL 285292 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.99

25

Plug, Button WPL 54690 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $6.57

Stop, Push-In Top WPL 358472 Contact Us For Availability

Pin, Cabinet Guide (2) WPL 63162 Contact Us For Availability

27

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $36.94

27

Plug, Terminal (3-Way) WPL 62888 Contact Us For Availability

28

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

29

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $17.91

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

30

Rivet, Serial Nameplate WPL 354239 Contact Us For Availability

31

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $52.99

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.99

32

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

33

W10113937 Whirlpool Clamp Backorder WPL W10113937 $7.16

34

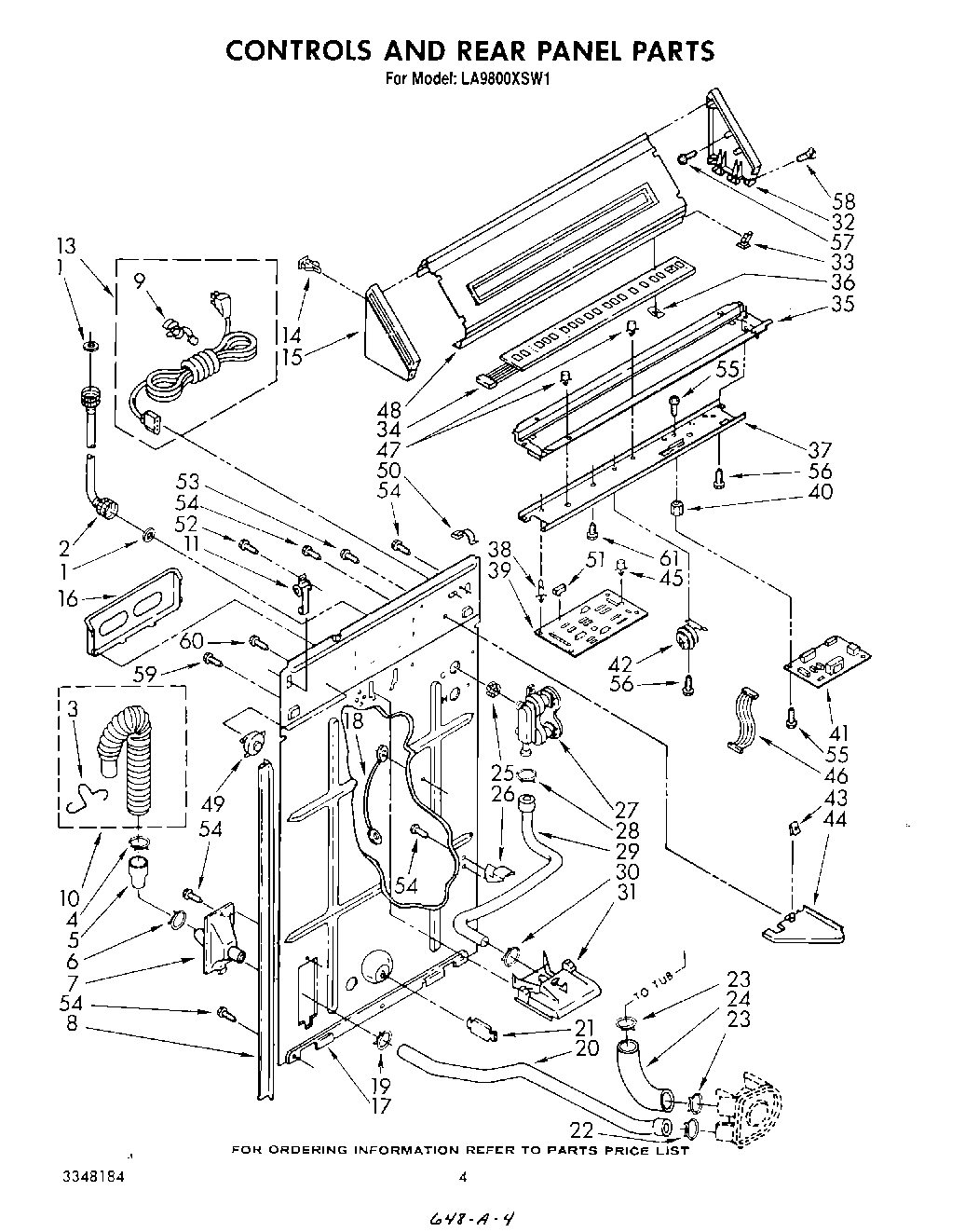

Touch Module WPL 3407025 Contact Us For Availability

35

Bracket, Control WPL 387861 Contact Us For Availability

36

Nut, Push-On Spring WPL 445189 Contact Us For Availability

37

Bracket, Console WPL 387857 Contact Us For Availability

38

Support, Circuit Board (4) WPL 313087 Contact Us For Availability

39

Microcomputer WPL 3407003 Contact Us For Availability

40

Stand-Off (4) (Relay Board Mounting) WPL 388249 Contact Us For Availability

41

Power Supply WPL 3407002 Contact Us For Availability

42

Switch, Water Level WPL 64195 Contact Us For Availability

43

Clip, ``U`` WPL 388494 Contact Us For Availability

44

Shield, Suds WPL 388904 Contact Us For Availability

45

Support, Circuit Board WPL 772566 Contact Us For Availability

46

Jumper, Board To Board WPL 772553 Contact Us For Availability

47

Support, Circuit Board (3) WPL 3348413 Contact Us For Availability

48

Panel and Bezel, Control WPL 3348431 Contact Us For Availability

49

Speaker WPL 3347639 Contact Us For Availability

51

Connector, Two Terminal WPL 3407005 Contact Us For Availability

52

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

53

Screw, 6-20 X 1/2 WPL 339583 Contact Us For Availability

54

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

55

Screw WPL 302252 Contact Us For Availability

56

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

57

WPL 355326 WPL 355326 Contact Us For Availability

58

WPL 64211 WPL 64211 Contact Us For Availability

60

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91
