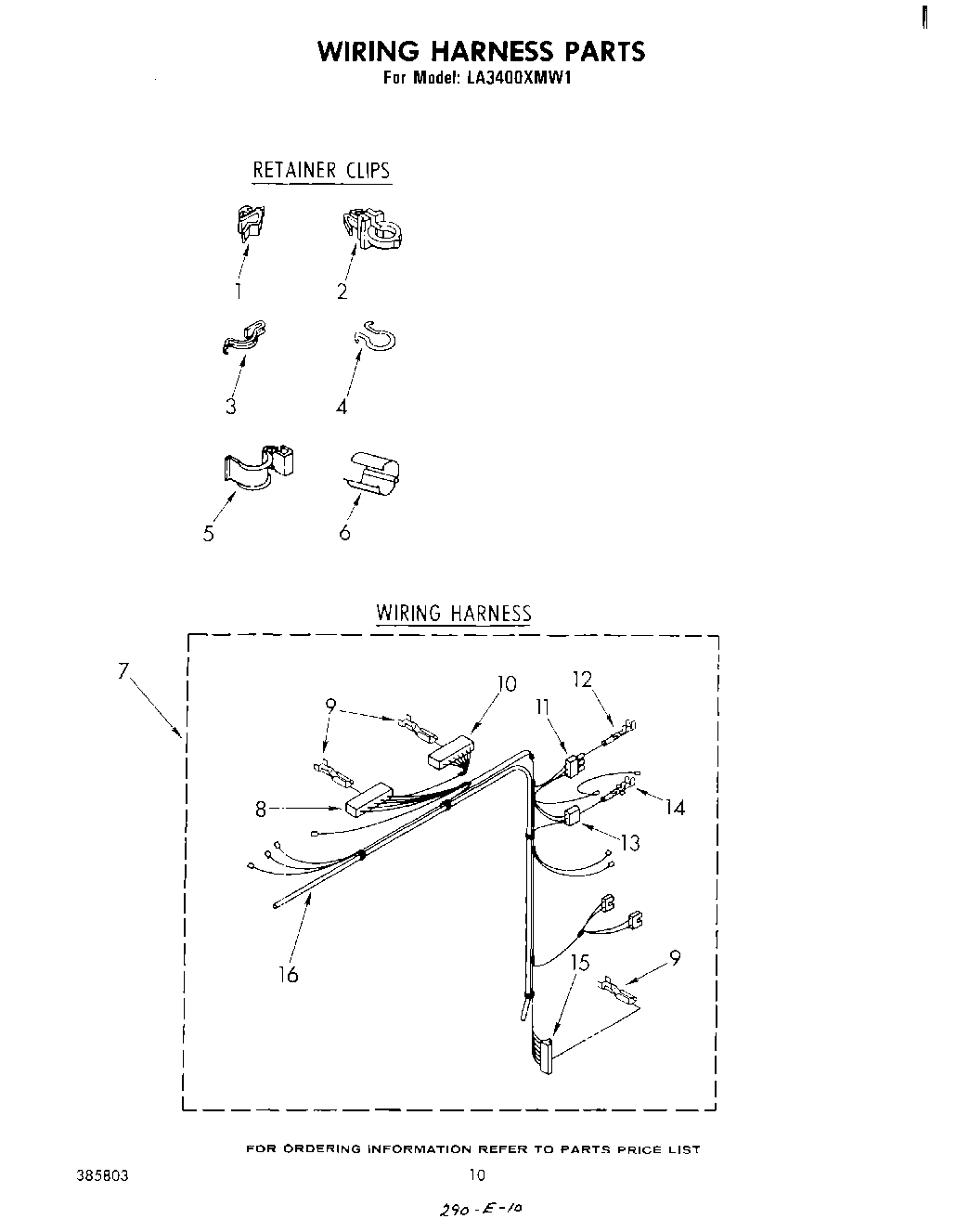

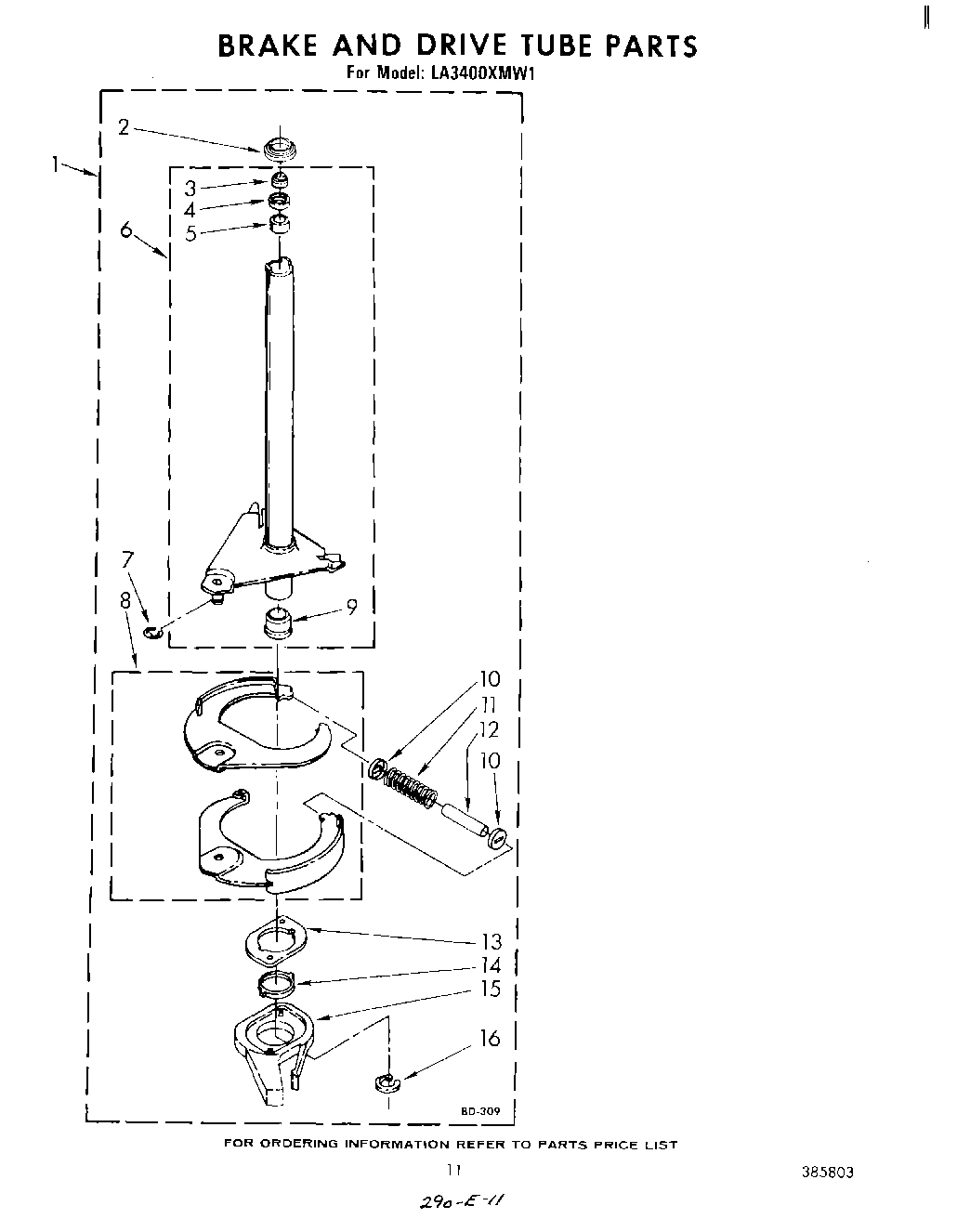

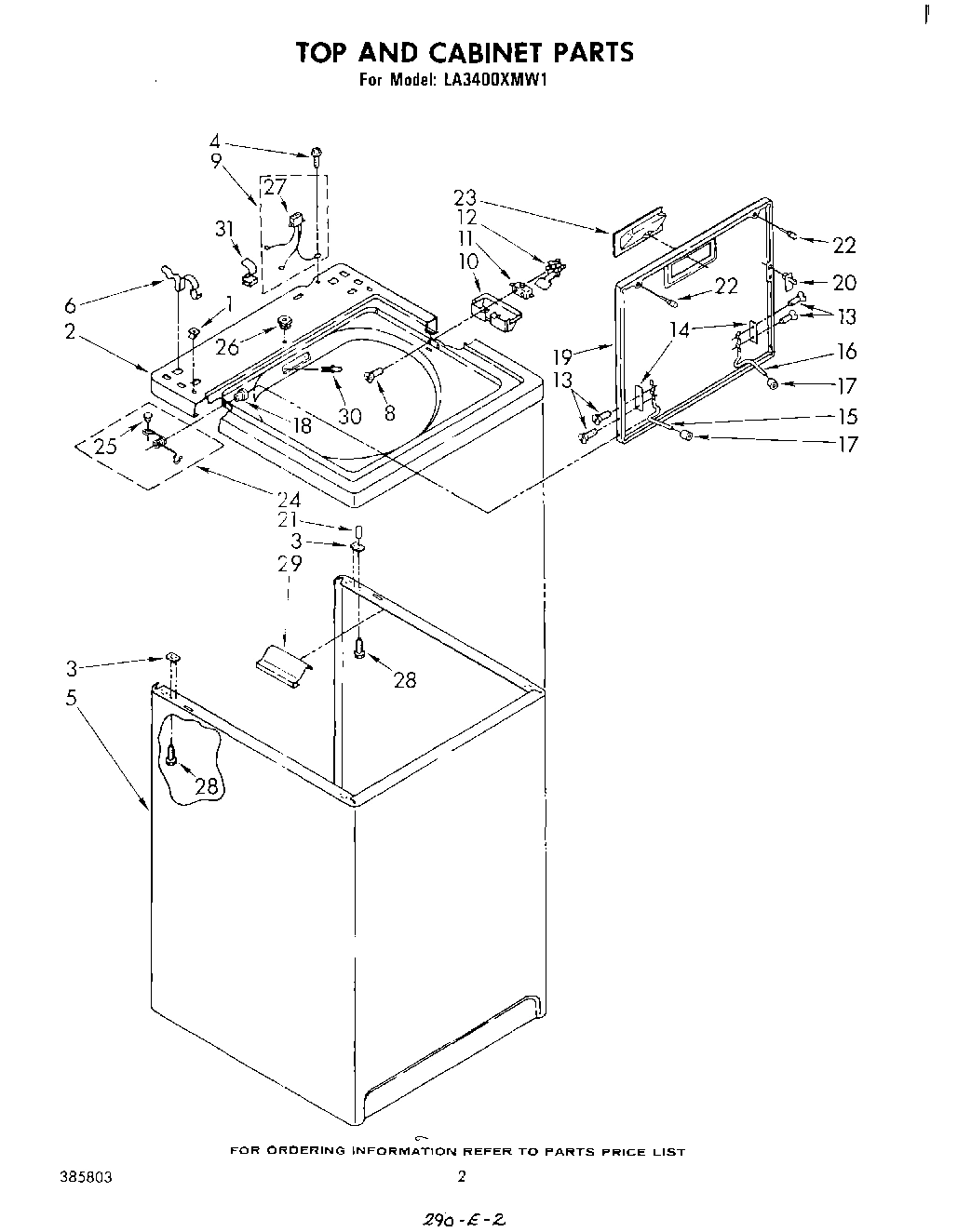

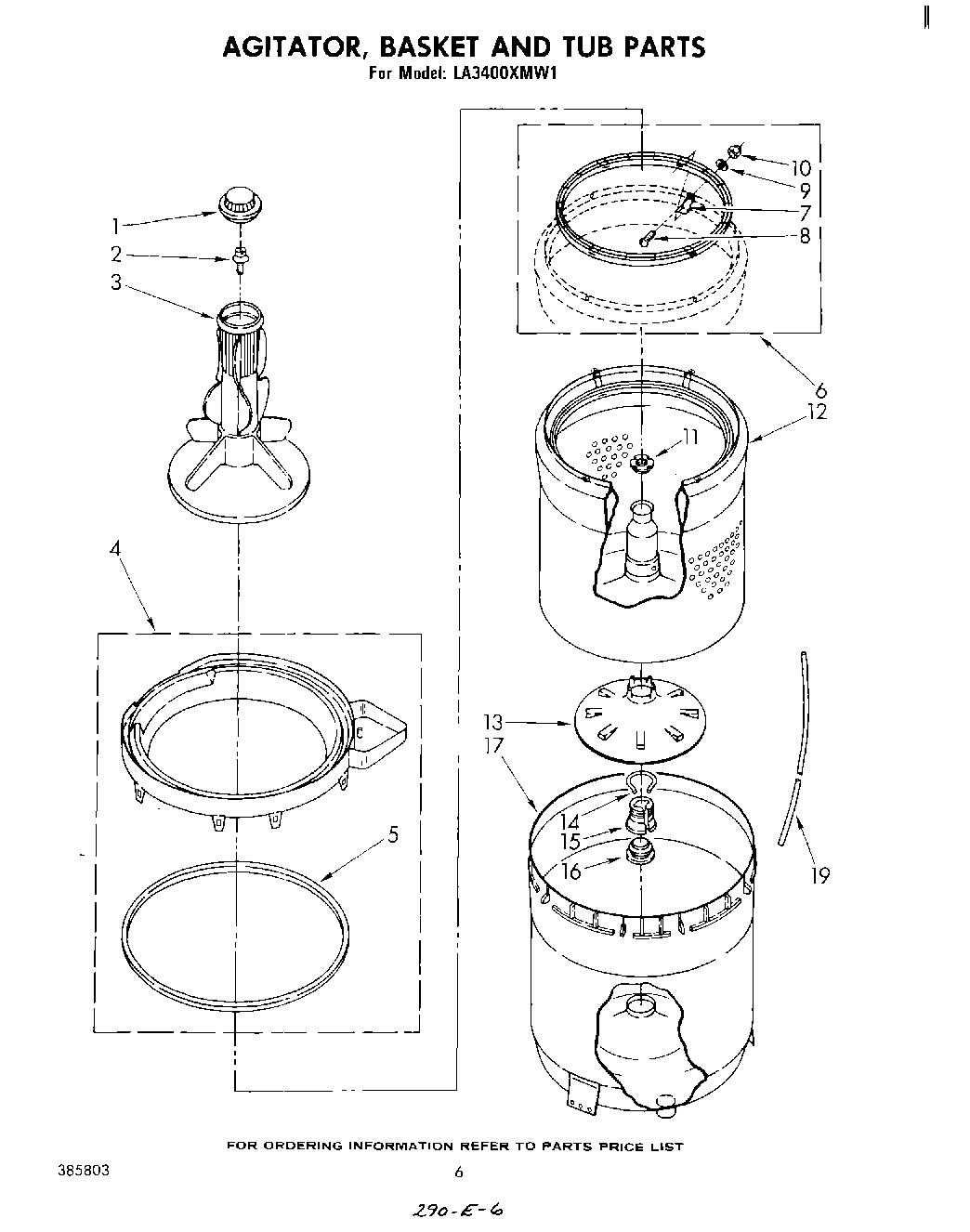

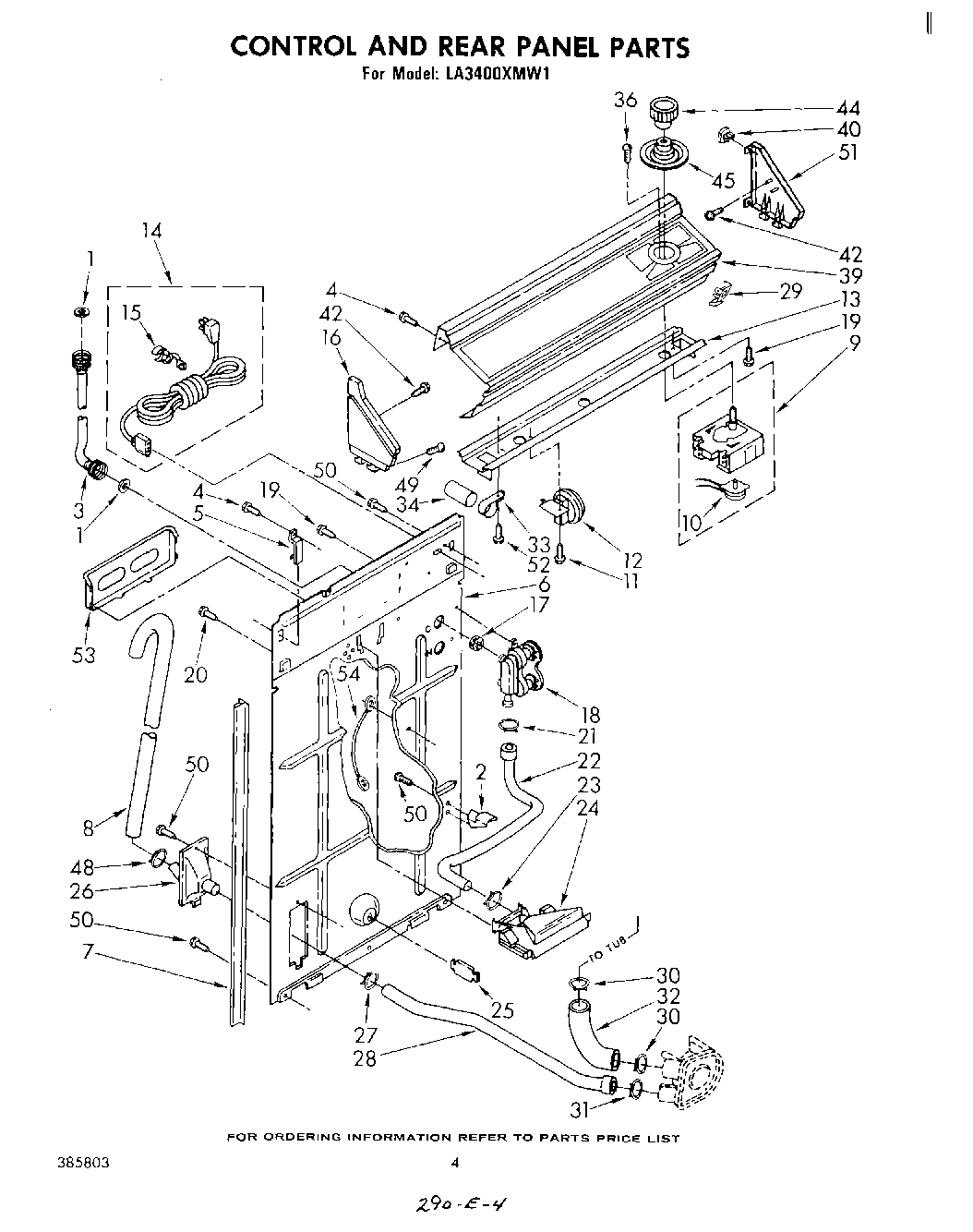

Model Whirlpool LA3400XMW1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

Gearcase (Complete) WPL 385899 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

Pin, Cabinet Guide (2) WPL 63162 Contact Us For Availability

2

Top (White) WPL 63091 Contact Us For Availability

3

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63235 Whirlpool Agitator Assembly Backorder WPL WP63235 $185.88

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $16.85

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

4

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

4

Clip, Harness (3) WPL 357469 Contact Us For Availability

4

Tub Ring & Gasket WPL 63223 Contact Us For Availability

5

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $58.99

5

Hinge, Console (2) WPL 62748 Contact Us For Availability

5

Cabinet (White) WPL 63128 Contact Us For Availability

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

6

Protector, Harness WPL 63523 Contact Us For Availability

6

Panel, Rear WPL 63178 Contact Us For Availability

6

Clothes Guard Repair Kit WPL 285350 Contact Us For Availability

7

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $6.50

7

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

Wiring Harness & Pressure Switch Hose WPL 63279 Contact Us For Availability

7

Clip, Clothes Guard (6) WPL 63552 Contact Us For Availability

8

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP96743 Whirlpool Hose Backorder WPL WP96743 $59.71

8

Block, Disconnect (Timer) (White) WPL 352090 Contact Us For Availability

8

Screw & Washer, Lid Switch (2) WPL 354764 Contact Us For Availability

9

Terminal, Female WPL 352088 Contact Us For Availability

9

Timer, Control (60 Hz.) WPL 63081 Contact Us For Availability

9

Harness, Lid Switch WPL 63352 Contact Us For Availability

9

Washer, Nylon (6) WPL 680829 Contact Us For Availability

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

WP359231 Whirlpool Shield In Stock WPL WP359231 $5.99

Clip, Mounting (2) WPL 62825 Contact Us For Availability

Motor, Timer WPL 62920 Contact Us For Availability

Locknut (6) WPL 285348 Contact Us For Availability

Ring, Retaining (2) WPL 90369 Contact Us For Availability

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $27.54

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

Switch, Water Level WPL 63176 Contact Us For Availability

Actuator, Lid Switch WPL 357347 Contact Us For Availability

Basket & Clothes Guard (Includes Illus. 6) WPL 63043 Contact Us For Availability

Spring, Agitator WPL 62676 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $14.02

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

Bracket, Control WPL 359758 Contact Us For Availability

Plate, Restrictor WPL 63546 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

Lock, Filter WPL 62942 Contact Us For Availability

Cord, Power WPL 62734 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

Strain Relief, Power Cord WPL 62733 Contact Us For Availability

16

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

16

WP54583 Whirlpool Hinge Backorder WPL WP54583 $18.77

16

Cap, End (L.H.) (White) WPL 377314 Contact Us For Availability

17

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.99

17

Tub WPL 63125 Contact Us For Availability

17

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $36.94

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

18

Washer, Cam Thrust WPL 62618 Contact Us For Availability

19

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

19

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

19

Lid (White) WPL 385586 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $8.99

21

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $5.74

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

21

Ring, Retaining WPL 95082 Contact Us For Availability

22

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $17.91

22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

22

Washer Kit, Thrust WPL 285292 Contact Us For Availability

23

Handle, Lid (White) WPL 379889 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $58.99

Spring & Button, Lid ((R.H.)) WPL 53748 Contact Us For Availability

Spring & Button, Lid ((L.H.)) WPL 53749 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

25

Plug, Button (2) WPL 54690 Contact Us For Availability

26

285715 Whirlpool Drain Kit Backorder WPL 285715 $92.62

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $17.99

26

Stop, Push-In Top WPL 358472 Contact Us For Availability

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

27

Plug, Terminal (3-Way) WPL 62888 Contact Us For Availability

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $50.83

29

W10113937 Whirlpool Clamp Backorder WPL W10113937 $7.16

29

Support Protector WPL 63392 Contact Us For Availability

29

Gear, Main Drive WPL 62528 Contact Us For Availability

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

30

Rivet, Serial Nameplate WPL 354239 Contact Us For Availability

30

Spin Pinion Assembly, Gearcase WPL 63167 Contact Us For Availability

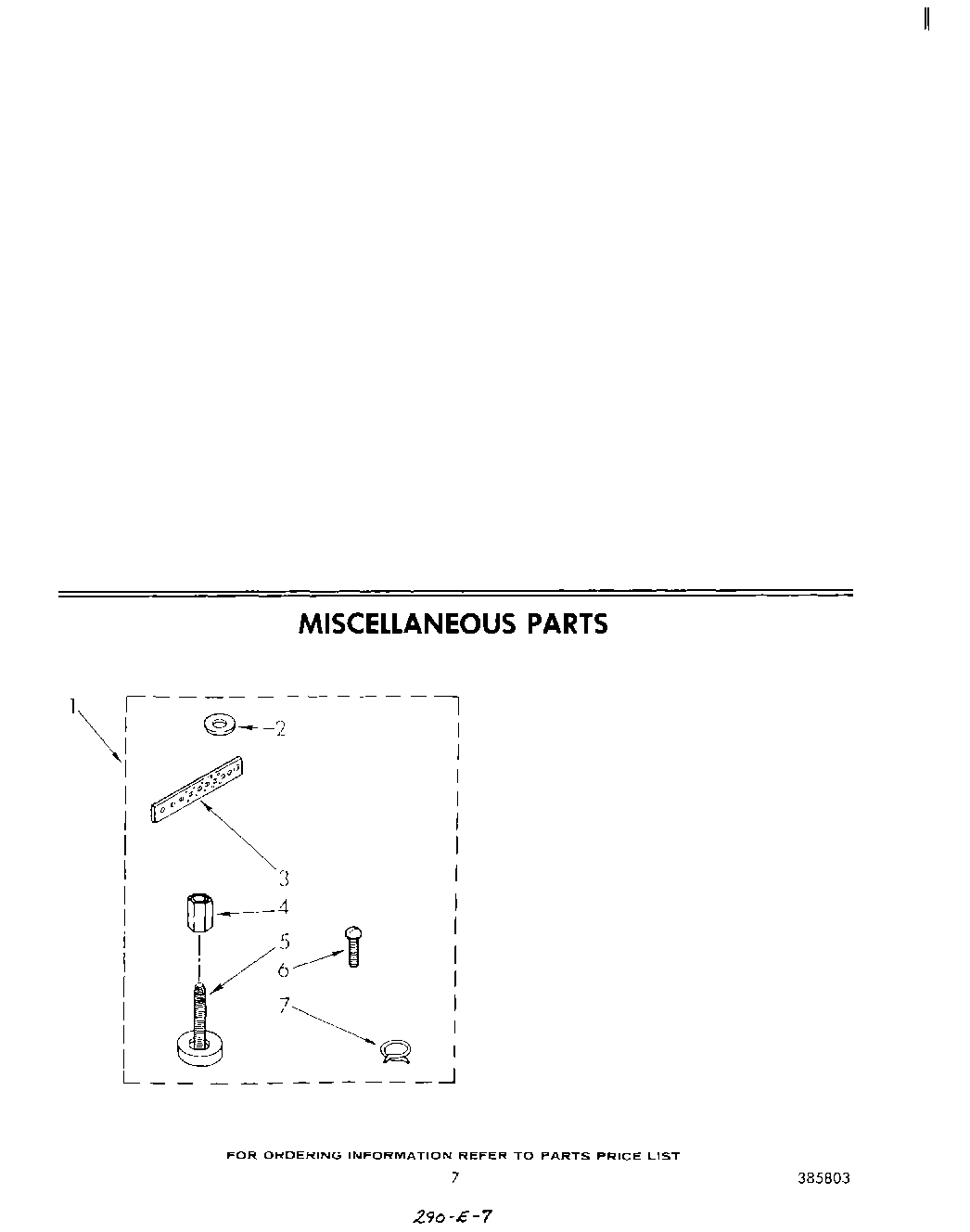

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Sheet, Installation Instructions WPL 383976 Contact Us For Availability

Guide, Use and Care WPL 385032 Contact Us For Availability

Guide, Laundry WPL 385238 Contact Us For Availability

List, Repair Parts WPL 385803 Contact Us For Availability

Label, Energy Guide WPL 386158 Contact Us For Availability

Thinner (1 Gal.) WPL 799351 Contact Us For Availability

32

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.99

33

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

33

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

33

WP62638 Whirlpool Screw Backorder WPL WP62638 $4.55

34

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.84

36

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

39

Panel, Console WPL 375696 Contact Us For Availability

40

Nut, Push-In (2) WPL 689559 Contact Us For Availability

42

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

44

Knob, Timer WPL 359822 Contact Us For Availability

45

Dial, Timer WPL 359826 Contact Us For Availability

49

Screw, 8-18 (2) (Panel to Top) WPL 358225 Contact Us For Availability

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

51

Cap , End (R.H.) (White) WPL 377315 Contact Us For Availability

52

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

53

Rack, Literature WPL 63020 Contact Us For Availability

54

Wire, Ground WPL 364089 Contact Us For Availability
