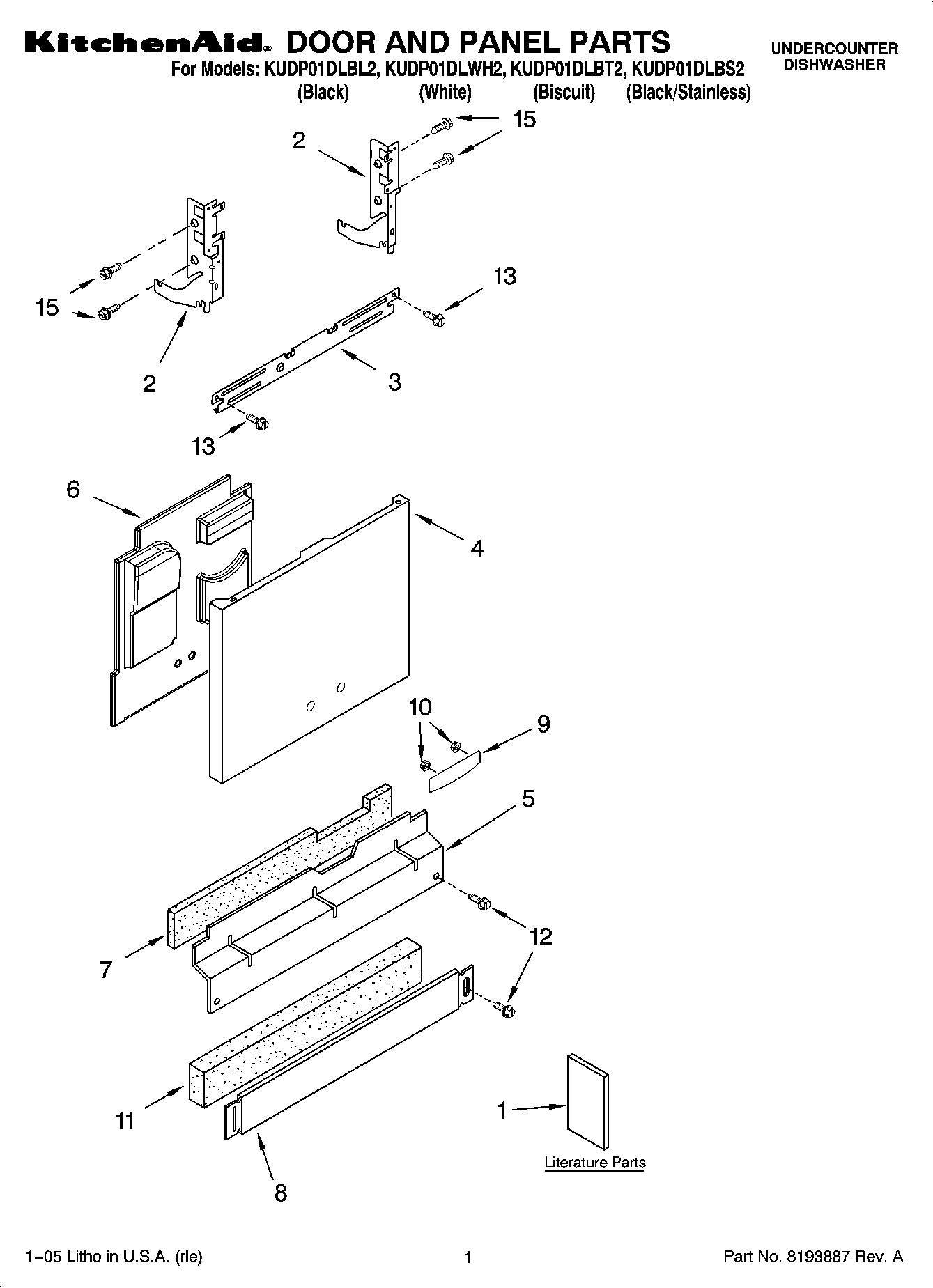

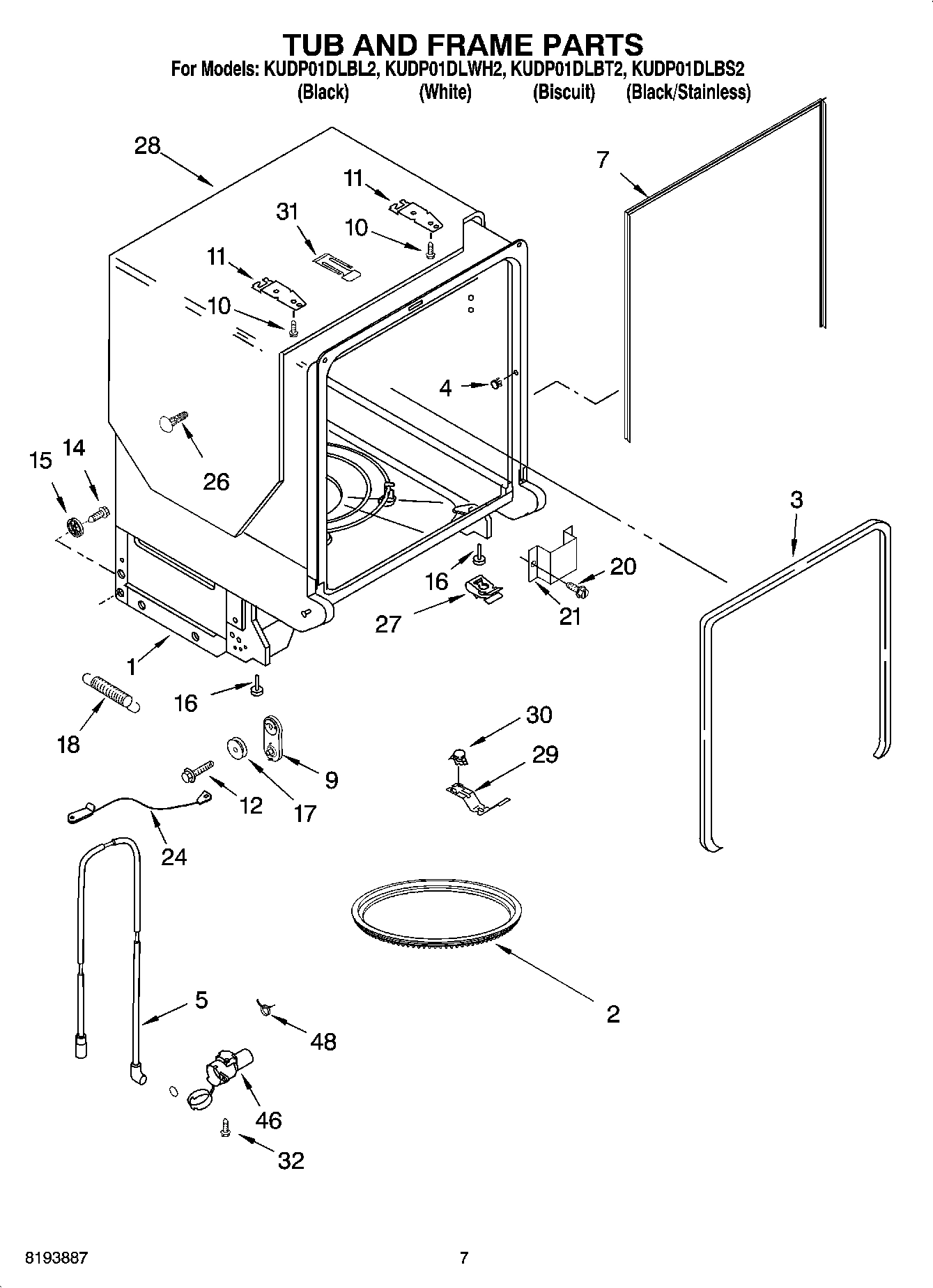

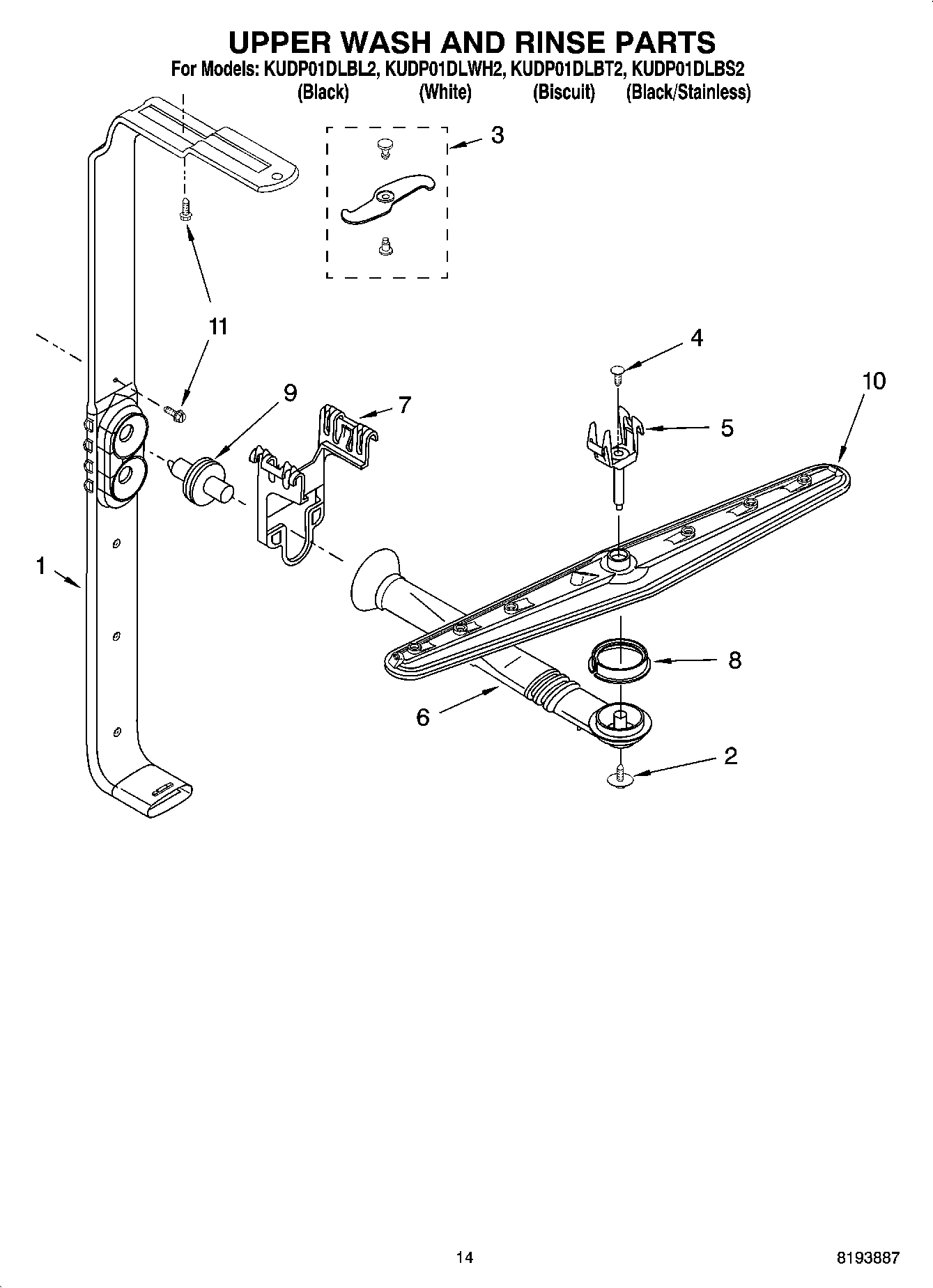

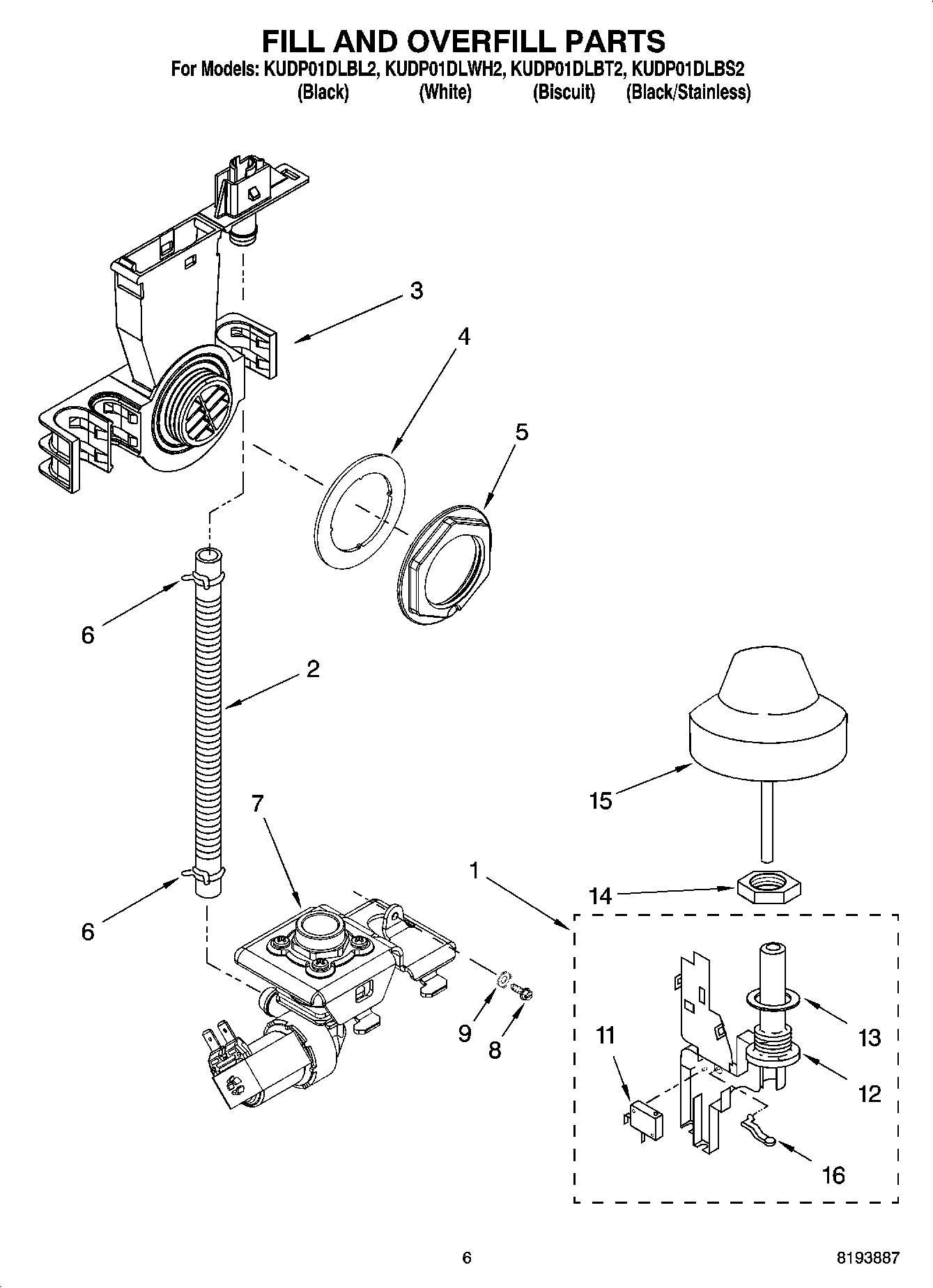

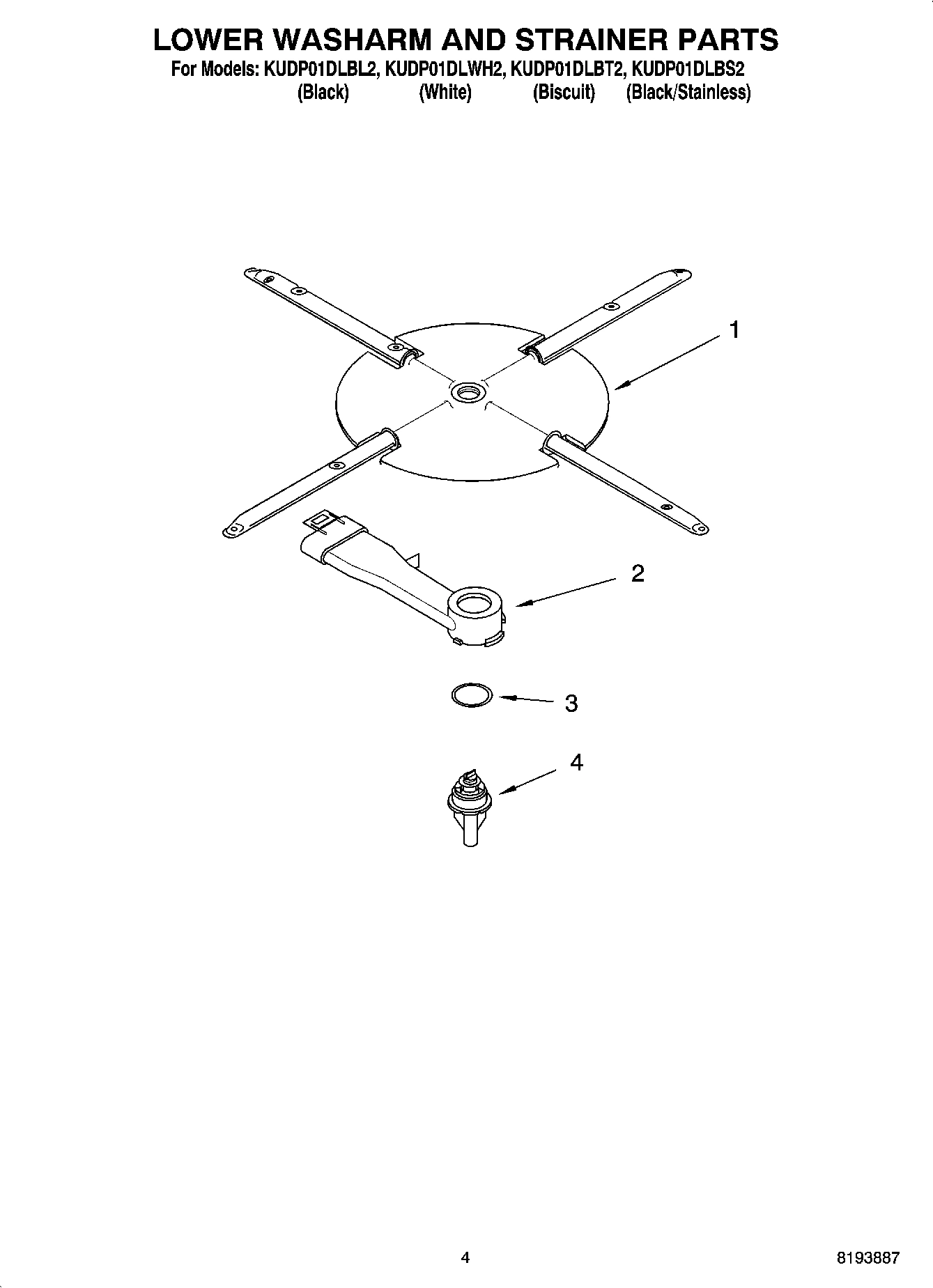

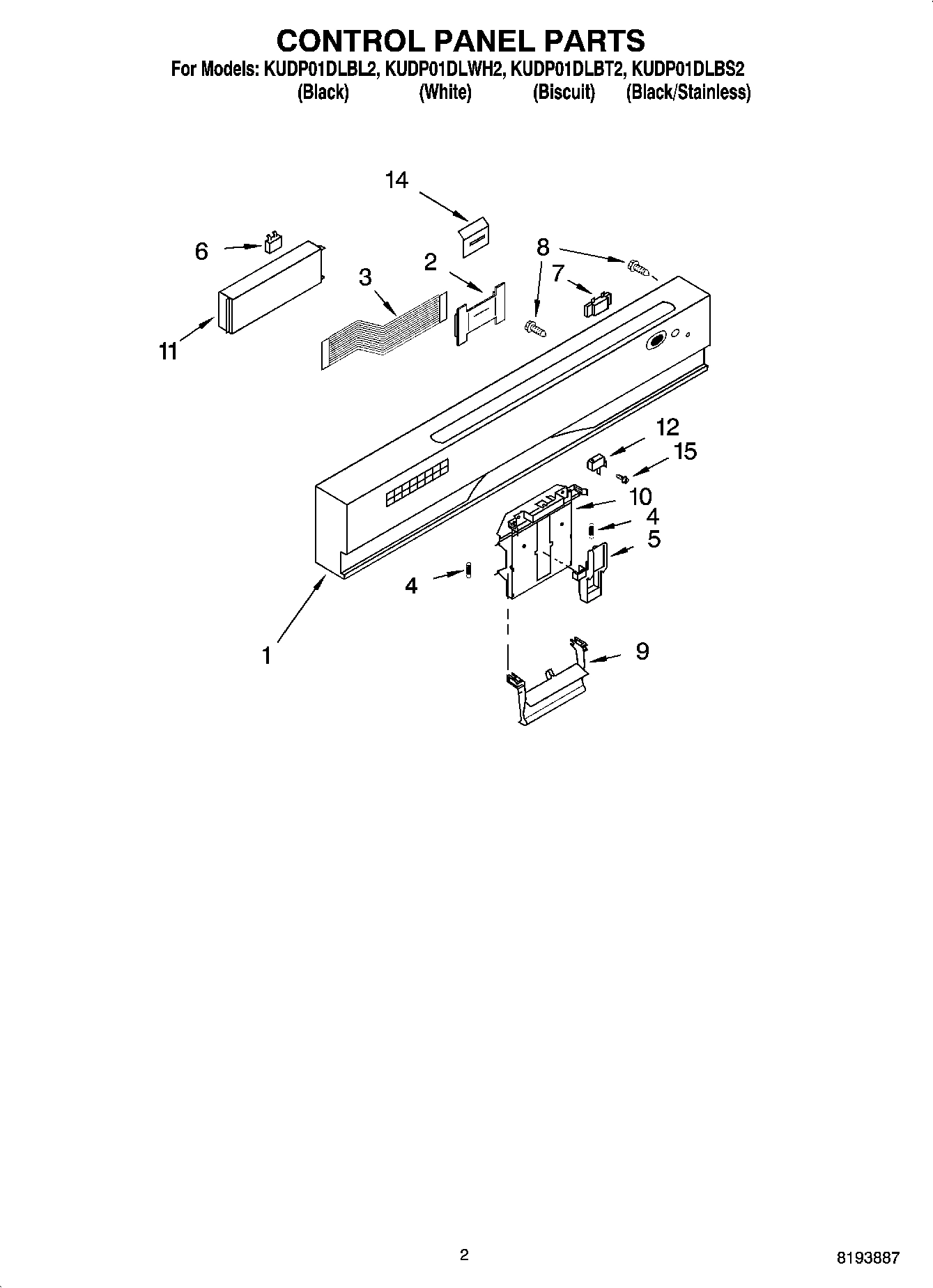

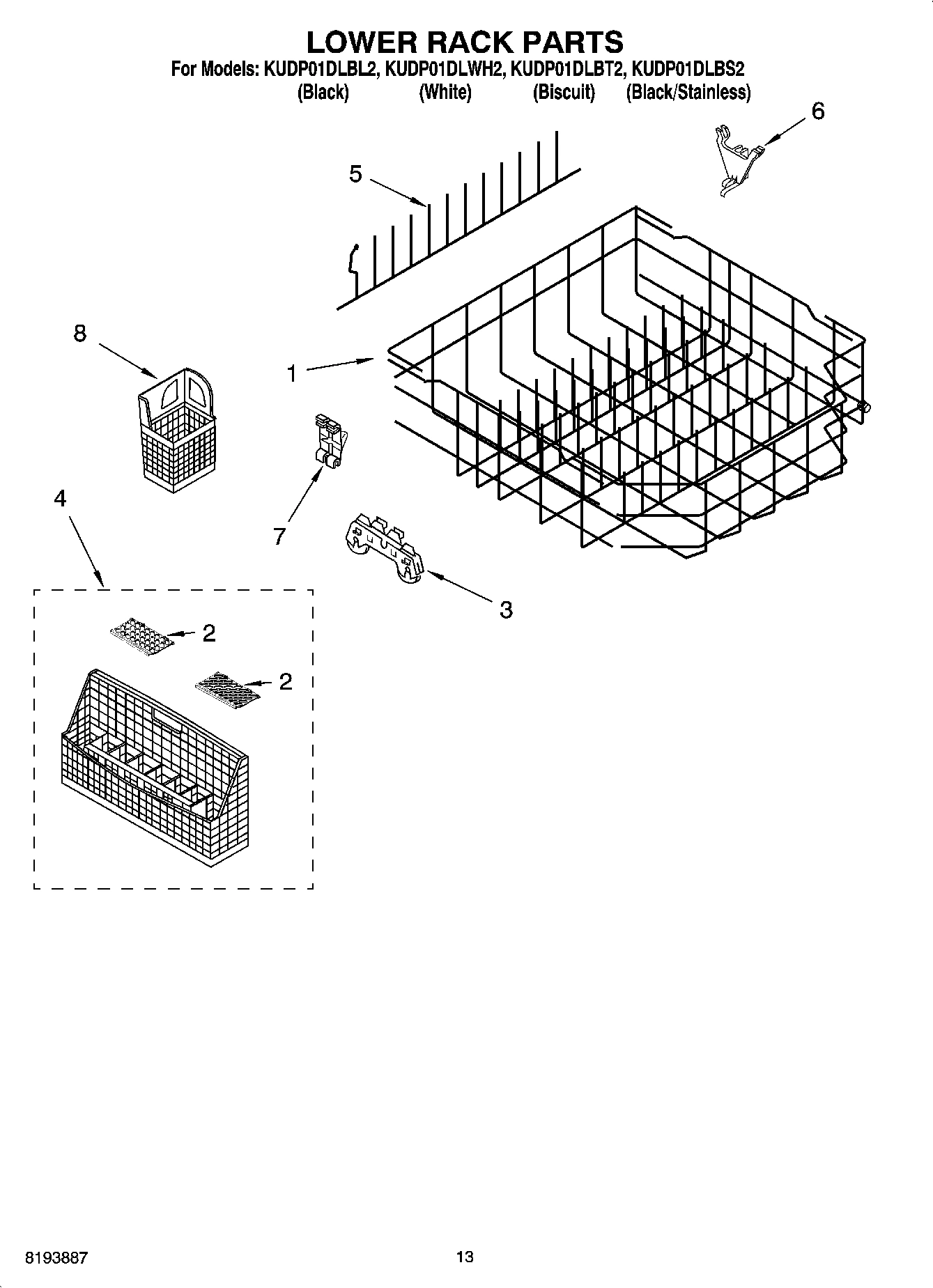

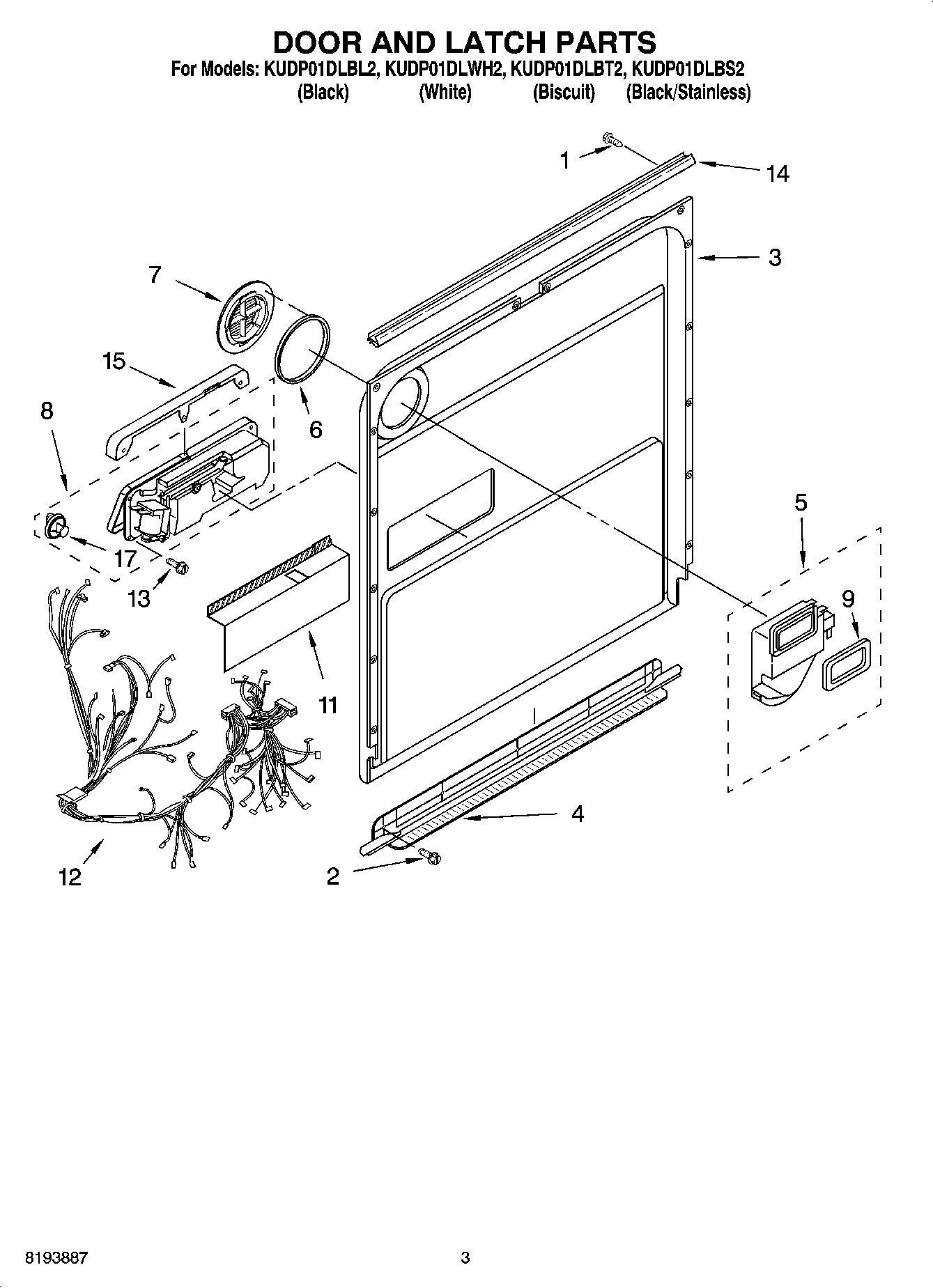

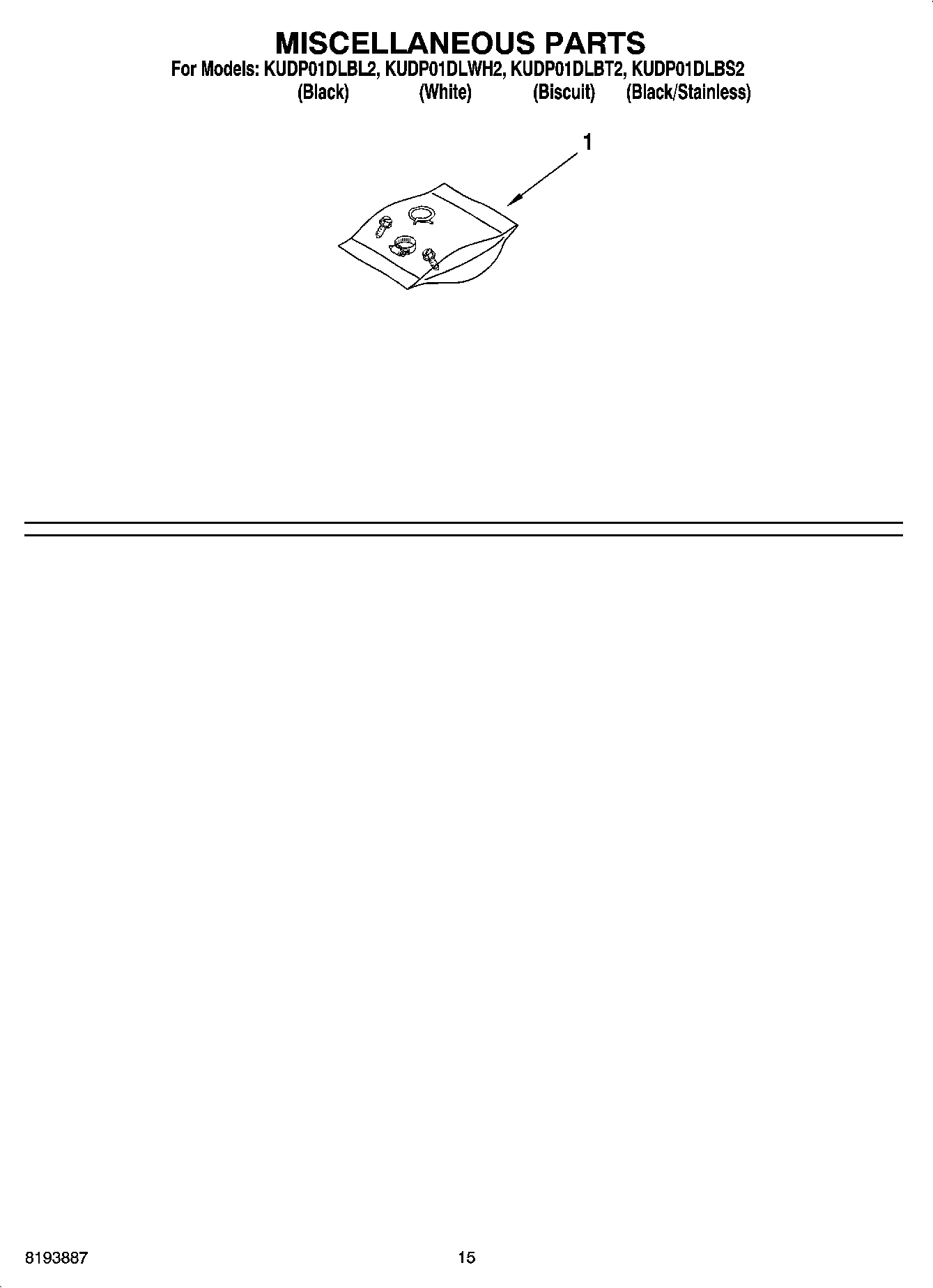

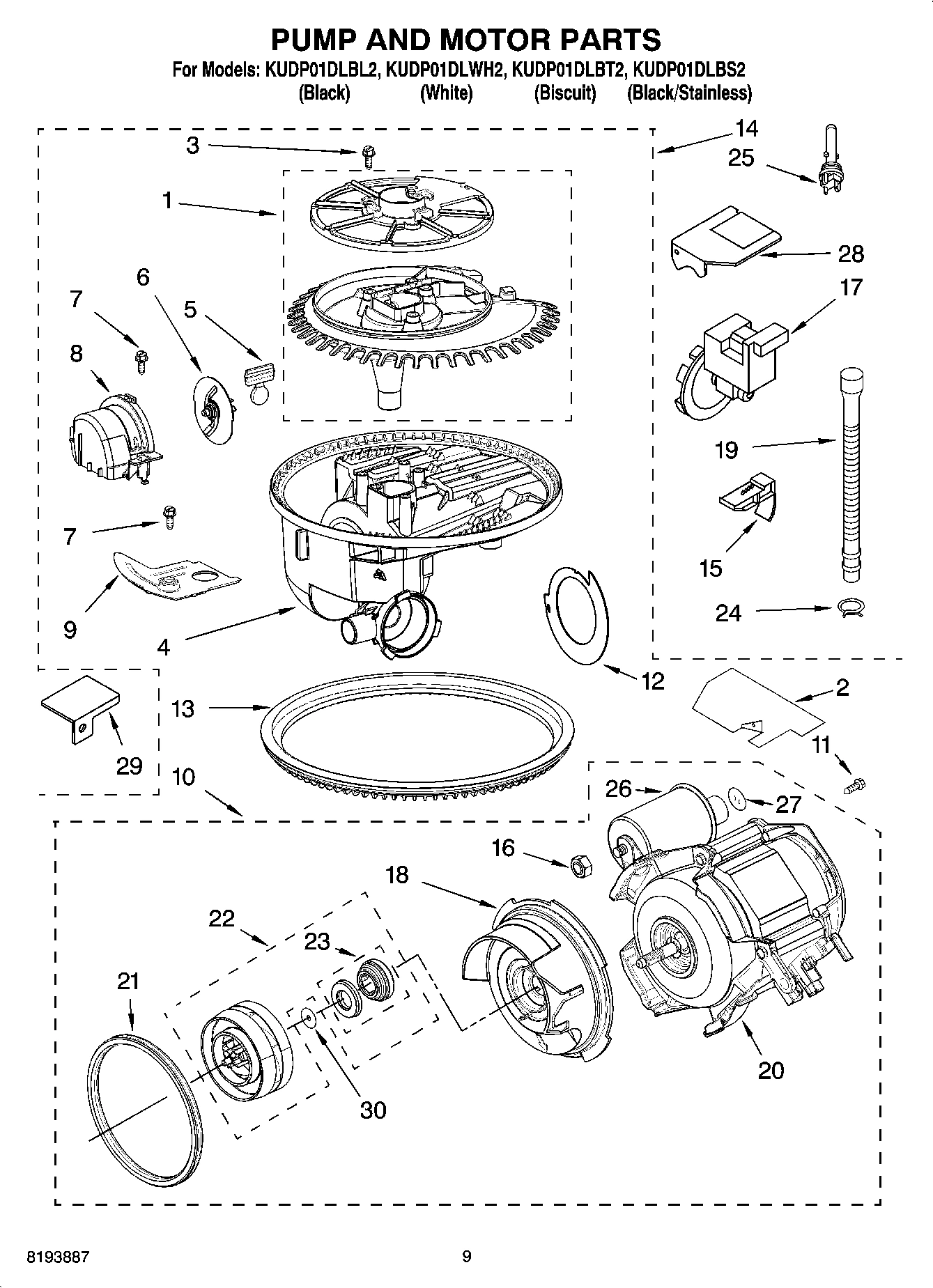

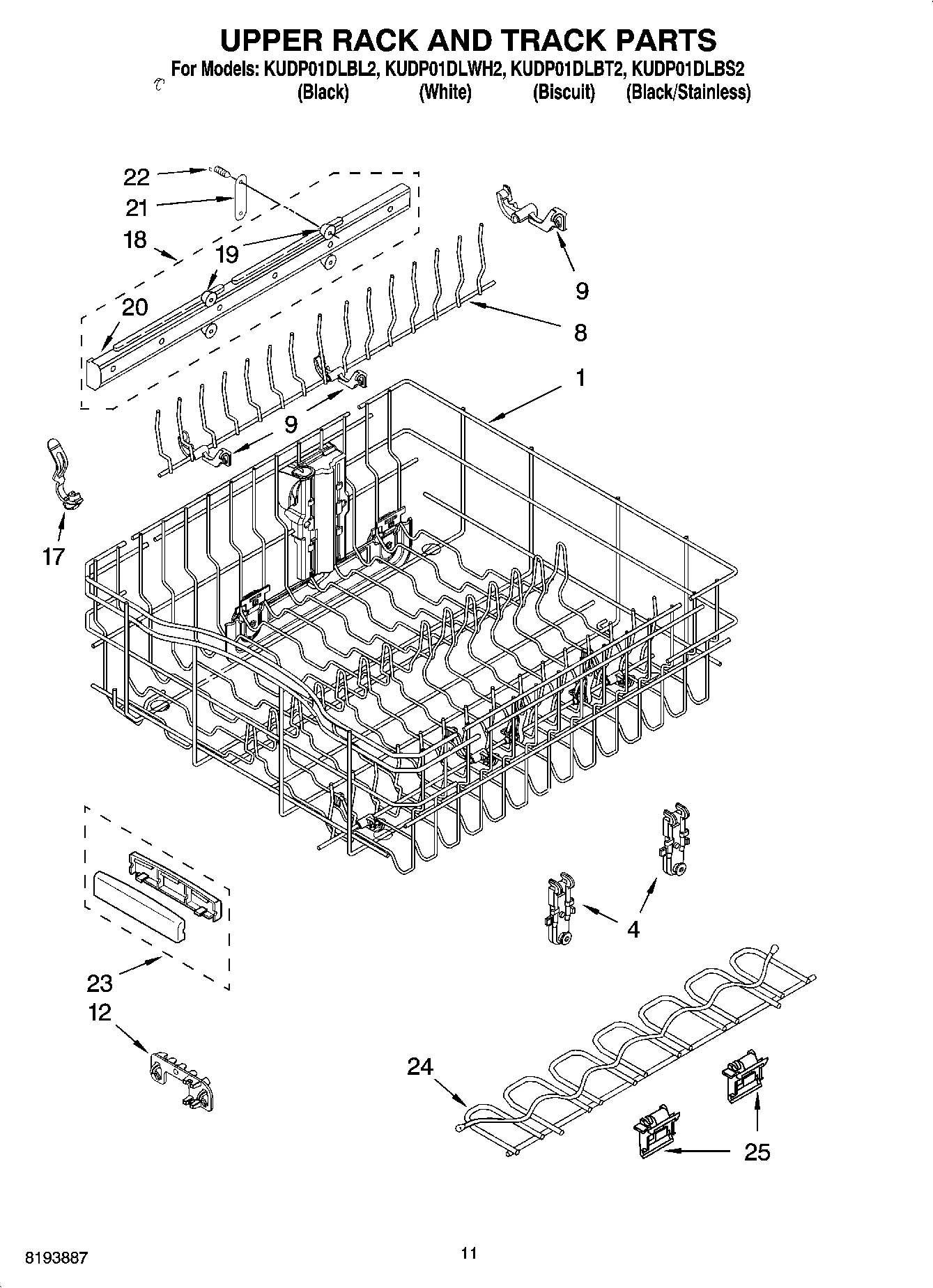

Model Whirlpool KUDP01DLWH2 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

1

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

1

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

1

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $11.99

1

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

1

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

1

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

1

8171477 Whirlpool Dishwasher Mounting Bracket In Stock WPL 8171477 $29.56

1

8171571 Whirlpool Touch-Up Paint Cobalt Blue Backorder WPL 8171571 $17.84

1

8171652 Whirlpool Touch-Up Backorder WPL 8171652 $16.79

1

8193506 Whirlpool Dishwasher Switch In Stock WPL 8193506 $98.99

1

8193944 Whirlpool Dishwasher Rack Assembly Backorder WPL 8193944 $221.78

1

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

1

WPW10320510 Whirlpool Dishwasher Spray Arm In Stock WPL WPW10320510 $99.99

1

Heater Element Assembly (Includes Item 2 & El WPL 8194200 Contact Us For Availability

1

Side Panel Kits (Stainless Steel) WPL 8171659 Contact Us For Availability

1

Feed Tube Assembly (Also Includes Item 3) WPL 8268361 Contact Us For Availability

1

Side Panel Kits (White) WPL 8171656 Contact Us For Availability

1

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

Side Panel Kits (Black) WPL 8171657 Contact Us For Availability

2

8519663 Whirlpool Dishwasher Cover Assembly Backorder WPL 8519663 $61.74

2

W10878507 Whirlpool Inlet Hose In Stock WPL W10878507 $62.76

2

W11612302 Whirlpool Dishwasher Door Hinge In Stock WPL W11612302 $81.78

2

W11612303 Whirlpool Door Hinge In Stock WPL W11612303 $92.78

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $14.99

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.91

2

WP8268343 Whirlpool Dishwasher Cap Backorder WPL WP8268343 $67.37

2

WPW10349488 Whirlpool Screw In Stock WPL WPW10349488 $4.82

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $7.99

3

WP8268713 Whirlpool Dishwasher Wheel Backorder WPL WP8268713 $61.20

3

WPW10195536 Whirlpool Water Inlet Valve In Stock WPL WPW10195536 $83.74

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $8.99

3

Sprayarm, 3rd Level WPL 8538389 Contact Us For Availability

4

WP8268342 Whirlpool Dishwasher Lower Wash Arm In Stock WPL WP8268342 $56.99

4

WP8268540 Whirlpool Door Handle Spring In Stock WPL WP8268540 $3.91

4

WP8268785 Whirlpool Dishwasher Wheel In Stock WPL WP8268785 $15.99

4

WP8268937 Whirlpool Dishwasher Air Inlet In Stock WPL WP8268937 $34.99

4

WP8531233 Whirlpool Dishwasher Silverware Bas In Stock WPL WP8531233 $49.95

4

WP8531323 Whirlpool Gasket Seal In Stock WPL WP8531323 $17.99

4

Fastener, Push-In WPL 3400920 Contact Us For Availability

5

WP8268321 Whirlpool Dishwasher Mount In Stock WPL WP8268321 $65.81

5

WP8268375 Whirlpool Dishwasher Check Valve In Stock WPL WP8268375 $64.53

5

WP8524471 Whirlpool Dishwasher Actuator In Stock WPL WP8524471 $59.87

5

WPW10508676 Whirlpool Dishwasher Tube Nut Backorder WPL WPW10508676 $11.62

5

Retainer, Spring Grip WPL 3400931 Contact Us For Availability

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $55.68

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $49.86

6

Manifold WPL 8268355 Contact Us For Availability

7

WP8268349 Whirlpool Dishwasher Spray Arm Tube Backorder WPL WP8268349 $8.94

7

WP8269206 Whirlpool Dishwasher Display Backorder WPL WP8269206 $82.46

7

WP8531314 Whirlpool Dishwasher Retainer Backorder WPL WP8531314 $18.65

7

WP8531669 Whirlpool Dishwasher Inlet Valve In Stock WPL WP8531669 $39.99

8

W10727426 Whirlpool Dishwasher Rack Tine In Stock WPL W10727426 $39.99

8

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $4.82

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $10.99

8

BASKET, UTENSIL WPL 8519702 Contact Us For Availability

9

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $4.82

9

WP8269117 Whirlpool Dishwasher Handle In Stock WPL WP8269117 $88.99

9

WP8269258 Whirlpool Dishwasher Gasket Backorder WPL WP8269258 $60.35

9

Nozzle, Feed WPL 8269295 Contact Us For Availability

9

Clip, Pivot WPL 8519669 Contact Us For Availability

10

WP8535086 Whirlpool Dishwasher Spray Arm Backorder WPL WP8535086 $68.33

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.67

WP489443 Whirlpool Refrigerator Screw Backorder WPL WP489443 $4.82

WP8268909 Whirlpool Dishwasher Switch In Stock WPL WP8268909 $49.99

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $7.97

8268391 Whirlpool Dishwasher Screen Backorder WPL 8268391 $32.56

WP302868 Whirlpool Screw In Stock WPL WP302868 $3.52

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $4.99

WP8269209 Whirlpool Door Switch In Stock WPL WP8269209 $17.66

Wiring Harness Main WPL 8534932 Contact Us For Availability

Positioner, Dual WPL 8531311 Contact Us For Availability

13

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $36.85

13

Seal, Sump WPL 8268395 Contact Us For Availability

14

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $4.82

15

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $4.99

15

WP8268895 Whirlpool Dishwasher Float Assembly In Stock WPL WP8268895 $62.88

15

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $9.77

16

WP8268892 Whirlpool Dishwasher Lever Backorder WPL WP8268892 $35.67

WP8524474 Whirlpool Dishwasher Wheel Assembly Backorder WPL WP8524474 $7.41

WP8533380 Whirlpool Dishwasher Cap In Stock WPL WP8533380 $15.98

Pump, Drain WPL 661658 Contact Us For Availability

Clip, No-Flip WPL 8531313 Contact Us For Availability

18

W10404344 Whirlpool Dishwasher Track Backorder WPL W10404344 $209.41

18

WP8270020 Whirlpool Dishwasher Spring In Stock WPL WP8270020 $14.99

19

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $12.99

19

Mount, Track (Also Order Item 21) WPL 8270137 Contact Us For Availability

20

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $4.82

20

Stop, Track WPL 8270136 Contact Us For Availability

21

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $21.09

21

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $8.99

22

WPW10348407 Whirlpool Dishwasher Screw In Stock WPL WPW10348407 $4.82

23

Handle, Dishrack WPL 8519699 Contact Us For Availability

24

CUPSHELF WPL 8270024 Contact Us For Availability

25

Thermister WPL 8269208 Contact Us For Availability

25

Clip, Cupshelf WPL 8270025 Contact Us For Availability

26

WP304666 Whirlpool Dishwasher Retainer In Stock WPL WP304666 $17.99

27

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $6.65

28

W10877094 Whirlpool Shield In Stock WPL W10877094 $135.99

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $39.26

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $17.99

30

WP8531018 Whirlpool Dishwasher Washer Backorder WPL WP8531018 $4.82

31

WP8580309 Whirlpool Dishwasher Strike In Stock WPL WP8580309 $55.99

32

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $4.99

46

Switch, Pressure WPL 8268477 Contact Us For Availability

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98
