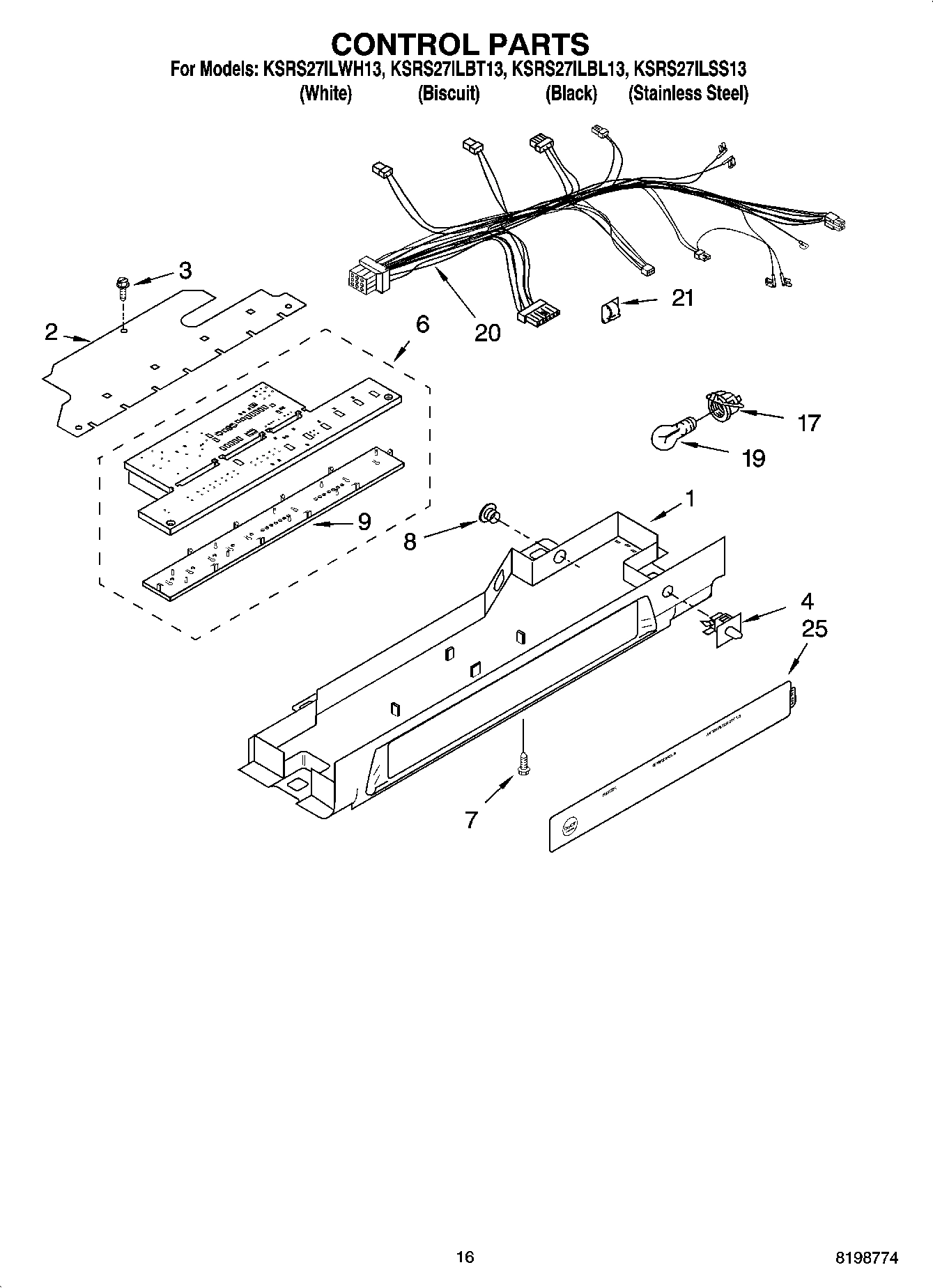

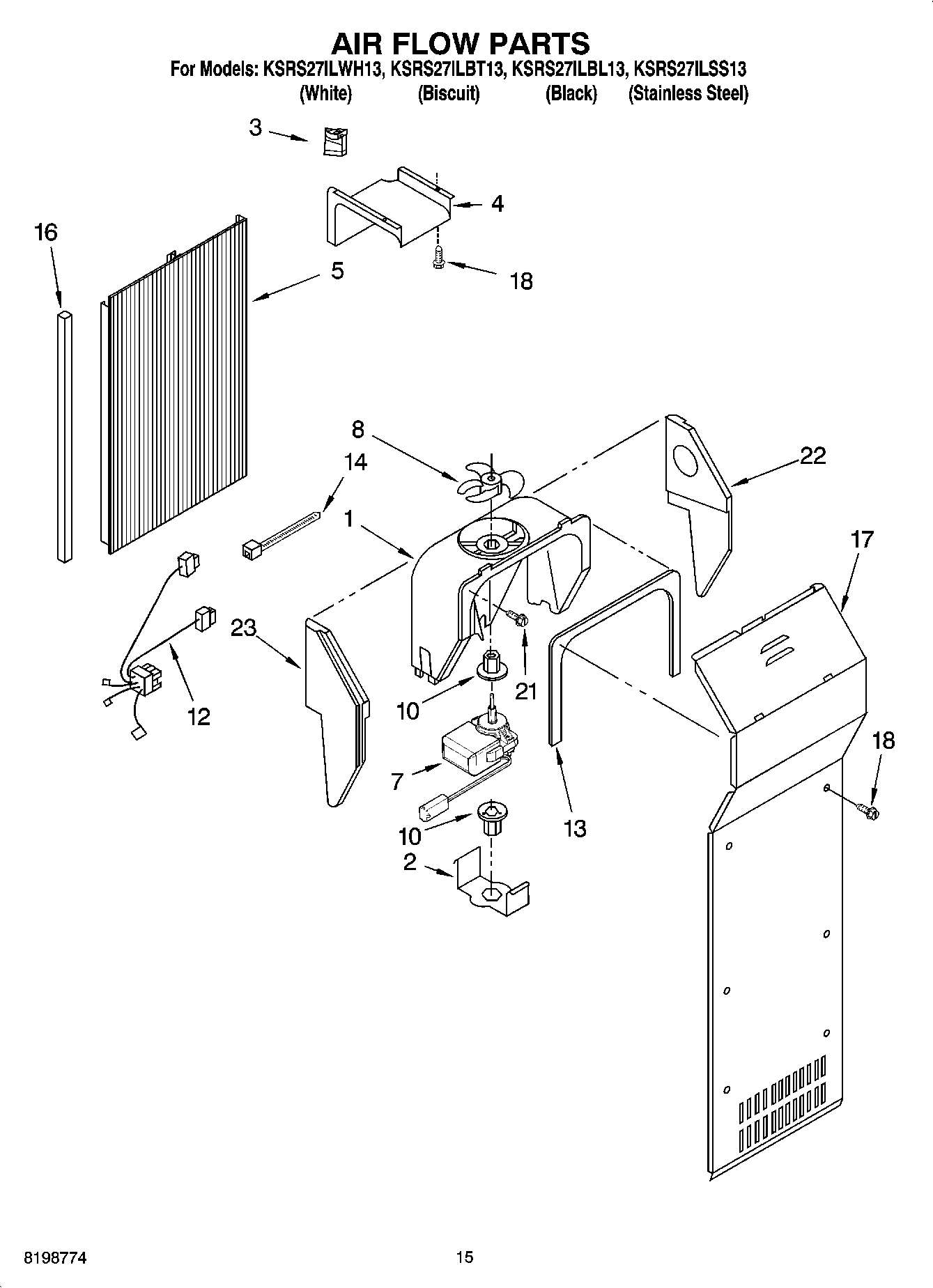

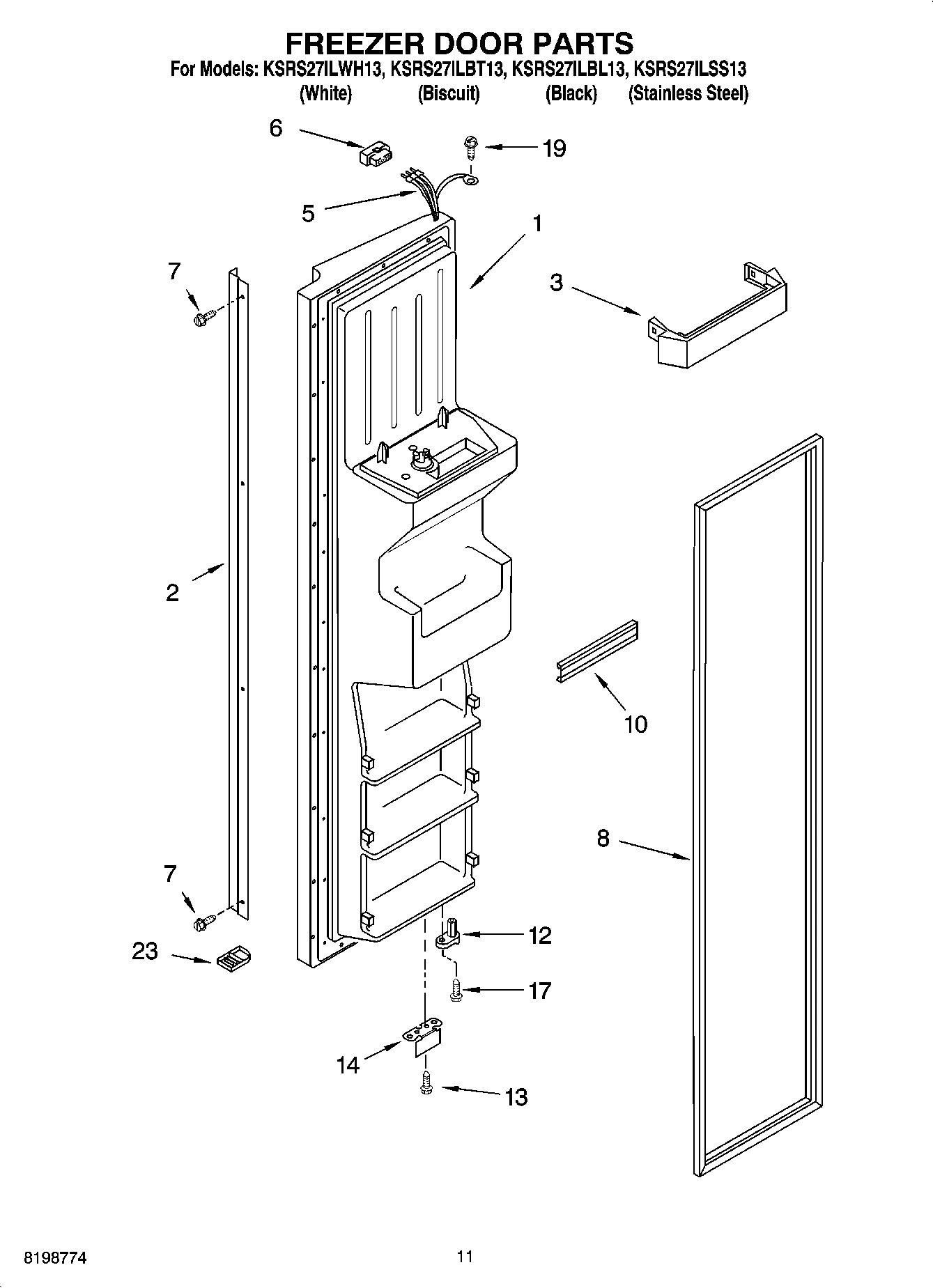

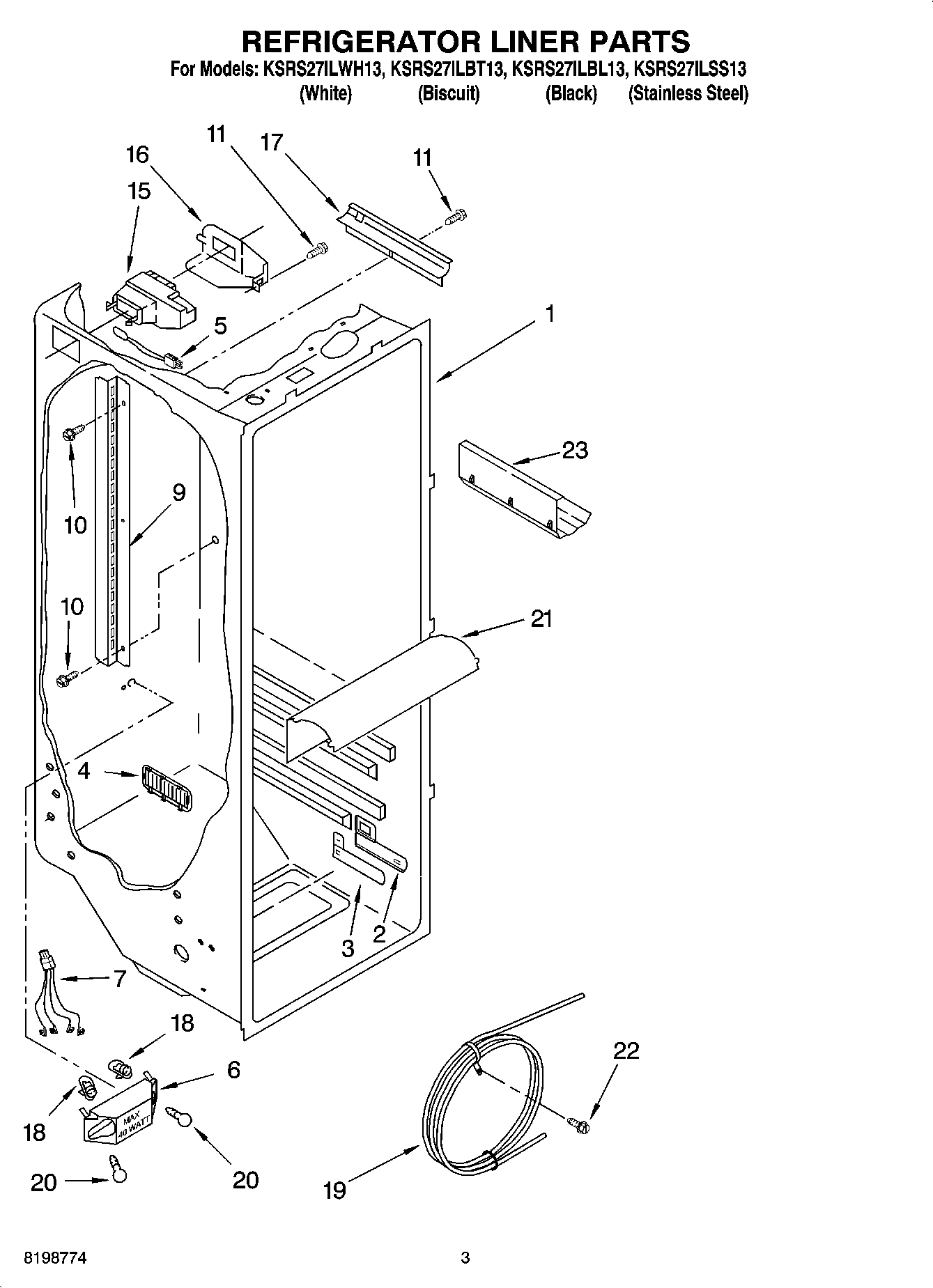

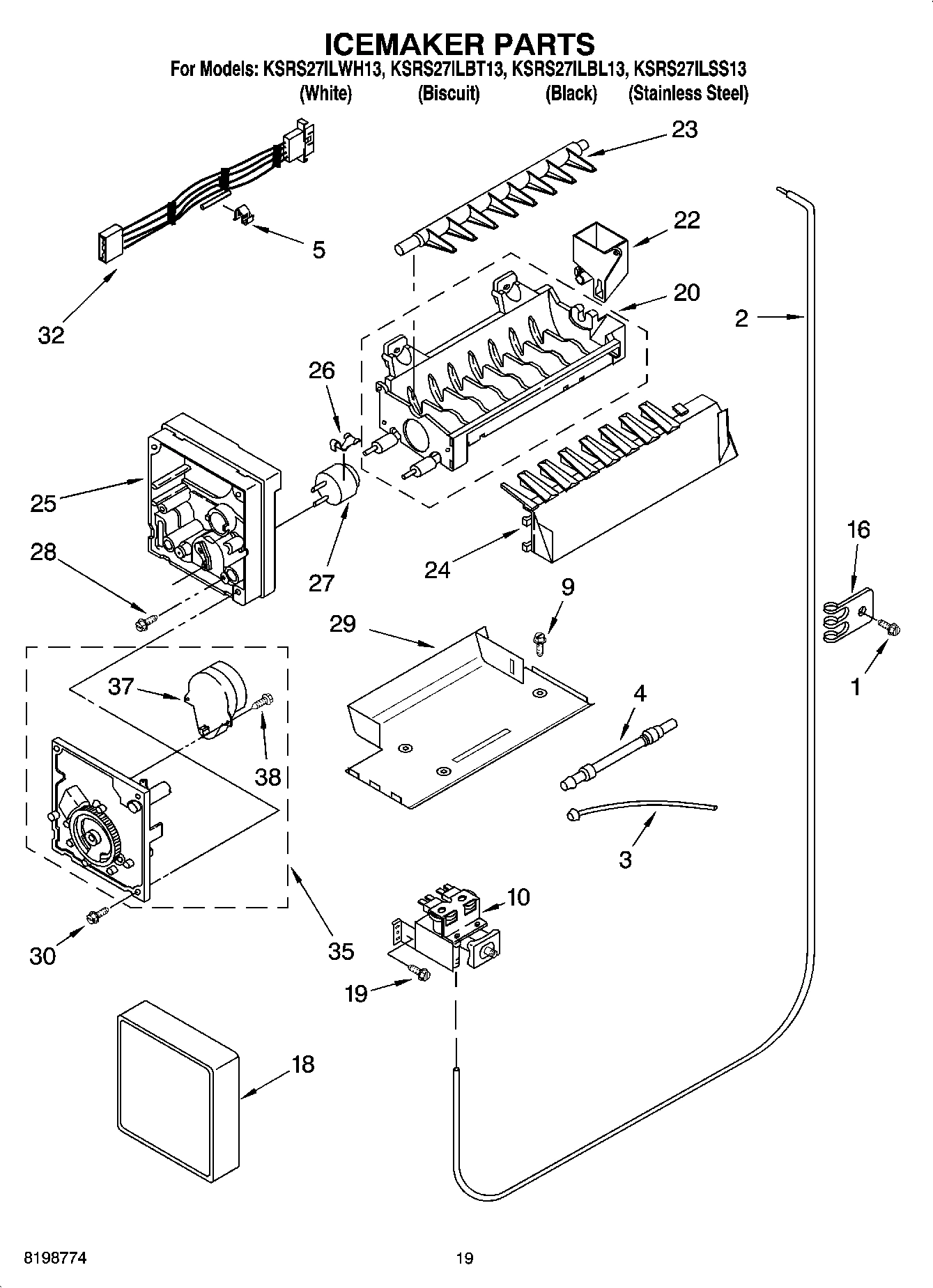

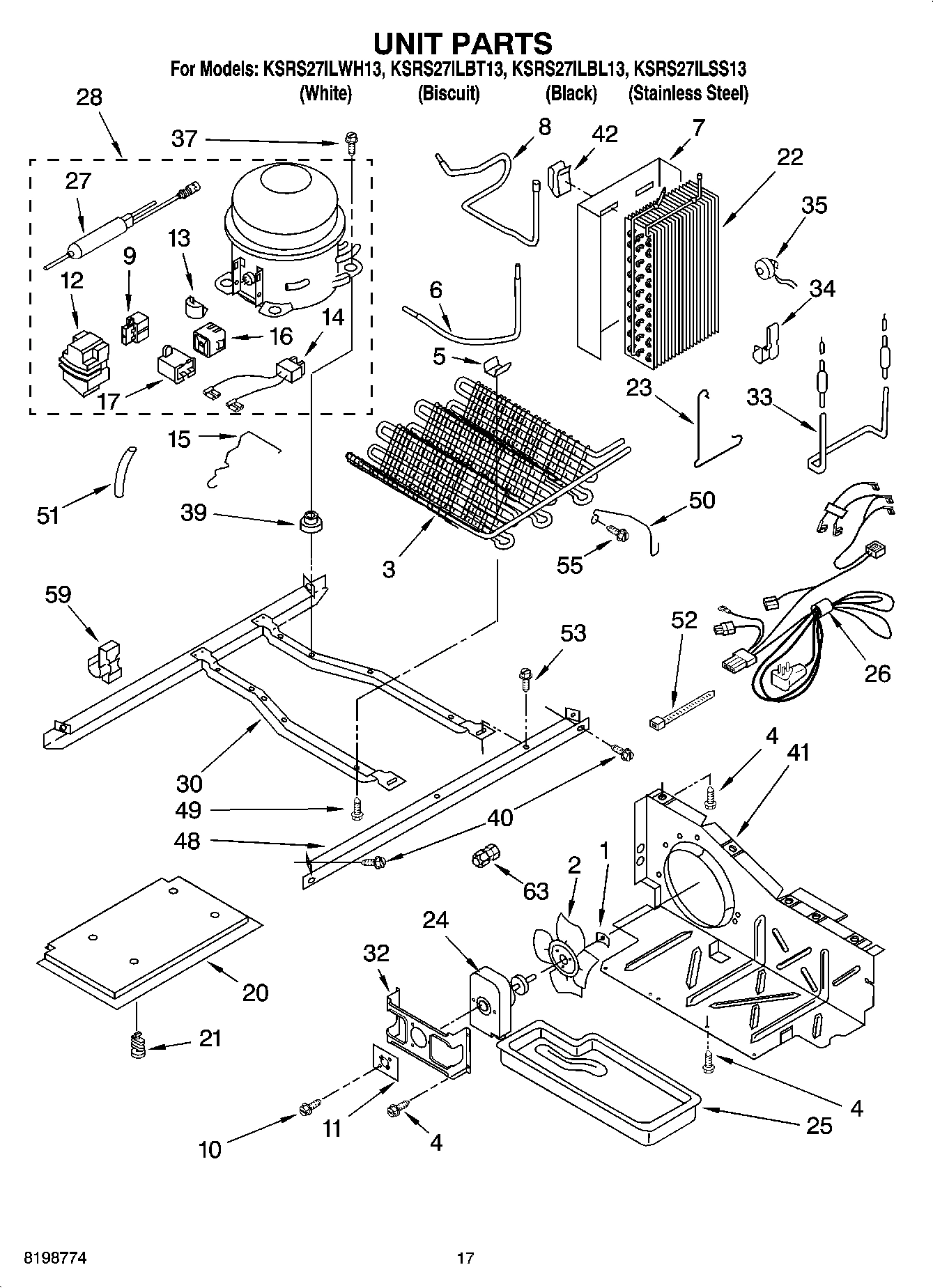

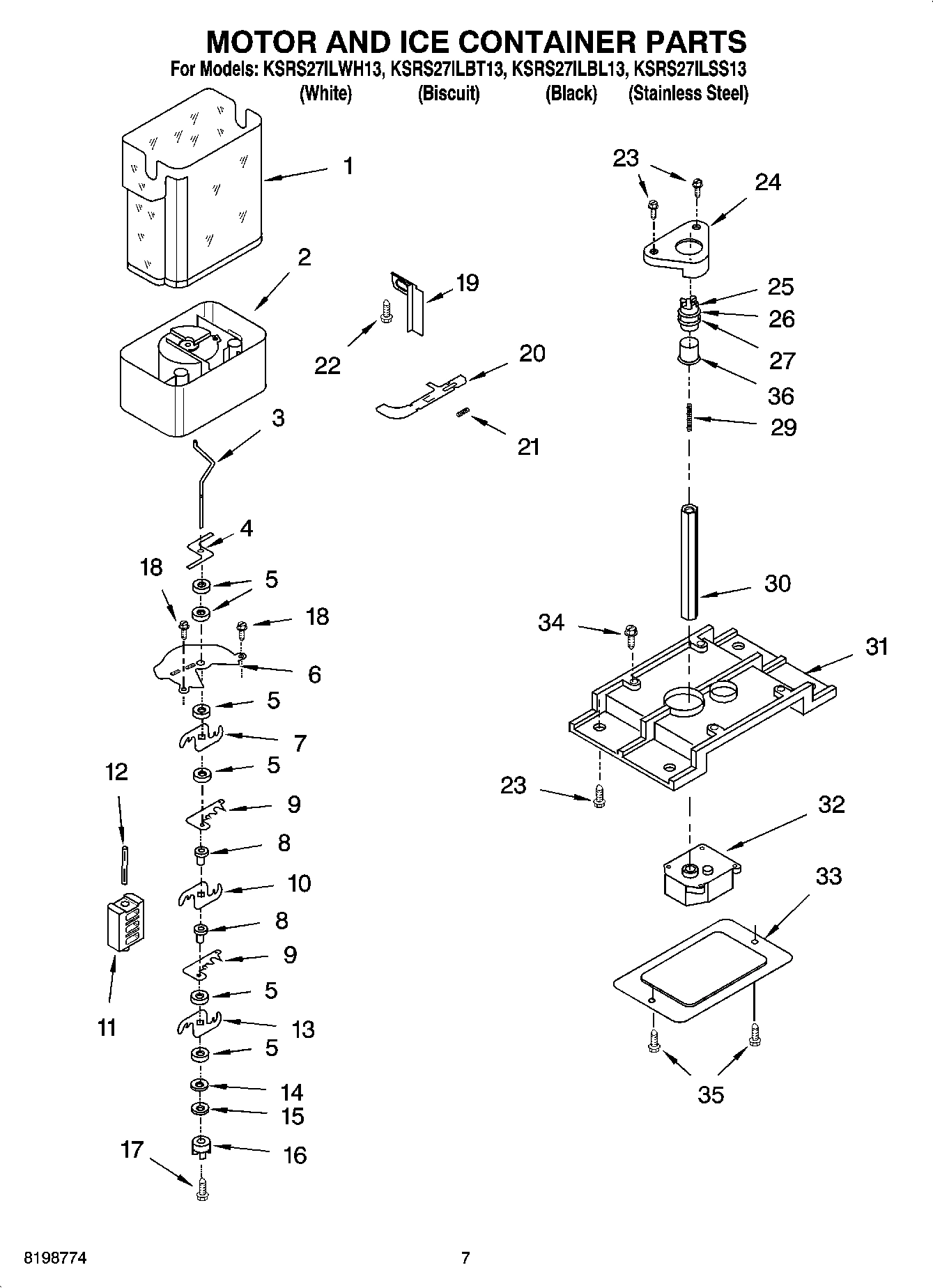

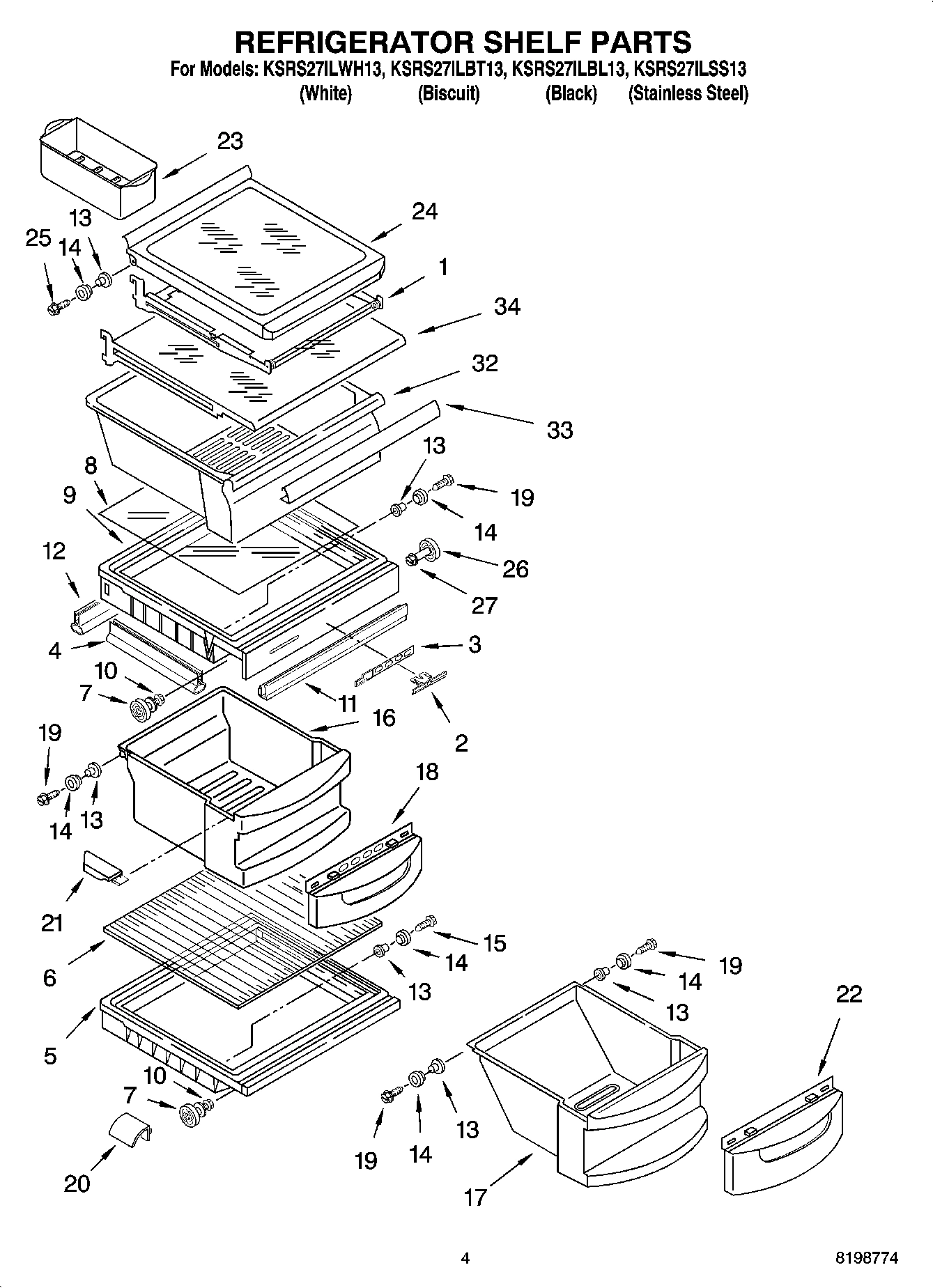

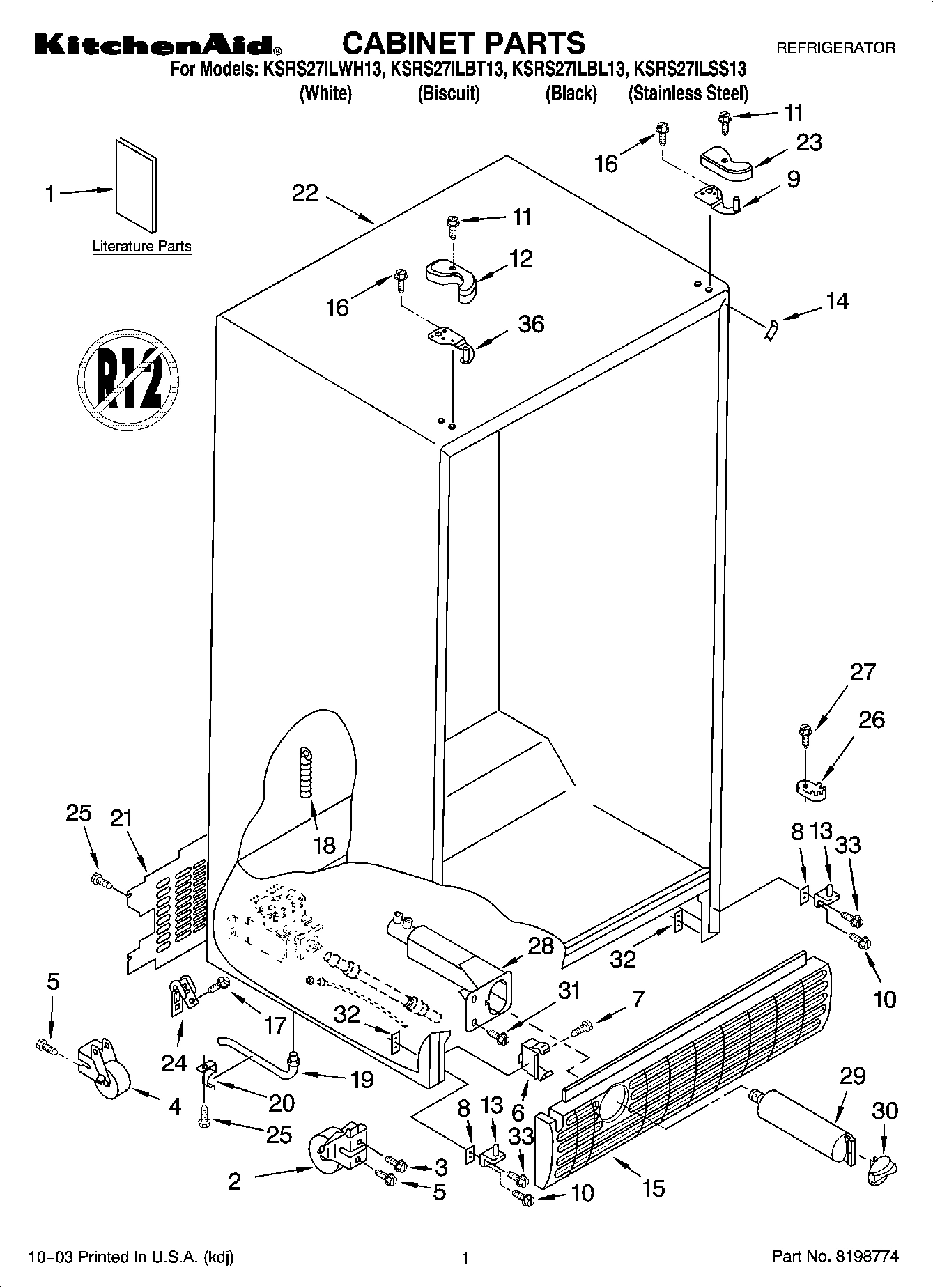

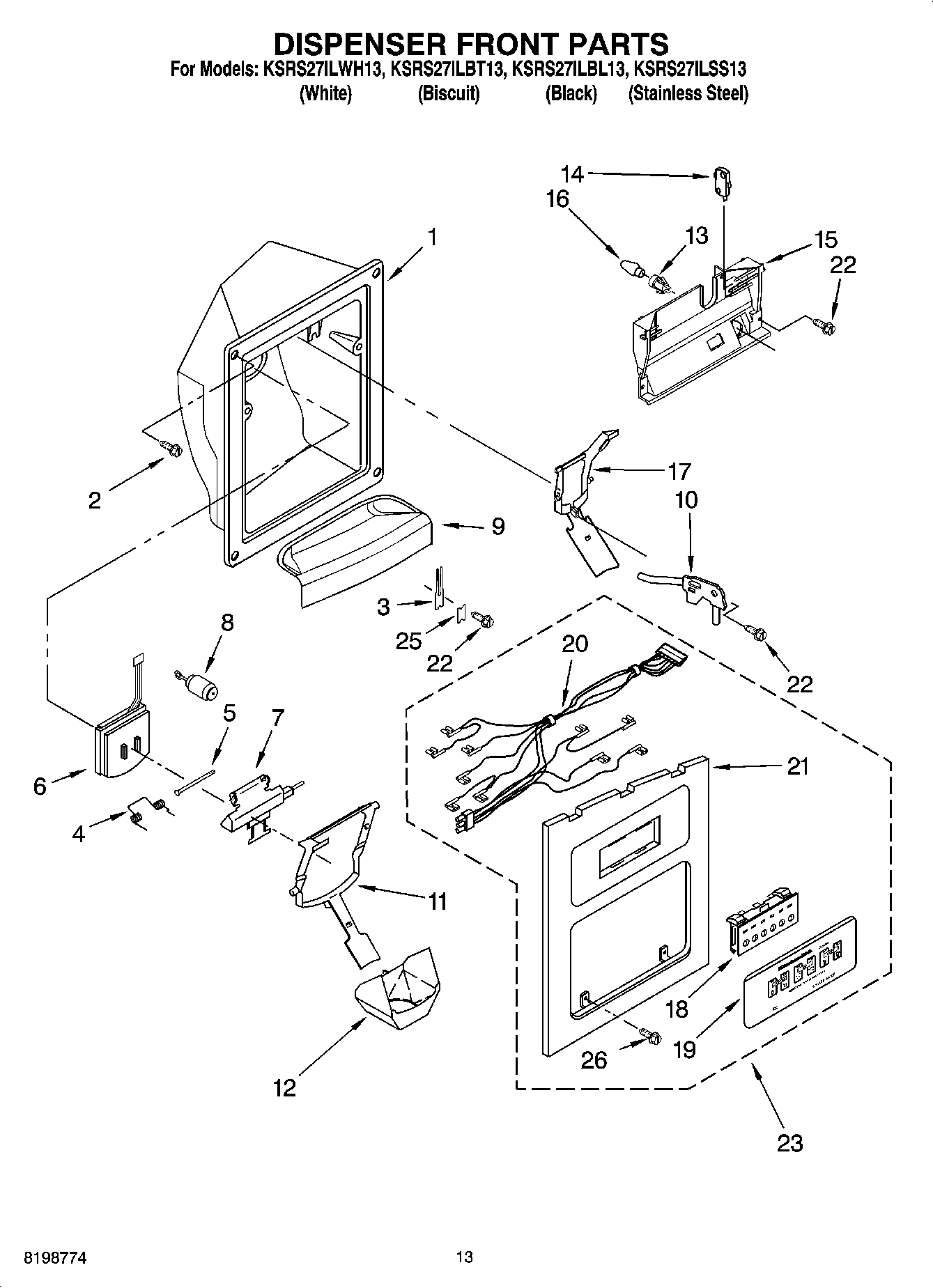

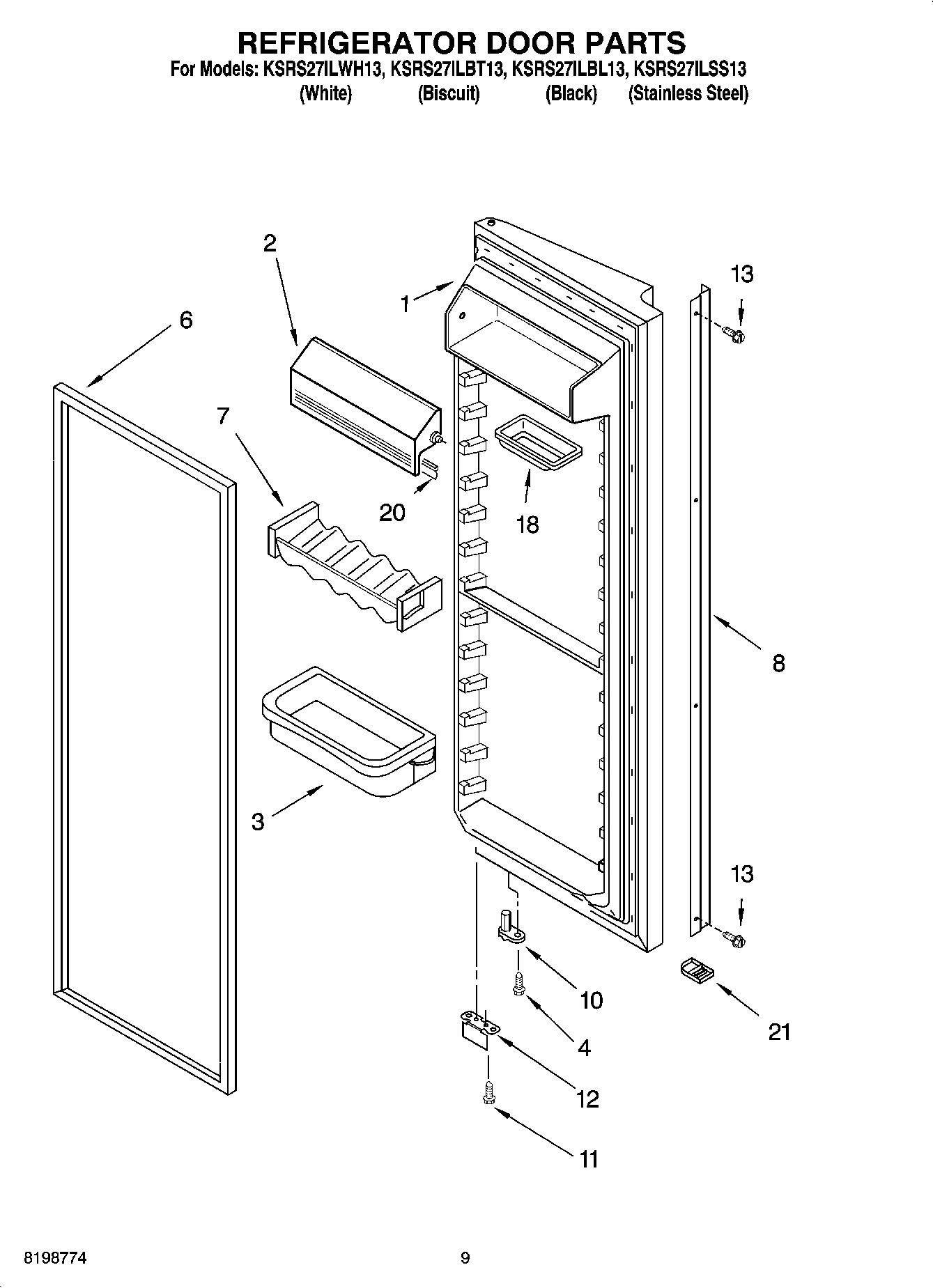

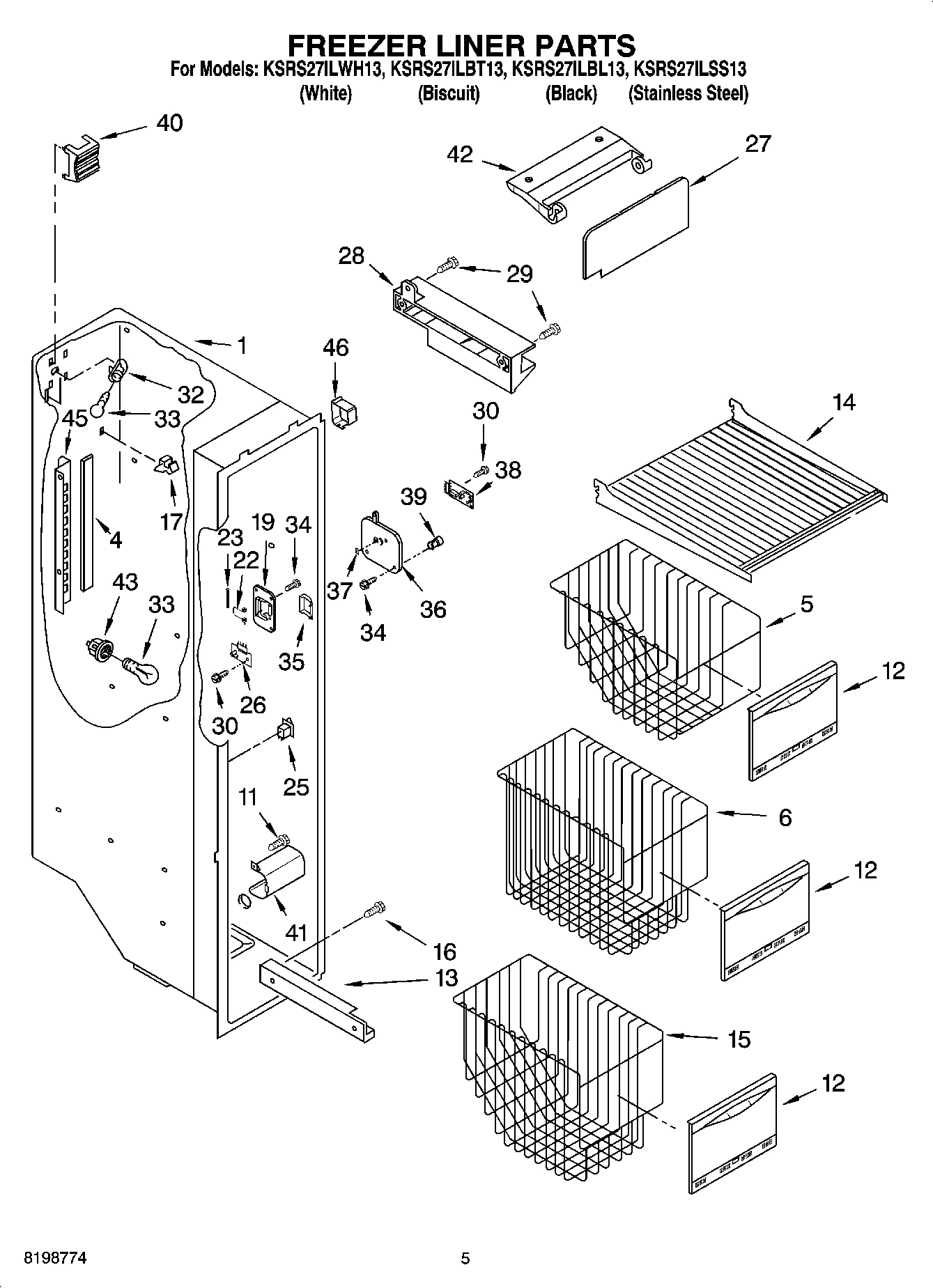

Model Whirlpool KSRS27ILWH13 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.86

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WPL 80051 WPL 80051 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

WPL ARI103625A WPL ARI103625A Contact Us For Availability

WPL ARI103626A WPL ARI103626A Contact Us For Availability

WPL ARI103627A WPL ARI103627A Contact Us For Availability

WPL ARI103628A WPL ARI103628A Contact Us For Availability

WPL ARI103629A WPL ARI103629A Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

Shelf Assembly, Cantilever (2) WPL 2195978 Contact Us For Availability

1

Ice Bin WPL 2198646 Contact Us For Availability

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI103615A Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT2220407 Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2255376 Contact Us For Availability

1

Literature Parts (Owner`s Manual) WPL LIT2255706 Contact Us For Availability

1

Literature Parts (Energy Guide) WPL LIT2261500 Contact Us For Availability

1

Literature Parts (Icemaker) WPL LIT787316 Contact Us For Availability

1

Housing, Dispenser (Not Serviced) WPL ARI103619A Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI103617A Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $130.70

2

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $7.58

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Button, Humidity WPL 2174253 Contact Us For Availability

2

Crusher Bin WPL 2212368 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

2174252 Whirlpool Refrigerator Slide Backorder WPL 2174252 $9.71

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $7.08

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP2198574 Whirlpool Refrigerator Ice Auger Backorder WPL WP2198574 $110.79

3

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $71.99

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $42.98

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $60.55

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Gasket, Side (2) WPL 2174273 Contact Us For Availability

4

Blade, Stirring WPL 2198603 Contact Us For Availability

4

Louver WPL 2182147 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $23.99

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $242.61

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Dispenser Harness WPL 2206178 Contact Us For Availability

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

Cover, Crusher WPL 2255460 Contact Us For Availability

6

Glass, Cover WPL 2255144 Contact Us For Availability

6

Bracket, Dual Crisper Lights WPL 2256035 Contact Us For Availability

7

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $100.16

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $57.37

7

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $21.08

8

TUBE, SUCTION WPL 2205765 Contact Us For Availability

8

Glass, Cover WPL 2255143 Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

9

WP2207109B Whirlpool Refrigerator Grille Backorder WPL WP2207109B $45.40

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2256153 Contact Us For Availability

9

Blade, Fixed WPL 2198601 Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2207109T Contact Us For Availability

9

Grille, Overflow (White) WPL 2207109W Contact Us For Availability

9

Shelf Ladder WPL 2206273 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $94.45

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $96.99

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $100.57

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability

Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

GASKET (REAR) WPL 2223362 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $53.71

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $57.30

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $88.59

Eyelet, Roller WPL 2174478 Contact Us For Availability

Screw (4) (Black) WPL 3400899 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

W10803964 Whirlpool Grille Assembly In Stock WPL W10803964 $78.99

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.71

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $221.99

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

Grille (Biscuit) WPL 2186881T Contact Us For Availability

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.99

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $93.96

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.79

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

Crisper Pan (Includes 13, 14, 18, 19, & 21) WPL 2223358 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

Meat Pan (Includes 13, 14, 19, & 22) WPL 2223359 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

Window, Crisper WPL 2174076 Contact Us For Availability

Switch Assembly (Not Available, Order Item 23 WPL ARI103620A Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $67.24

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $123.79

WP2315403 Whirlpool Refrigerator Bin Button In Stock WPL WP2315403 $16.99

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $4.82

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

Overlay, Front Cover (Not Available, Order It WPL ARI103621A Contact Us For Availability

2176095 Whirlpool Refrigerator Deflector Backorder WPL 2176095 $59.87

2187406 Whirlpool Refrigerator Wire Harness Backorder WPL 2187406 $79.95

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $6.93

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $176.99

Latch, Bin WPL 2256015 Contact Us For Availability

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $14.02

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $106.57

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI103622A Contact Us For Availability

Light Lens WPL 2209769 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $6.84

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Window, Meat Pan WPL 2174362 Contact Us For Availability

Cabinet (Not A Serviceable Part) WPL ARI103616A Contact Us For Availability

Screw WPL 488280 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.29

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

Clip WPL 2161324 Contact Us For Availability

Hinge Cover (Biscuit) WPL 2203408T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207153B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207153T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207153W Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $56.99

Holder WPL 2212369 Contact Us For Availability

Shelf & Roller Assembly WPL 2174021 Contact Us For Availability

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $14.99

NLA:SCREW Backorder WPL WPW10141645 $4.82

Overlay, Control Box WPL 2220255 Contact Us For Availability

Screw WPL 489439 Contact Us For Availability

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.60

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $14.75

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

28

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

28

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $61.83

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $15.99

29

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $70.78

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.99

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $36.34

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $69.83

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

31

Bracket, Motor WPL 2198655 Contact Us For Availability

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $139.99

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $88.98

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.69

Dispenser, Motor WPL 2198594 Contact Us For Availability

33

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

33

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

33

Cover WPL 2198626 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

34

Shelf, Snack Pan WPL 2206346 Contact Us For Availability

34

Screw WPL 8281162 Contact Us For Availability

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $115.71

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $20.81

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $71.99

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $162.99
