Model Whirlpool KSRS25FGAL00 REFRIGERATOR – Common Parts & Diagrams
10 - CONTROL
07 - FREEZER DOOR

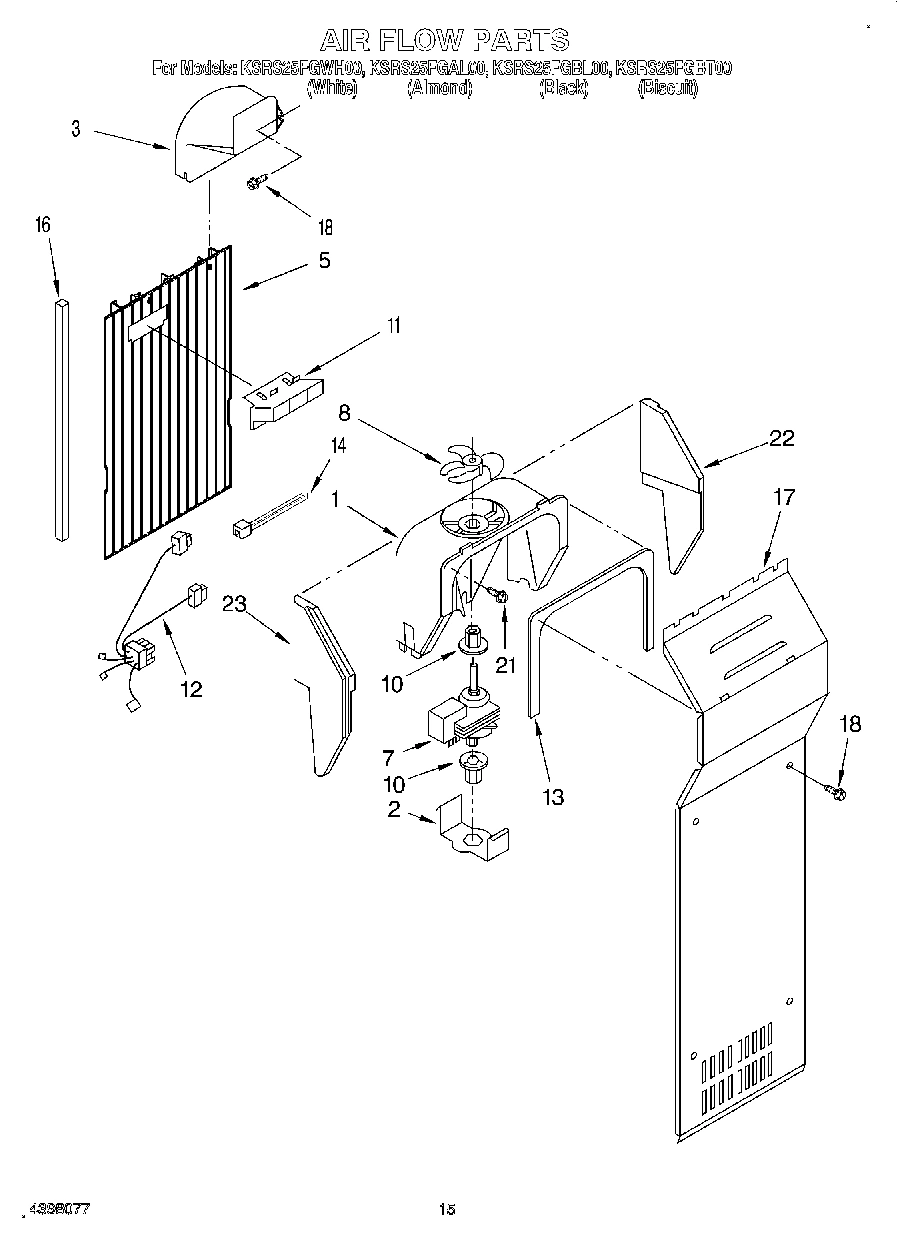

09 - AIR FLOW

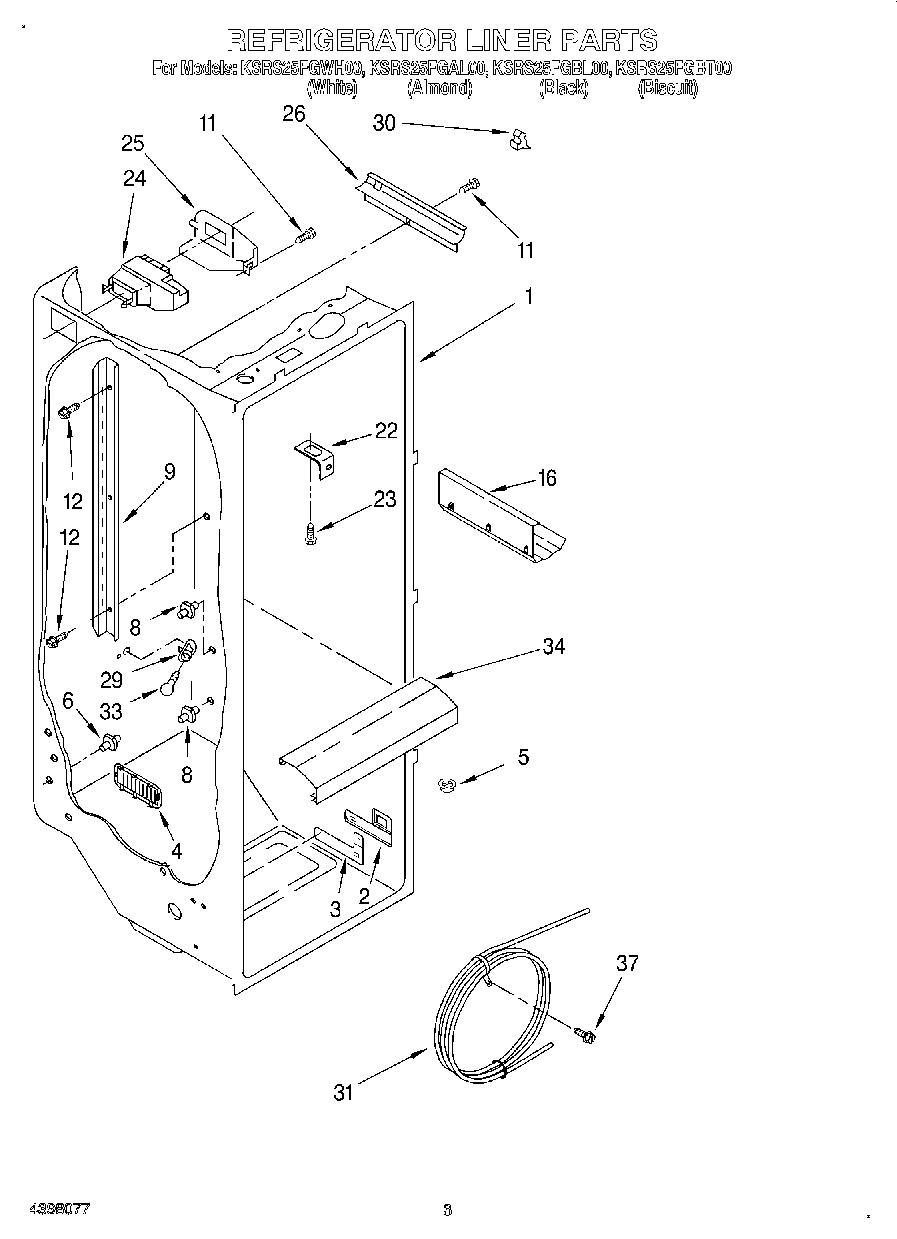

02 - REFRIGERATOR LINER

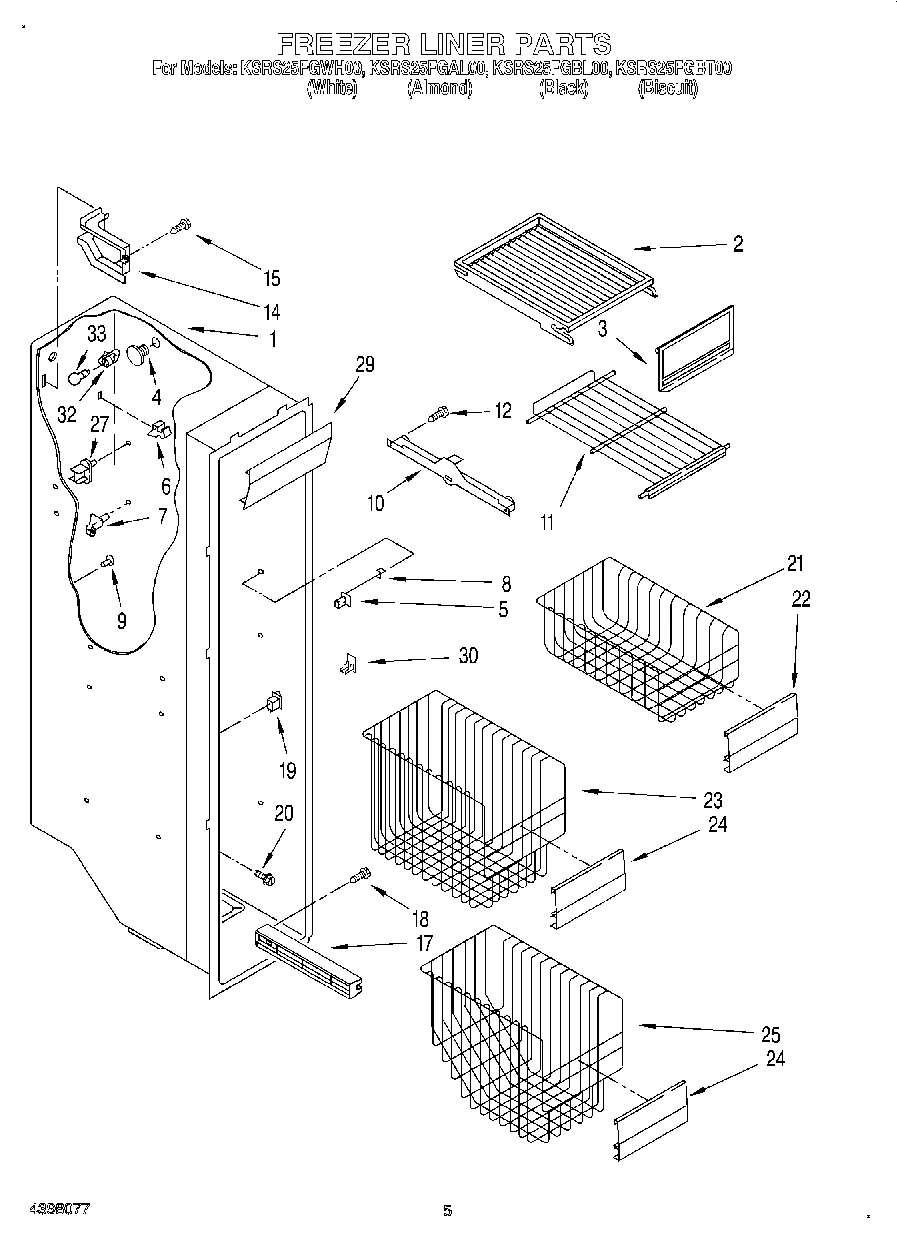

04 - FREEZER LINER

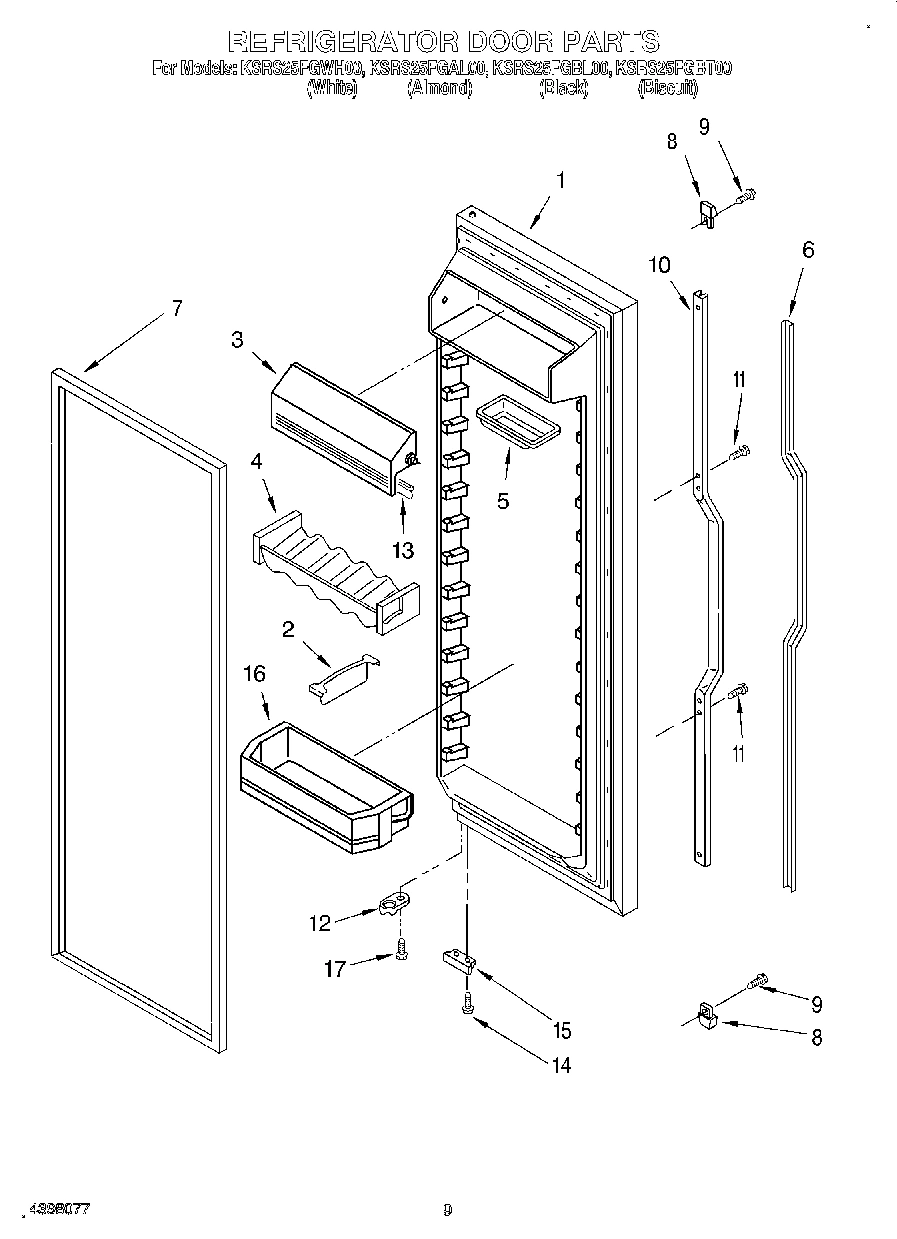

06 - REFRIGERATOR DOOR

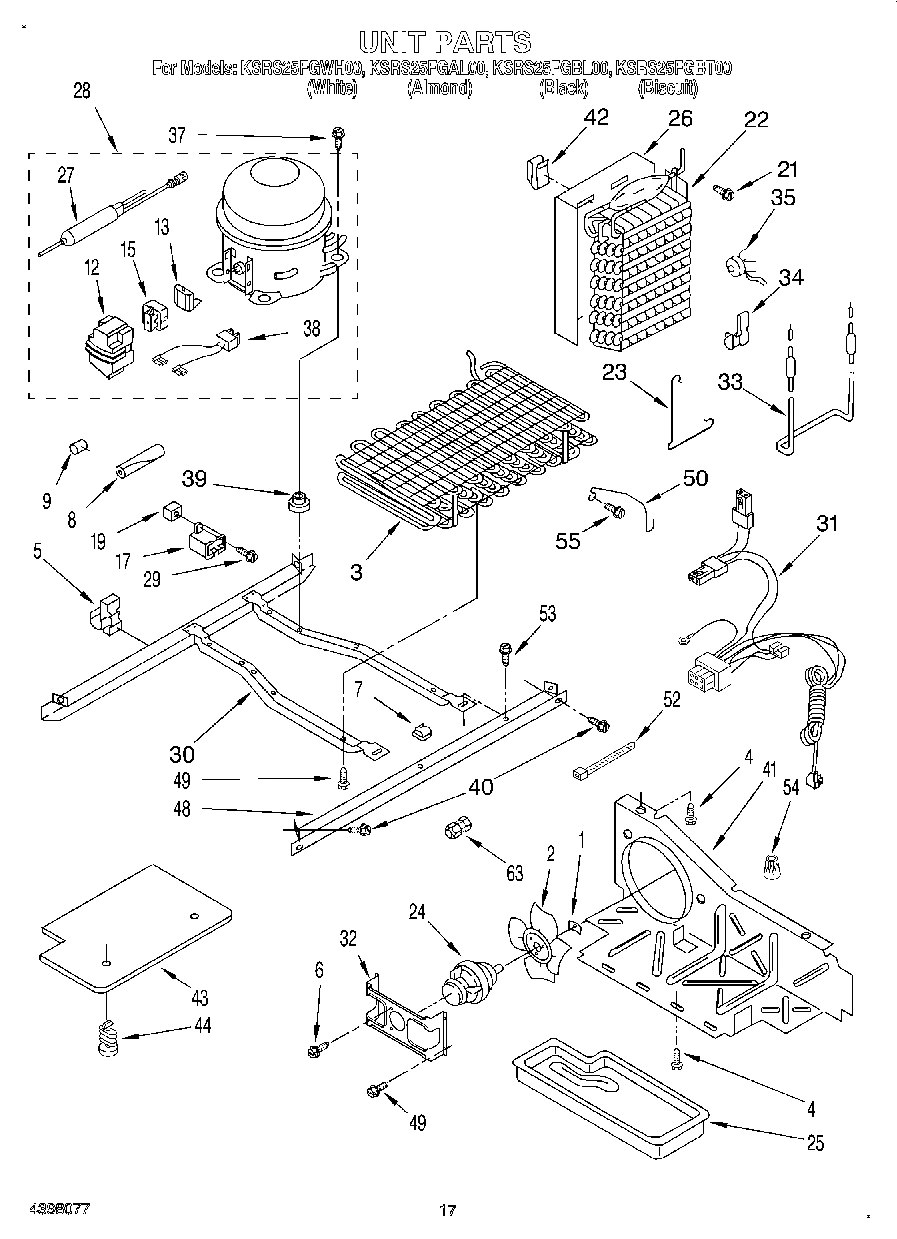

11 - UNIT

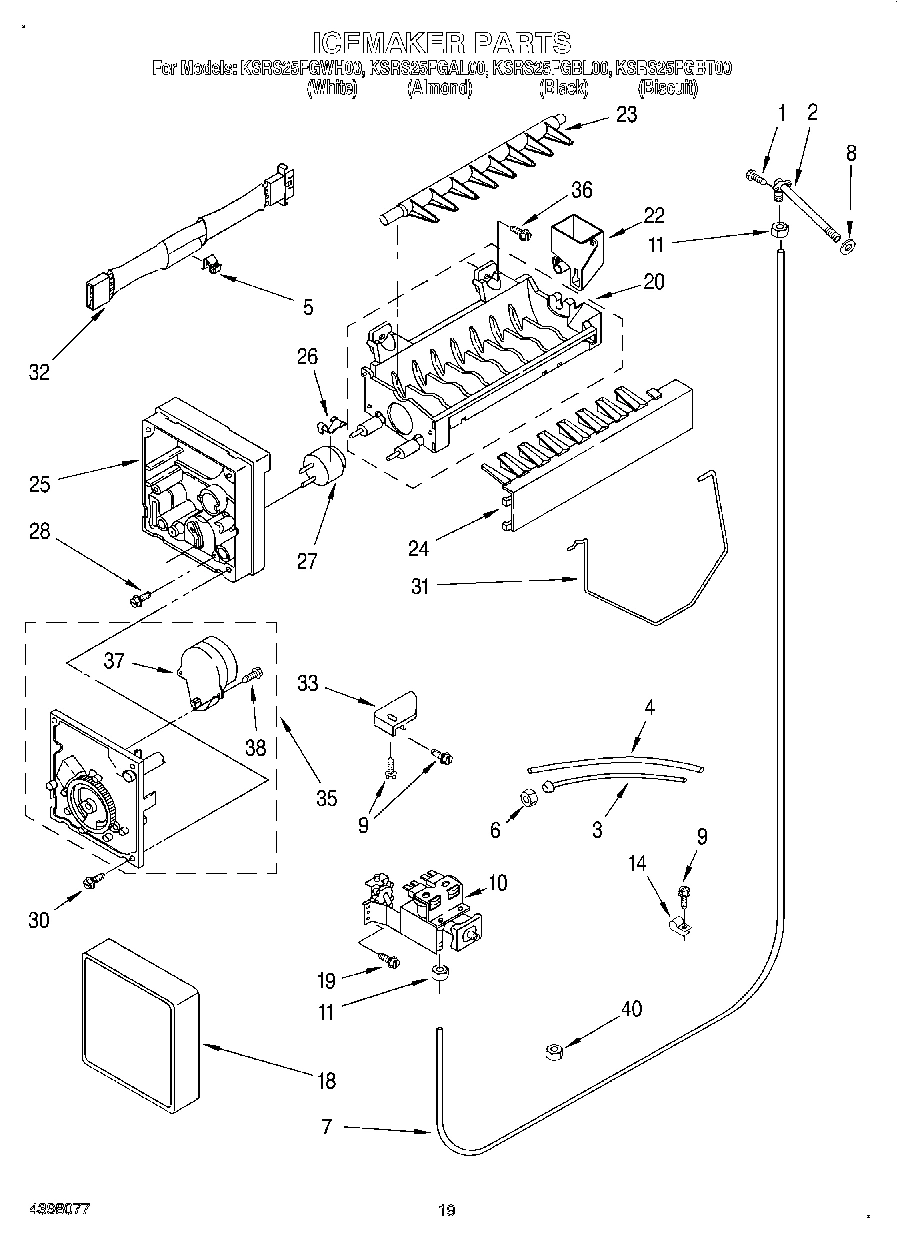

12 - ICEMAKER, LIT/OPTIONAL

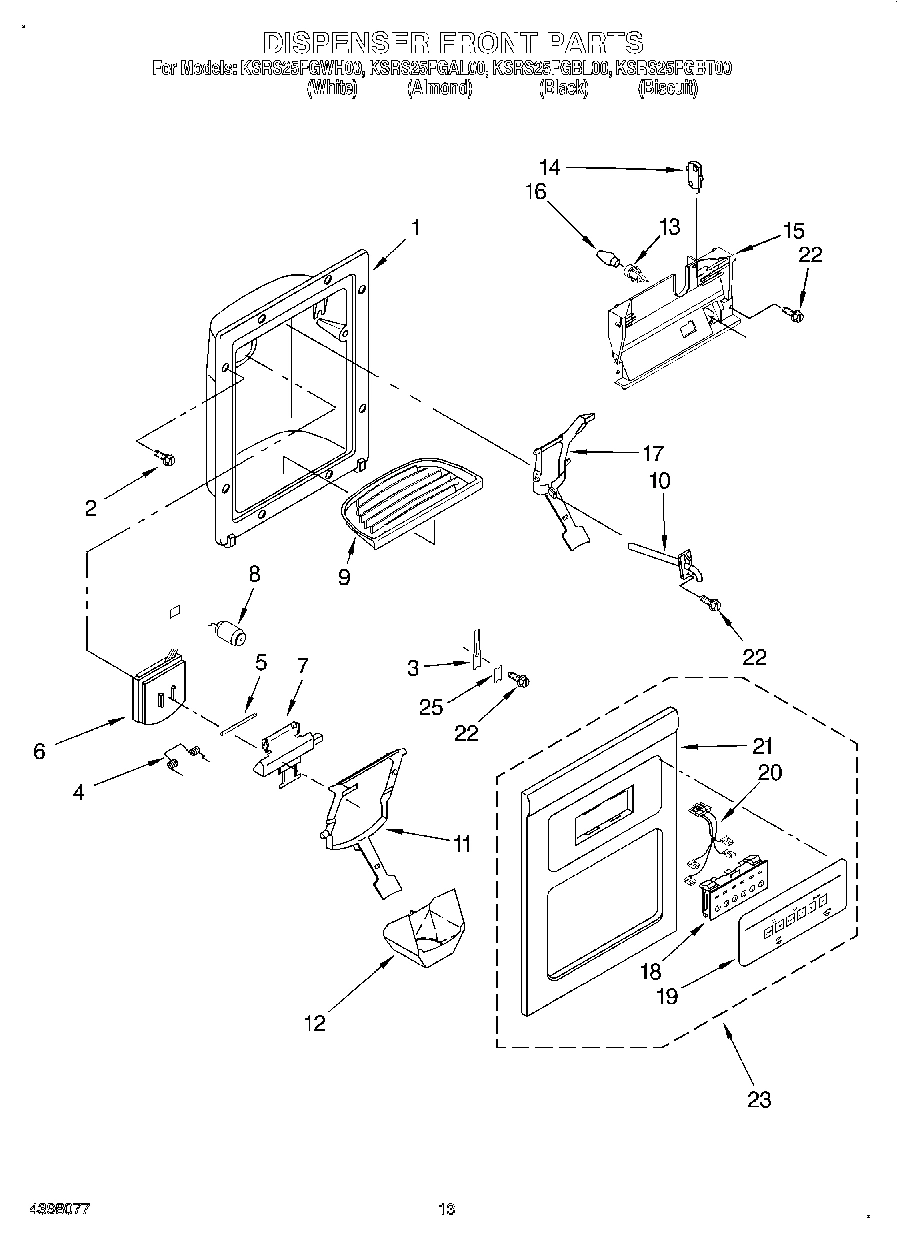

08 - DISPENSER FRONT

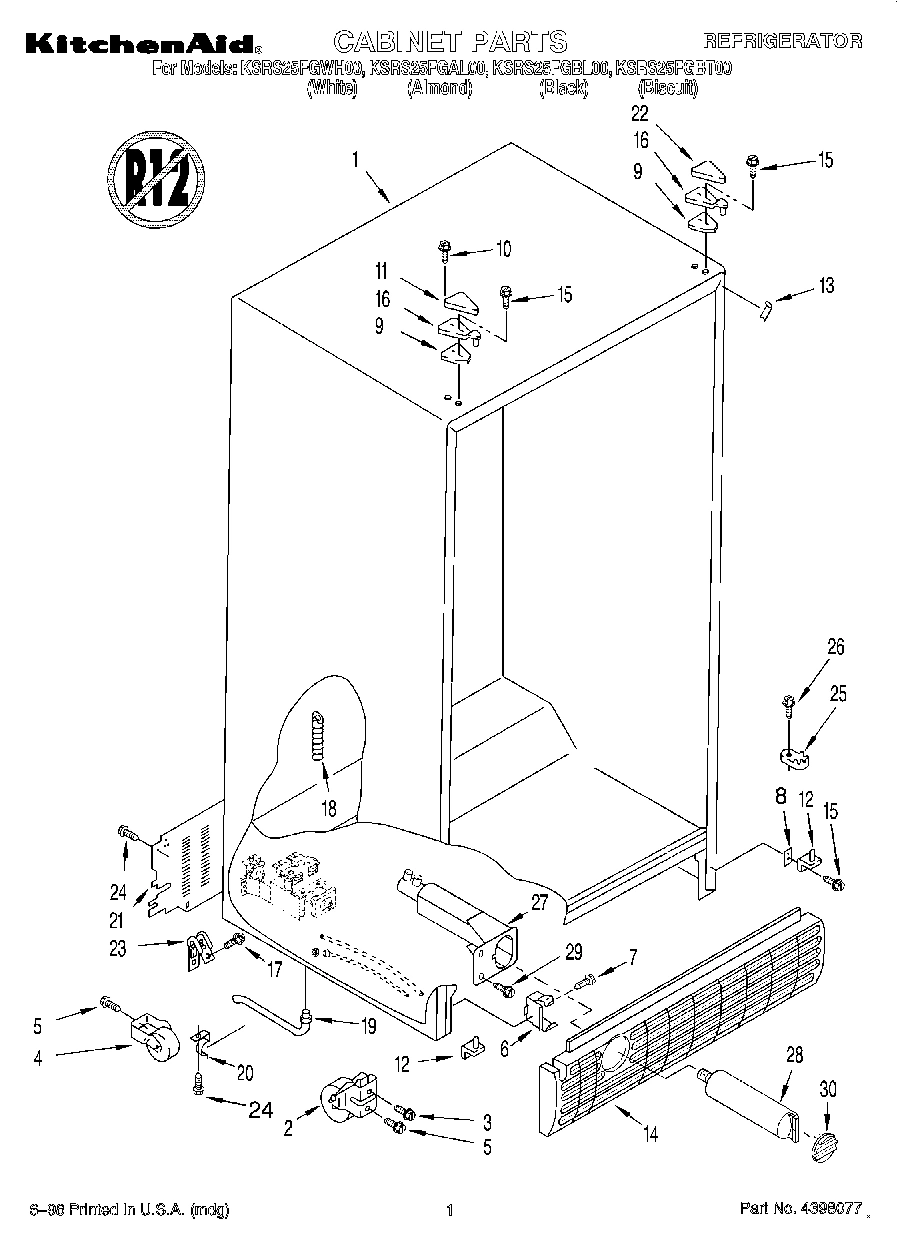

01 - CABINET

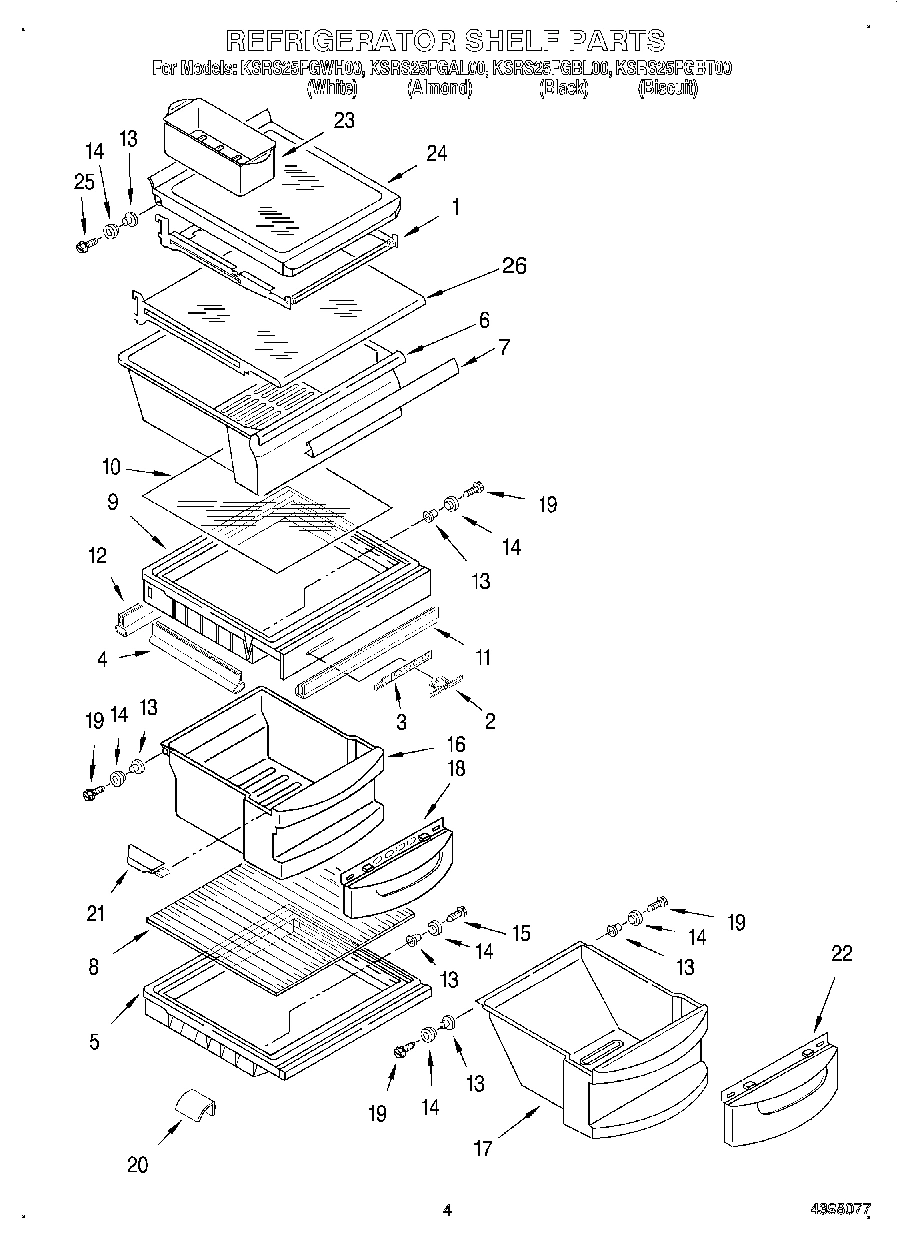

03 - REFRIGERATOR SHELF

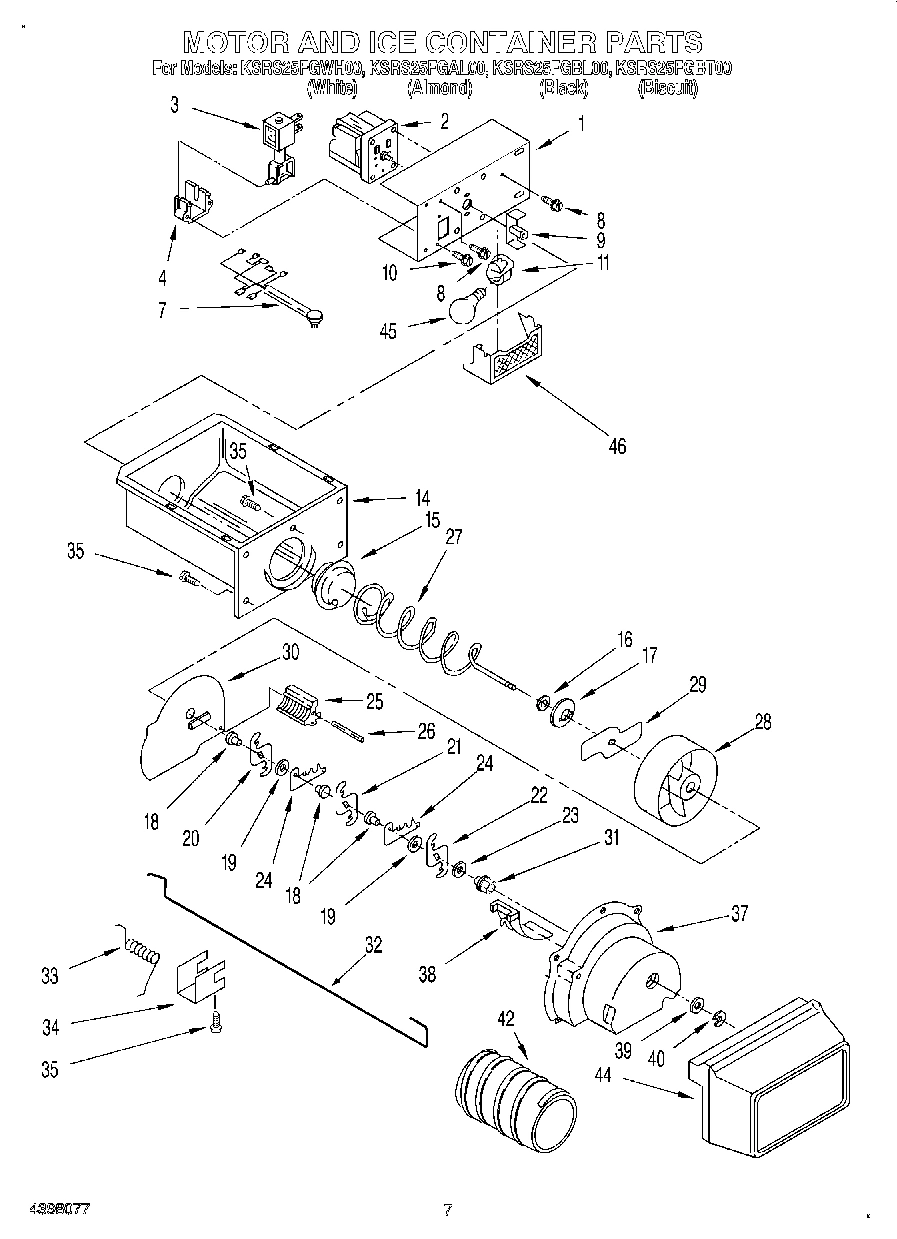

05 - MOTOR AND ICE CONTAINER
Common parts from model Whirlpool KSRS25FGAL00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2186525 WPL LIT2186525 Contact Us For Availability
WPL LIT2200139 WPL LIT2200139 Contact Us For Availability
WPL LIT2200278 WPL LIT2200278 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI101578A Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI101575A Contact Us For Availability
1
Shelf Assembly, Cantilever (3) WPL 2195978 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
6
Nut, Compression WPL 2200083 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2180324 Contact Us For Availability
9
Grille, Overflow (Biscuit) WPL 2186860 Contact Us For Availability
9
Shim, Hinge Top WPL 2196048 Contact Us For Availability
10
Screw WPL 489284 Contact Us For Availability
10
Glass, Cover WPL 2174148 Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11
Hinge Cover (White) WPL 1129262 Contact Us For Availability
11
Lever, Ice Dispenser (Almond (Almond Shadow P WPL 2180260 Contact Us For Availability
11
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2186850 Contact Us For Availability
11
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
11
Hinge Cover (Black) WPL 2151694 Contact Us For Availability
11
Hinge Cover (Biscuit) WPL 2186858 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
13
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
13
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
13
Filler, Wrapper (Biscuit) WPL 2186846 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Grille (Biscuit) WPL 2198468T Contact Us For Availability
14
Grille (Almond) WPL 2198468N Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
15
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Bracket, Door Stop (Black) WPL 2195950 Contact Us For Availability
17
Lever, Water Dispenser (Almond (Almond Shadow WPL 2180269 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Overlay, Front Cover (Black) WPL 2186515B Contact Us For Availability
19
Overlay, Front Cover (Almond) WPL 2186515N Contact Us For Availability
19
Overlay, Front Cover (Biscuit) WPL 2186515T Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2186515W Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI101579A Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
22
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2186511B Contact Us For Availability
23
WPL 2186511N WPL 2186511N Contact Us For Availability
23
WPL 2186511T WPL 2186511T Contact Us For Availability
23
WPL 2186511W WPL 2186511W Contact Us For Availability
24
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Screw WPL 489439 Contact Us For Availability
26
Shelf, Snack Pan WPL 2198277 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
30
Cap, Water Filter (Almond) WPL 2186884N Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 2186495 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
