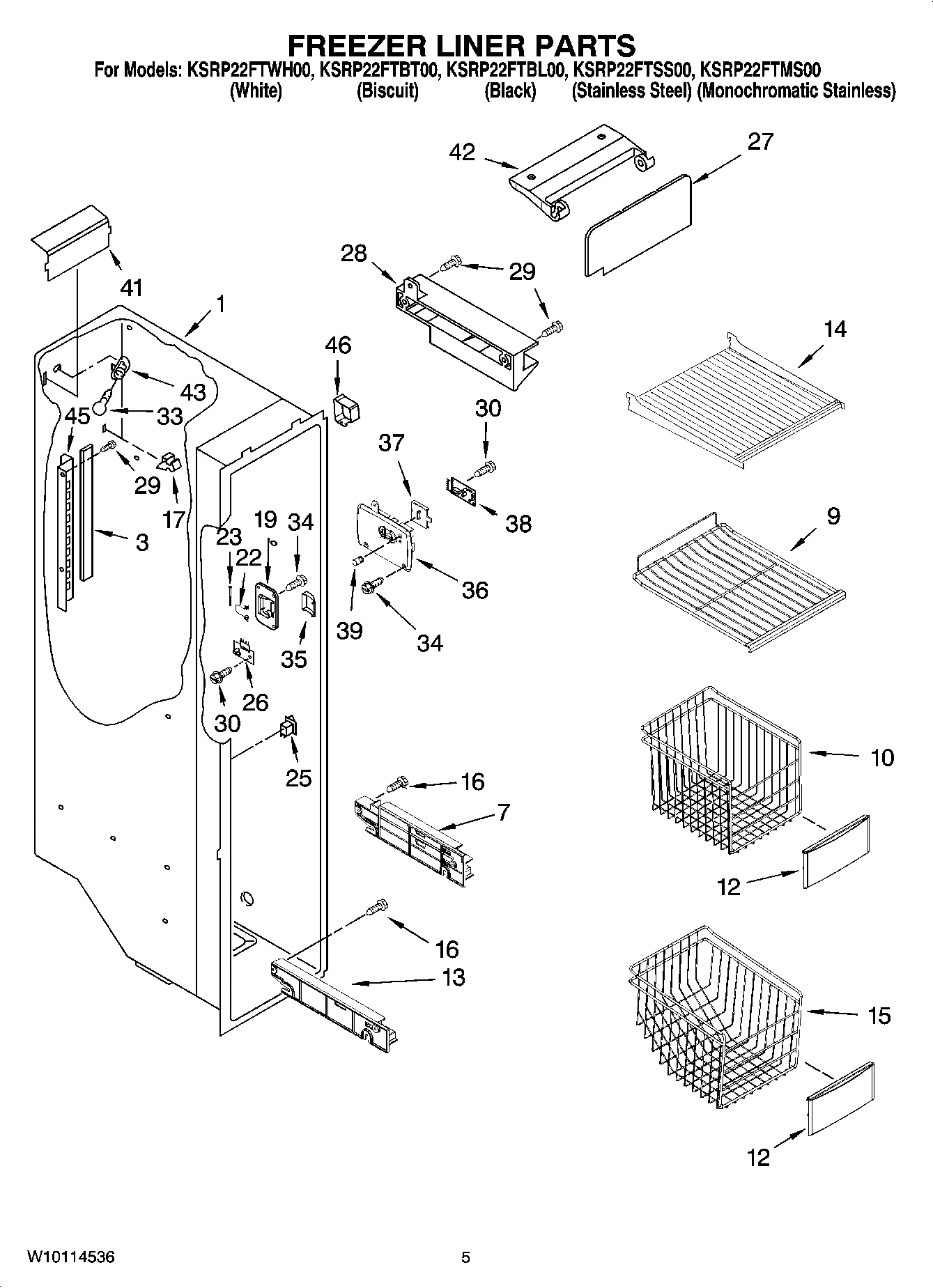

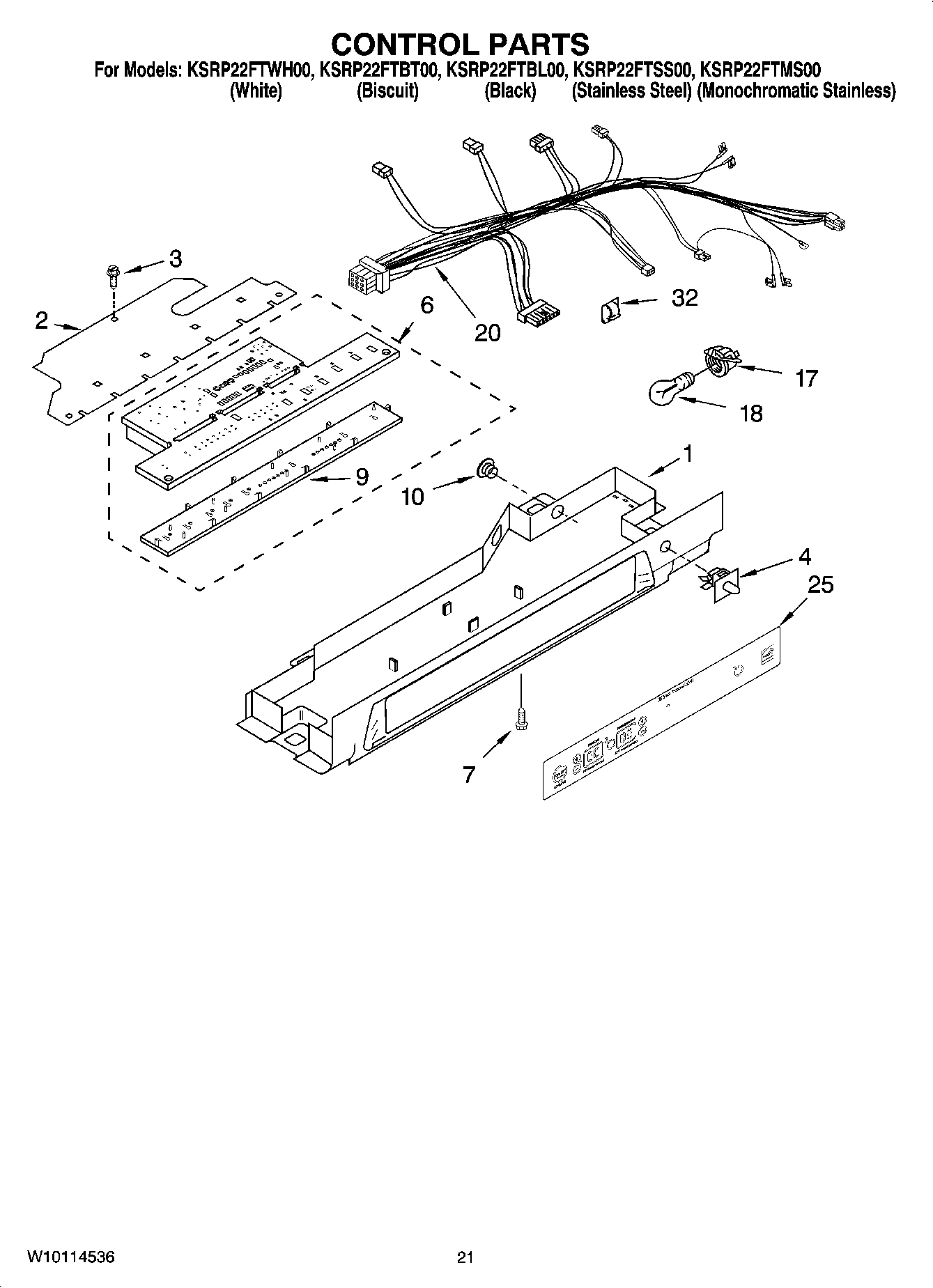

Model Whirlpool KSRP22FTBT00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.86

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $212.50

1

FRAME ASSEMBLY, SLIDE OUT WPL 2195975 Contact Us For Availability

1

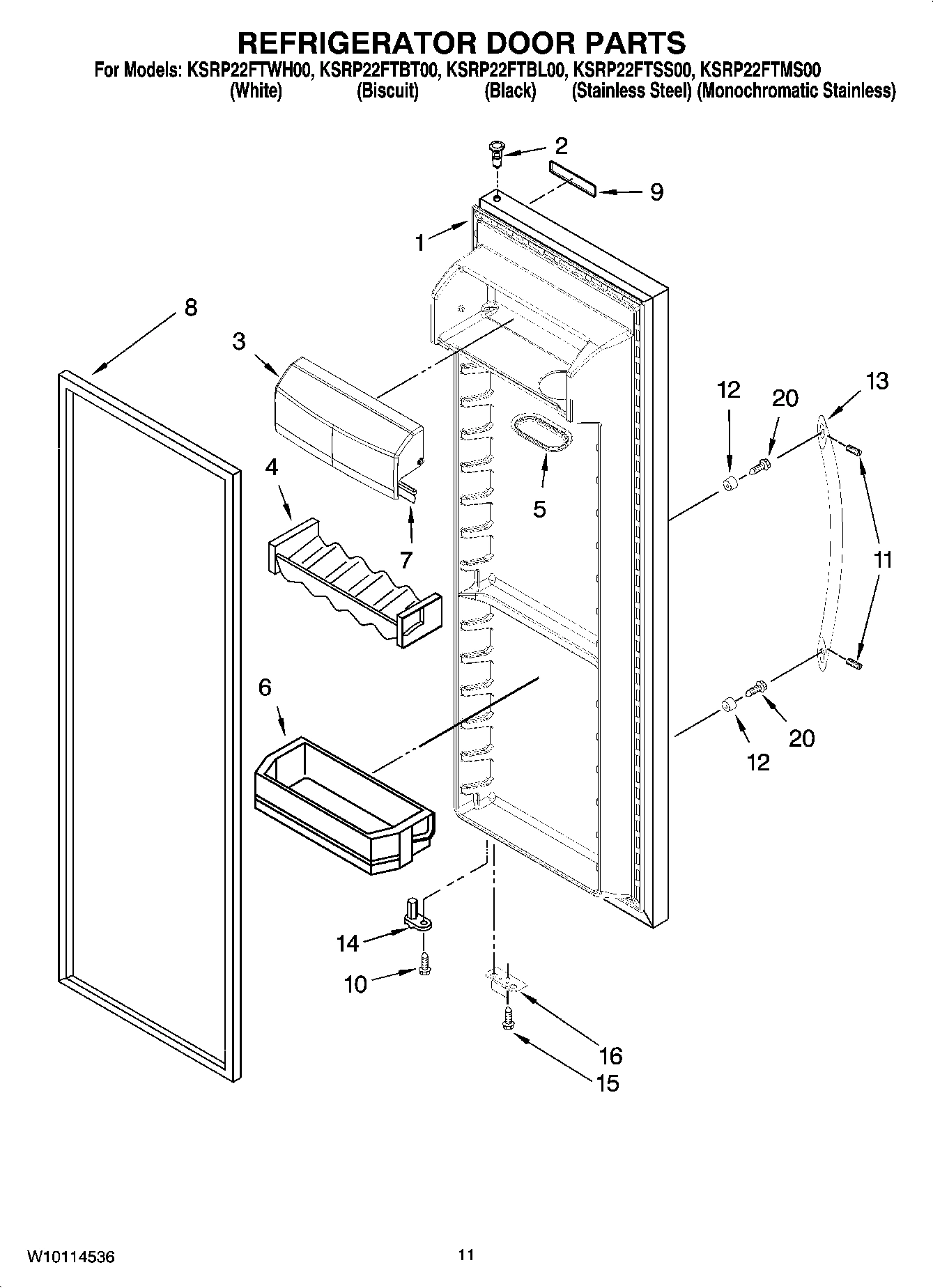

Refrigerator Door (Includes Item 8) (Stainles WPL 2301188S Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Monochro WPL 2301188SZ Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Black) WPL 2318439B Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Biscuit) WPL 2318439T Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (White) WPL 2318439W Contact Us For Availability

1

Ice Bin WPL 2212302 Contact Us For Availability

1

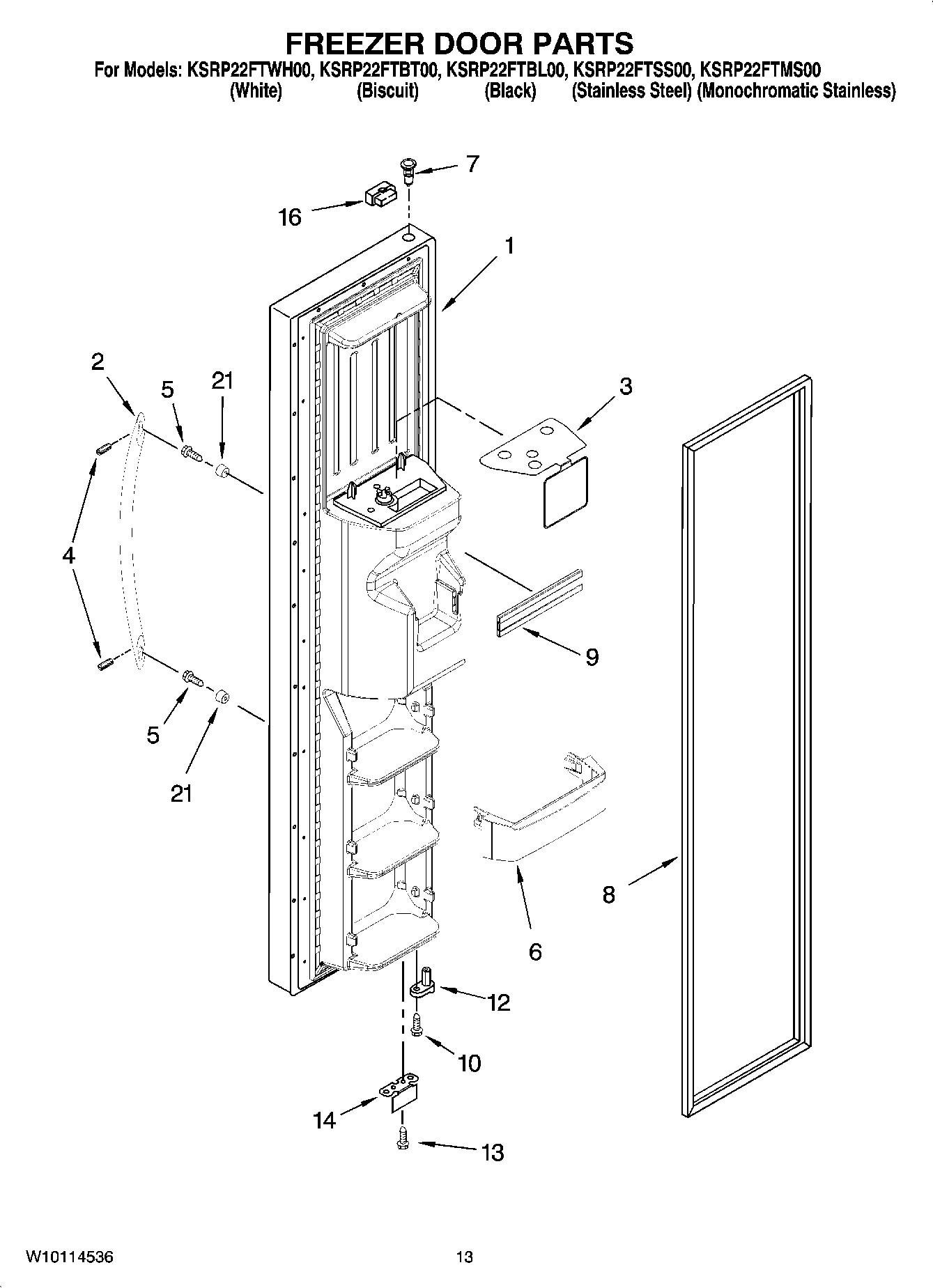

Freezer Door (Includes Item 8 And Dispenser F WPL 2318945B Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2318945T Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2318945W Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2318946SA Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2318946SB Contact Us For Availability

2

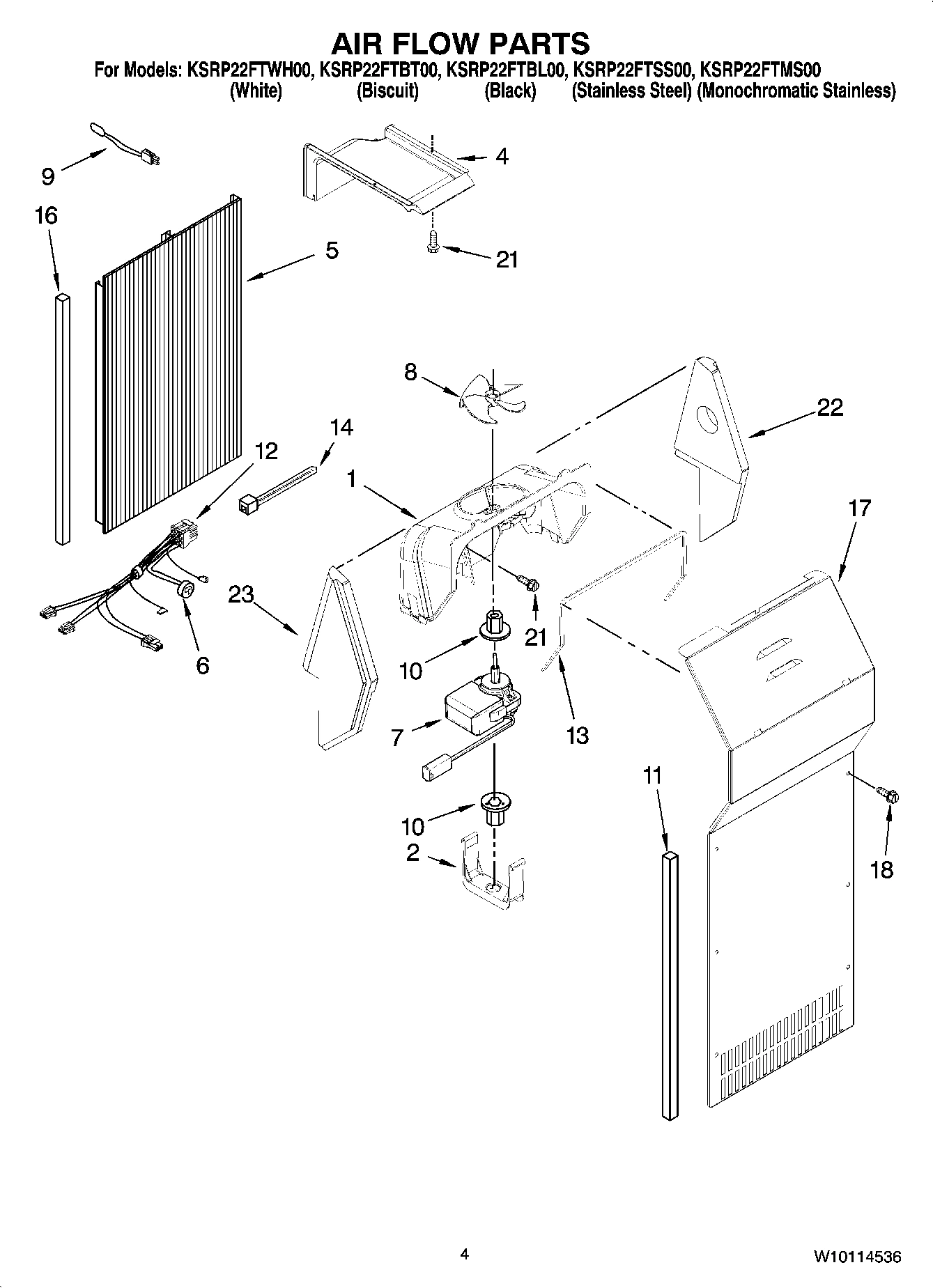

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Button, Humidity WPL 2174253 Contact Us For Availability

2

Thimble, Top (For Stainless Steel Models) WPL 2308050 Contact Us For Availability

2

Handle (Includes 4) (Biscuit) WPL 2319727T Contact Us For Availability

2

Handle (Includes 4) (White) WPL 2319727W Contact Us For Availability

2

Crusher Bin WPL 2255583 Contact Us For Availability

3

2174252 Whirlpool Refrigerator Slide Backorder WPL 2174252 $9.71

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

Door, Compartment WPL 2301486 Contact Us For Availability

3

Auger WPL 2258224 Contact Us For Availability

3

Safety Barrier WPL 2304896 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $71.47

4

WPW10010150 Whirlpool Refrigerator Screw Backorder WPL WPW10010150 $4.82

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Washer WPL 2258220 Contact Us For Availability

4

Gasket, Side (2) WPL 2174273 Contact Us For Availability

4

Beverage Holder WPL 2193409K Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $242.61

5

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Dish, Butter WPL 2165792K Contact Us For Availability

5

Air Duct Freezer WPL 2212313 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

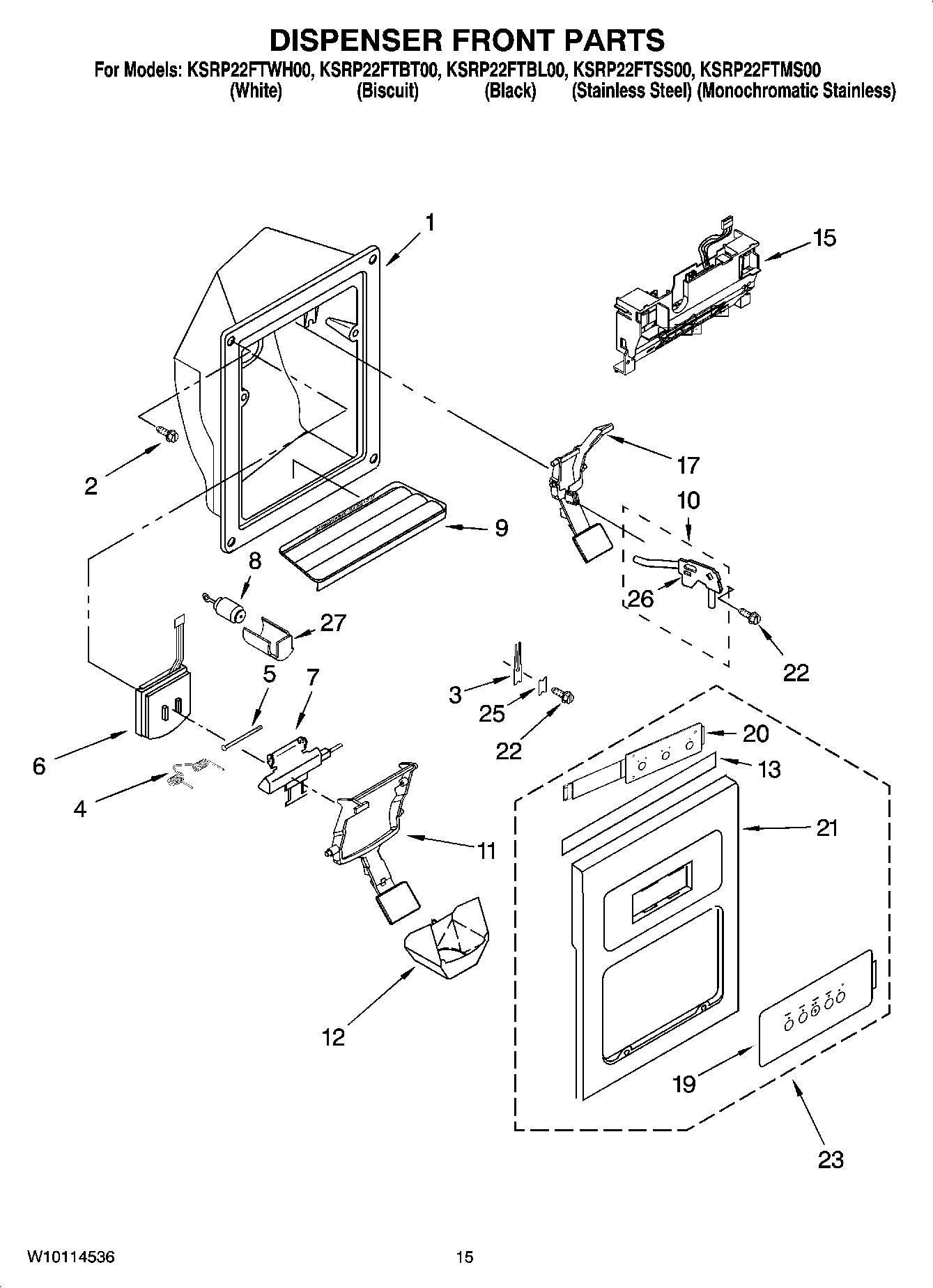

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

6

Window, Snack Pan WPL 2301006 Contact Us For Availability

6

Control Board WPL 2321724 Contact Us For Availability

6

Door Bin (4) WPL 2205821K Contact Us For Availability

6

Cover, Crusher WPL 2255461 Contact Us For Availability

6

Trivet, Shelf (3) WPL 2171071K Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $62.77

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $57.37

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

7

Thimble, Top (For Stainless Steel Models) WPL 2301049 Contact Us For Availability

7

Gasket WPL 2159124 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $134.99

8

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $134.99

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $219.73

8

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $242.52

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $56.81

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

Glass, Cover WPL 2255144 Contact Us For Availability

9

W10171992 Whirlpool Refrigerator Grille Backorder WPL W10171992 $58.53

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $53.99

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $54.49

9

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $50.14

9

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $47.62

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.16

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Nameplate (Grey) WPL W10046610 Contact Us For Availability

9

Shim WPL 2209697 Contact Us For Availability

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2301484 Contact Us For Availability

9

Nameplate (Biscuit) WPL W10046700 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

Glass, Cover WPL 2255143 Contact Us For Availability

W11366418 Whirlpool Screw In Stock WPL W11366418 $11.84

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $100.57

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $54.59

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

Harness, Fan Evaporator (Includes 6) WPL 2310239 Contact Us For Availability

GASKET (REAR) WPL 2223362 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $57.30

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.82

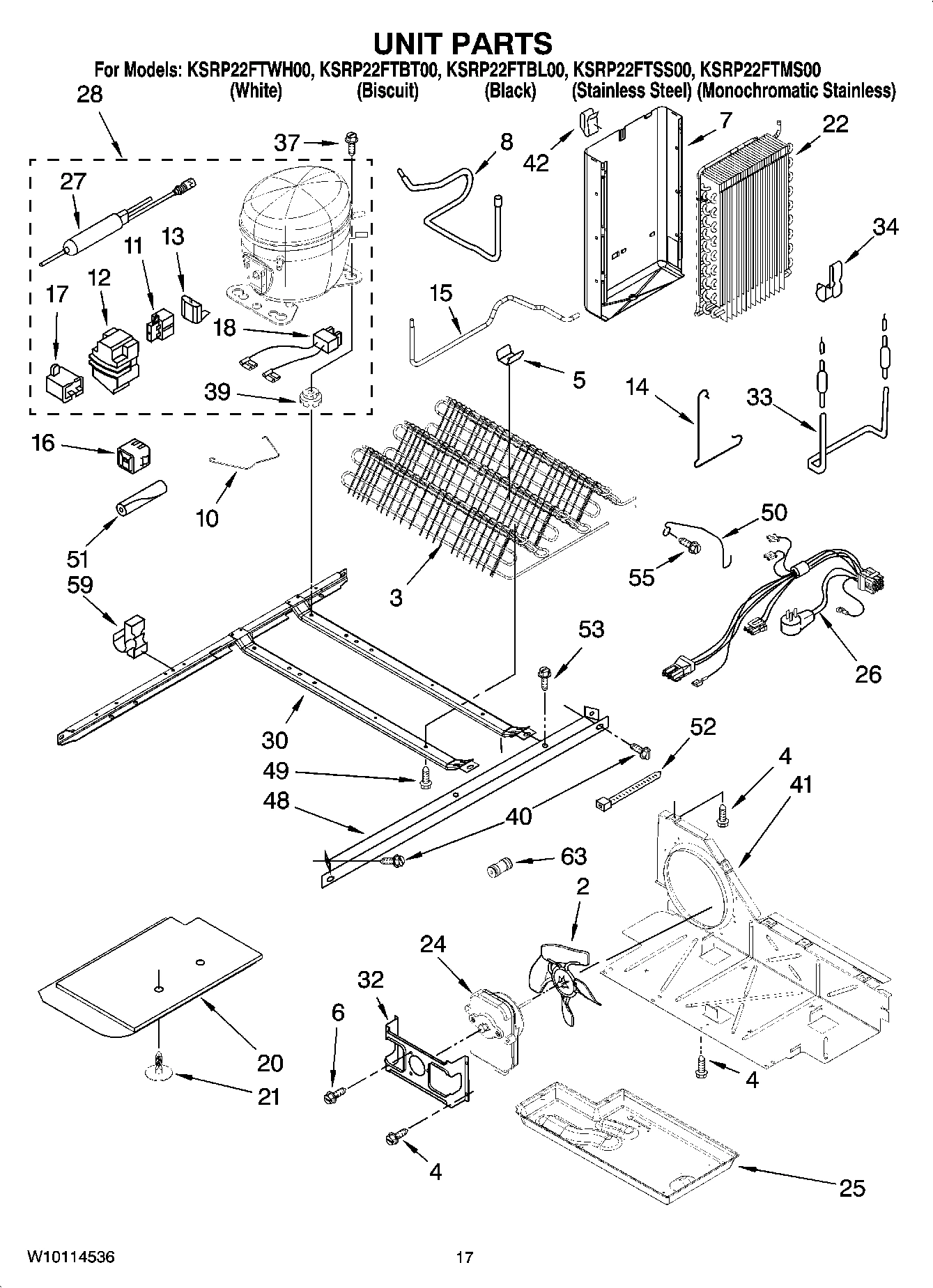

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $99.46

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $23.99

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Handle (Includes 11) (Stainless Steel) WPL 2319727S Contact Us For Availability

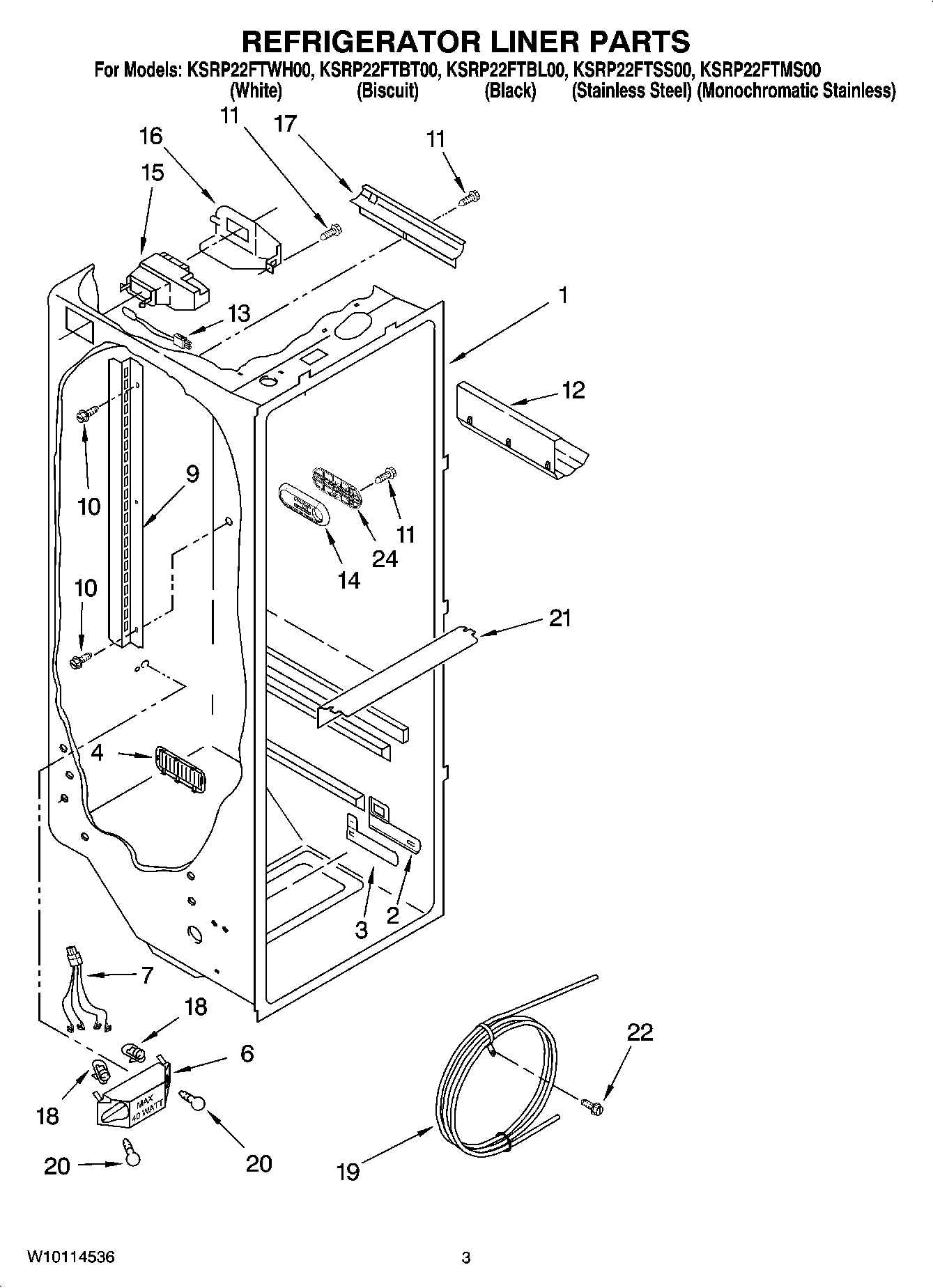

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

Handle (Includes 11) (Black) WPL 2319727B Contact Us For Availability

Eyelet, Roller WPL 2174478 Contact Us For Availability

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $58.43

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $165.76

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $221.99

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $57.18

W10896198 Whirlpool Refrigerator Start Device Backorder WPL W10896198 $121.71

W11629923 Whirlpool Coupling In Stock WPL W11629923 $15.99

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

Crisper Pan (Includes 13, 14 18, 19 & 21) WPL 2301481 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

Meat Pan (Includes 13, 14, 19 & 22) WPL 2301482 Contact Us For Availability

Cover, Evaporator (Includes 11) WPL 2304908 Contact Us For Availability

4389654 Whirlpool Screw Backorder WPL 4389654 $8.89

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

Window, Crisper WPL 2174076 Contact Us For Availability

W10683539 Whirlpool Refrigerator Dispensing H Backorder WPL W10683539 $23.56

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $67.24

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $123.79

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $4.82

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

2176095 Whirlpool Refrigerator Deflector Backorder WPL 2176095 $59.87

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

WPW10122550 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10122550 $143.04

Latch, Bin WPL 2301346 Contact Us For Availability

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $14.02

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $6.75

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $20.18

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.79

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $250.47

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Window, Meat Pan WPL 2174362 Contact Us For Availability

23

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $9.15

23

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

23

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

W10297245 Whirlpool Refrigerator Arm Stripper Backorder WPL W10297245 $50.37

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $85.91

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $5.99

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

25

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $9.19

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

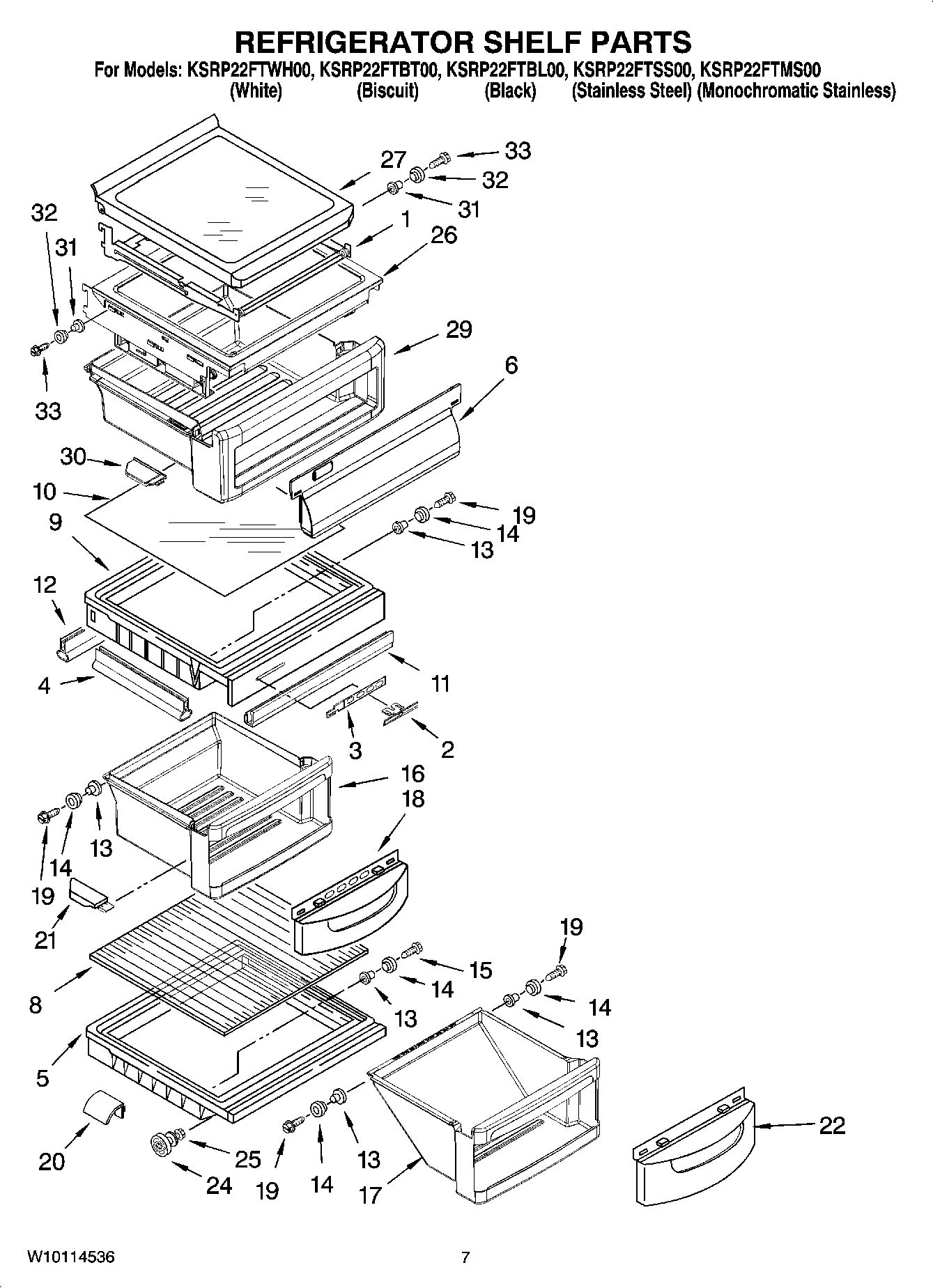

Shelf Assembly WPL 2301034 Contact Us For Availability

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

27

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

27

Shelf, Slide-Out Assembly WPL 2216102 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

28

Slide, Ice Maker WPL 2212321 Contact Us For Availability

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

29

Snack Bin (Includes 6 & 30) WPL 2301120 Contact Us For Availability

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $69.83

WP2260518AP Whirlpool Filter Cap Assembly In Stock WPL WP2260518AP $44.99

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

Cap, Snack Pan (Right Side) WPL 2301016 Contact Us For Availability

Cap, Snack Pan (Left Side) WPL 2301017 Contact Us For Availability

31

Eyelet WPL 2301153 Contact Us For Availability

31

Enclosure, Motor WPL 2256154 Contact Us For Availability

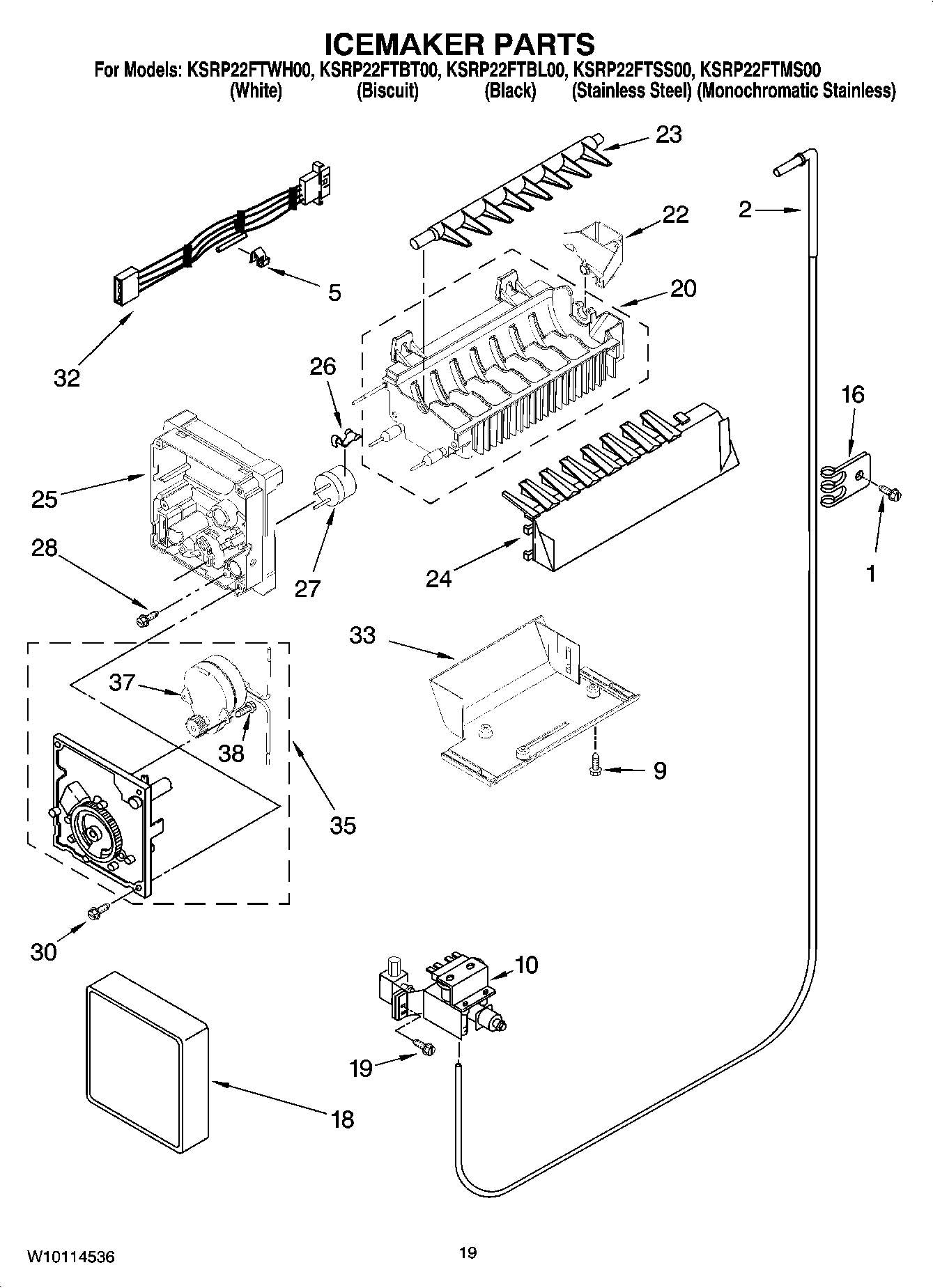

W10271509 Whirlpool Refrigerator Ice Maker Au In Stock WPL W10271509 $201.87

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

WPW10309401 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309401 $90.20

Roller WPL 2301152 Contact Us For Availability

33

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

33

Screw WPL 8533983 Contact Us For Availability

33

Cover WPL 2212305 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $71.99

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

36

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $86.14

36

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $50.80

37

Motor (Not Serviced, Order 35) WPL ARI99891A9 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

39

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.69

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

WPW10190961 Whirlpool Ice Maker In Stock WPL WPW10190961 $157.99

100

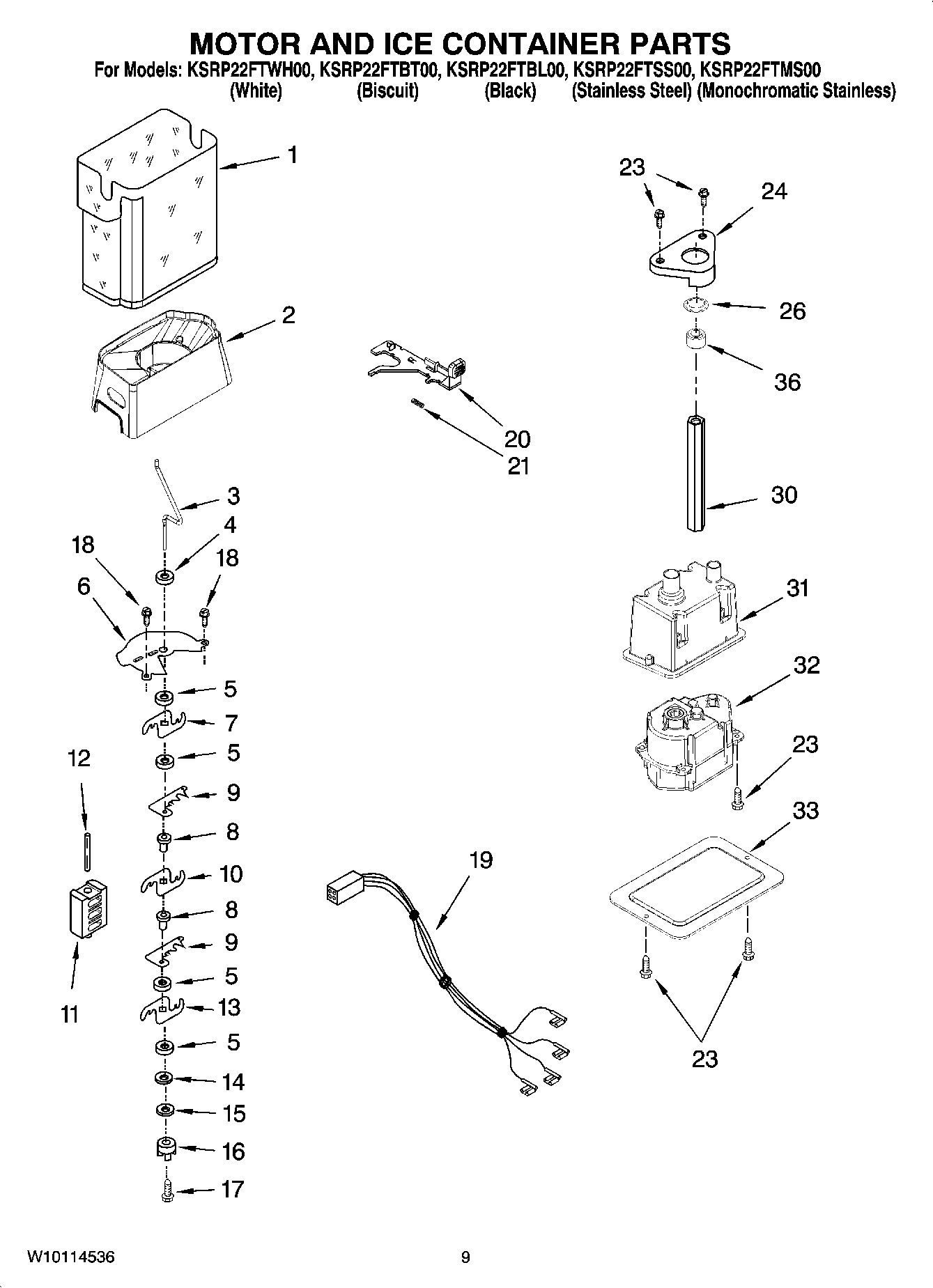

Ice Container (Complete) WPL 2315941 Contact Us For Availability
