Model Whirlpool KSRB25FKBL01 REFRIGERATOR – Common Parts & Diagrams

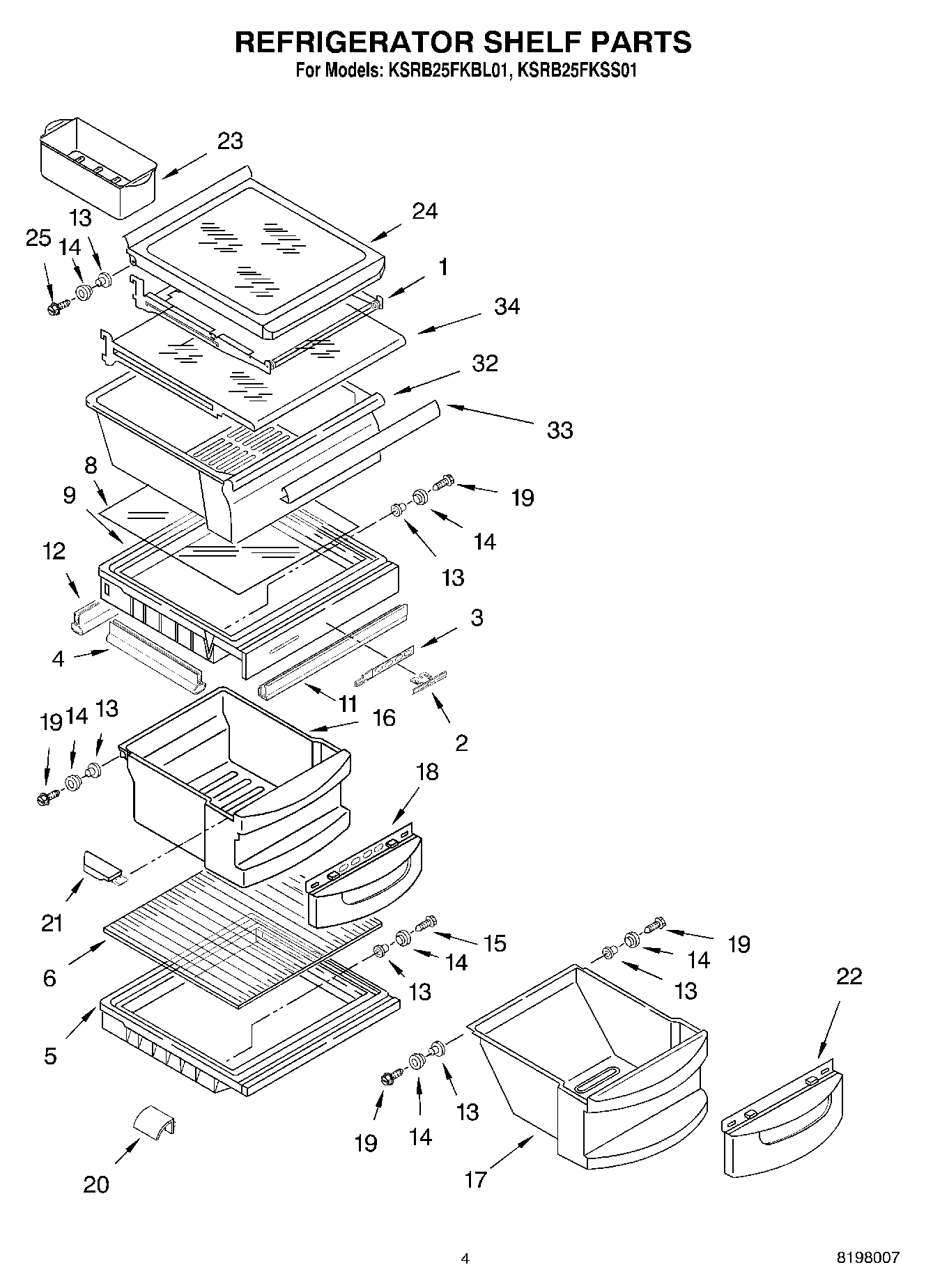

03 - REFRIGERATOR SHELF
05 - MOTOR AND ICE CONTAINER

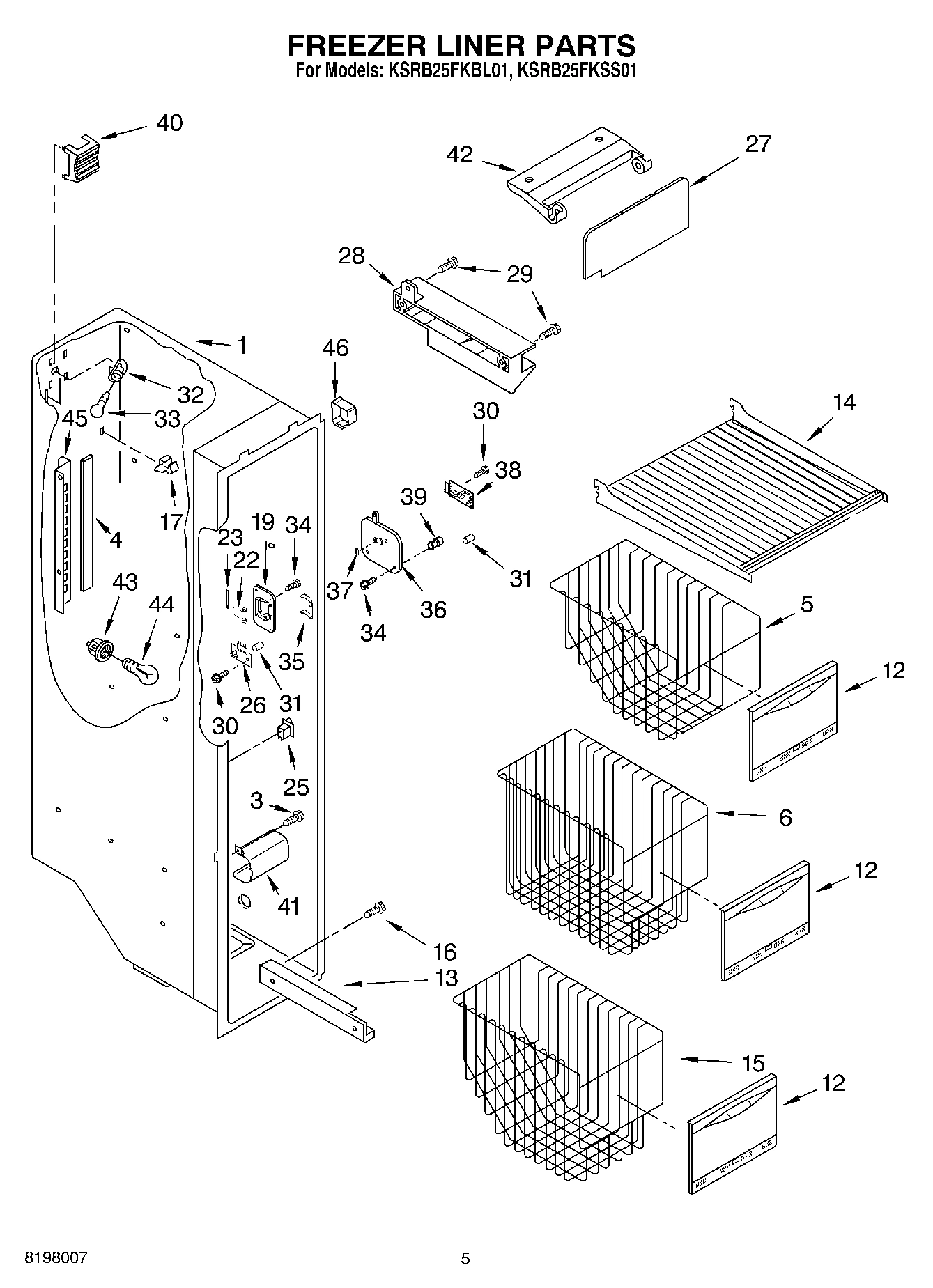

04 - FREEZER LINER

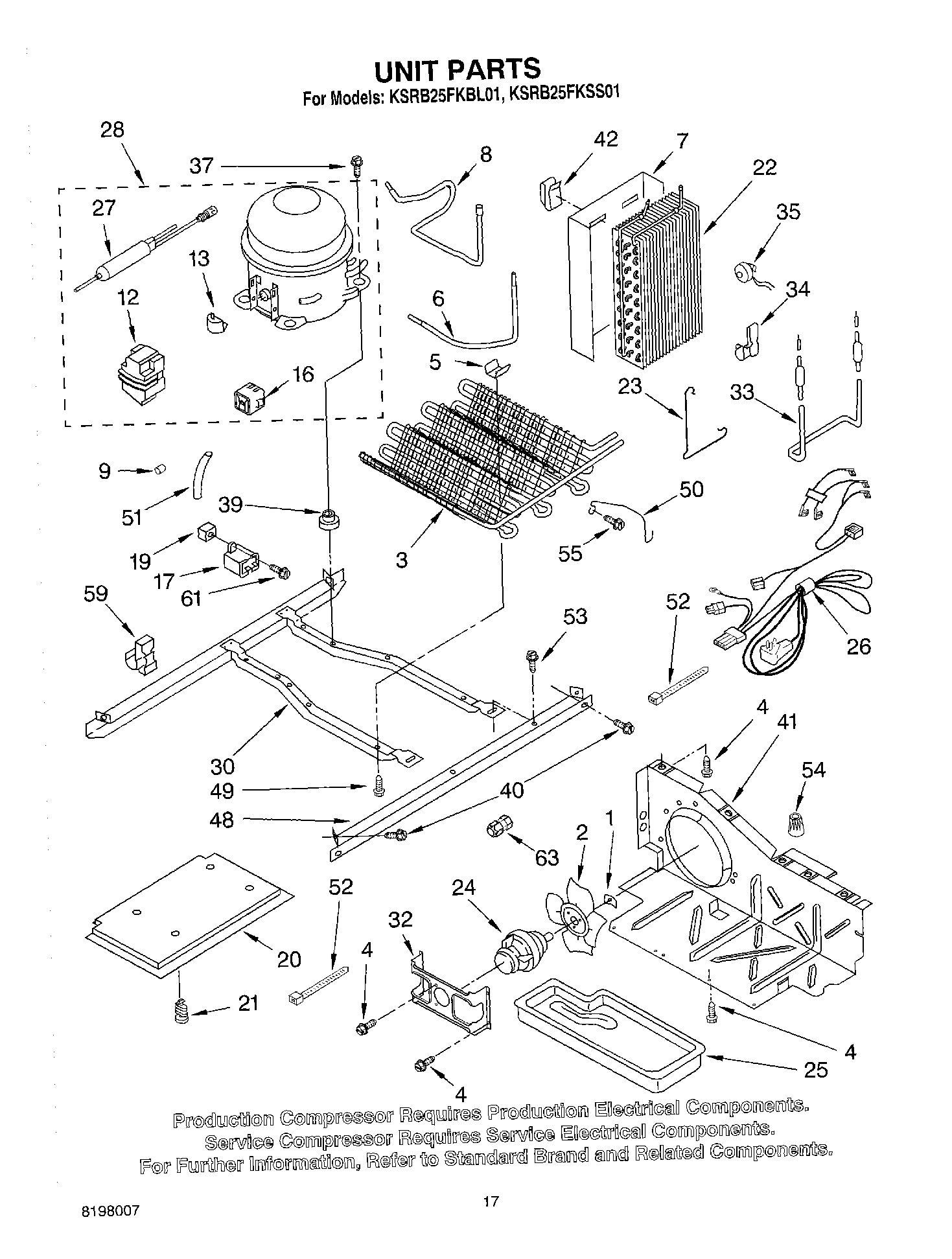

11 - UNIT

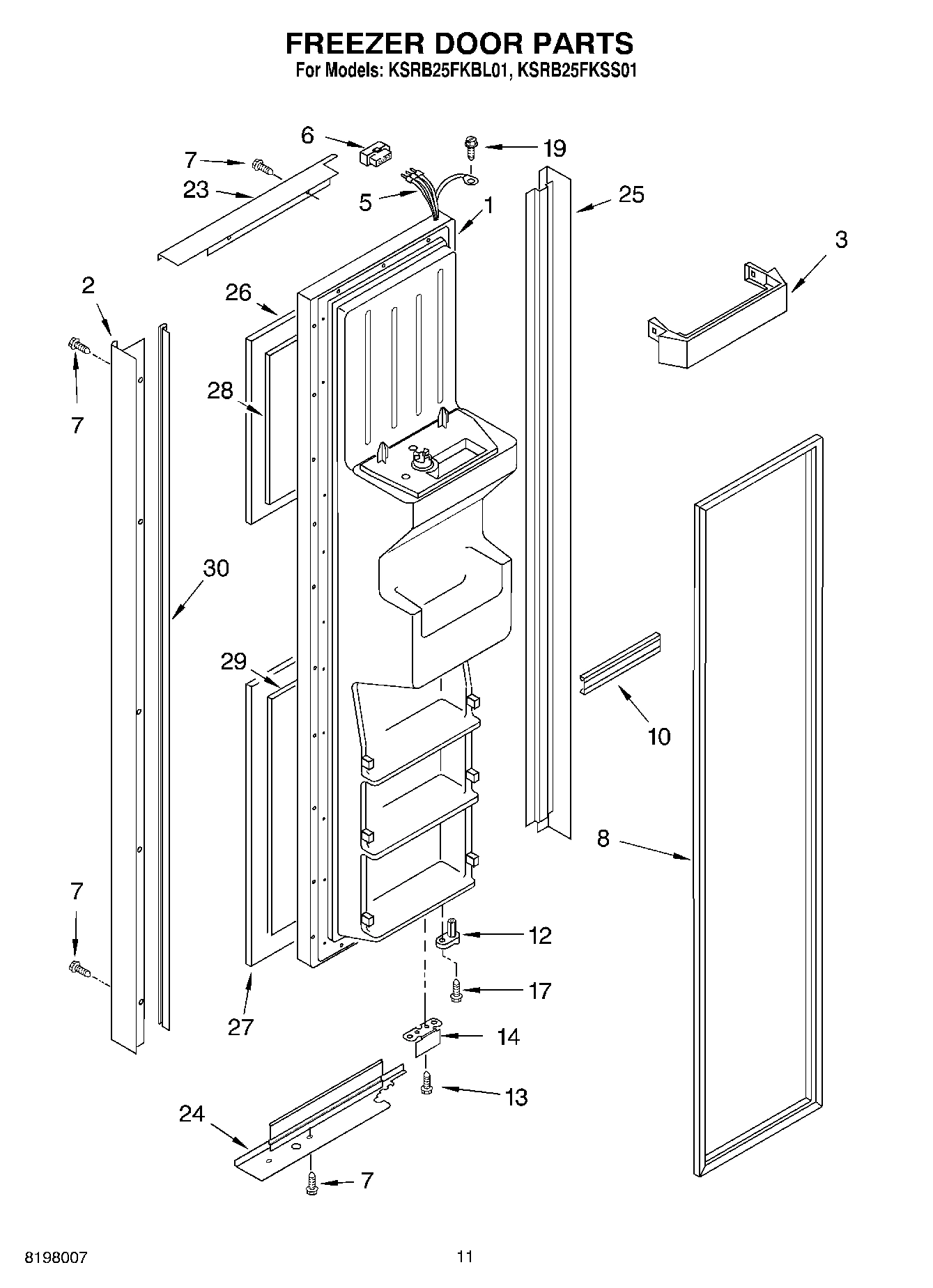

07 - FREEZER DOOR

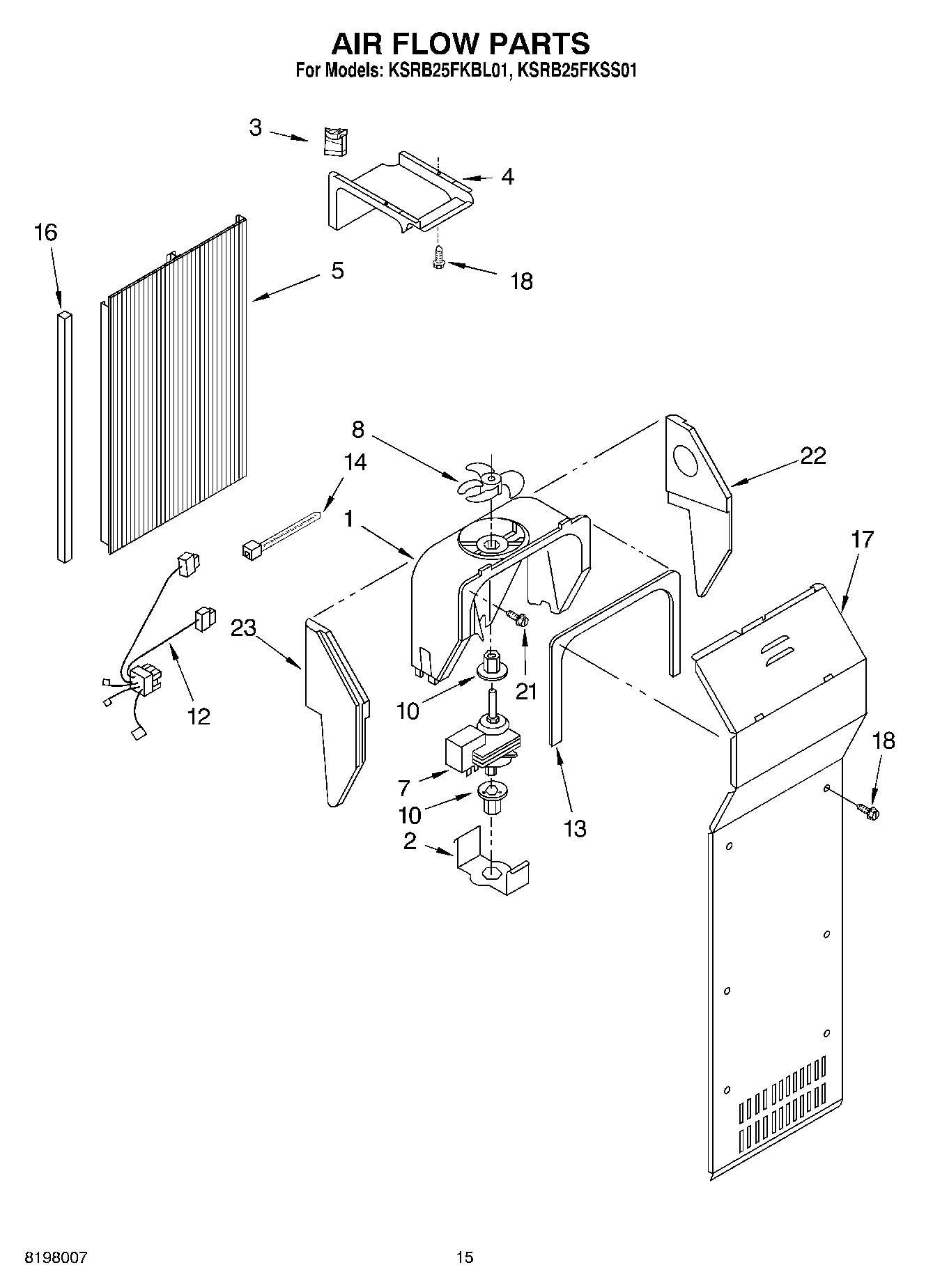

09 - AIR FLOW

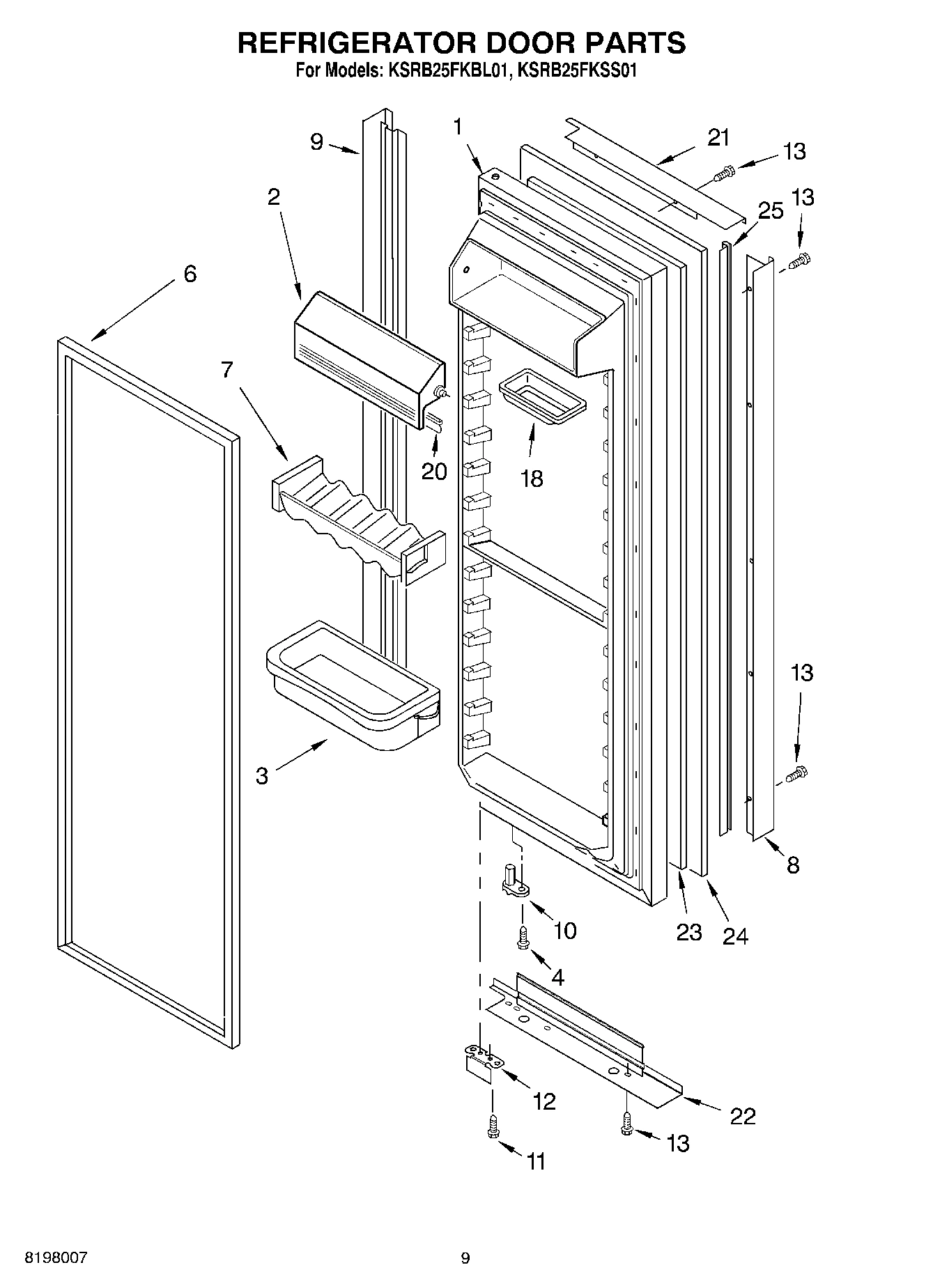

06 - REFRIGERATOR DOOR

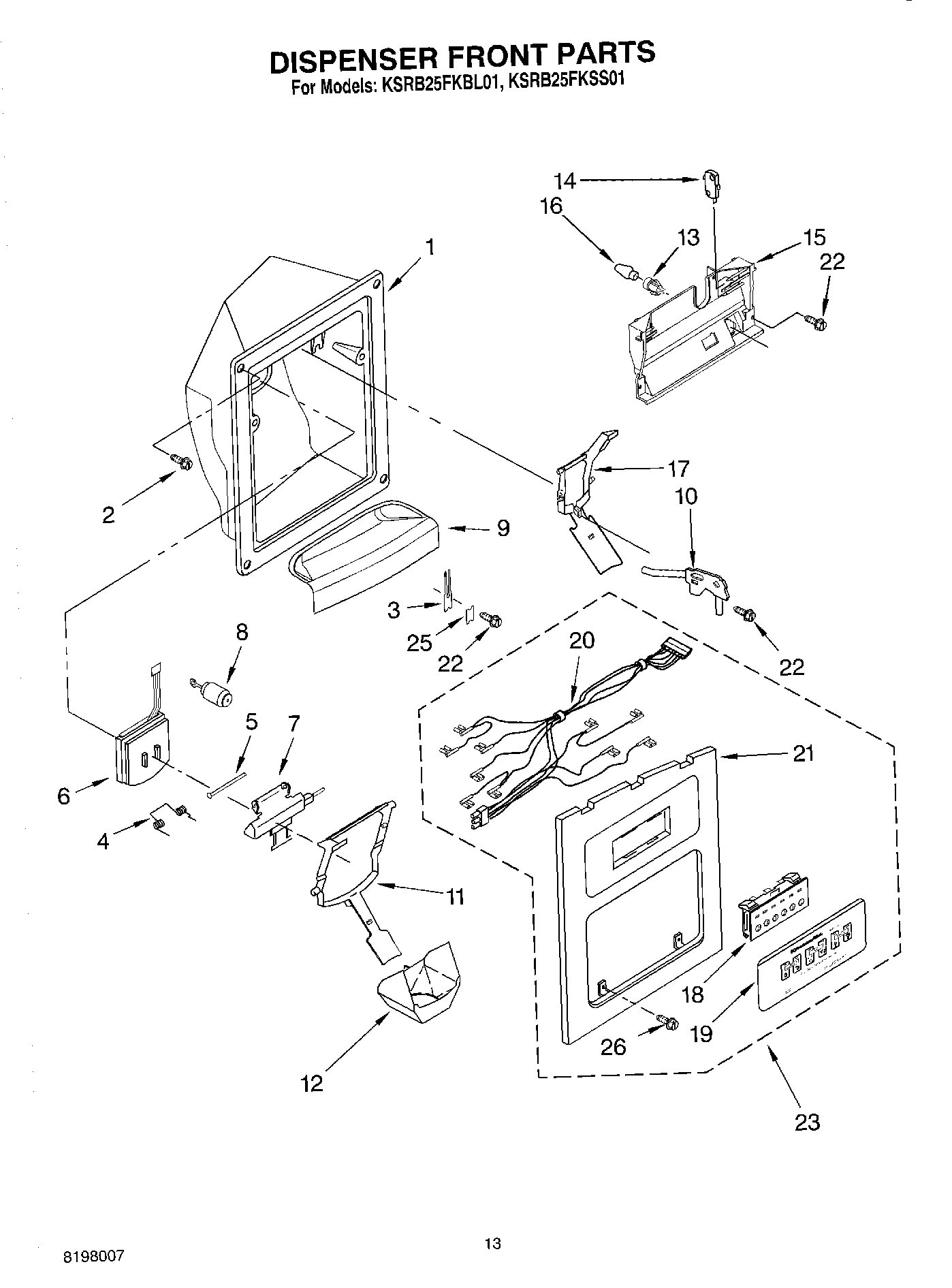

08 - DISPENSER FRONT

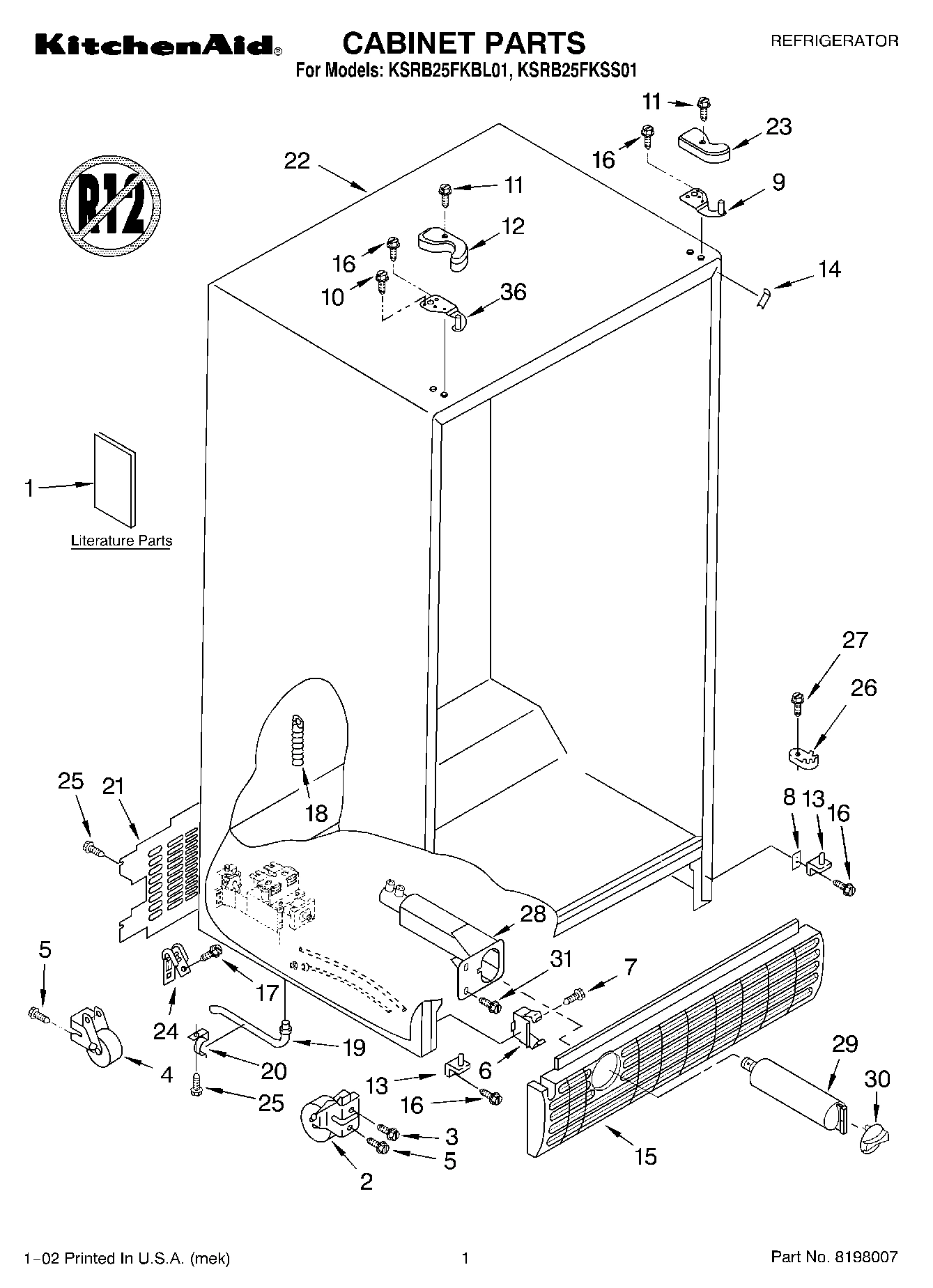

01 - CABINET, LITERATURE

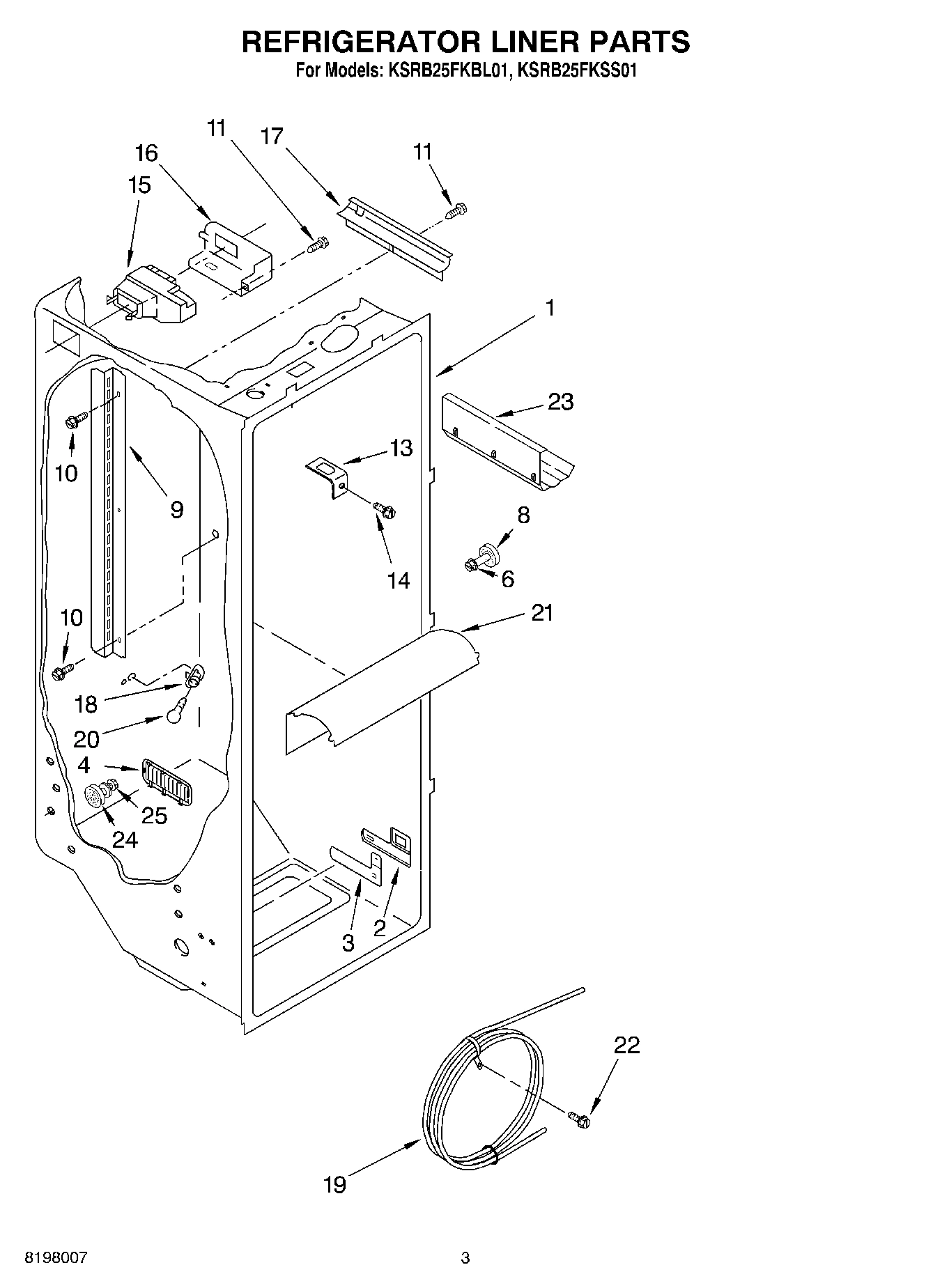

02 - REFRIGERATOR LINER

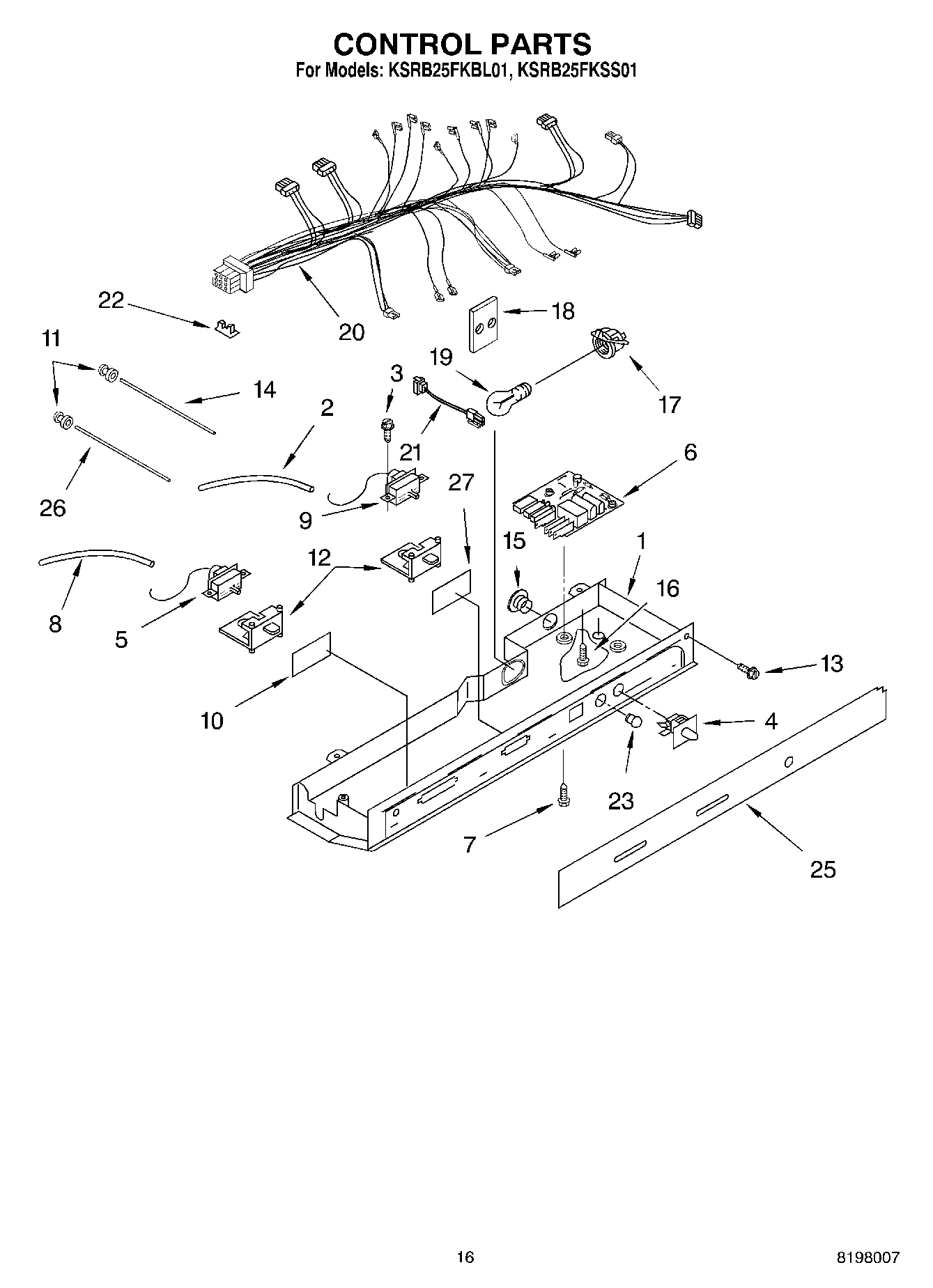

10 - CONTROL

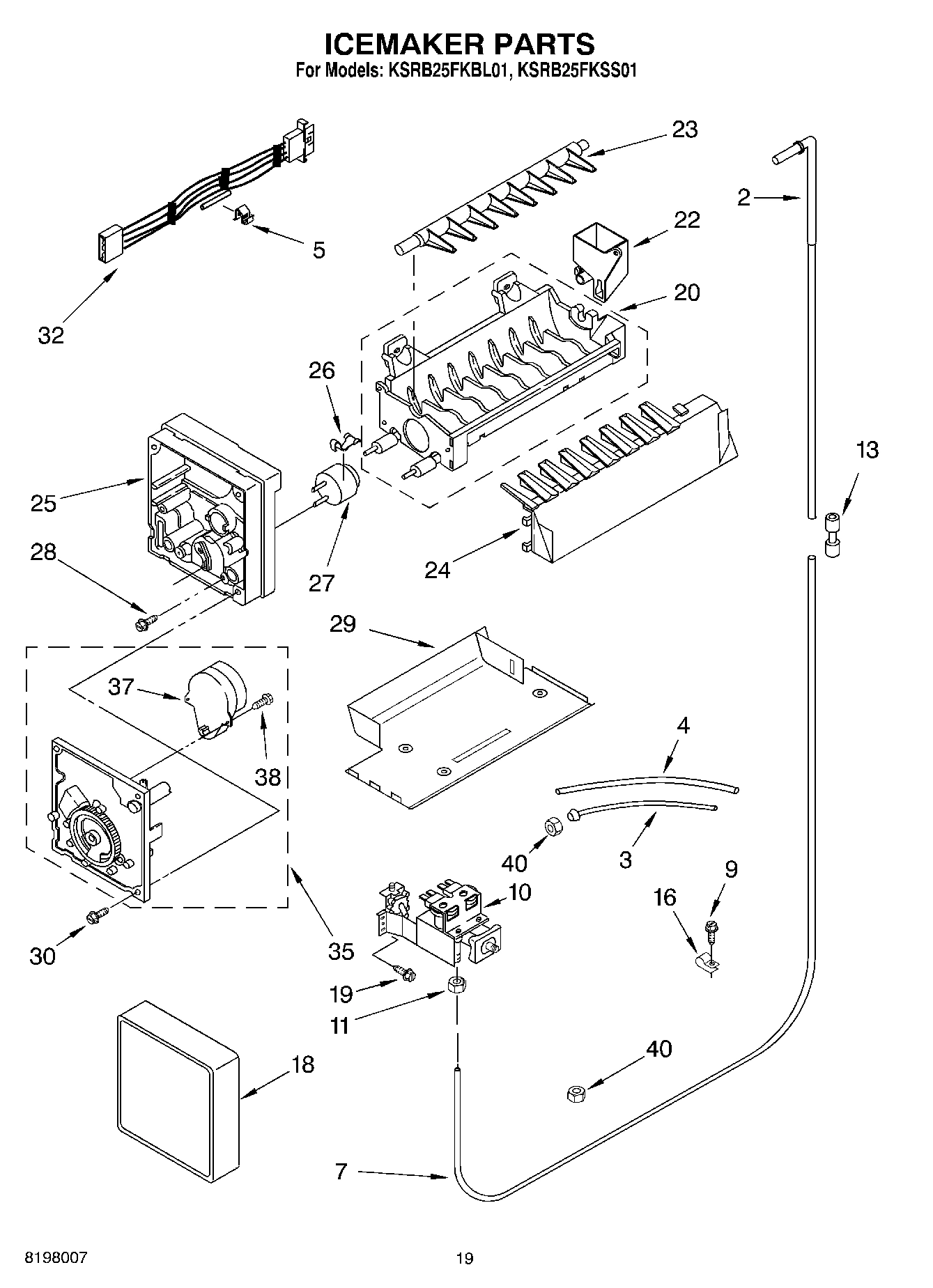

12 - ICE MAKER, OPTIONAL
Common parts from model Whirlpool KSRB25FKBL01 REFRIGERATOR
Icemaker WPL LIT787316 Contact Us For Availability
Refrigerator WPL LIT787808 Contact Us For Availability
1
Housing, Dispenser (Not Serviced) WPL ARI94669A6 Contact Us For Availability
1
LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2220107 Contact Us For Availability
1
LITERATURE PARTS (Owner`s Manual) WPL LIT2220276 Contact Us For Availability
1
LITERATURE PARTS (Energy Guide) WPL LIT2220281 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI94667A9 Contact Us For Availability
1
Control Box WPL 2216588 Contact Us For Availability
2
Fan, Blade WPL 2190685 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Crusher Bin WPL 2212367 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
5
Dispenser Harness WPL 2206178 Contact Us For Availability
6
Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability
7
Beverage Holder WPL 2193409 Contact Us For Availability
7
Door Mechanism Assembly WPL 2206423 Contact Us For Availability
8
Handle (Black) WPL 2206852B Contact Us For Availability
8
Handle (Stainless Steel) WPL 2206852S Contact Us For Availability
8
Mechanism Delay WPL 2205686 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Trim, Hinge Side (Black) WPL 2206791B Contact Us For Availability
9
Trim, Hinge Side (Stainless Steel) WPL 2206791S Contact Us For Availability
9
Shelf Ladder WPL 2206273 Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Bracket, Door Stop WPL 2206630B Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Butter, Dish WPL 2165792 Contact Us For Availability
18
Switch Assembly (Not Available, Order No.23) WPL ARI94670A7 Contact Us For Availability
19
Overlay, Front Cover (Not Available, Order No WPL ARI94671A9 Contact Us For Availability
20
Gasket WPL 2159124 Contact Us For Availability
20
Control Box Harness WPL 2216587 Contact Us For Availability
21
Trim, Door Top (Black) WPL 2206790B Contact Us For Availability
21
Trim, Door Top (Stainless Steel) WPL 2206790S Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI94672A5 Contact Us For Availability
21
Light Lens WPL 2206269 Contact Us For Availability
22
Trim, Door Bottom (Black) WPL 2206792B Contact Us For Availability
22
Trim, Door Bottom (Stainless Steel) WPL 2206792S Contact Us For Availability
22
Cabinet (Not A Serviceable Part) WPL ARI94666A8 Contact Us For Availability
22
Screw WPL 488280 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
23
Clip WPL 2161324 Contact Us For Availability
23
Filler Board WPL 2219803 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2219797B Contact Us For Availability
24
Holder WPL 2212369 Contact Us For Availability
24
Panel, Door (Black) WPL 2206883B Contact Us For Availability
24
Panel, Door (Stainless Steel) WPL 2206889S Contact Us For Availability
25
Edging, Panel (Black) WPL 2206893B Contact Us For Availability
25
Escutcheon, Control Box WPL 2200099 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability
40
WPL 80051 WPL 80051 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
WPL 799344 WPL 799344 Contact Us For Availability
40
Torx Key WPL 1117510 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
40
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
40
WPL 799340 WPL 799340 Contact Us For Availability
40
WPL 799833 WPL 799833 Contact Us For Availability
40
WPL 8171358 WPL 8171358 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
