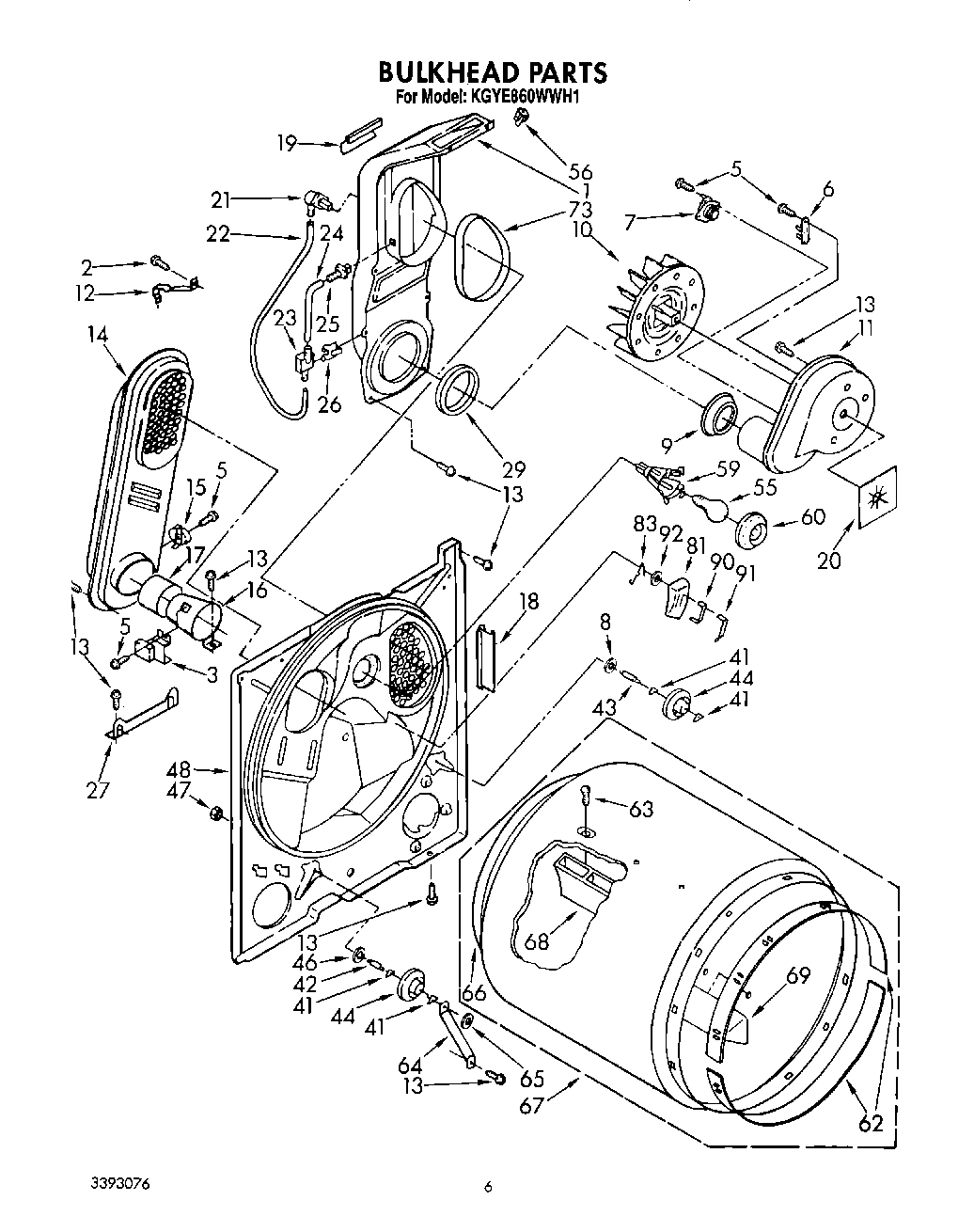

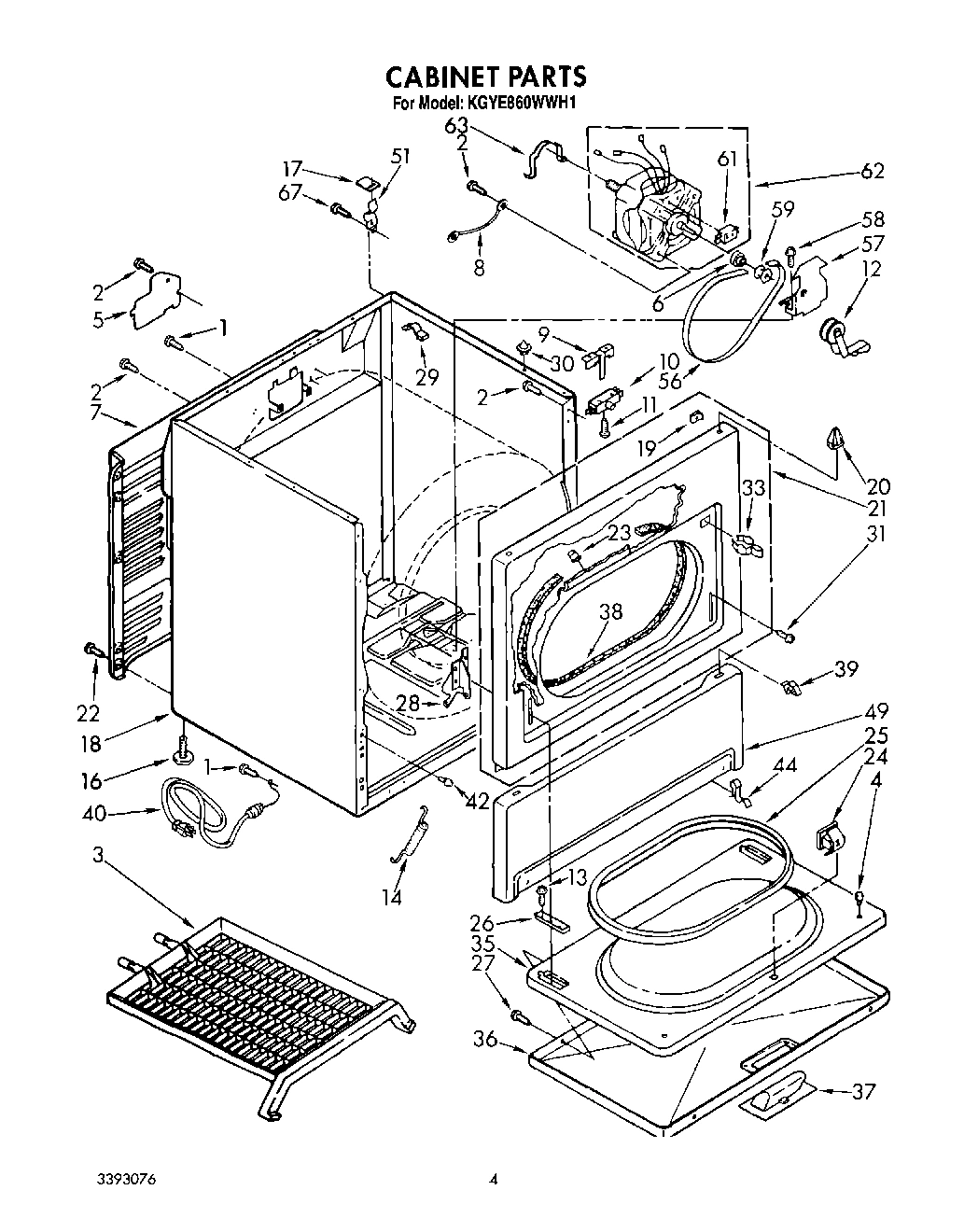

Model Whirlpool KGYE860WWH1 – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

1

Lint Chute Assembly WPL 349242 Contact Us For Availability

3

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

3

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

3

Rack, Dry WPL 692990 Contact Us For Availability

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $39.44

5

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

6

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $85.97

7

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $26.78

7

Panel, Rear WPL 348364 Contact Us For Availability

8

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.67

8

Wire, Ground WPL 690236 Contact Us For Availability

9

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $14.02

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $7.99

10

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $27.54

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $30.54

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $23.48

11

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

11

Housing, Blower WPL 695081 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $9.33

12

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $8.58

13

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

14

WPW10041960 Whirlpool Door Spring Backorder WPL WPW10041960 $25.61

15

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.98

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

15

Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability

16

279900 Whirlpool Box O/S1 Backorder WPL 279900 $213.99

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

17

18849 Whirlpool Pad Backorder WPL 18849 $13.10

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

17

Buzzer, Adjustable WPL 347137 Contact Us For Availability

686889 Whirlpool Pad Backorder WPL 686889 $14.02

Screw, 8-18 (2) WPL 64211 Contact Us For Availability

Cabinet (White) WPL 3394118 Contact Us For Availability

Cabinet (Almond) WPL 3394119 Contact Us For Availability

19

686770 Whirlpool Support Bracket Backorder WPL 686770 $8.05

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

19

Stop, Push-In (2) WPL 358473 Contact Us For Availability

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.99

20

Knob, Timer WPL 3389725 Contact Us For Availability

20

Seal, Blower WPL 3392123 Contact Us For Availability

279740 Whirlpool Panel Primary with O/S2 Backorder WPL 279740 $214.86

Relay, Push-To-Start WPL 348314 Contact Us For Availability

Panel Front (Almond) WPL 695631 Contact Us For Availability

Tap, Downstream WPL 339625 Contact Us For Availability

22

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

22

Cap, End (R.H.) WPL 3354646 Contact Us For Availability

22

Tubing Downstream WPL 339893 Contact Us For Availability

23

279220 Whirlpool Clip In Stock WPL 279220 $18.99

23

Switch, Temperature (Variable) WPL 3394484 Contact Us For Availability

23

Sensor, Pressure WPL 696371 Contact Us For Availability

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.99

Nut, Compression WPL 233076 Contact Us For Availability

Wire, Jumper (Violet) WPL 3393809 Contact Us For Availability

Wire, Jumper (Blue) WPL 3393810 Contact Us For Availability

Tubing Upstream WPL 339892 Contact Us For Availability

25

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $72.99

25

Timer, 60 Hz. WPL 3392949 Contact Us For Availability

25

Tap Upstream WPL 339624 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $14.02

26

Lamp, Indicator WPL 3350417 Contact Us For Availability

26

Clip, Switch WPL 339745 Contact Us For Availability

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

27

Lens, Light WPL 3350383 Contact Us For Availability

27

Support, Box WPL 348484 Contact Us For Availability

28

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $63.80

28

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $63.99

28

Knob, Push To Start WPL 3390054 Contact Us For Availability

29

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

29

W11415783 Whirlpool Seal In Stock WPL W11415783 $8.78

29

Wire, Ground WPL 690853 Contact Us For Availability

30

Locator, Top WPL 98669 Contact Us For Availability

31

Clip, Push-On (4) WPL 689559 Contact Us For Availability

31

Screw WPL 342043 Contact Us For Availability

32

Trim, Endcap (L.H.) WPL 3353685 Contact Us For Availability

33

Trim, Endcap (R.H.) WPL 3353678 Contact Us For Availability

35

WP695737 Whirlpool Door Backorder WPL WP695737 $158.45

36

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $107.01

36

Door, Front (Almond) WPL 3393550 Contact Us For Availability

37

WP348721 Whirlpool Handle In Stock WPL WP348721 $65.89

37

handle, door (almond) WPL 3390782 Contact Us For Availability

38

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $70.95

38

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

39

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $4.98

40

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $79.58

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

42

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $66.43

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $57.82

42

Harness, Wiring WPL 3394610 Contact Us For Availability

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $56.99

44

WP297092 Whirlpool Clip In Stock WPL WP297092 $8.99

44

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $19.51

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

46

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $4.82

48

Knob, Adjustable Buzzer WPL 3351726 Contact Us For Availability

48

BULKHEAD WPL 685821 Contact Us For Availability

49

Panel, Toe (White) WPL 697095 Contact Us For Availability

49

Panel, Toe (Almond) WPL 697096 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $4.82

54

Bumper, Lint Lid WPL 297535 Contact Us For Availability

55

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $15.75

56

98460 Whirlpool Nut Backorder WPL 98460 $8.89

57

WP348780 Whirlpool Base In Stock WPL WP348780 $74.99

58

3400500 Whirlpool Screw In Stock WPL 3400500 $8.89

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $27.99

59

Socket Assembly WPL 691034 Contact Us For Availability

60

Lens, Drum Light WPL 341165 Contact Us For Availability

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $139.99

62

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $73.74

62

WPW10476828-includeCORE Whirlpool WPW10476828 Backorder WPL WPW10476828-includeCORE $237.84

63

3391885 Whirlpool Connector Backorder WPL 3391885 $59.13

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

64

W11684613 Whirlpool Bracket Backorder WPL W11684613 $13.15

65

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

66

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $30.60

67

W10899578 Whirlpool Dryer Drum Assembly In Stock WPL W10899578 $175.99

68

WP692490 Whirlpool Drum Baffle Backorder WPL WP692490 $101.99

69

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $92.28

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.98

81

279366 Whirlpool Sensor Kit In Stock WPL 279366 $71.82

83

WP342267 Whirlpool Clip Backorder WPL WP342267 $4.62

90

WP348859 Whirlpool Electrode Assembly Backorder WPL WP348859 $4.82

91

WP348860 Whirlpool Electrode Backorder WPL WP348860 $4.82

92

WP298877 Whirlpool Washer Backorder WPL WP298877 $15.23
