Model Whirlpool KGYE800TPL0 – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $28.93

350956 Whirlpool Spray Assembly In Stock WPL 350956 $17.07

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.38

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $11.02

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.60

1

Lint Chute Assembly WPL 349242 Contact Us For Availability

1

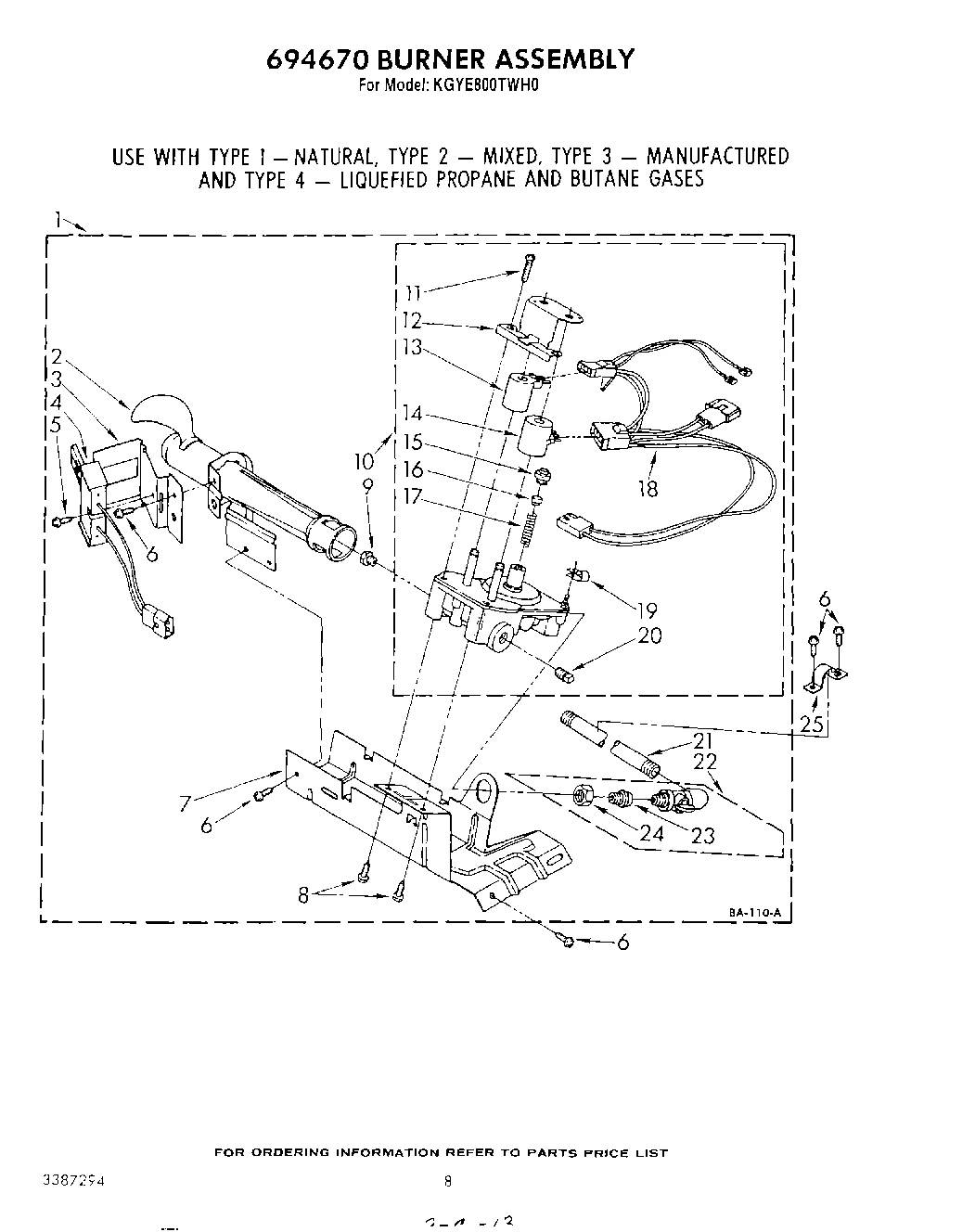

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $84.00

3

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $40.93

3

WP693995 Whirlpool Screw In Stock WPL WP693995 $2.85

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.66

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $36.46

4

Heater, Thermostat WPL 61894 Contact Us For Availability

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $25.32

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.75

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.94

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

6

Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability

7

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $33.18

7

Panel, Rear WPL 348364 Contact Us For Availability

7

Base, Burner WPL 693986 Contact Us For Availability

8

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.92

8

Wire, Ground WPL 690236 Contact Us For Availability

9

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $16.76

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $15.45

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $15.45

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $15.45

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $4.20

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

10

279923 Whirlpool Gas Valve In Stock WPL 279923 $169.13

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $23.03

10

Switch, Door WPL 3387218 Contact Us For Availability

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $11.80

11

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.77

11

Housing, Blower WPL 695081 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $9.66

12

694538 Whirlpool Bracket Backorder WPL 694538 $62.30

12

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $8.75

13

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.07

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $20.40

14

WPW10041960 Whirlpool Door Spring Backorder WPL WPW10041960 $19.34

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.32

15

Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability

16

279900 Whirlpool Box O/S1 Backorder WPL 279900 $171.06

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.80

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.81

17

18849 Whirlpool Pad Backorder WPL 18849 $14.22

17

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $60.62

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $12.06

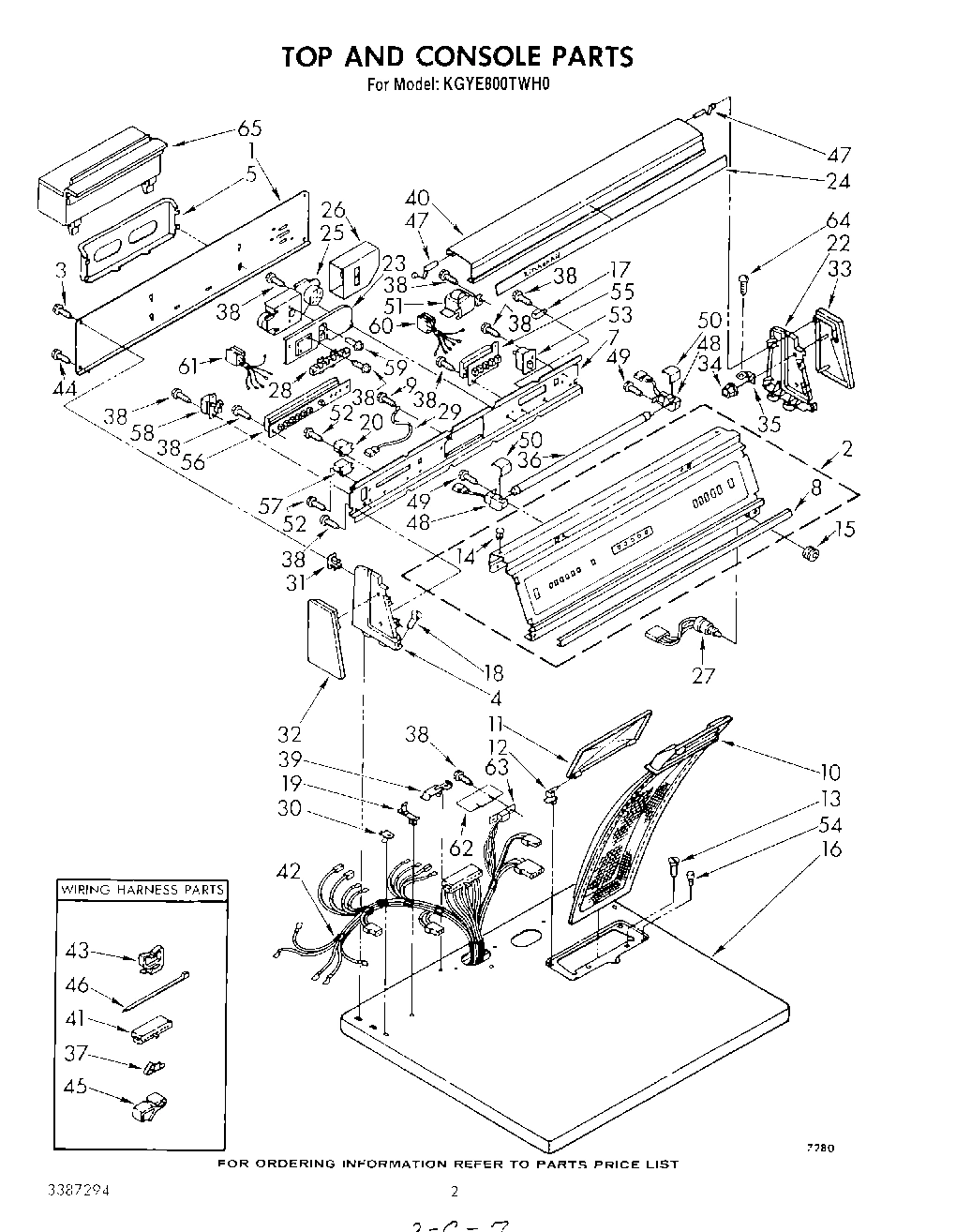

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $171.90

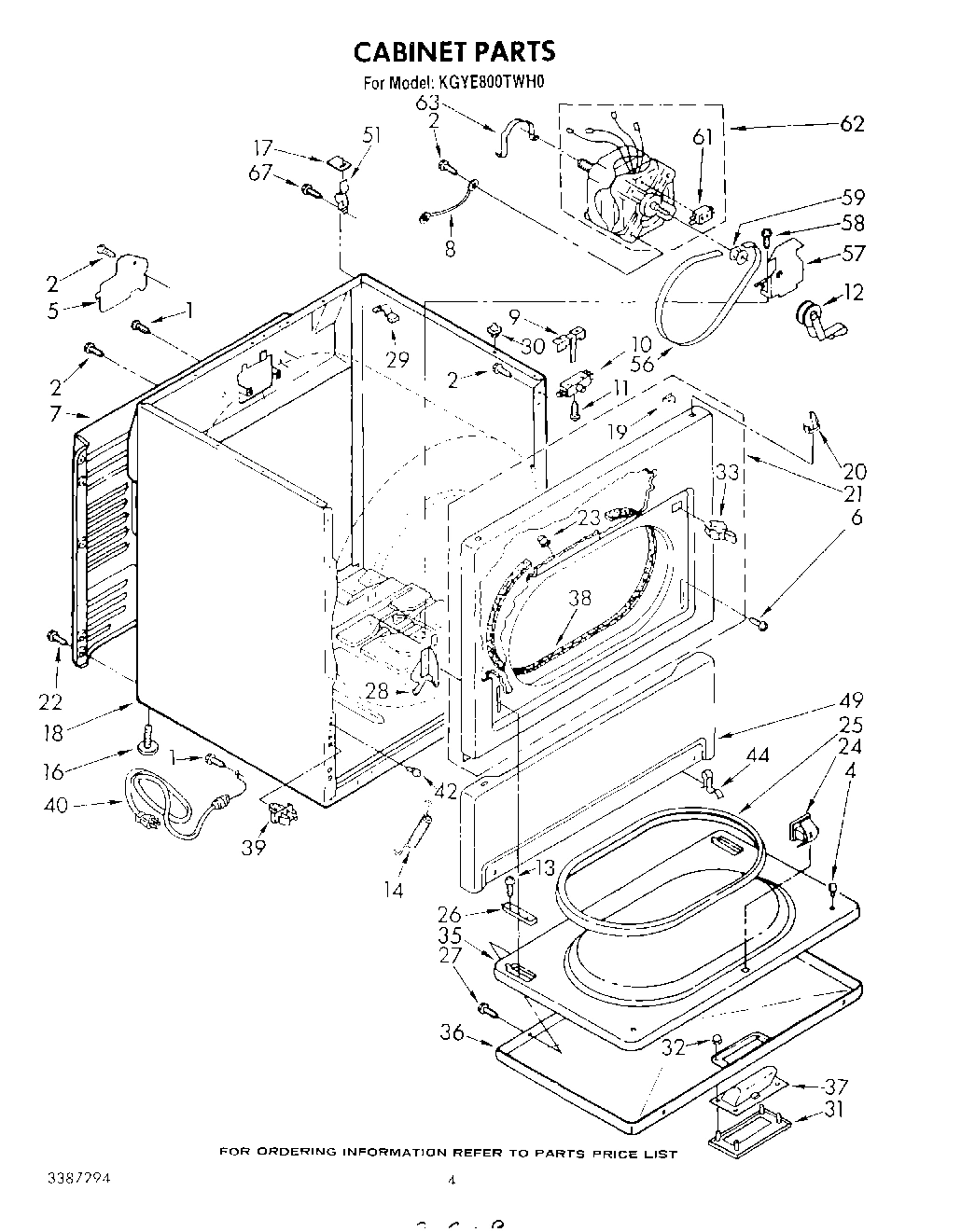

Cabinet (White) WPL 690841 Contact Us For Availability

Cabinet (Almond) WPL 690842 Contact Us For Availability

Cabinet (Harvest Wheat) WPL 690845 Contact Us For Availability

cabinet (toast) WPL 694876 Contact Us For Availability

Cabinet (Platinum) WPL 694877 Contact Us For Availability

686770 Whirlpool Support Bracket Backorder WPL 686770 $11.71

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.86

Stop, Push-In (2) WPL 358473 Contact Us For Availability

Clip, Harness WPL 694510 Contact Us For Availability

697811 Whirlpool Relay Backorder WPL 697811 $55.09

W10295523 Whirlpool Plug Backorder WPL W10295523 $13.77

WP18776 Whirlpool Lock In Stock WPL WP18776 $5.44

Seal, Blower WPL 694630 Contact Us For Availability

279740 Whirlpool Panel Primary with O/S2 Backorder WPL 279740 $197.77

Tap, Downstream WPL 339625 Contact Us For Availability

Panel Front (Almond) WPL 695631 Contact Us For Availability

panel, front (harvest wheat) WPL 695632 Contact Us For Availability

Panel Front (Toast) WPL 695633 Contact Us For Availability

Panel, Front (Platinum) WPL 695634 Contact Us For Availability

Pipe, Gas Supply WPL 233273 Contact Us For Availability

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.22

Cap, End (R.H.) WPL 388504 Contact Us For Availability

Tubing Downstream WPL 339893 Contact Us For Availability

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

279220 Whirlpool Clip Backorder WPL 279220 $12.30

3393767 Whirlpool Pipe Backorder WPL 3393767 $69.67

Bracket, Timer WPL 697675 Contact Us For Availability

Sensor, Pressure WPL 696371 Contact Us For Availability

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.90

Nut, Compression WPL 233076 Contact Us For Availability

Insert, Lamp Cover WPL 3388189 Contact Us For Availability

Tubing Upstream WPL 339892 Contact Us For Availability

341029 Whirlpool Clamp Backorder WPL 341029 $11.80

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $19.56

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $53.02

Timer, 60Hz. WPL 697349 Contact Us For Availability

Tap Upstream WPL 339624 Contact Us For Availability

Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $13.77

26

Shield, Timer Assembly WPL 697673 Contact Us For Availability

26

Clip, Switch WPL 339745 Contact Us For Availability

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $3.22

27

Switch, Flourescent WPL 3347115 Contact Us For Availability

27

Support, Box WPL 348484 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $37.17

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $37.50

Indicator Light WPL 697732 Contact Us For Availability

29

8528351 Whirlpool Clip Backorder WPL 8528351 $50.35

29

Wire, Ground WPL 690853 Contact Us For Availability

30

Nut, Push-In (2) WPL 358472 Contact Us For Availability

30

Locator, Top WPL 98669 Contact Us For Availability

31

WP689559 Whirlpool Nut Backorder WPL WP689559 $5.76

31

Insert, Handle WPL 389043 Contact Us For Availability

32

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.97

32

Trim, End Cap (L.H.) WPL 388745 Contact Us For Availability

33

Trim, End Cap (R.H.) WPL 388746 Contact Us For Availability

34

Nut, No.10 Thread WPL 388744 Contact Us For Availability

35

WP695737 Whirlpool Door Backorder WPL WP695737 $127.99

35

Bracket, End Cap (2) WPL 3349048 Contact Us For Availability

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $125.86

Lamp, Fluorescent WPL 387693 Contact Us For Availability

Door, Front (Almond) WPL 692319 Contact Us For Availability

door, front (harvest wheat) WPL 692322 Contact Us For Availability

door, front (toast) WPL 695130 Contact Us For Availability

Door, Front (Platinum) WPL 695131 Contact Us For Availability

Terminal WPL 60279 Contact Us For Availability

Handle, Door (White) WPL 3387212 Contact Us For Availability

Handle, Door (Almond) WPL 3387213 Contact Us For Availability

Handle, Door (Harvest Wheat) WPL 3387214 Contact Us For Availability

Handle, Door (Toast) WPL 3387215 Contact Us For Availability

Handle, Door (Platinum) WPL 3387216 Contact Us For Availability

38

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $48.47

38

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.46

39

Clip, Wire (Tech Sheet/Top) WPL 357144 Contact Us For Availability

39

Clip, Toe Panel WPL 342601 Contact Us For Availability

40

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $54.89

40

Cover, Light (Includes No.24) WPL 3387152 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.53

41

Connector WPL 60278 Contact Us For Availability

42

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $107.33

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $35.08

42

Harness, Electric WPL 697755 Contact Us For Availability

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $34.97

43

Clip, Harness (Rear Bulkhead Area) WPL 688412 Contact Us For Availability

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $9.54

44

WP297092 Whirlpool Clip In Stock WPL WP297092 $4.19

45

Clip, Harness Retainer (Door Switch Wires) WPL 689180 Contact Us For Availability

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $3.22

46

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.59

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $4.77

47

Hinge, Lamp Cover WPL 3347112 Contact Us For Availability

48

Socket, Lamp ((R.H.)) WPL 389217 Contact Us For Availability

48

Socket, Lamp ((L.H.)) WPL 389226 Contact Us For Availability

48

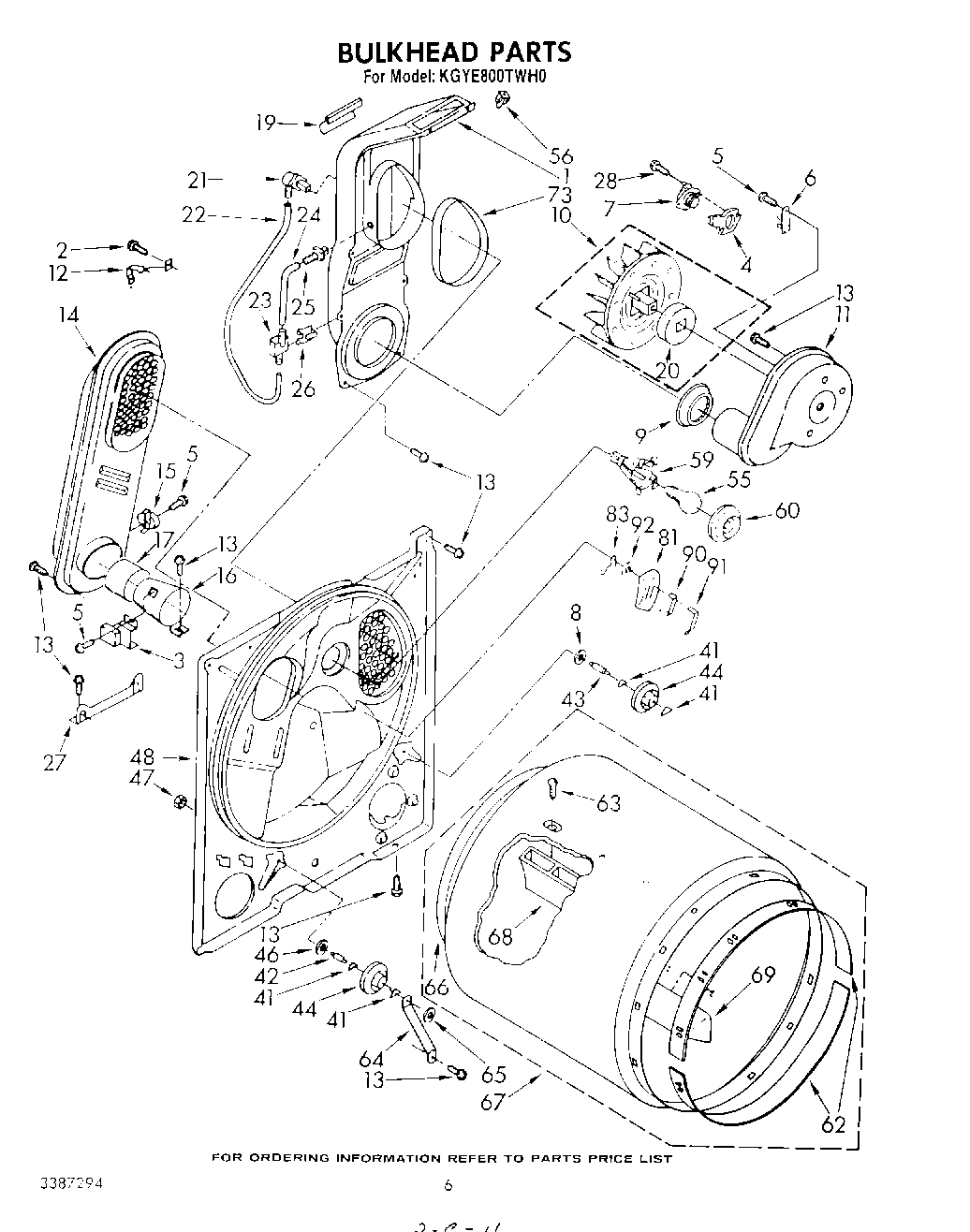

BULKHEAD WPL 685821 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $3.38

Panel, Toe (White) WPL 697095 Contact Us For Availability

Panel, Toe (Almond) WPL 697096 Contact Us For Availability

Toe Panel (H WPL 697097 Contact Us For Availability

WPL 697098 WPL 697098 Contact Us For Availability

WPL 697099 WPL 697099 Contact Us For Availability

50

Cover, Socket WPL 3348529 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $4.19

51

Ballast WPL 387700 Contact Us For Availability

52

Screw Mounting WPL 98831 Contact Us For Availability

53

Relay, P.T.S. WPL 697667 Contact Us For Availability

54

Bum WPL 297535 Contact Us For Availability

55

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $10.08

55

WPL 697668 WPL 697668 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $6.72

56

98460 Whirlpool Nut Backorder WPL 98460 $14.93

56

WPL 3387912 WPL 3387912 Contact Us For Availability

57

WP348780 Whirlpool Base In Stock WPL WP348780 $37.41

57

WPL 389265 WPL 389265 Contact Us For Availability

58

3400500 Whirlpool Screw Backorder WPL 3400500 $14.93

58

WPL 697726 WPL 697726 Contact Us For Availability

59

WP356418 Whirlpool Screw Backorder WPL WP356418 $3.22

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $27.98

59

Socket Assembly WPL 691034 Contact Us For Availability

60

WPL 697810 WPL 697810 Contact Us For Availability

60

Lens, Drum Light WPL 341165 Contact Us For Availability

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $139.91

61

WPL 3388352 WPL 3388352 Contact Us For Availability

62

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $44.31

62

WPL 661513 WPL 661513 Contact Us For Availability

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $4.20

63

WPL 341141 WPL 341141 Contact Us For Availability

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

64

W11684613 Whirlpool Bracket Backorder WPL W11684613 $10.18

64

WPL 310629 WPL 310629 Contact Us For Availability

65

WP90296 Whirlpool Clip Backorder WPL WP90296 $3.22

65

WPL 3388894 WPL 3388894 Contact Us For Availability

66

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $30.15

67

W10899578 Whirlpool Dryer Drum Assembly Backorder WPL W10899578 $173.98

67

WPL ARI154672A WPL ARI154672A Contact Us For Availability

68

WP692490 Whirlpool Drum Baffle In Stock WPL WP692490 $64.64

69

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $54.64

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.53

81

279366 Whirlpool Sensor Kit In Stock WPL 279366 $59.32

83

WP342267 Whirlpool Clip Backorder WPL WP342267 $6.78

90

WP348859 Whirlpool Electrode Assembly Backorder WPL WP348859 $4.77

91

WP348860 Whirlpool Electrode Backorder WPL WP348860 $4.77

92

WP298877 Whirlpool Washer Backorder WPL WP298877 $20.75
