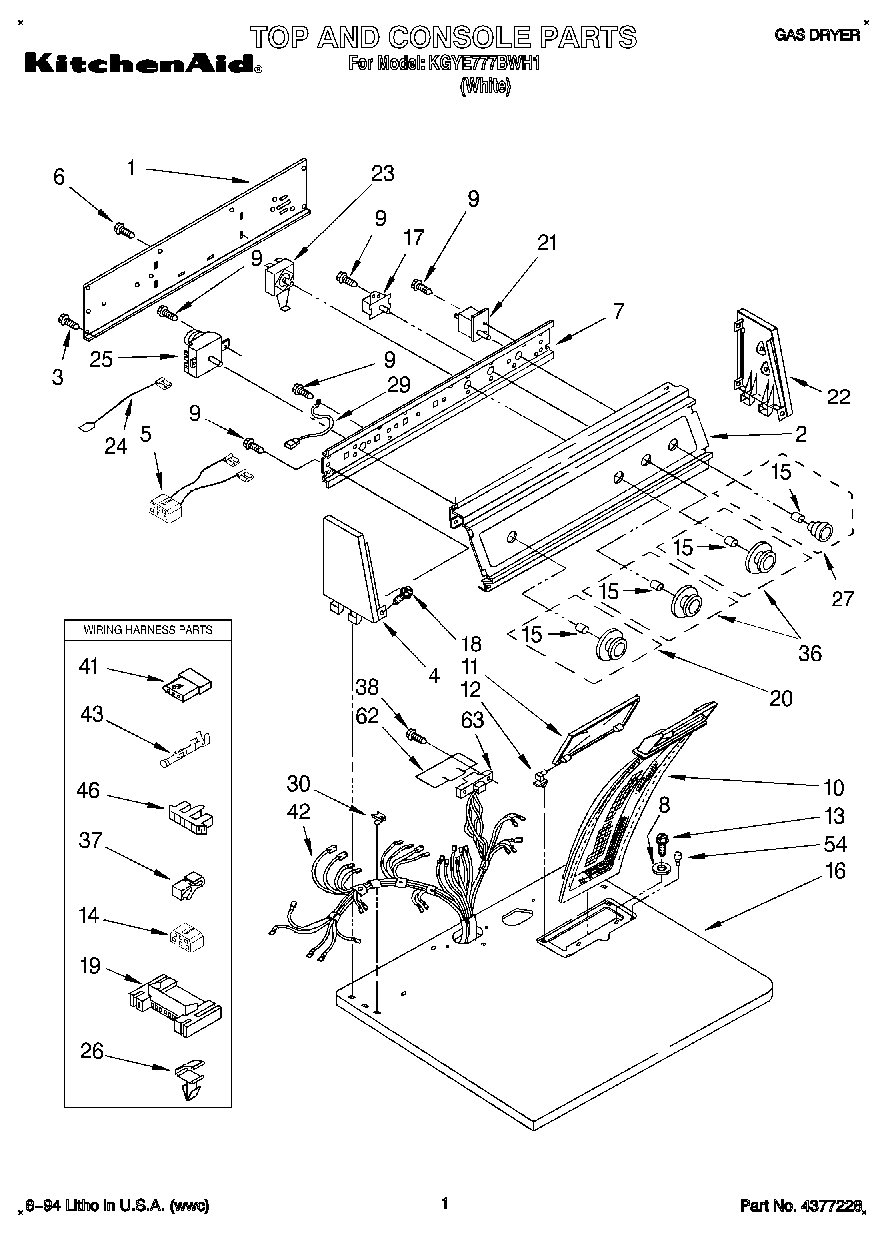

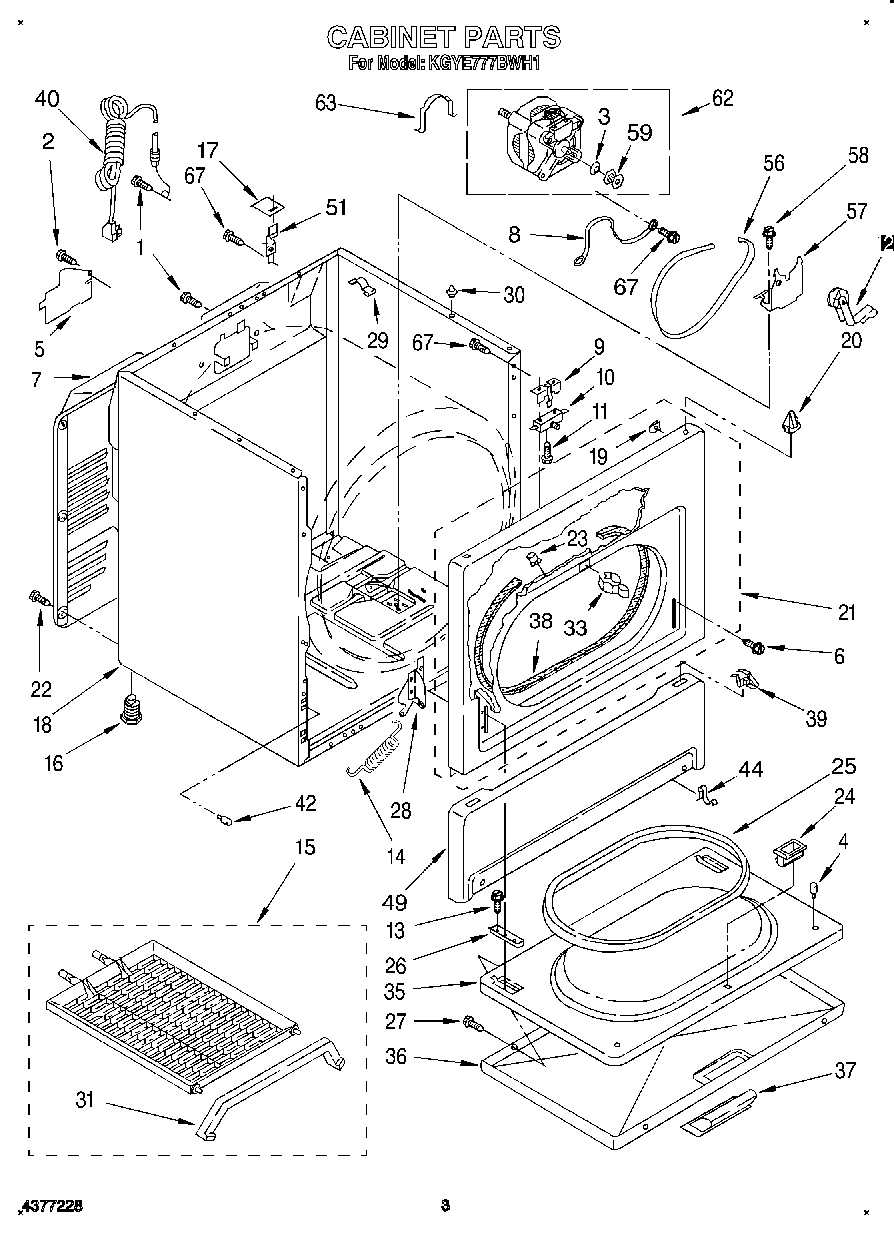

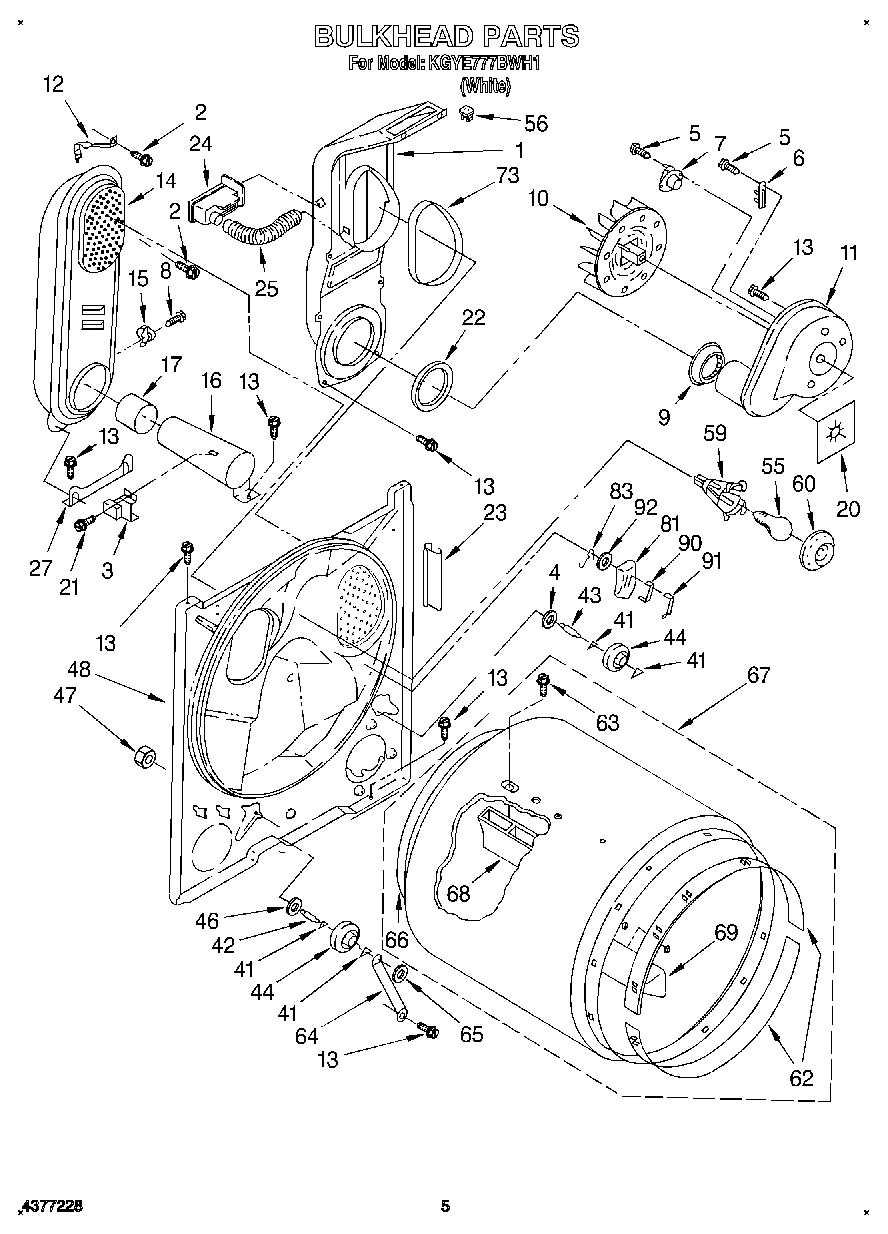

Model Whirlpool KGYE777BAL1 – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

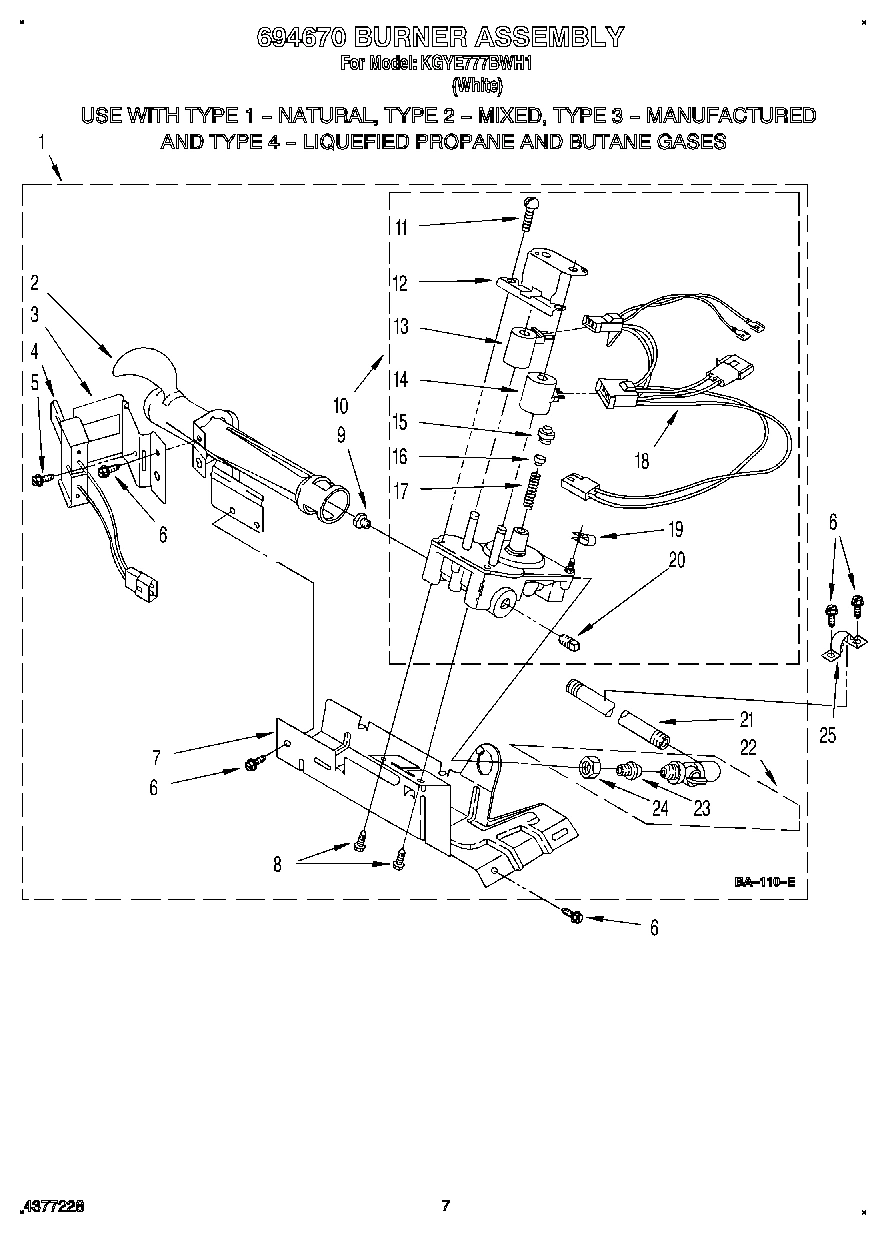

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability

1

Lint Chute Assembly WPL 686214 Contact Us For Availability

2

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $124.13

3

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

3

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $85.97

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $44.99

4

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.67

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $39.44

5

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

6

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

7

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $26.78

7

Base, Burner WPL 693986 Contact Us For Availability

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

9

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $14.02

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $7.99

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

10

279923 Whirlpool Gas Valve In Stock WPL 279923 $192.99

10

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $30.54

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $23.48

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

11

Housing, Blower WPL 695081 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $9.33

12

694538 Whirlpool Bracket Backorder WPL 694538 $51.47

12

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $8.58

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $26.92

15

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.98

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

15

Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability

16

279900 Whirlpool Box O/S1 Backorder WPL 279900 $213.99

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

17

Buzzer, Adjustable WPL 3394983 Contact Us For Availability

18

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $173.55

18

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

19

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

19

Clip, Harness WPL 694510 Contact Us For Availability

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.99

Knob, Timer WPL 3396267 Contact Us For Availability

Seal, Blower WPL 3392123 Contact Us For Availability

21

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

21

Switch, Push-To-Start WPL 3395395 Contact Us For Availability

21

Pipe, Gas Supply WPL 233273 Contact Us For Availability

22

W11415783 Whirlpool Seal In Stock WPL W11415783 $8.78

22

Cap, End (R.H.) WPL 3360567 Contact Us For Availability

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $90.96

23

686889 Whirlpool Pad Backorder WPL 686889 $14.02

23

WP3399640 Whirlpool Switch In Stock WPL WP3399640 $88.99

24

Nut, Compression WPL 233076 Contact Us For Availability

24

Wire, Jumper WPL 3393818 Contact Us For Availability

24

Alert, Lint WPL 690981 Contact Us For Availability

341029 Whirlpool Clamp Backorder WPL 341029 $8.13

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $19.99

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $72.99

Timer, 60Hz. WPL 3398139 Contact Us For Availability

Hose, Differential WPL 686577 Contact Us For Availability

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $14.02

26

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

27

Knob, Push-To-Start WPL 3396276 Contact Us For Availability

27

Support, Box WPL 348484 Contact Us For Availability

29

Wire, Ground WPL 690853 Contact Us For Availability

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

31

Bracket, Dryer Rack WPL 692989 Contact Us For Availability

35

WP695737 Whirlpool Door Backorder WPL WP695737 $158.45

36

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $107.01

36

Knob, Control (2) WPL 3363437 Contact Us For Availability

37

Clip WPL 689180 Contact Us For Availability

39

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $4.98

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

41

Connector WPL 691707 Contact Us For Availability

42

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $66.43

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $57.82

42

Harness, Gas WPL 3399676 Contact Us For Availability

43

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $56.99

44

WP297092 Whirlpool Clip In Stock WPL WP297092 $8.99

44

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $19.51

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

46

Connector, Timer WPL 3397269 Contact Us For Availability

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

48

Bulkhead WPL 3396791 Contact Us For Availability

54

Bumper, Lint Lid WPL 297535 Contact Us For Availability

55

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

56

98460 Whirlpool Nut Backorder WPL 98460 $8.89

57

WP348780 Whirlpool Base In Stock WPL WP348780 $74.99

59

Socket Assembly WPL 691034 Contact Us For Availability

60

Lens, Drum Light WPL 341165 Contact Us For Availability

62

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $73.74

62

WPW10476828-includeCORE Whirlpool WPW10476828 Backorder WPL WPW10476828-includeCORE $237.84

63

3391885 Whirlpool Connector Backorder WPL 3391885 $59.13

63

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $4.99

64

W11684613 Whirlpool Bracket Backorder WPL W11684613 $13.15

65

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

66

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $30.60

67

W10899578 Whirlpool Dryer Drum Assembly In Stock WPL W10899578 $175.99

68

WP692490 Whirlpool Drum Baffle Backorder WPL WP692490 $101.99

69

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $92.28

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.98

81

279366 Whirlpool Sensor Kit In Stock WPL 279366 $71.82

83

WP342267 Whirlpool Clip Backorder WPL WP342267 $4.62

90

WP348859 Whirlpool Electrode Assembly Backorder WPL WP348859 $4.82

91

WP348860 Whirlpool Electrode Backorder WPL WP348860 $4.82

92

WP298877 Whirlpool Washer Backorder WPL WP298877 $15.23
