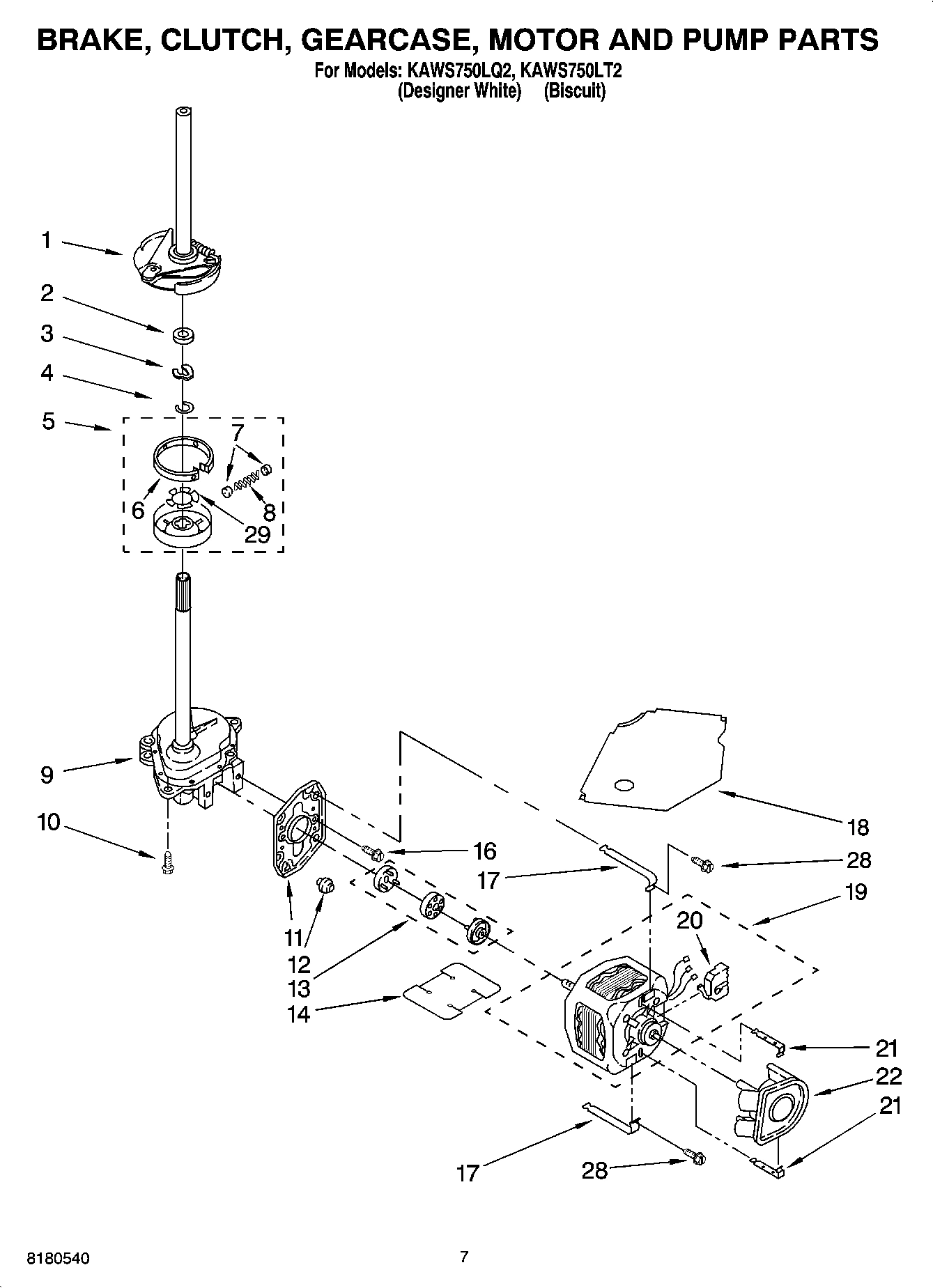

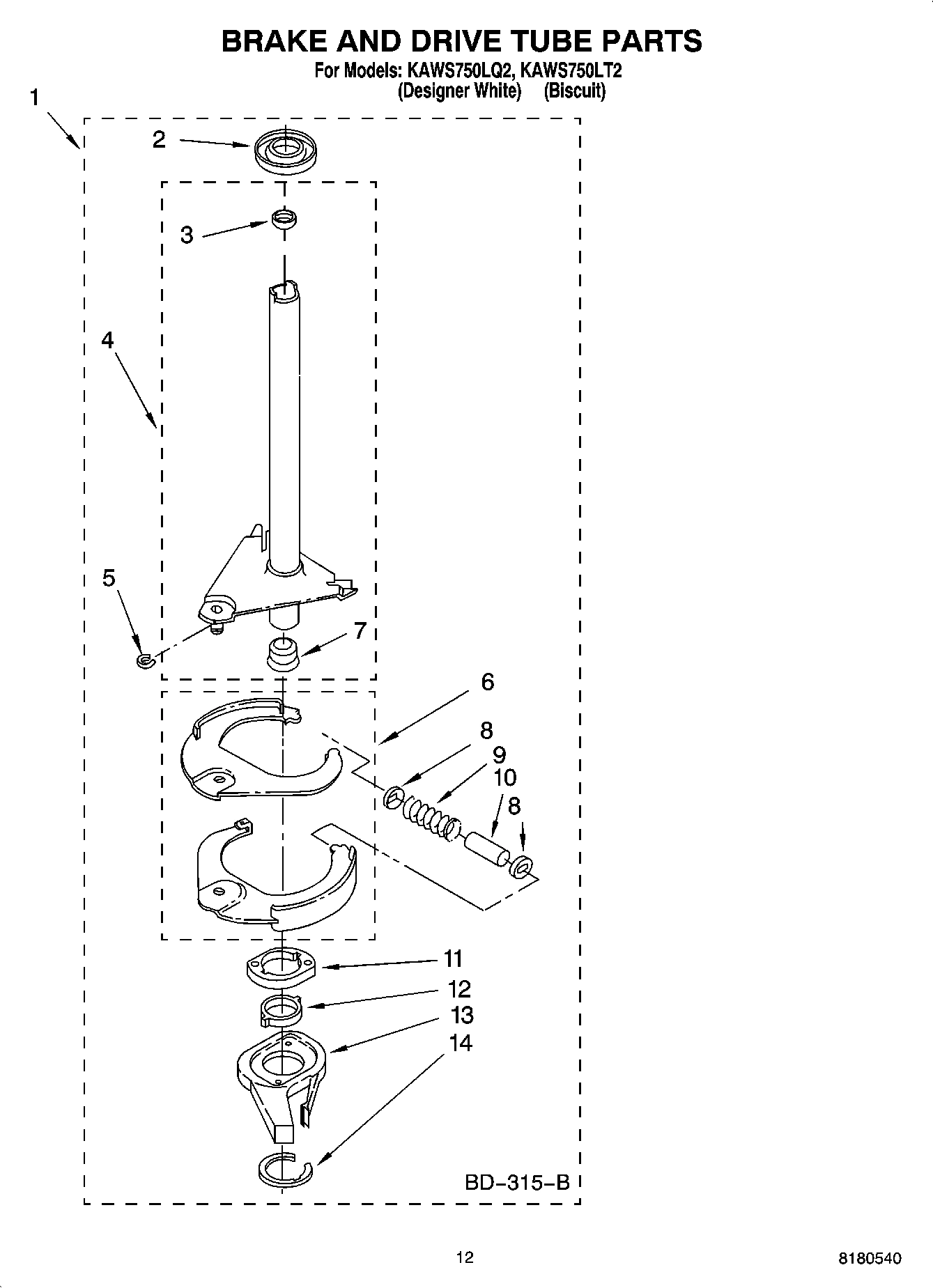

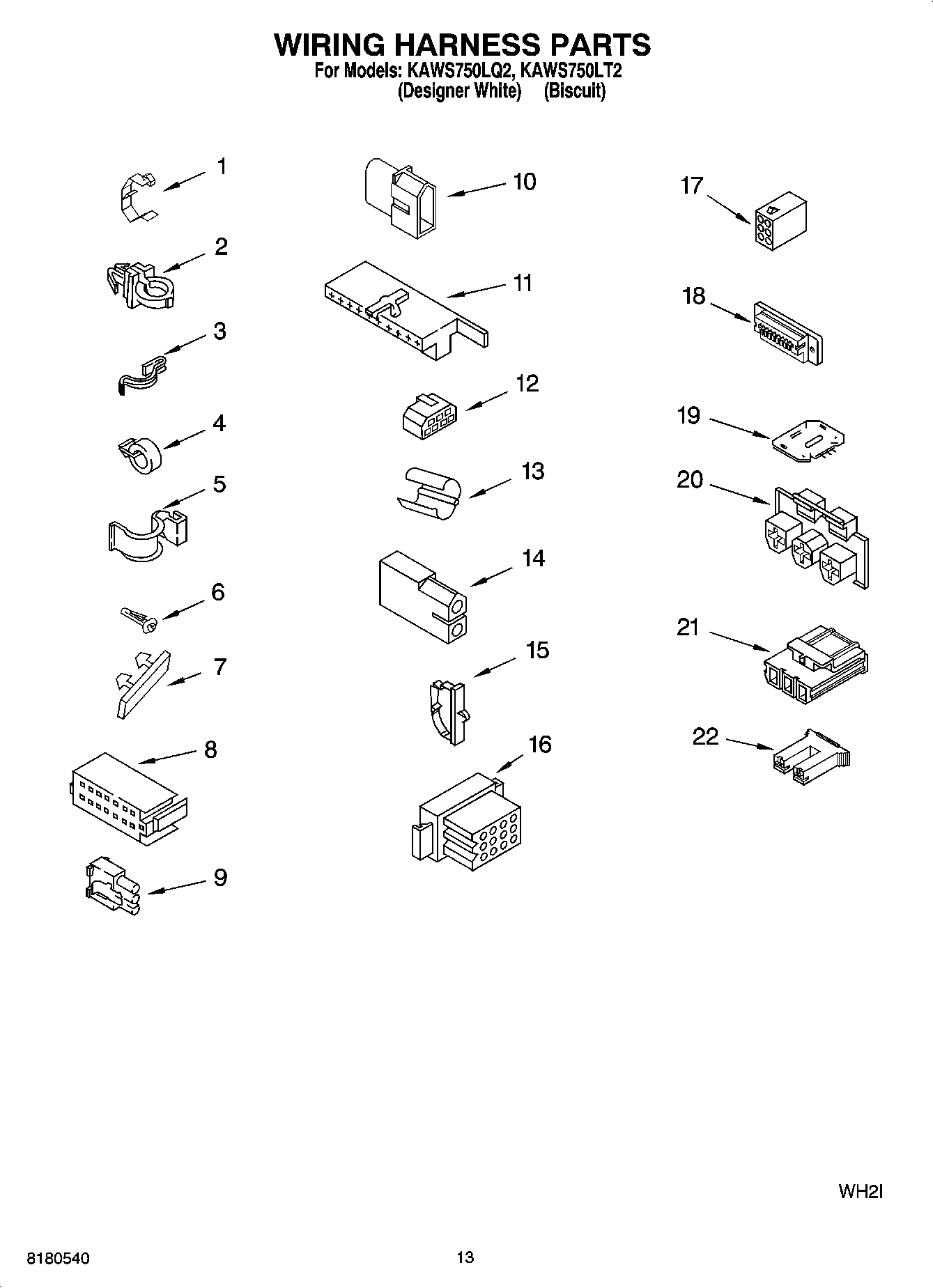

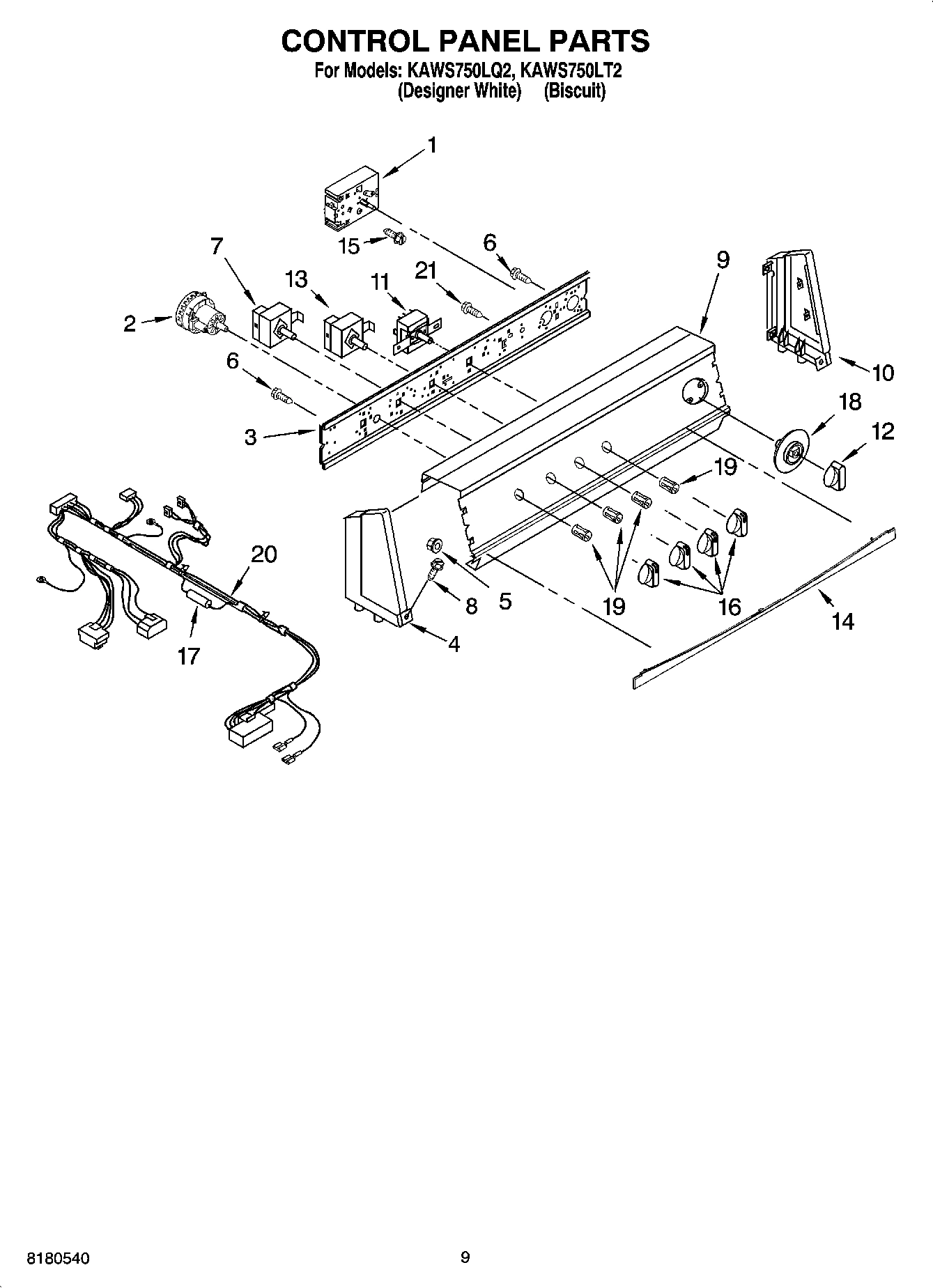

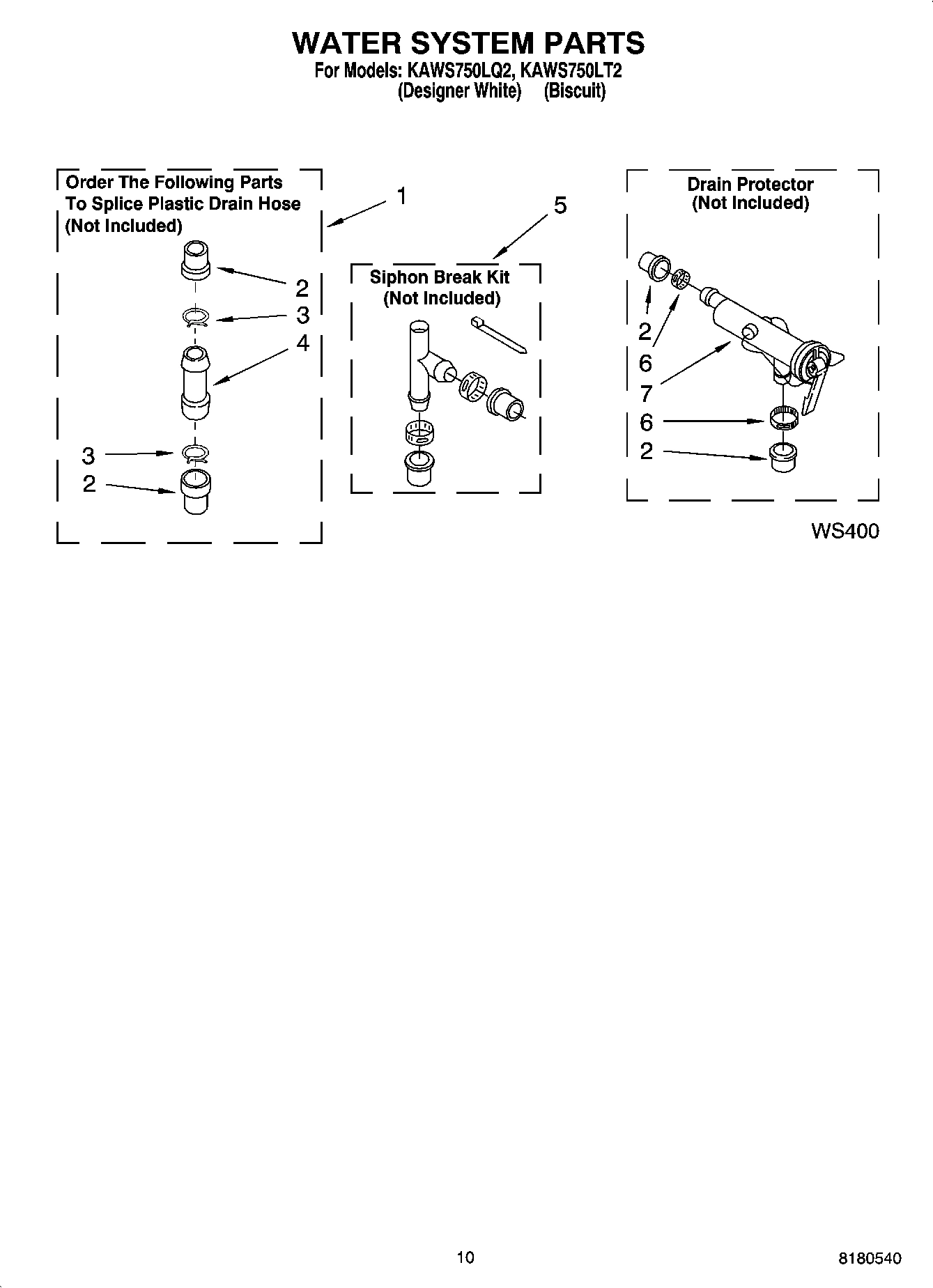

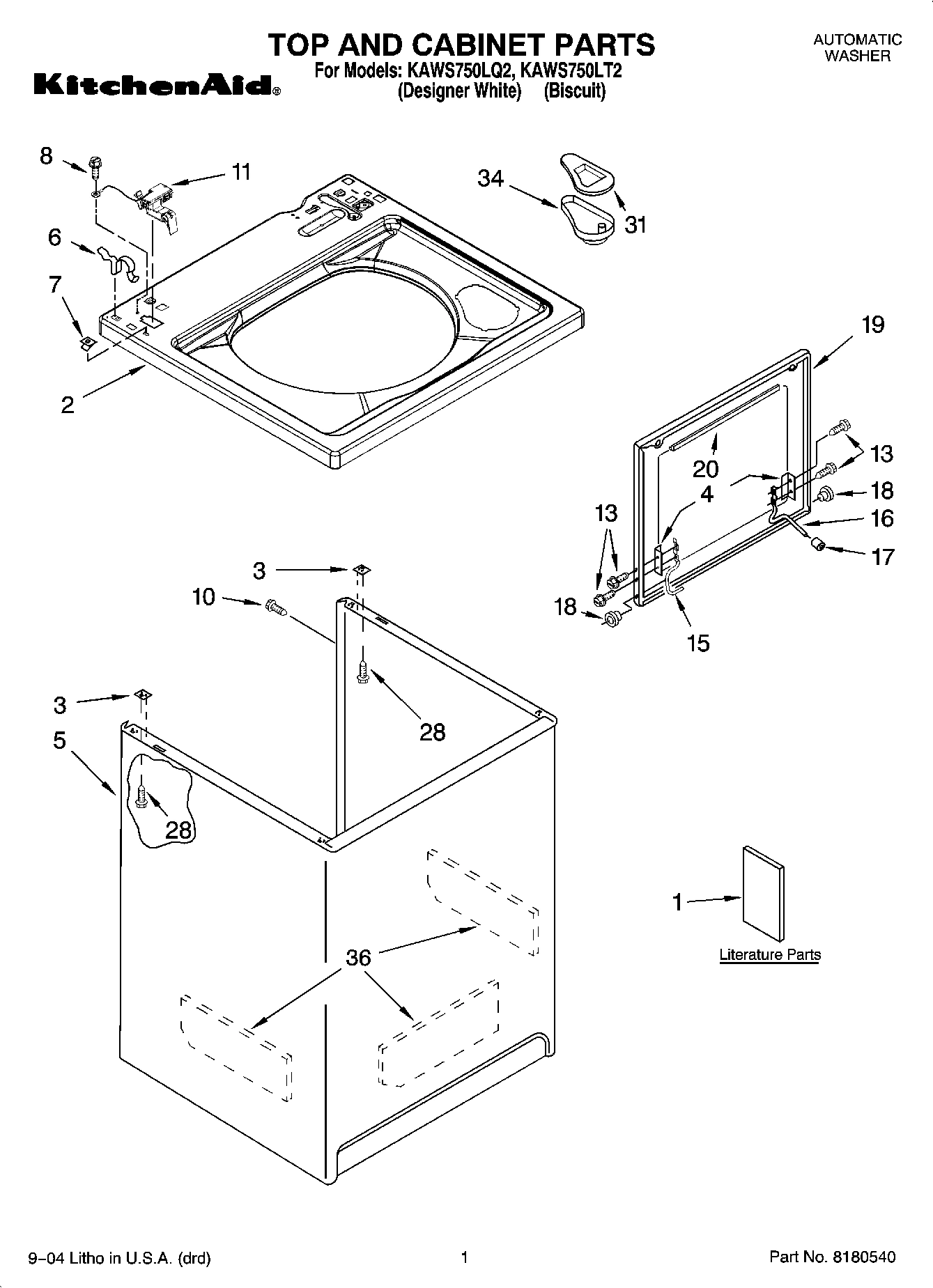

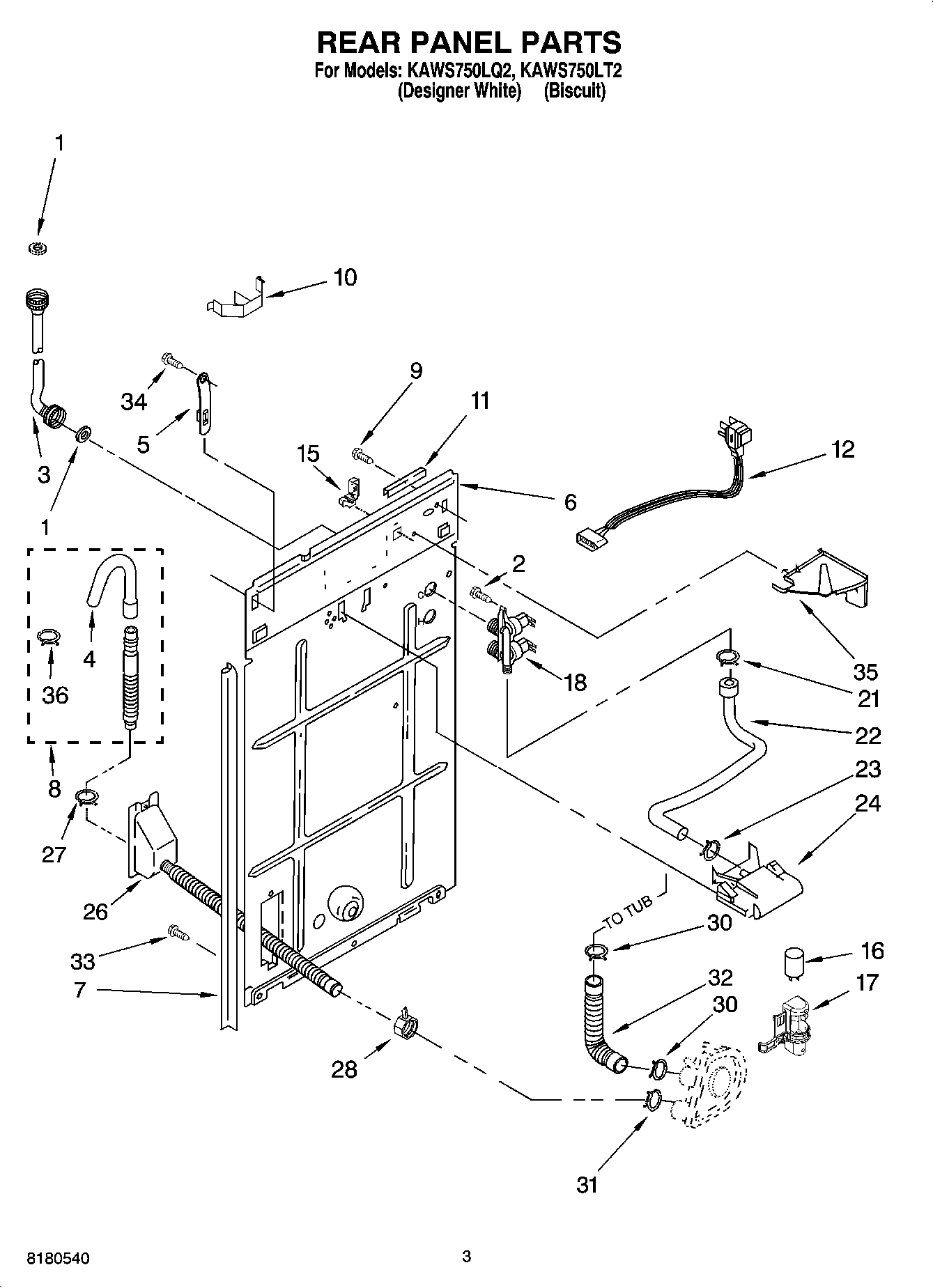

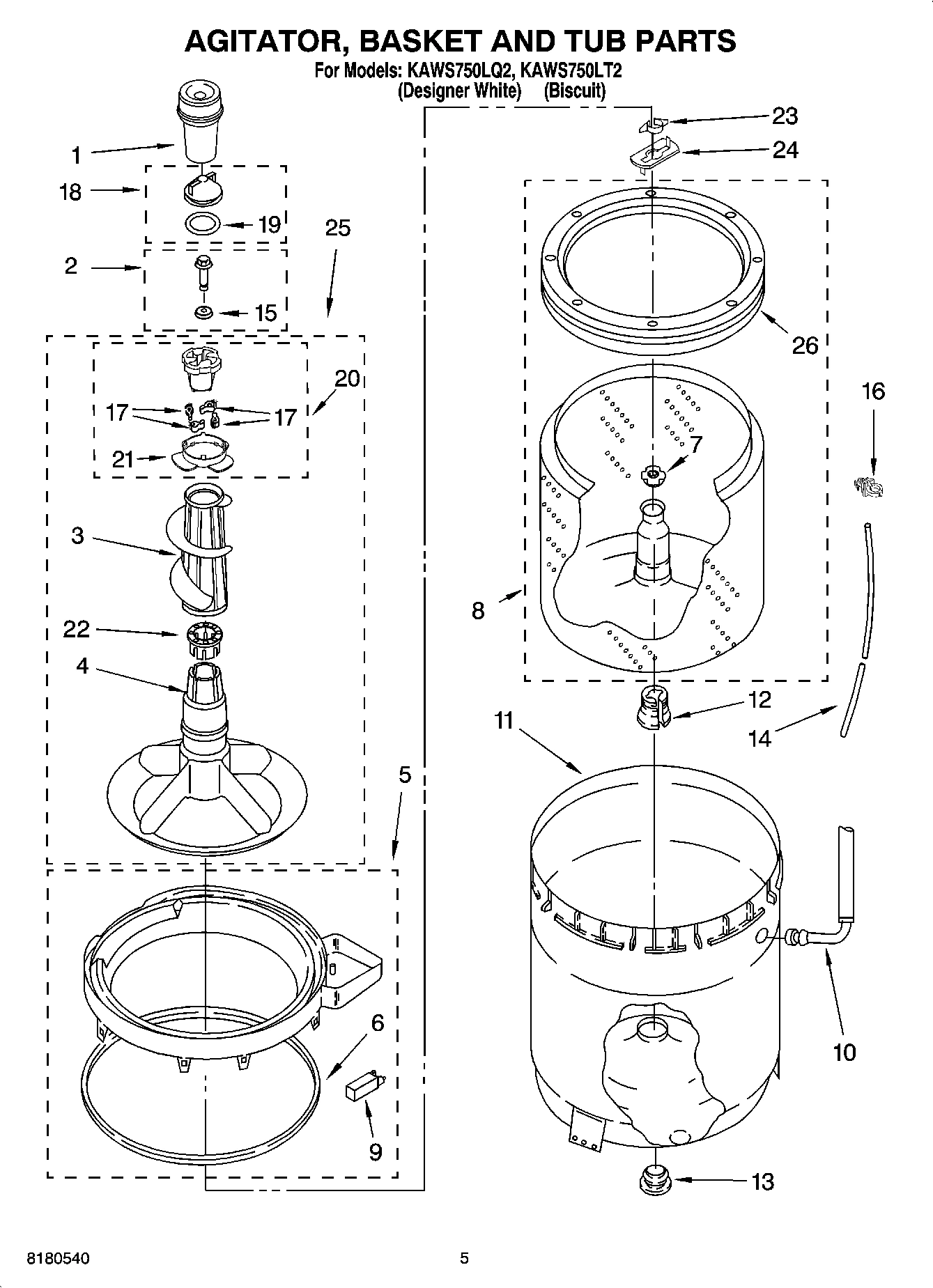

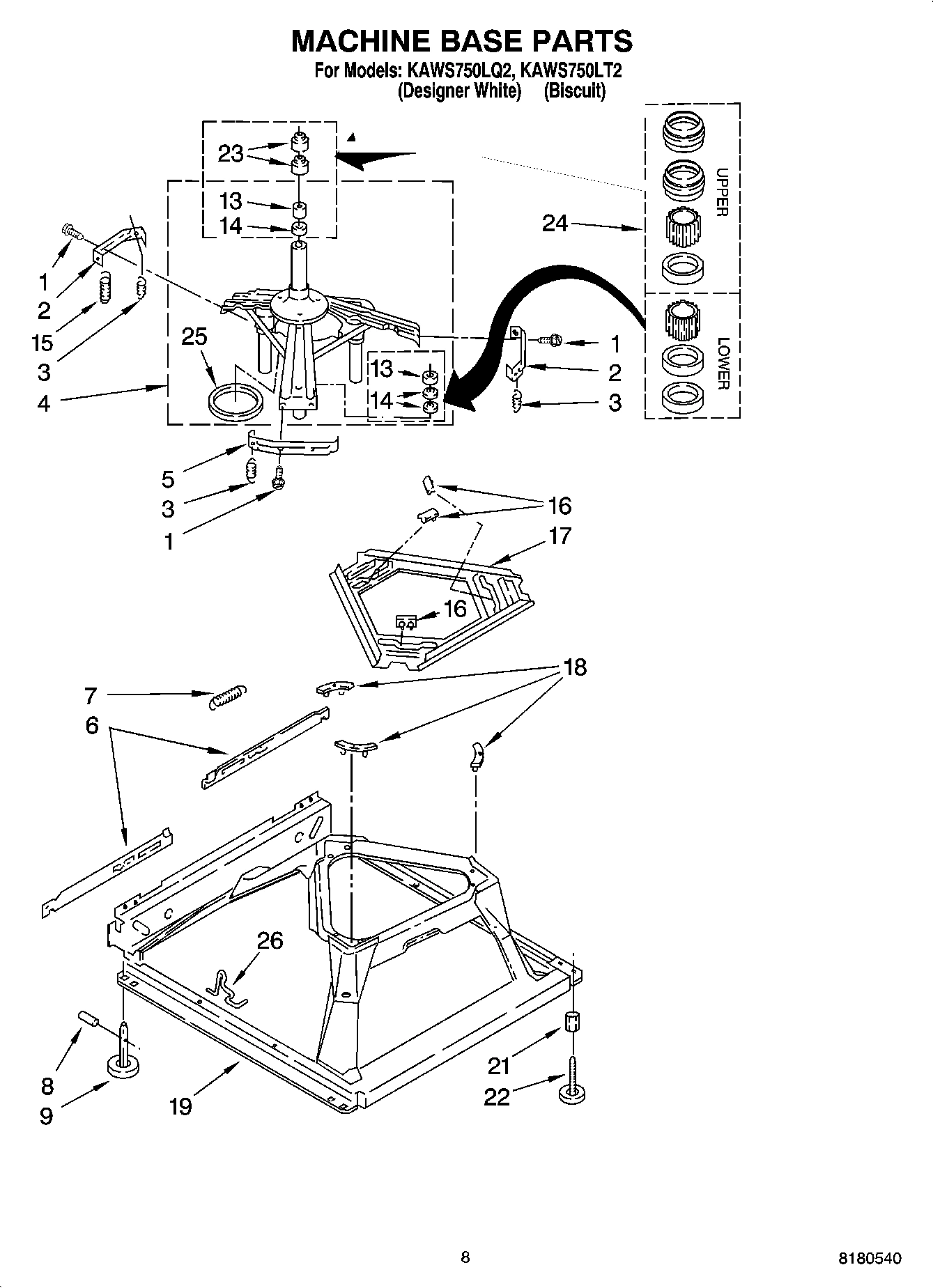

Model Whirlpool KAWS750LT2 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $58.36

WPL 799344 WPL 799344 Contact Us For Availability

WPL 367031 WPL 367031 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

WPL 4392900 WPL 4392900 Contact Us For Availability

WPL ARI153198A WPL ARI153198A Contact Us For Availability

WPL ARI153199A WPL ARI153199A Contact Us For Availability

WPL ARI153200A WPL ARI153200A Contact Us For Availability

WPL ARI153201A WPL ARI153201A Contact Us For Availability

WPL ARI153202A WPL ARI153202A Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $59.26

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.99

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

1

Timer, Control (60 Hz.) (Motor Not Serviced) WPL 8563594 Contact Us For Availability

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 3976263 Contact Us For Availability

1

Energy Guide WPL 3955581 Contact Us For Availability

1

Use & Care Guide WPL 3955871 Contact Us For Availability

1

Feature Sheet WPL 3955912 Contact Us For Availability

1

Installation Instructions WPL 3956025 Contact Us For Availability

1

Wiring Diagram WPL 8563596 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

285321 Whirlpool Sleeve Backorder WPL 285321 $54.14

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

2

Clip, Harness WPL 388498 Contact Us For Availability

2

Top (White) WPL 8543447 Contact Us For Availability

2

Top (Biscuit) WPL 8543448 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

Clothes Mover WPL 3950581 Contact Us For Availability

4

8559320 Whirlpool Clip Backorder WPL 8559320 $31.46

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

4

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (Biscuit) WPL 3954357 Contact Us For Availability

6

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

7

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $4.82

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

Switch, Water Temperature WPL 661614 Contact Us For Availability

8

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

8

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

353424 Whirlpool Connector Backorder WPL 353424 $14.02

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

Hose, Bleach WPL 3948705 Contact Us For Availability

Spring, Agitate WPL 62676 Contact Us For Availability

11

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

11

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $40.99

11

Tub WPL 8283125 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

Knob, Timer (Biscuit) WPL 3956180 Contact Us For Availability

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

WPW10168257 Whirlpool Cycle Switch Backorder WPL WPW10168257 $92.01

Protector WPL 63523 Contact Us For Availability

14

Spacer, Console (White) WPL 8536941 Contact Us For Availability

14

Spacer, Console (Biscuit) WPL 8536942 Contact Us For Availability

14

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $4.82

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

Clip, Harness WPL 3352944 Contact Us For Availability

Hinge, Lid (L.H.) WPL 8559336 Contact Us For Availability

WP54583 Whirlpool Hinge Backorder WPL WP54583 $18.77

Knob, Control (Includes 19) (White) WPL 3956182 Contact Us For Availability

Knob, Control (Includes 19) (Biscuit) WPL 3956183 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Clip, Capacitor WPL 8318046 Contact Us For Availability

Fuse (In Harness) WPL 8317387 Contact Us For Availability

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

Dial, Timer (White) WPL 3956230 Contact Us For Availability

Dial, Timer (Biscuit) WPL 3956231 Contact Us For Availability

Connector, Etc WPL 3349494 Contact Us For Availability

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $9.86

Motor, Main Drive WPL 8529936 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

E.T.C. Control WPL 3407125 Contact Us For Availability

Lid (White) WPL 3956149 Contact Us For Availability

Lid (Biscuit) WPL 3956150 Contact Us For Availability

WP2172937 Whirlpool Connector In Stock WPL WP2172937 $12.98

Seal, Lid WPL 8054939 Contact Us For Availability

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

Harness, Wire (For Detail See Pages 13 & 14) WPL 3957251 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

3400073 Whirlpool Screw Backorder WPL 3400073 $5.85

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.82

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

Connector (T.P.A.) (3-Circuit) (Pressure Swit WPL 3360056 Contact Us For Availability

3354925 Whirlpool Connector Backorder WPL 3354925 $14.02

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

Block, Connector (Hot Valve) WPL 3354926 Contact Us For Availability

23

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

Agitator (Complete) WPL 3950579 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

28

Clamp, Hose WPL 3976395 Contact Us For Availability

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

31

Cover, Dispenser WPL 8055325 Contact Us For Availability

34

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

34

Dispenser, Bleach WPL 8519517 Contact Us For Availability

35

Shield, Suds WPL 8539874 Contact Us For Availability

36

Sound-Damper (3) (Cabinet) WPL 3976348 Contact Us For Availability
